Diagrams for the Stihl HL 45 Long Reach Hedgetrimmer
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl HL 45 Long Reach Hedgetrimmer.
Diagrams for this machine
Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl HL 45 Long Reach Hedgetrimmer
HL45

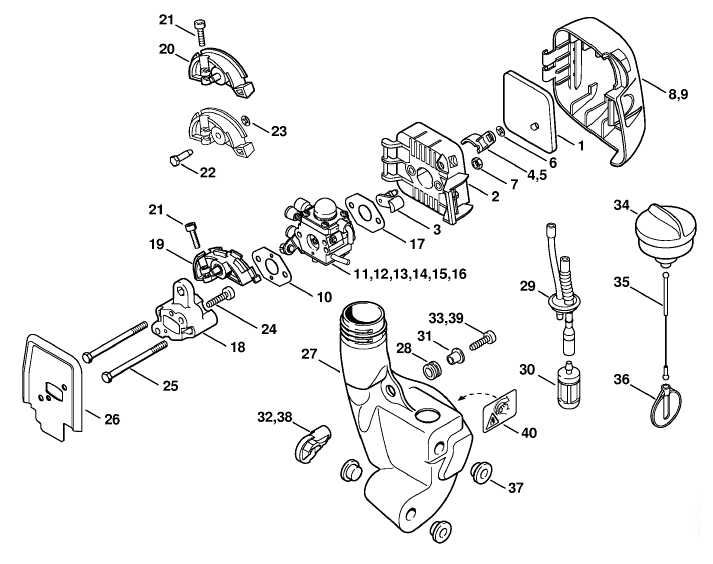

Air filter
Angle drive (24.2005)

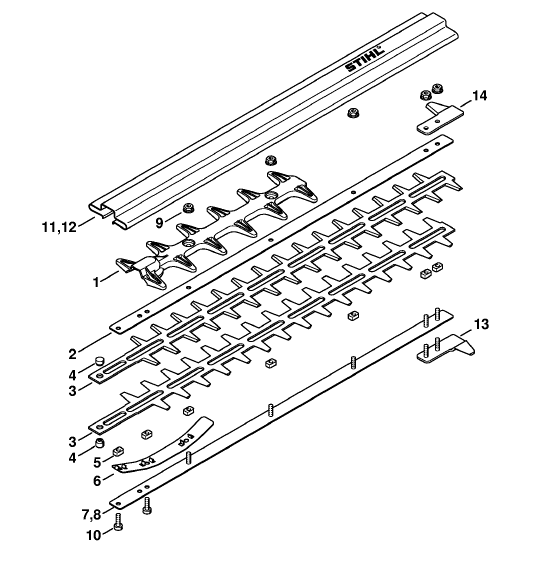

Blade

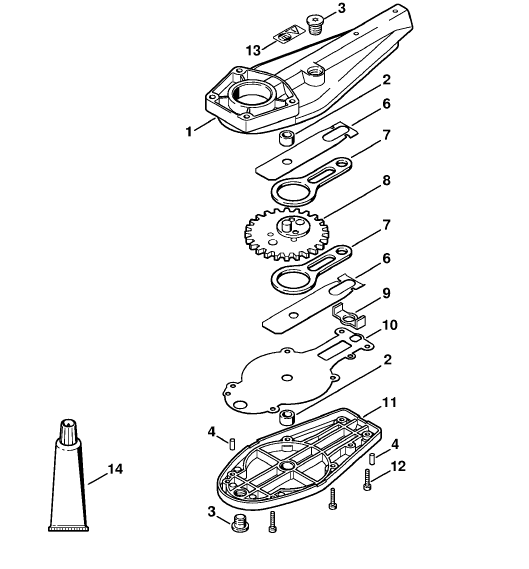

Blade drive gear (24.2005)

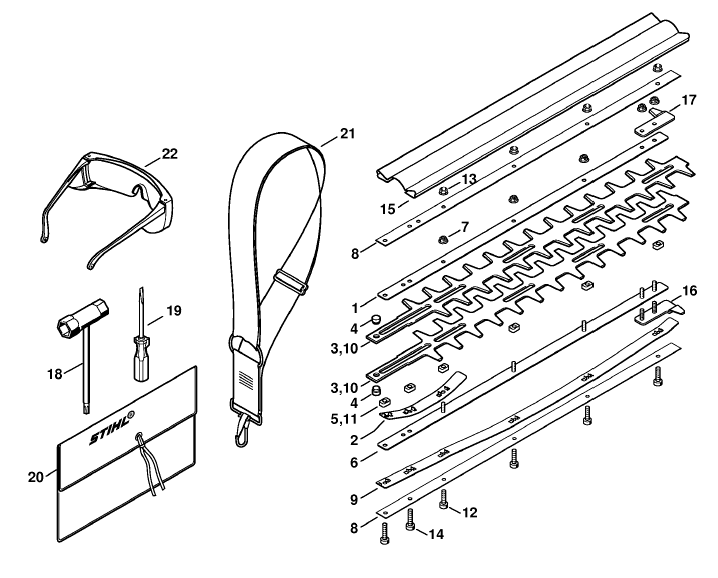

Blade

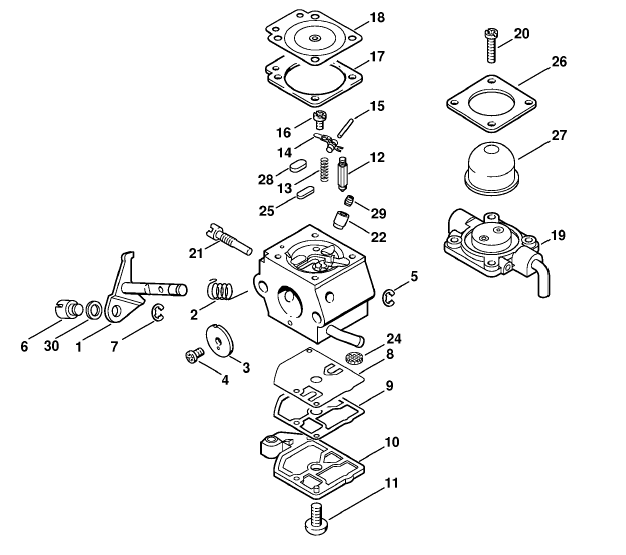

Carburetor C1QS53A (27.2001)

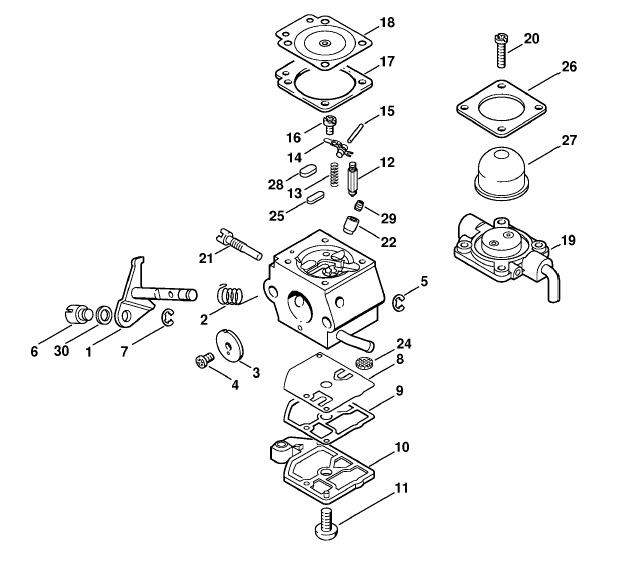

Carburetor C1QS58 (27.2001)

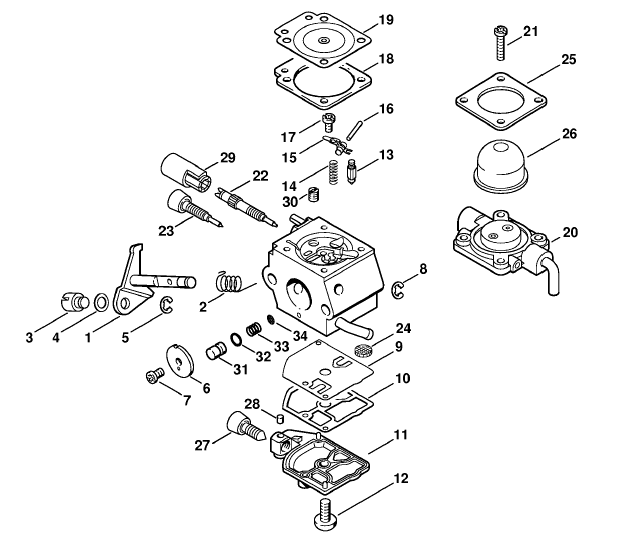

Carburetor C1QS66

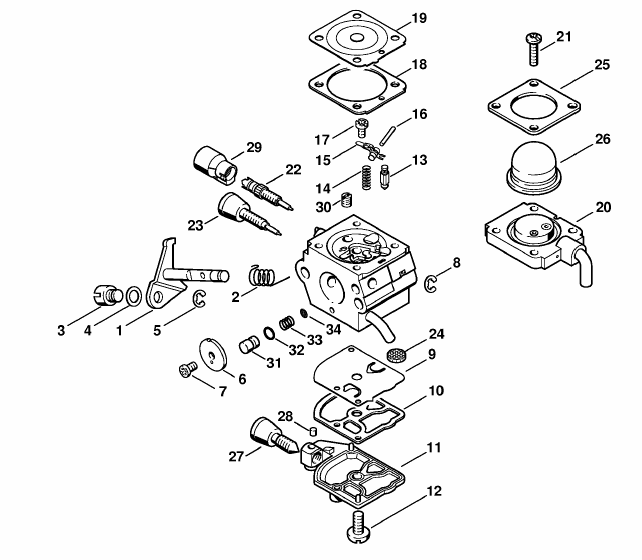

Carburetor C1QS71 (25.2004)

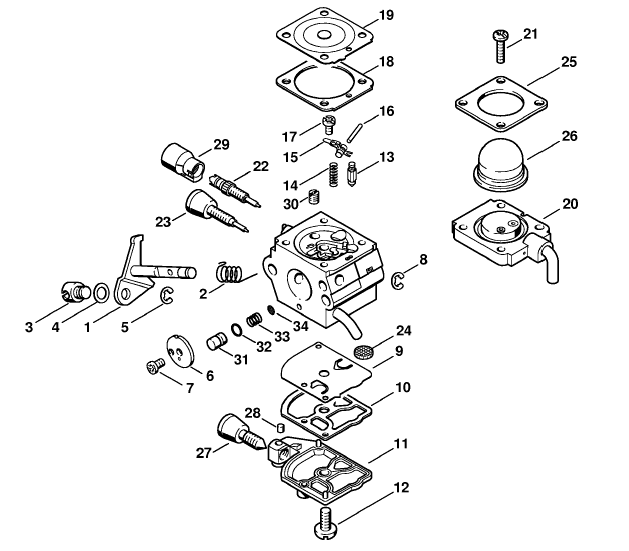

Carburetor C1QS97A

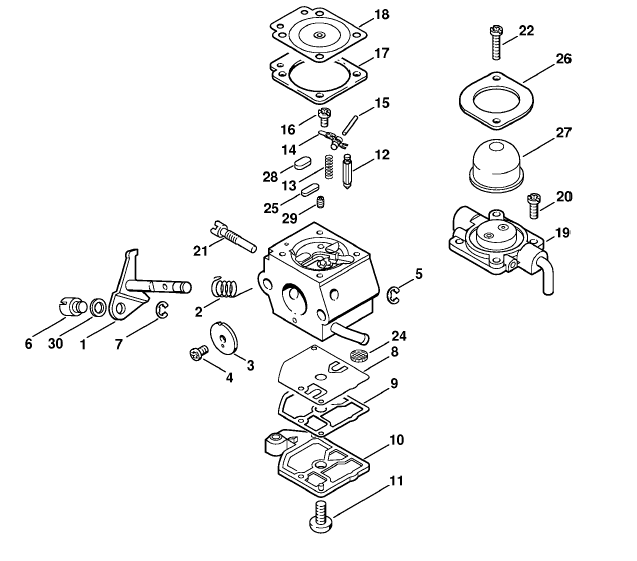

Carburetor C1Q-S44A (27.2001)

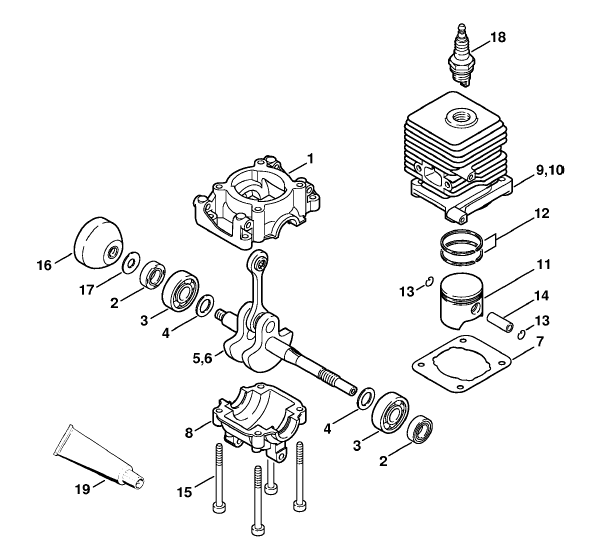

Crankcase

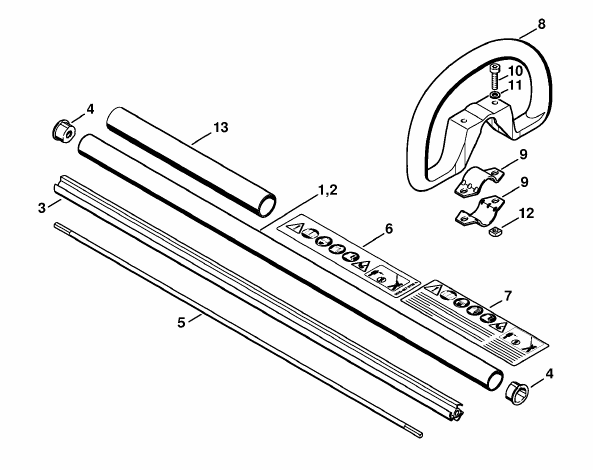

Drive tube assembly

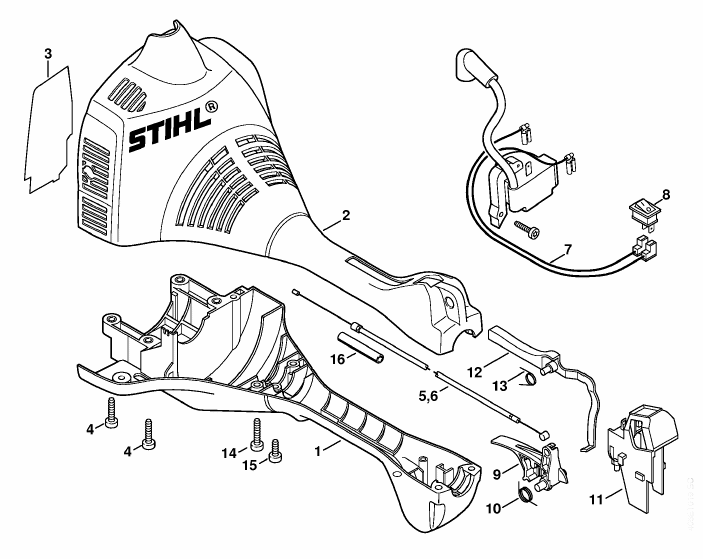

Engine housing

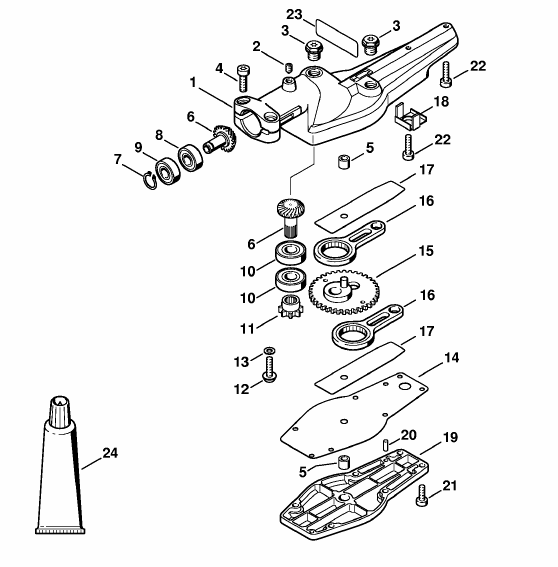

Gear head 0Á

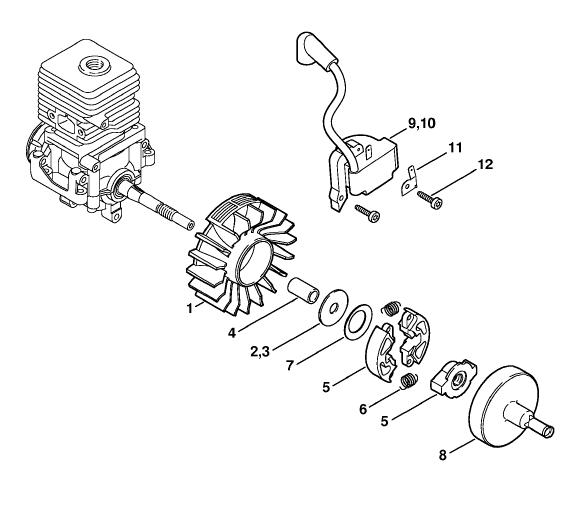

Ignition system

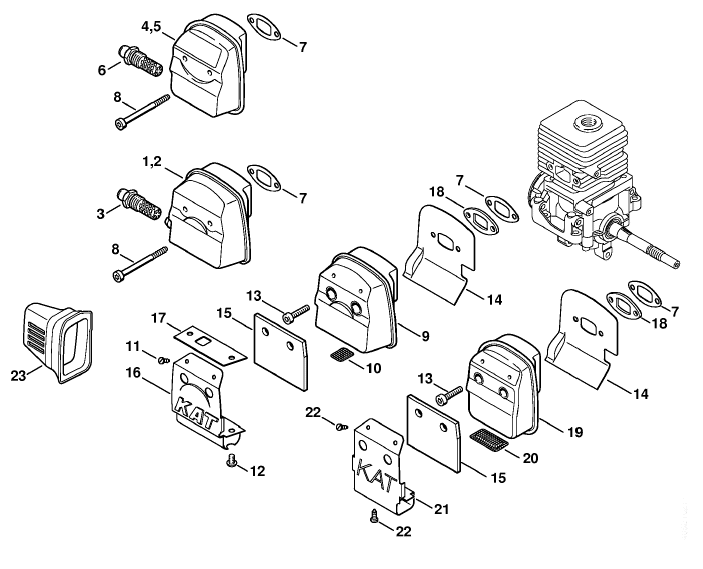

Muffler

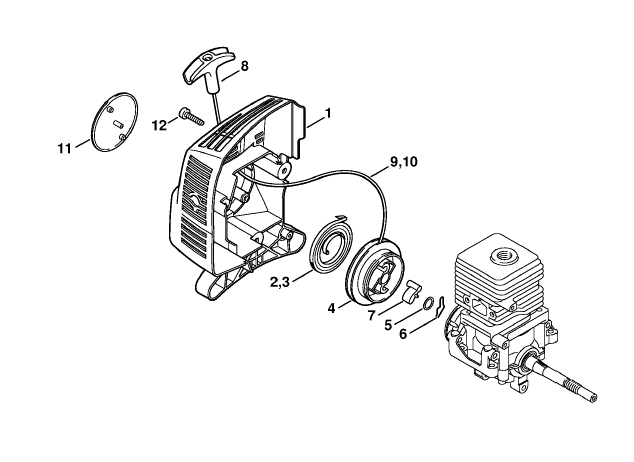

Rewind starter
