Diagrams for the Stihl HL 45 Z Long Reach Hedgetrimmer
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl HL 45 Z Long Reach Hedgetrimmer.
Diagrams for this machine
Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl HL 45 Z Long Reach Hedgetrimmer
HL45Z

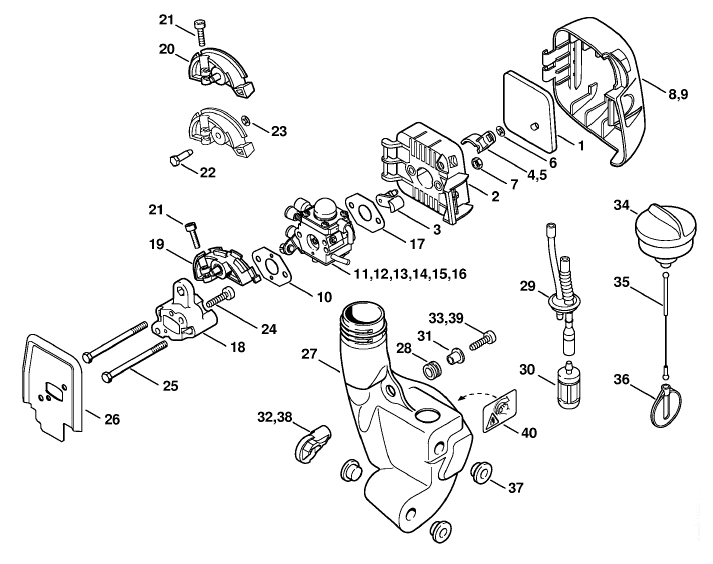

Air filter
Angle drive (24.2005)

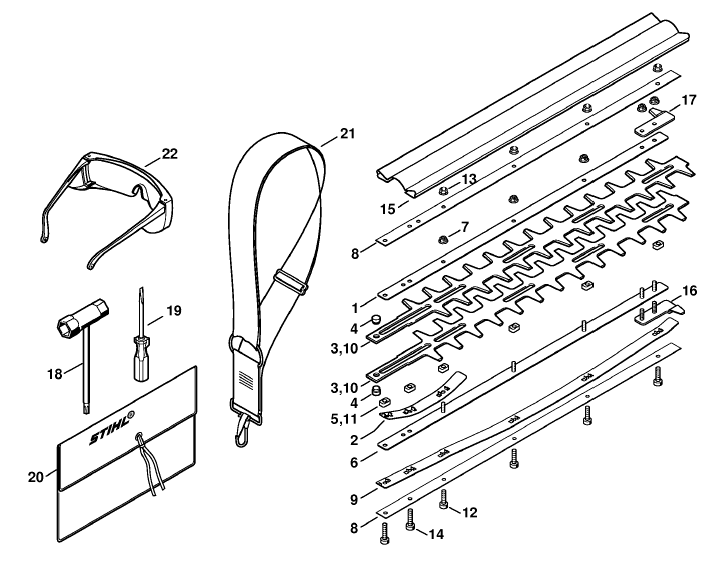

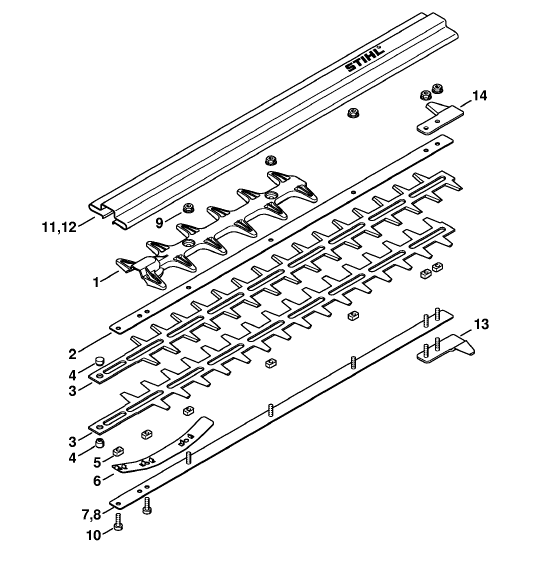

Blade

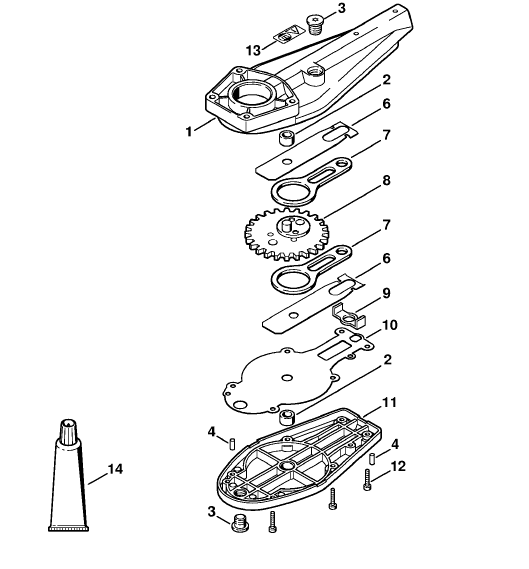

Blade drive gear (24.2005)
Blade

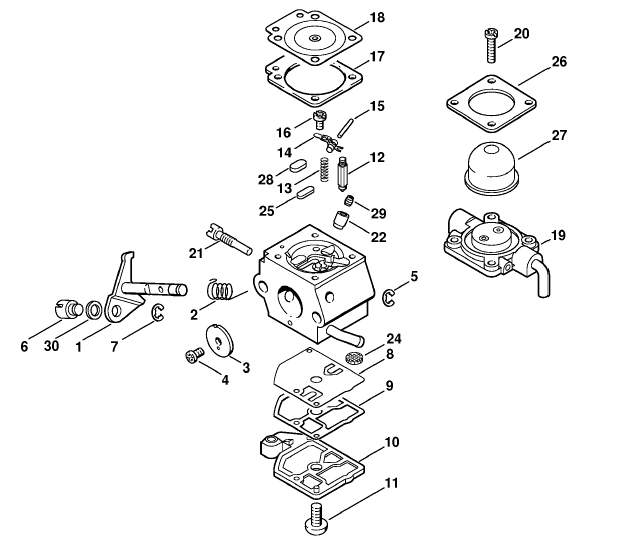

Carburetor C1QS53A (27.2001)

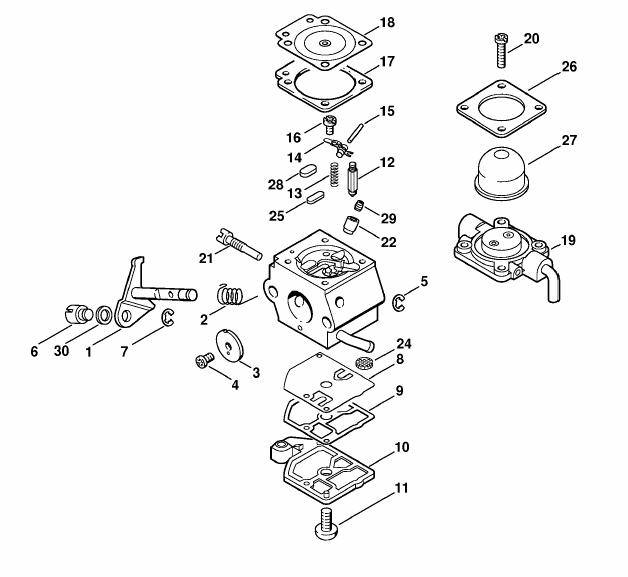

Carburetor C1QS58 (27.2001)

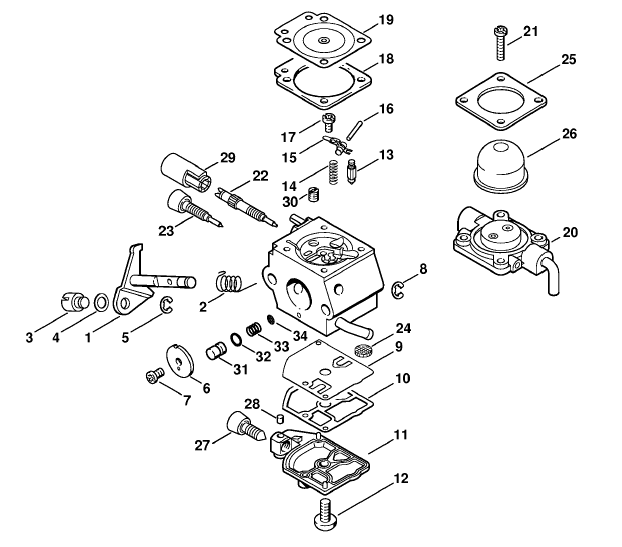

Carburetor C1QS66

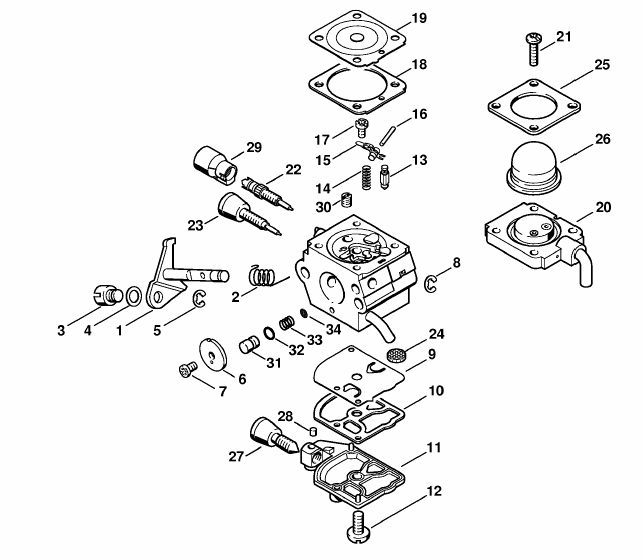

Carburetor C1QS71 (25.2004)

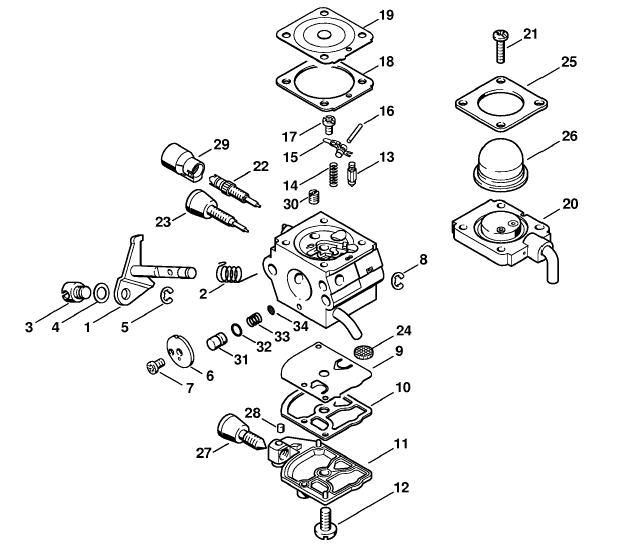

Carburetor C1QS97A

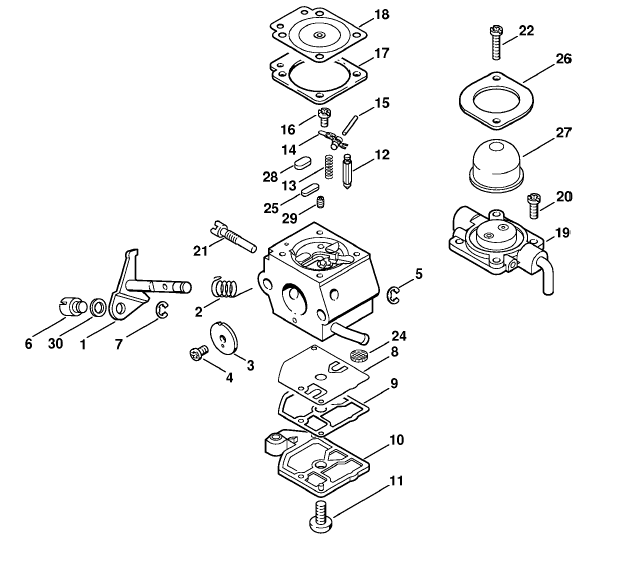

Carburetor C1Q-S44A (27.2001)

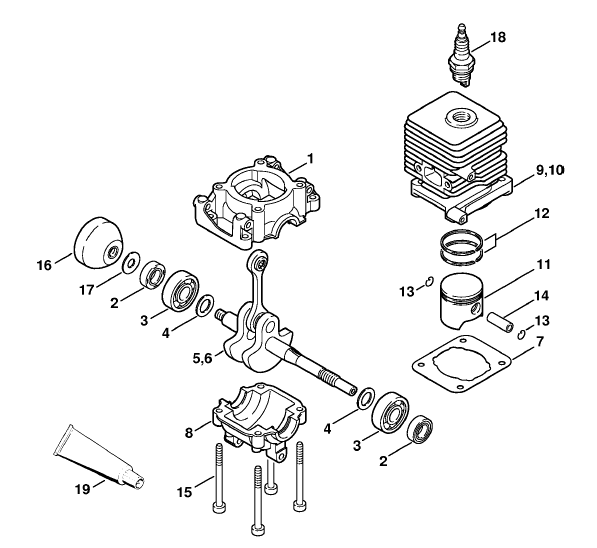

Crankcase

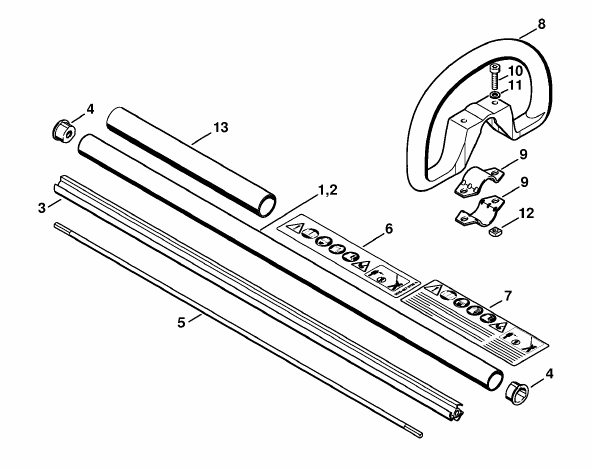

Drive tube assembly

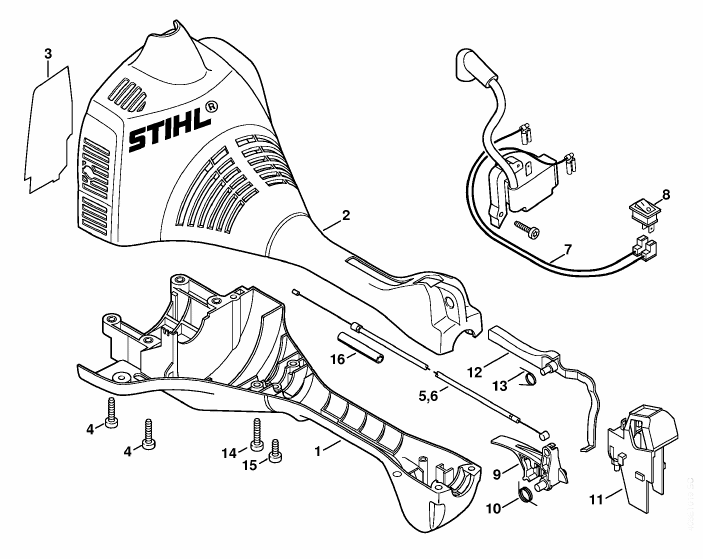

Engine housing

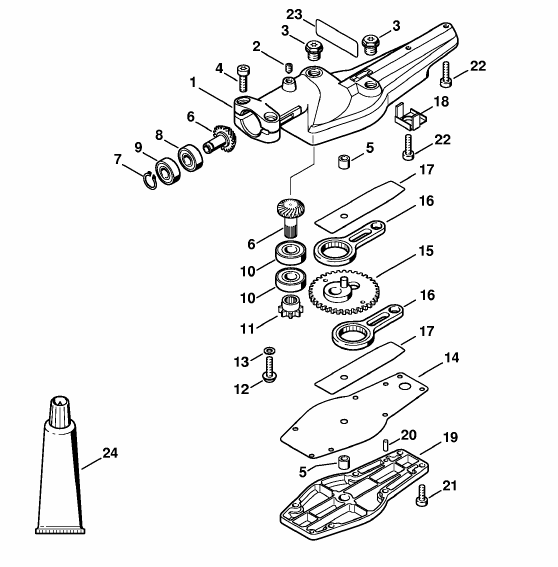

Gear head 0Á

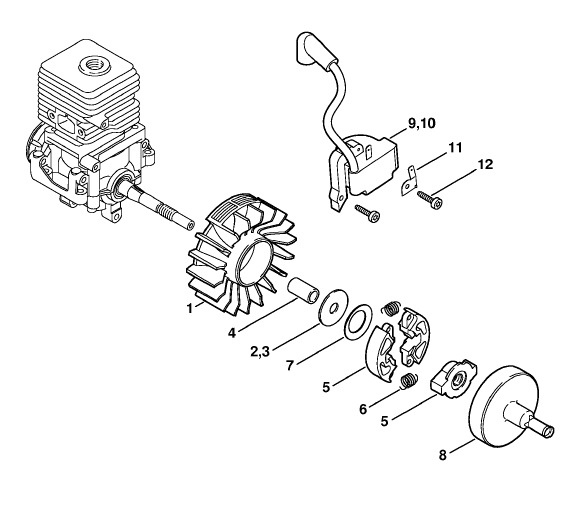

Ignition system

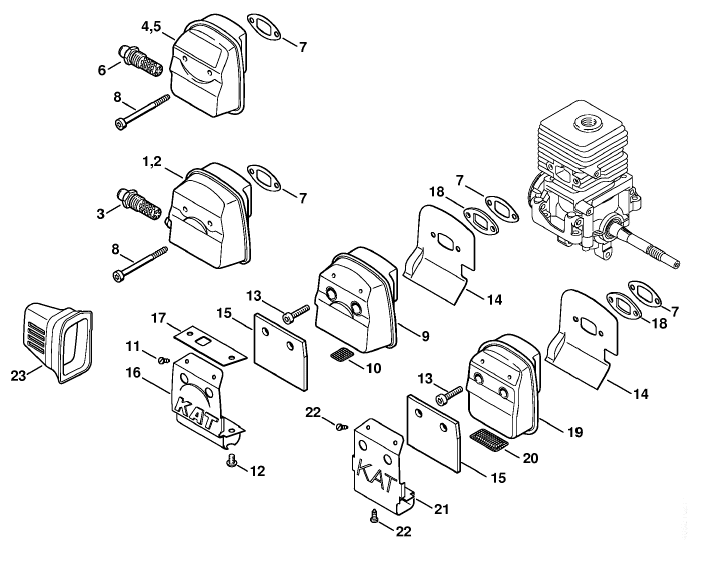

Muffler

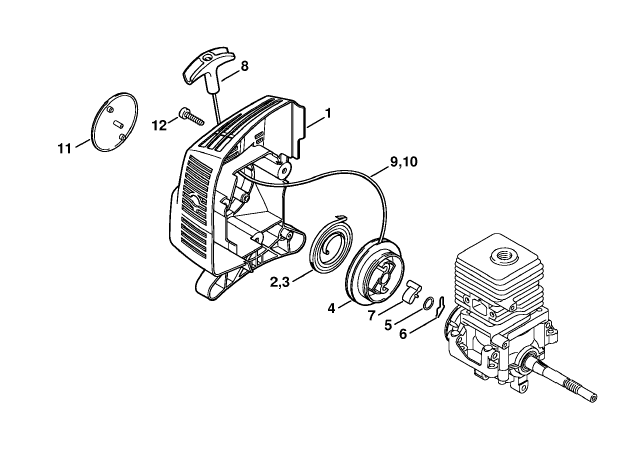

Rewind starter
