Diagrams for the Stihl HL 100 K-Z Long Reach Hedgetrimmer
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl HL 100 K-Z Long Reach Hedgetrimmer.
Diagrams for this machine
Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl HL 100 K-Z Long Reach Hedgetrimmer
HL100K-Z

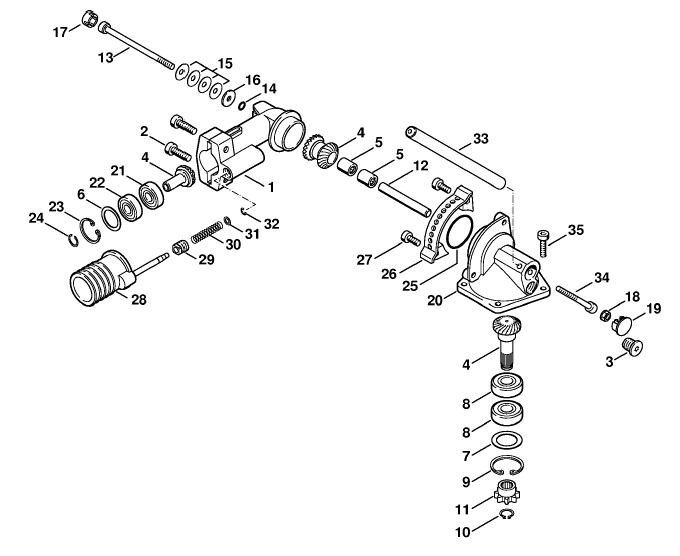

Angle drive 0Á - 90Á (24.2005)

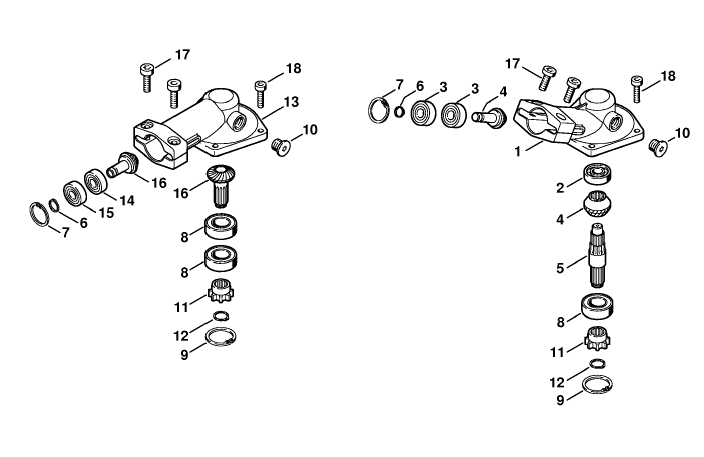

Angle drive 0Á

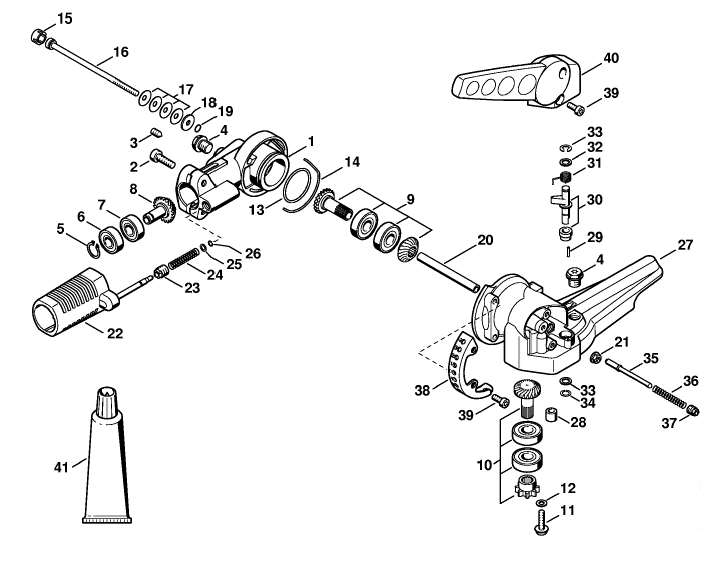

Angle drive

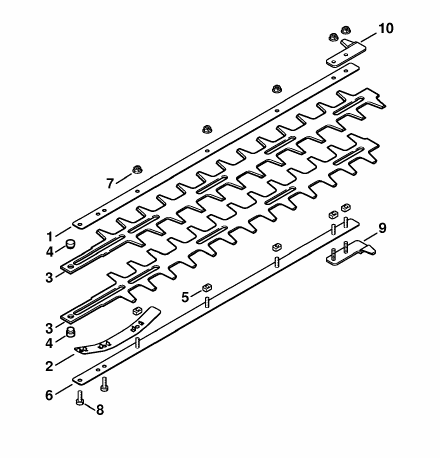

Blade 0Á

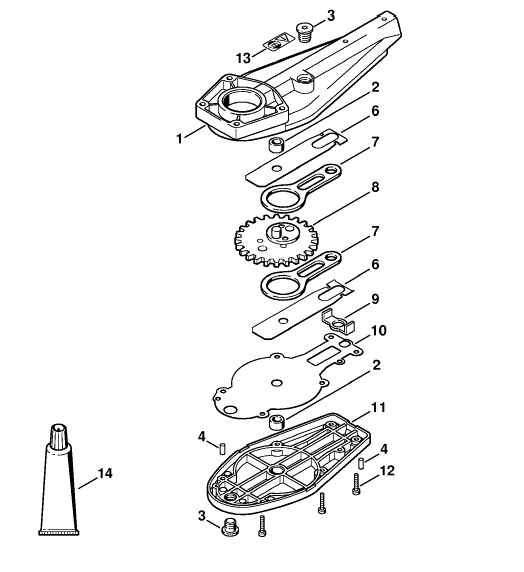

Blade drive gear 0Á

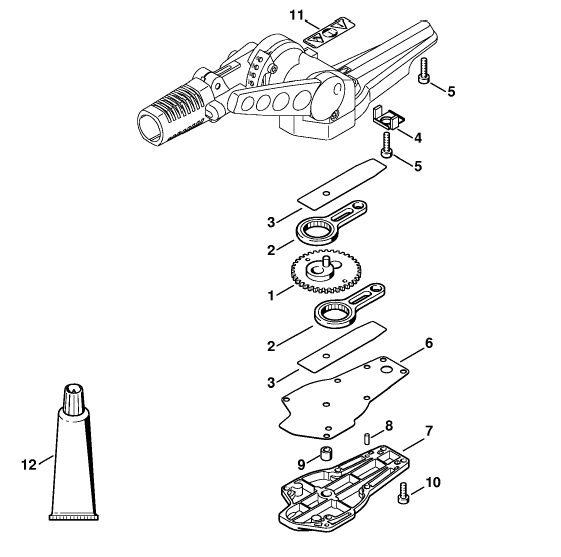

Blade drive gear

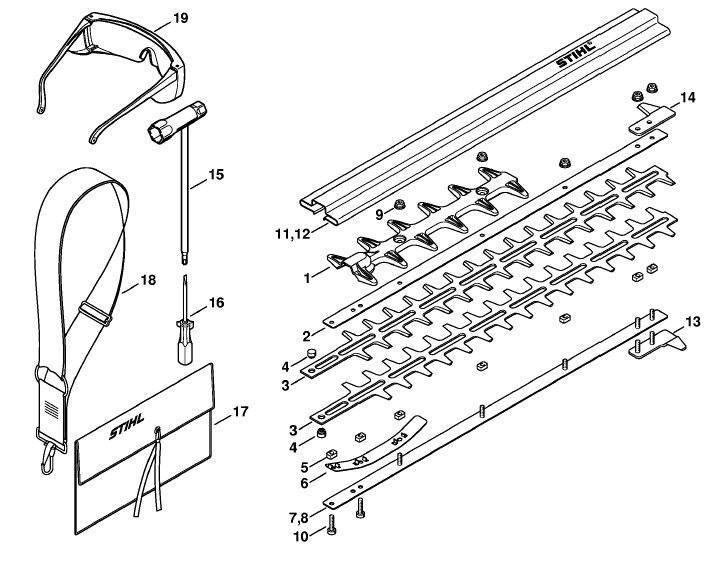

Blade

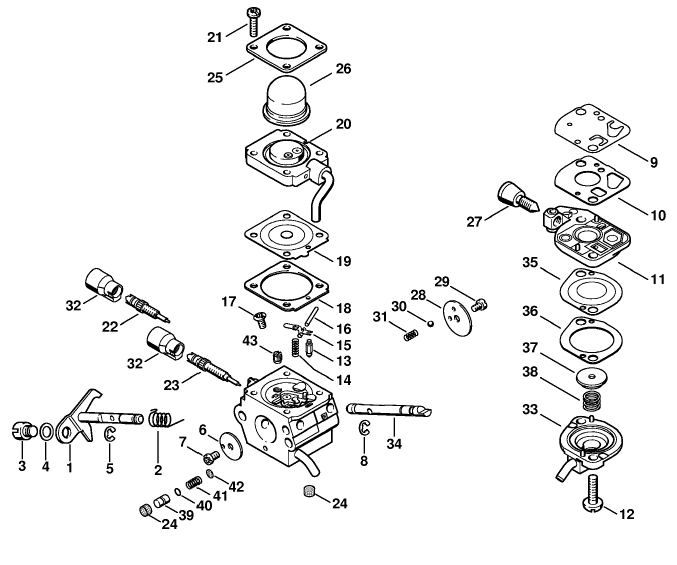

Carburetor C1Q-S88 (03.2006)

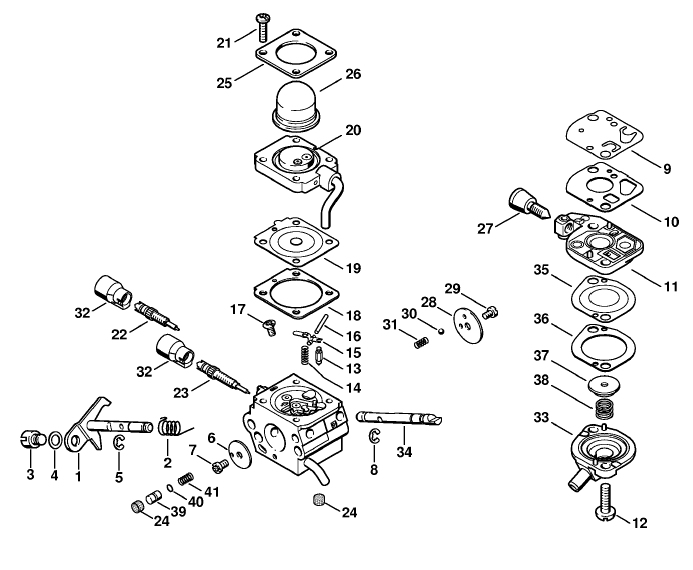

Carburetor C1Q-S110C (43.2008)

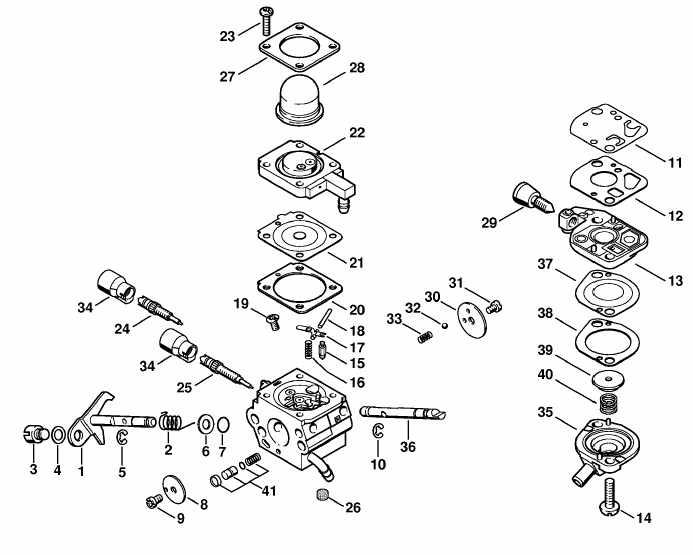

Carburetor C1Q-S131

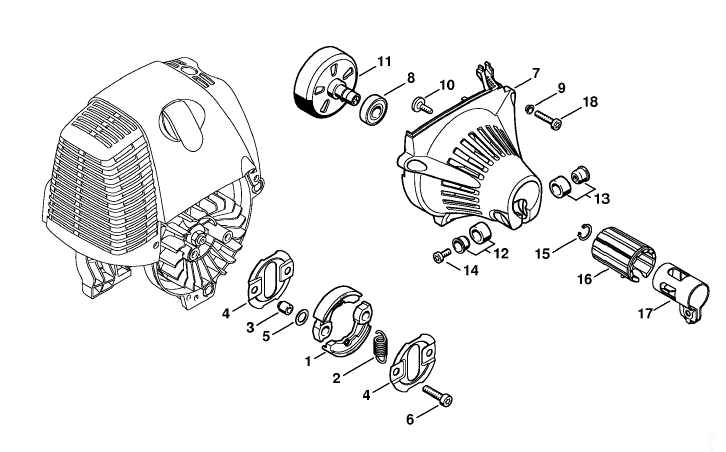

Clutch

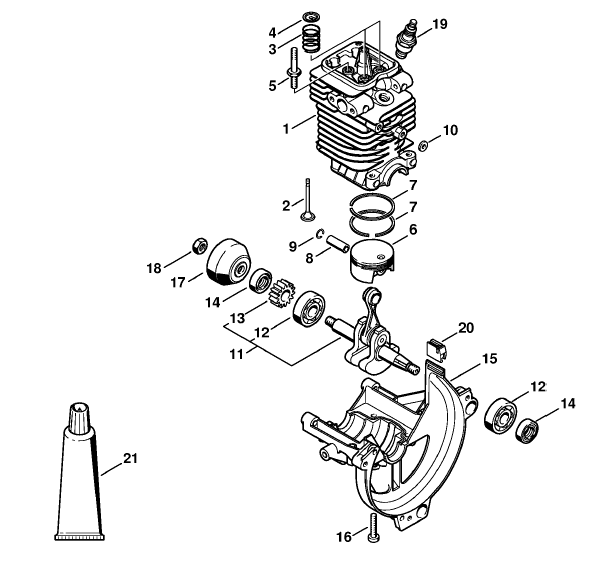

Cylinder

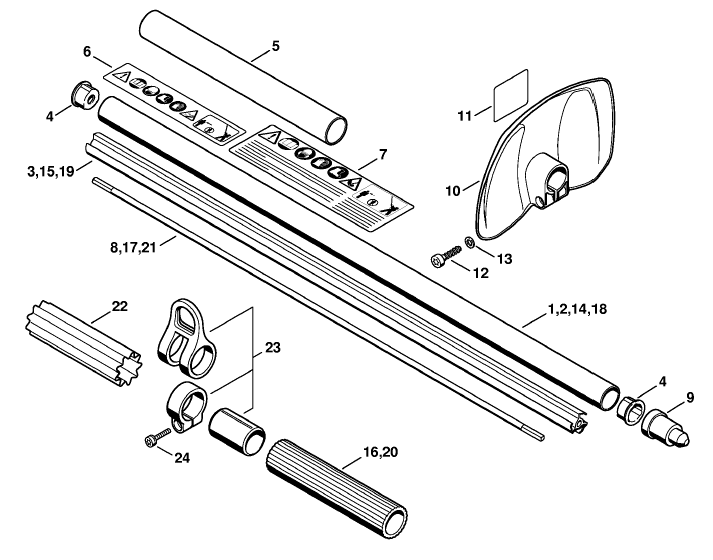

Drive tube assembly

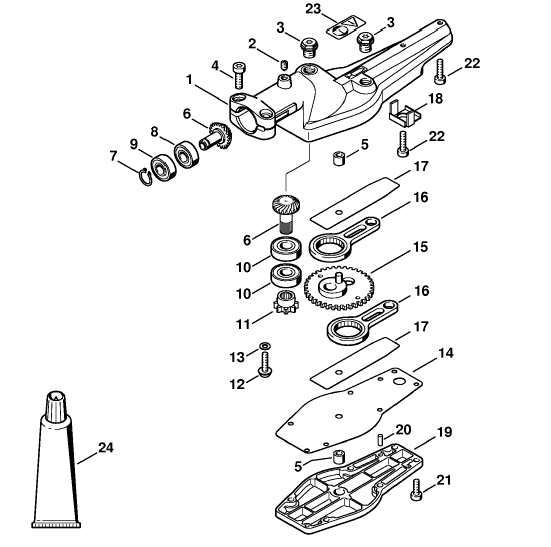

Gear head 0Á

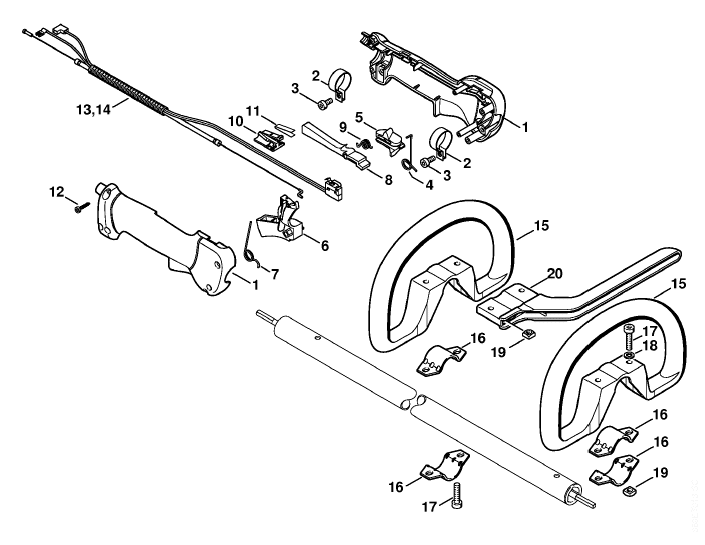

Handle

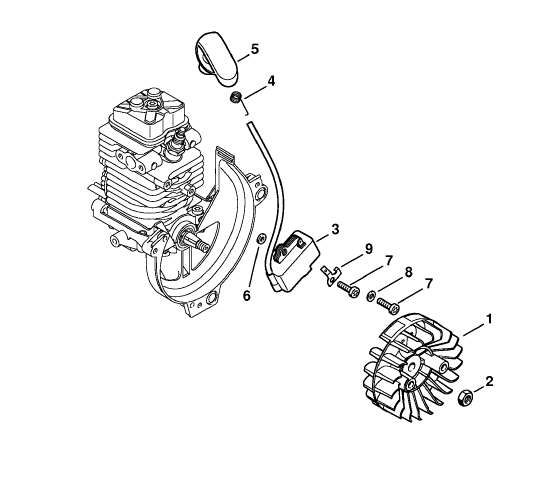

Ignition system

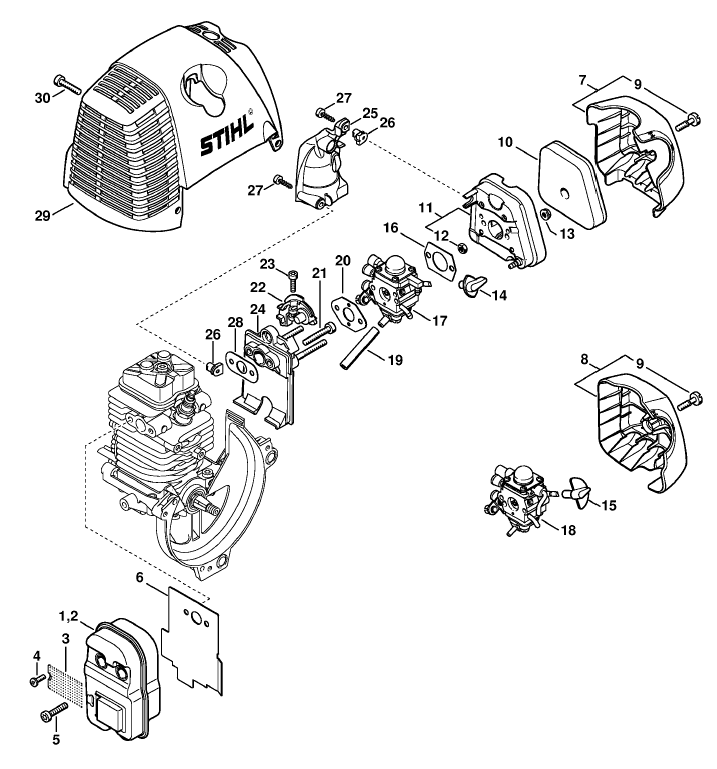

Muffler

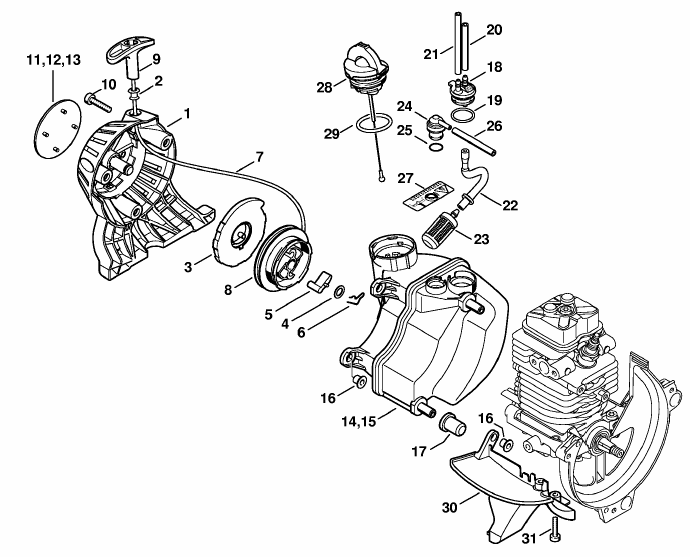

Rewind starter

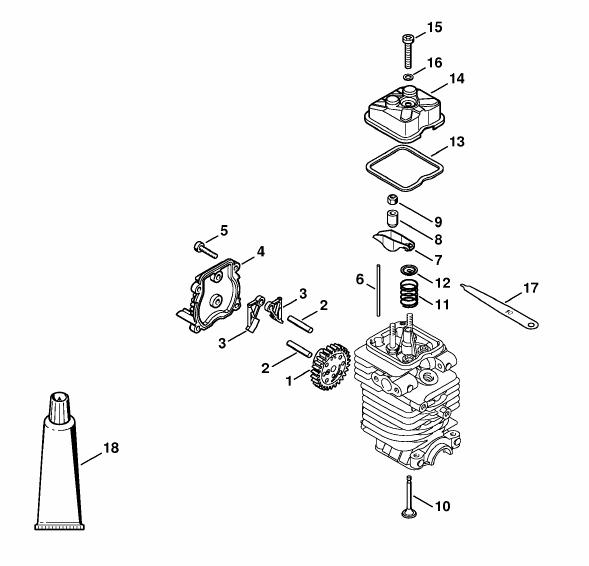

Valve timing gear
