Diagrams for the Stihl FS 88 Brushcutter

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl FS 88 Brushcutter.

Diagrams for this machine

Diagrams are usually named by your machine serial number or year of manufacture.

View all parts for the Stihl FS 88 Brushcutter
Stihl FS 88 Brushcutter

FS88

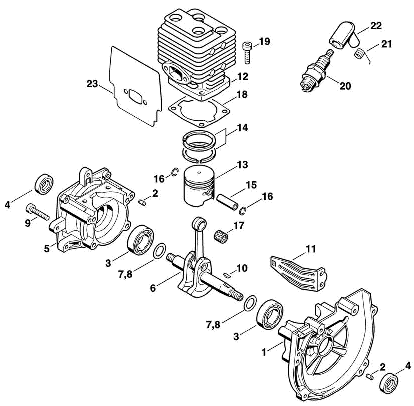

A-Crankcase, Cylinder

A-Crankcase, Cylinder

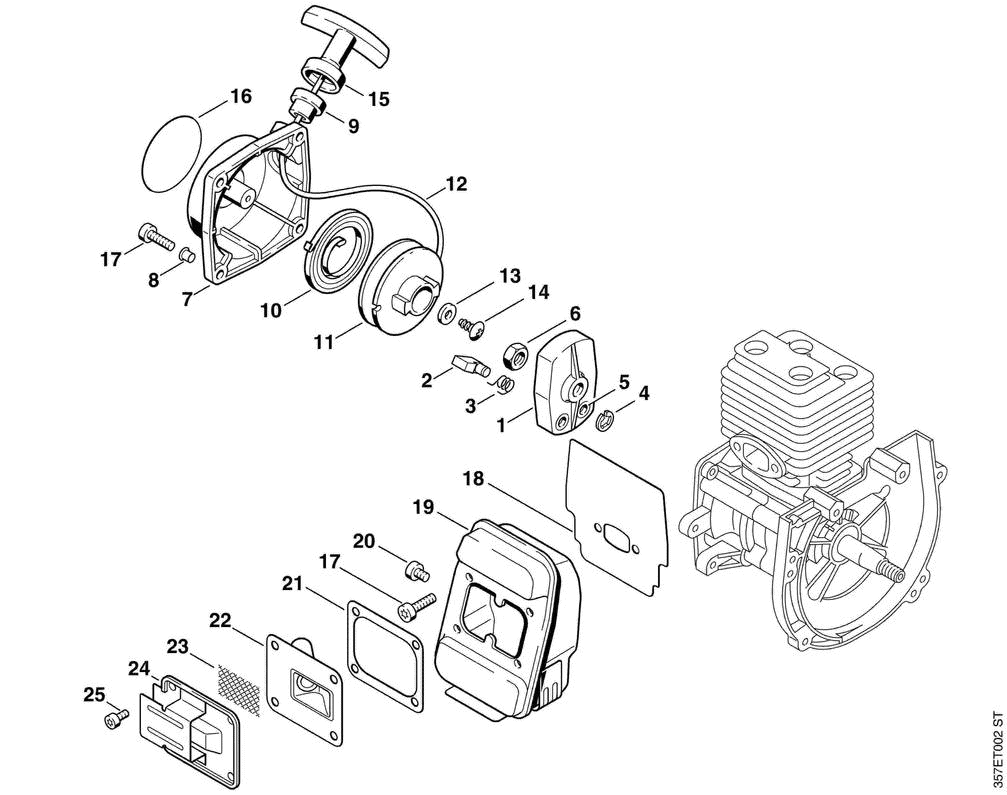

B-Rewind starter, Muffler

B-Rewind starter, Muffler

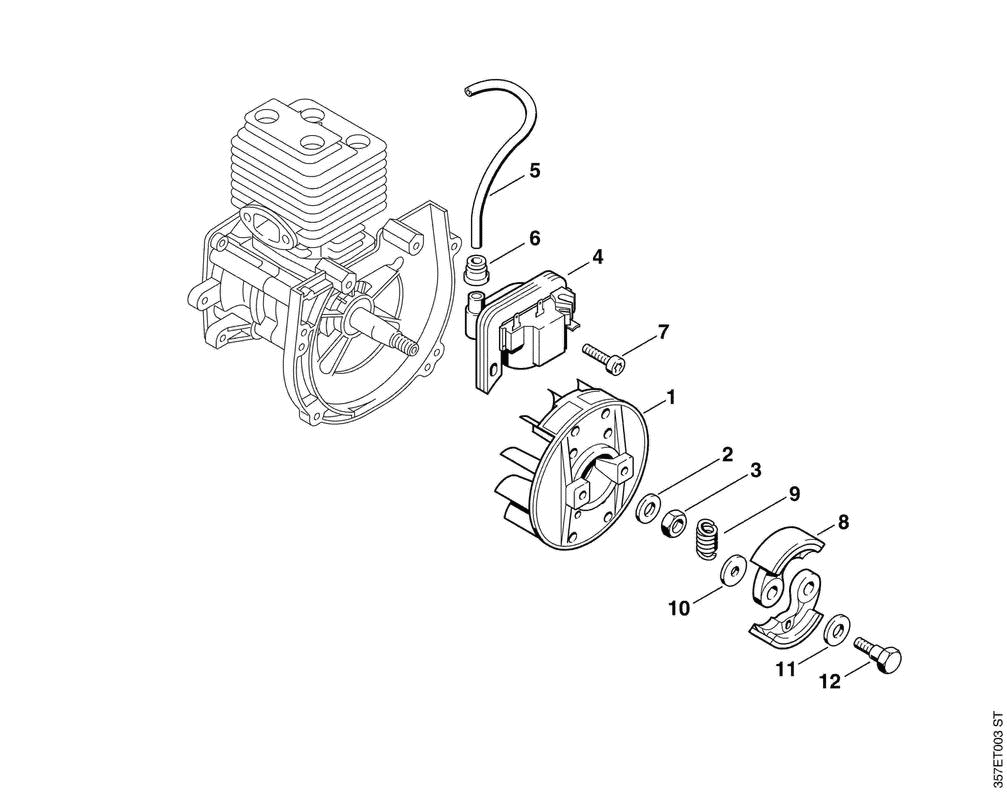

C-Ignition system,Clutch

C-Ignition system,Clutch

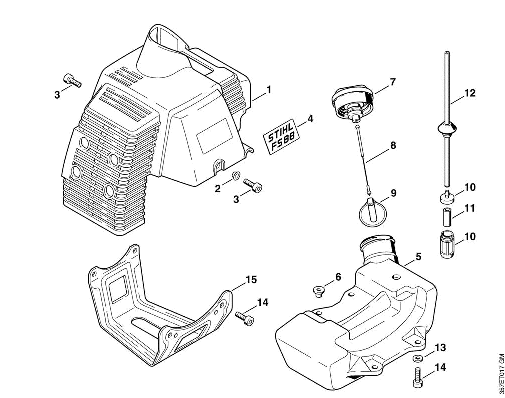

D-Cover

D-Cover

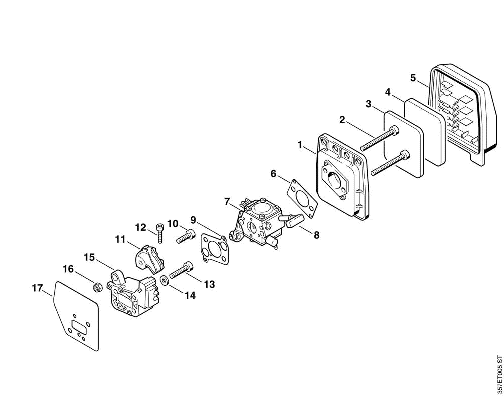

E-Air filter, Oil pump

E-Air filter, Oil pump

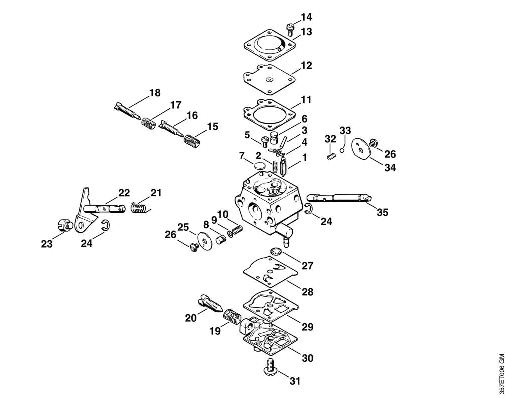

F-Carburetor WT-45A

F-Carburetor WT-45A

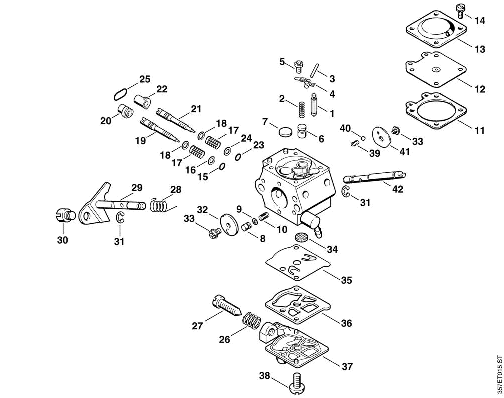

G-Carburetor WT-367

G-Carburetor WT-367

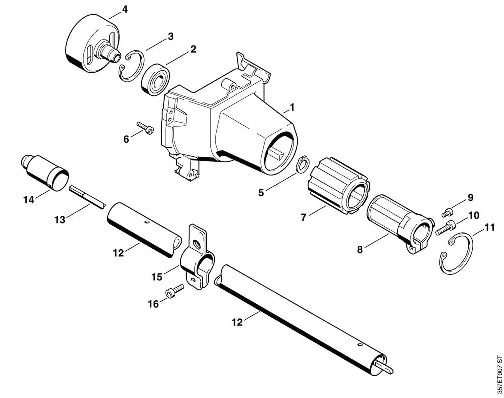

H-Fan housing

H-Fan housing

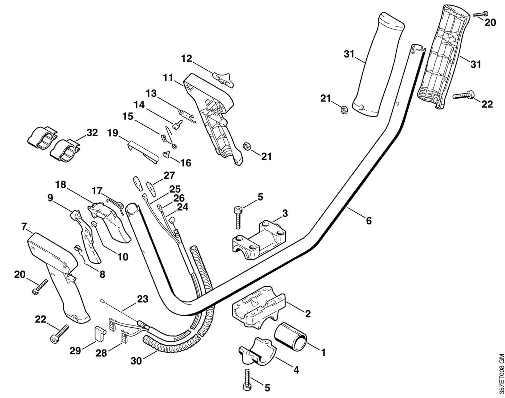

J-Two-handed handle bar

J-Two-handed handle bar

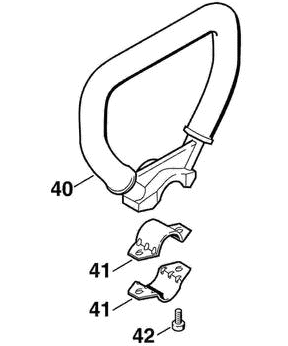

K_-Loop handle

K_-Loop handle

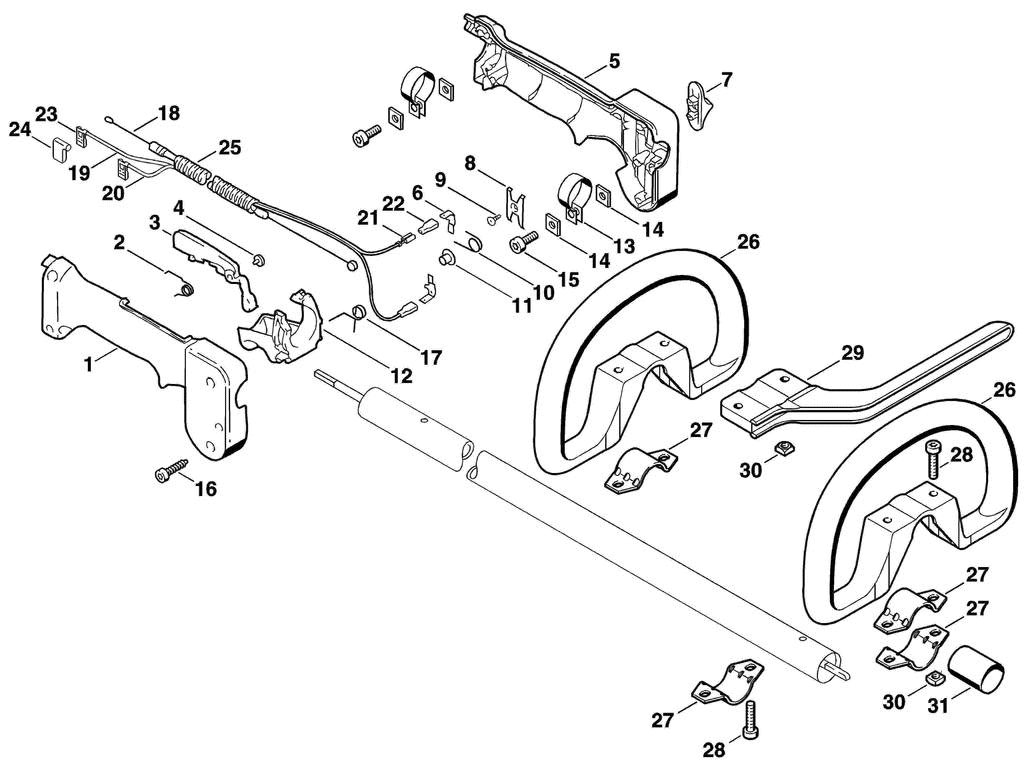

K-Loop handle

K-Loop handle

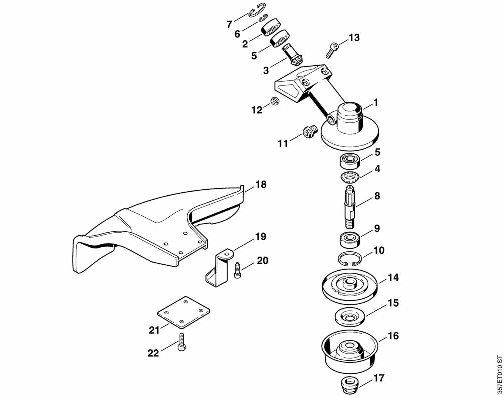

L-Gear head

L-Gear head

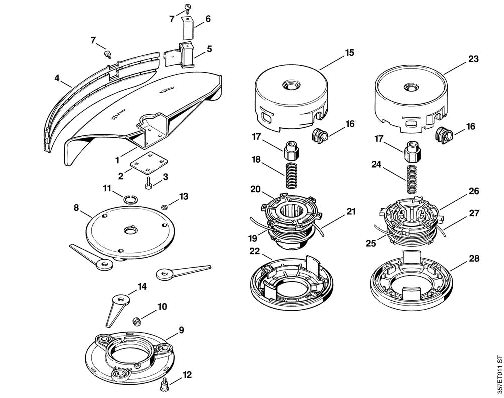

M-Cutting tools

M-Cutting tools

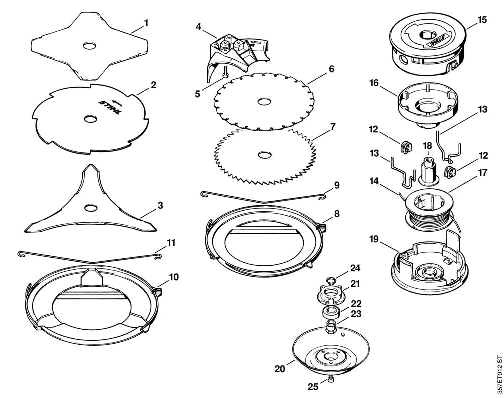

N-Cutting tools

N-Cutting tools

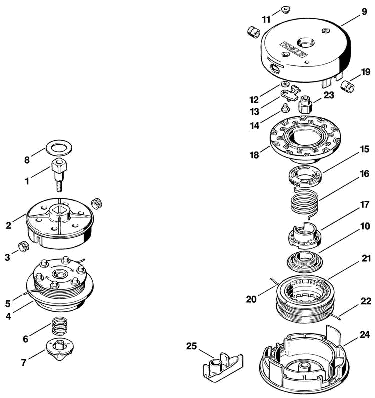

O-Cutting tools

O-Cutting tools

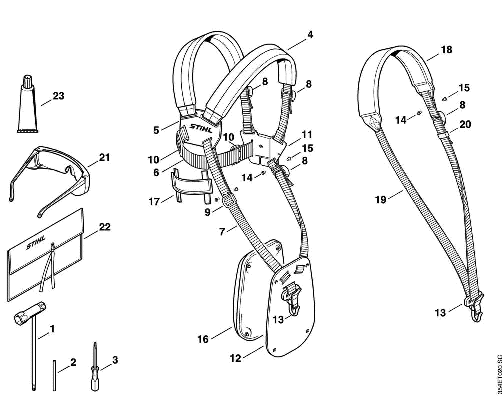

P-Tools, Extras

P-Tools, Extras
