Diagrams for the Stihl FS 75 Brushcutter
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl FS 75 Brushcutter.
Diagrams for this machine
Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl FS 75 Brushcutter
FS75

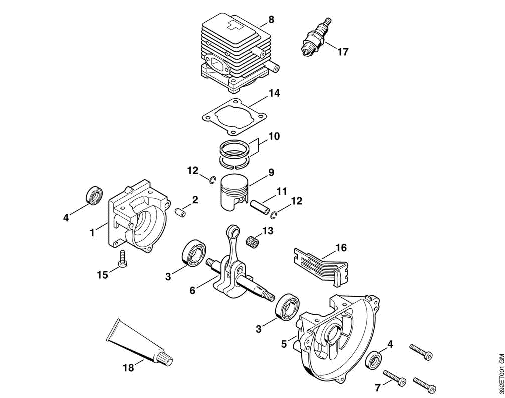

A-Crankcase, Cylinder

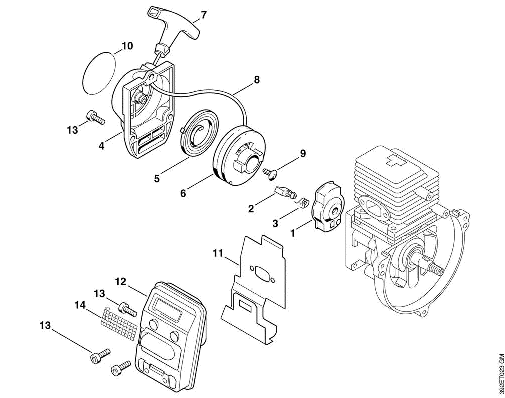

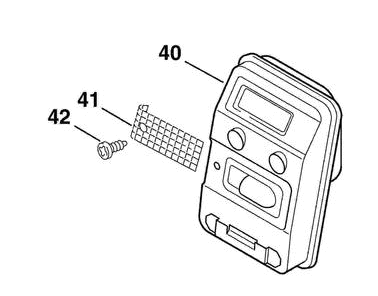

B_-Rewind starter, Muffler
B-Rewind starter, Muffler

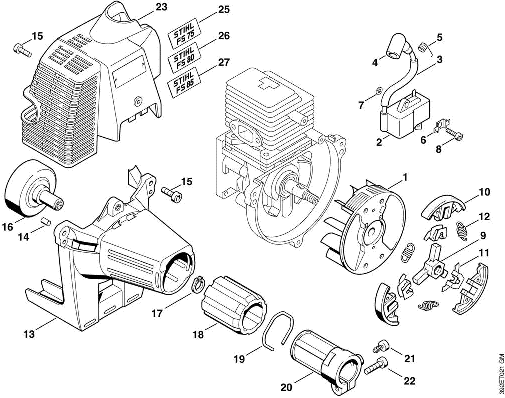

C_-Ignition system, Clutch
C-Ignition system, Clutch
D_-Air filter, Fuel tank

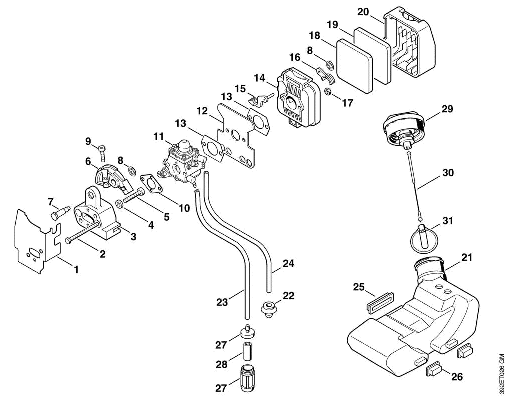

D-Air filter, Fuel tank

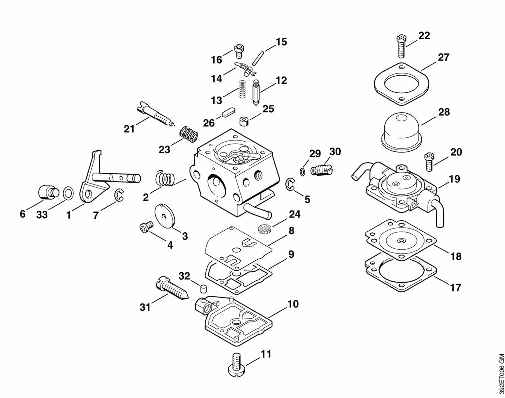

E-Carburetor C1Q-S28C, C1Q-S41A

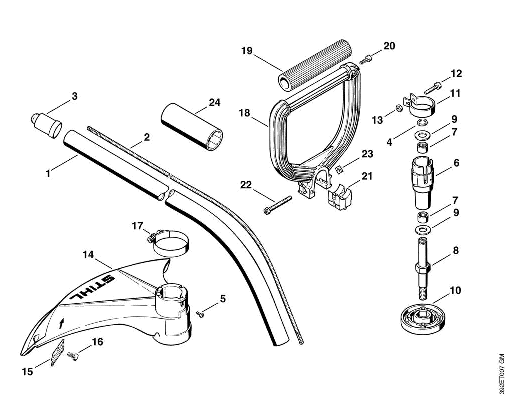

F_-Drive tube FS 75, Wrap around handle
F-Drive tube FS 75, Wrap around handle

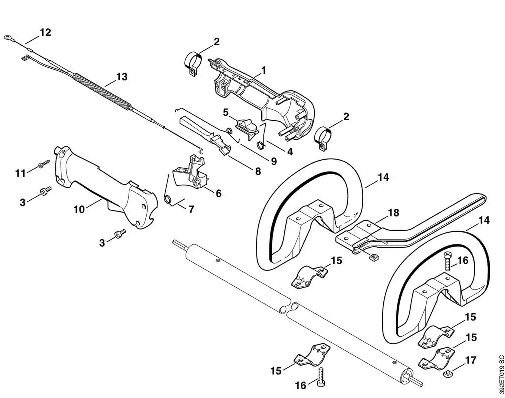

G-Handle

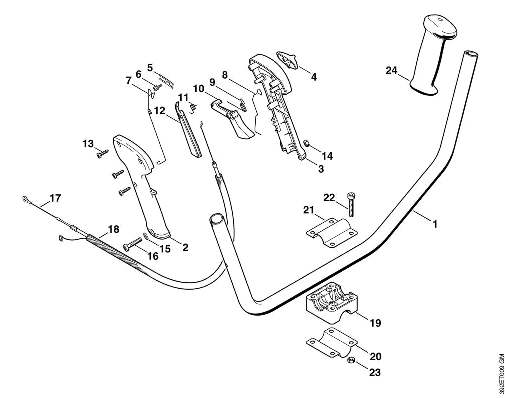

H-Two-handed handle bar

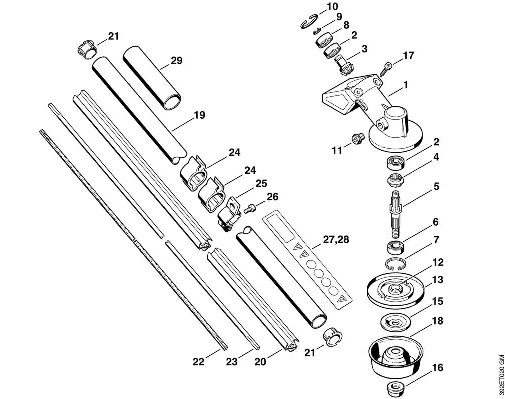

J-Gear head, Drive tube FS 80

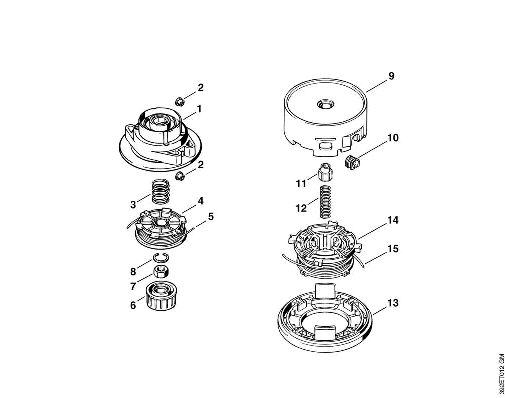

K-Cutting tools, Autocut mowing head

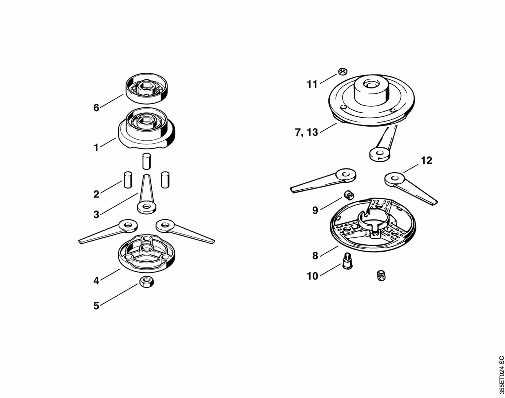

L-Cutting tools, Cutting head Polycut
M_-Schneidwerkzeuge, Schutz

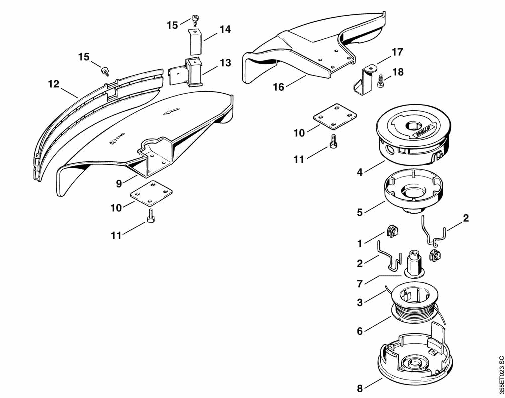

M-Schneidwerkzeuge, Schutz

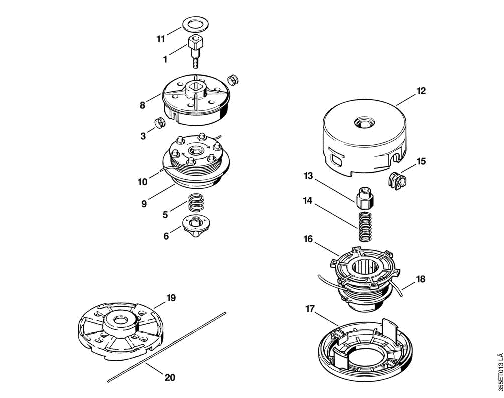

N-Cutting tools, Mowing head

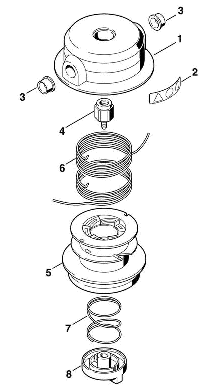

O-Trimcut head

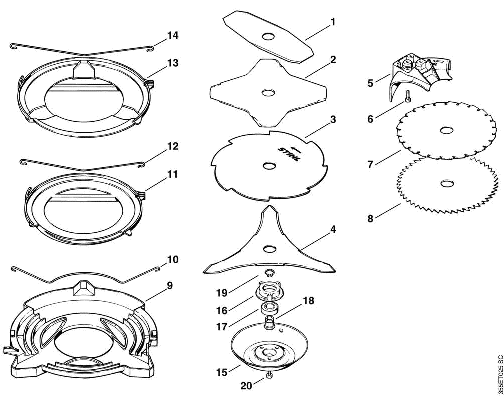

P-Cutting tools, Grass cutting blade

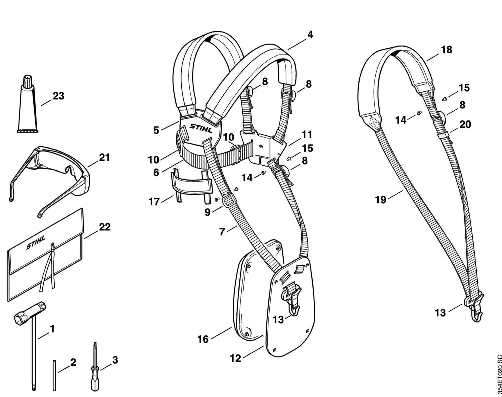

Q-Tools, Extras

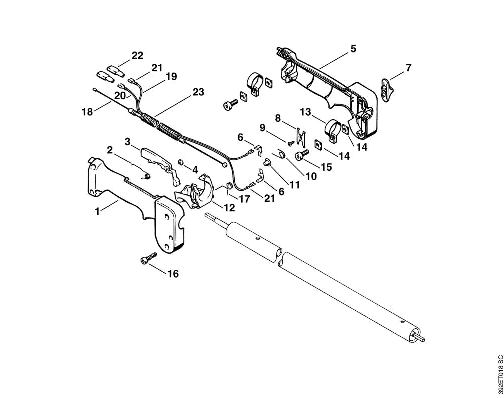

R_-Handle

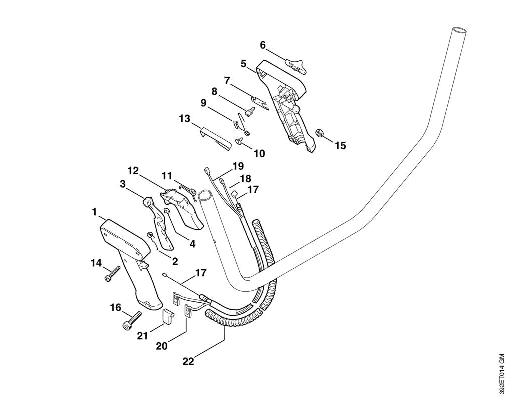

S_-Two-handed handle bar

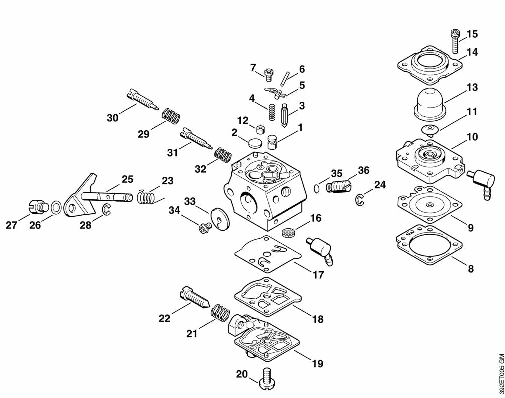

T_-Carburetor WT-447
U_-Gear head FS 80, FS 85
U-Gear head FS 80, FS 85
