Diagrams for the Stihl FS 70 Brushcutter
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl FS 70 Brushcutter .
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl FS 70 Brushcutter
FS70C

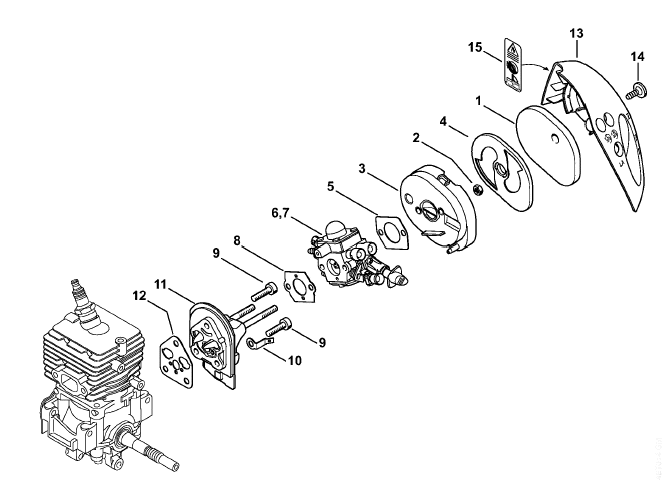

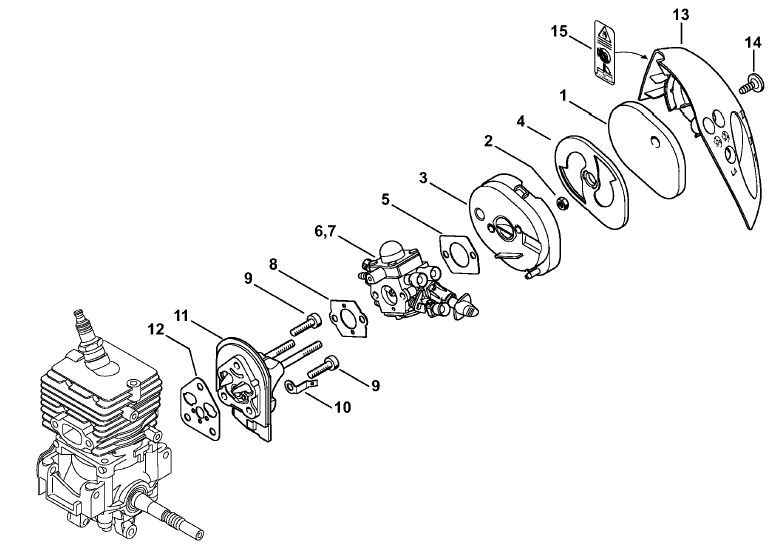

Air filter, Spacer flange

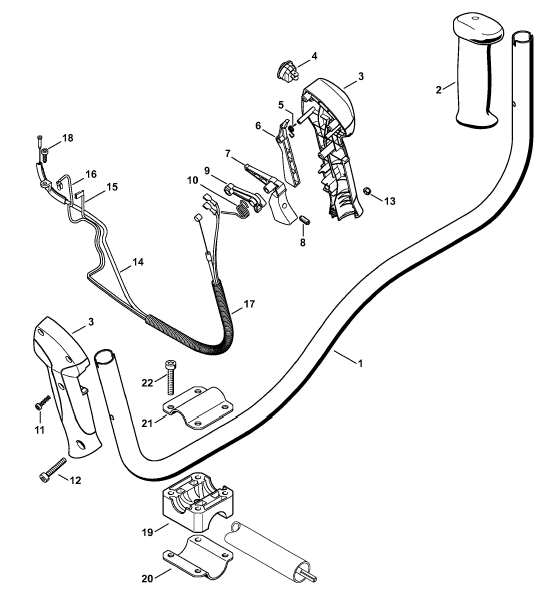

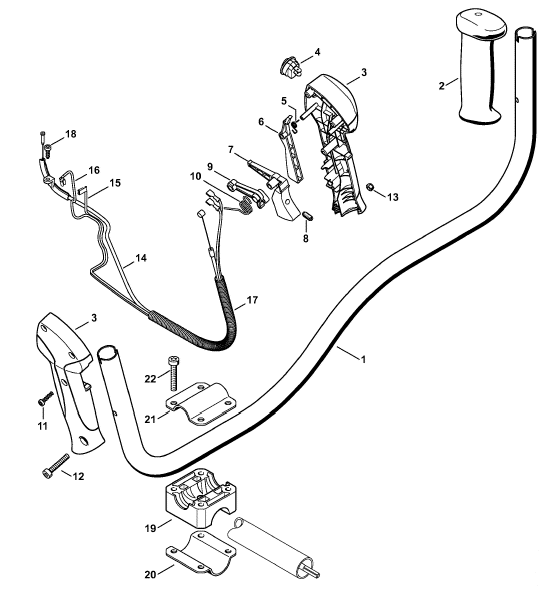

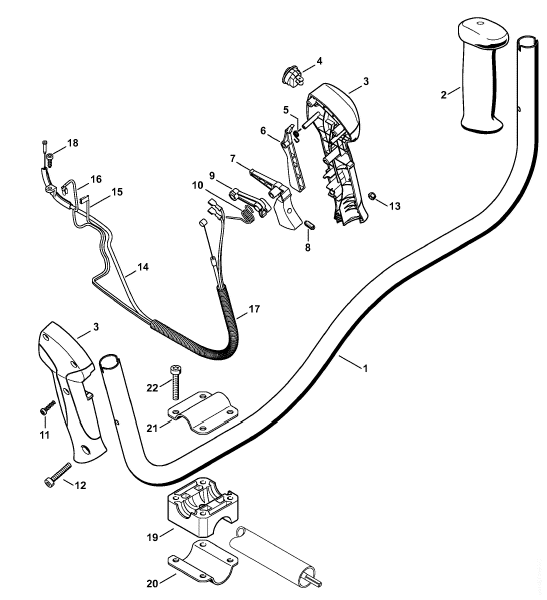

Bike Handle

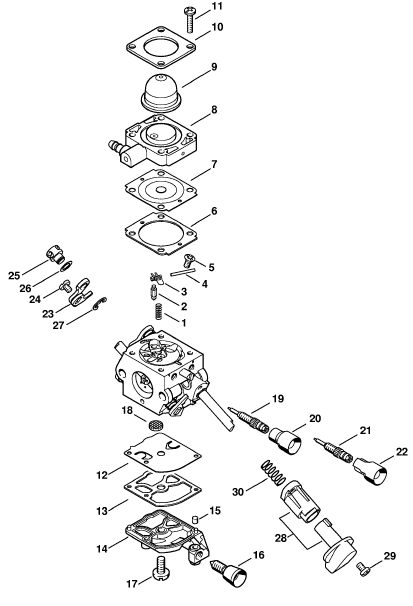

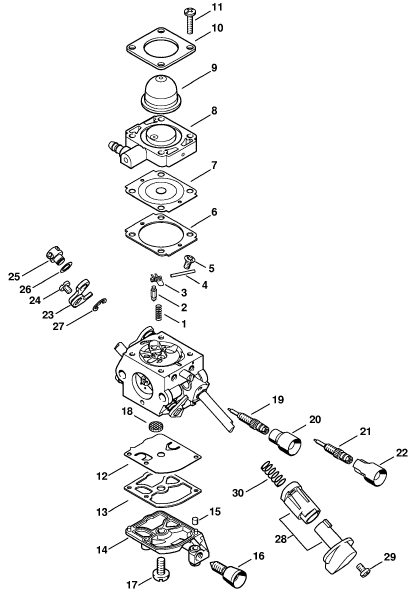

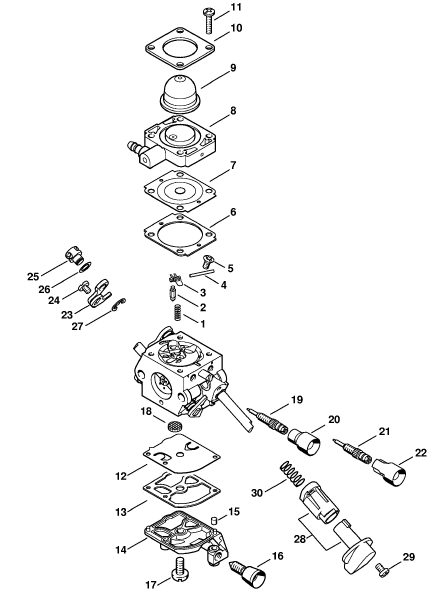

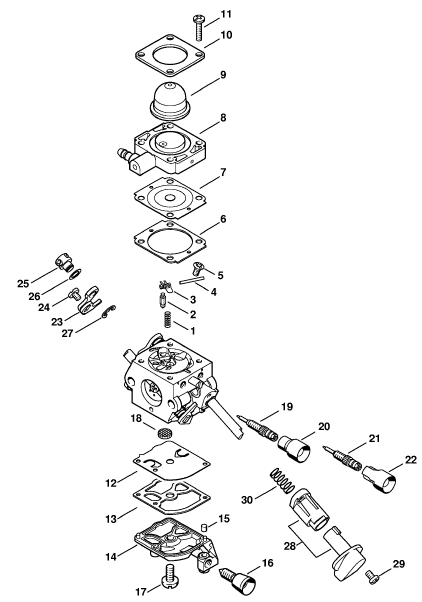

Carburetor C1M-S145B

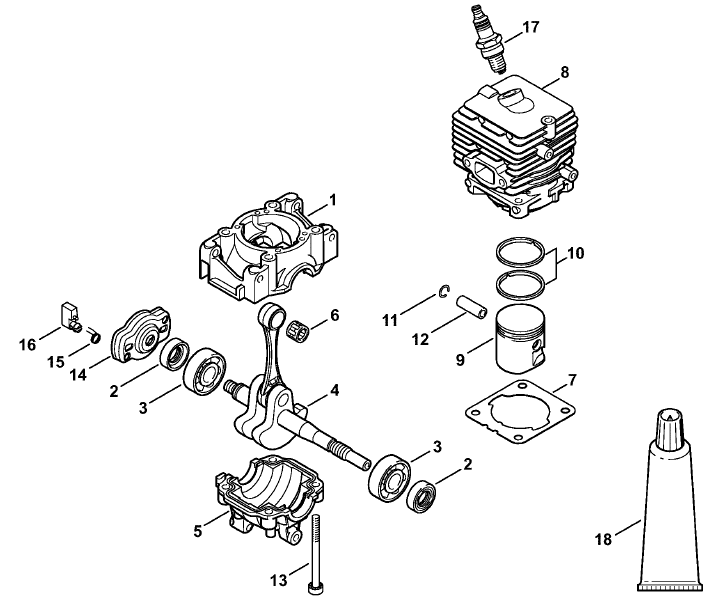

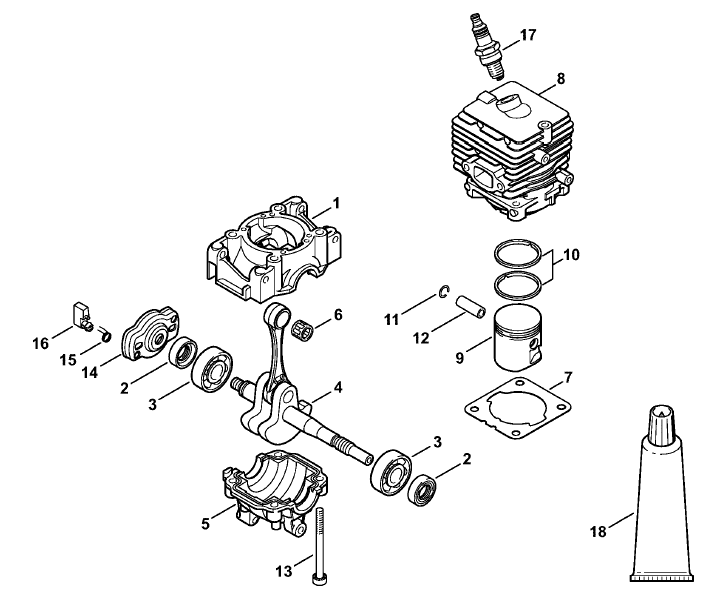

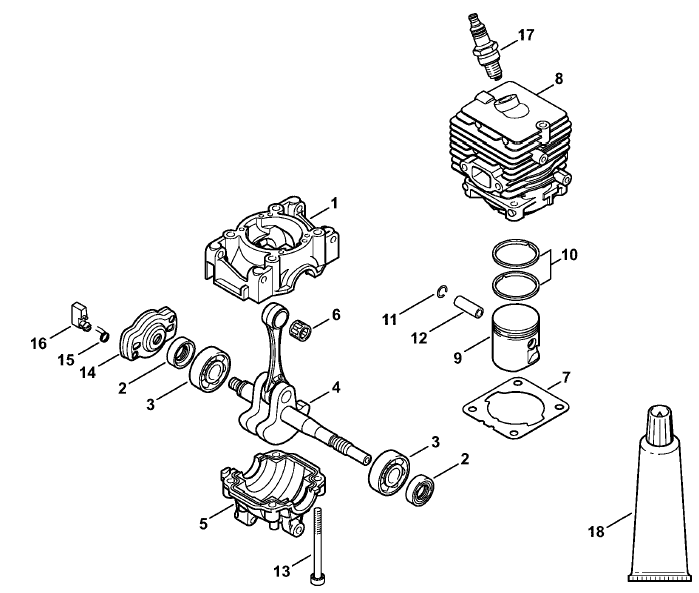

Crankcase, Cylinder

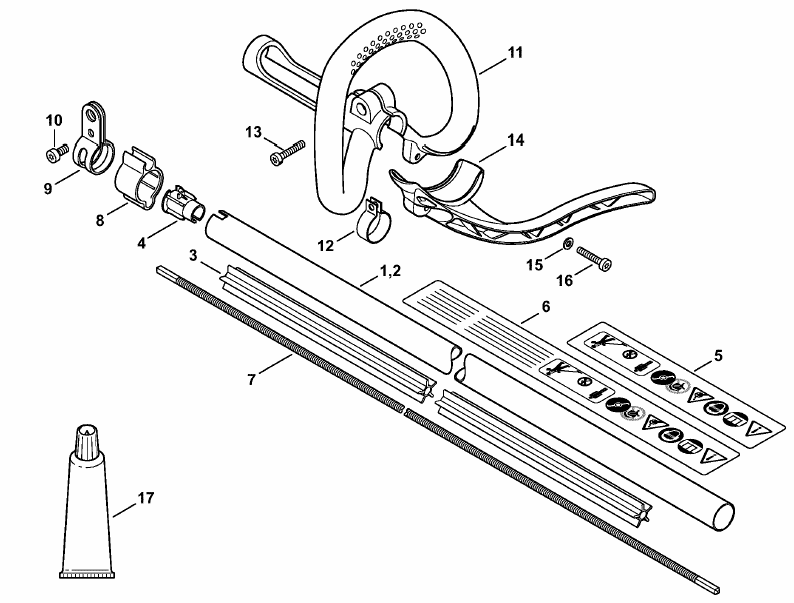

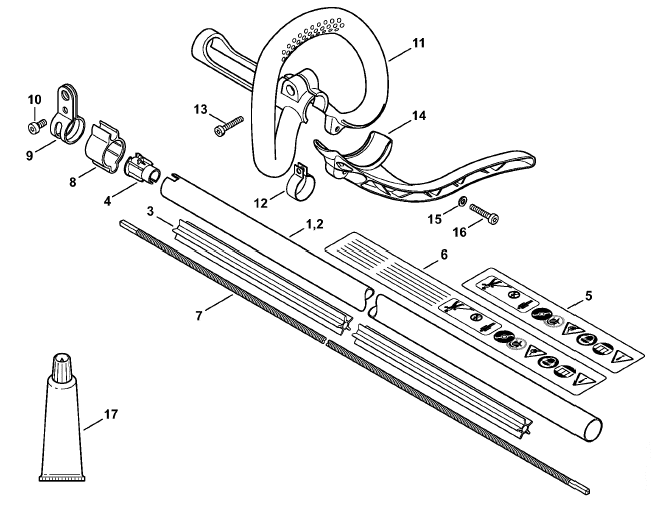

Drive tube assembly, Loop handle

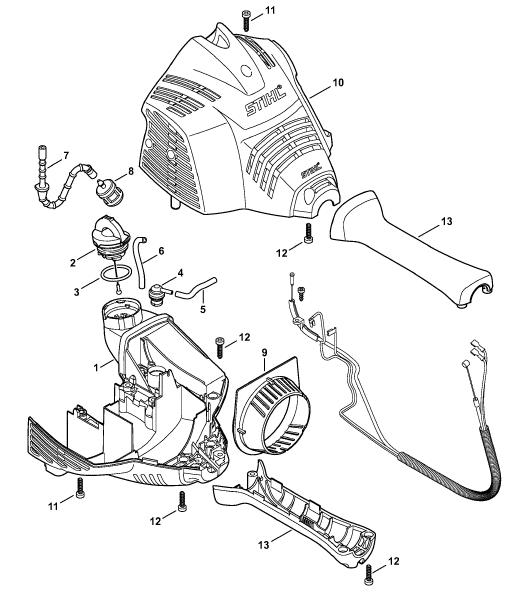

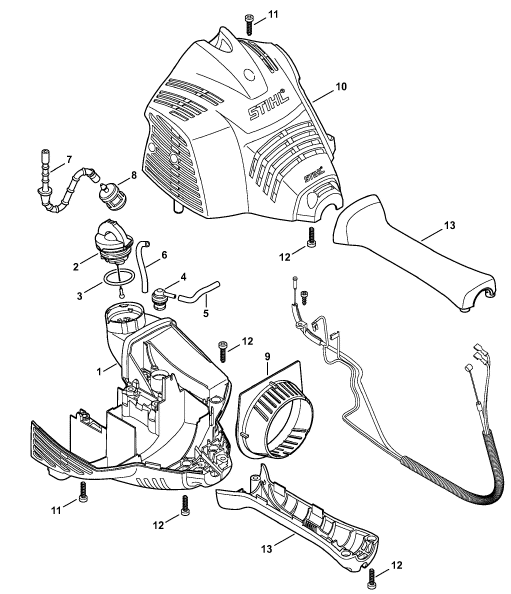

Engine housing (Bike handle)

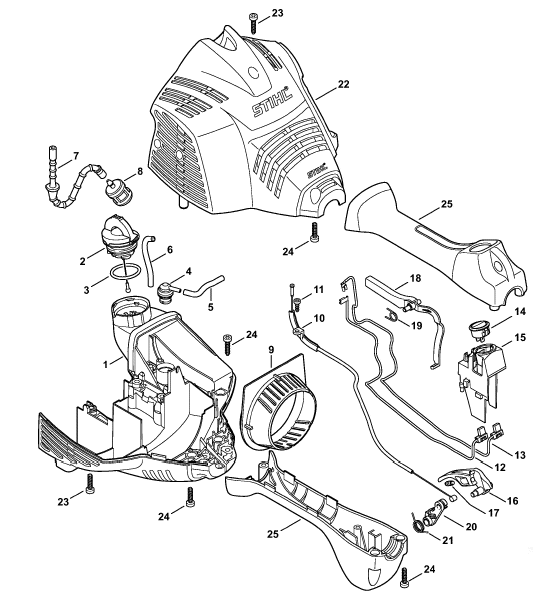

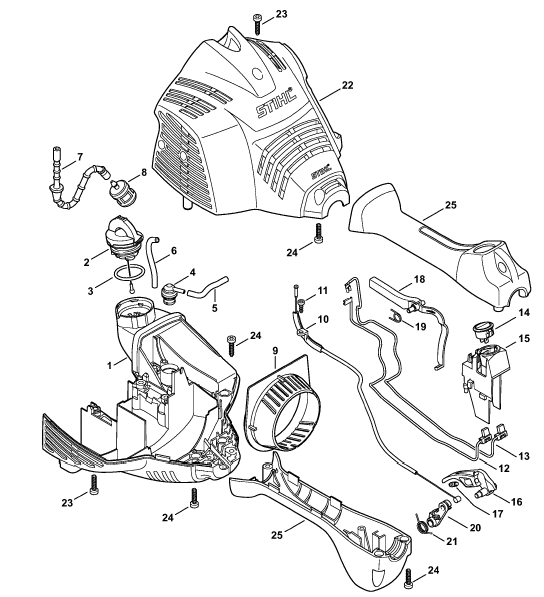

Engine housing (Loop handle)

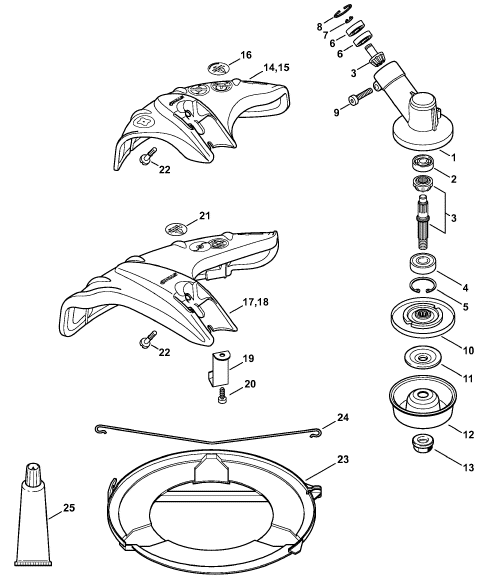

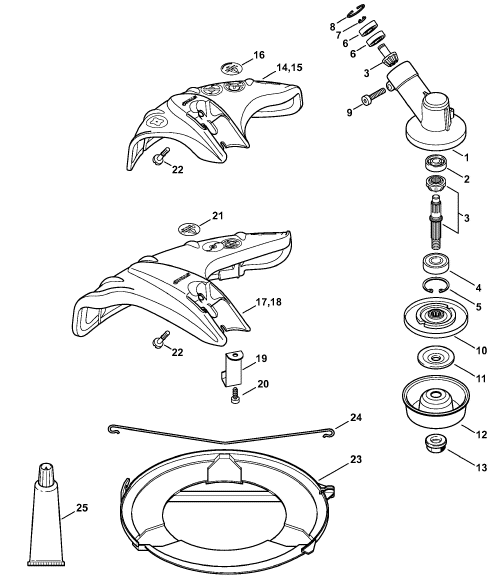

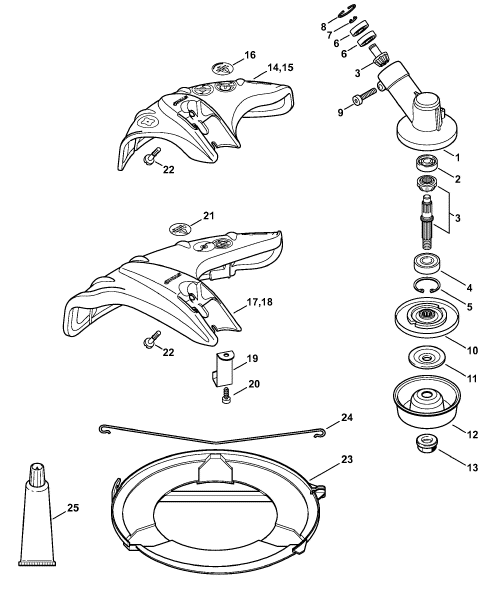

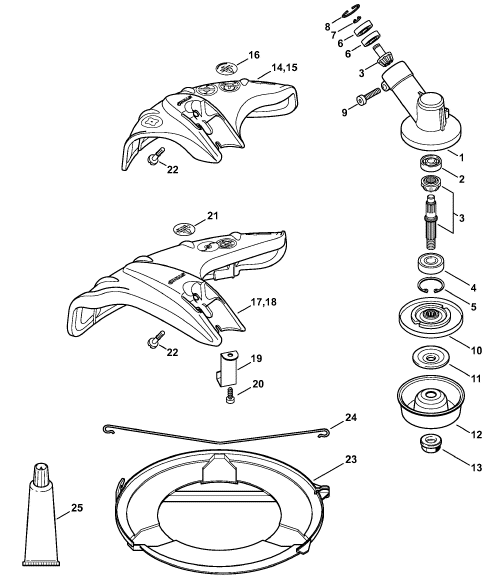

Gear Head, Deflector

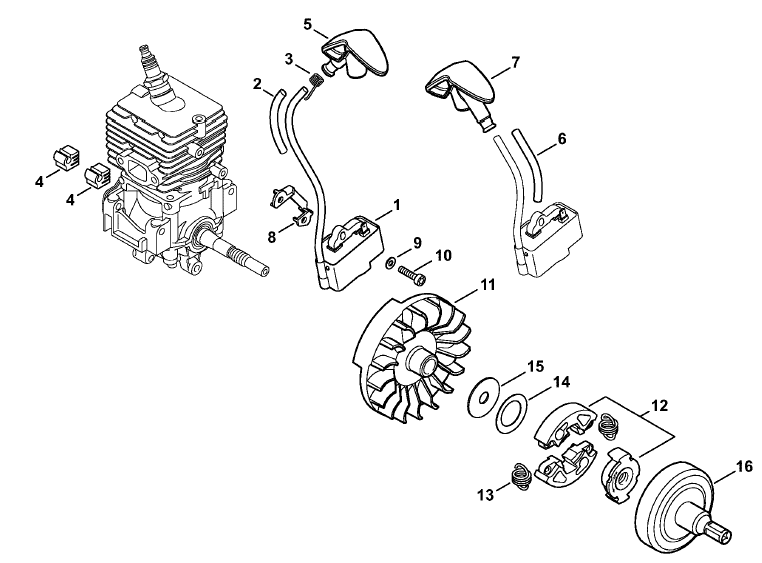

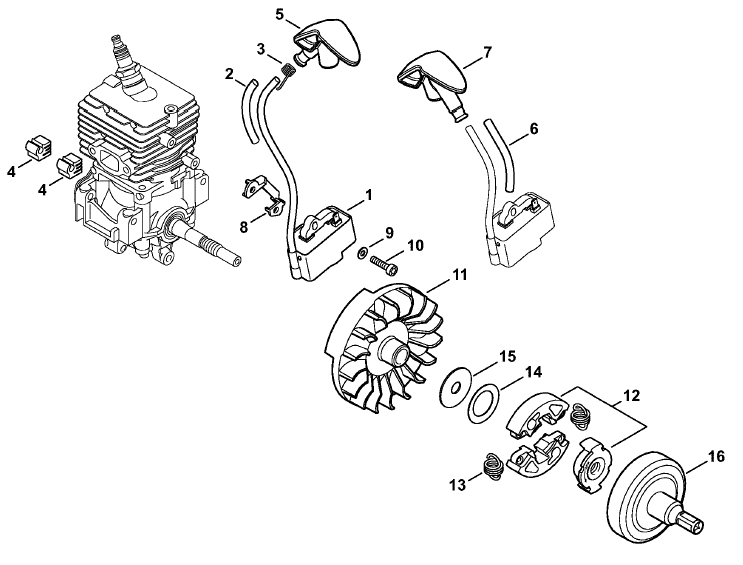

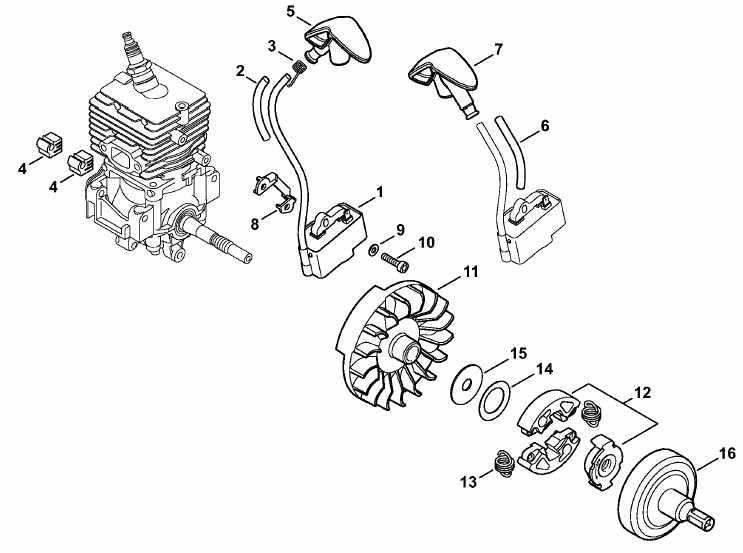

Ignition system, Clutch

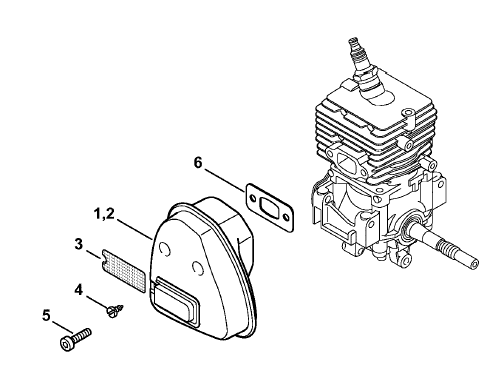

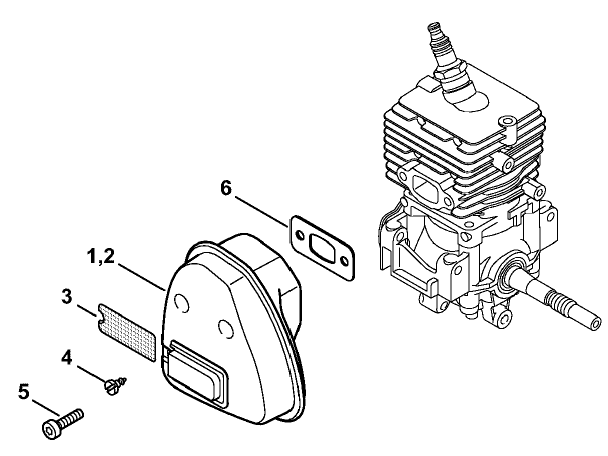

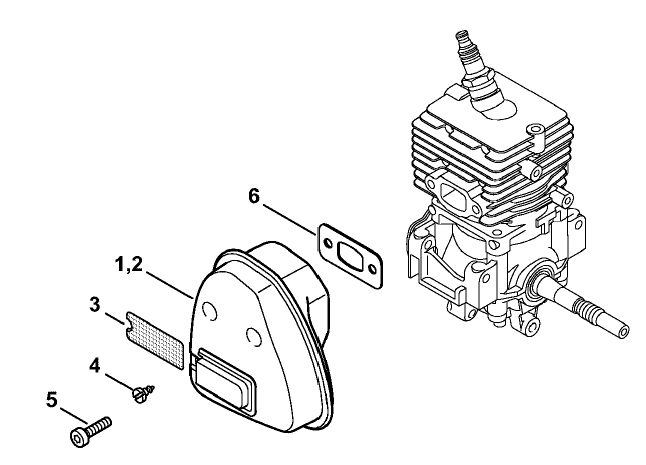

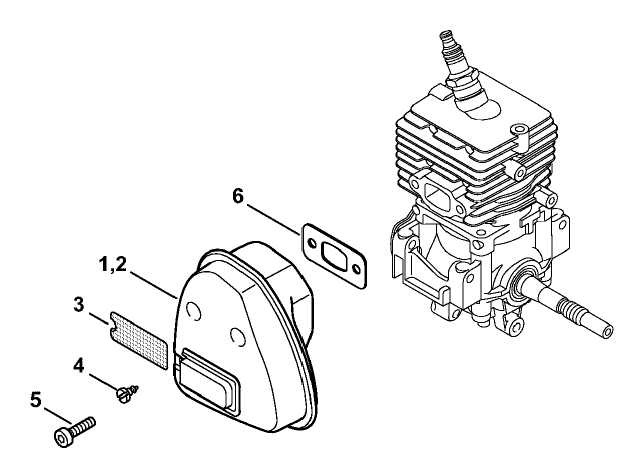

Muffler

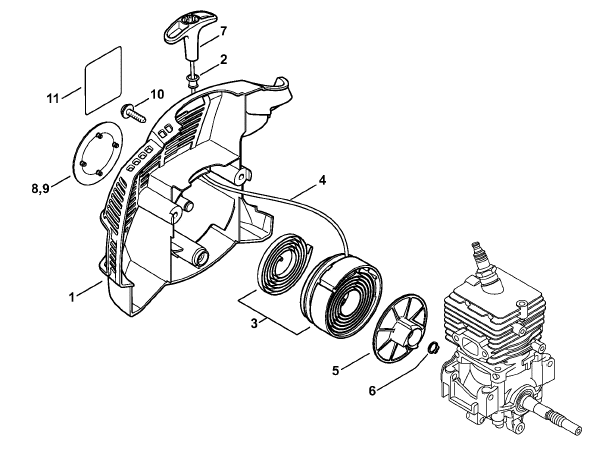

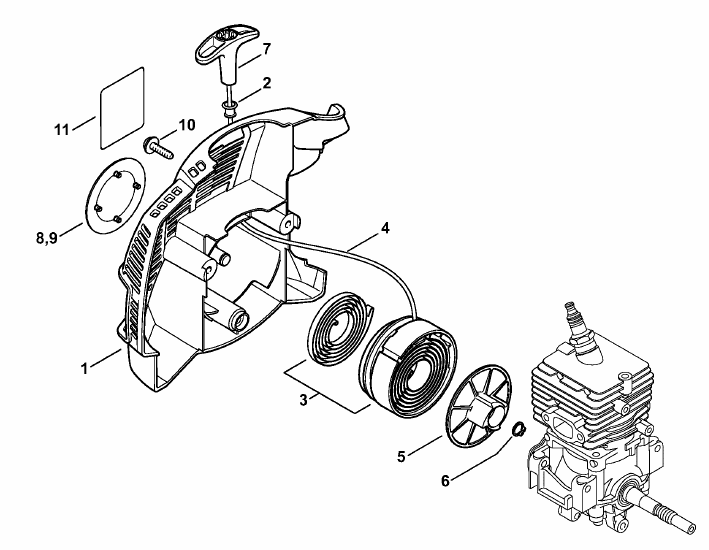

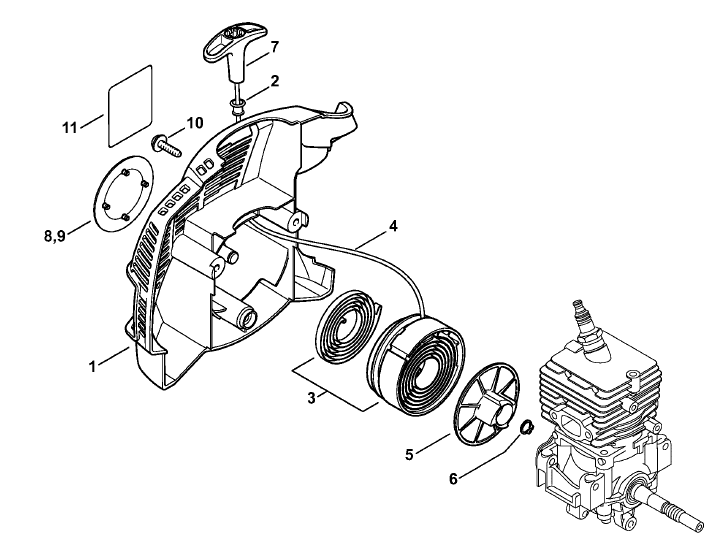

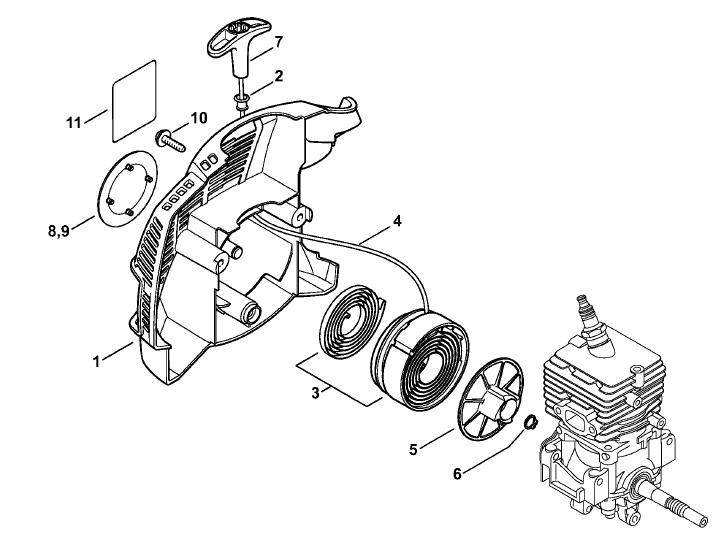

Rewind starter ErgoStart-Easy2Start

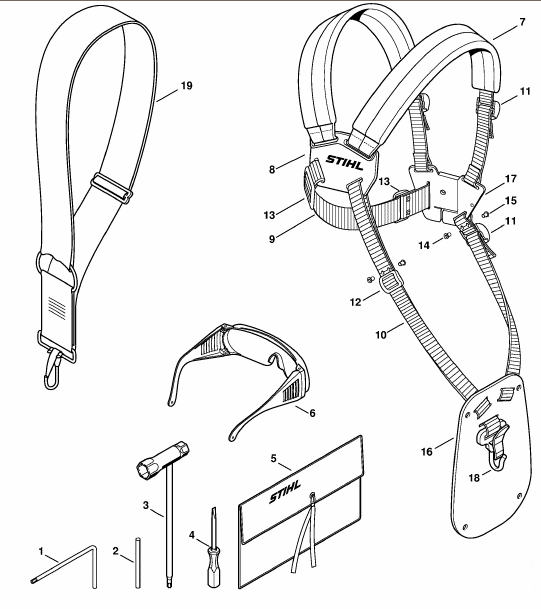

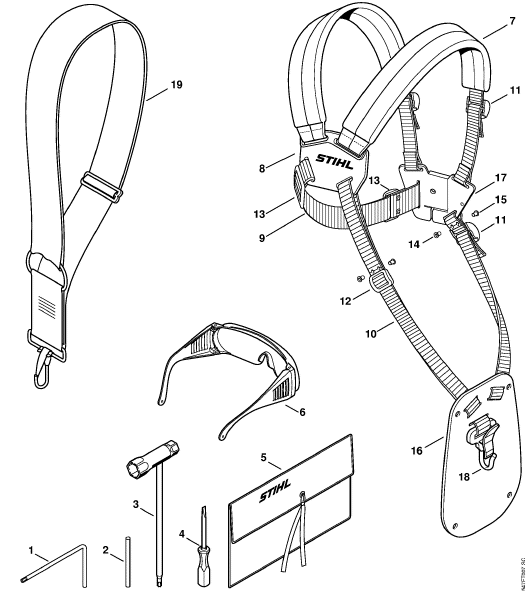

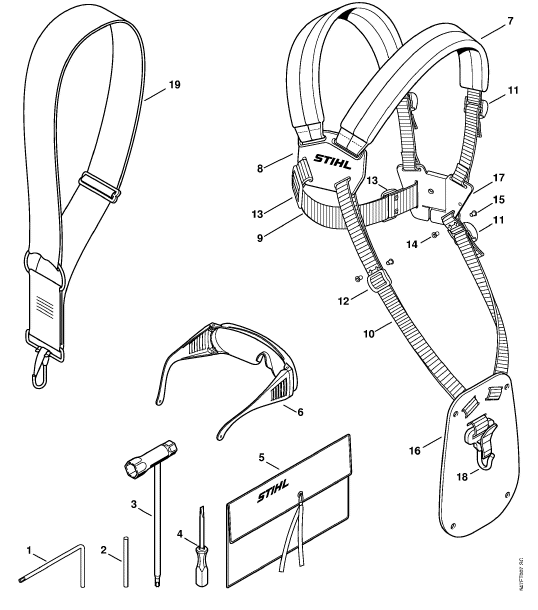

Tools, Extras
FS70CE

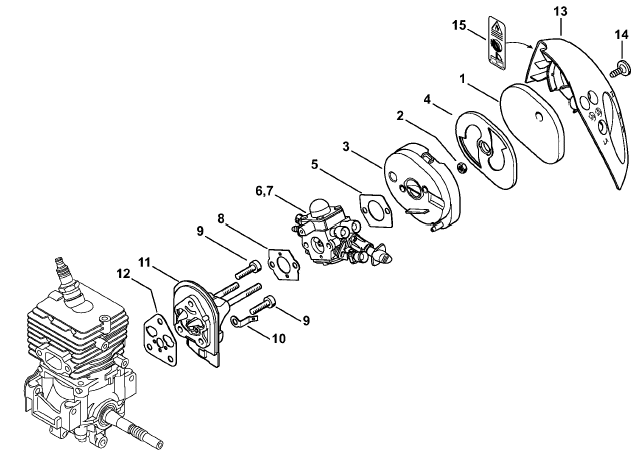

Air filter, Spacer flange
Bike Handle

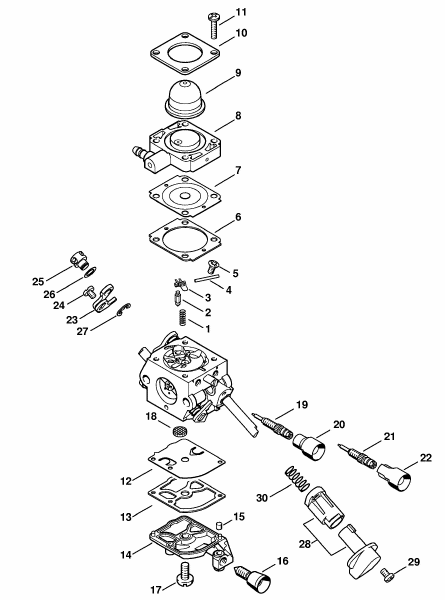

Carburetor C1M-S145B

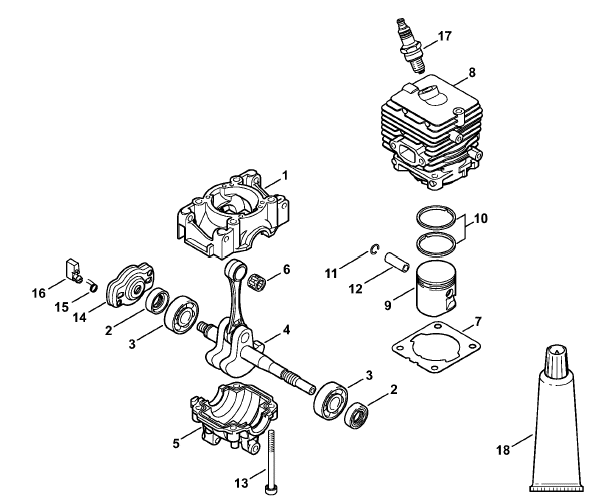

Crankcase, Cylinder
Drive tube assembly, Loop handle
Engine Housing (Bike Handle)

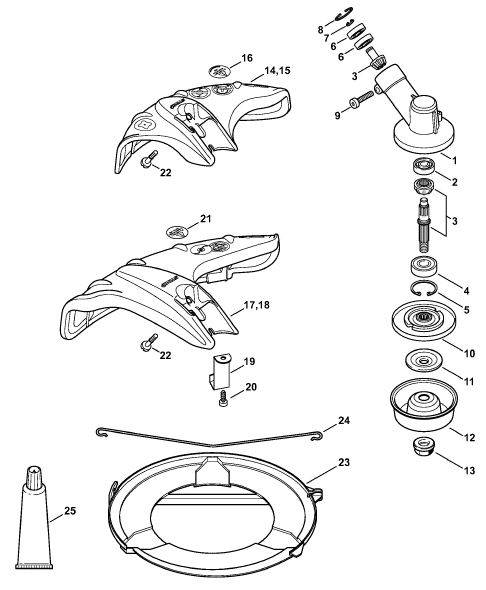

Gear head, Deflector

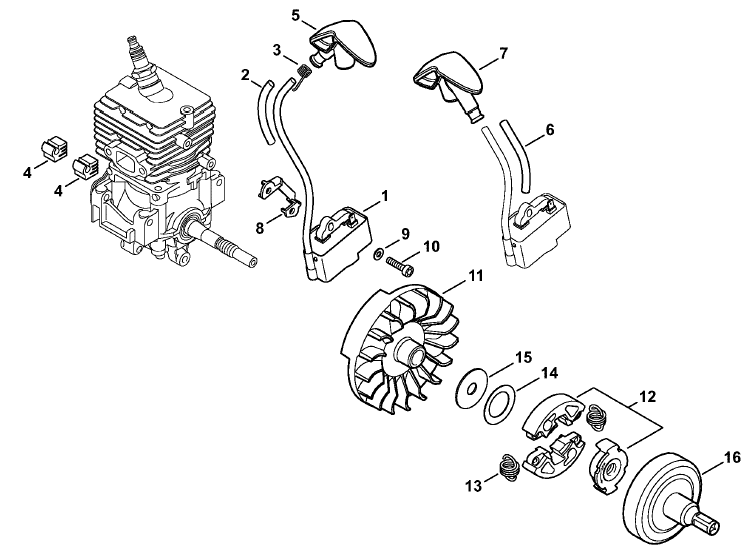

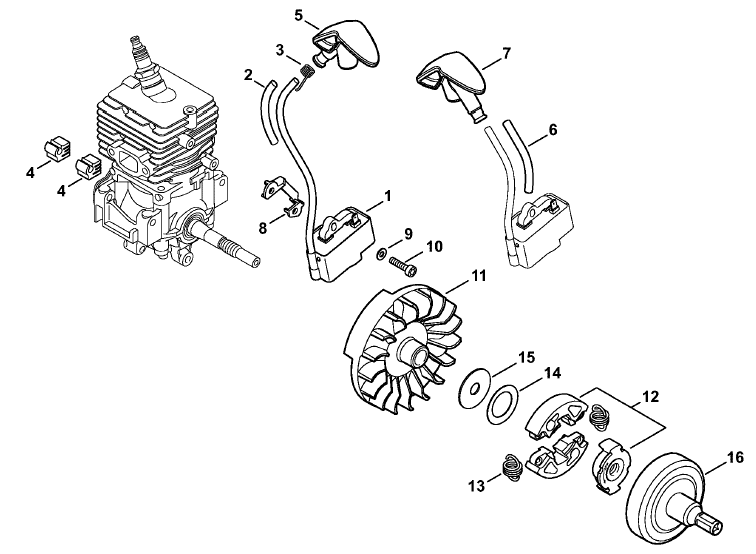

Ignition System, Clutch
Muffler

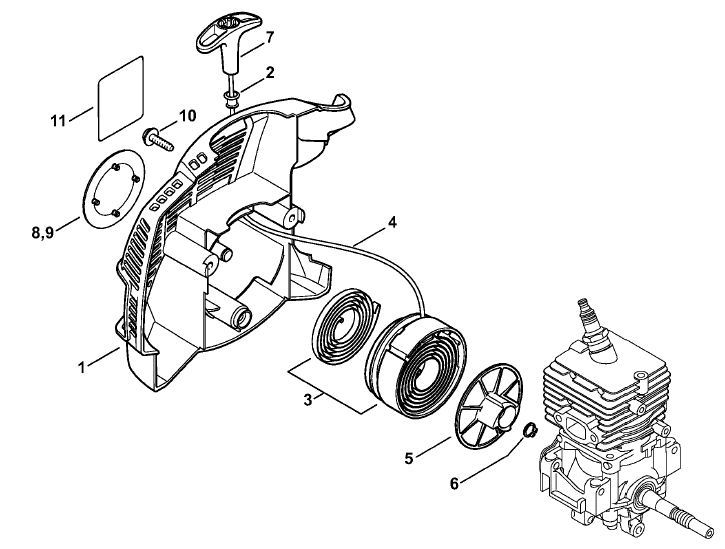

Rewind starter ErgoStart-Easy2Start
Tools, Extras
FS70RC

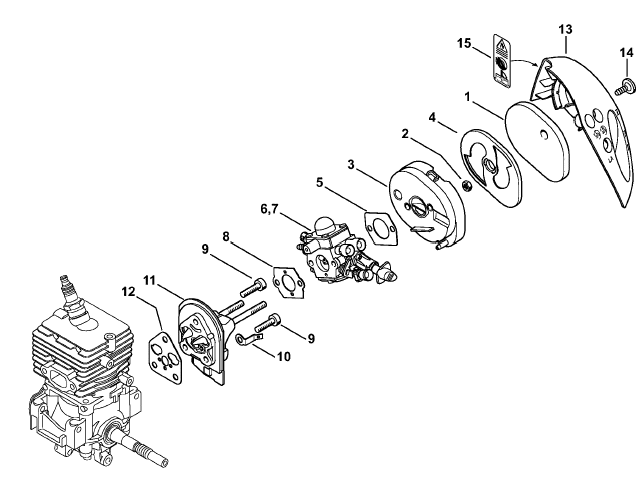

Air filter, Spacer flange
Bike Handle
Carburetor C1M-S145B
Crankcase, Cylinder
Drive tube assembly, Loop handle
Engine housing (Bike handle)
Engine housing (Bike handle)
Gear Head, Deflector
Ignition system, Clutch
Muffler
Rewind starter ErgoStart-Easy2Start
Tools, Extras
FS70R-CE
Air filter, Spacer flange
Carburetor C1M-S145B
Crankcase, Cylinder
Drive tube assembly, Loop handle

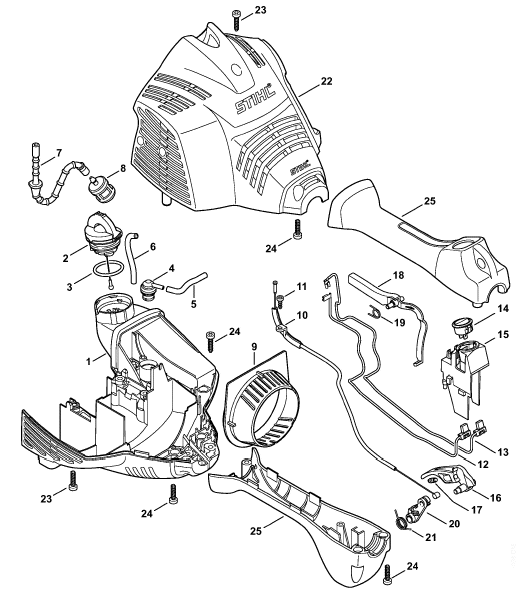

Engine housing (Loop handle)
Gear Head, Deflector
Ignition System, Clutch
Muffler
Rewind starter ErgoStart-Easy2Start
Tools, Extras
