Diagrams for the Stihl FS 65 Brushcutter
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl FS 65 Brushcutter.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl FS 65 Brushcutter
FS65

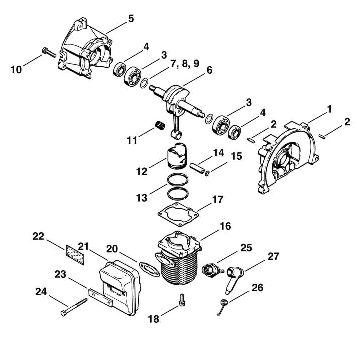

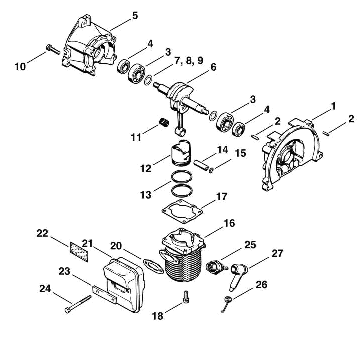

A-Crankcase, Cylinder

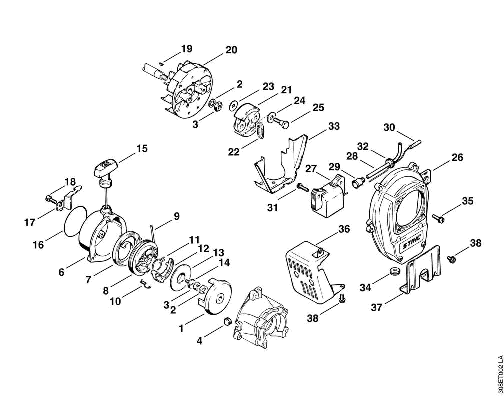

B-Rewind starter
C_-Carburetor, Air filter

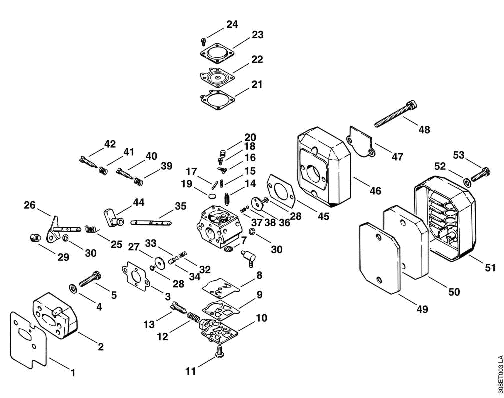

C-Carburetor, Air filter
D-Fuel tank
E-Clutch housing
F_-Drive tube

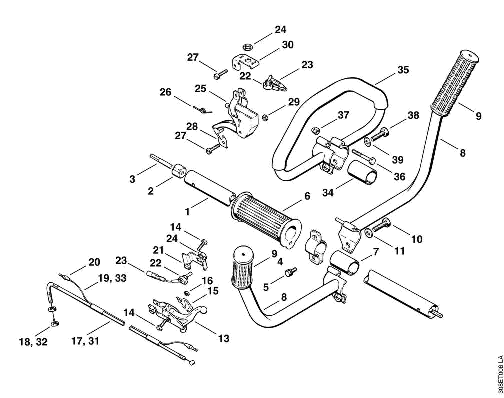

F-Drive tube
G-Gear head

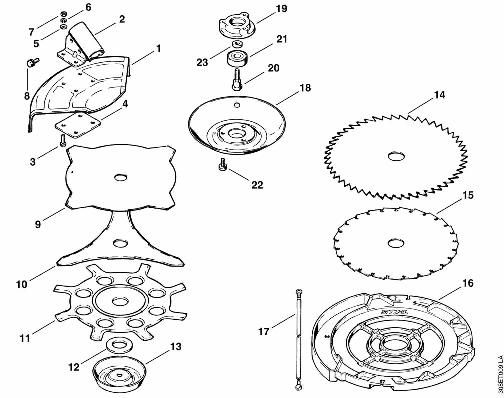

H-Cutting tools
J_-Cutting tools cutting head

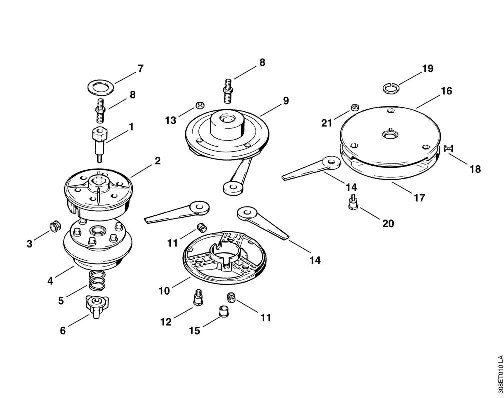

J-Cutting tools cutting head
K-Tools, Extras

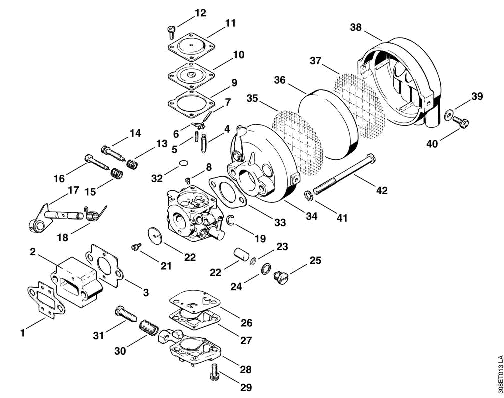

L_-Carburetor, Air filter
FS65AVRE
A-Crankcase, Cylinder
B-Rewind starter
C_-Carburetor, Air filter
C-Carburetor, Air filter
D-Fuel tank
E-Clutch housing
F_-Drive tube
F-Drive tube
G-Gear head
H-Cutting tools
J_-Cutting tools cutting head
J-Cutting tools cutting head
K-Tools, Extras
L_-Carburetor, Air filter
FS65-4

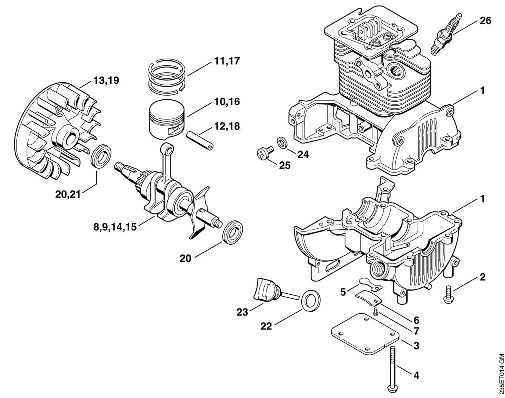

A-Crankcase

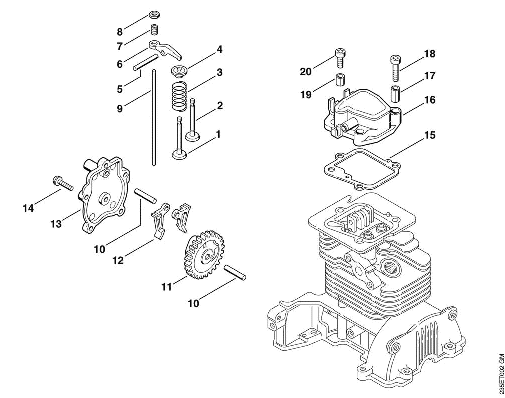

B-Valve timing gear

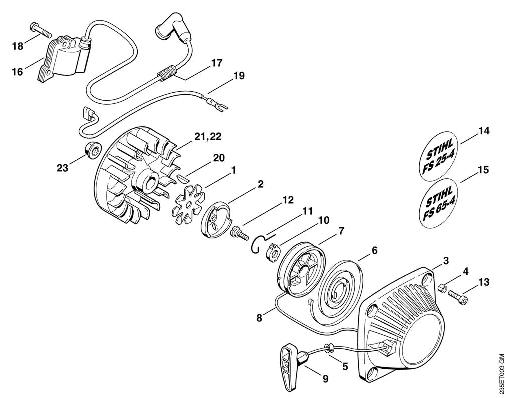

C-Rewind starter, Ignition system

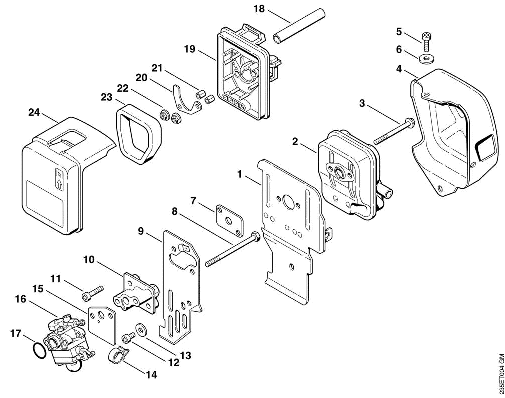

D-Muffler, Air filter

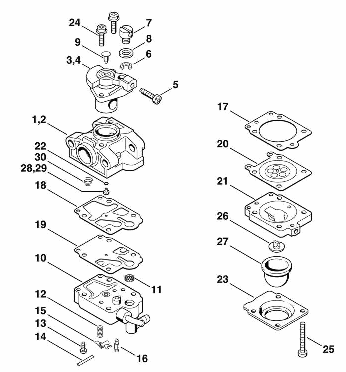

E-Carburetor WYL#62A, WYL#63

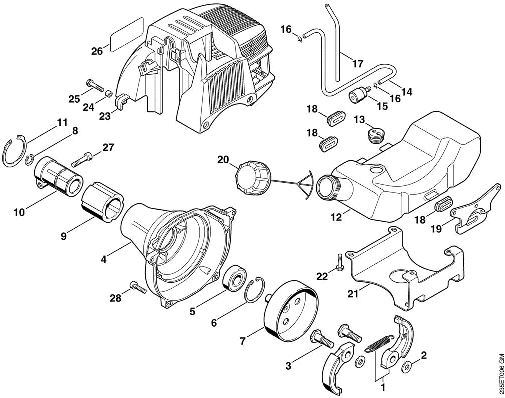

F-Clutch housing

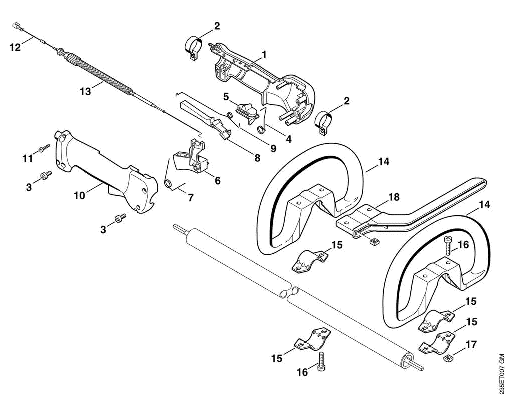

G-Control handle

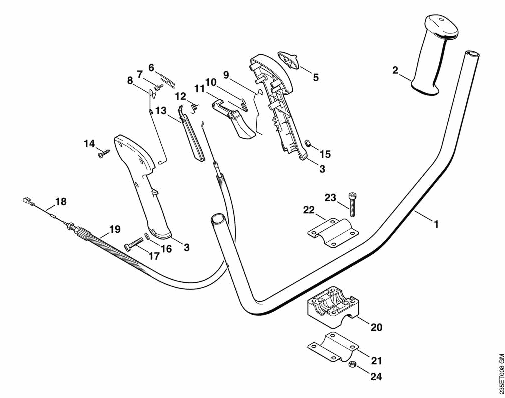

H-Two-handed handle bar

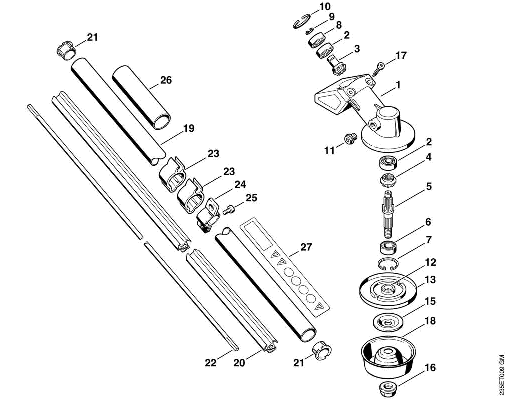

J-Gear head

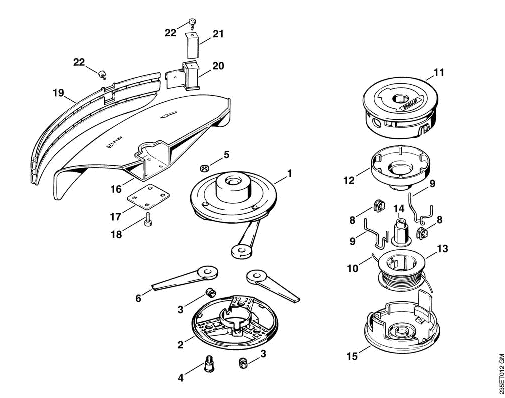

K-Cutting tools, Deflector, Polycut, Supercut

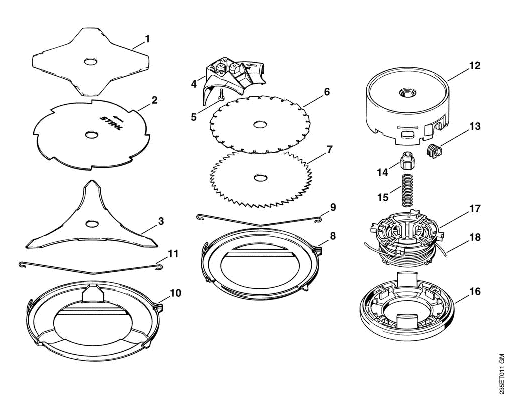

L-Cutting tools, Cutting blade, Autocut 30 # 2

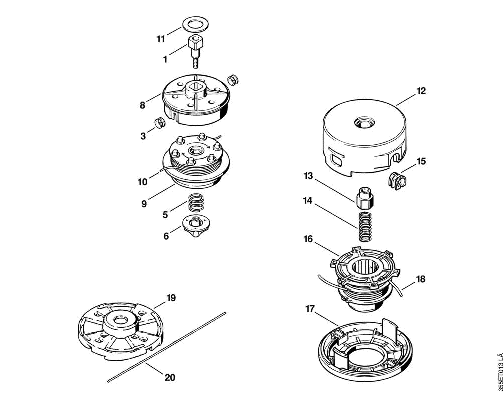

M-Cutting tools Polymatic 30, Autocut 25-2

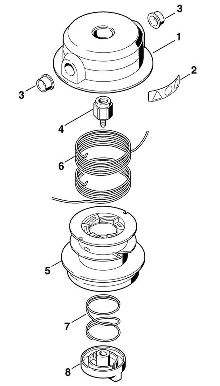

N-Trimcut head

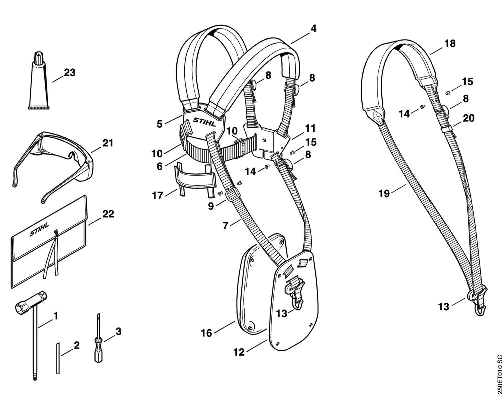

O-Tools, Extras
