Diagrams for the Stihl FS 48 Brushcutter
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl FS 48 Brushcutter.
Diagrams for this machine
Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl FS 48 Brushcutter
FS48

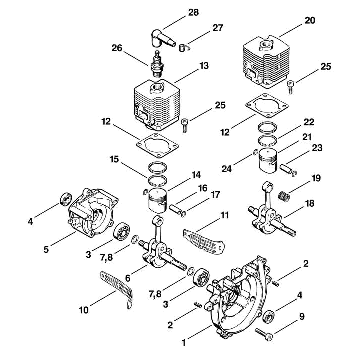

A-Crankcase, Cylinder

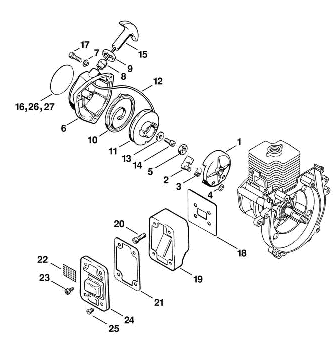

B-Rewind starter, Muffler
C_-Ignition system, Clutch

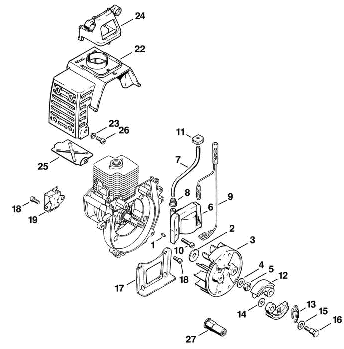

C-Ignition system, Clutch
D_-Air filter, Fuel tank

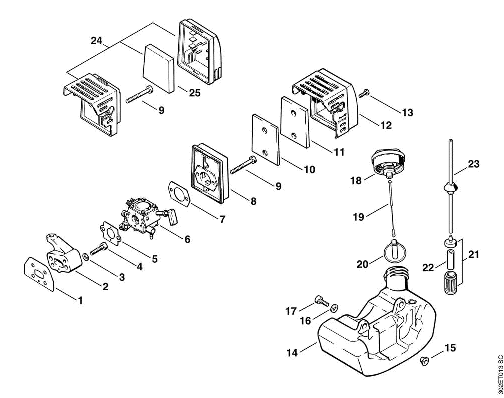

D-Air filter, Fuel tank

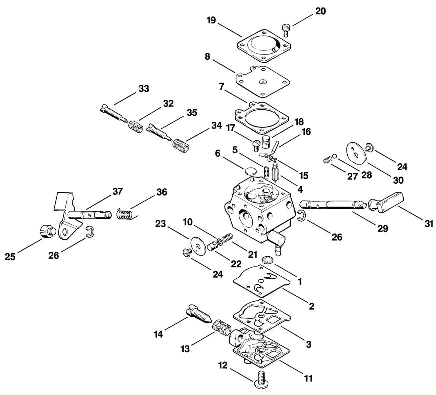

E-Carburetor

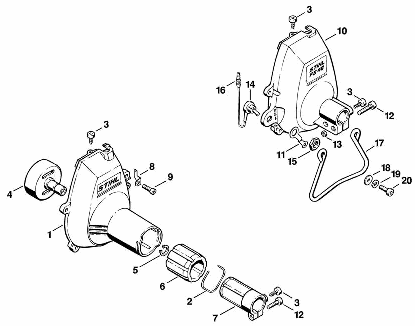

F-Fan housing

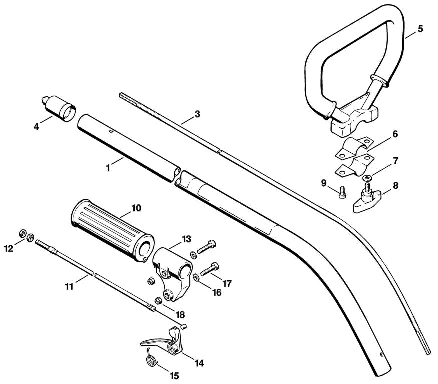

G-Drive tube, Loop handle
H_-Control handle FS 52, FS 56

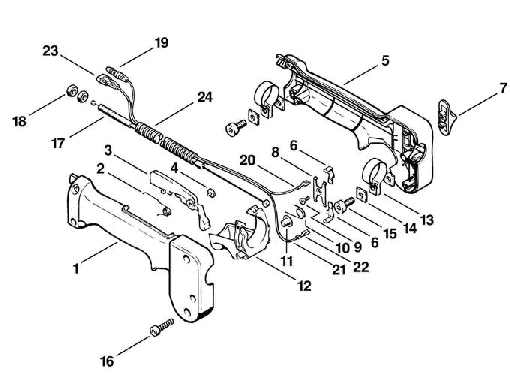

H-Control handle FS 52, FS 56

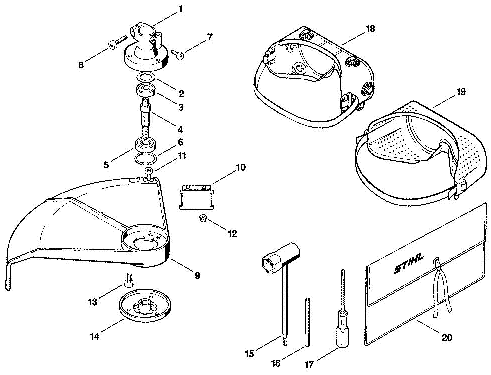

J-Bearing housing

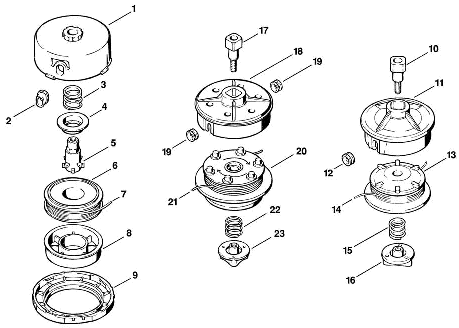

K-Cutting tools

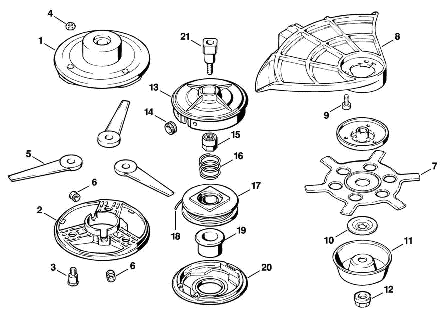

L-Cutting tools

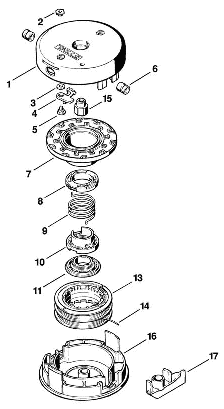

M-Cutting tools
