Diagrams for the Stihl FS 45 Brushcutter
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl FS 45 Brushcutter.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl FS 45 Brushcutter
FS45

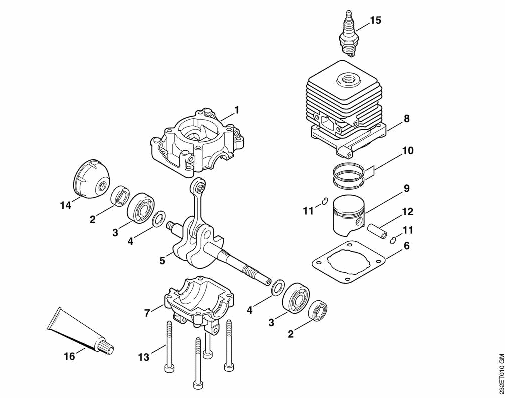

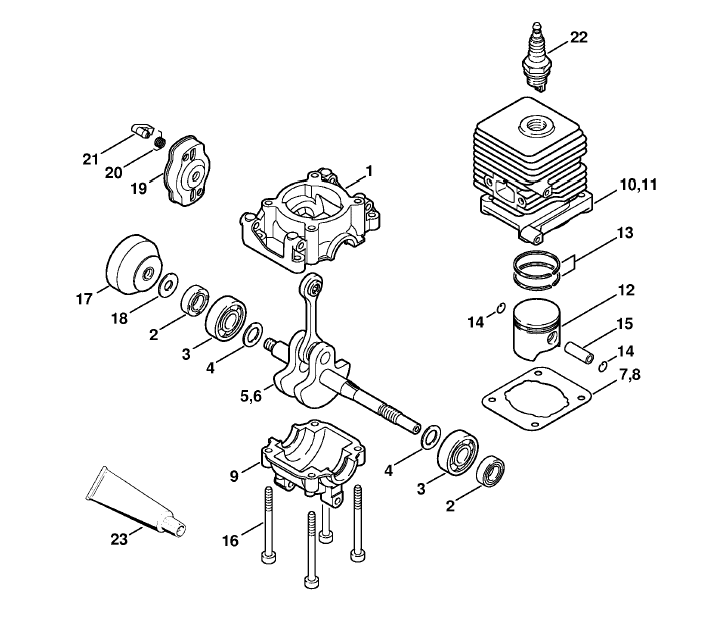

A-Crankcase, Cylinder

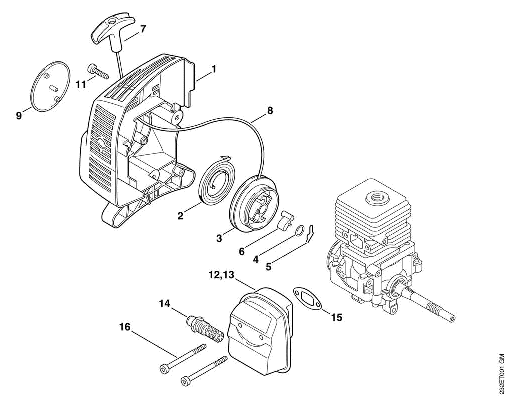

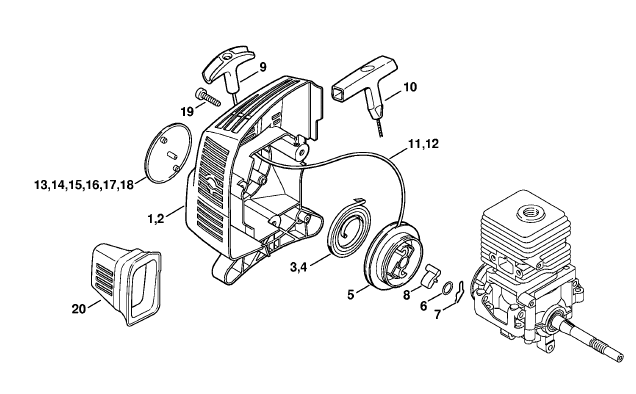

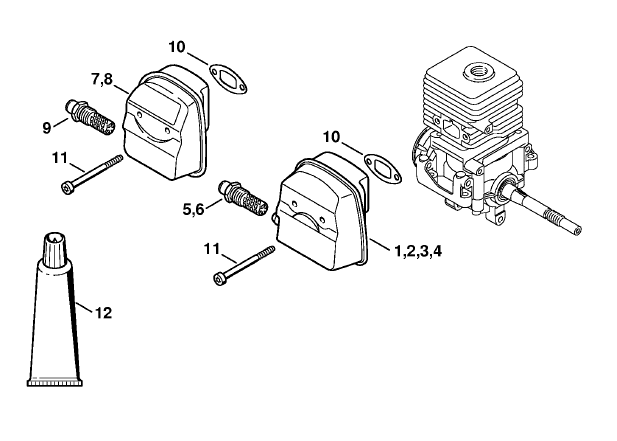

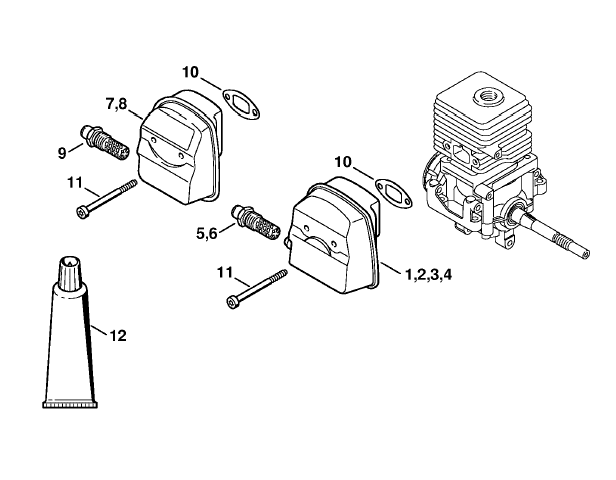

B-Rewind starter, Muffler

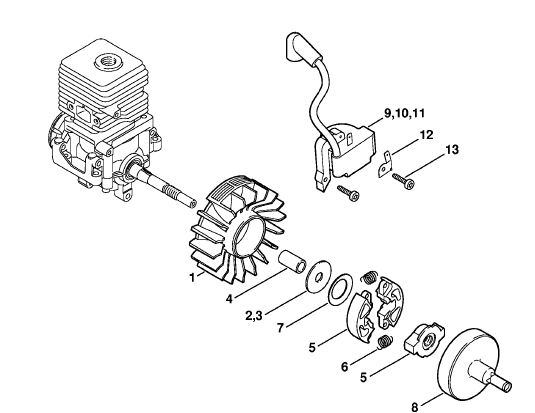

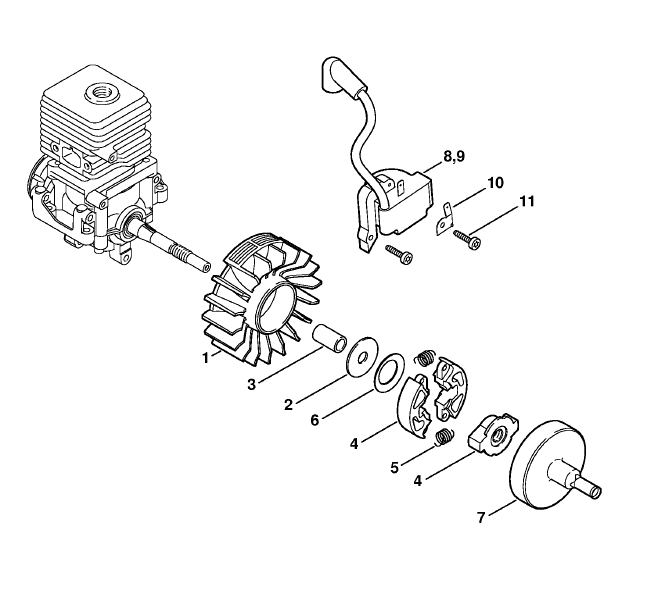

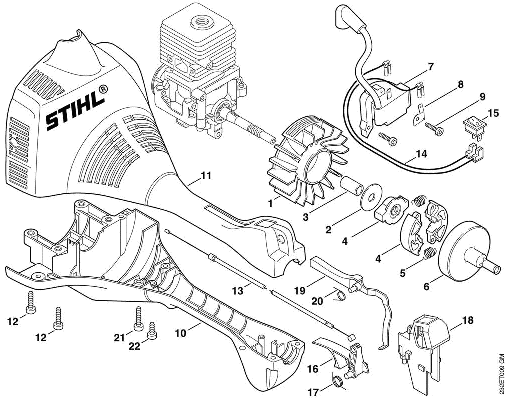

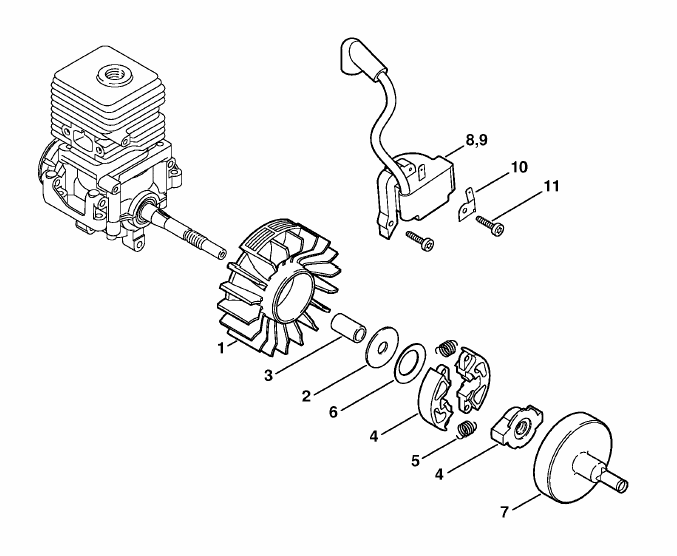

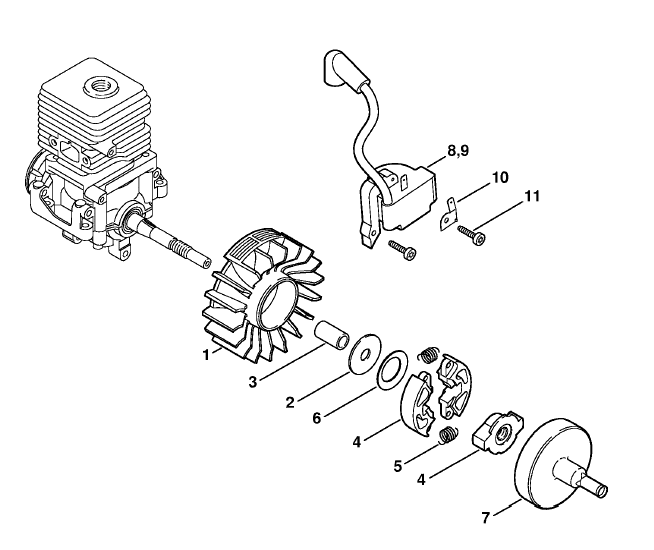

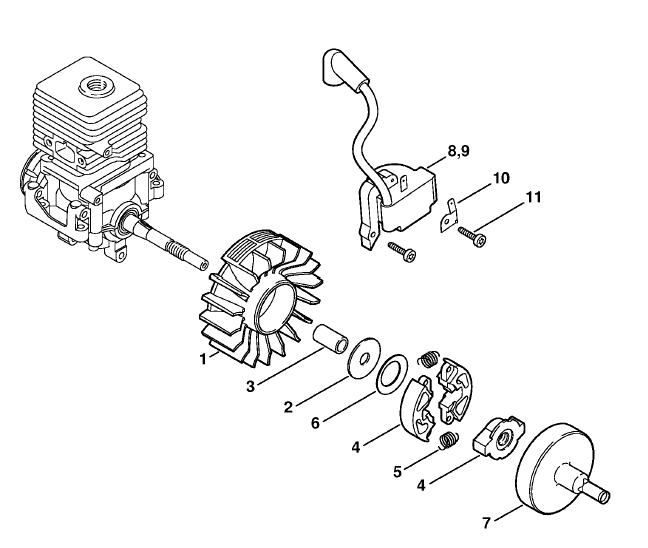

C-Ignition system, Clutch

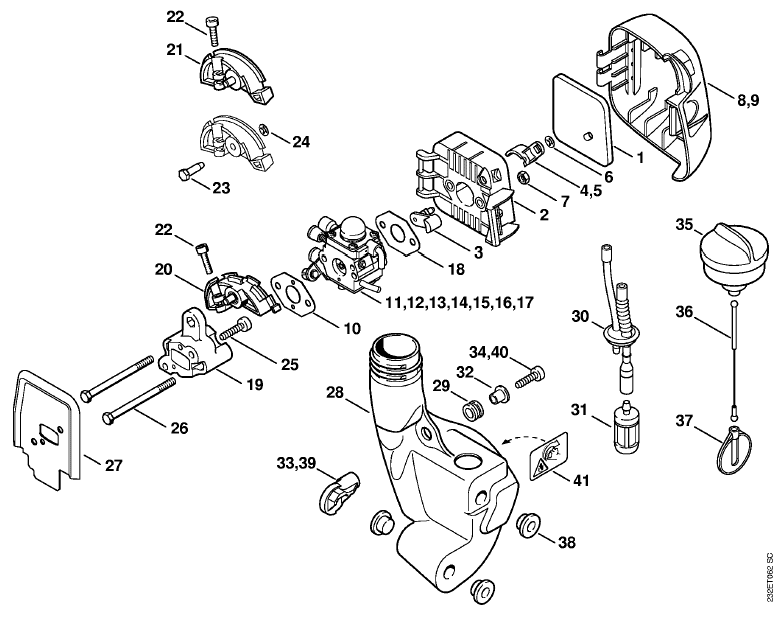

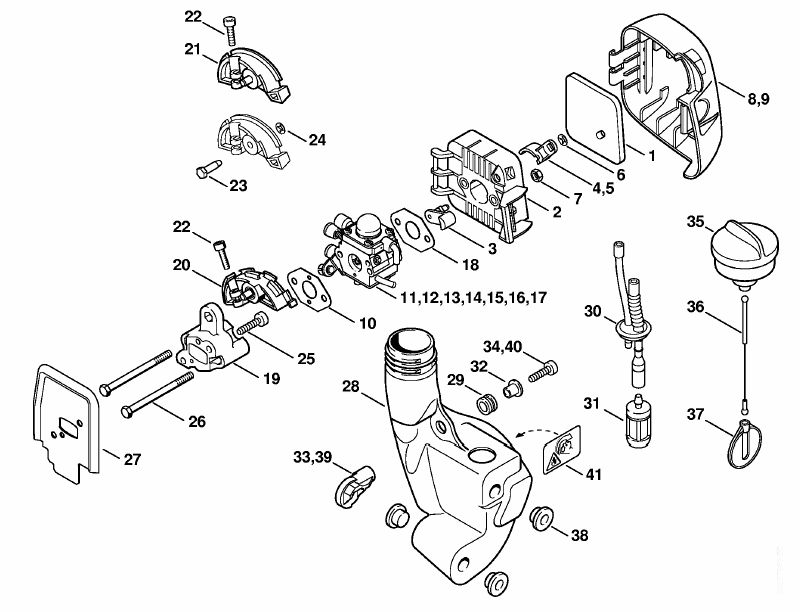

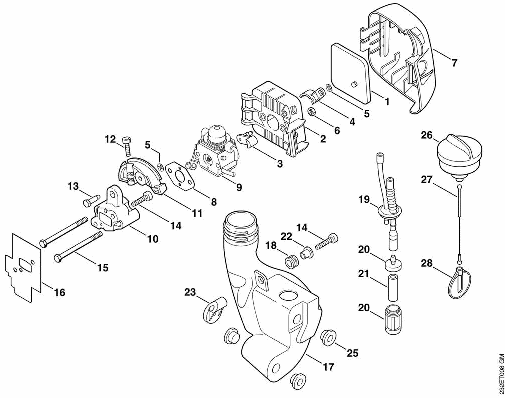

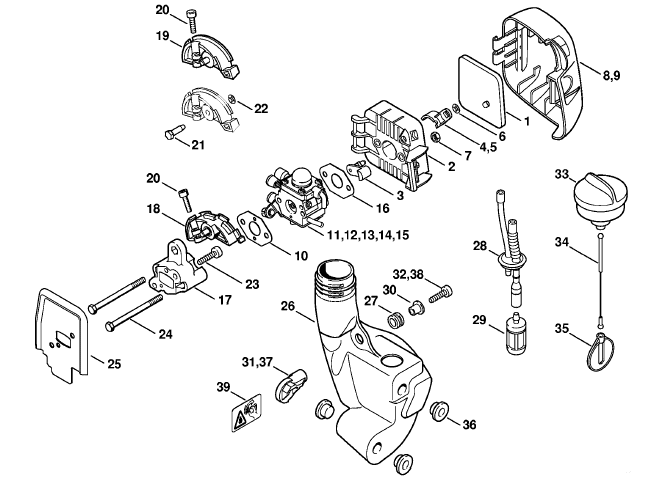

D-Air filter, Fuel tank

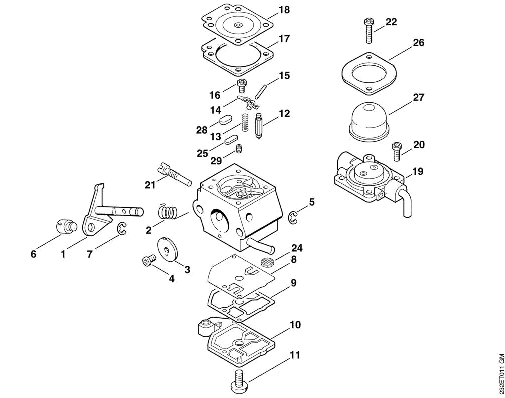

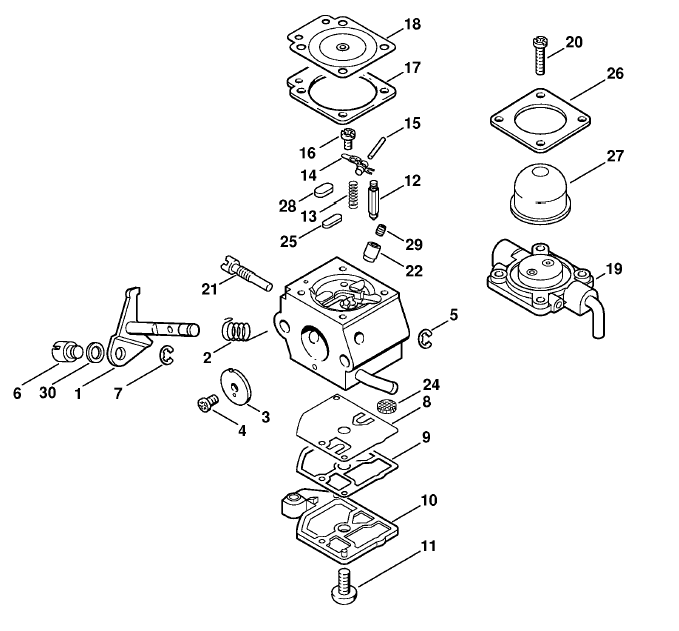

E-Carburetor C1Q-S44

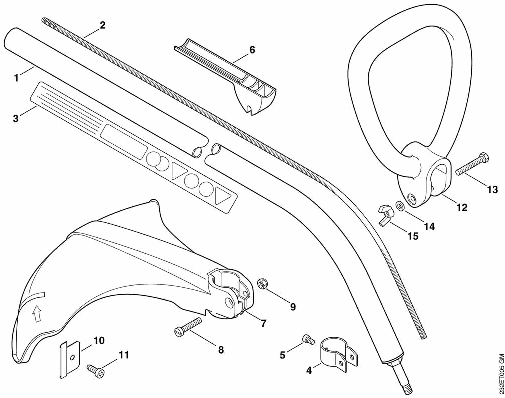

F-Drive tube FS 45, Wrap around handle

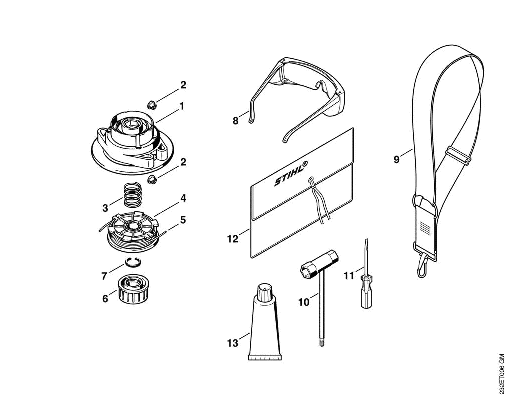

G-Autocut head, Tools
FS45C

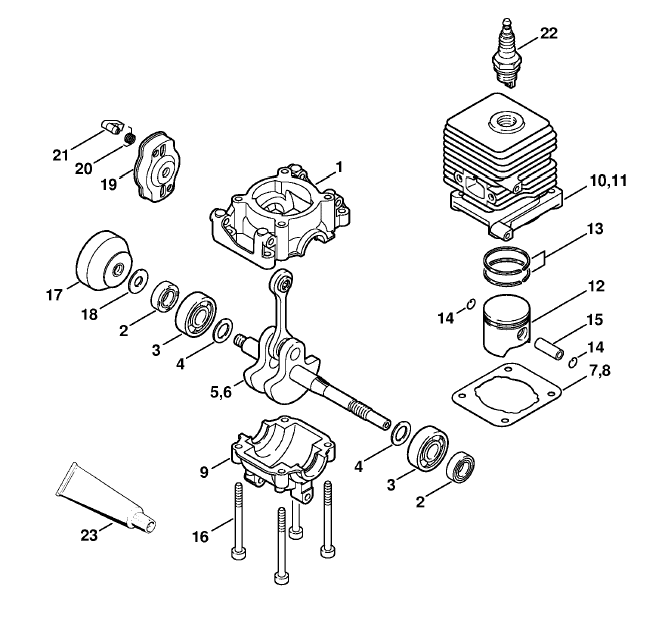

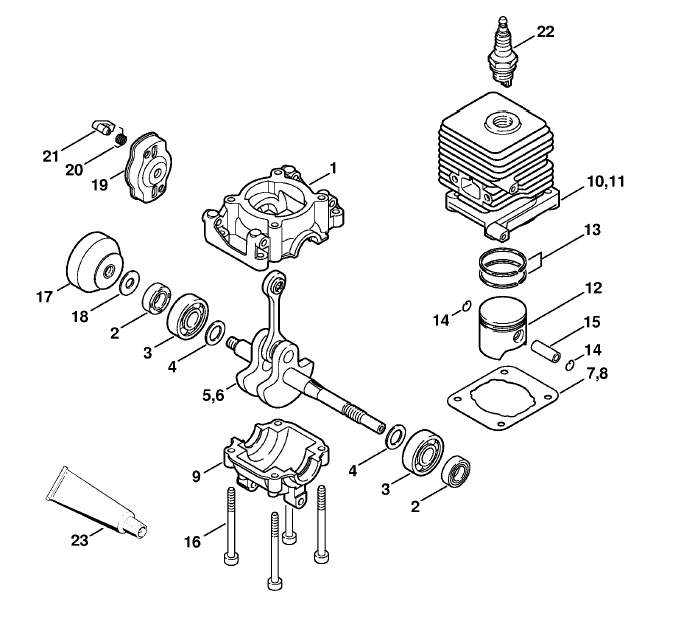

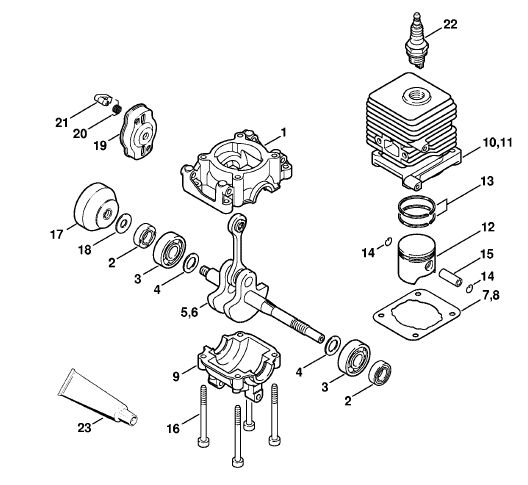

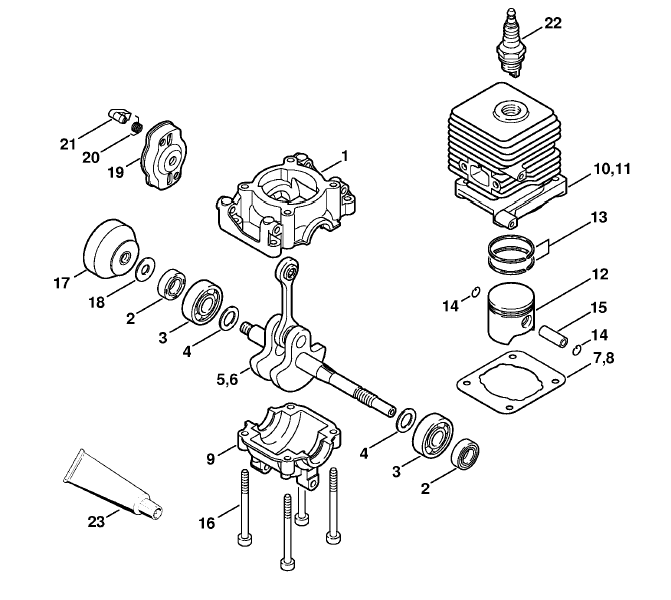

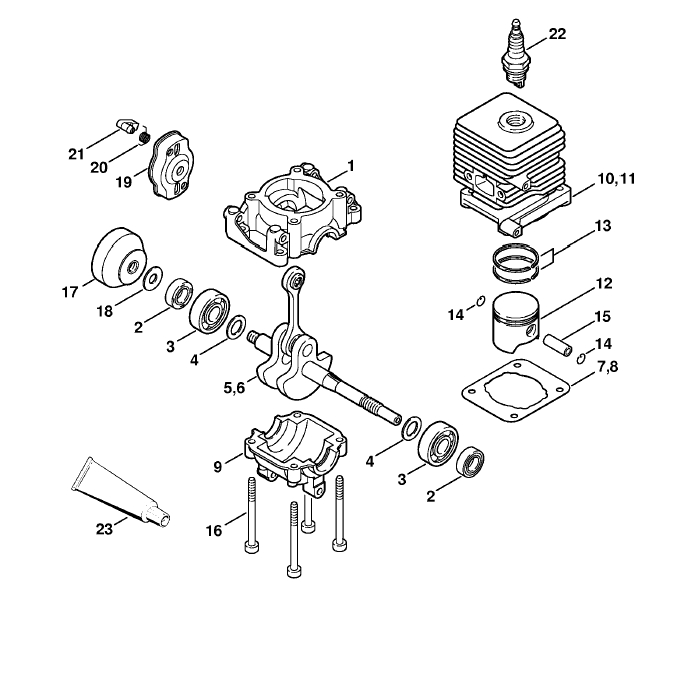

Crankcase, Cylinder

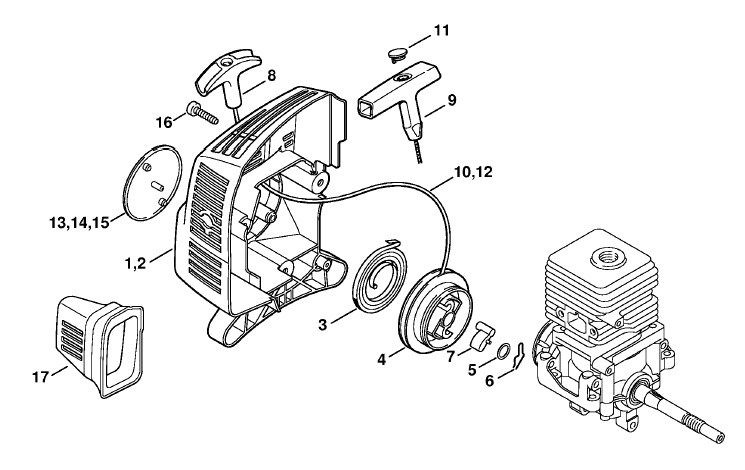

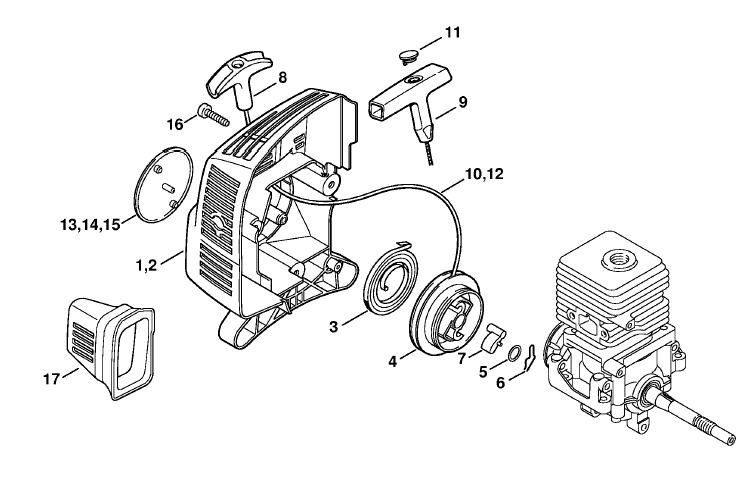

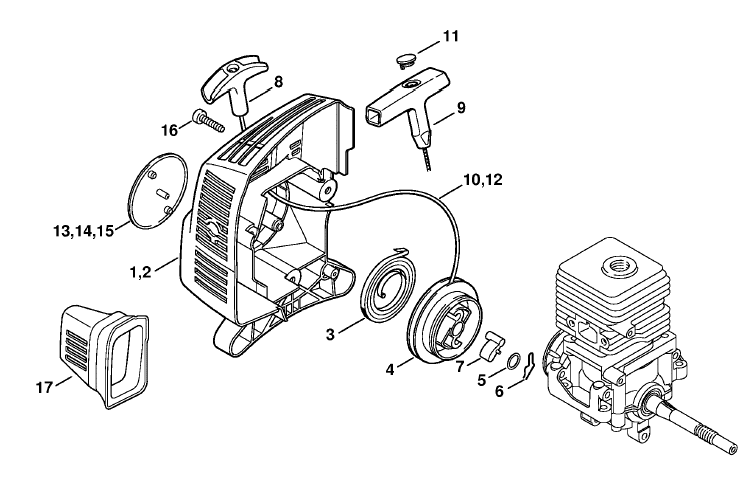

Rewind starter

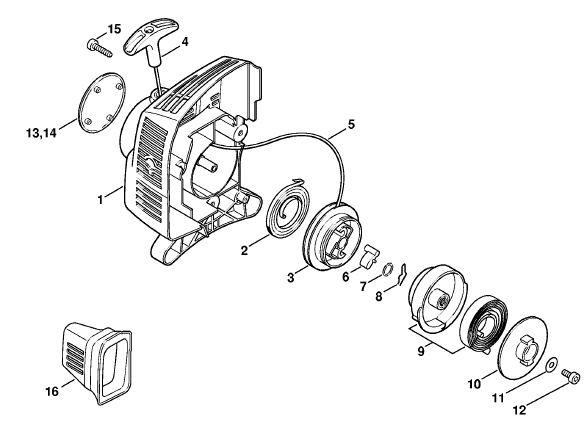

Rewind starter ErgoStart

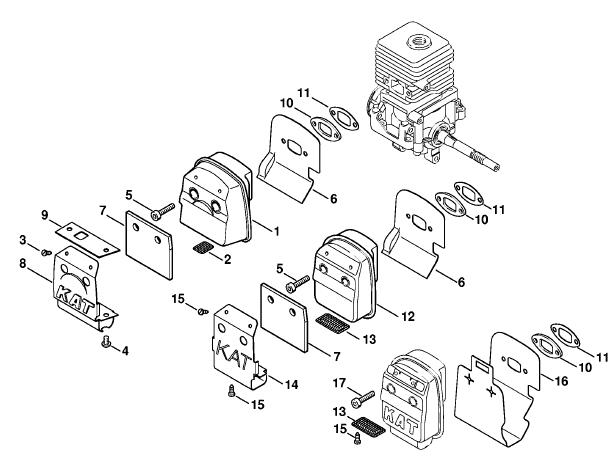

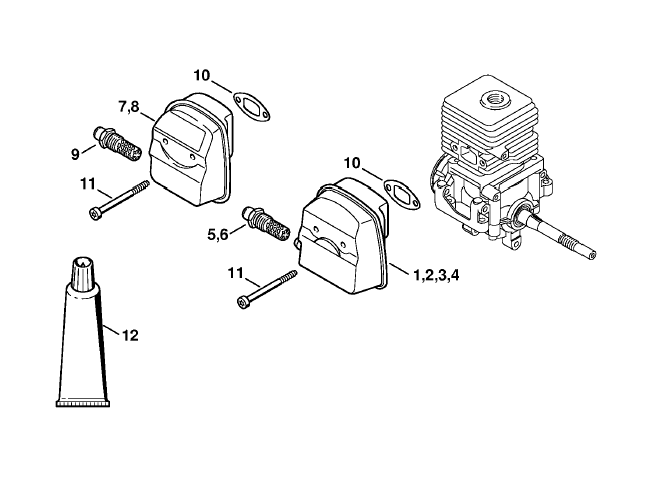

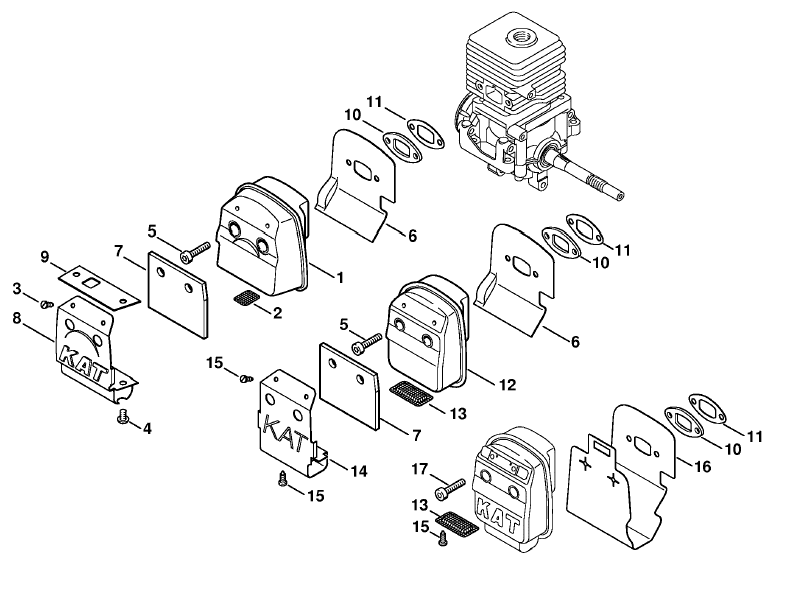

Muffler Cat

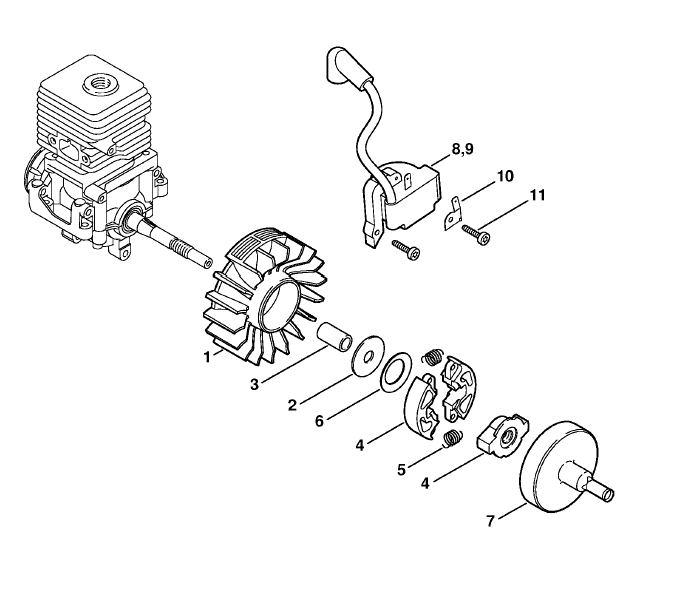

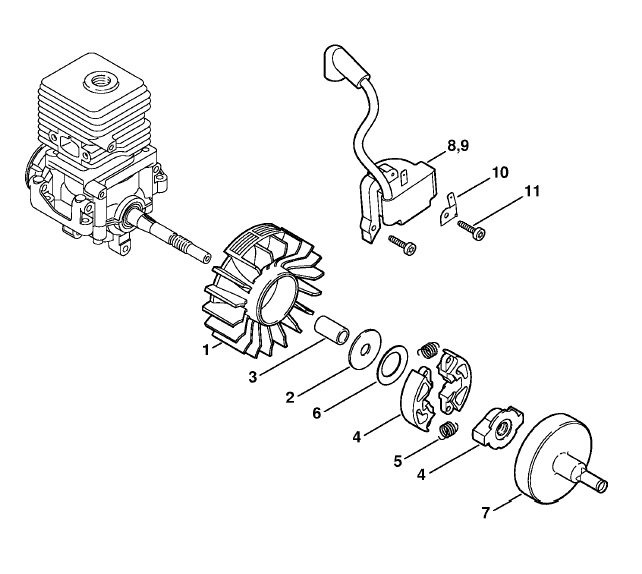

Ignition system, Clutch

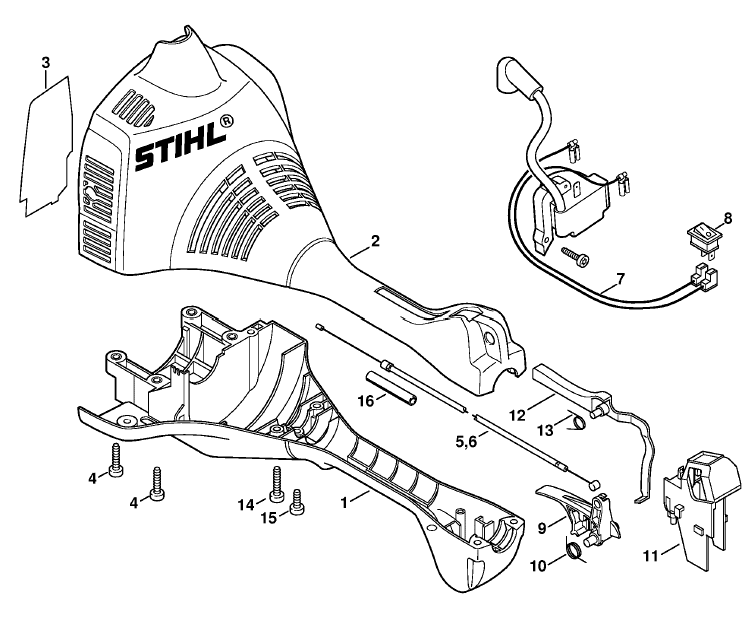

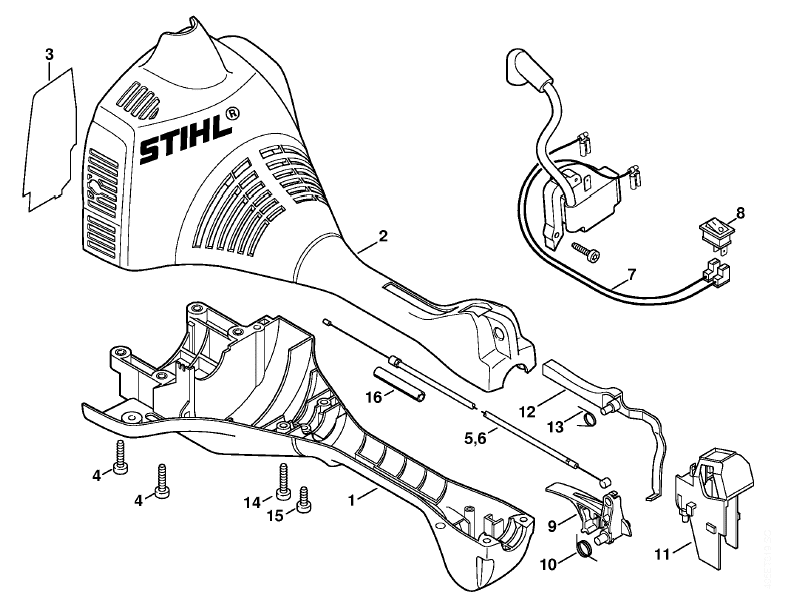

Engine housing

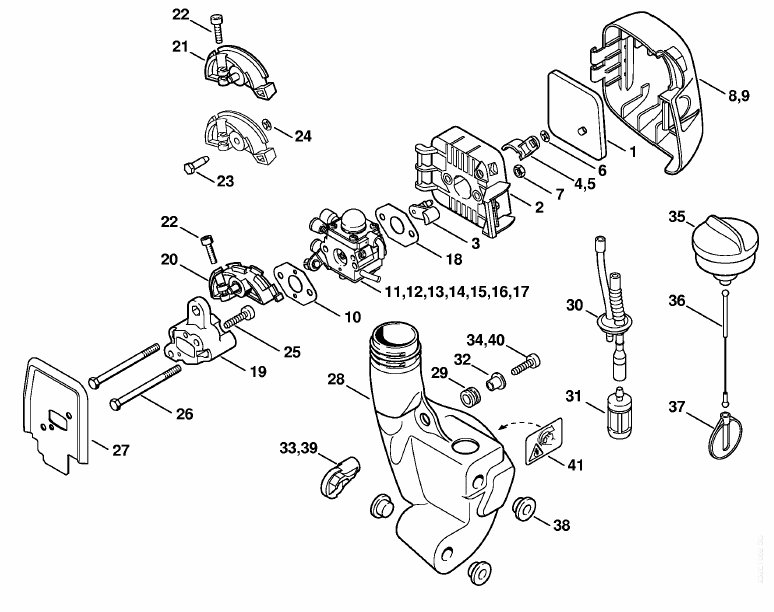

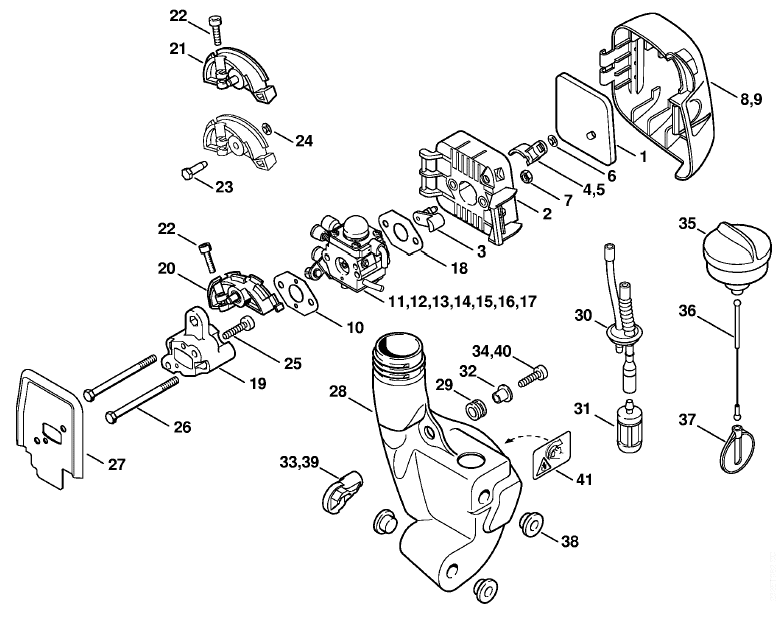

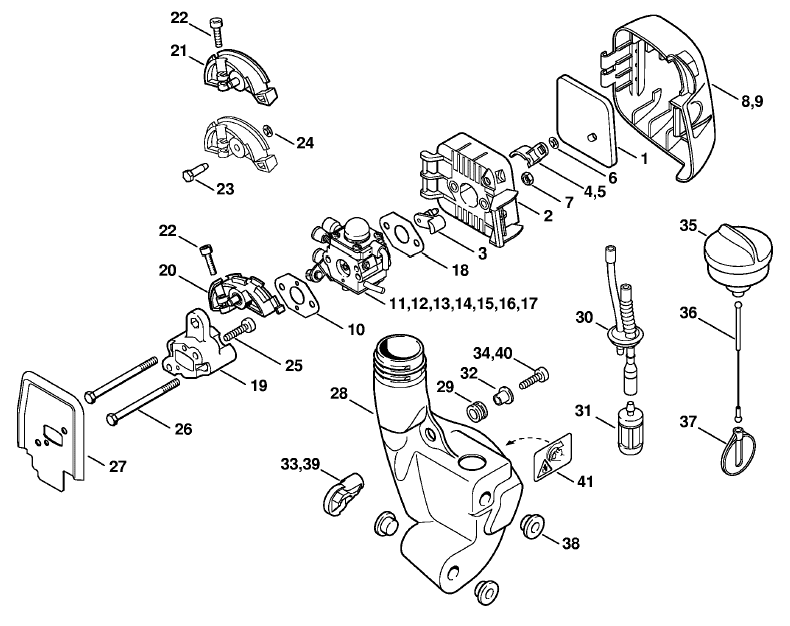

Air filter, Fuel tank

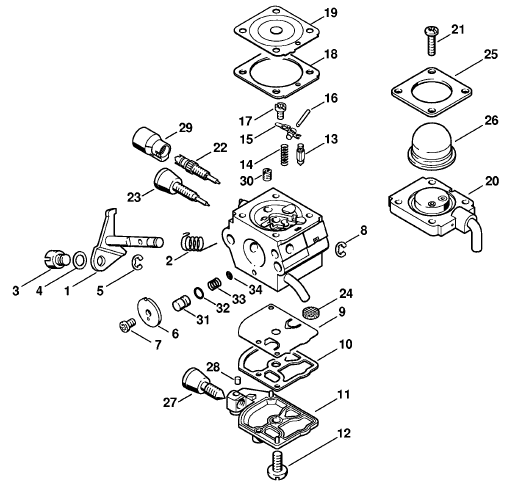

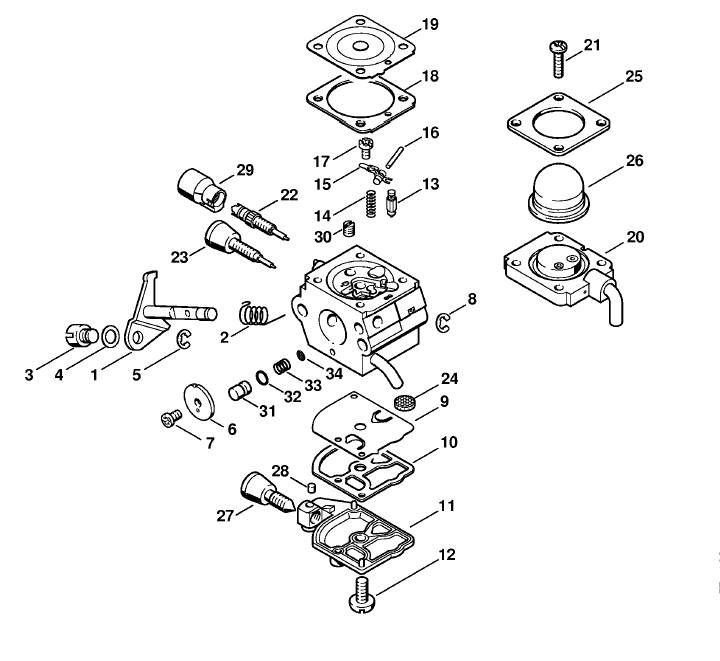

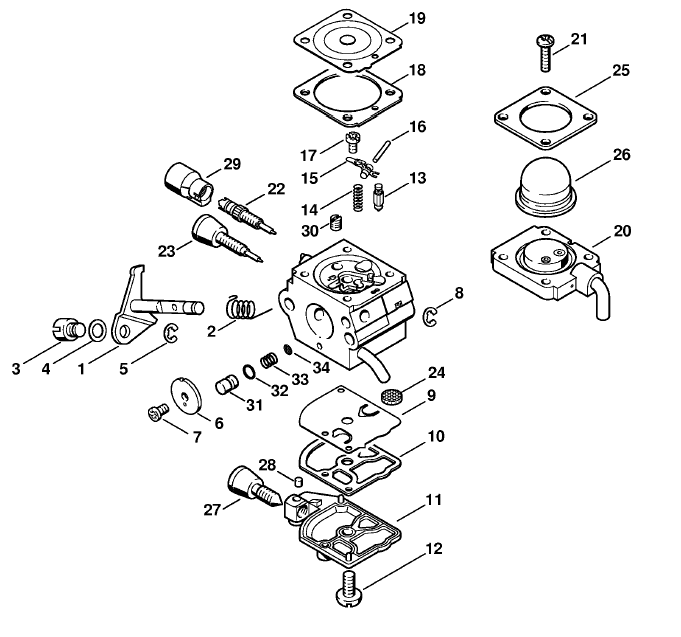

Carburetor C1QS71

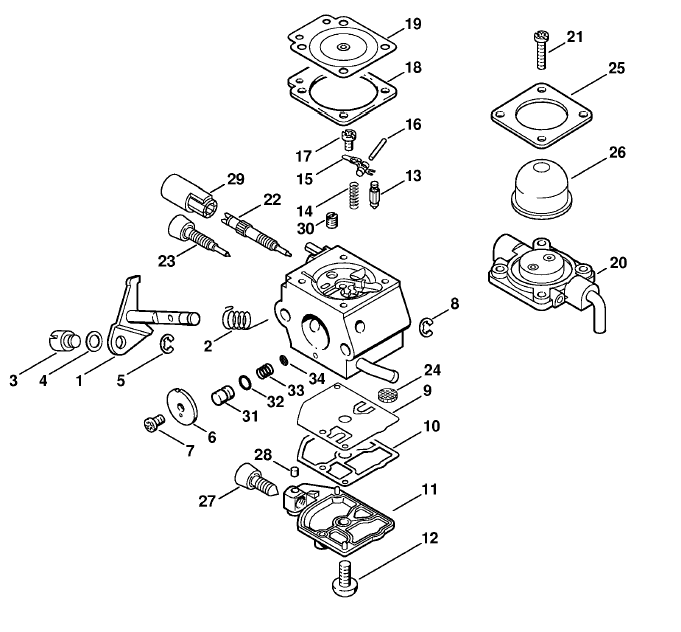

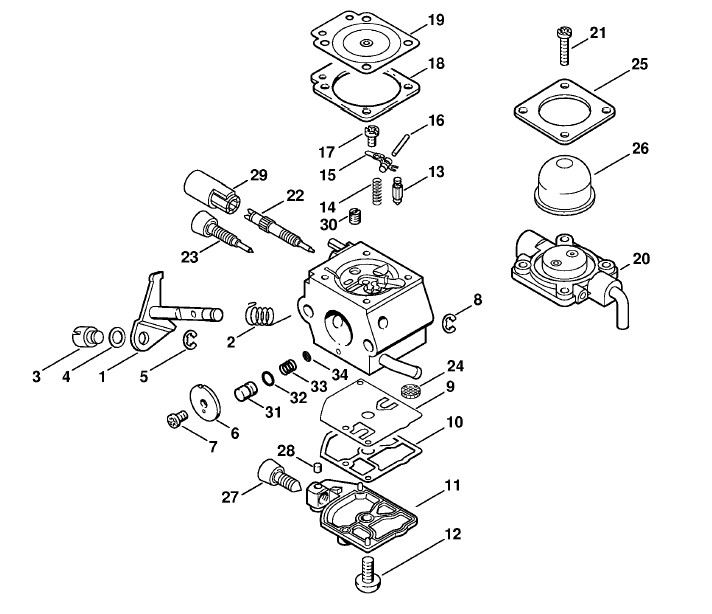

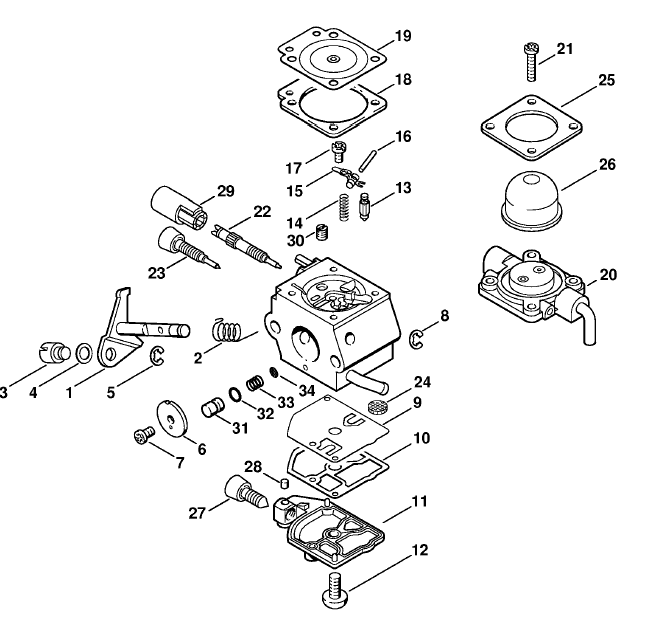

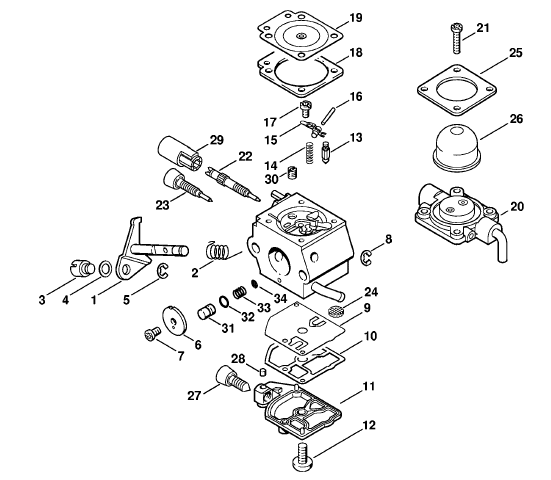

Carburetor C1QS66

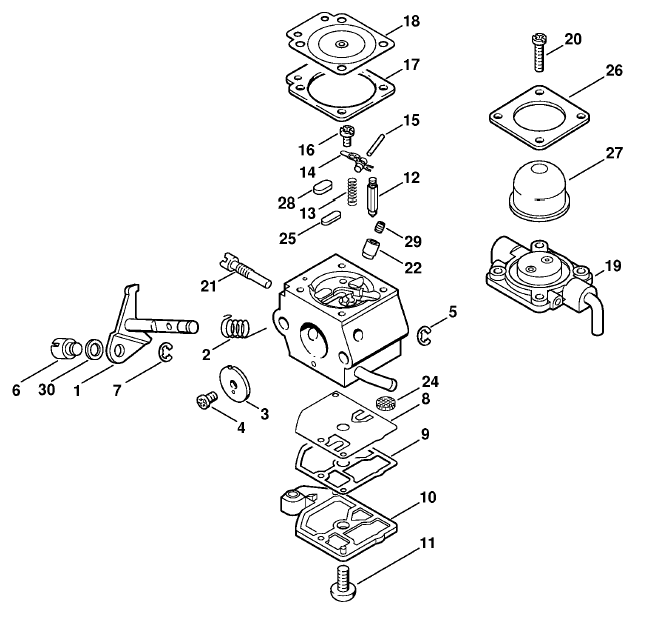

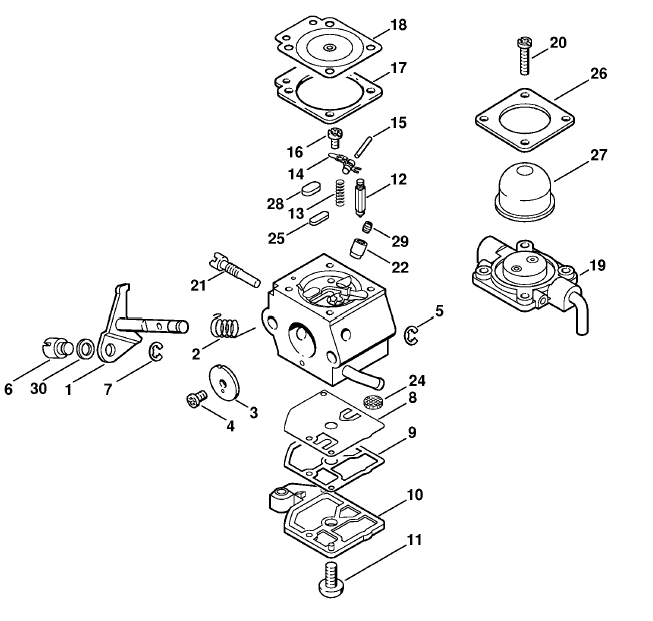

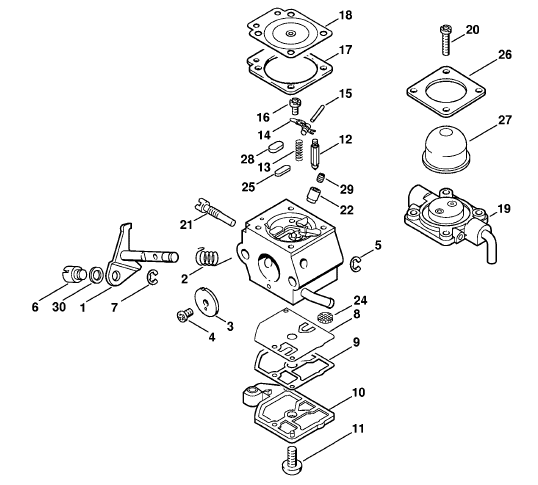

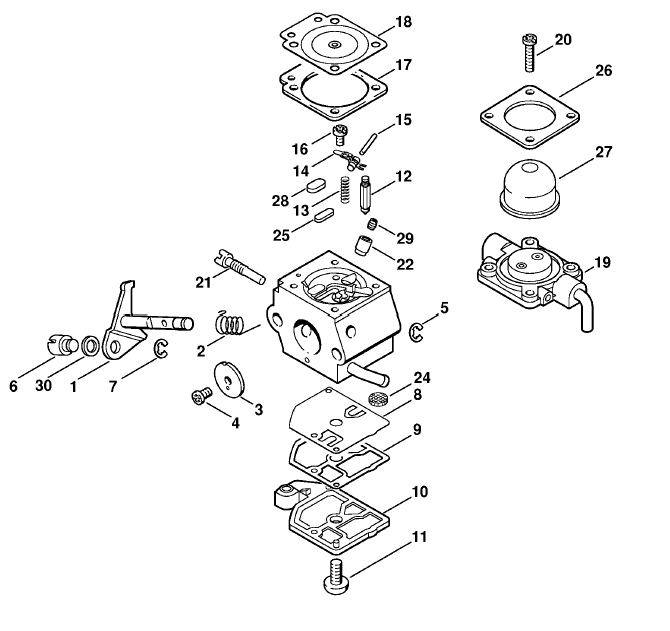

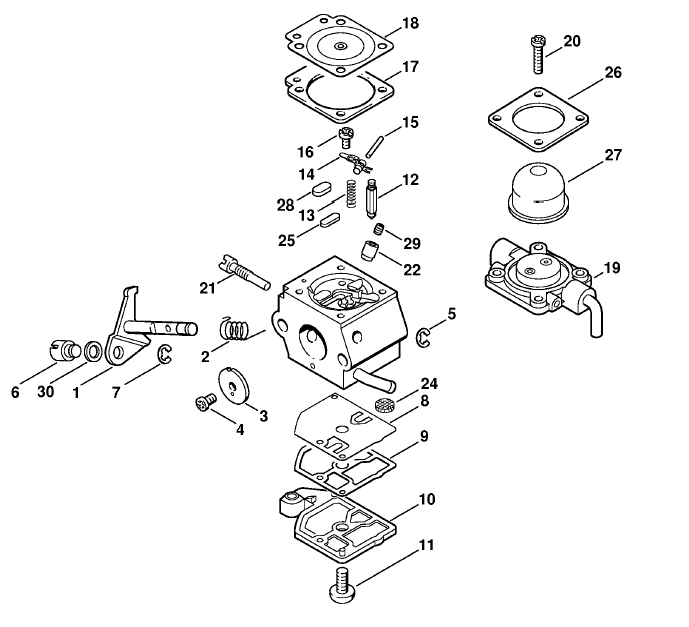

Carburetor C1QS58

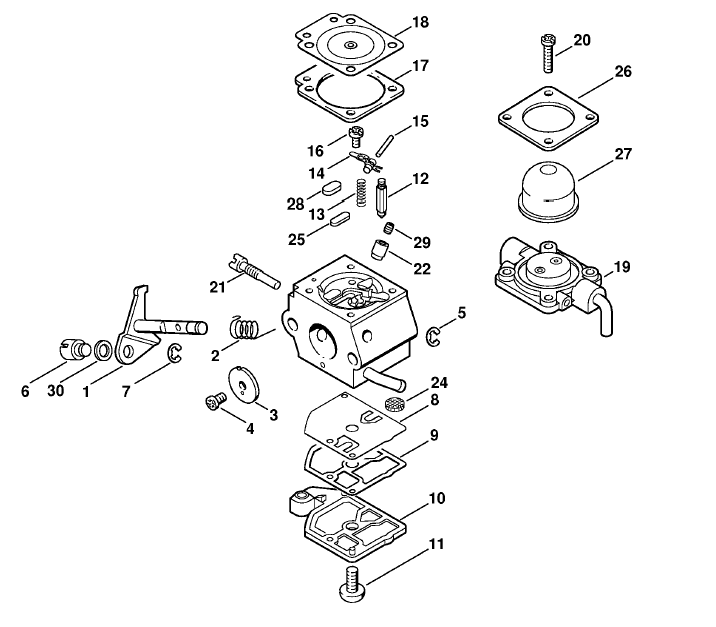

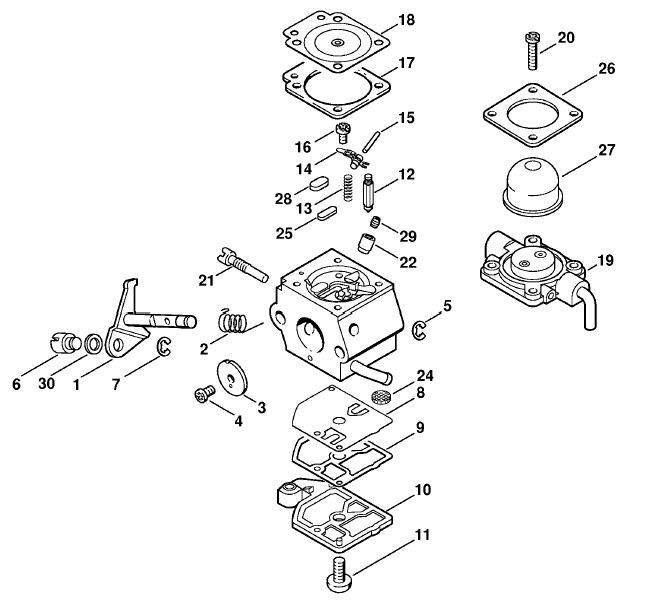

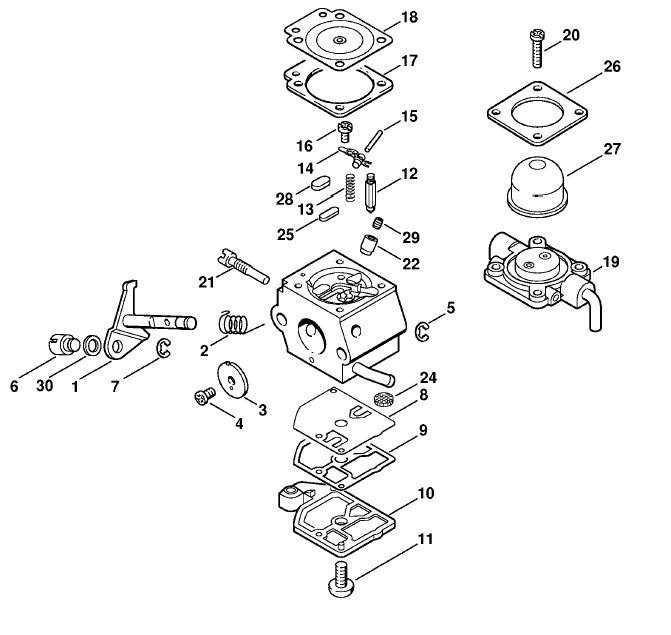

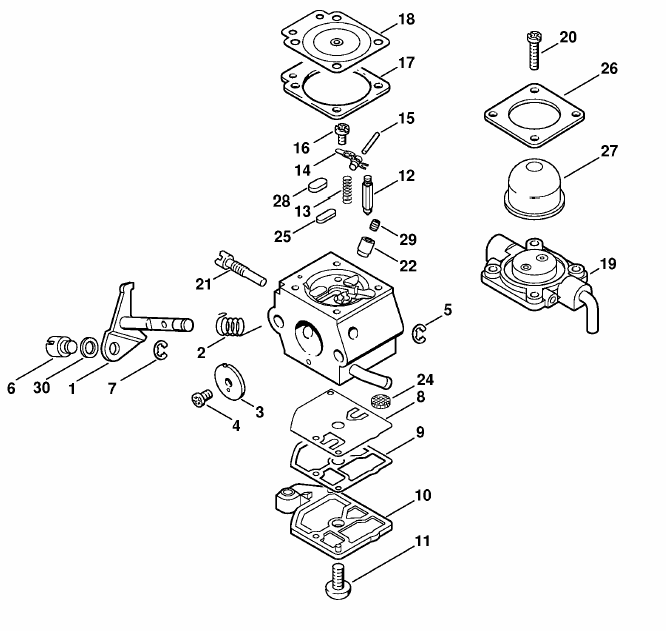

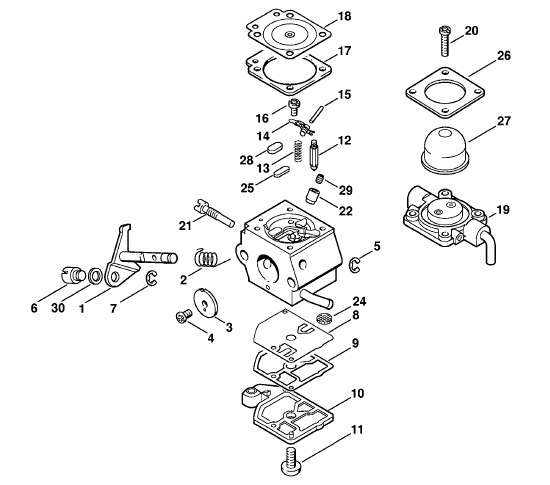

Carburetor C1QS53A

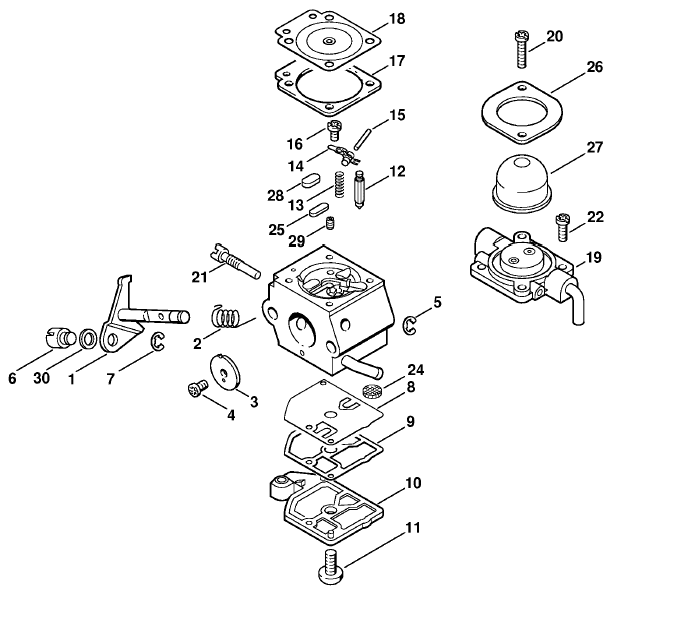

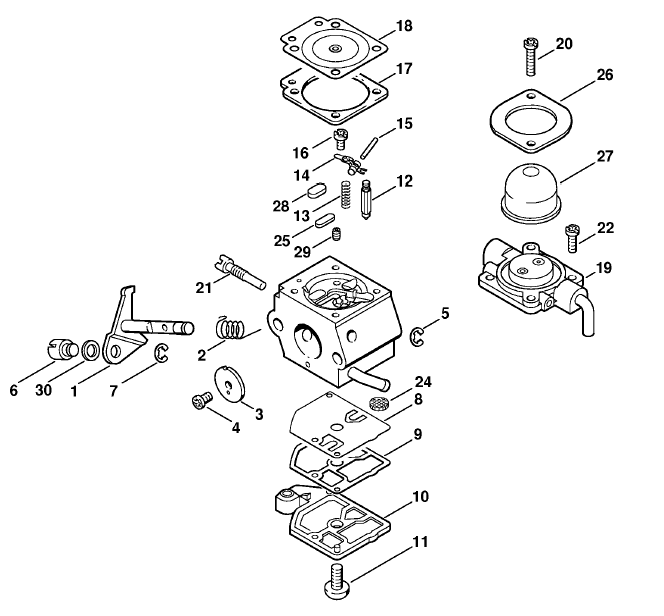

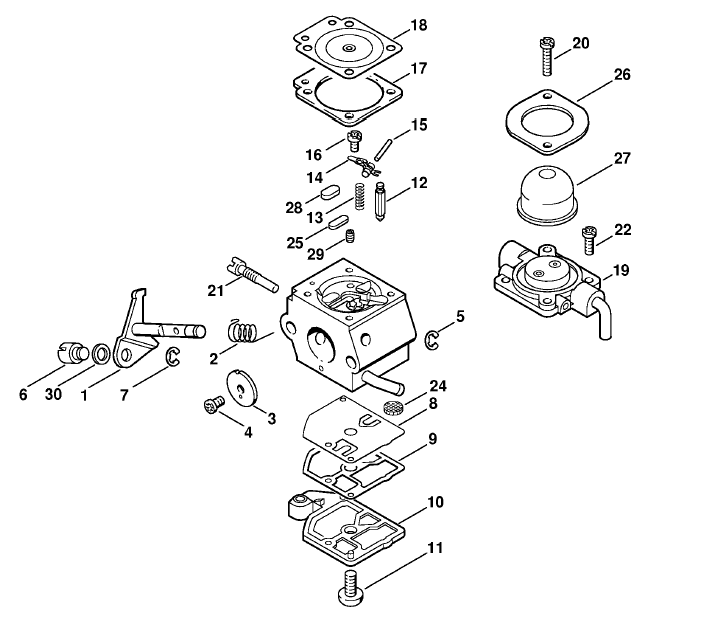

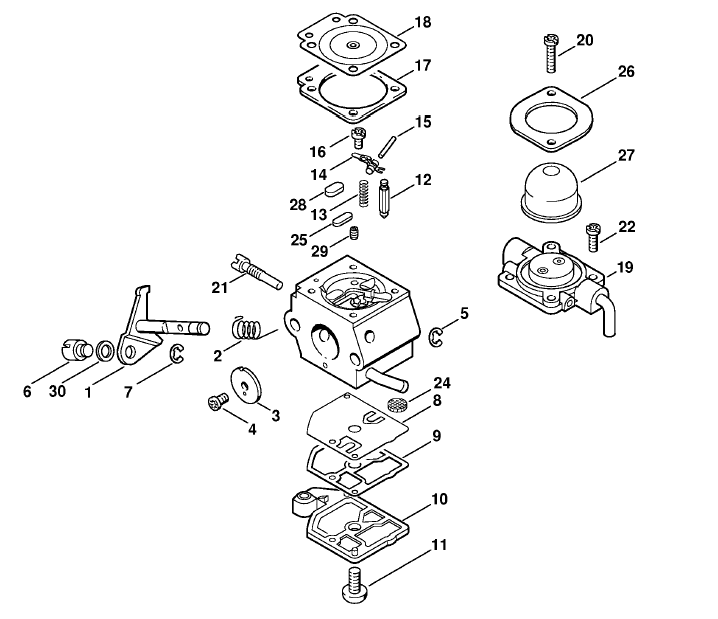

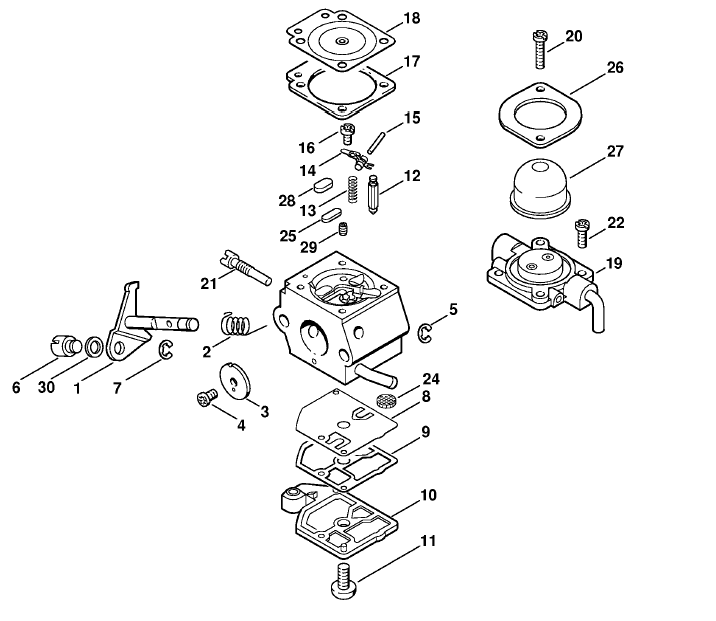

Carburetor C1Q-S44A

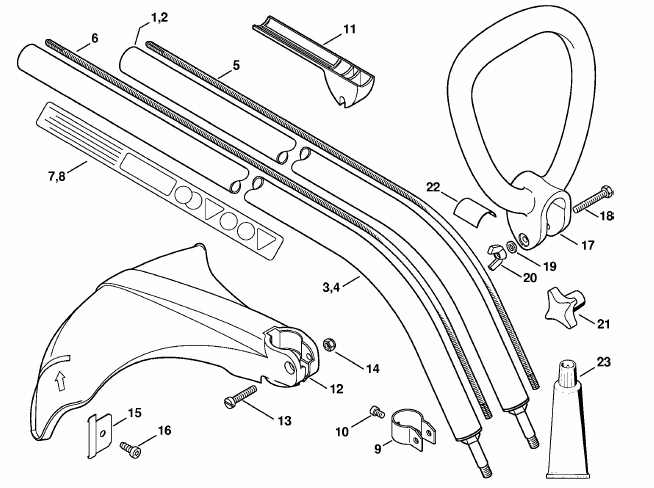

Drive tube assembly

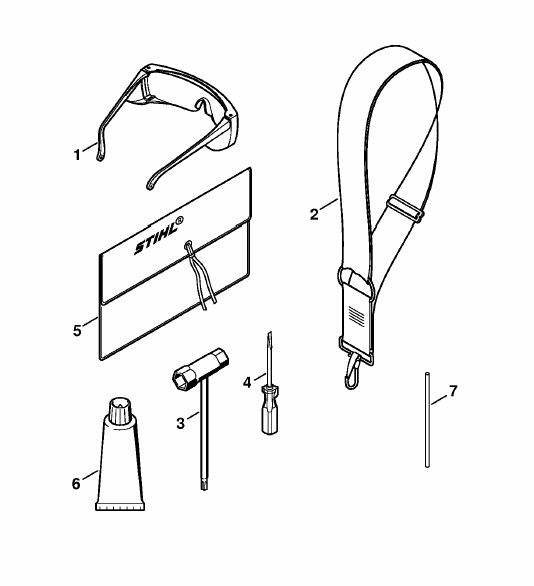

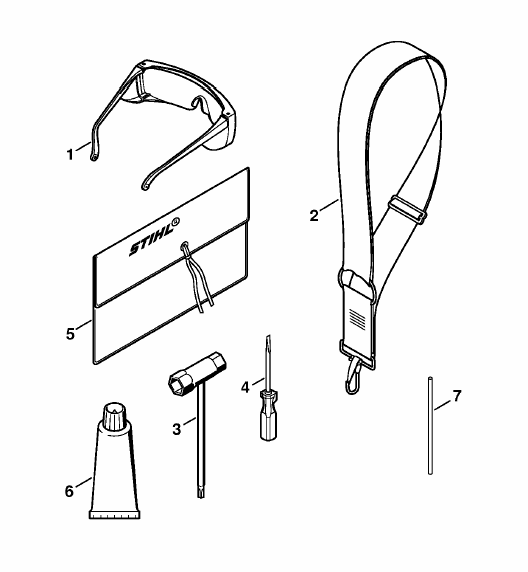

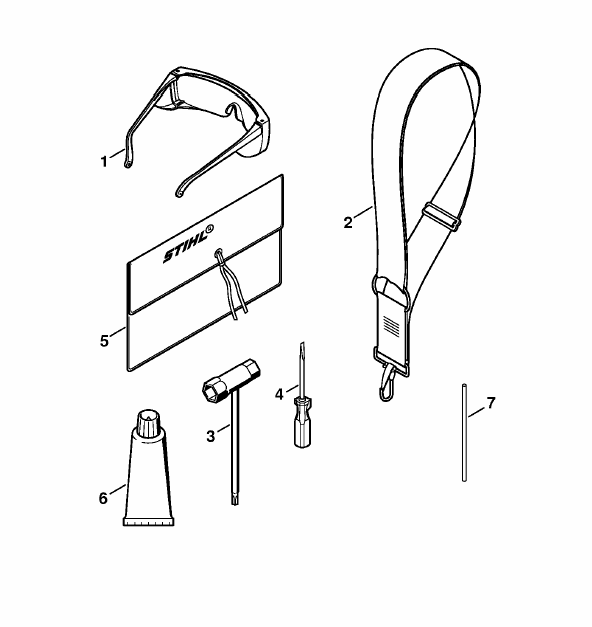

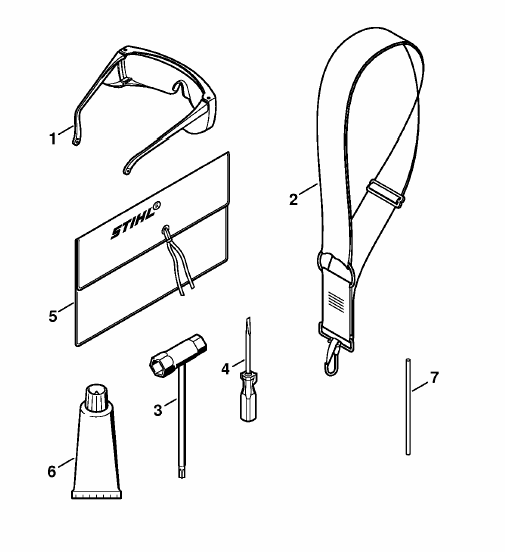

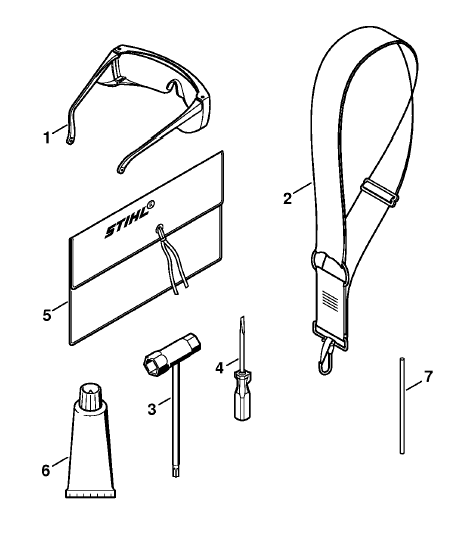

Tools, Extras
FS45C-E
Air filter, Fuel tank
Carburetor C1QS58
Carburetor C1QS66
Carburetor C1QS71

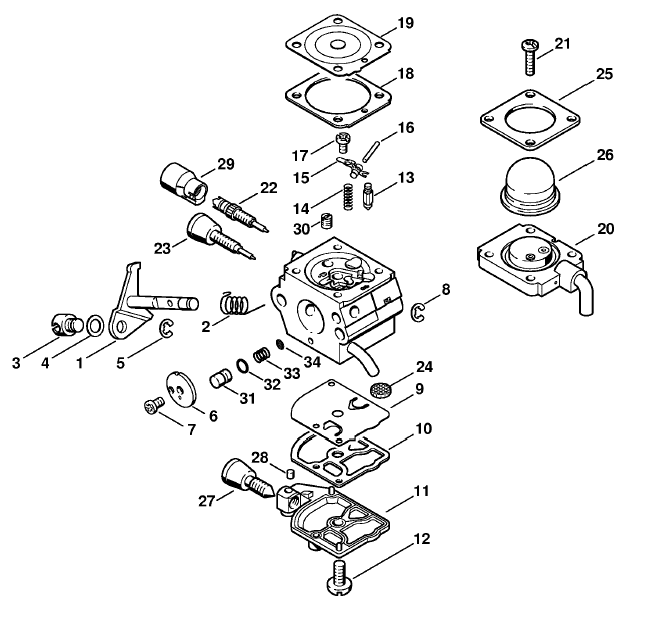

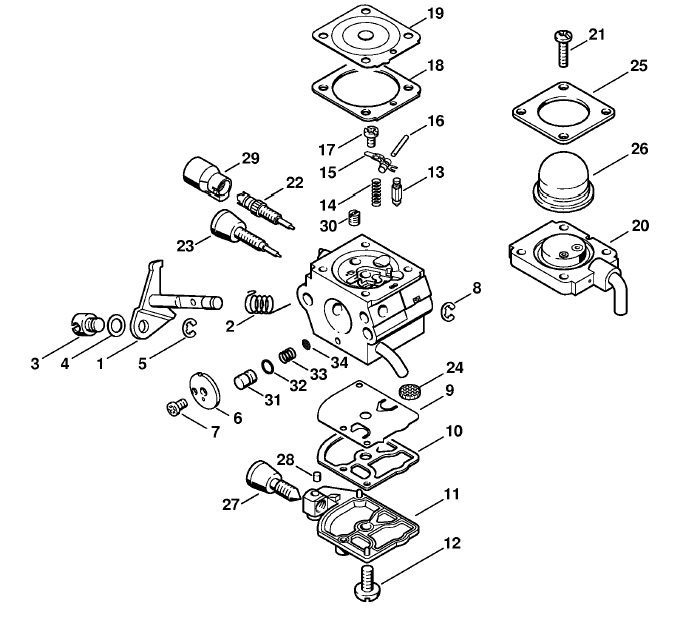

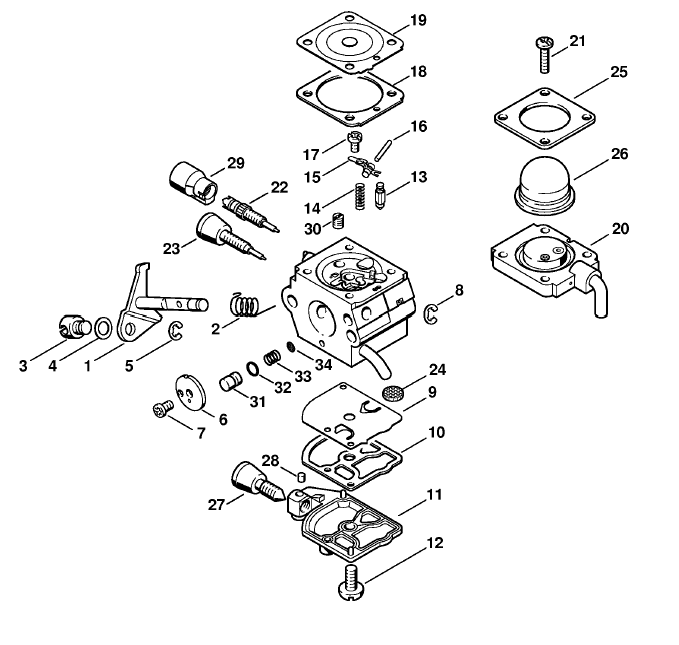

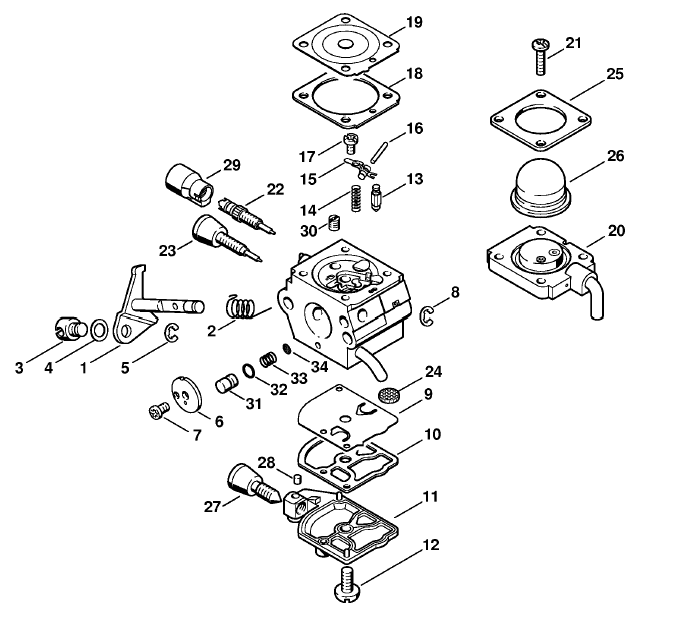

Carburetor C1QS97A
Carburetor C1Q-S44A
Crankcase, Cylinder

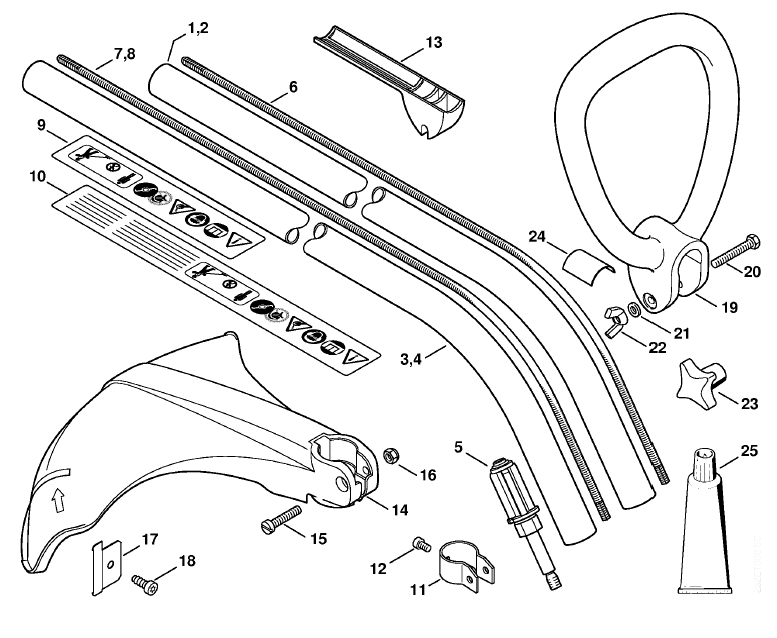

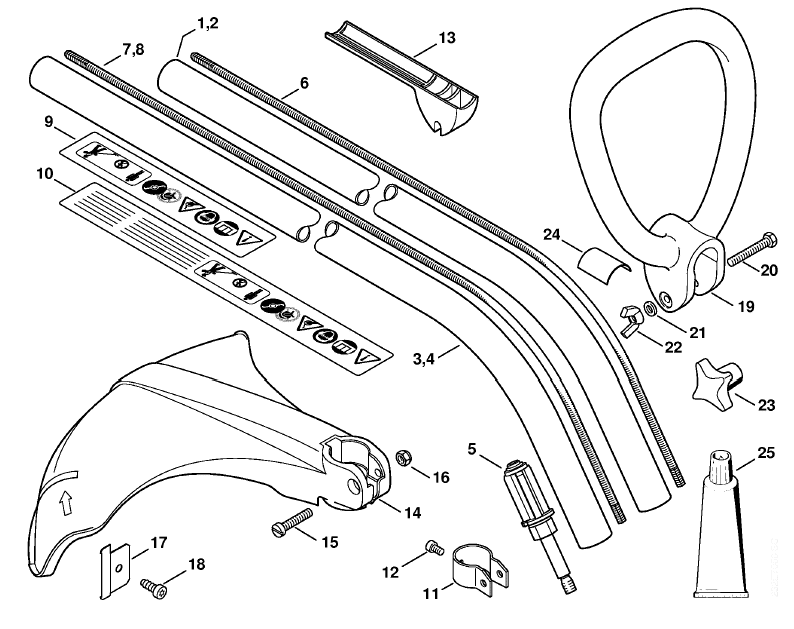

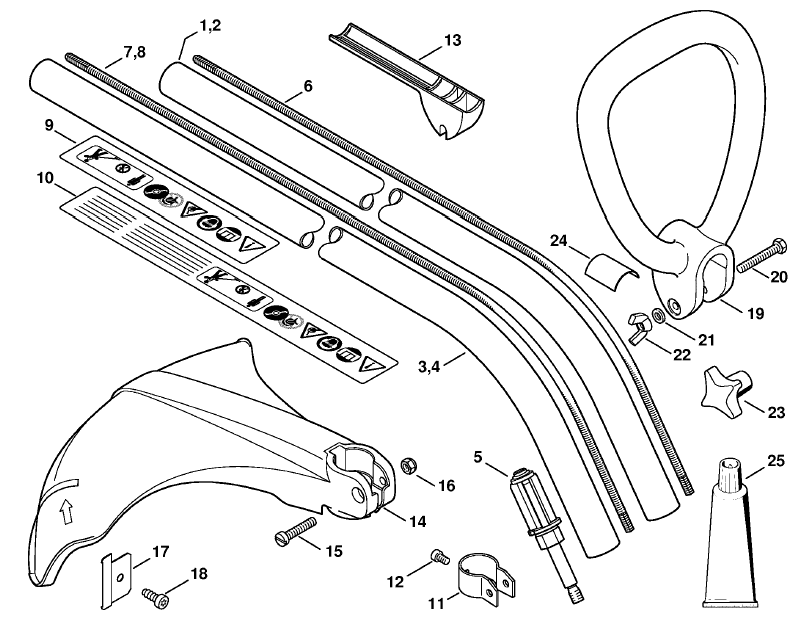

Drive tube assembly, Loop handle

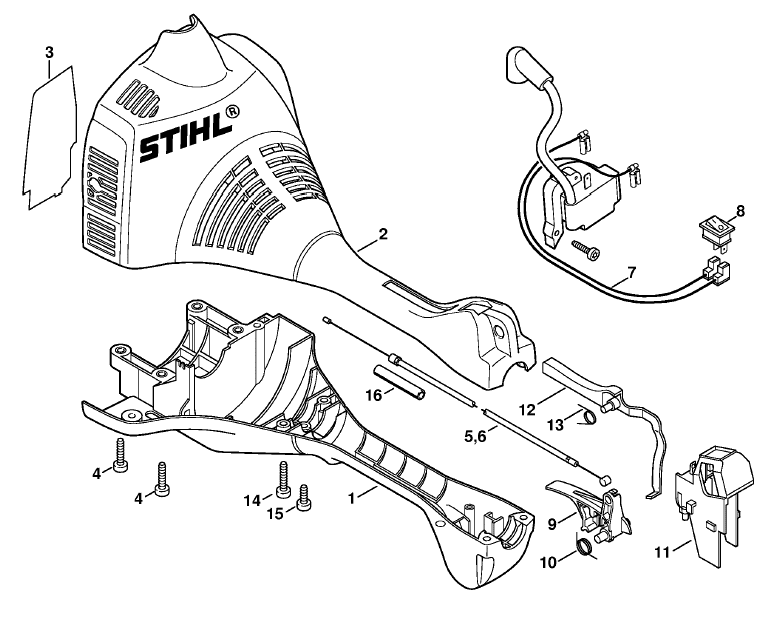

Engine housing
Ignition system, Clutch

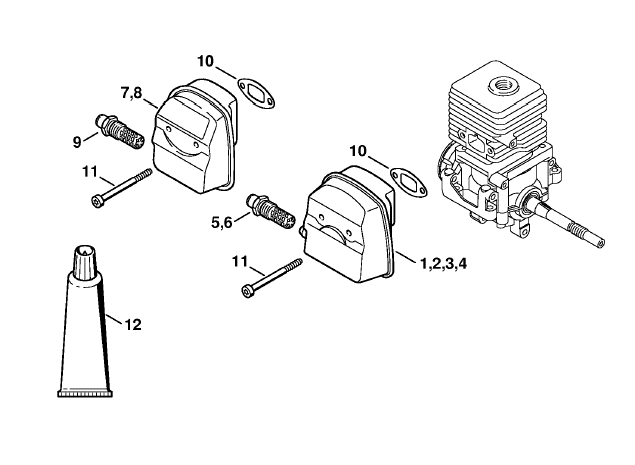

Muffler

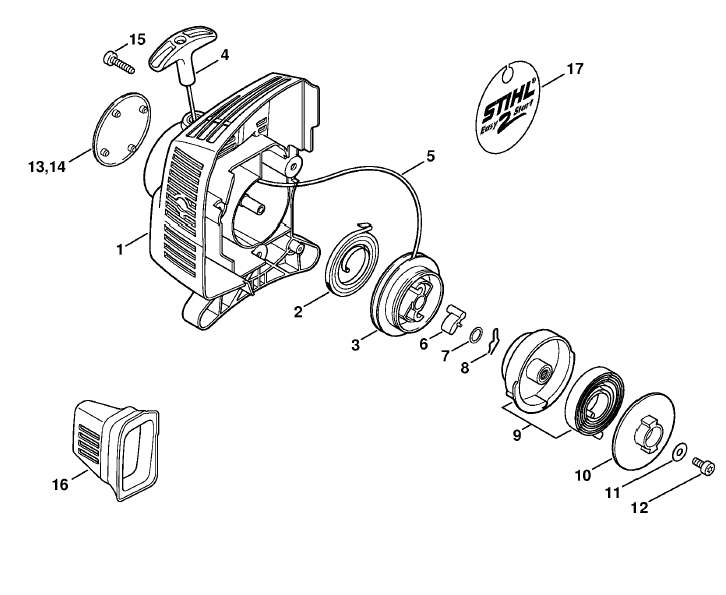

Rewind starter ErgoStart - Easy2Start

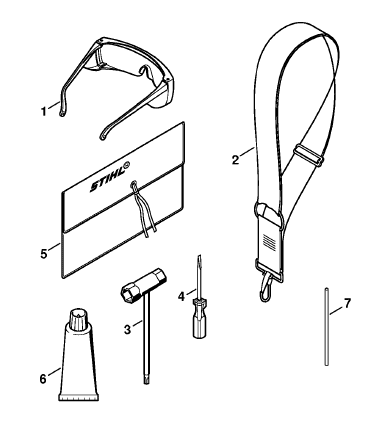

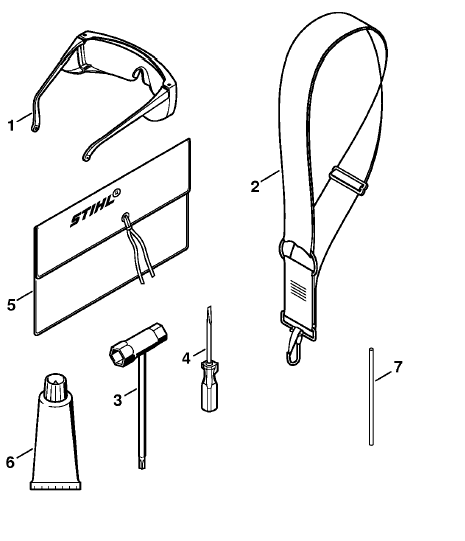

Tools, Extras
Carburetor C1QS53A
FS45C-EDZ
Air filter, Fuel tank
Carburetor C1QS53A
Carburetor C1QS58
Carburetor C1QS66

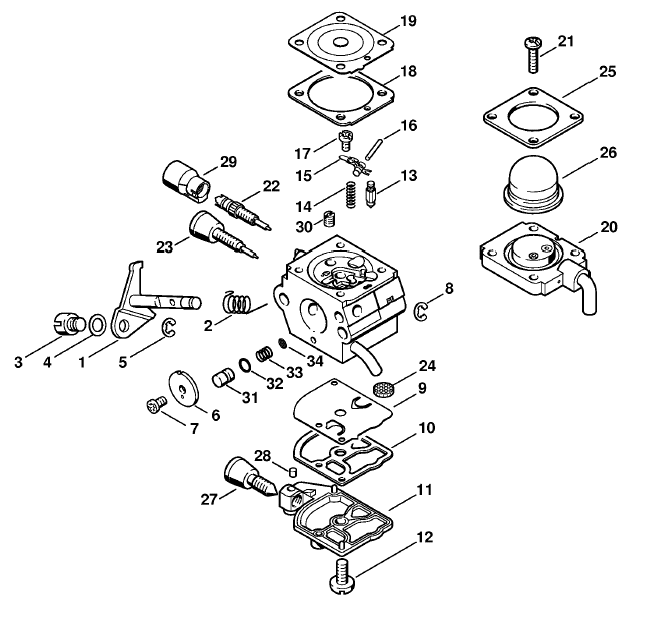

Carburetor C1QS71

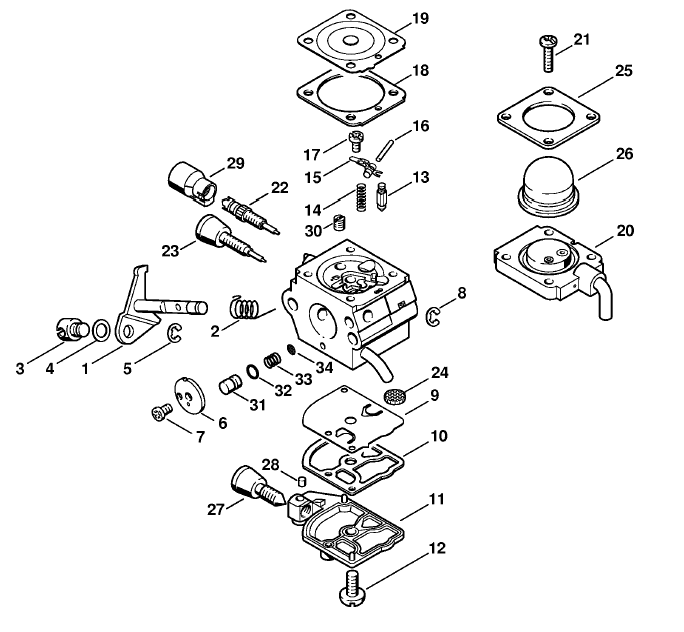

Carburetor C1QS97A

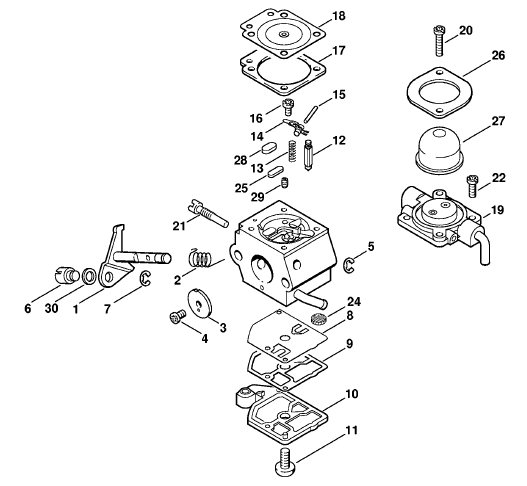

Carburetor C1Q-S44A

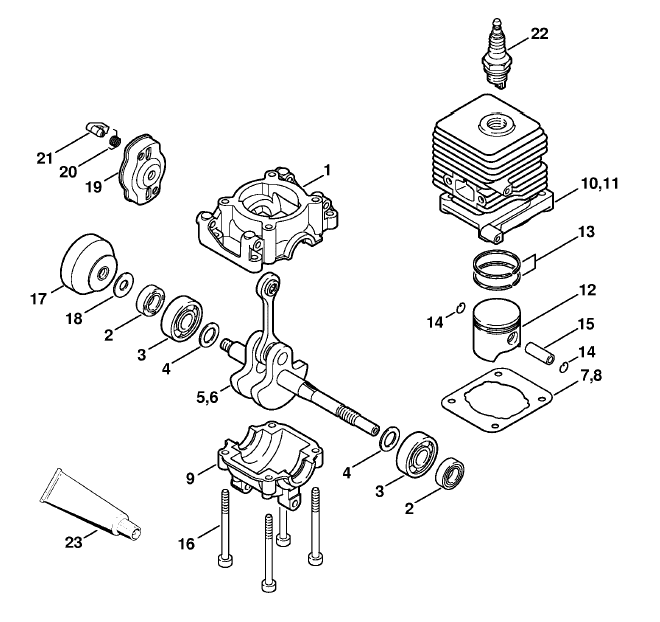

Crankcase, Cylinder

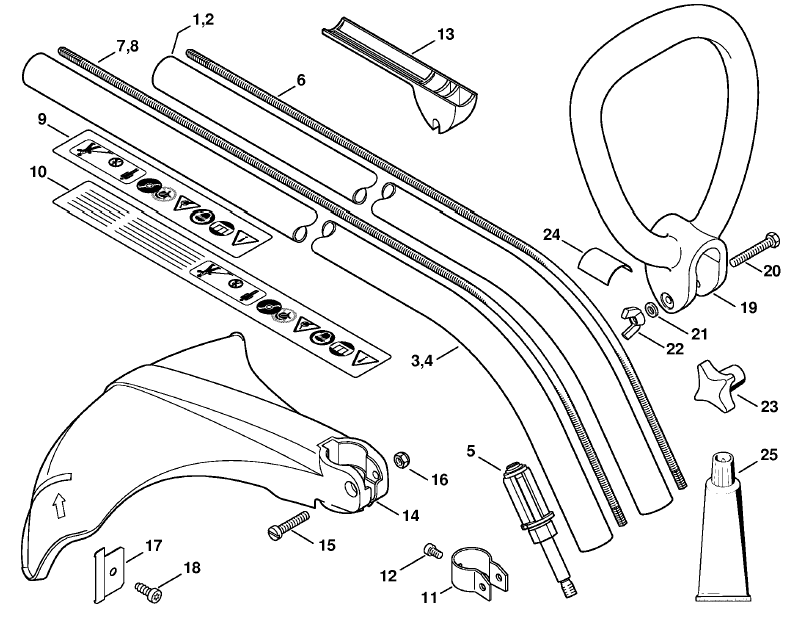

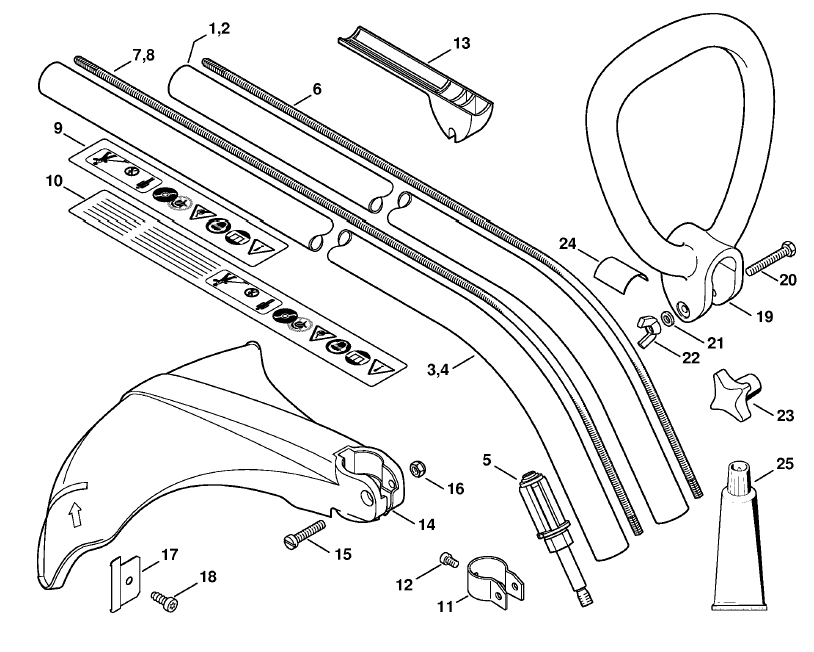

Drive tube assembly, Loop handle

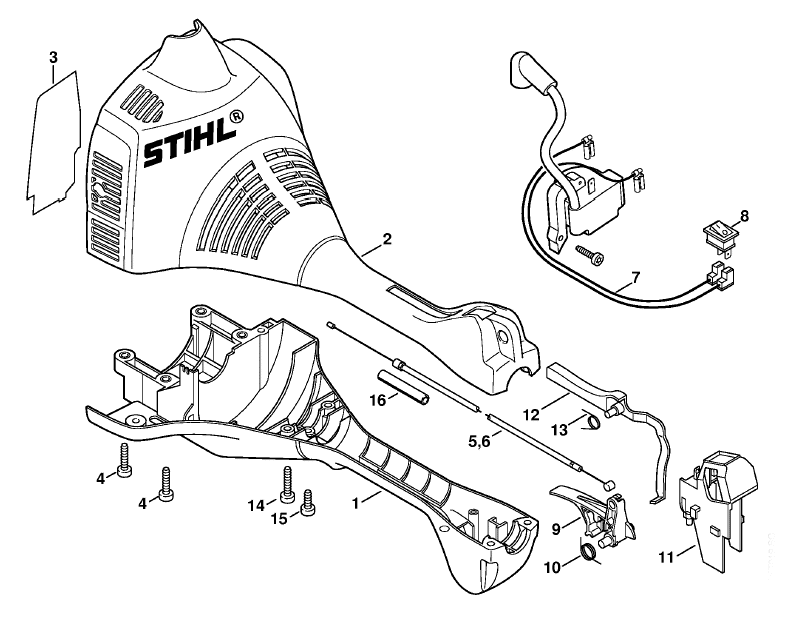

Engine housing
Ignition system, Clutch
Muffler Cat

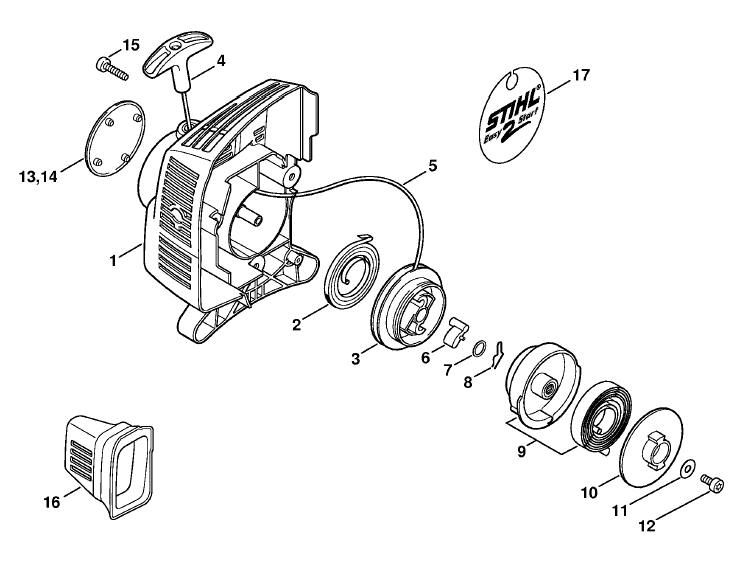

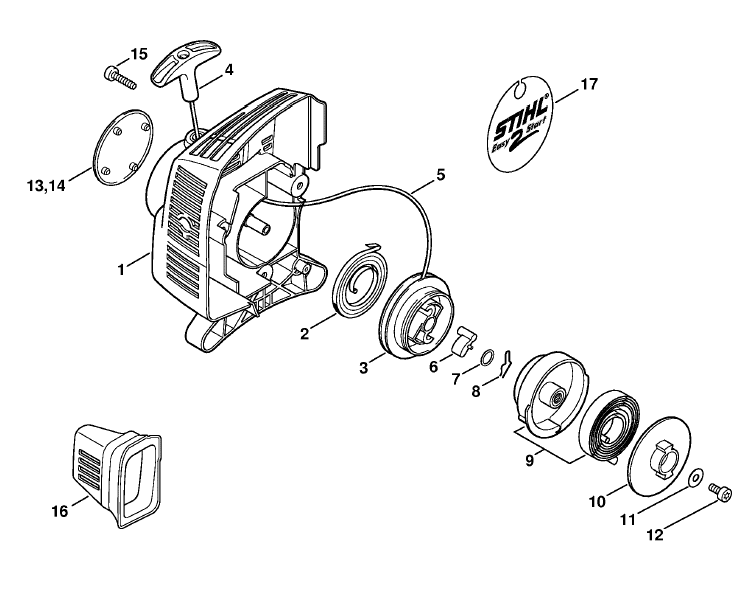

Rewind starter ErgoStart Easy2Start
Tools, Extras
FS45C-EZ
Carburetor C1QS53A
Carburetor C1QS58
Carburetor C1QS66
Carburetor C1QS71
Carburetor C1QS97A
Carburetor C1Q-S44A
Crankcase, Cylinder
Drive tube assembly, Loop handle
Engine housing
Ignition system, Clutch
Muffler
Rewind starter ErgoStart Easy2Start
Tools, Extras
Air filter, Fuel tank
FS45L
Air filter, Fuel tank
Carburetor C1QS53A
Carburetor C1QS58
Carburetor C1QS66
Carburetor C1QS71
Carburetor C1QS97A
Carburetor C1Q-S44A
Crankcase, Cylinder
Drive tube assembly, Loop handle
Engine housing
Ignition system, Clutch
Muffler
Rewind starter
Tools, Extras
FS45-DZ
Air filter, Fuel tank
Carburetor C1QS53A
Carburetor C1QS58
Carburetor C1QS66
Carburetor C1QS71
Carburetor C1QS97A
Carburetor C1Q-S44A
Crankcase, Cylinder
Drive tube assembly, Loop handle
Engine housing
Ignition system, Clutch

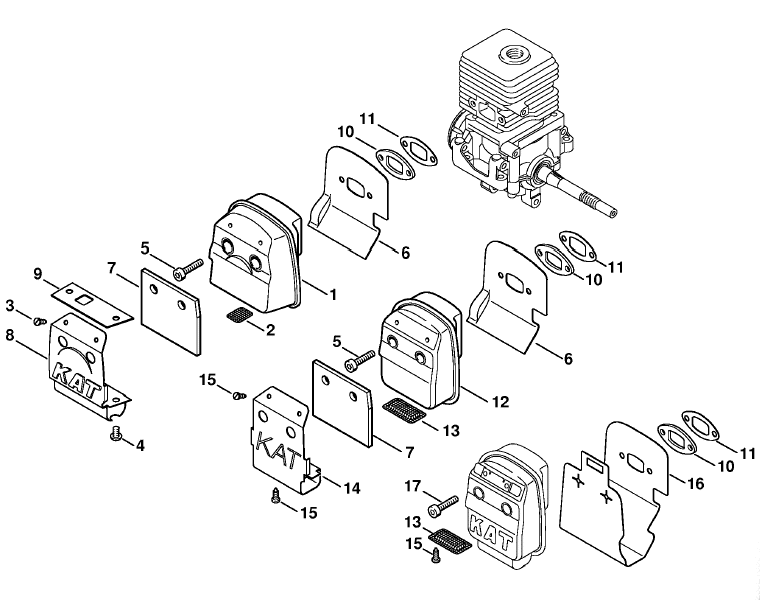

Muffler Cat.
Rewind starter
Tools, Extras
