Diagrams for the Stihl FS 420 Clearing Saw
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl FS 420 Clearing Saw.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl FS 420 Clearing Saw
FS420

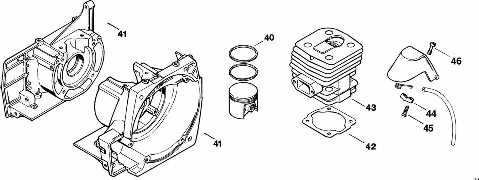

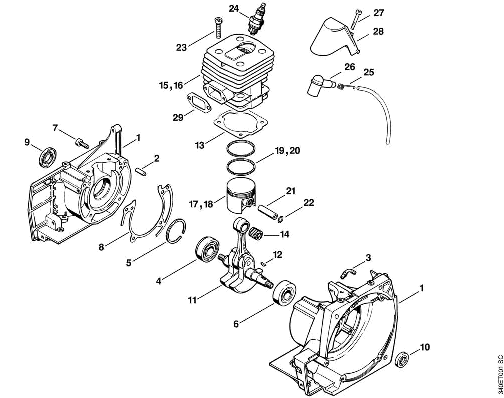

A_-Crankcase
A-Crankcase

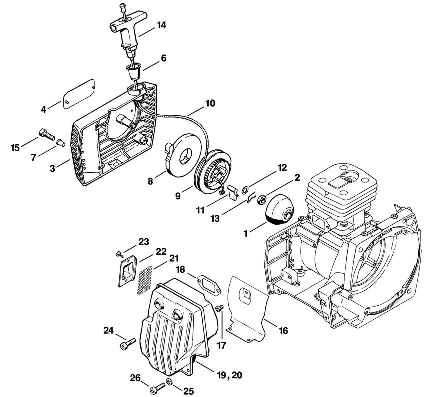

B_-Rewind starter
B-Rewind starter

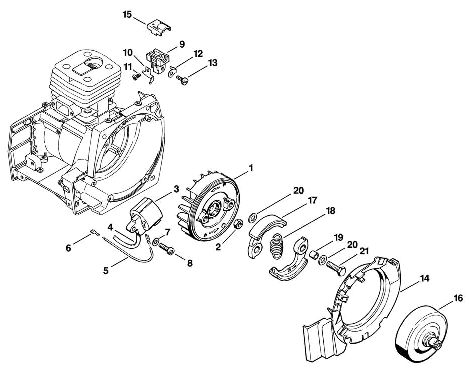

C_-Ignition system
C-Ignition system

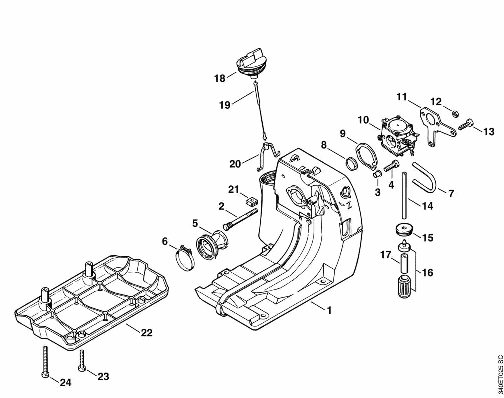

D_-Tank housing
D-Tank housing

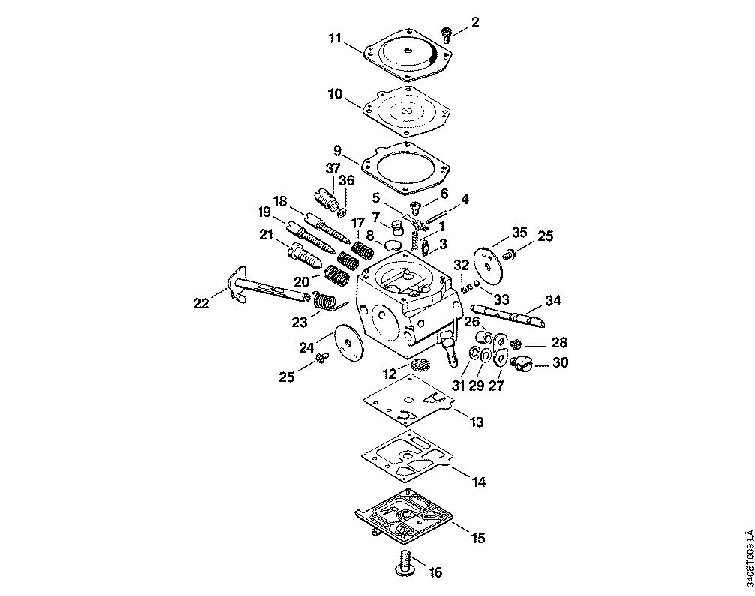

E-Carburetor HD 3

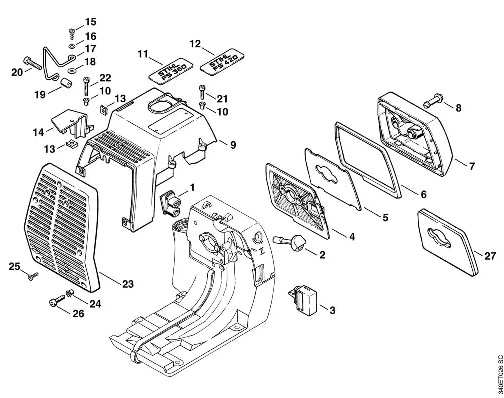

F_-Air filter
F-Air filter

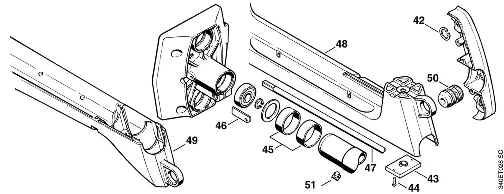

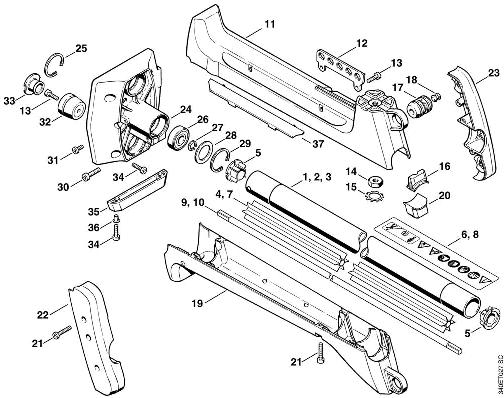

G_-Drive tube
G-Drive tube

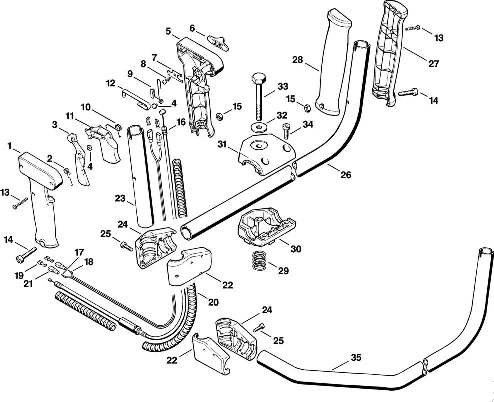

H_-Two-handed handle bar
H-Two-handed handle bar

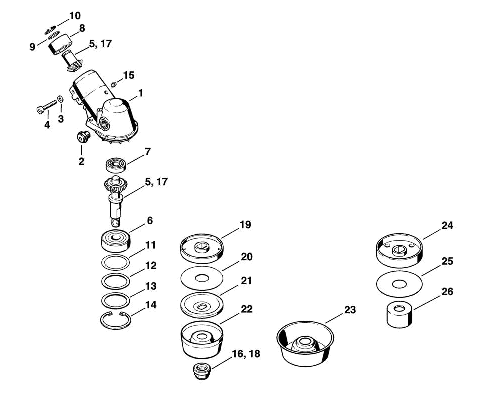

J_-Gear head
J-Gear head

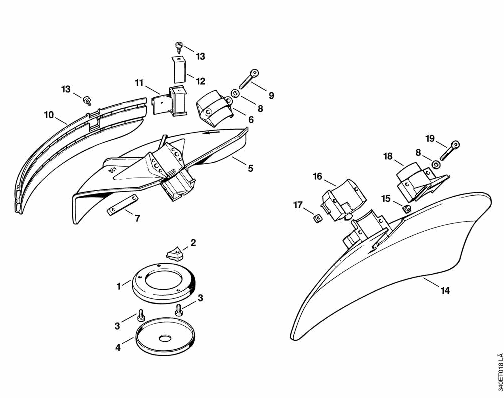

K_-Support with guard
K-Support with guard

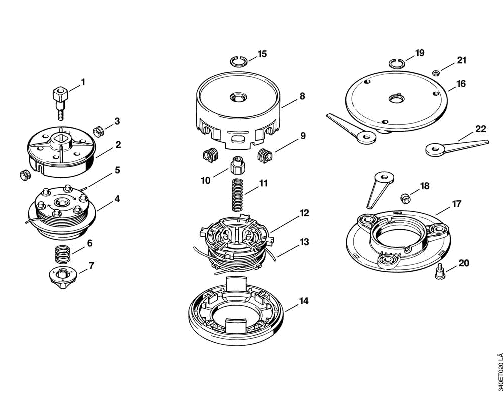

L_-Cutting head Polymatic
L-Cutting head Polymatic

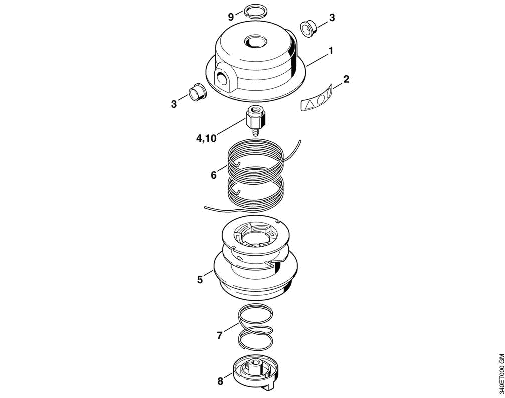

M-Trimcut head

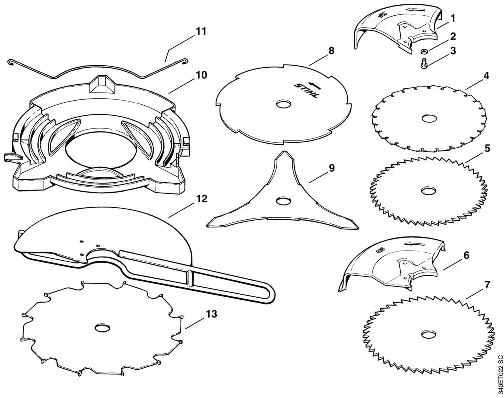

N_-Cutting tools
N-Cutting tools

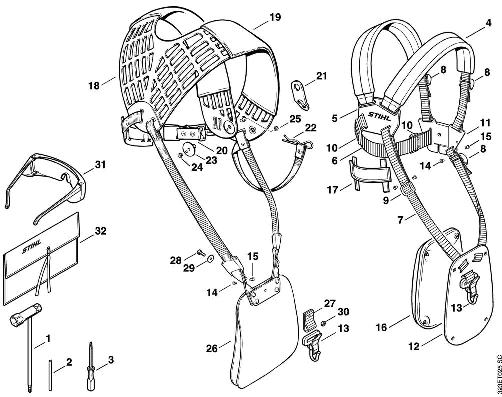

O_-Tools
O-Tools
FS420L
A_-Crankcase
A-Crankcase
B_-Rewind starter
B-Rewind starter
C_-Ignition system
C-Ignition system
D-Tank housing
E-Carburetor HD 3
F_-Air filter
F-Air filter
G_-Drive tube
G-Drive tube
H-Two-handed handle bar
J-Gear head
K-Support with guard
L_-Cutting head Polymatic
L-Cutting head Polymatic
M-Trimcut head
N-Cutting tools
O_-Tools
O-Tools
