Diagrams for the Stihl FS 400 Clearing Saw
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl FS 400 Clearing Saw.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl FS 400 Clearing Saw
FS400
FS 400

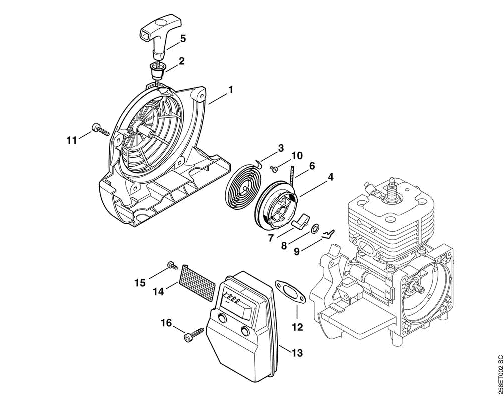

B-Rewind starter

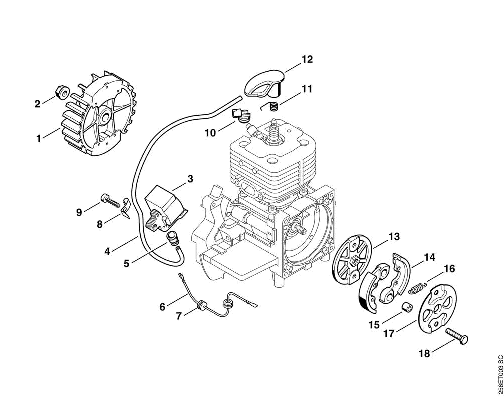

C-Ignition system

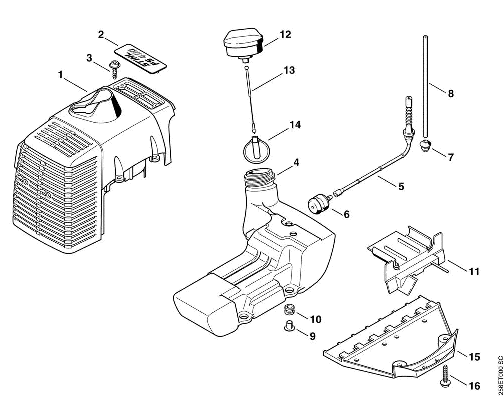

D-Cover
E_-Carburetor housing

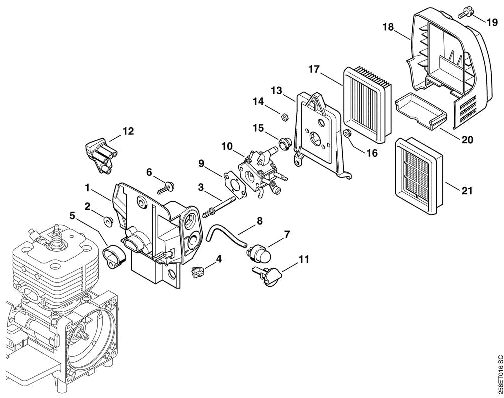

E-Carburetor housing

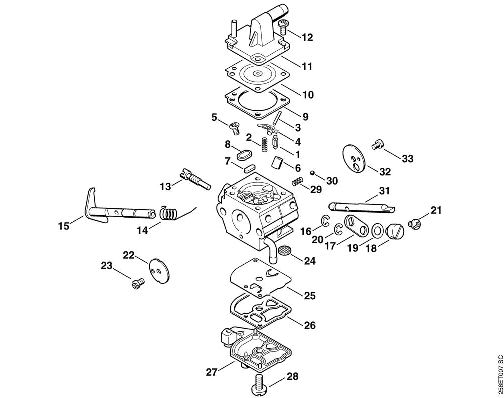

F-Carburetor C1Q#S34B

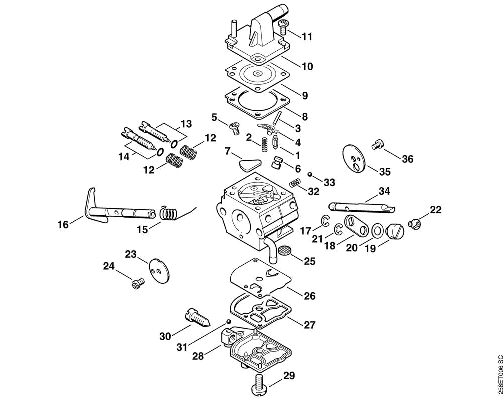

G_-Carburetor C1Q#S33B

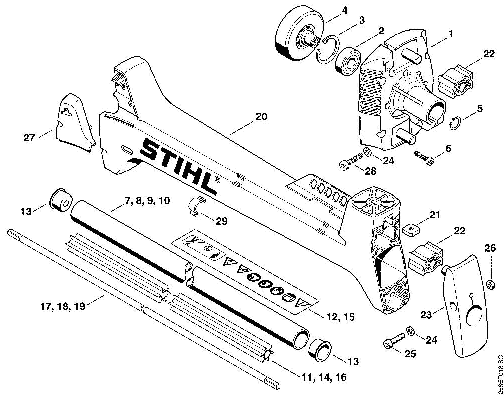

H-Clutch housing

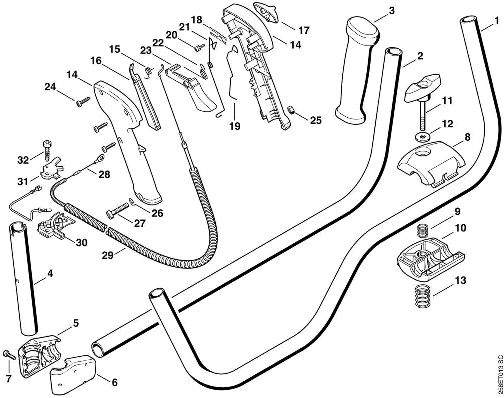

J-Handlebar

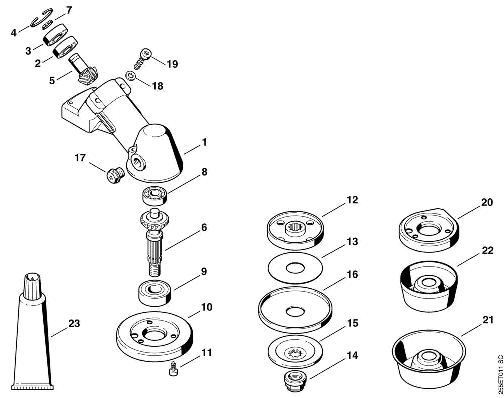

K-Gear head

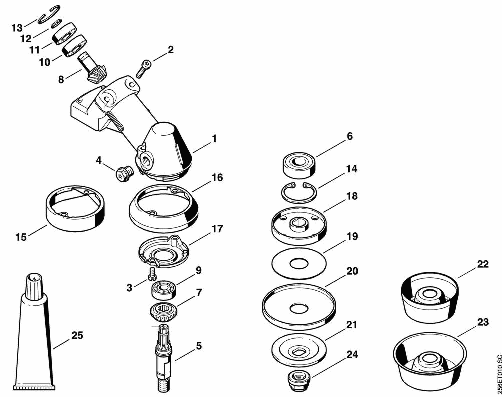

L_-Gear head

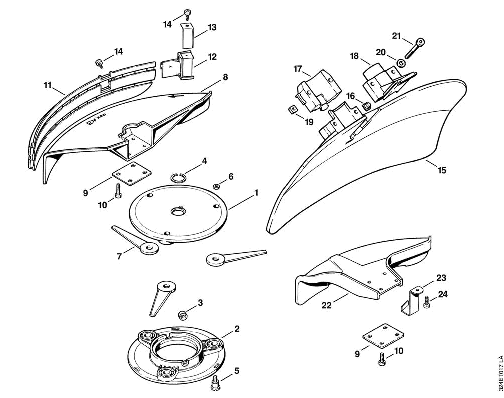

M-Polycut head

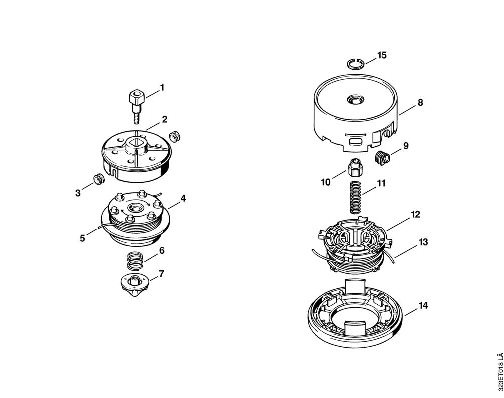

N-Cutting head Polymatic

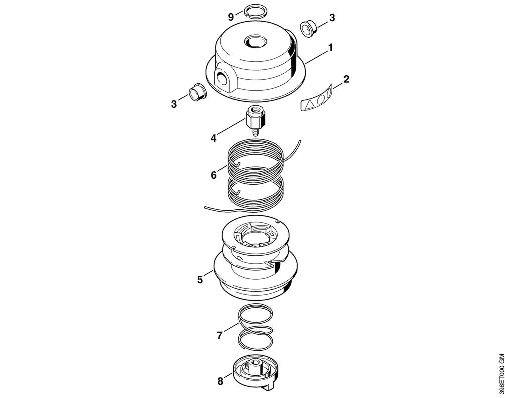

O-Trimcut 40 # 2 head

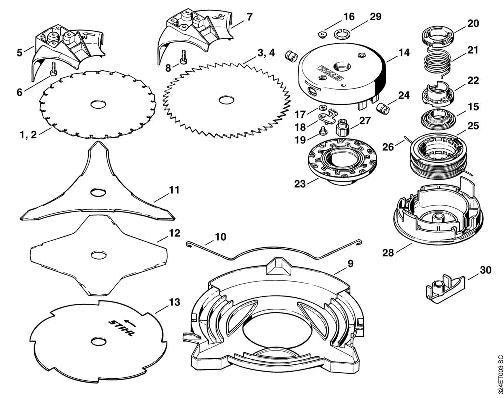

P-Cutting tools

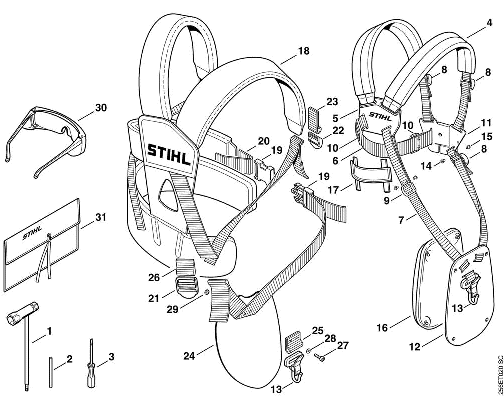

Q-Tools
FS400K

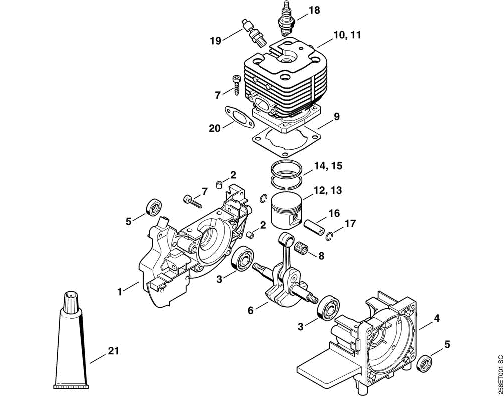

A-Crankcase
B-Rewind starter
C-Ignition system
D-Cover
E_-Carburetor housing
E-Carburetor housing
F-Carburetor C1Q#S34B
G_-Carburetor C1Q#S33B
H-Clutch housing
K-Gear head
L_-Gear head
M-Polycut head
N-Cutting head Polymatic
O-Trimcut 40 # 2 head
P-Cutting tools
Q-Tools

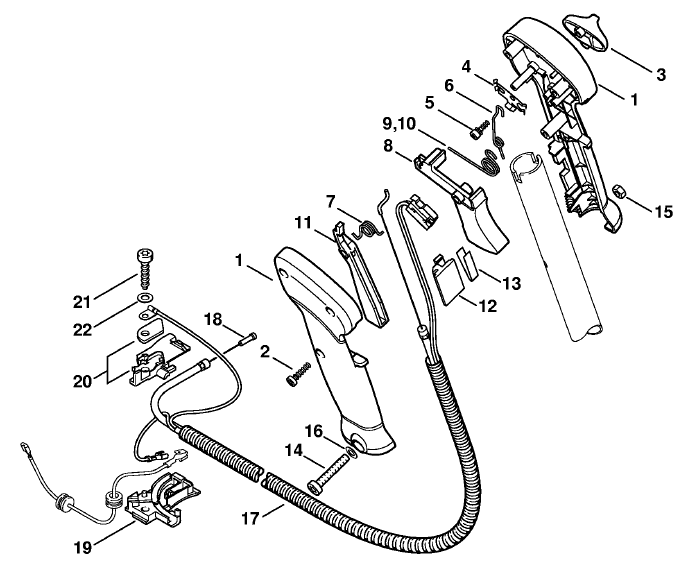

Control Handle
