Diagrams for the Stihl FR 106 Backpack Brushcutter
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl FR 106 Backpack Brushcutter.
Diagrams for this machine
Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl FR 106 Backpack Brushcutter
FR 106

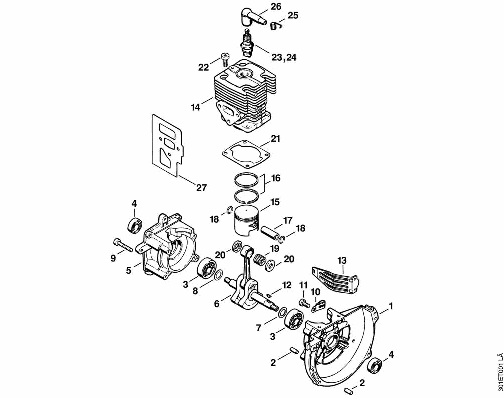

A_-Crankcase
A-Crankcase

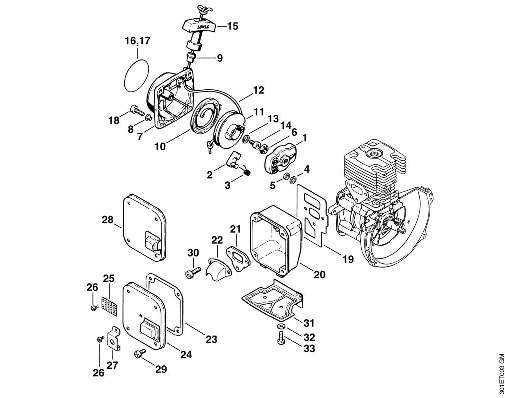

B_-Rewind starter
B-Rewind starter
C_-Ignition system
C-Ignition system

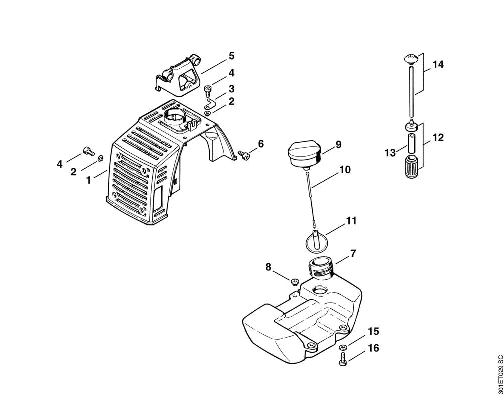

D_-Cover
D-Cover

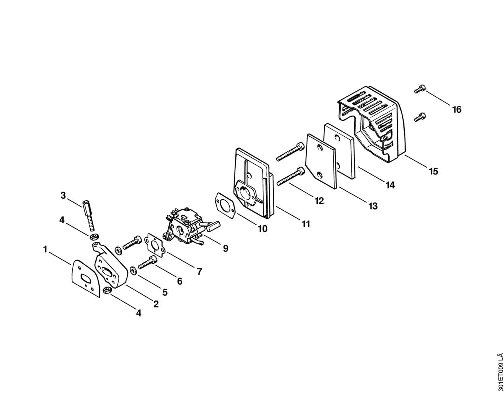

E-Air filter

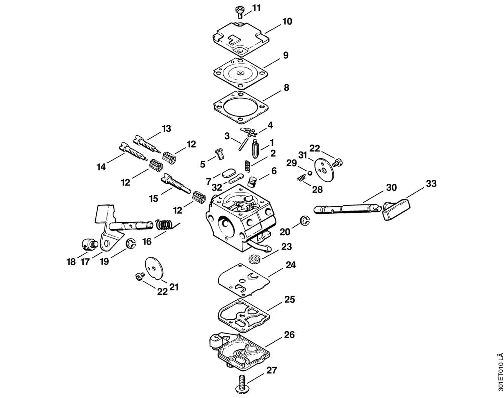

F-Carburetor C1Q#SK5

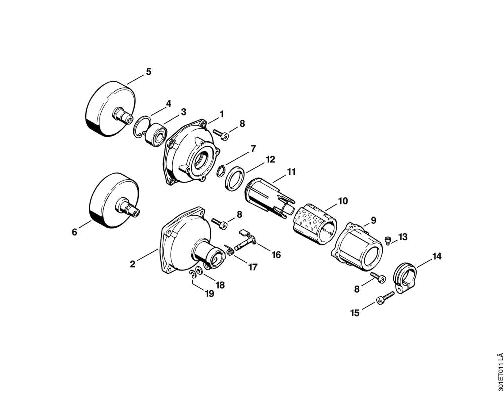

G-Clutch housing

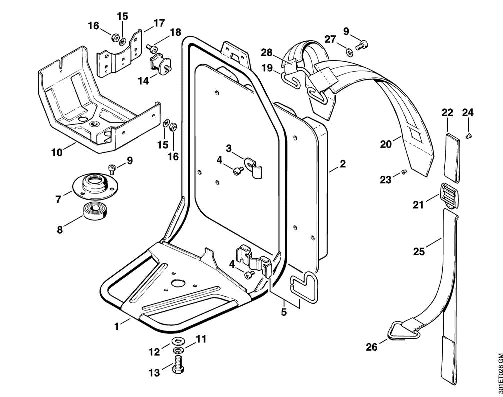

H-Support frame FR 106

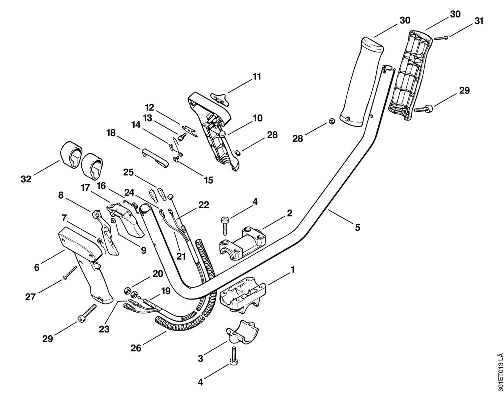

J_-Two-handed handlebar FS 106
J-Two-handed handlebar FS 106

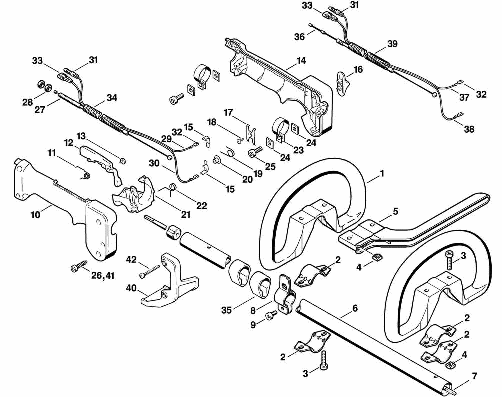

K-Loop handle
L_-Flexible shaft FR 106
L-Flexible shaft FR 106

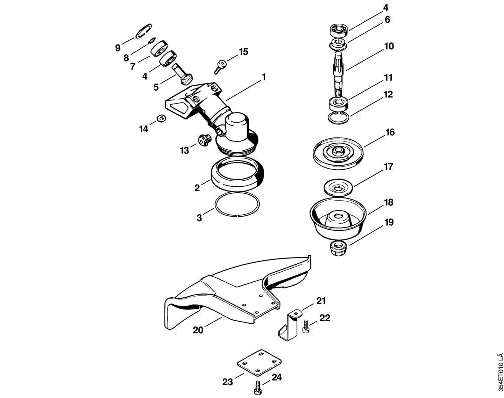

M_-Gear head
M-Gear head

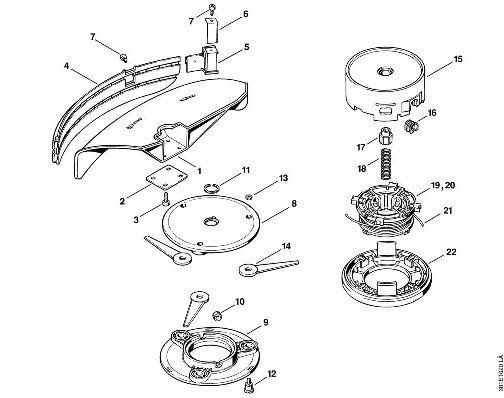

N_-Cutting tools
N-Cutting tools

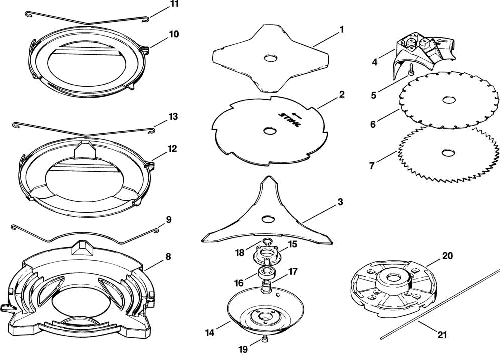

O_-Cutting tools
O-Cutting tools

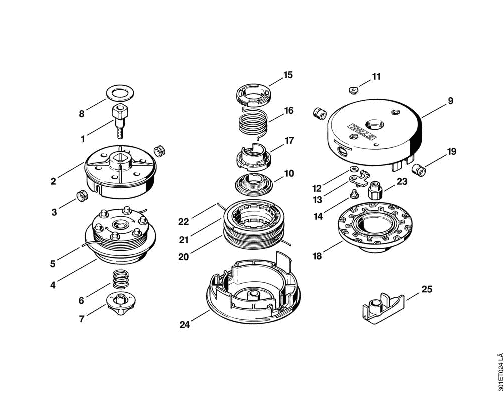

P-Cutting tools

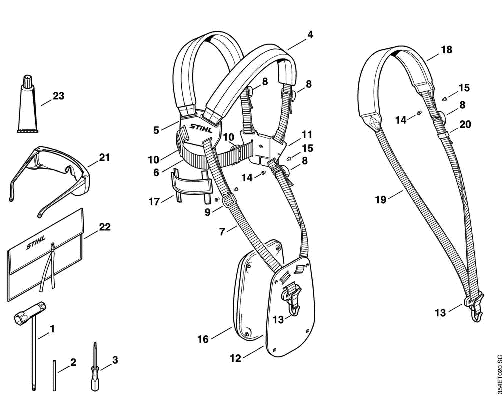

Q_-Tools
Q-Tools

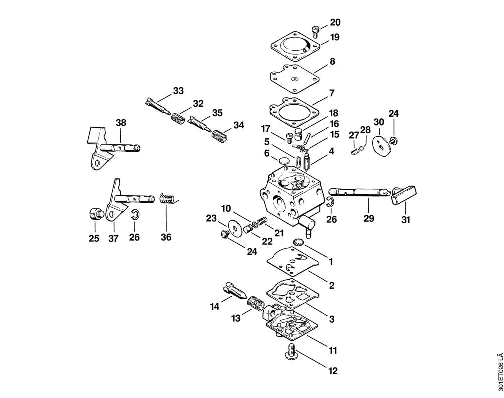

R_-Carburetor WT-45A

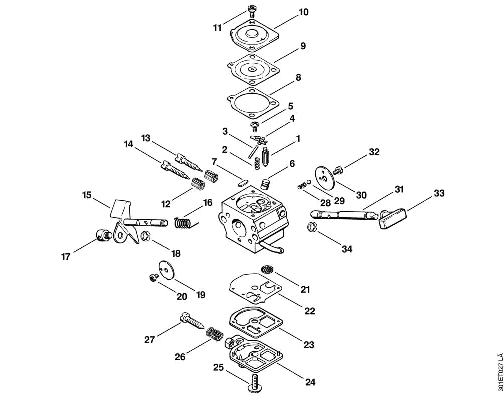

S-Carburetor C1S#S1B
