Diagrams for the Stihl 038 Chainsaw
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl 038 Chainsaw.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl 038 Chainsaw
038

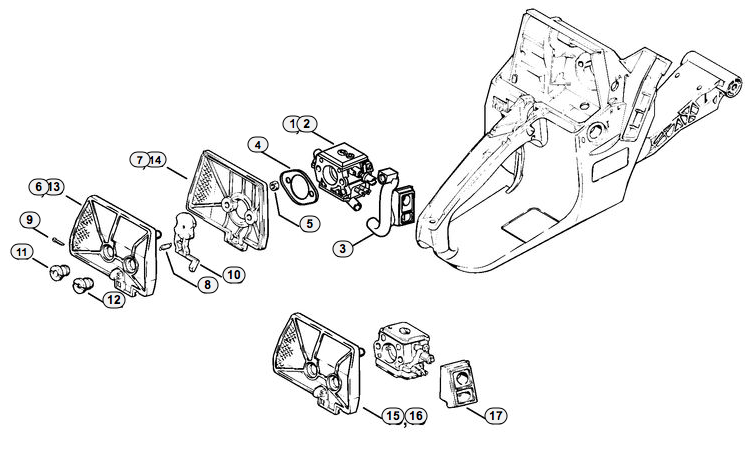

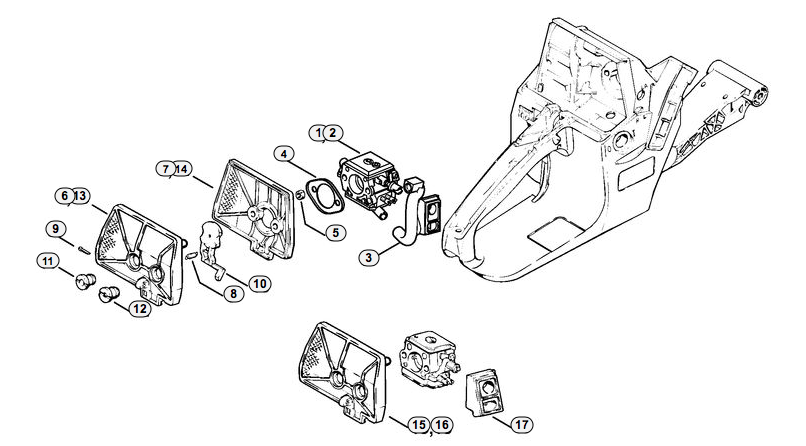

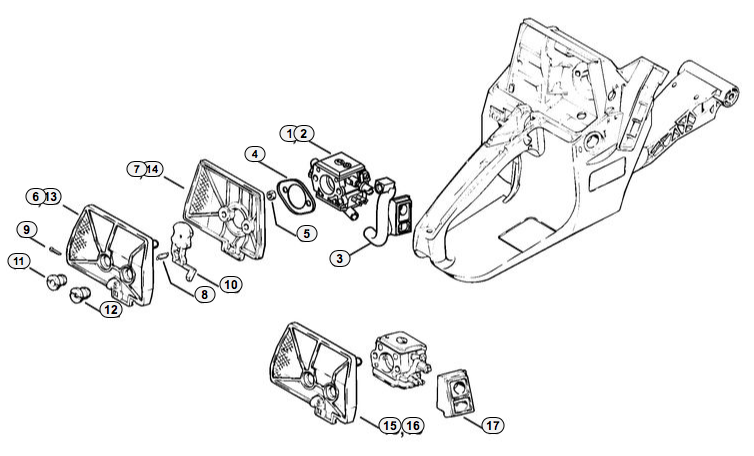

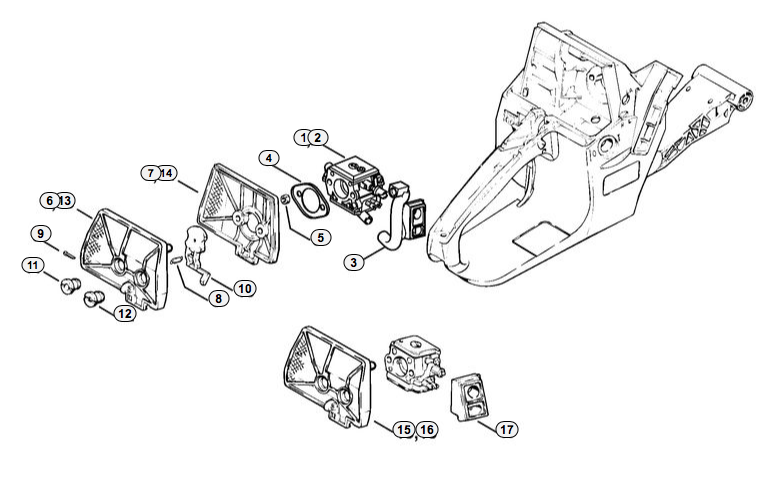

Air Filter

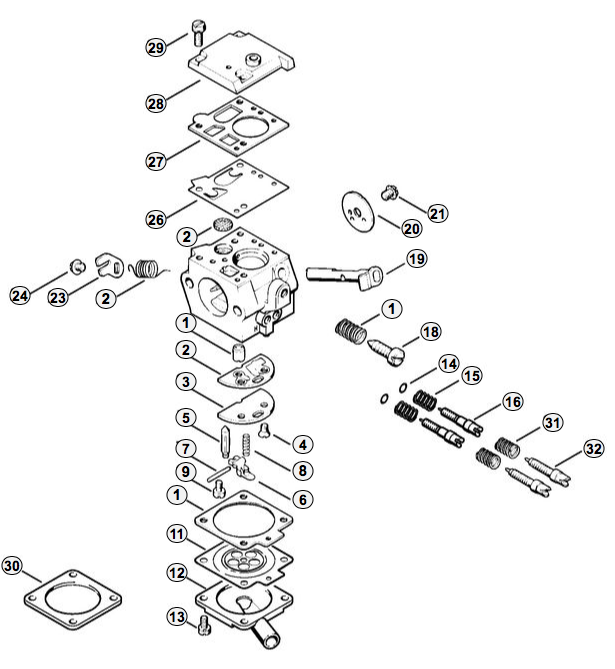

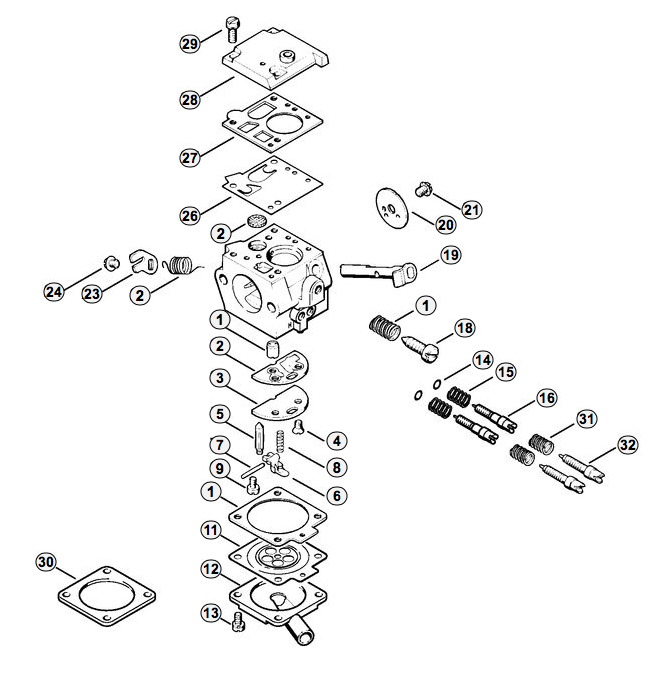

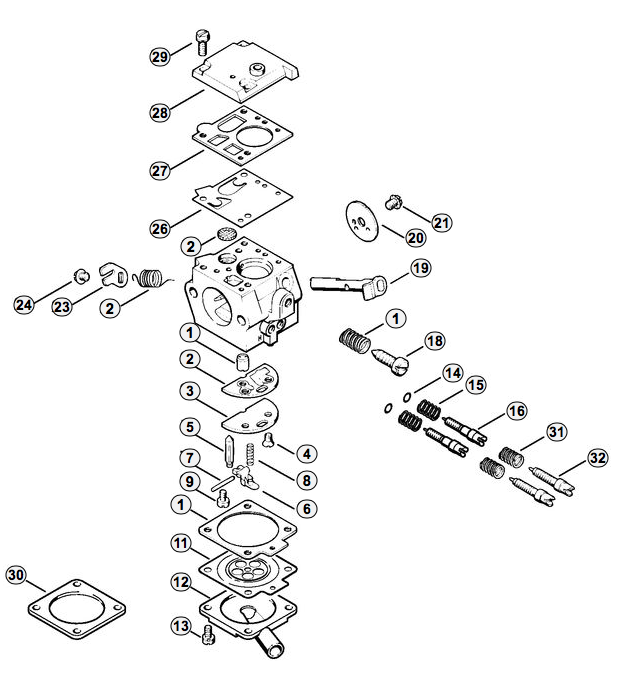

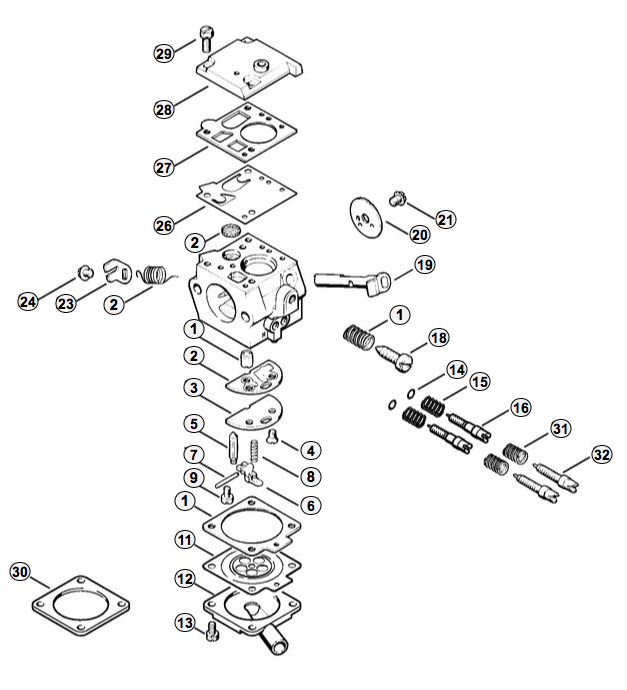

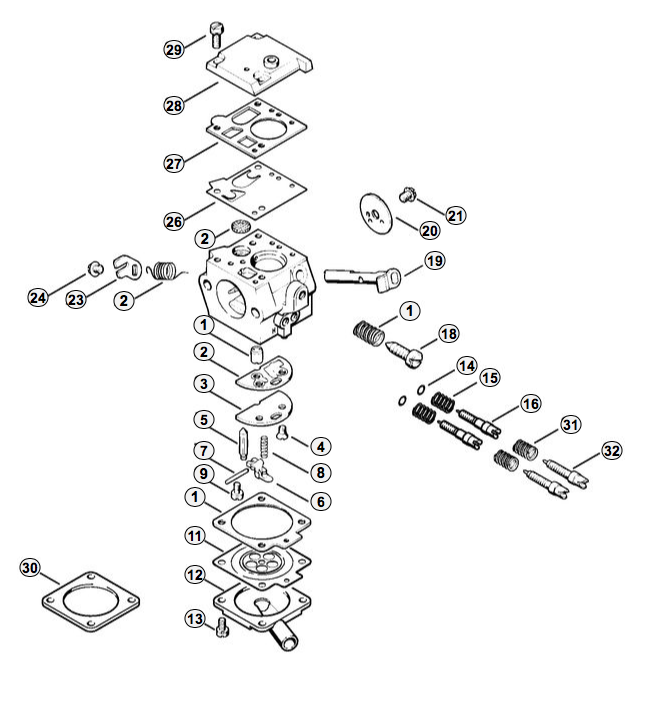

Carburetor Bing 48A101C

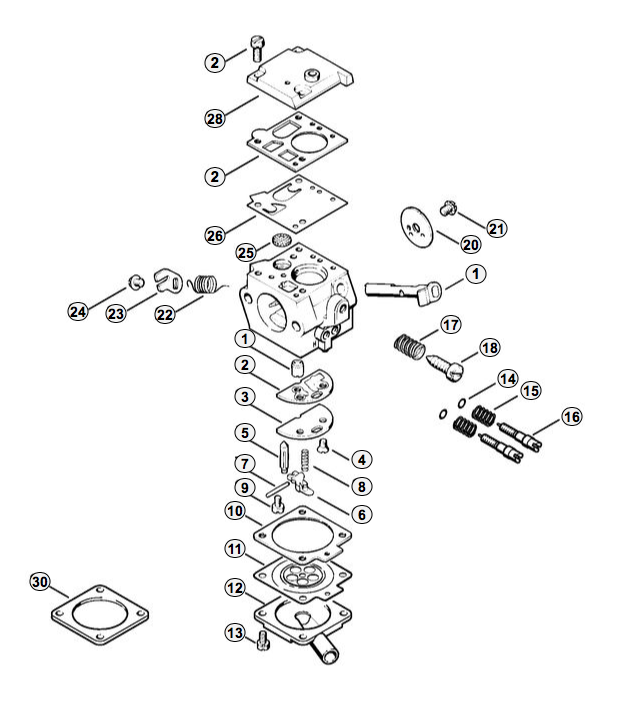

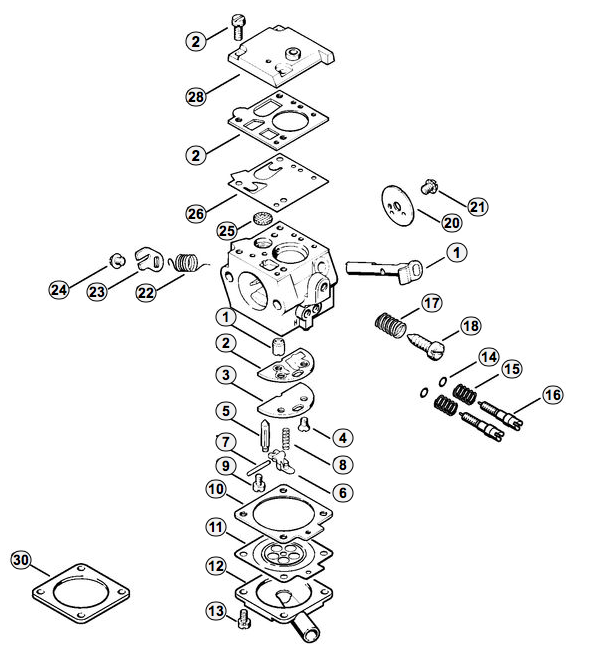

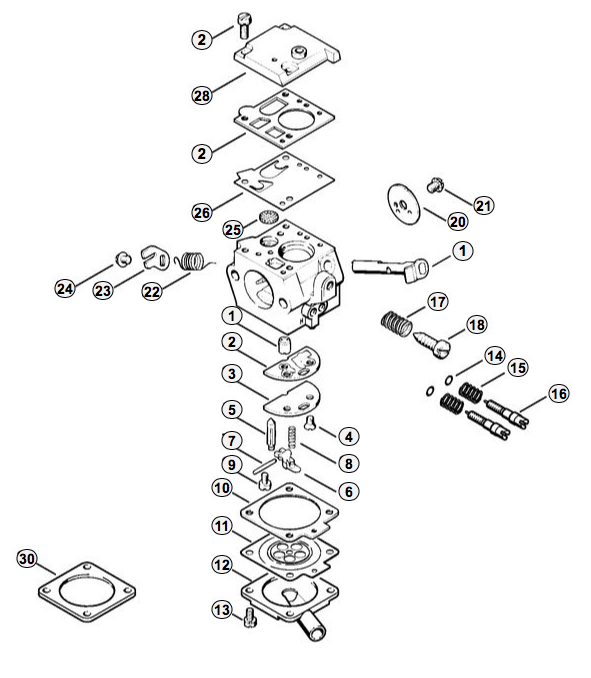

Carburetor Bing 48A125A ( Brazil only)

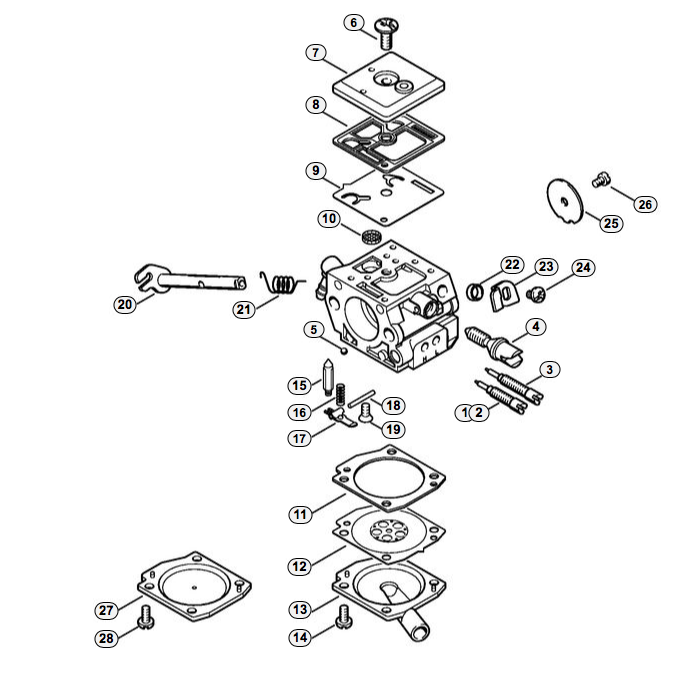

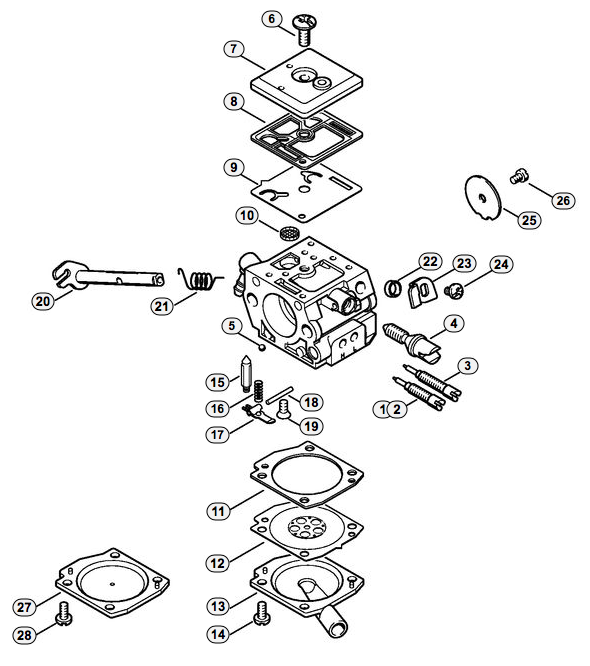

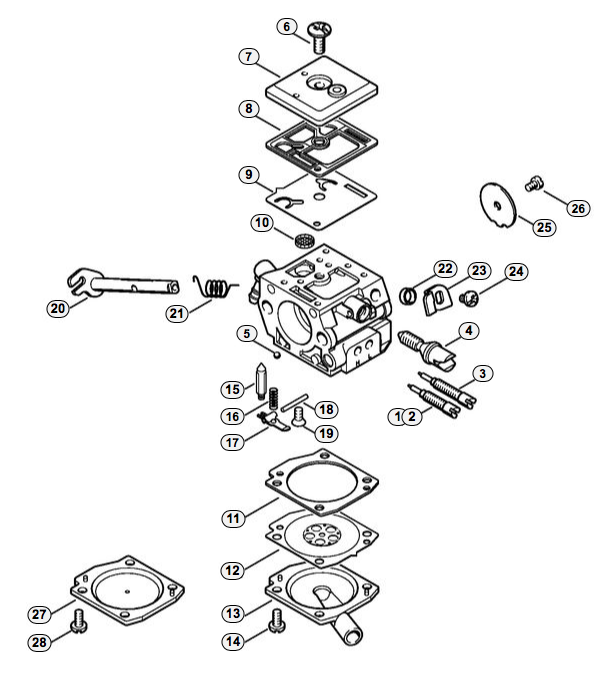

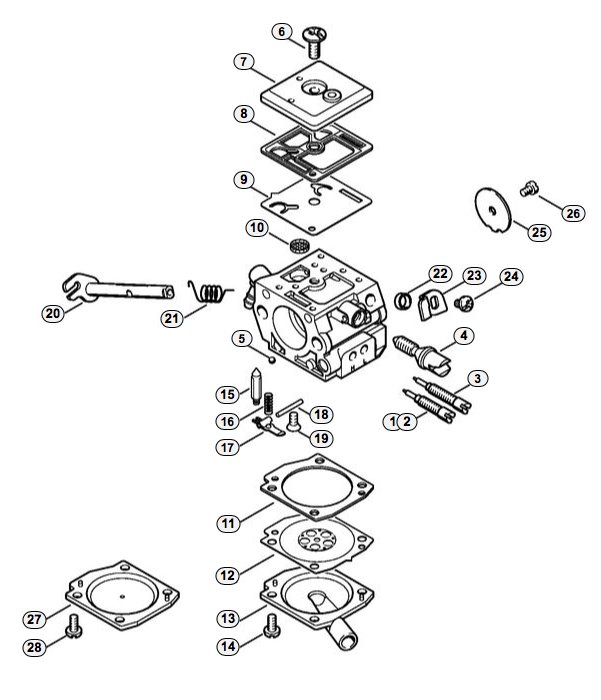

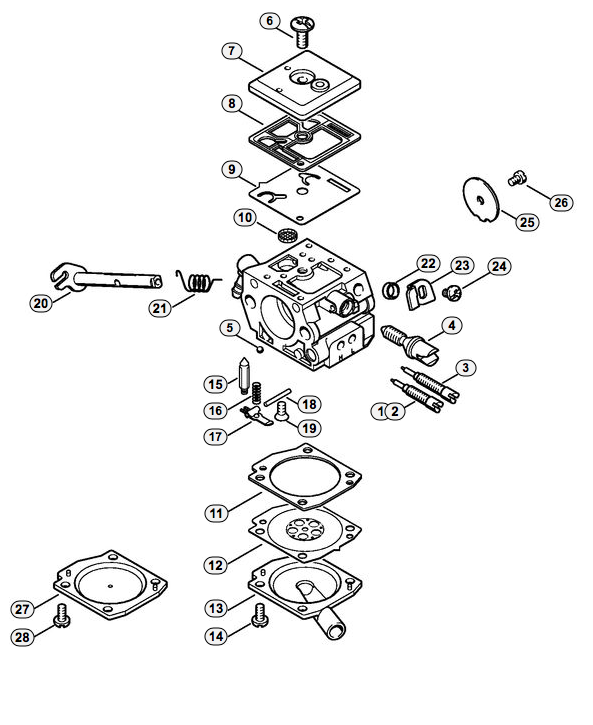

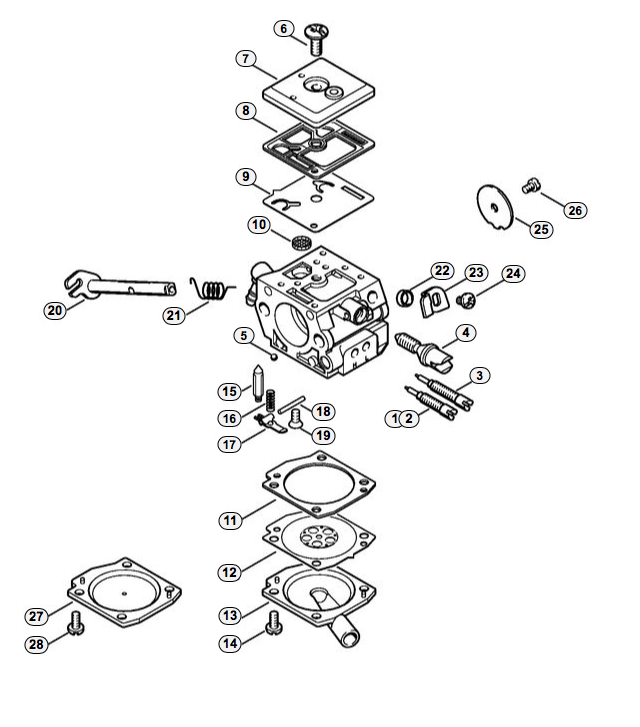

Carburetor C3-S148

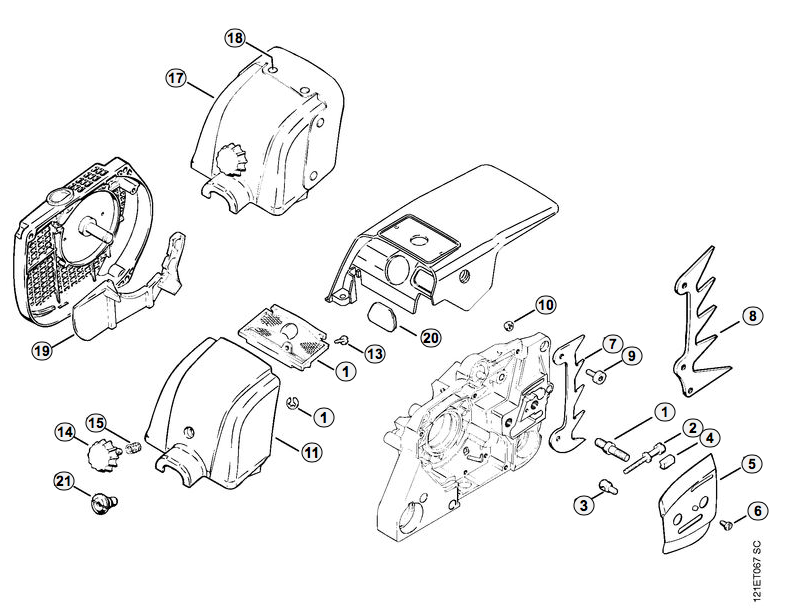

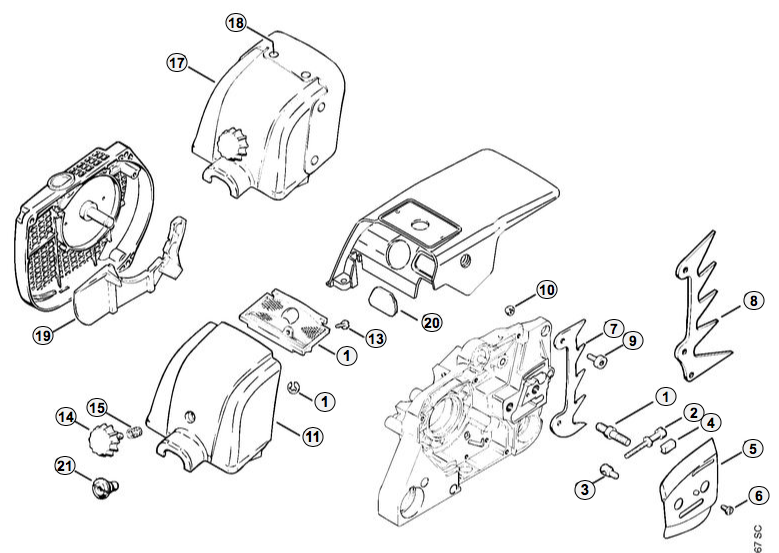

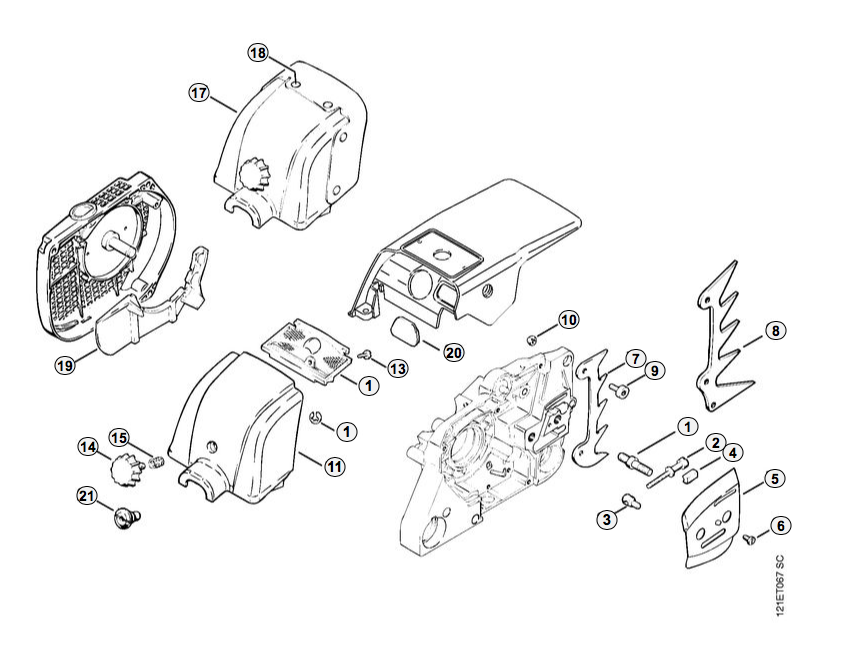

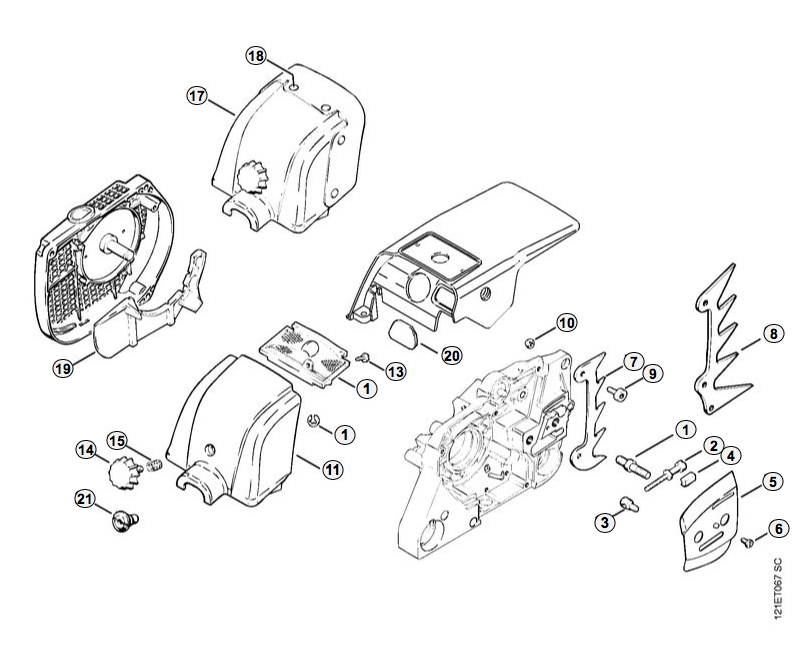

Chain Tensioner/Carburetor Cover

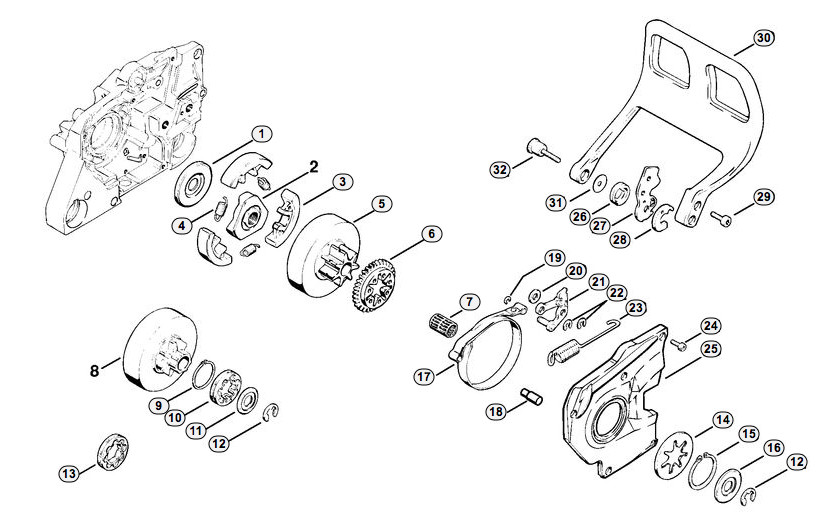

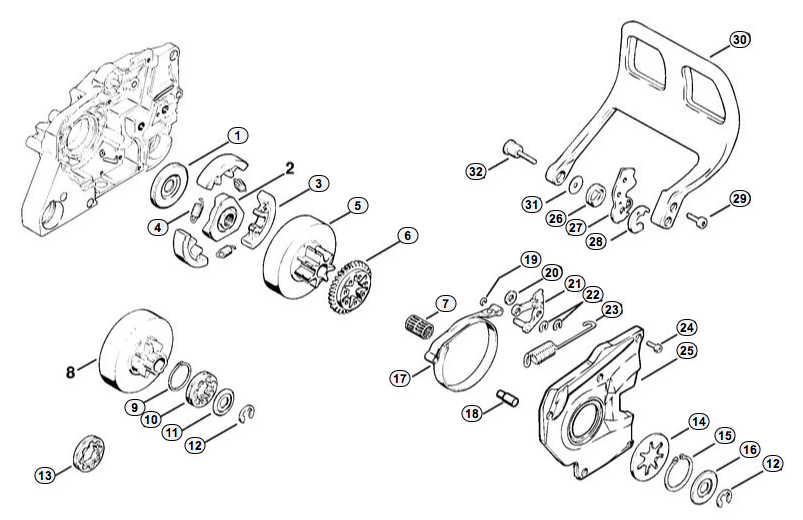

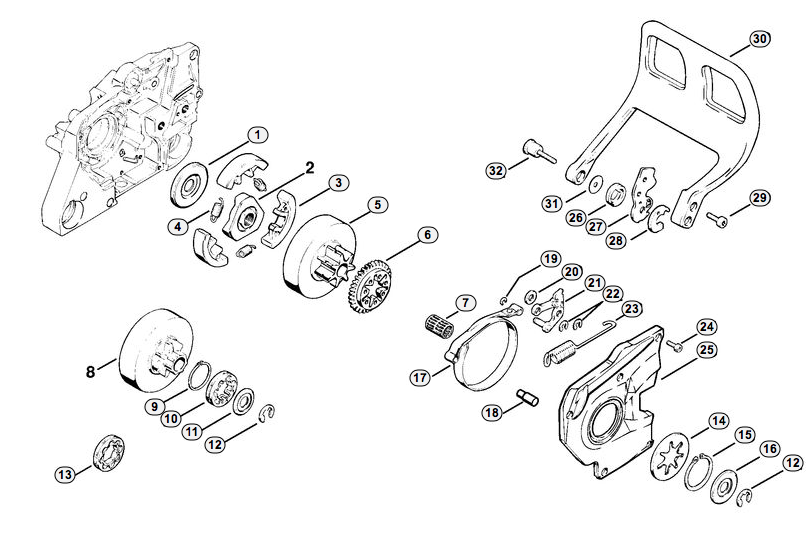

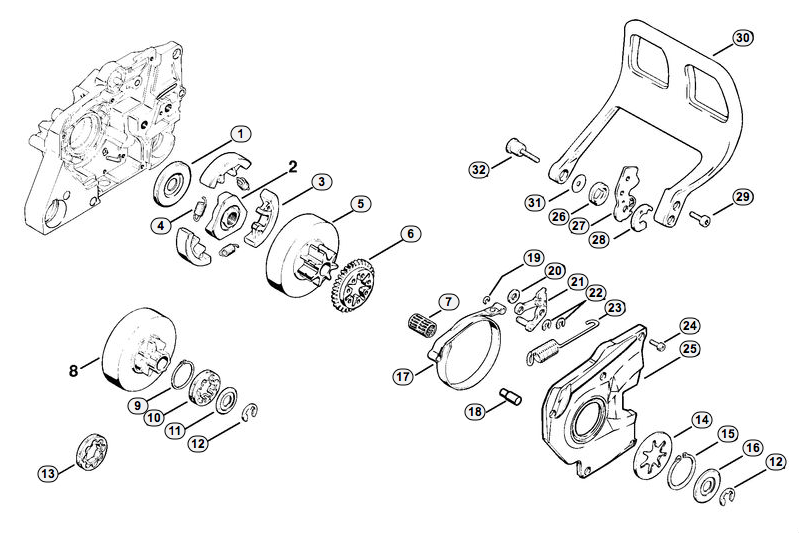

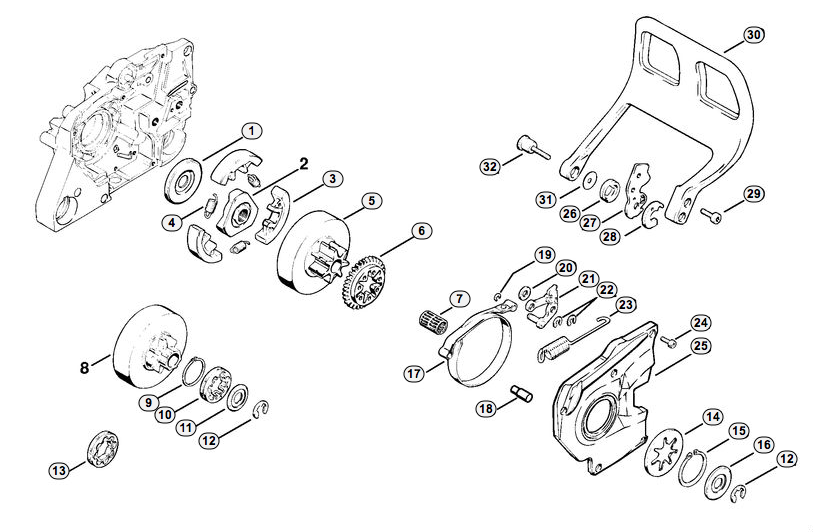

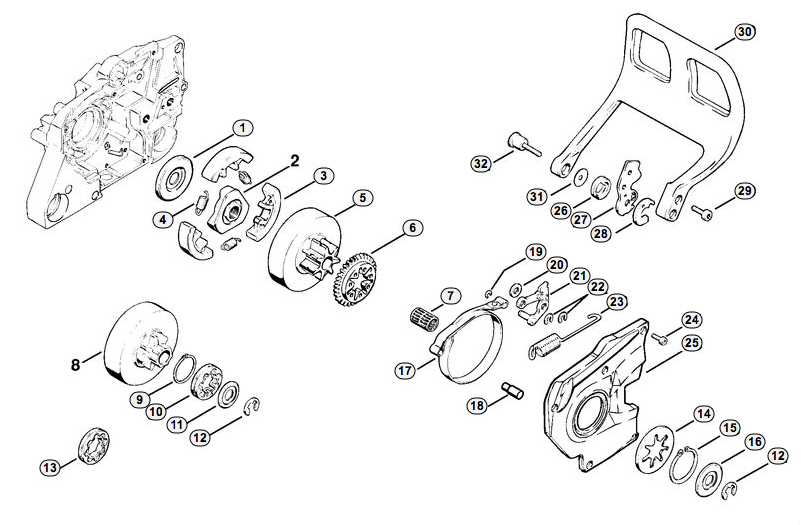

Clutch

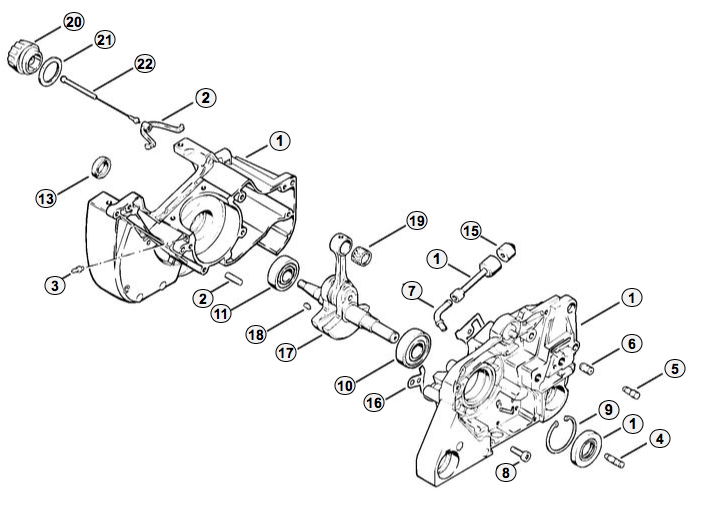

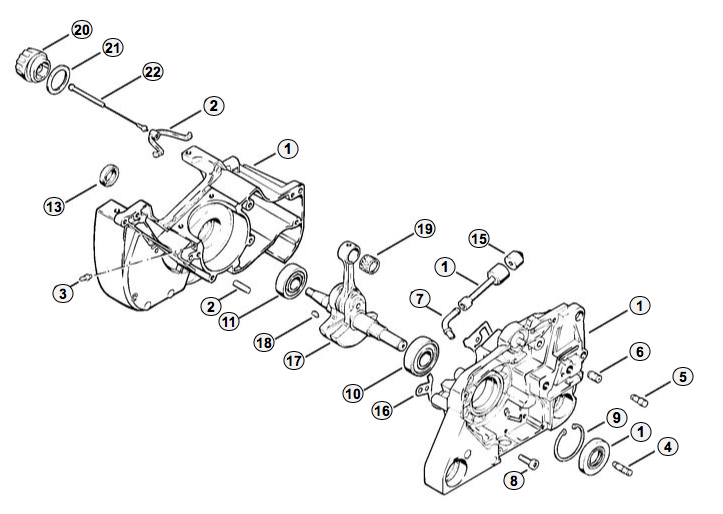

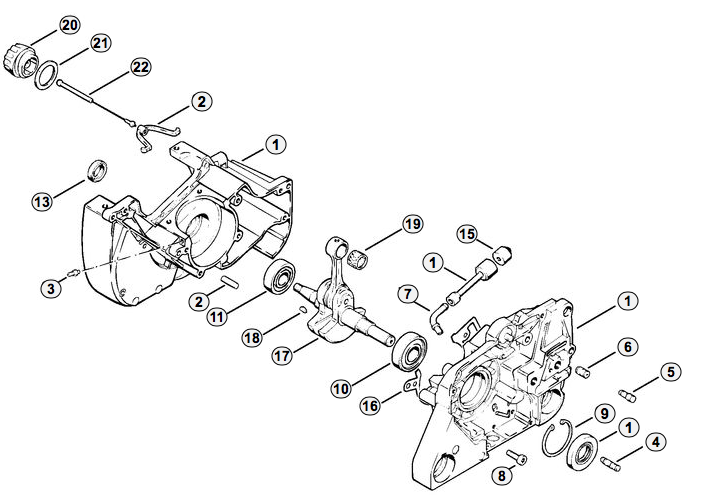

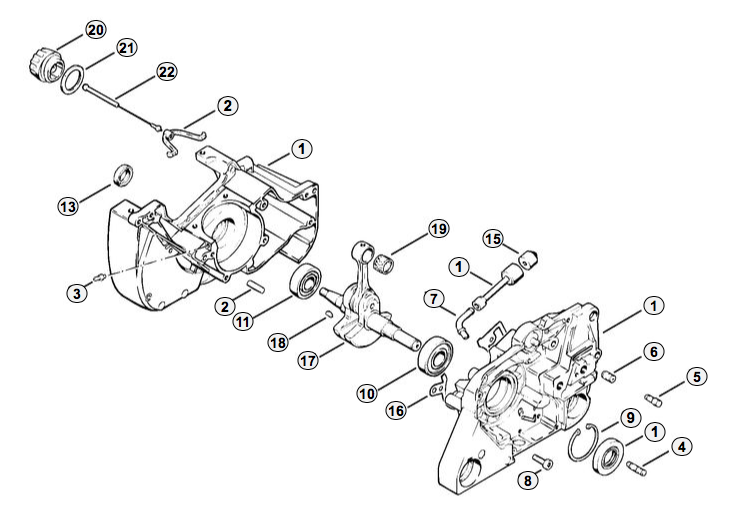

Crankcase

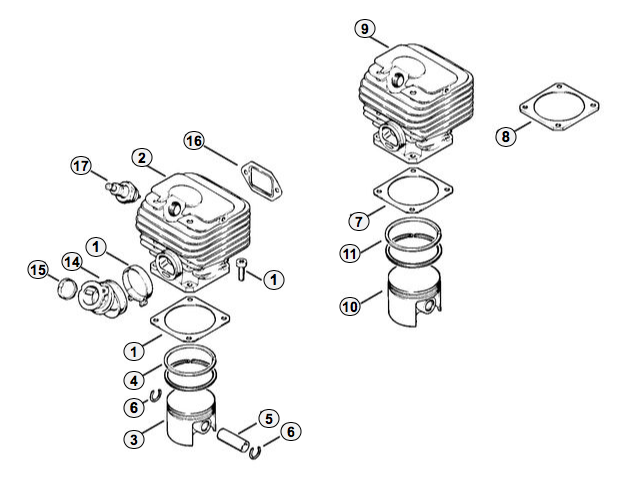

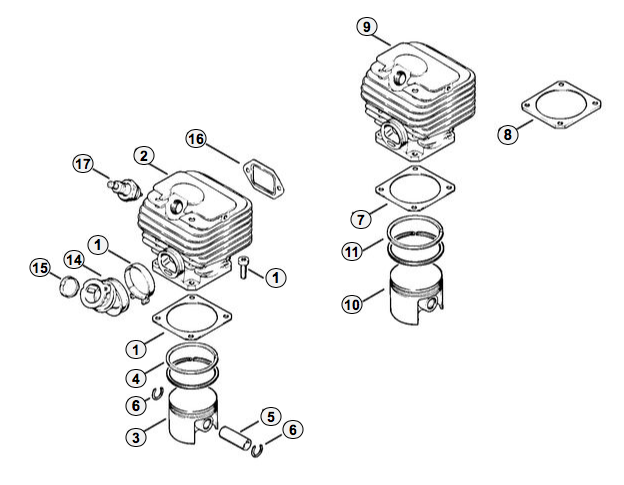

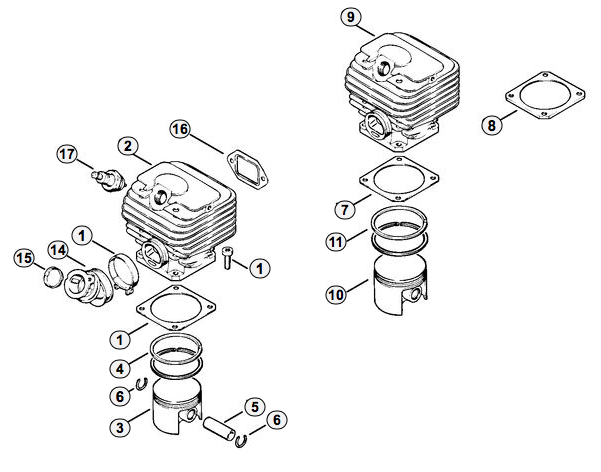

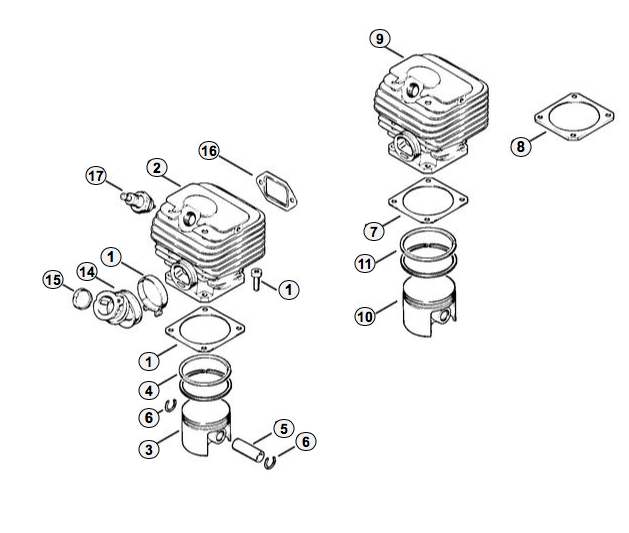

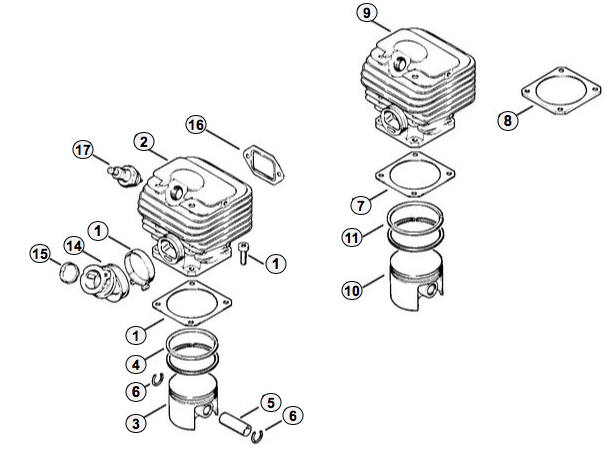

Cylinder

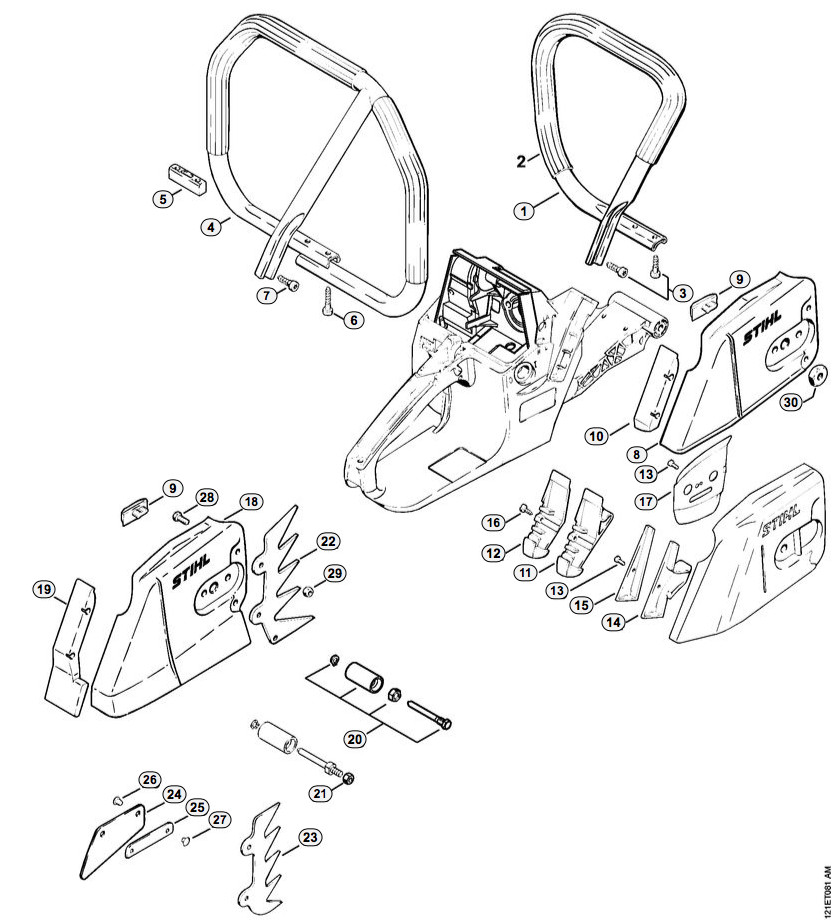

Guard

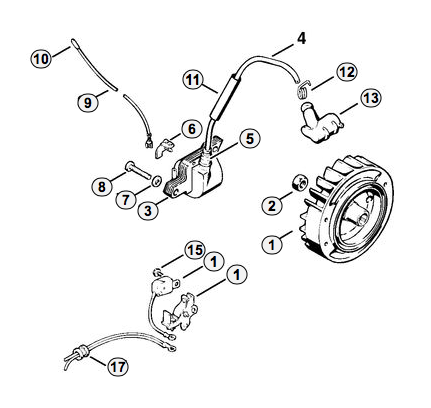

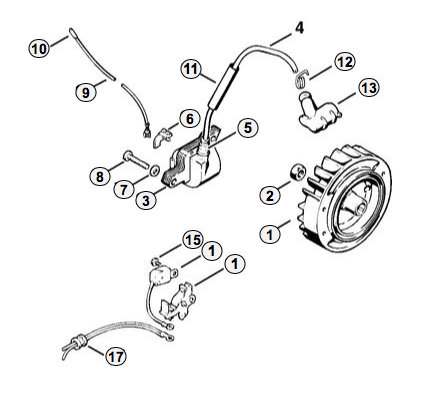

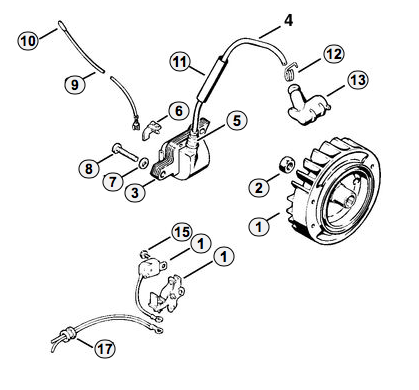

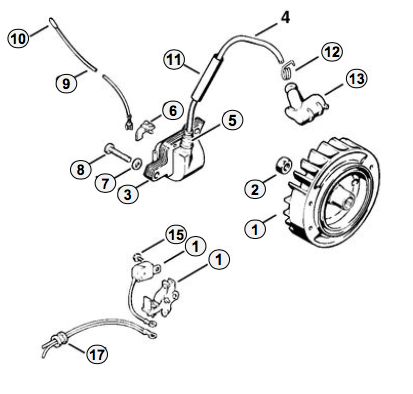

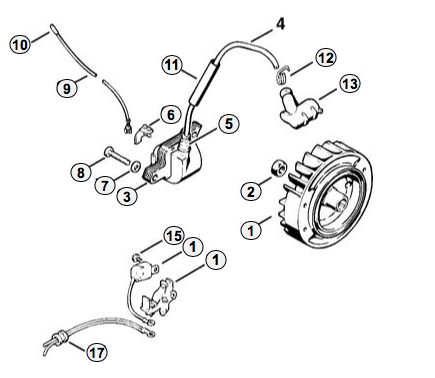

Ignition

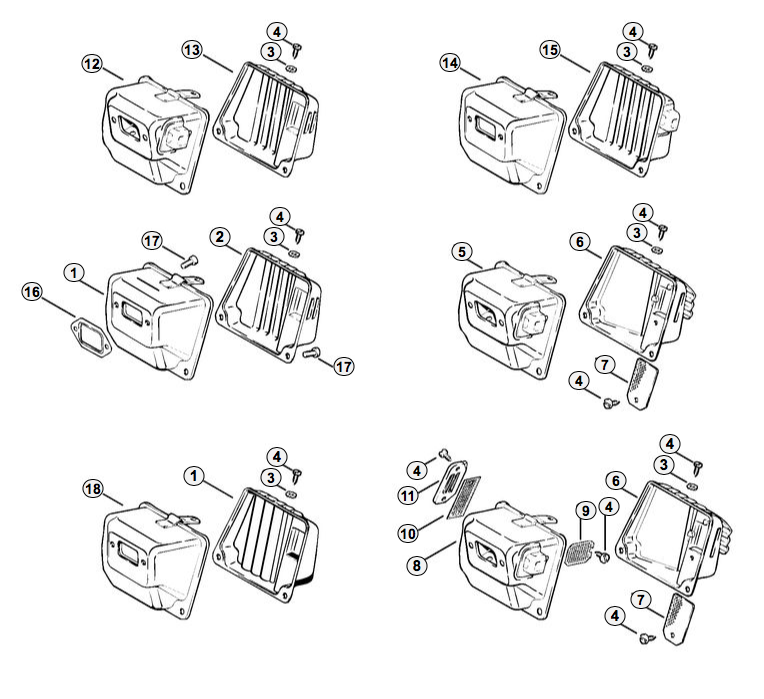

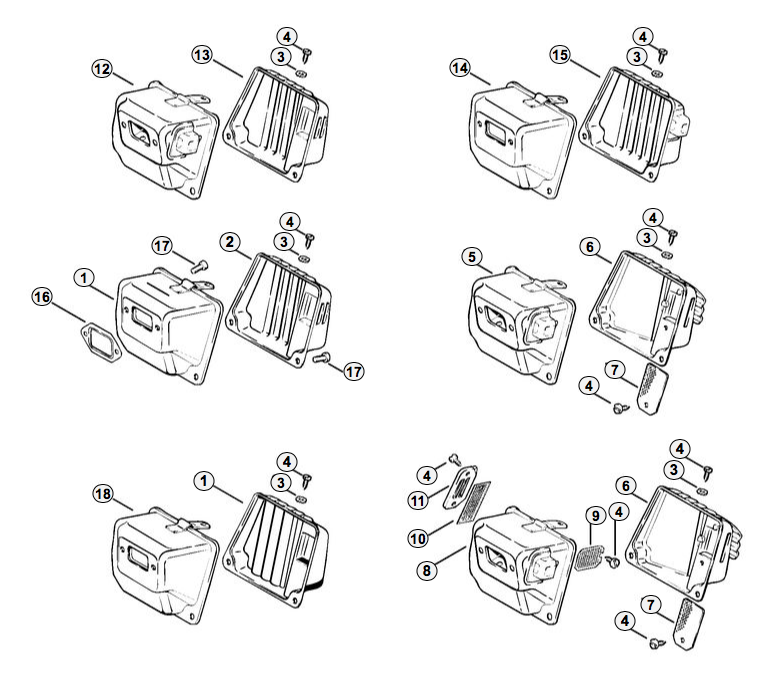

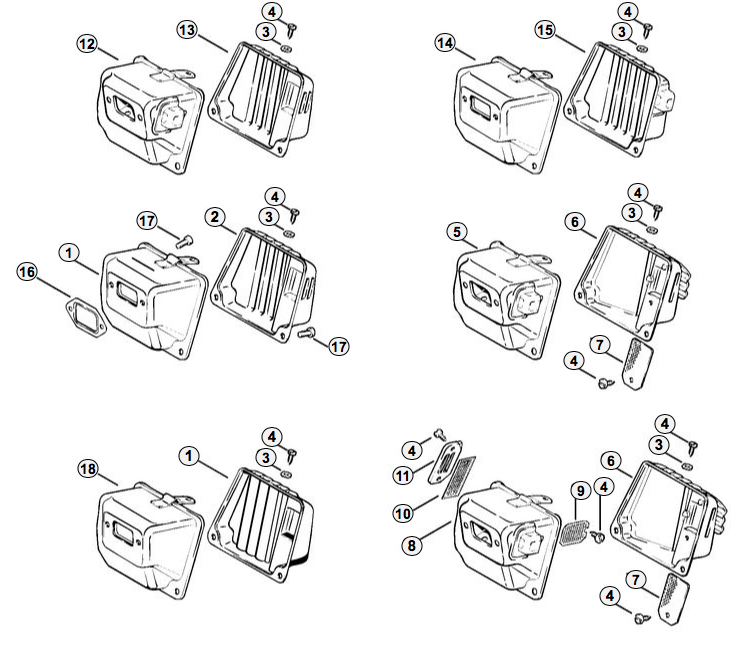

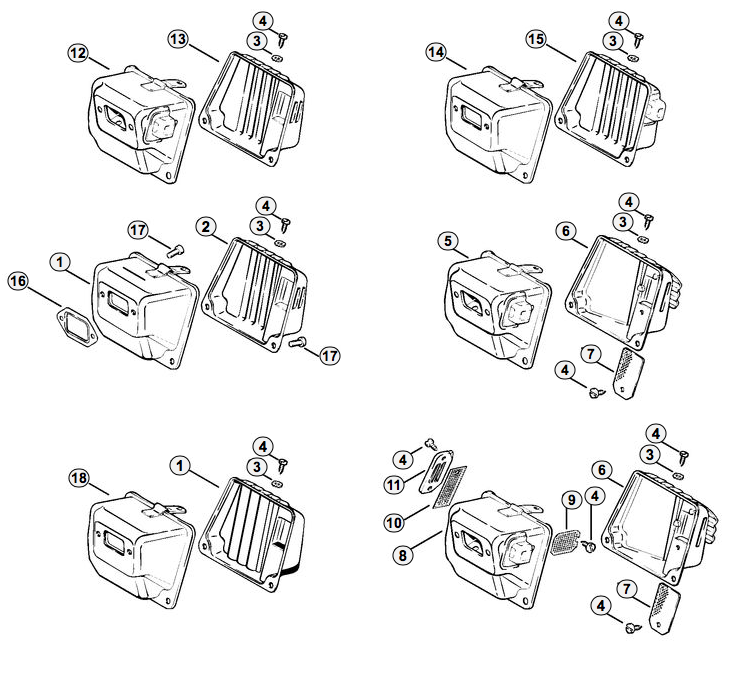

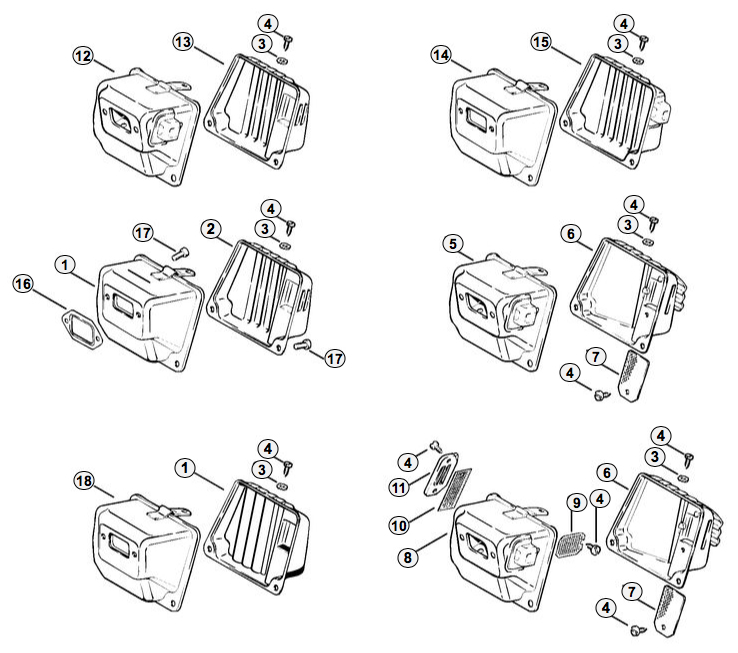

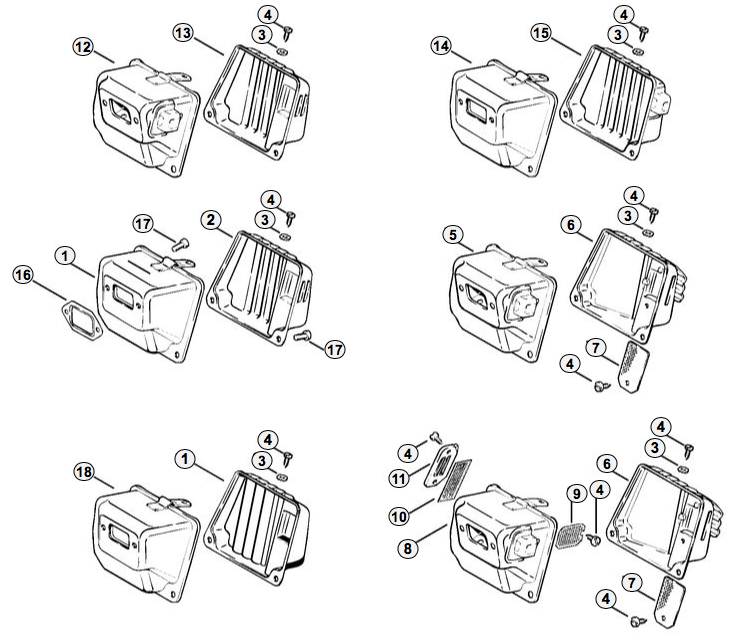

Muffler

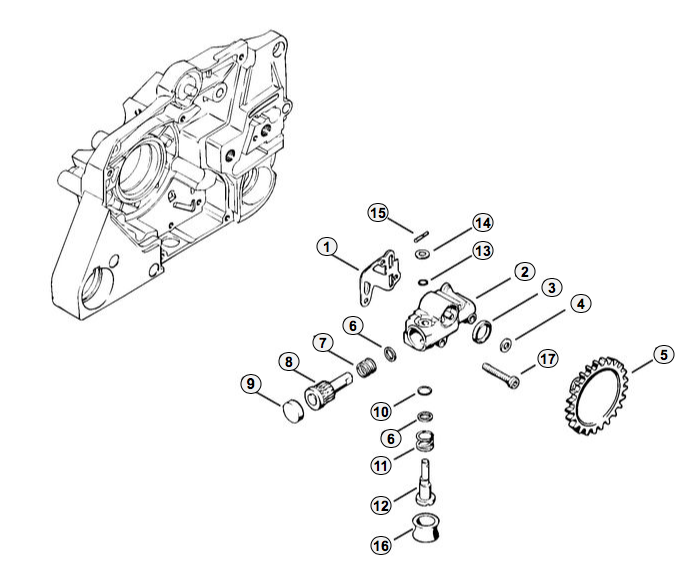

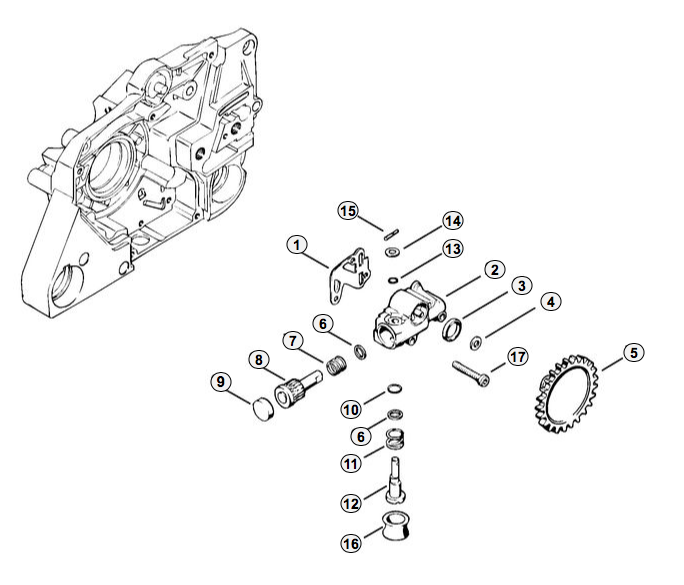

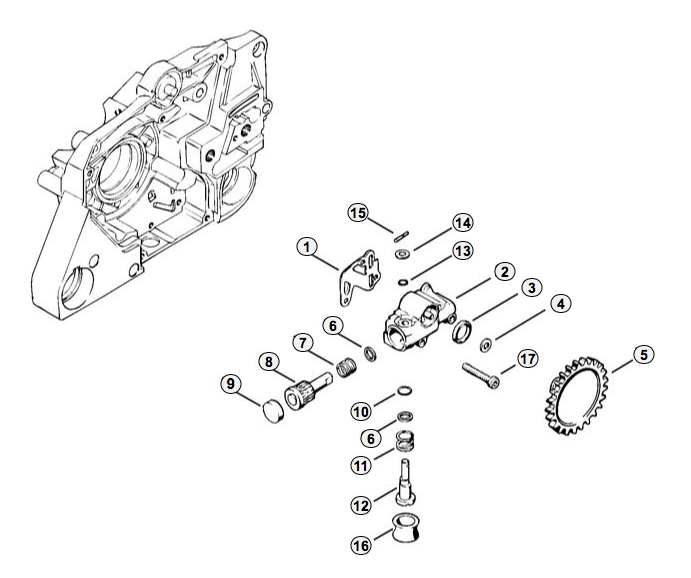

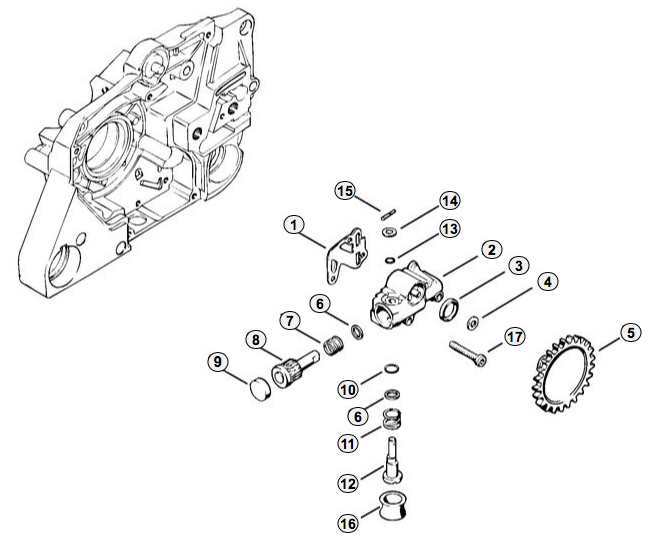

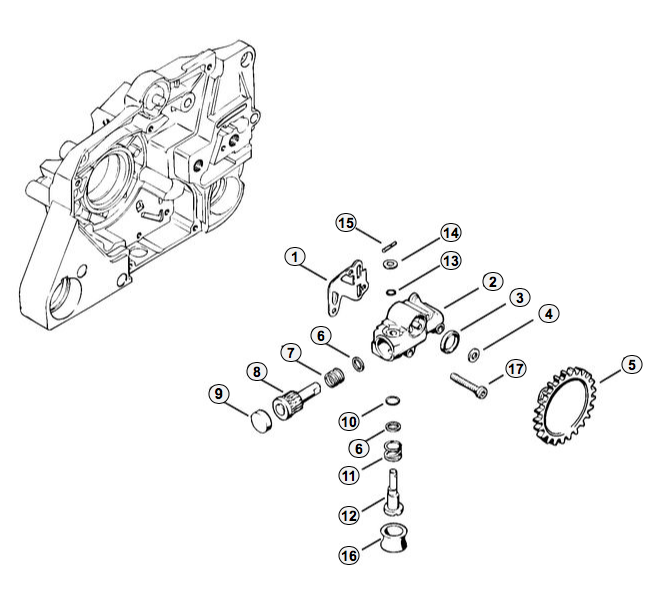

Oil Pump

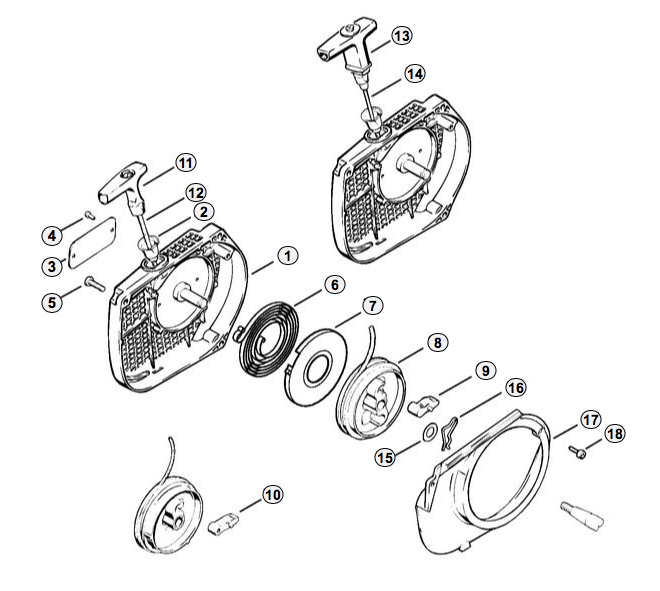

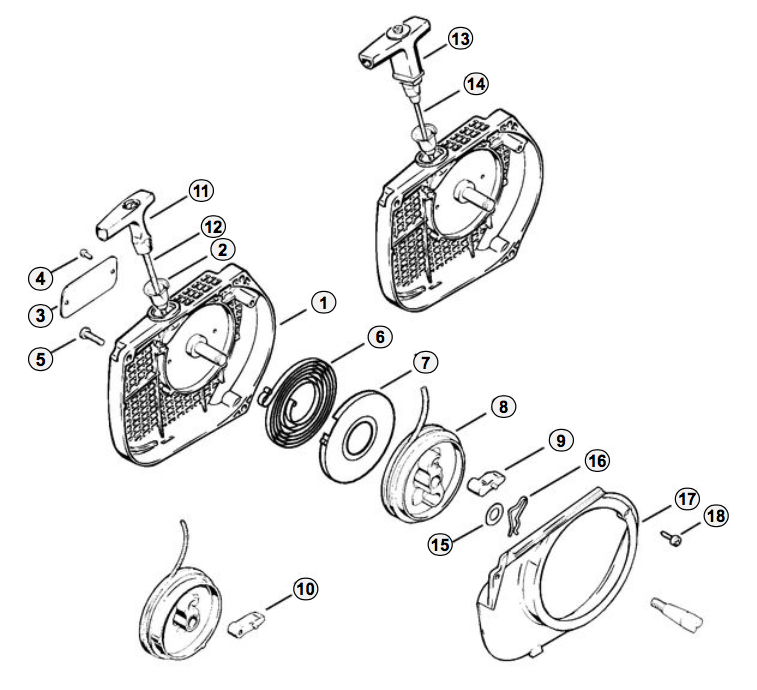

Rewind Starter

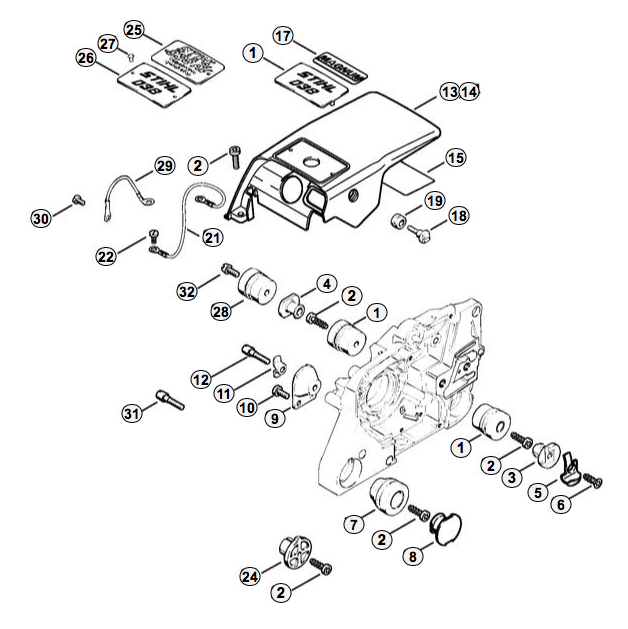

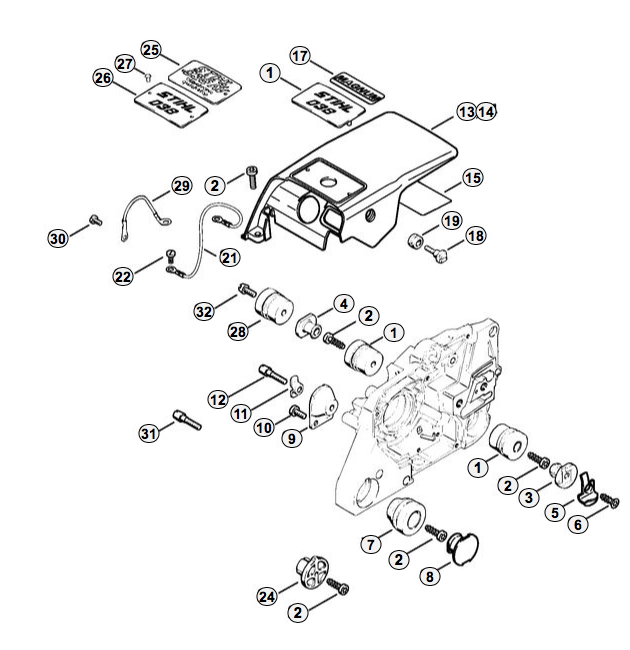

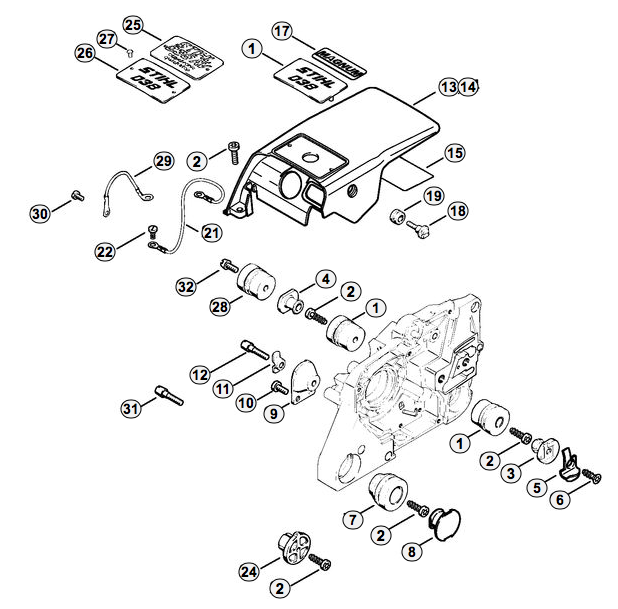

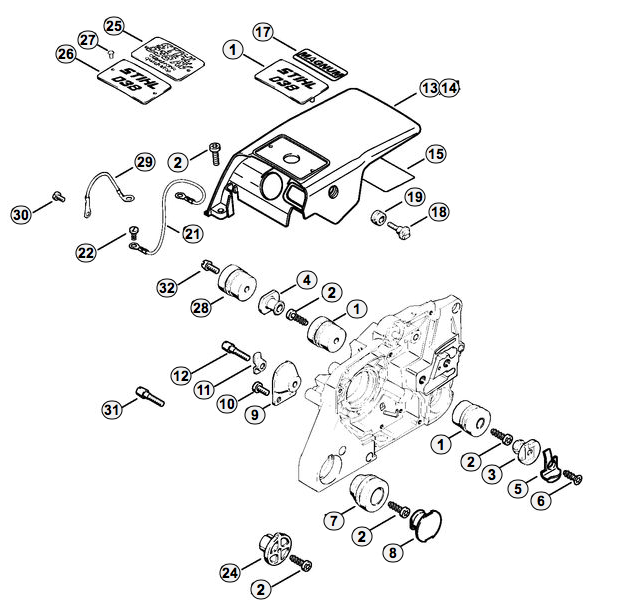

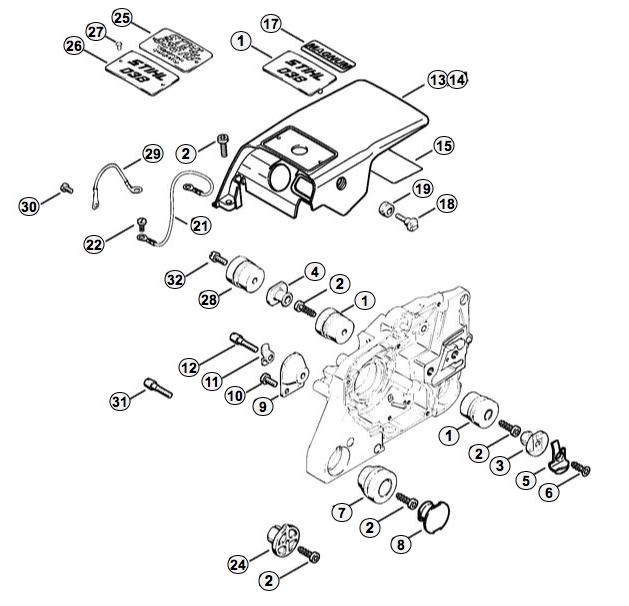

Shroud

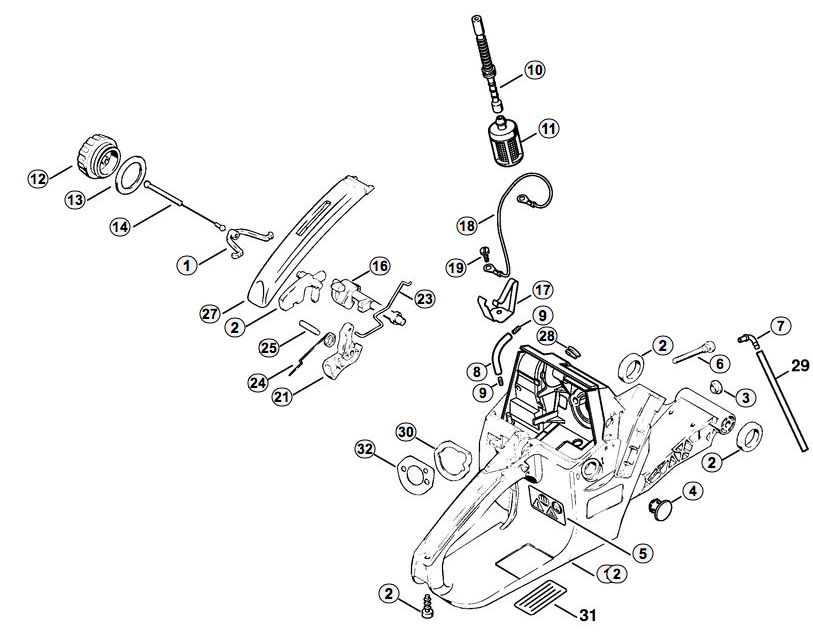

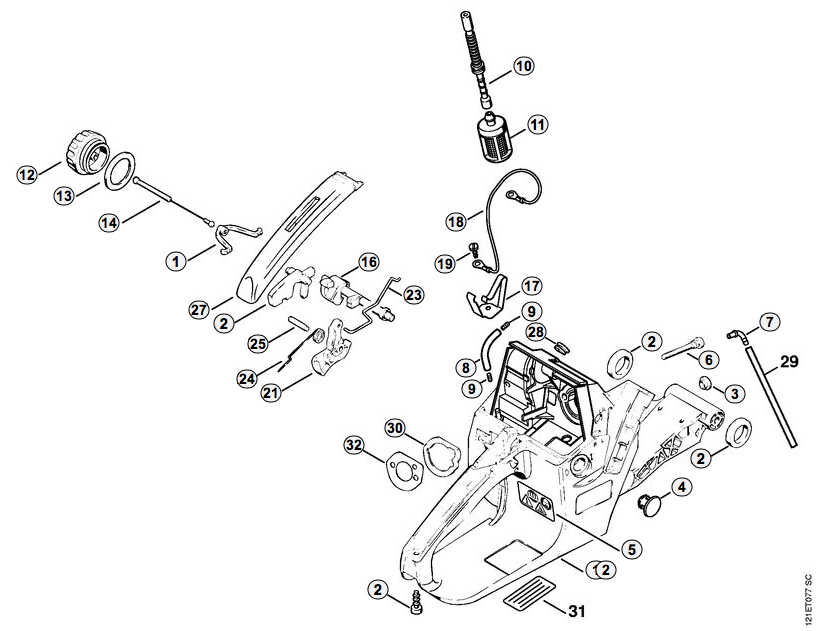

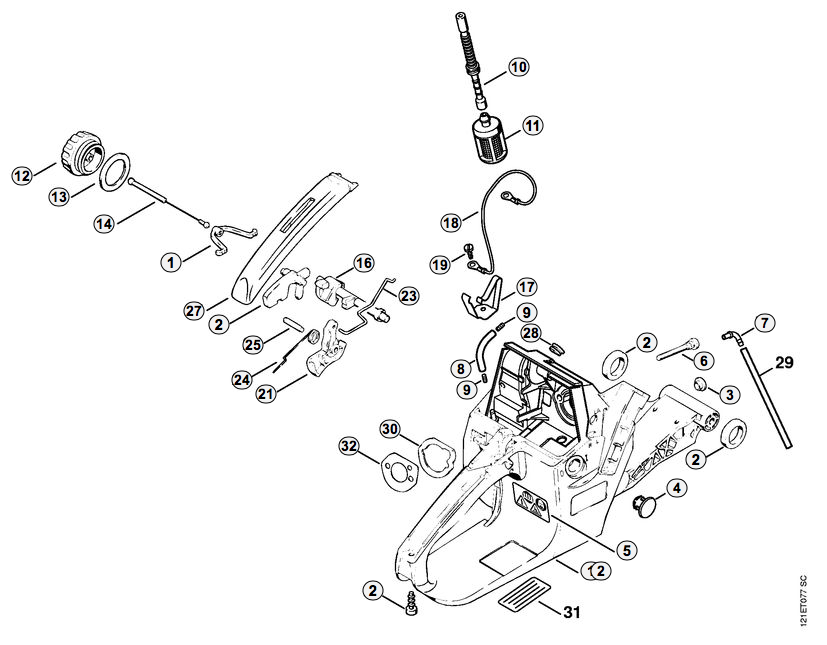

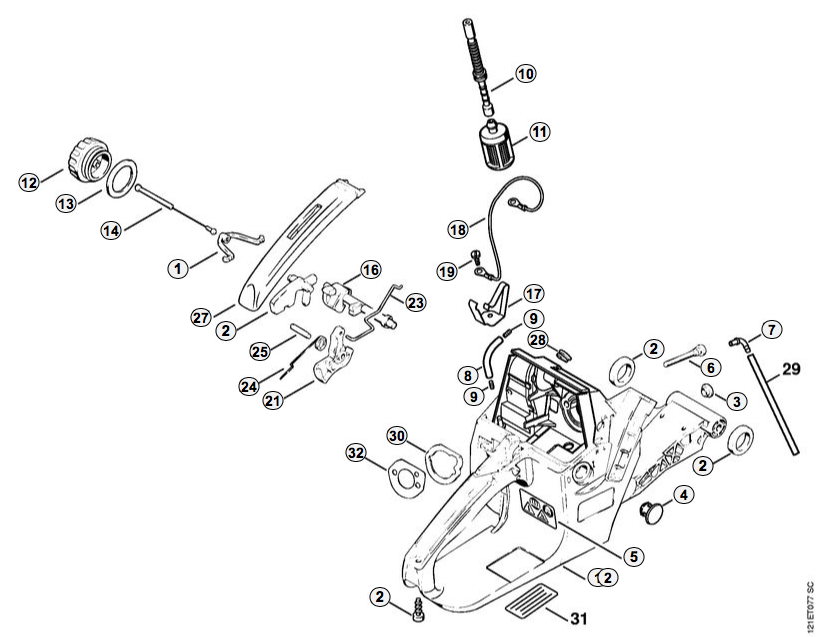

Tank Housing

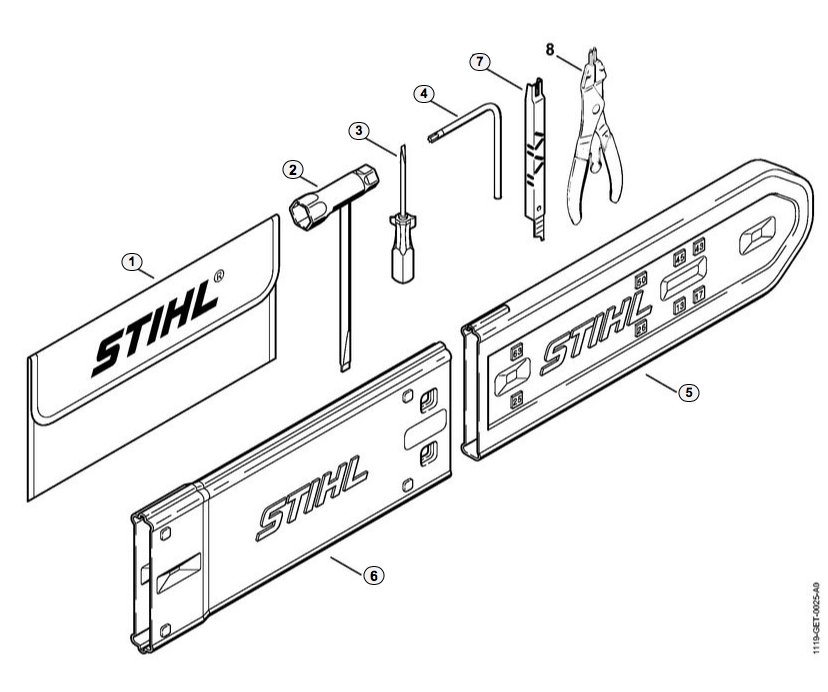

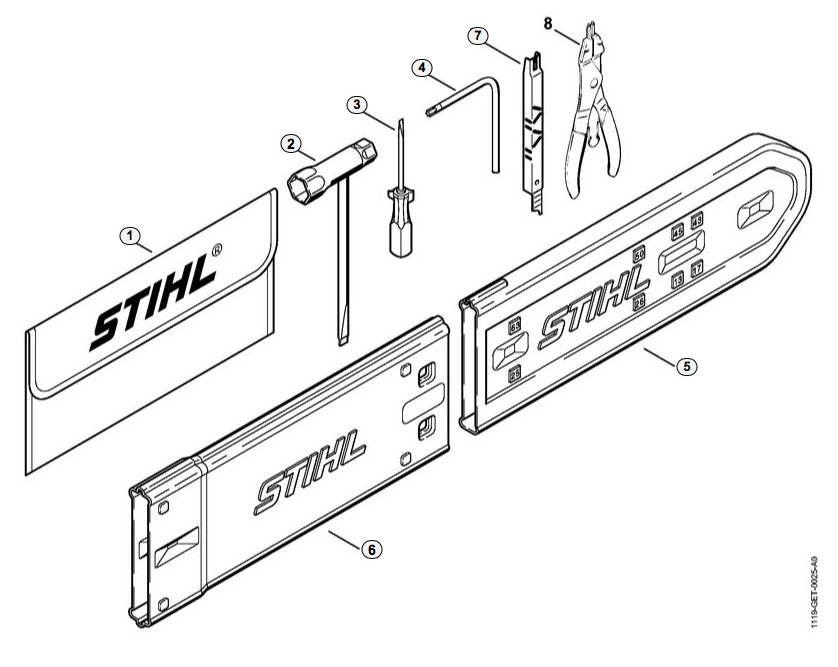

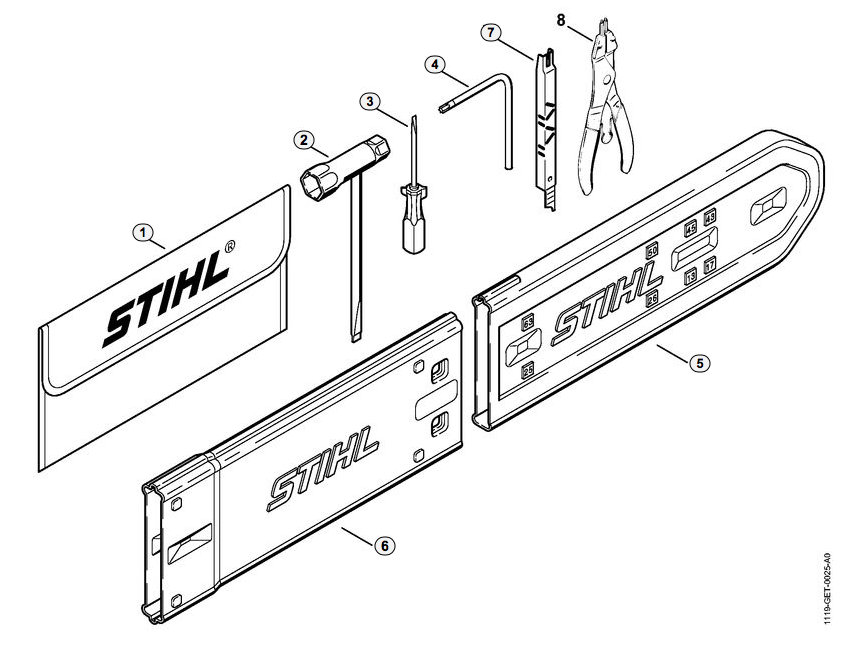

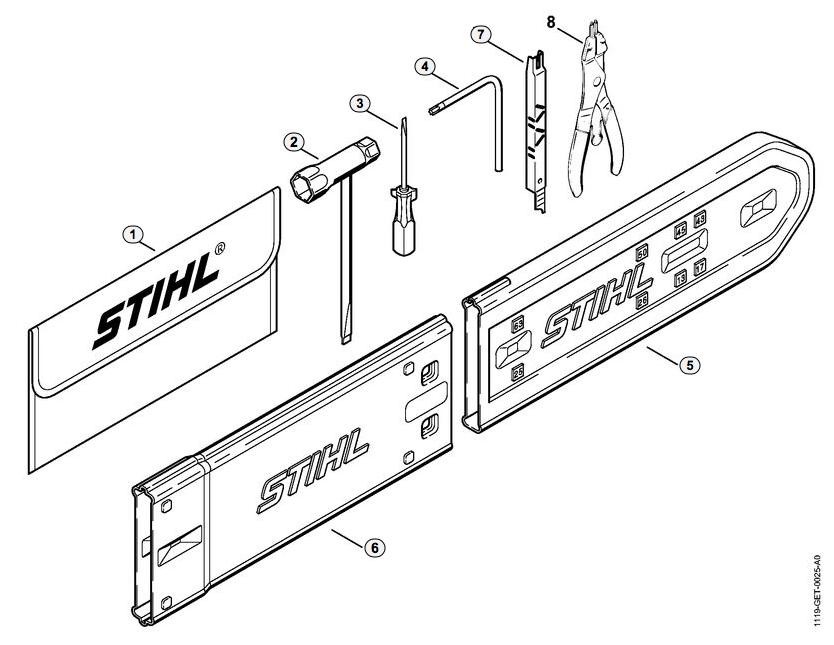

Tools
038FB
Air Filter
Carburetor Bing 48A101C
Carburetor C3-S148
Chain Tensioner/Carburetor Cover
Clutch
Crankcase

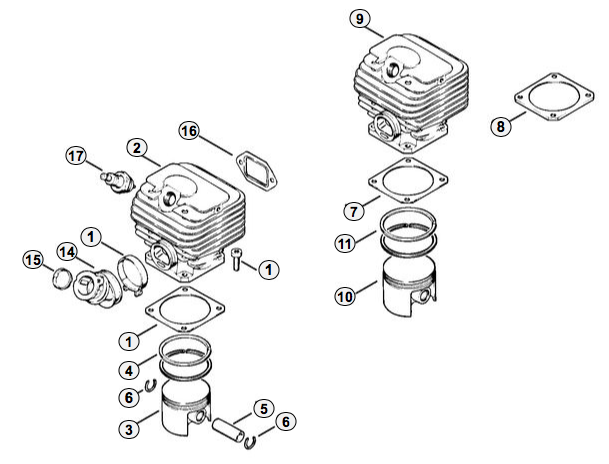

Cylinder

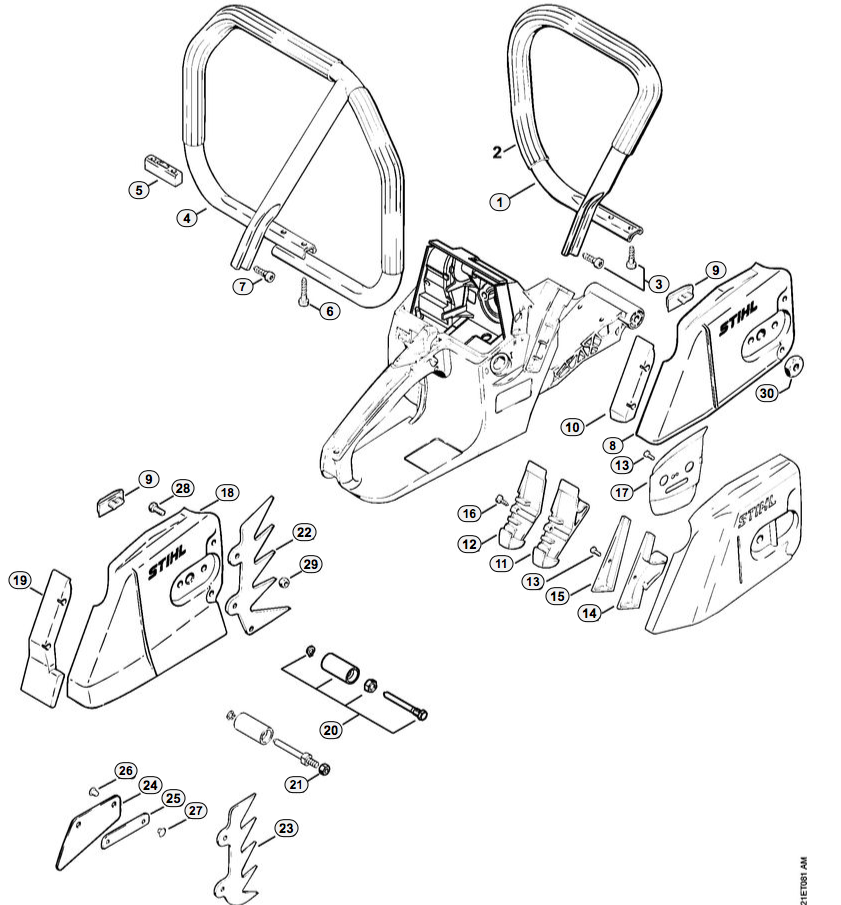

Handle
Ignition
Muffler
Oil Pump
Shroud
Starter

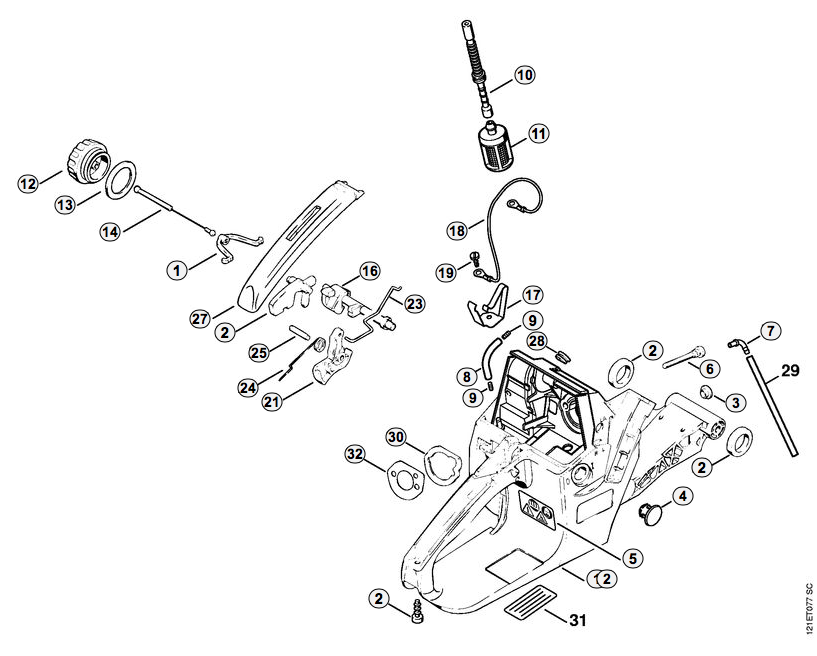

Tank
Tools
038M
Air Filter
Carburetor Bing 48A101C
Carburetor C3-S148
Clutch
Crankcase
Cylinder
Ignition
Muffler
Oil Pump

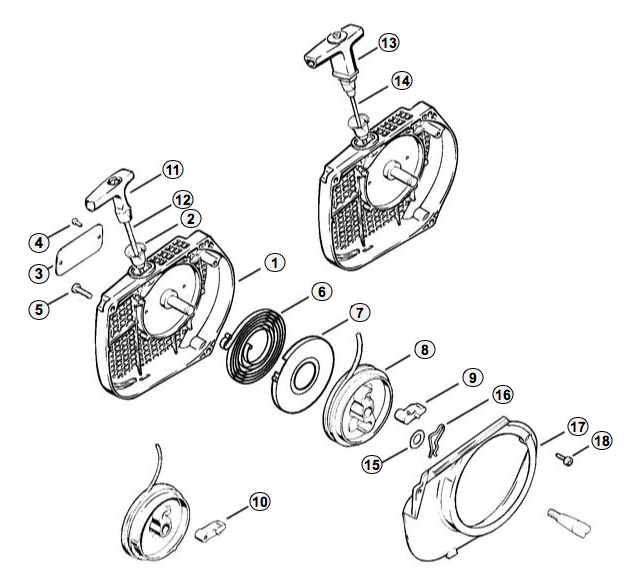

Starter
Tank

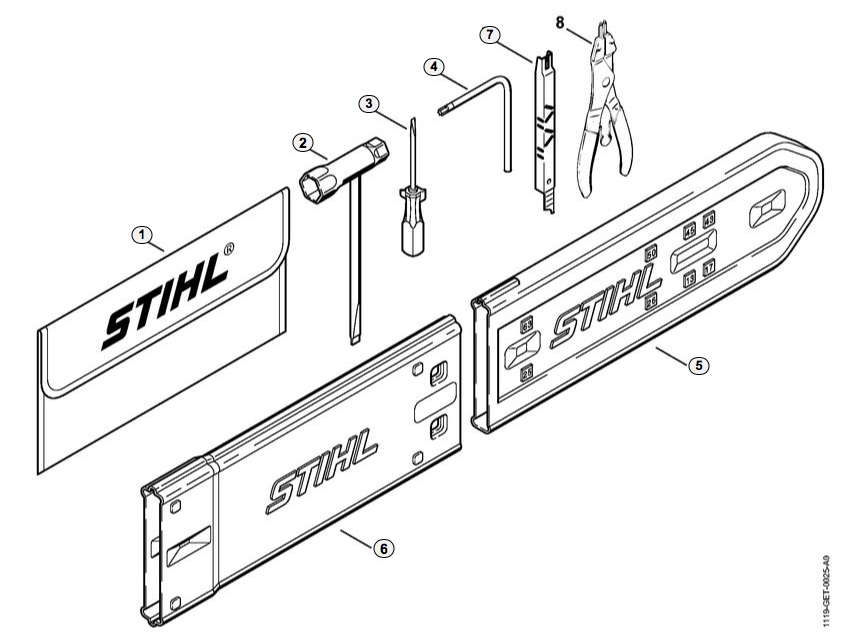

Tools

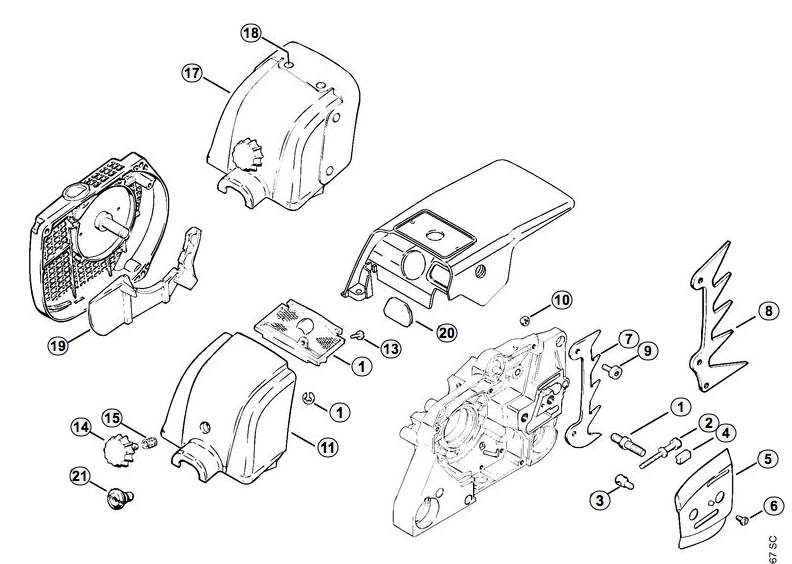

Chain Tensioner/ Carburetor Cover

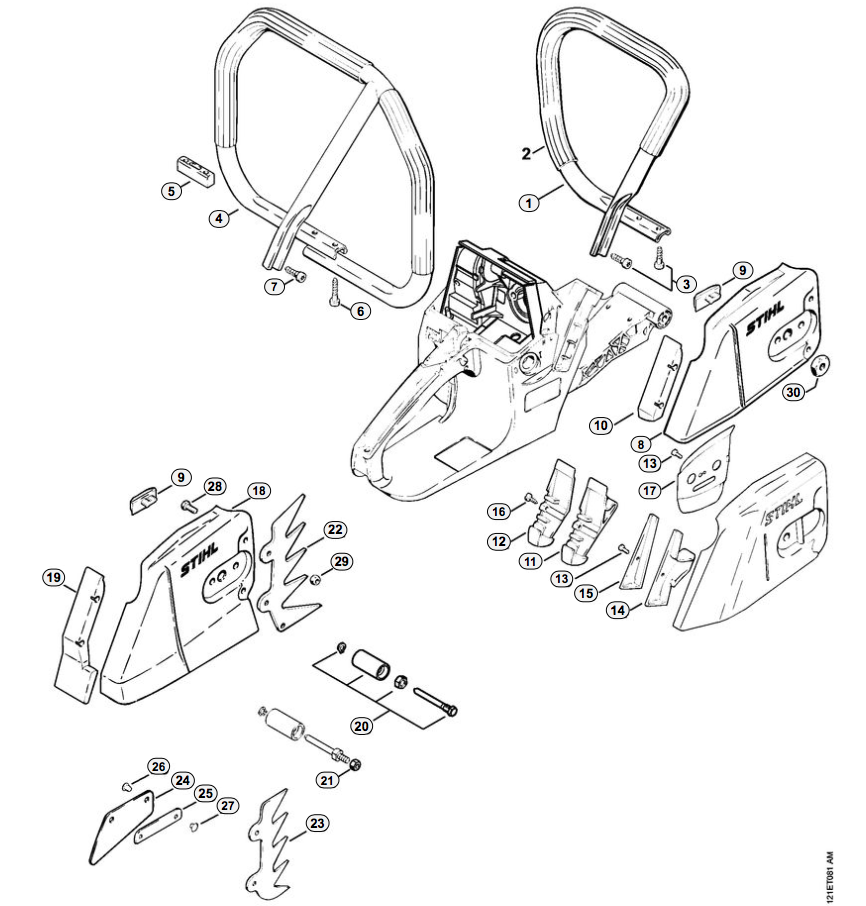

Handlebar/Chain Cover

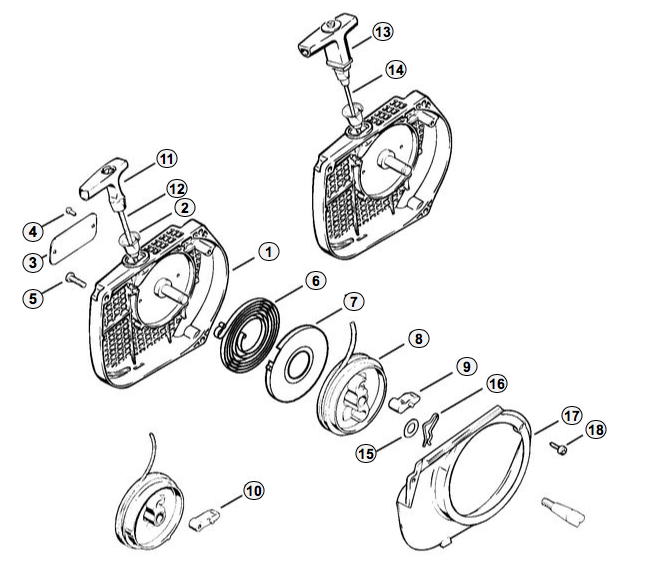

Starter

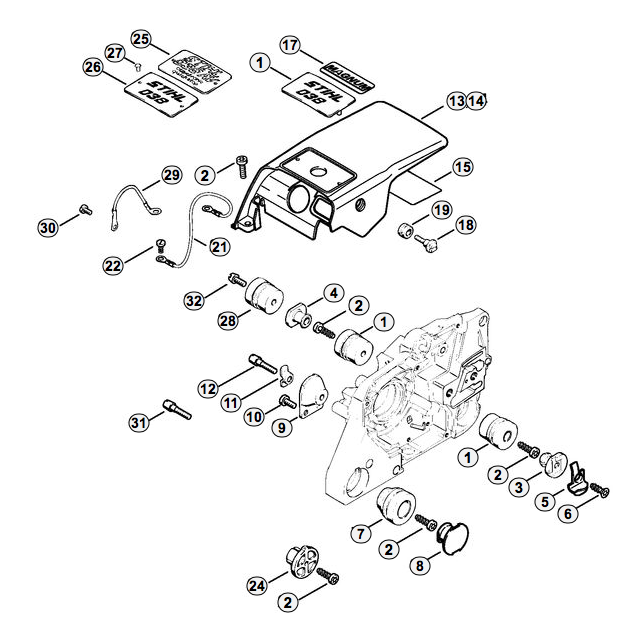

Shroud
038MR

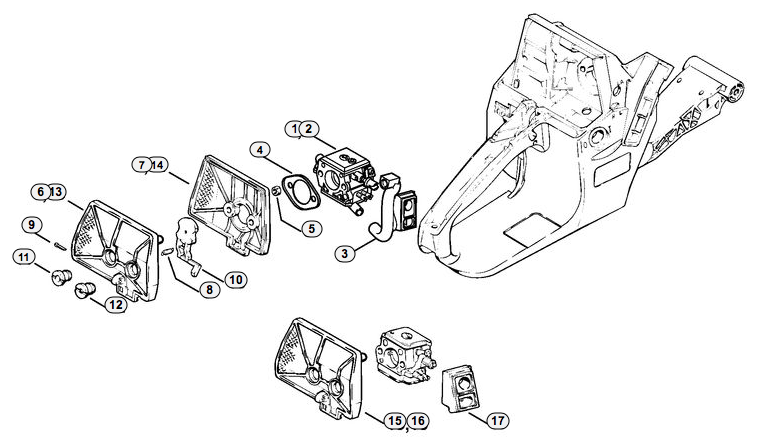

Air Filter
Carburetor Bing 48A101C
Carburetor Bing 48A125A
Carburetor C3-S148
Chain Tensioner/Carburetor Cover
Clutch
Crankcase
Cylinder

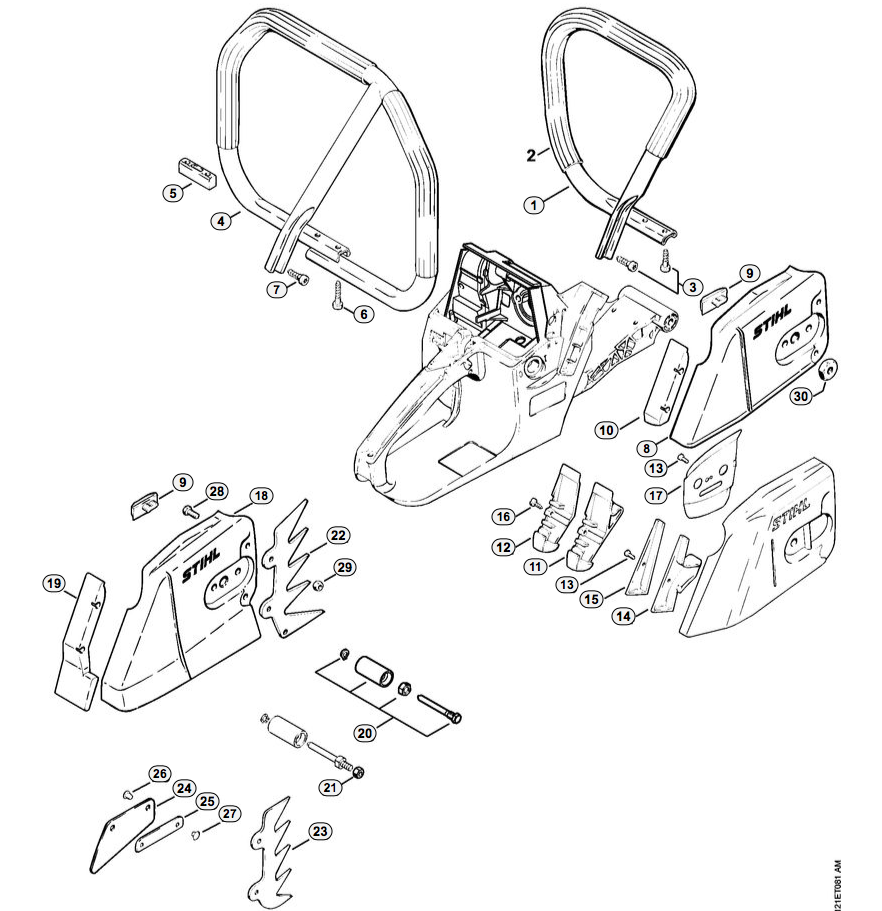

Handlebar/Chain Cover
Ignition
Muffler
Oil Pump
Shroud
Starter

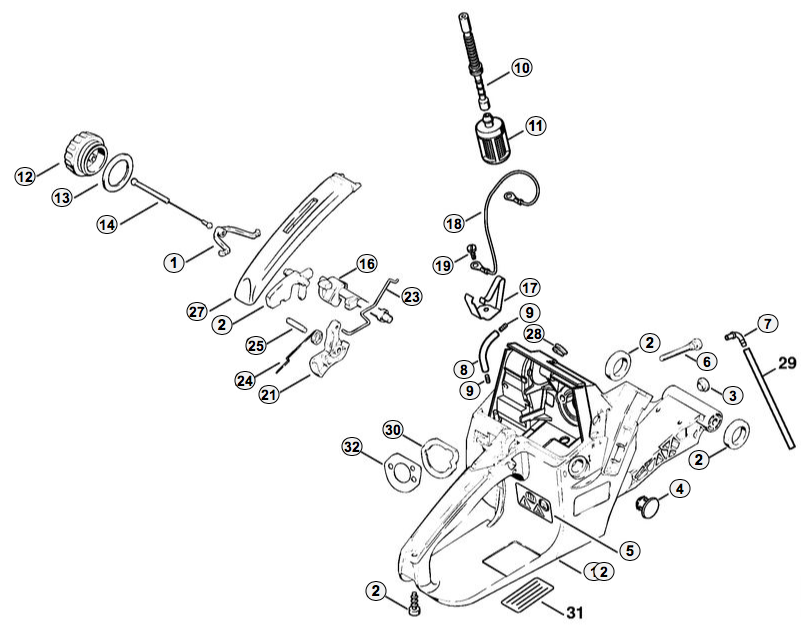

Tank
Tools
038MRII
038MW
038S
038SW

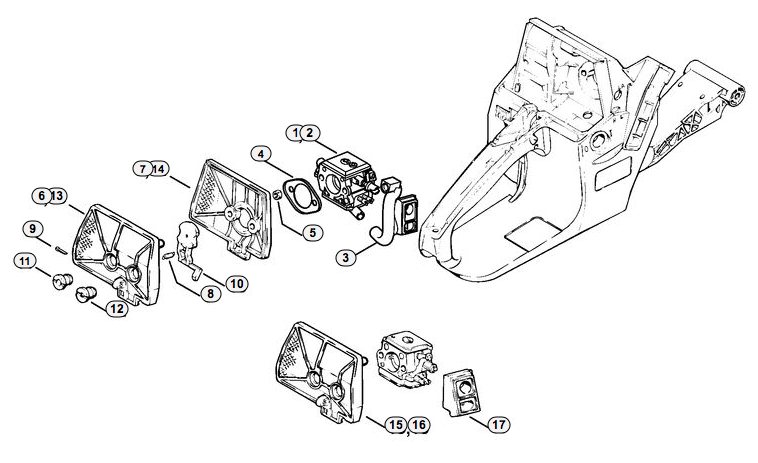

Air Filter

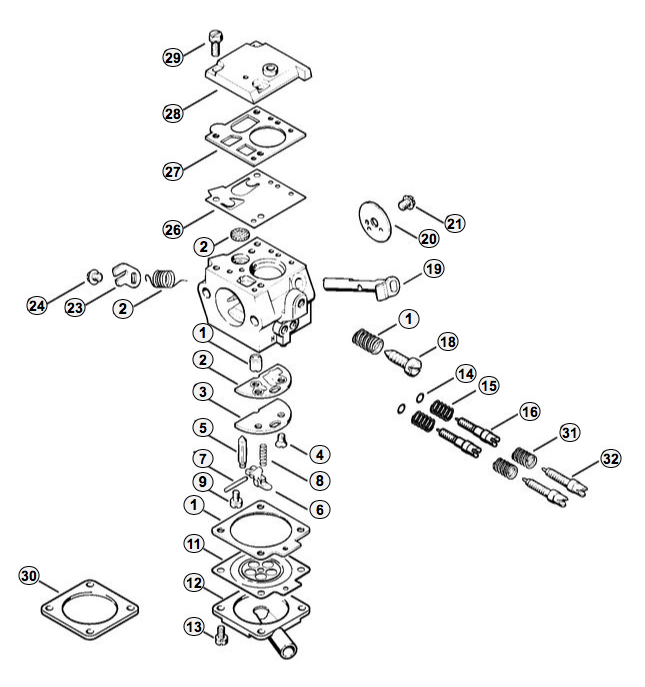

Carburetor Bing 48A101C

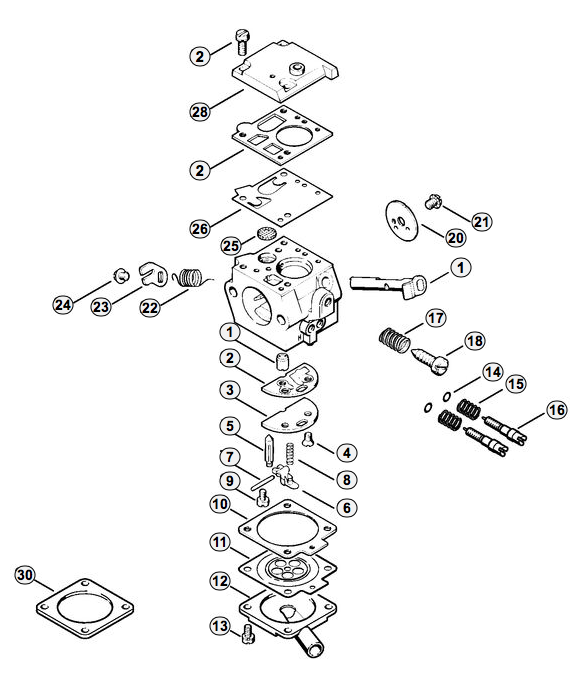

Carburetor Bing 48A125A
Carburetor C3-S148

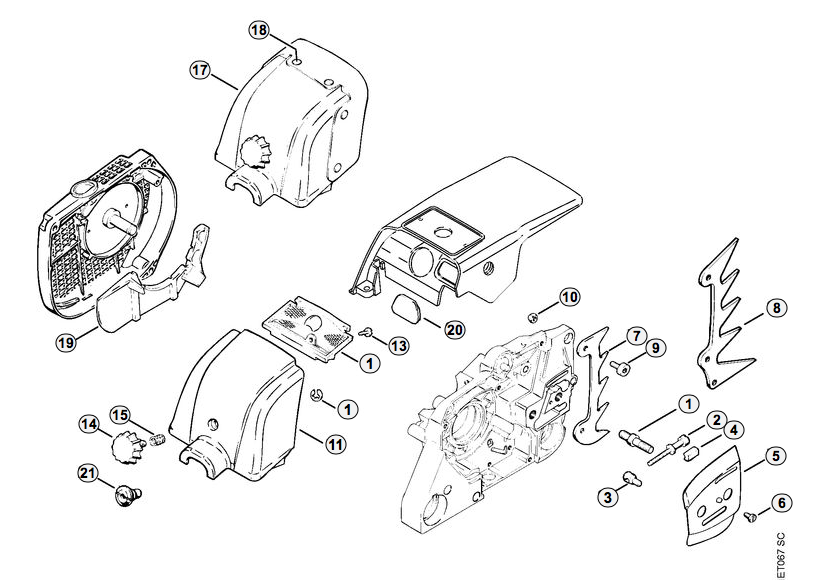

Chain Tensioner/ Carburetor Cover
Clutch

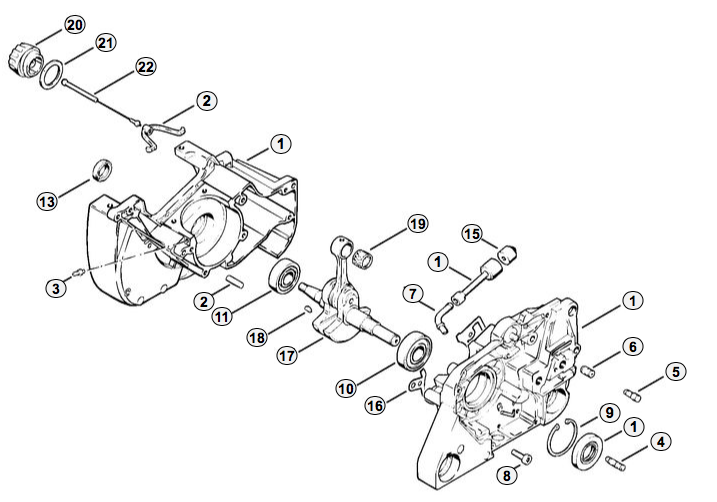

Crankcase
Cylinder
Handlebar/Chain Cover

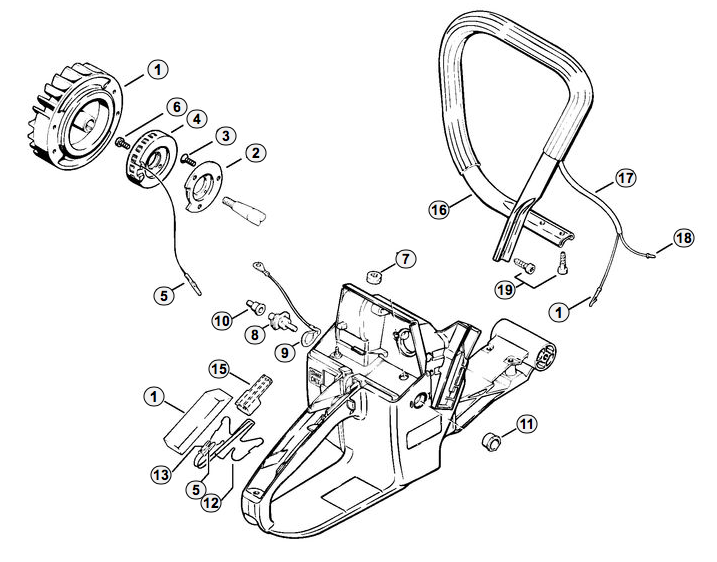

Heating

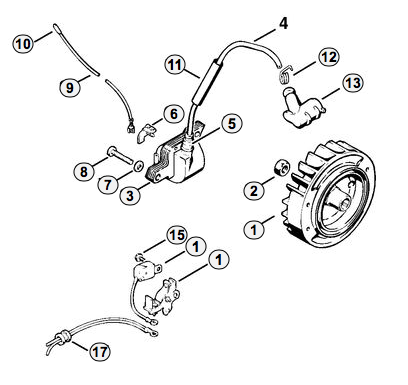

Ignition
Muffler
Oil Pump

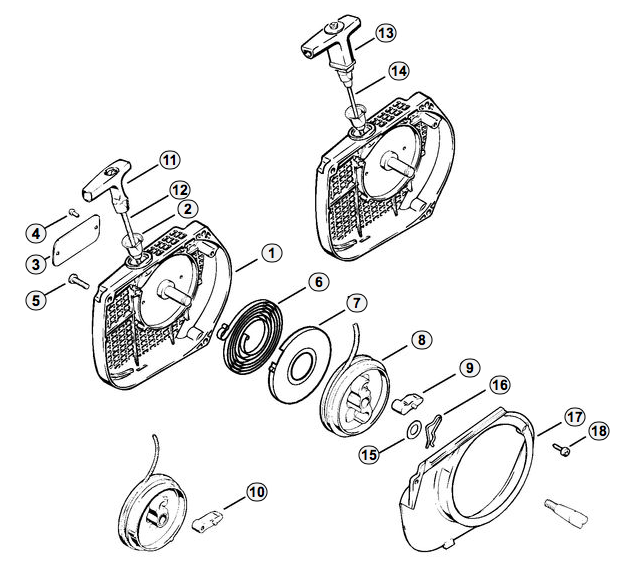

Recoil
Shroud
Tank
Tools
