Diagrams for the Stihl 036 Chainsaw
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl 036 Chainsaw.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl 036 Chainsaw
036

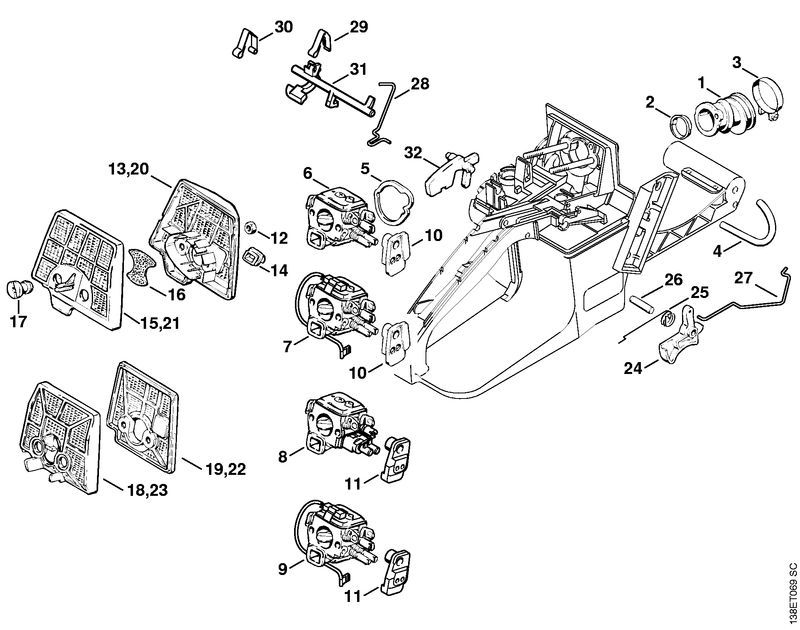

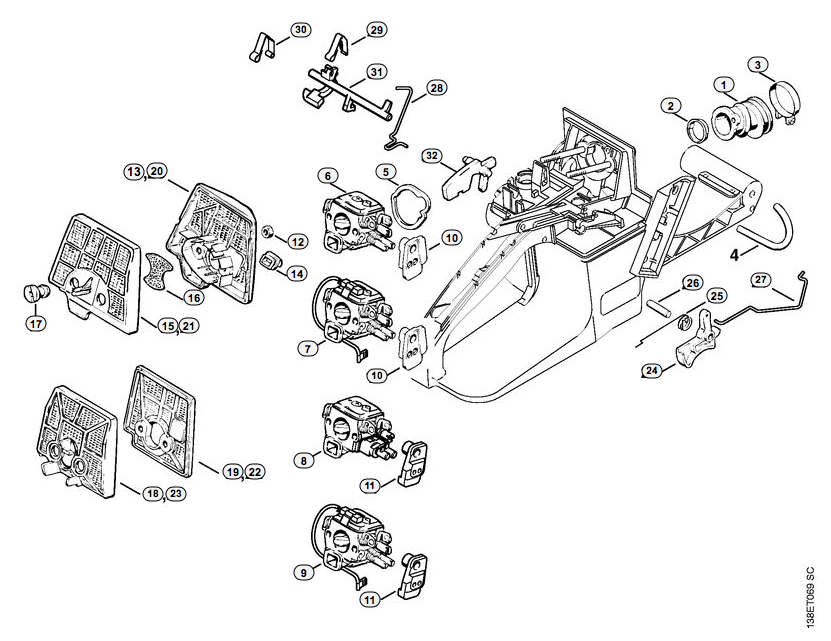

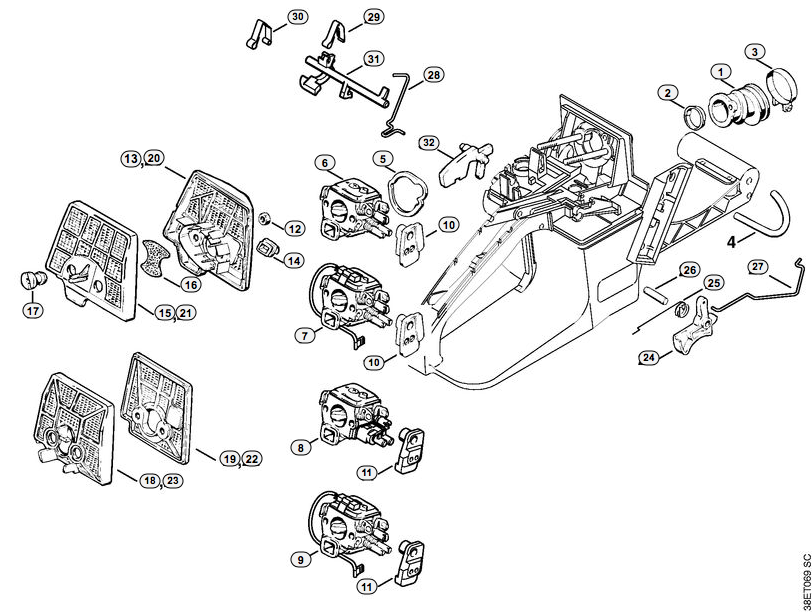

Air Filter

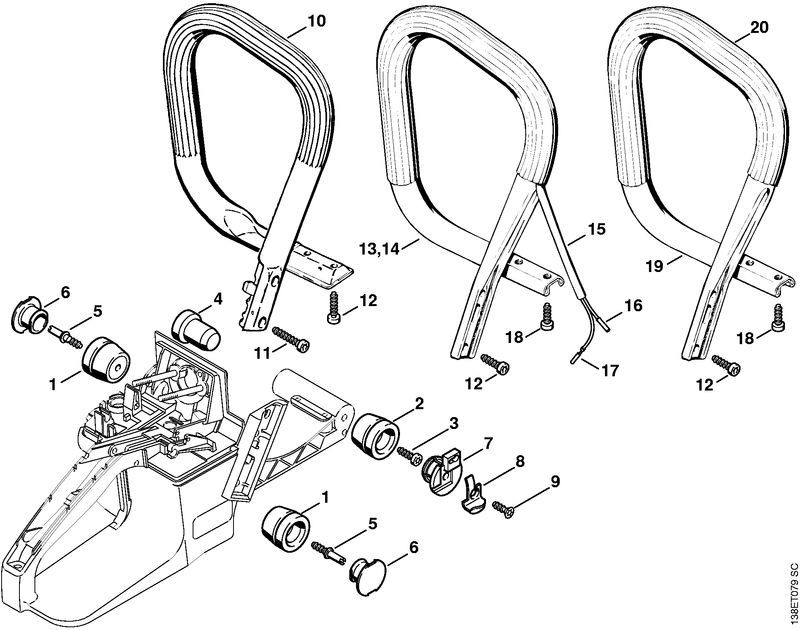

AV System

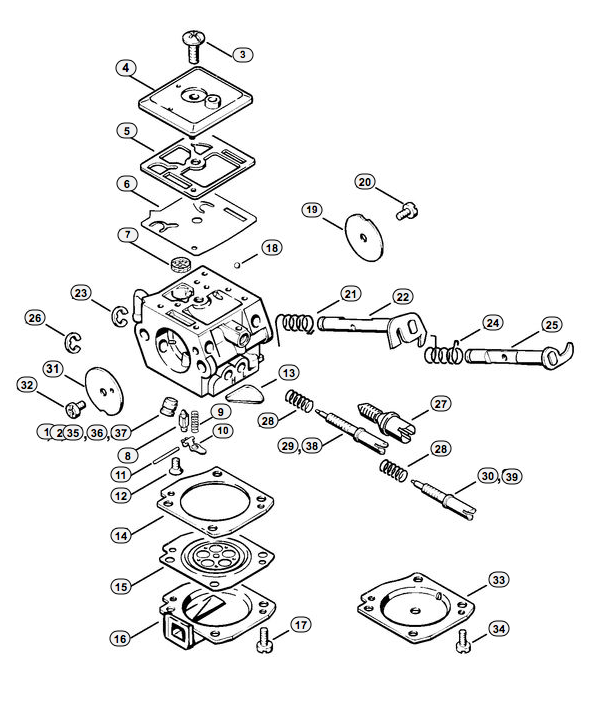

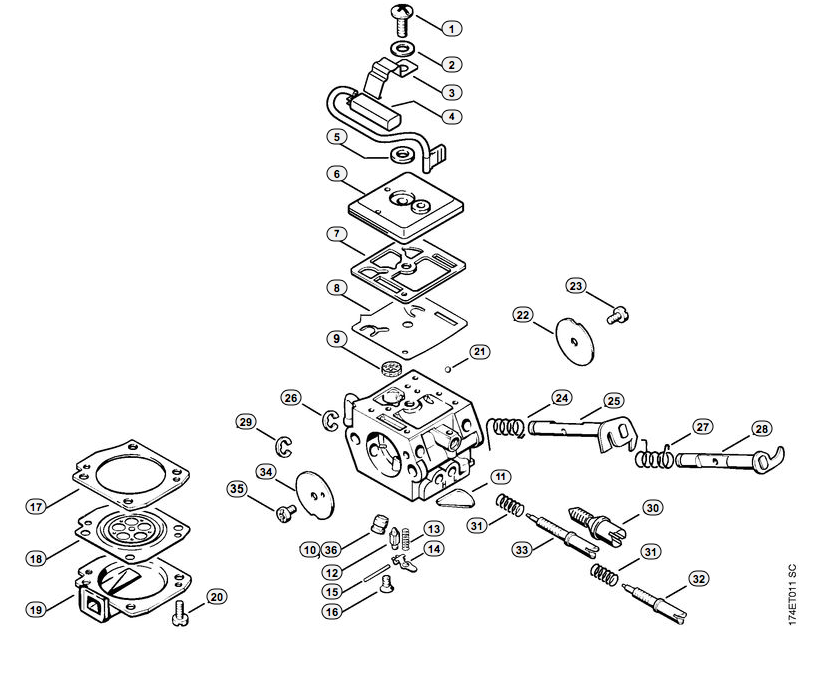

Carburetor C3A-S31E

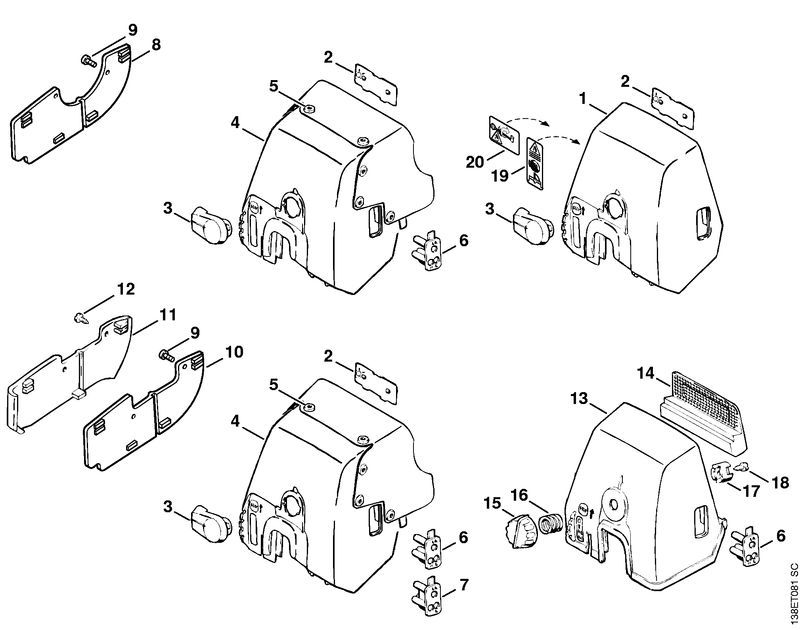

Carburetor Cover

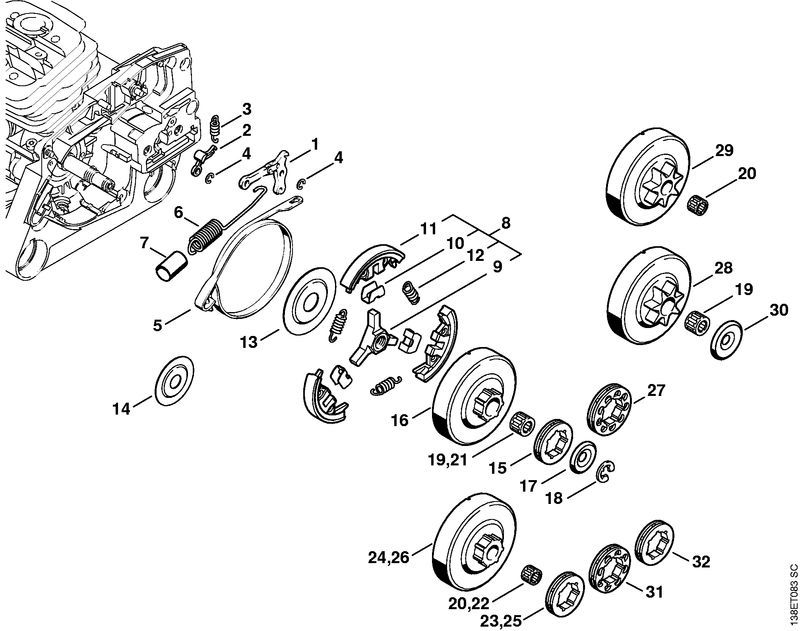

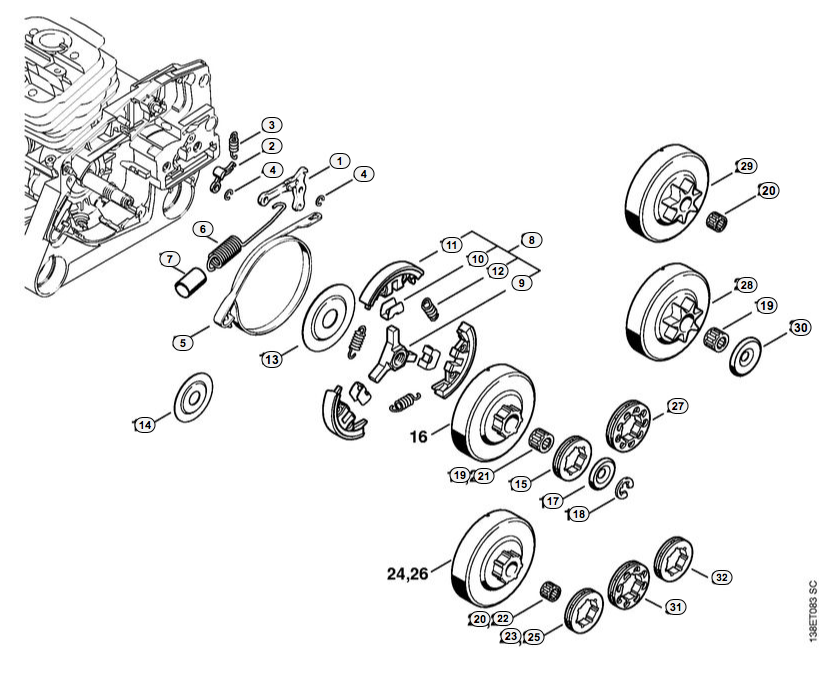

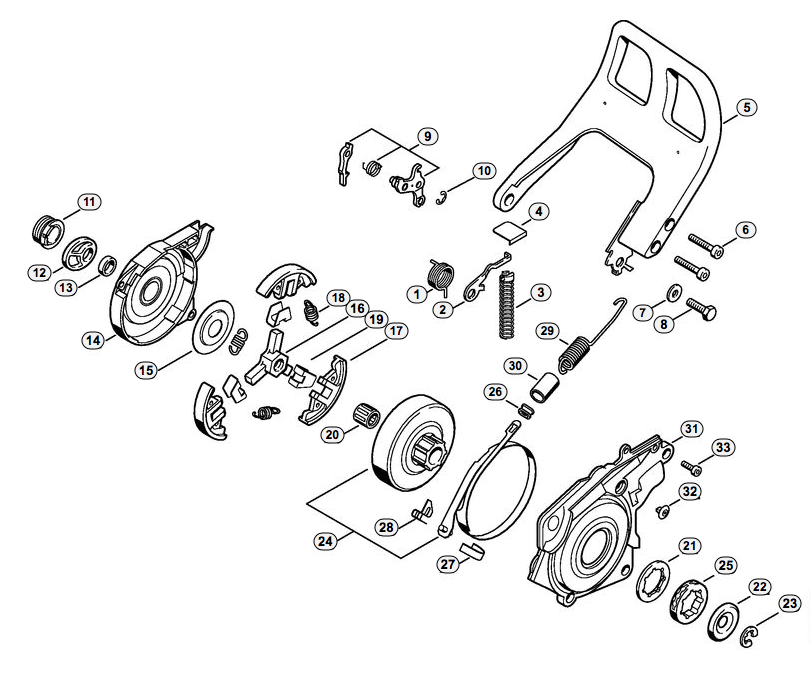

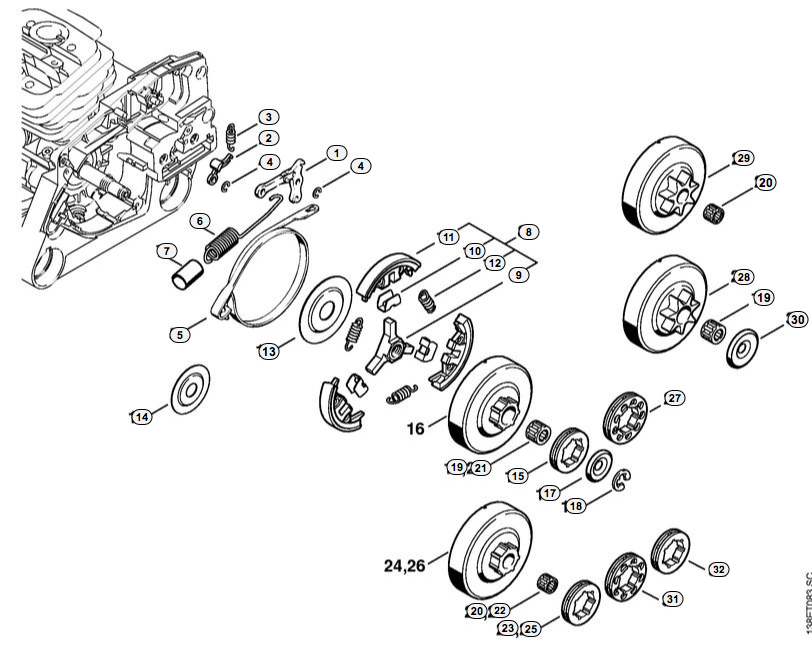

Chain Brake/Clutch

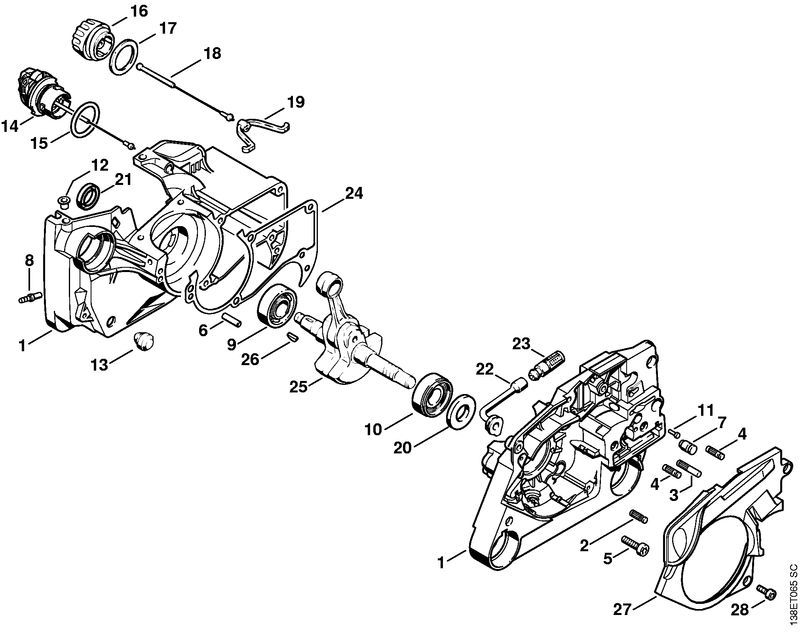

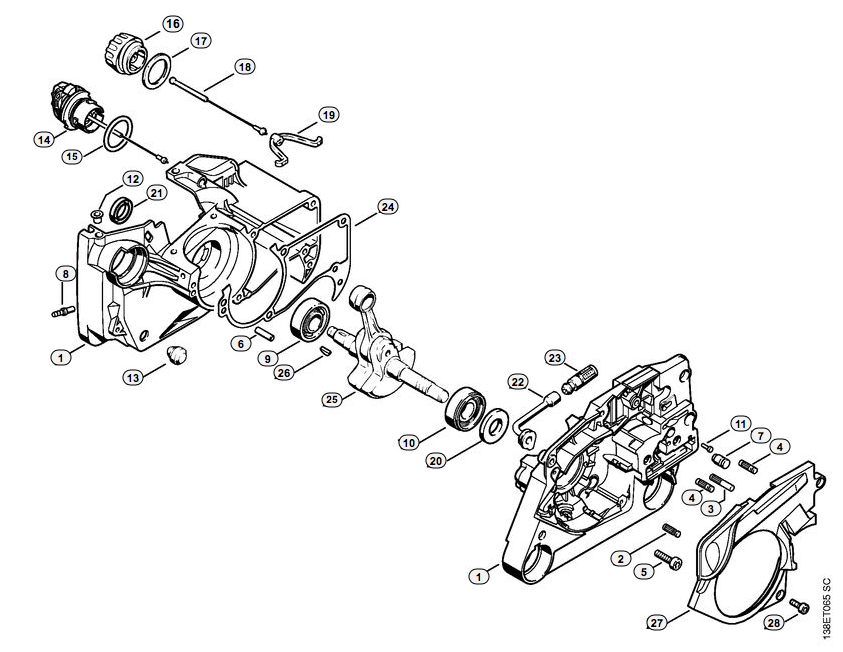

Crankcase

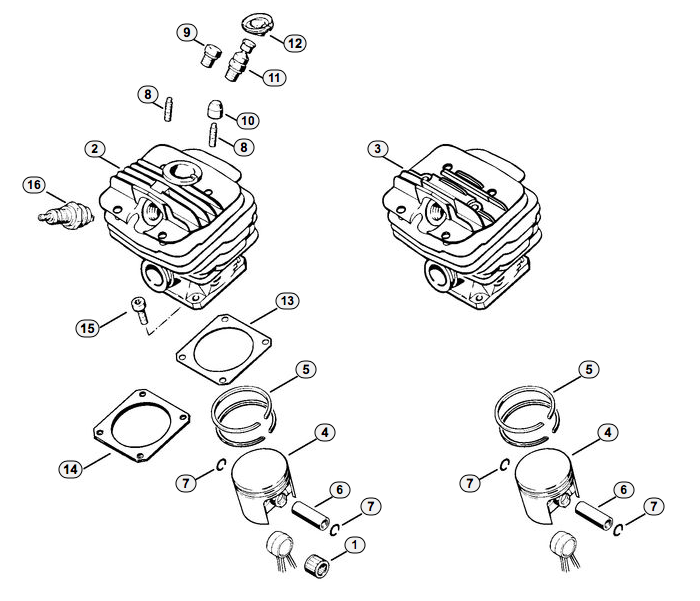

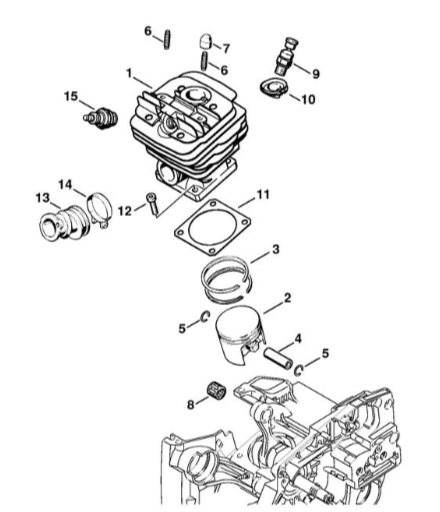

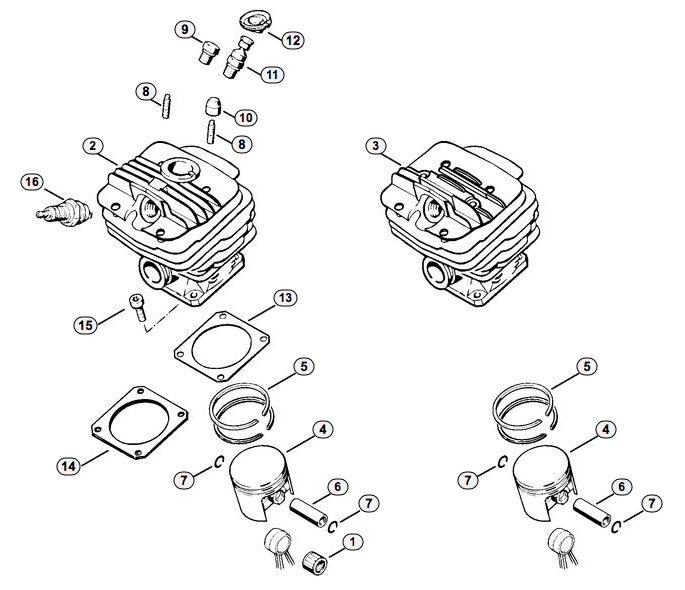

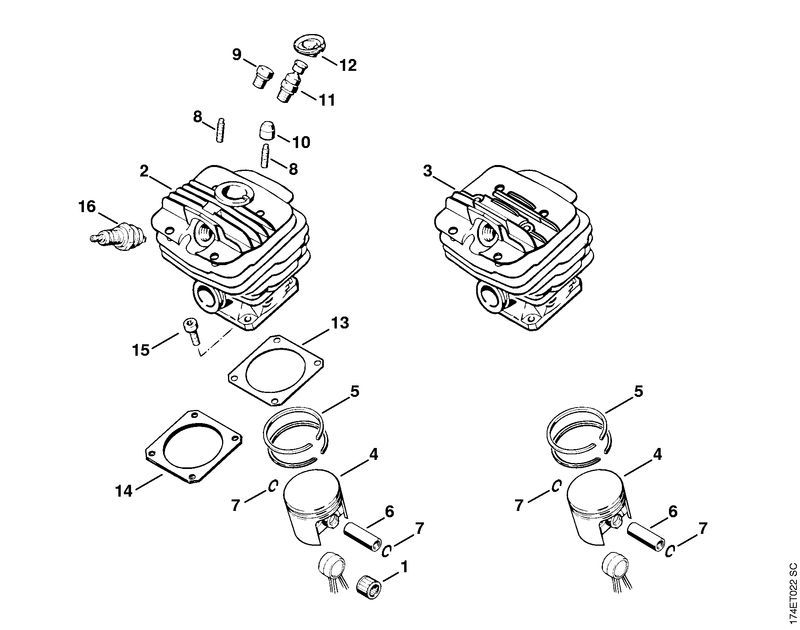

Cylinder

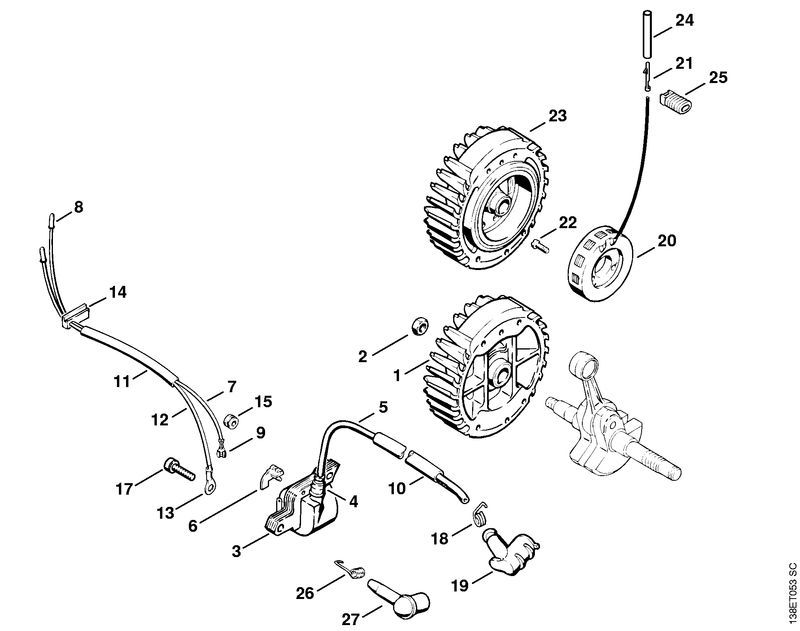

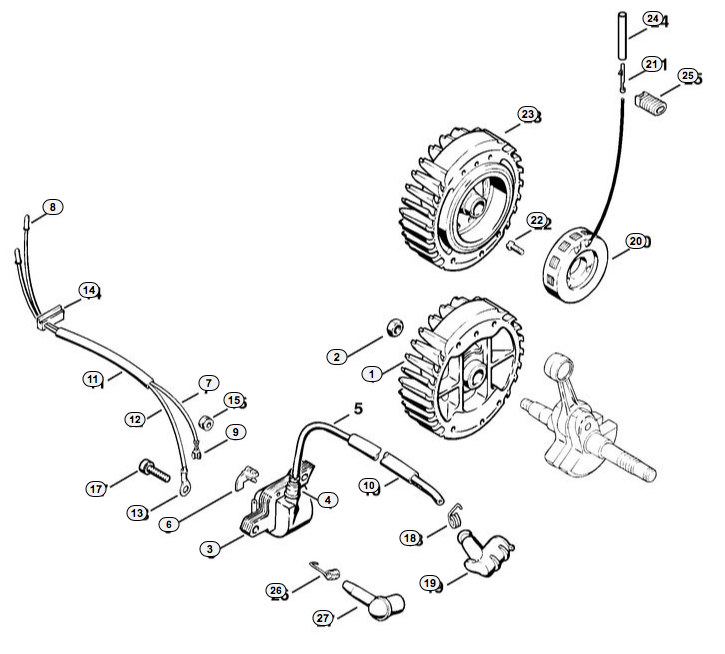

Ignition

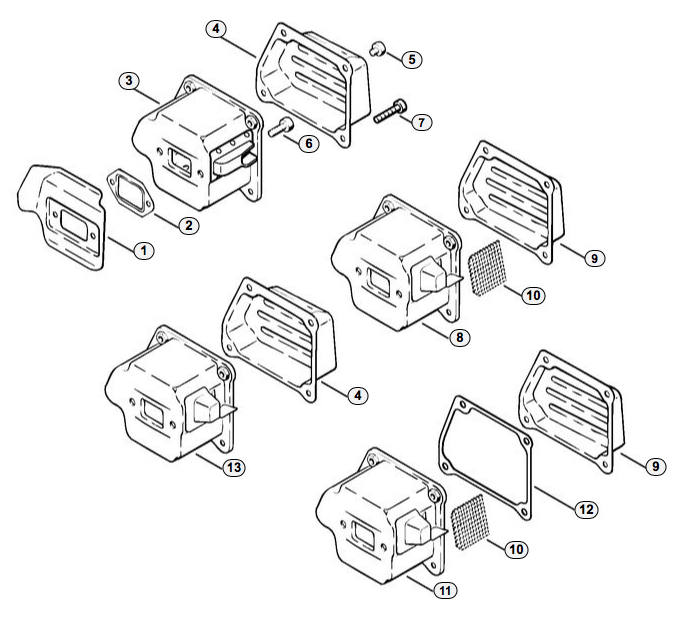

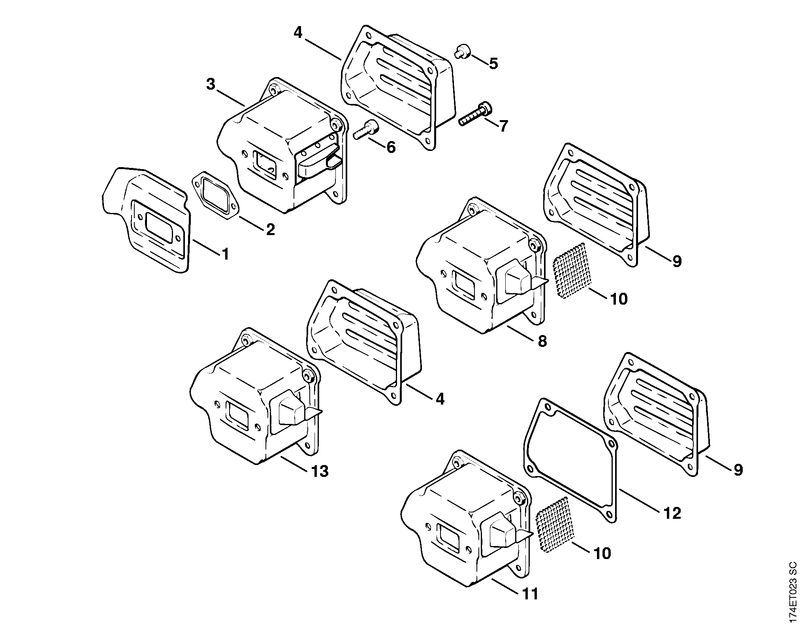

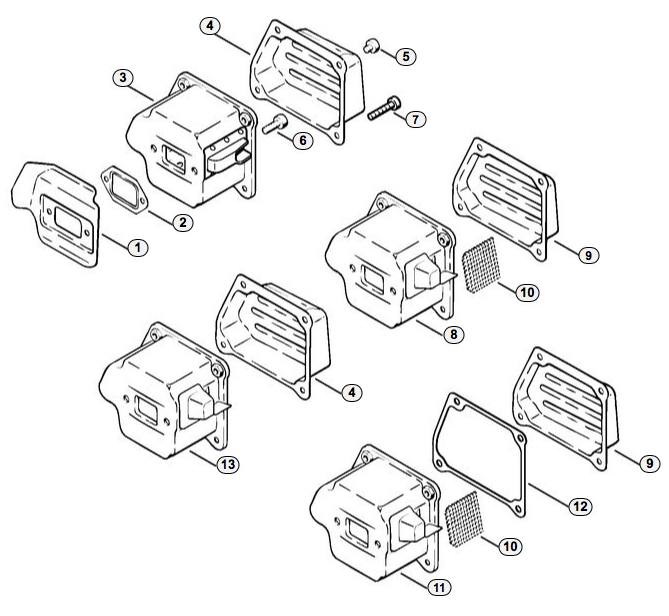

Muffler

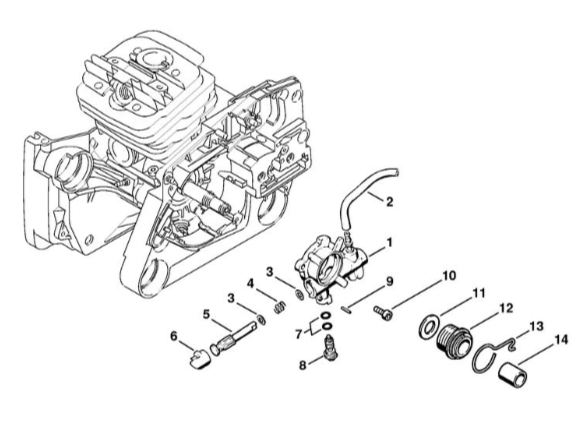

Oil Pump

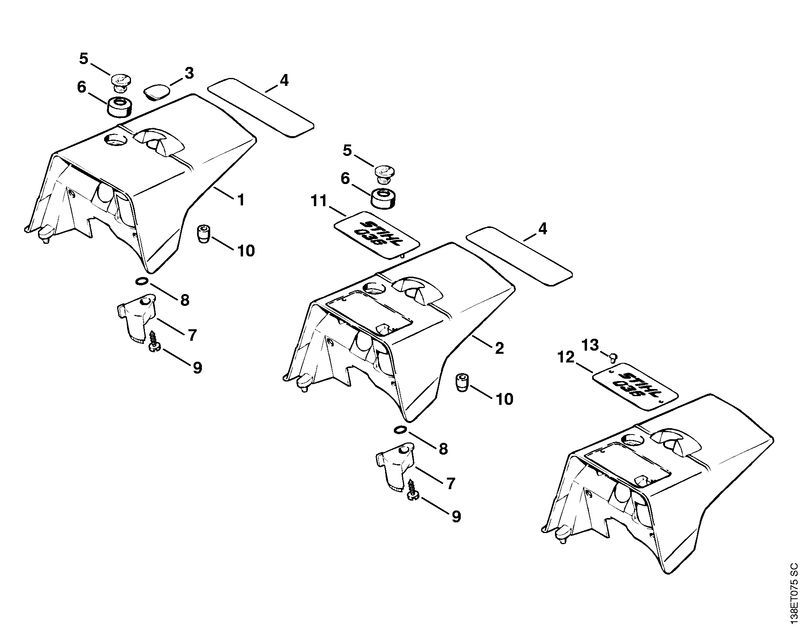

Shroud
Starter

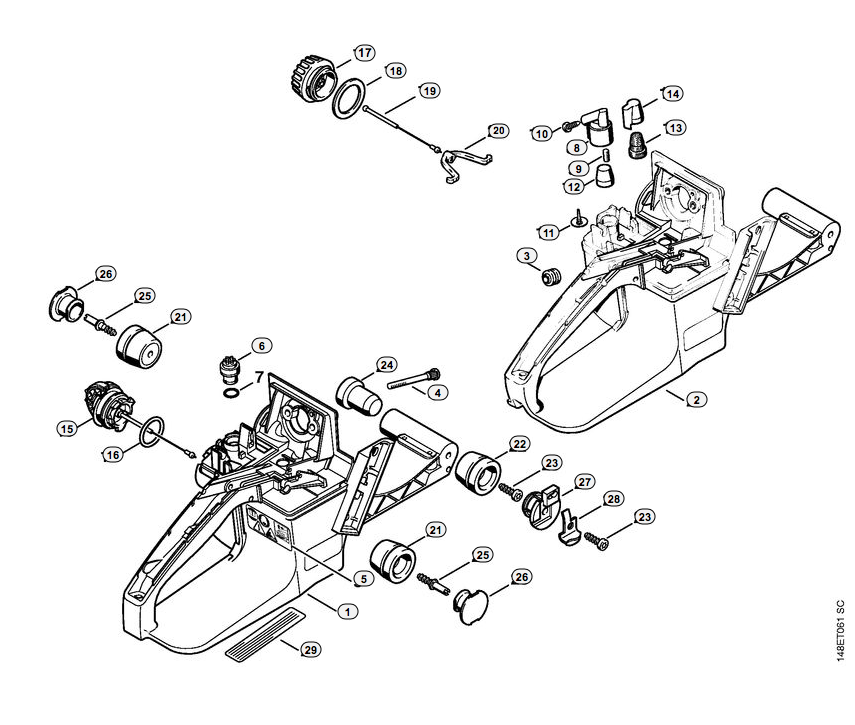

Tank Housing

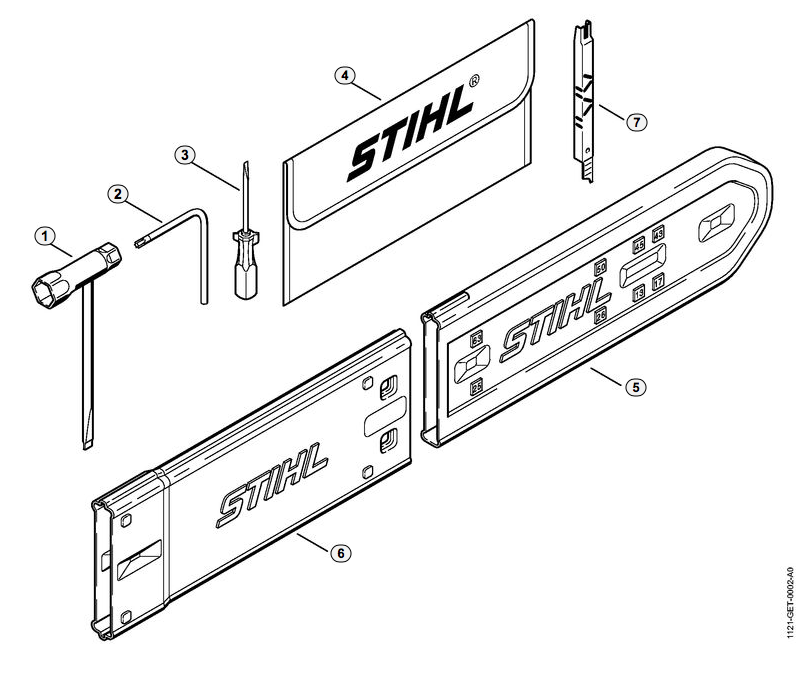

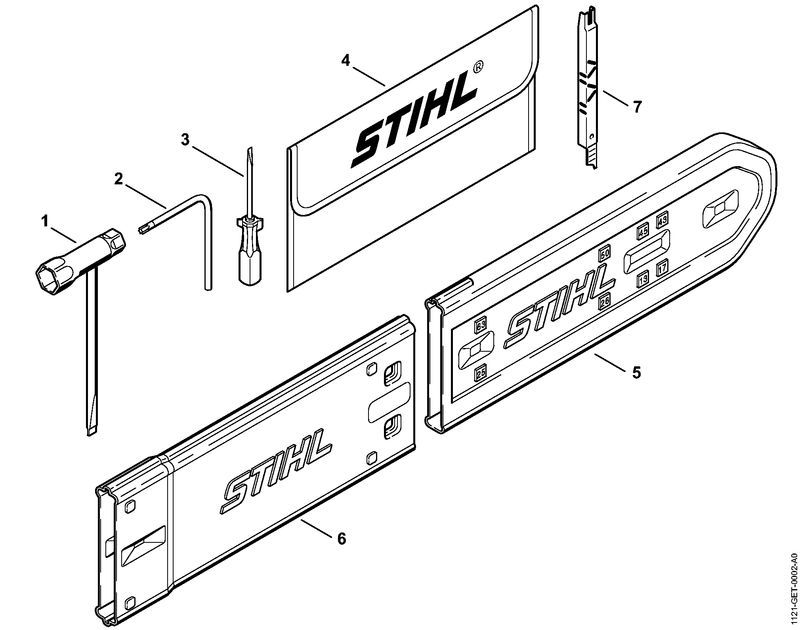

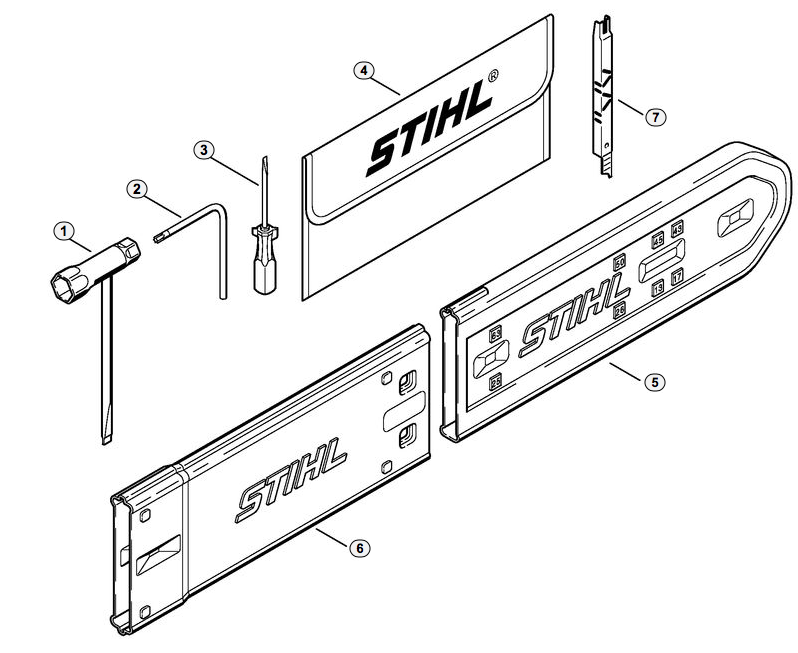

Tools
036Arctic
036BR
Air Filter
AV System/Handle

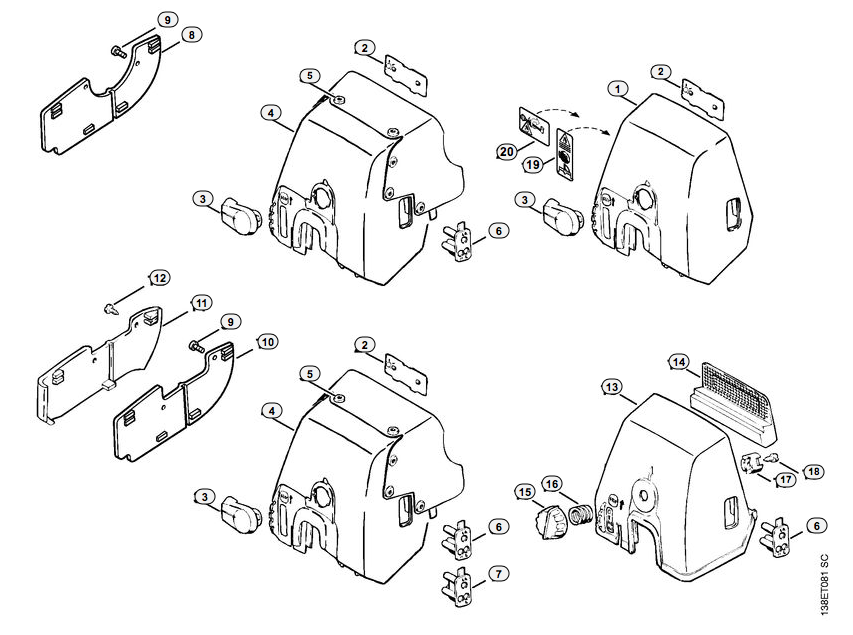

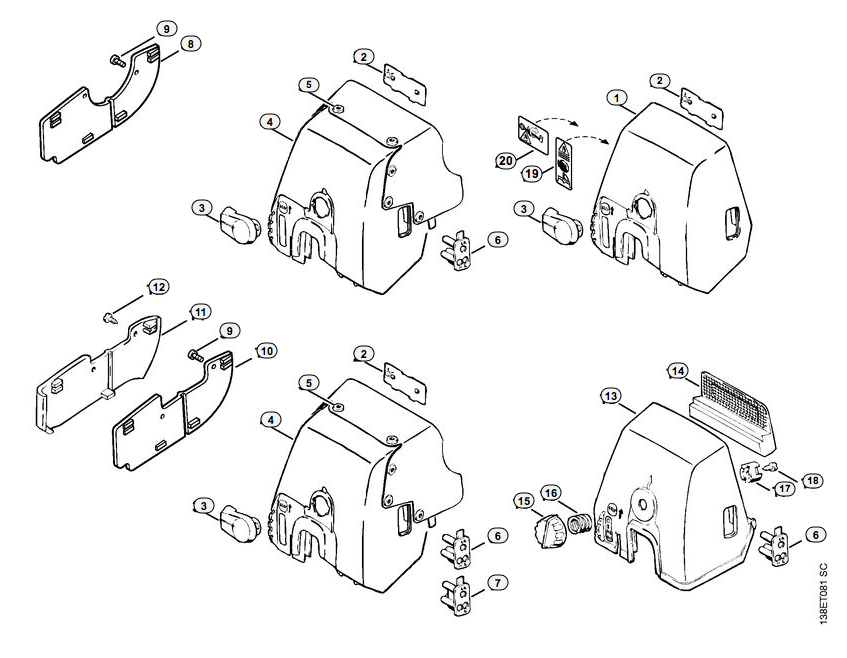

Carburetor box cover

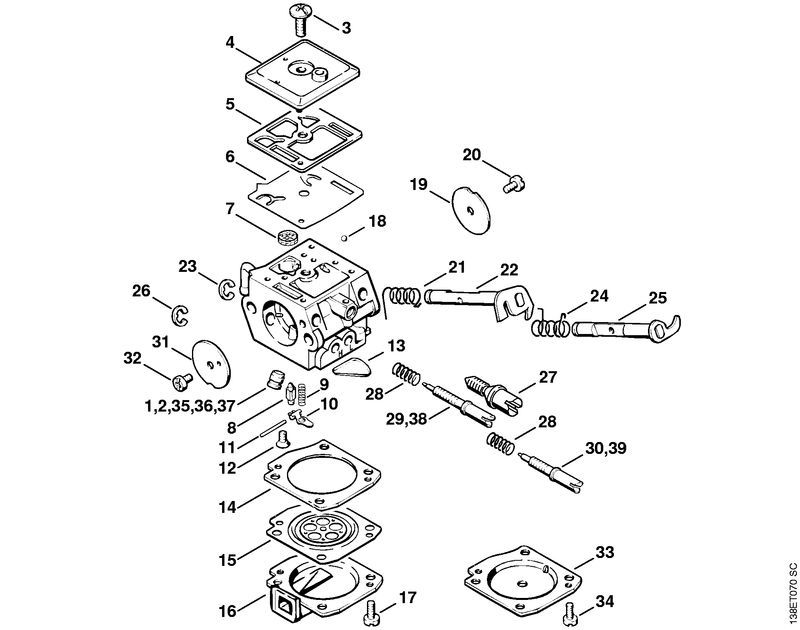

Carburetor CA-S65A
Chain Brake/ Clutch

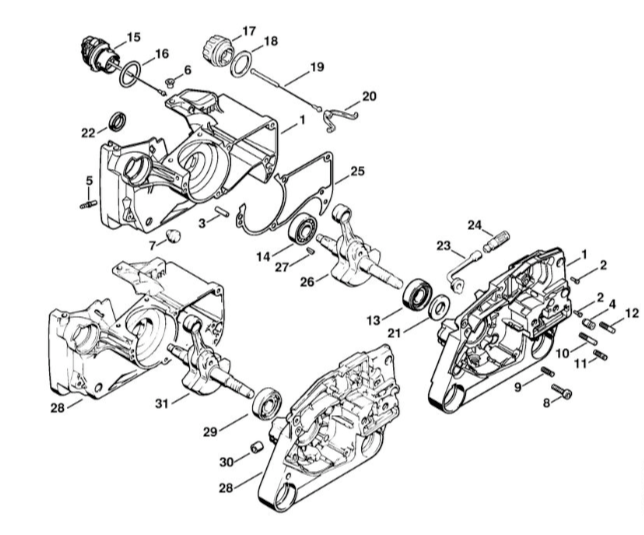

Crankcase
Cylinder

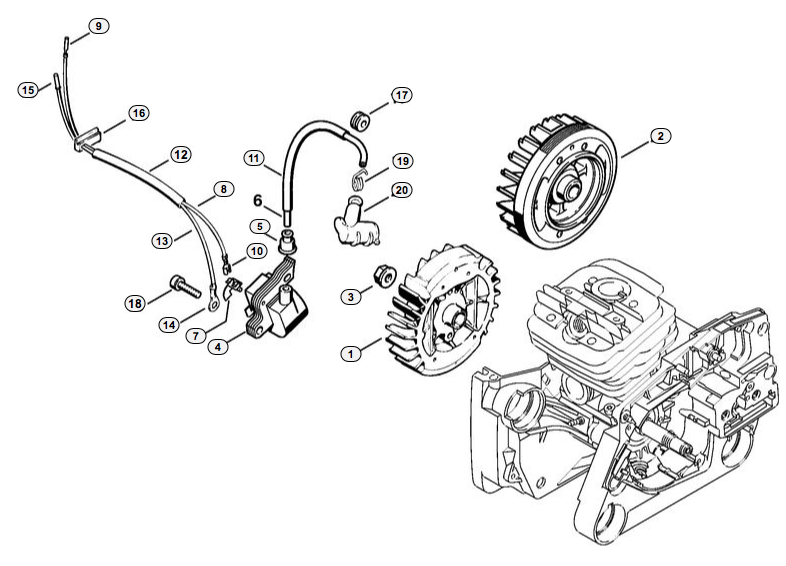

Ignition
Muffler

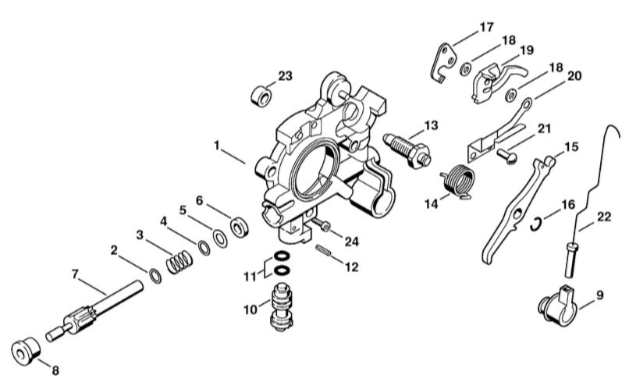

Oil Pump

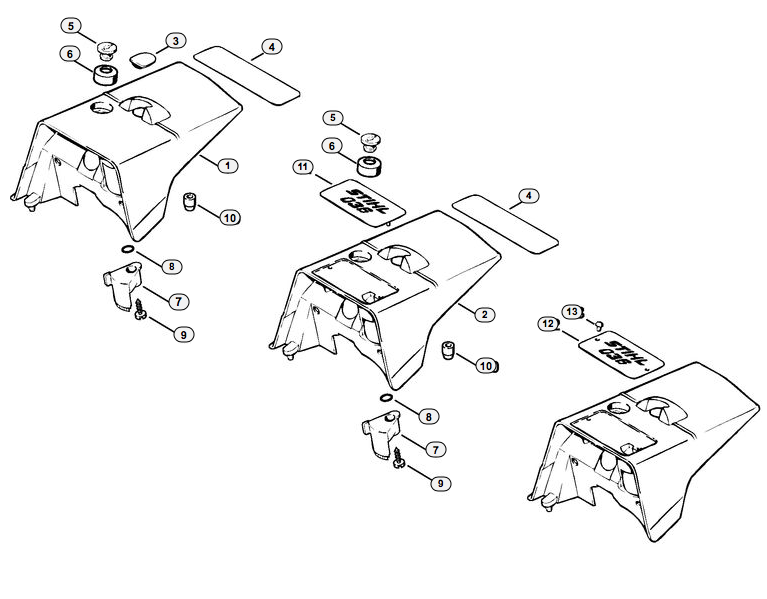

Shroud

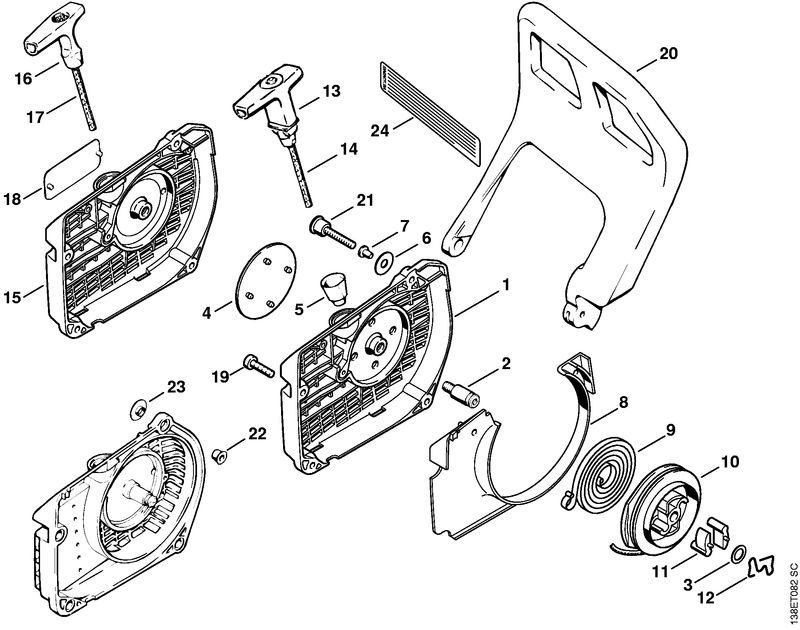

Starter

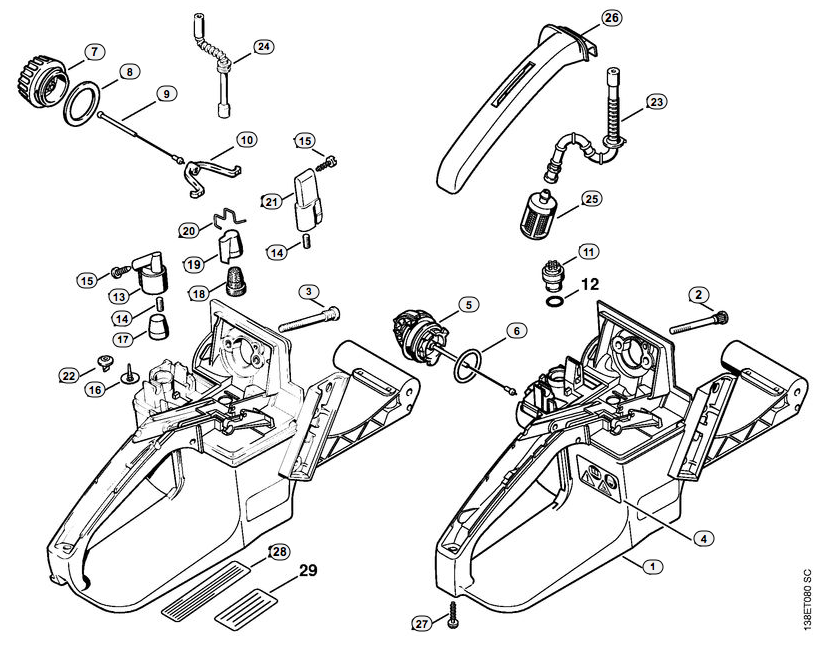

Tank Housing
Tools
036PRO
Air Filter
AV System/Handlebar
Carburetor box cover
Carburetor C3A-S39B
Clutch/Chain Brake
Crankcase
Cylinder
Ignition
Muffler

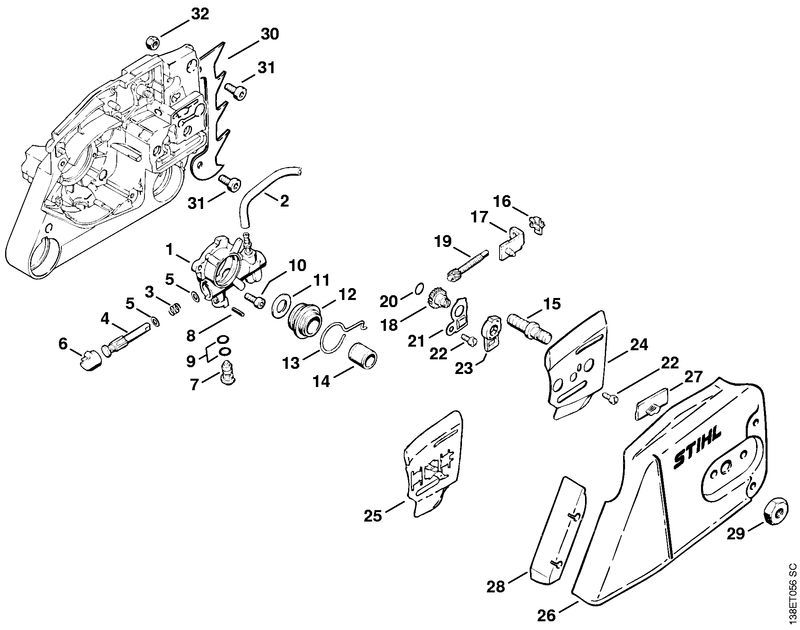

Oil Pump/Chain Tensioner
Shroud
Starter
Tank
Tools
036QS

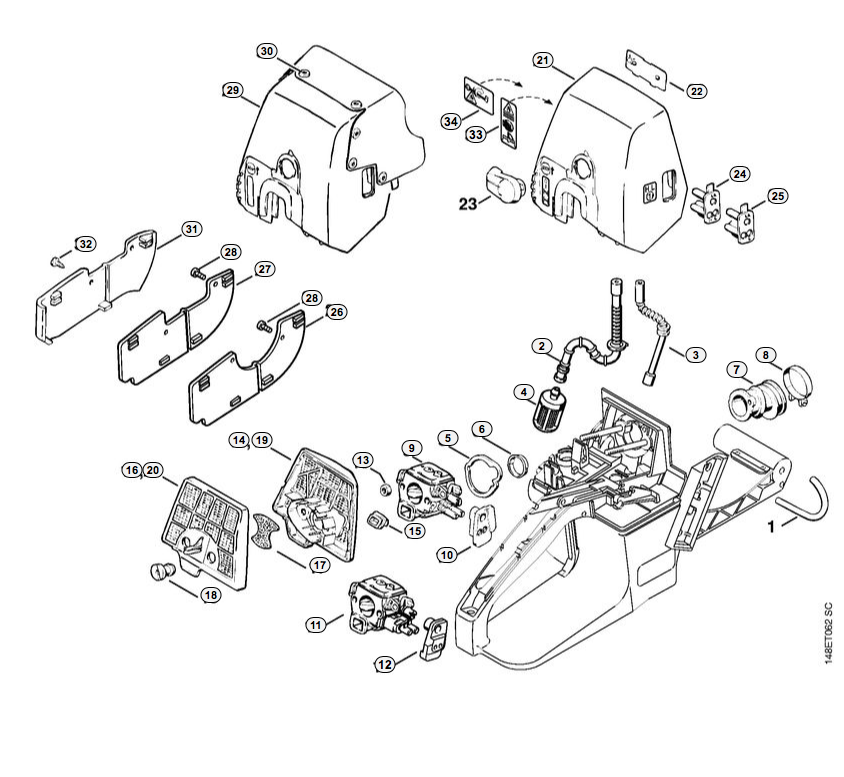

Air Filter/ Fuel Pickup

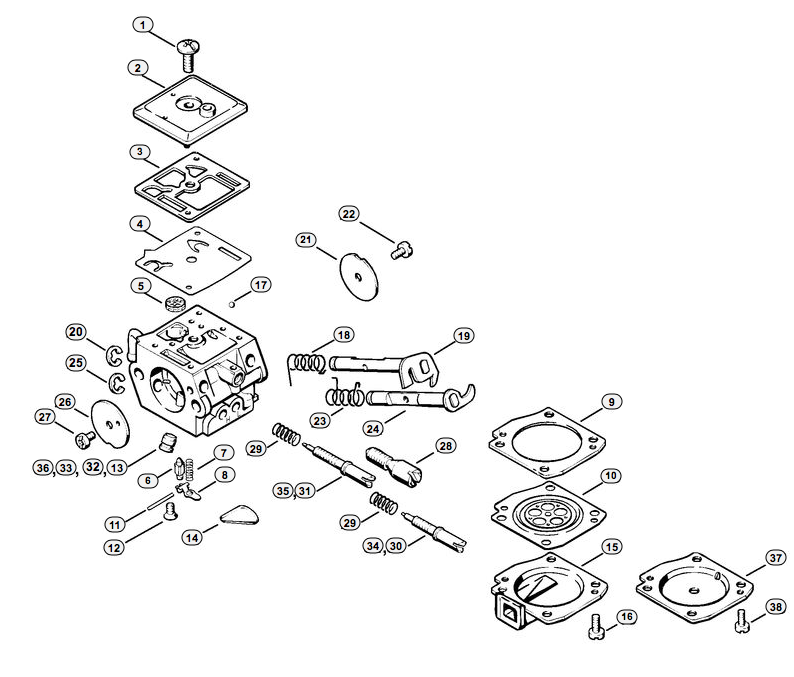

Carburetor C3A-S31E (AUS, NZ)

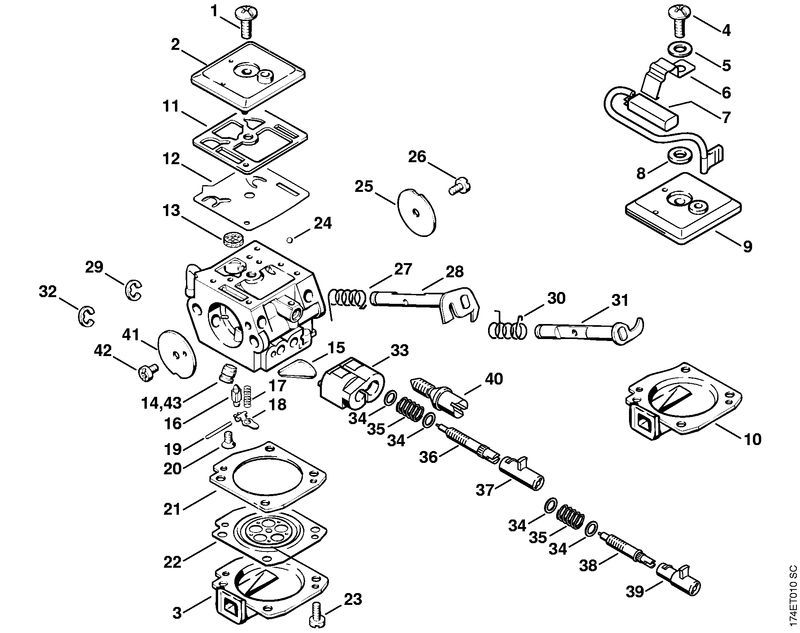

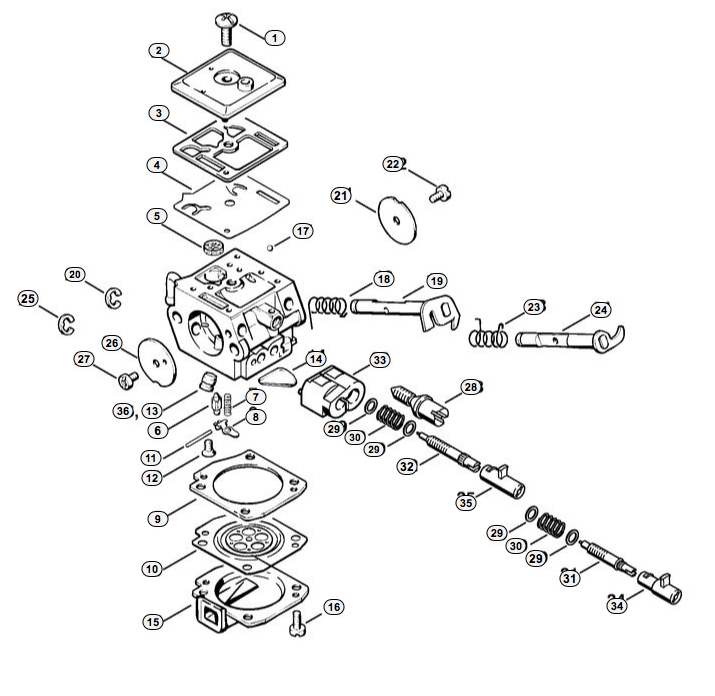

Carburetor C3A-S39B (USA, CDN)

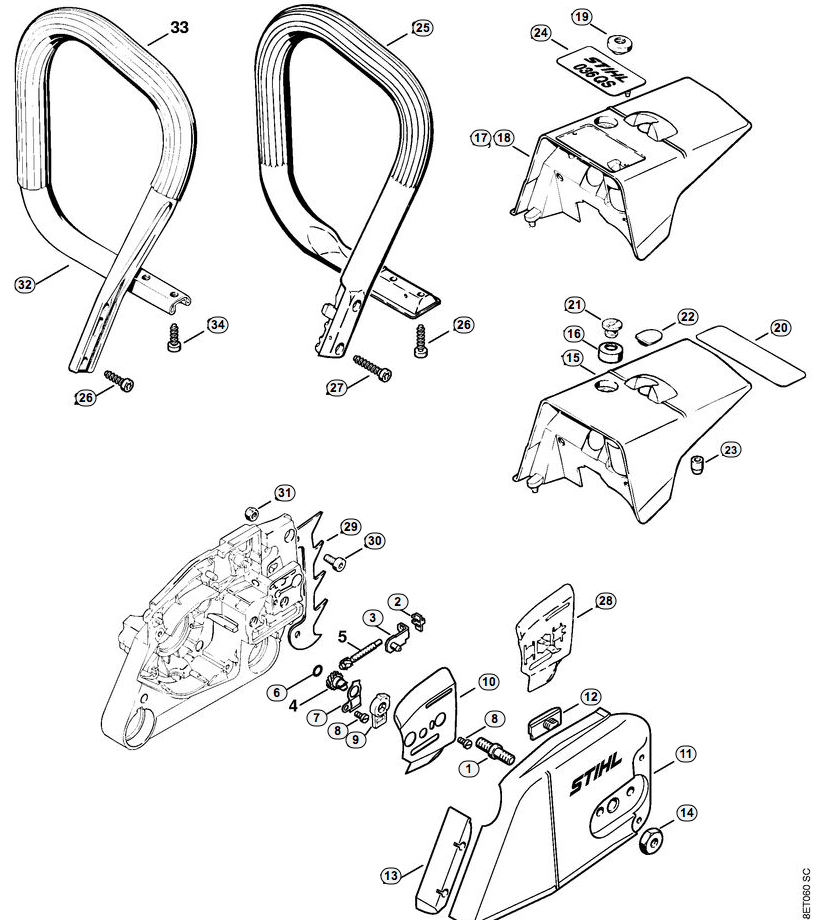

Chain adjuster and Covers
Clutch/Chain Brake 1

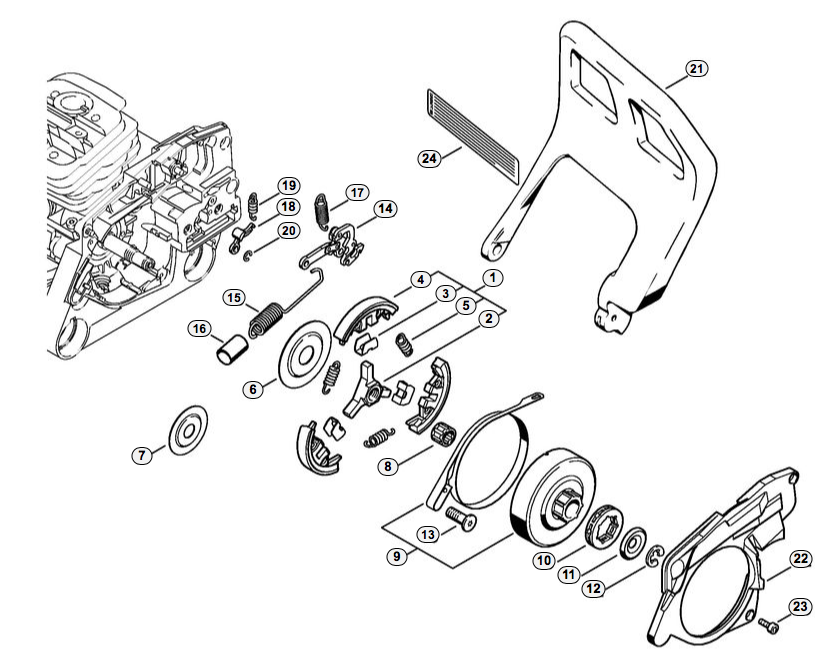

Clutch/chain brake
Crankcase
Cylinder
Ignition

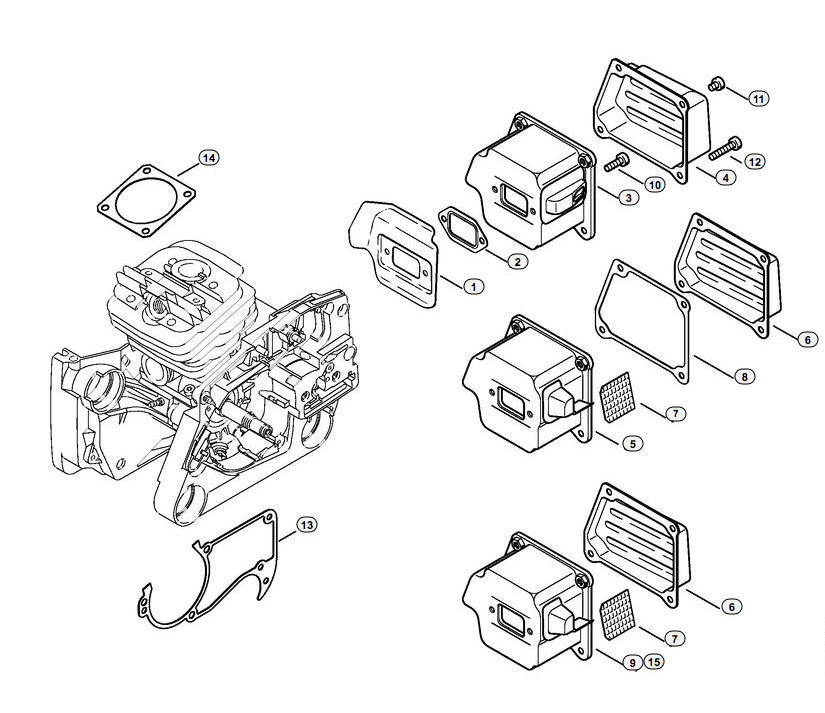

Mufler

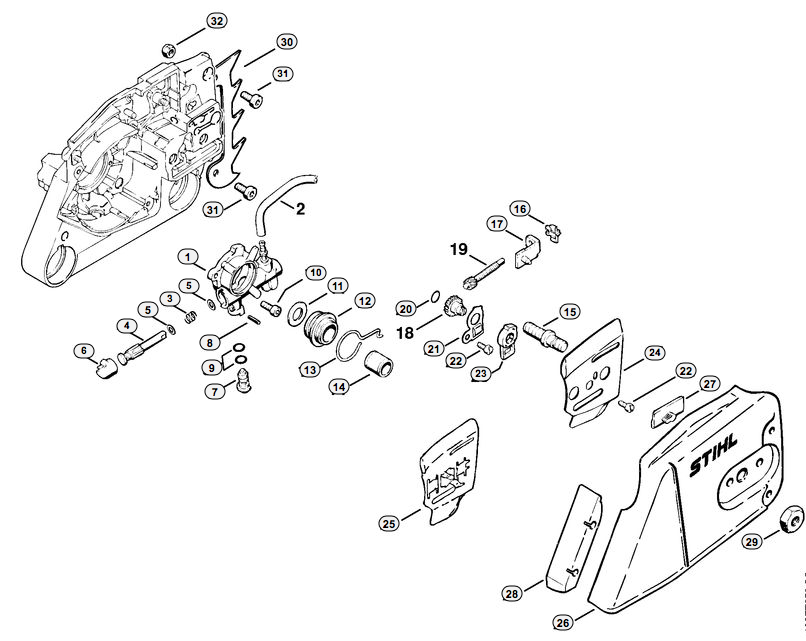

Oil Pump 1
Oil Pump 2

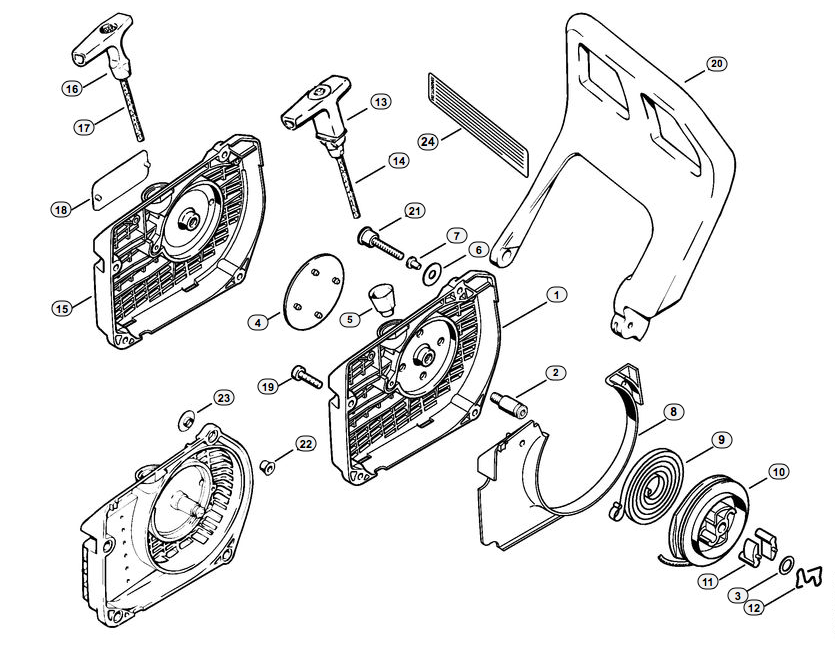

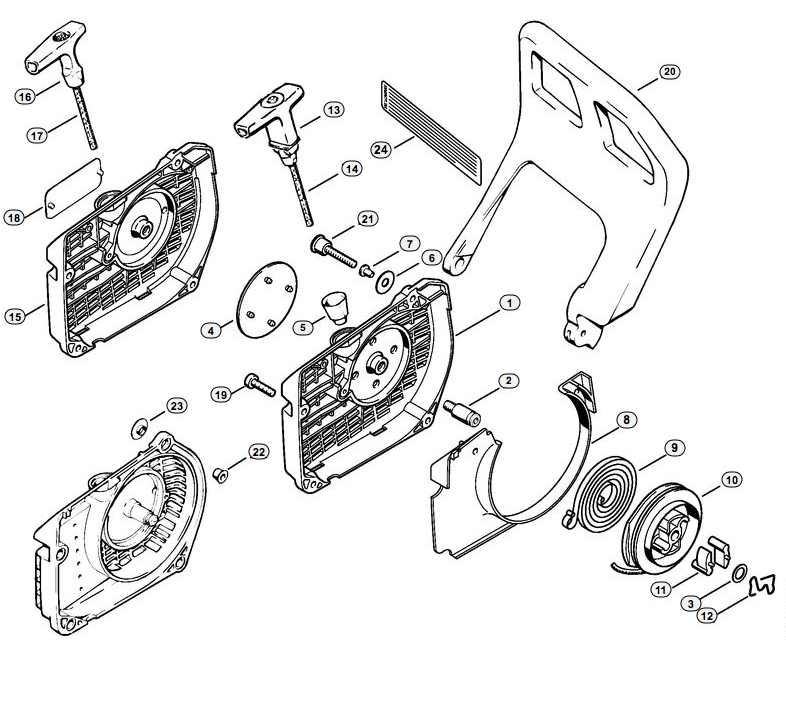

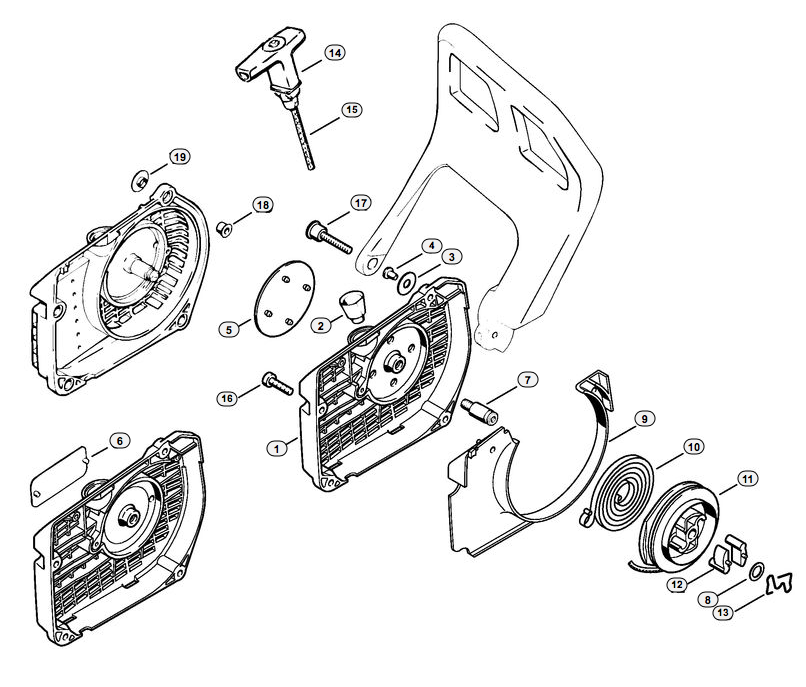

Recoil

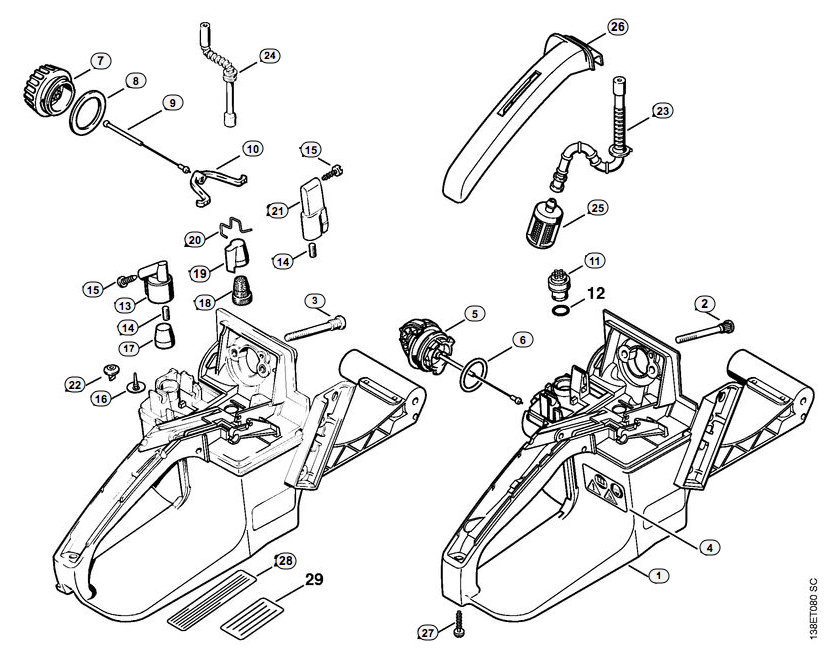

Tank

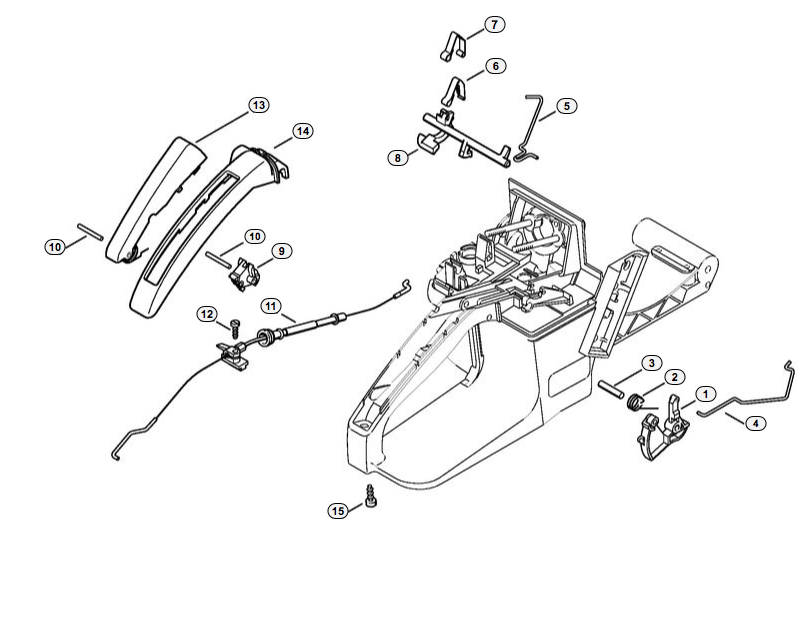

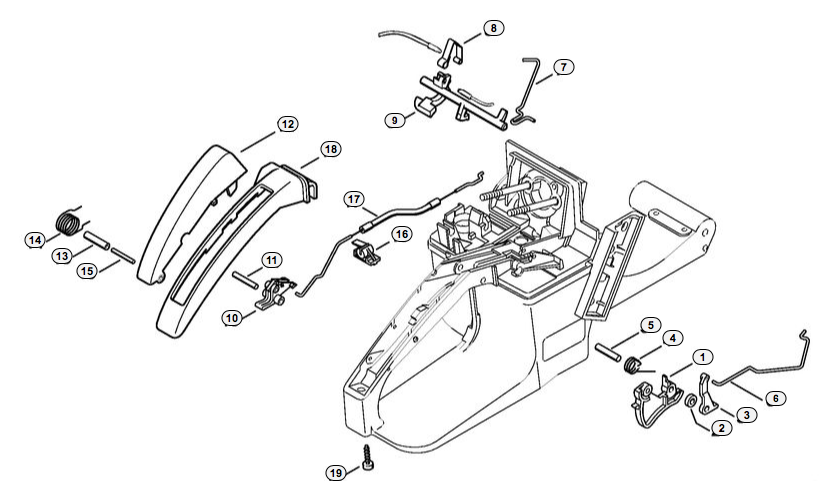

Throttle 1
Throttle
Tools
036W
Air Filter

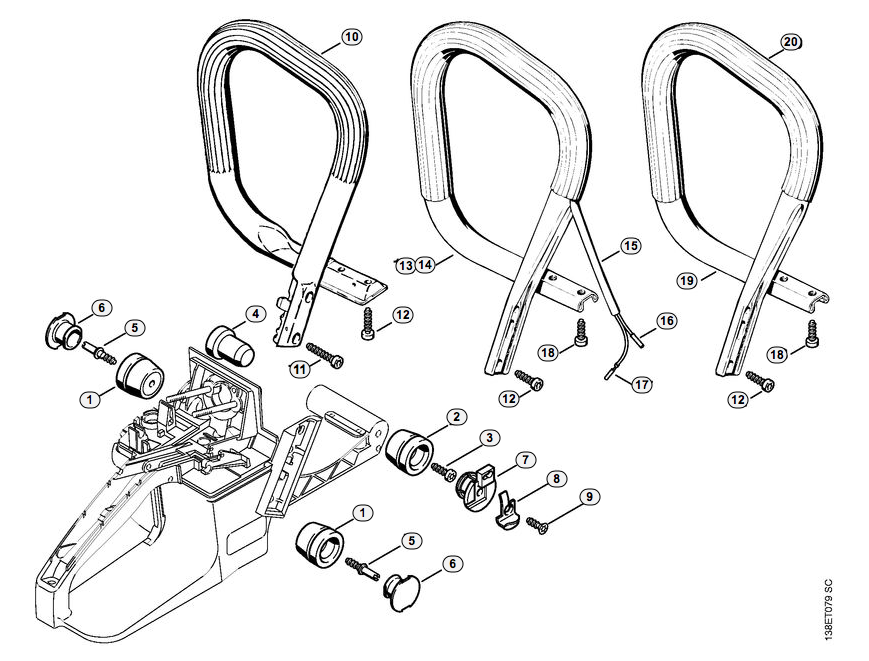

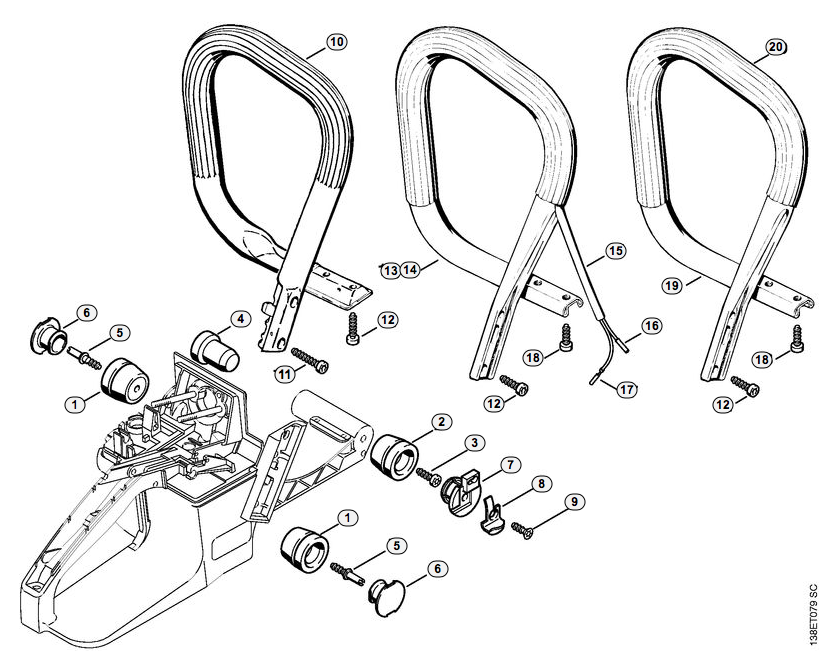

AV System
Carburetor box cover
Carburetor C3A-S31E
Clutch

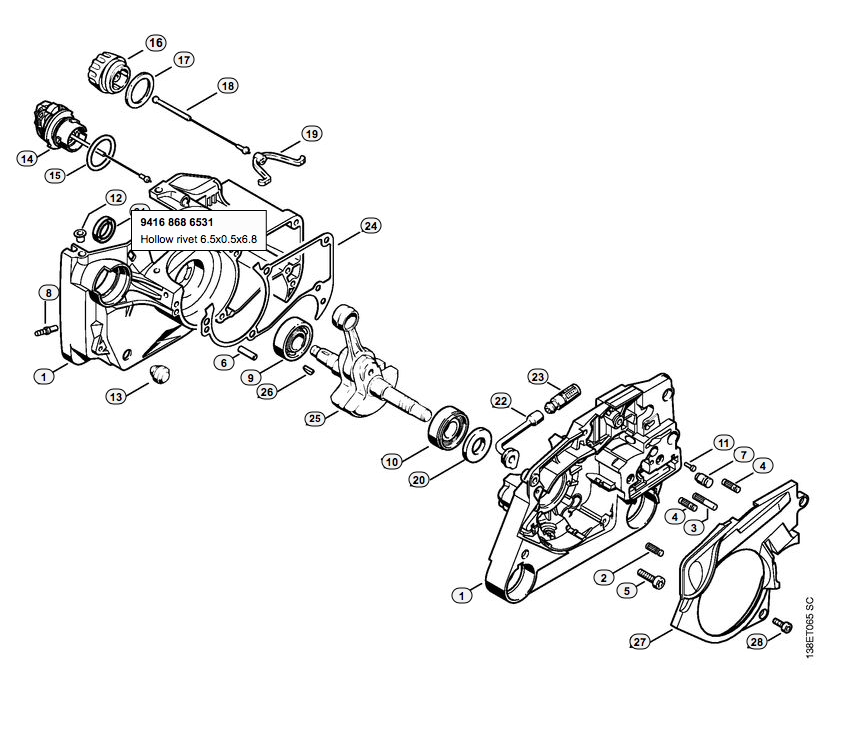

crankcase
Cylinder

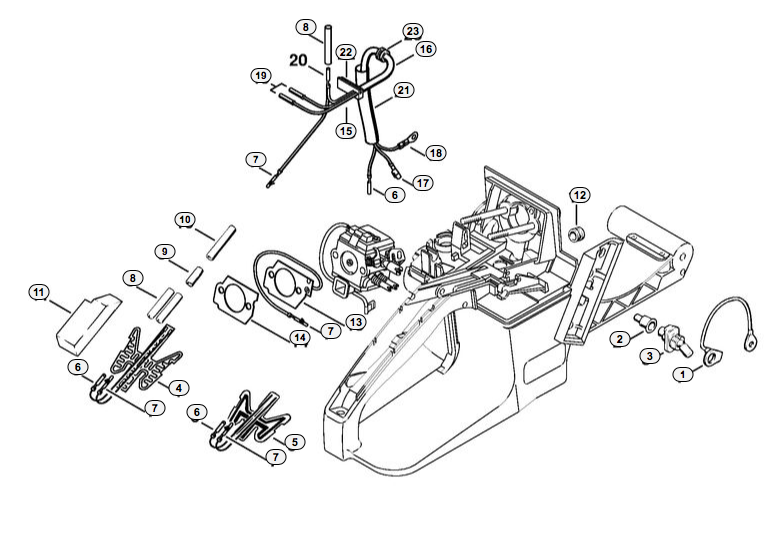

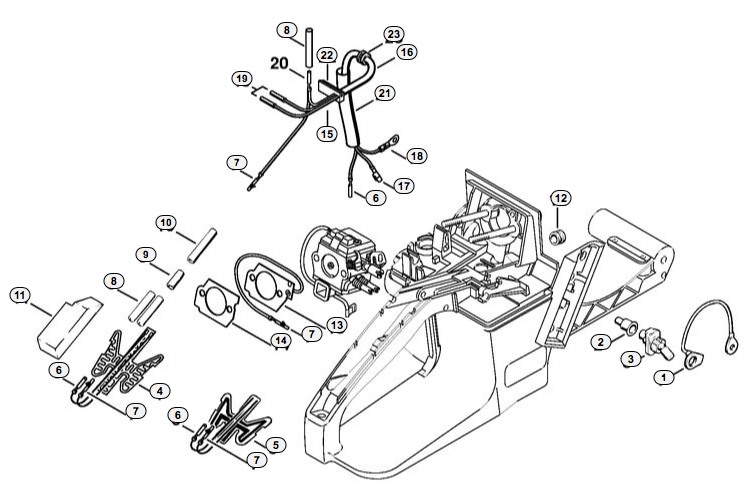

Heating

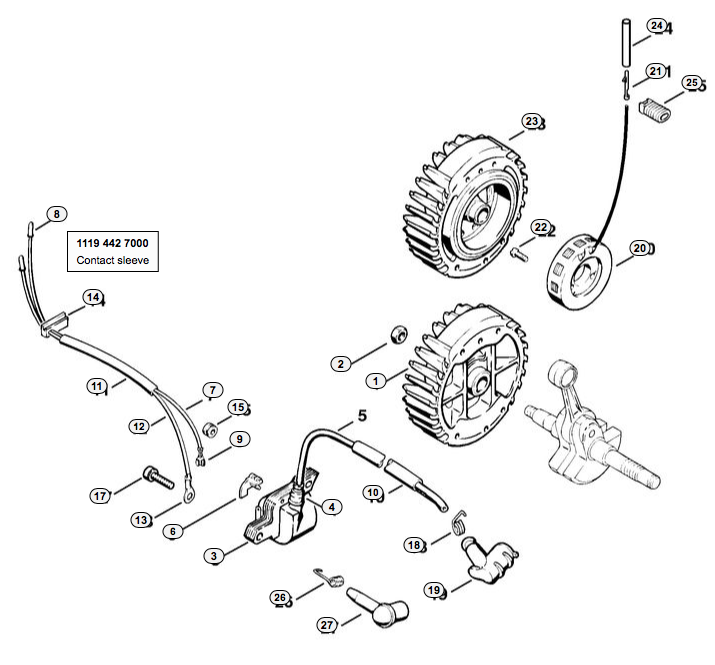

Ignition
Muffler
Oil Pump

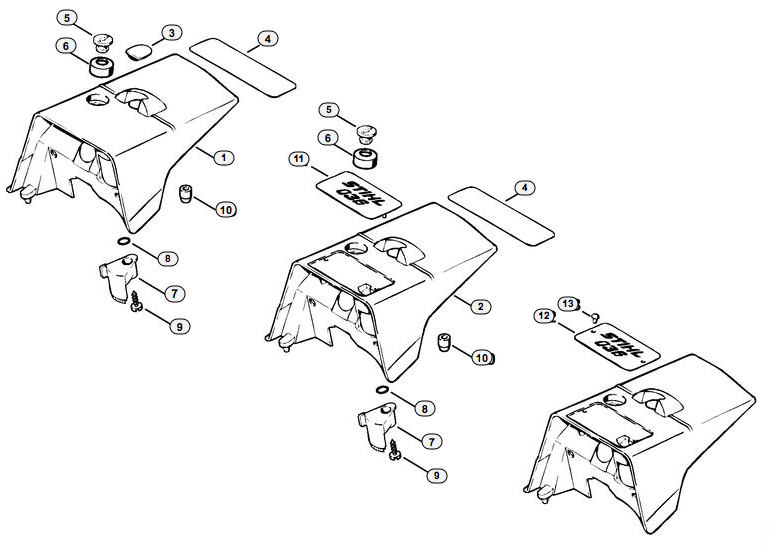

Shroud
Starter

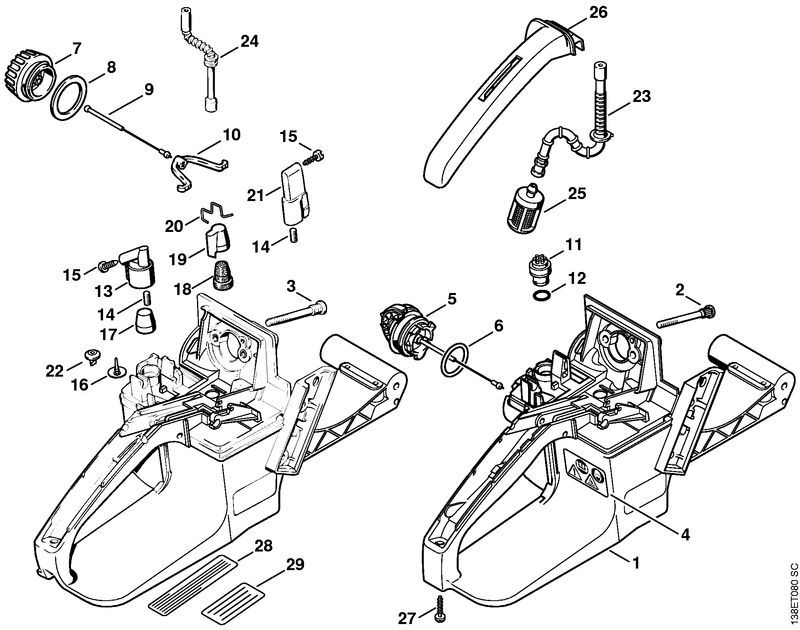

Tank

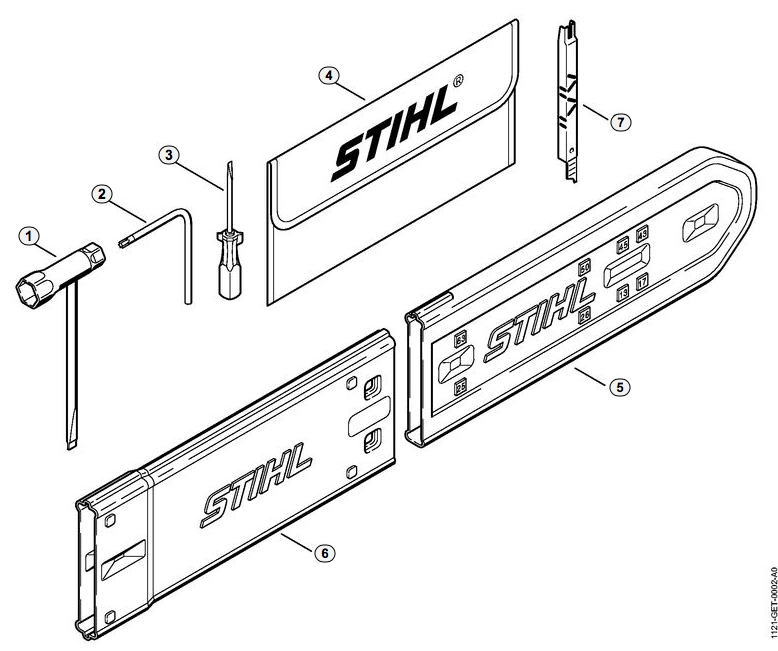

Tools
