Diagrams for the Stihl 028 Chainsaw
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl 028 Chainsaw.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl 028 Chainsaw
028

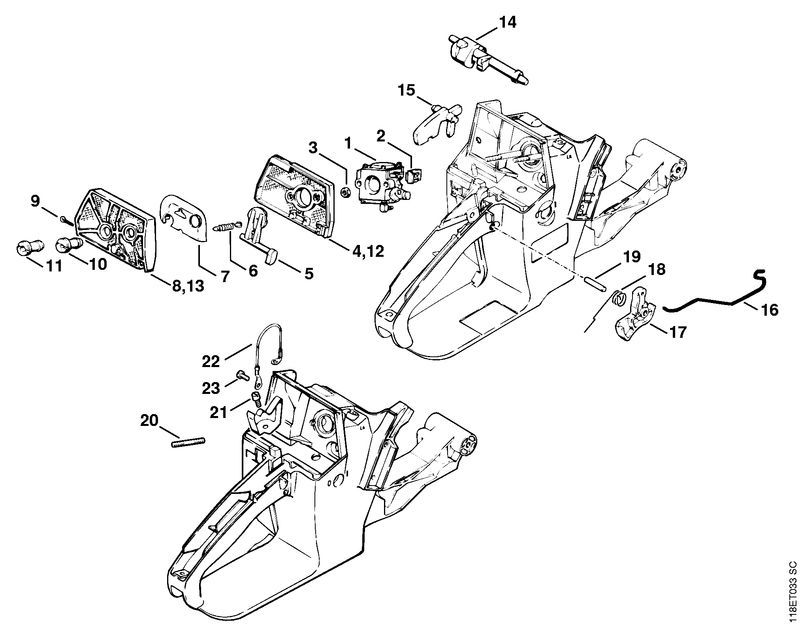

Air Filter

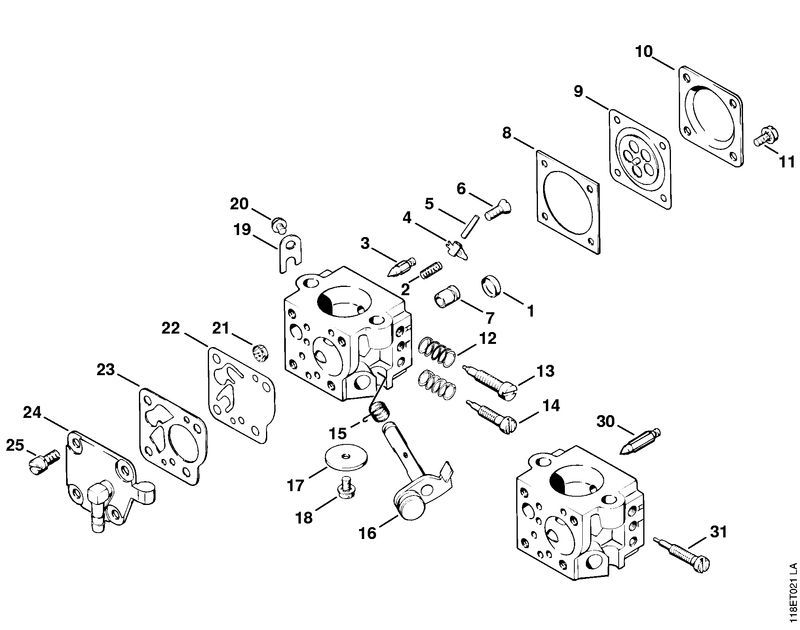

Carburetor HU-40D

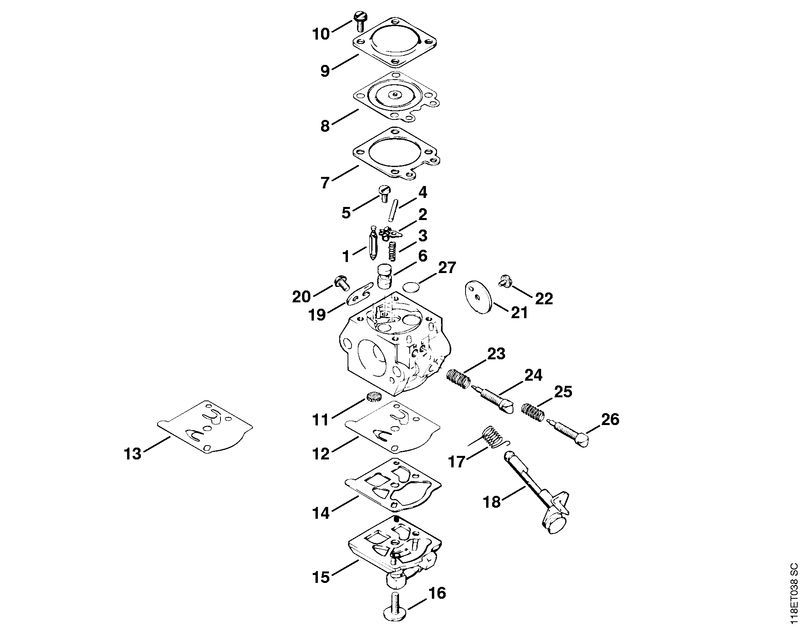

Carburetor WT16B

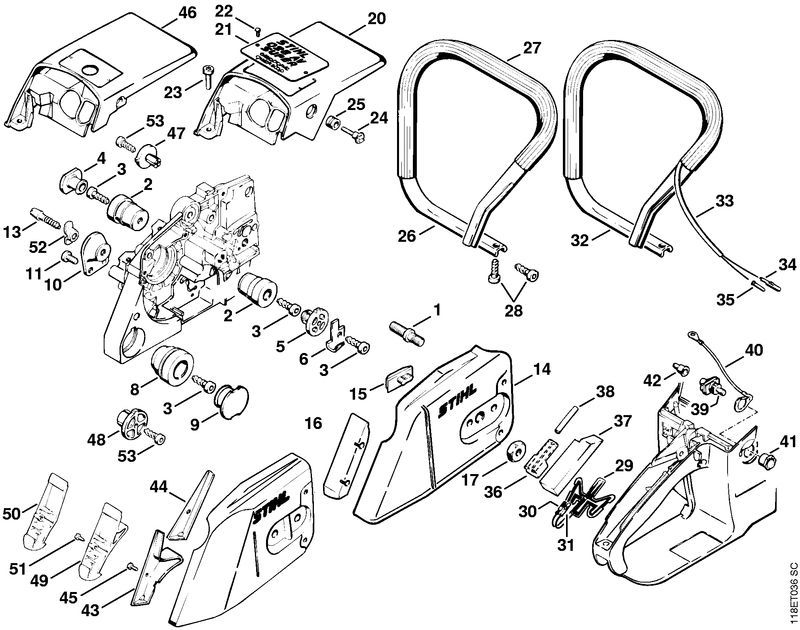

Covers

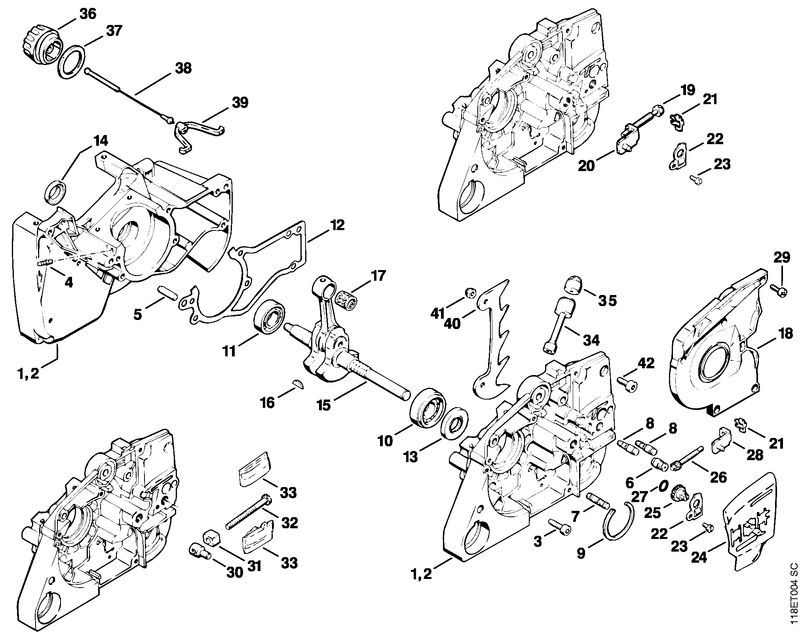

Crankcase

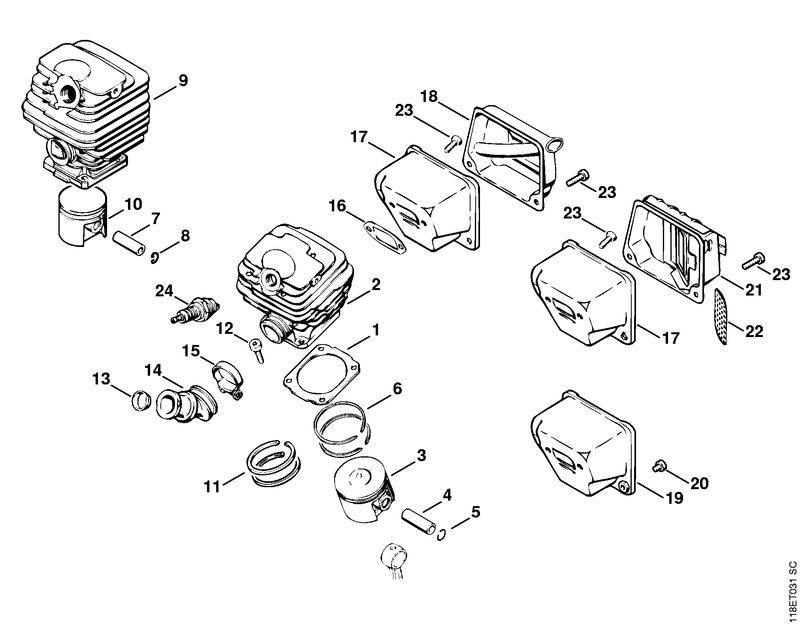

Cylinder/Muffler

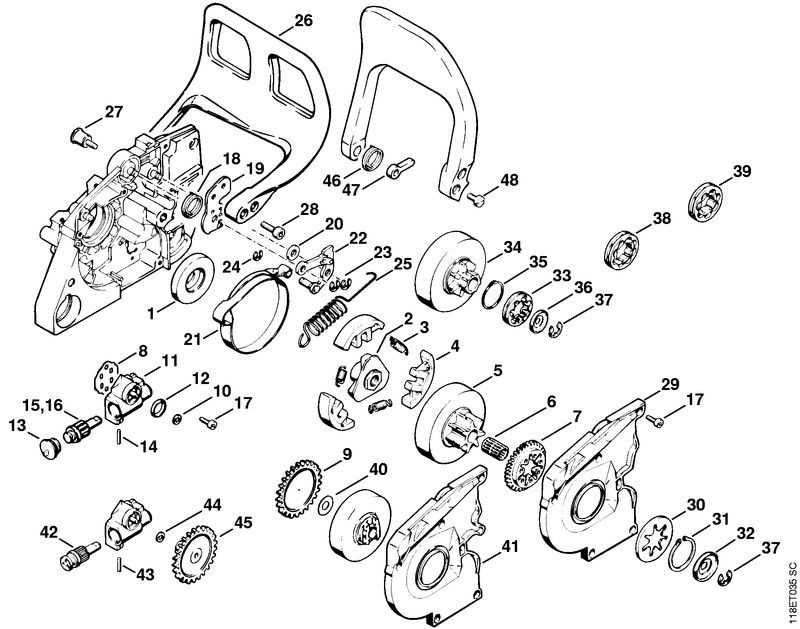

Oil Pump/Chain Brake

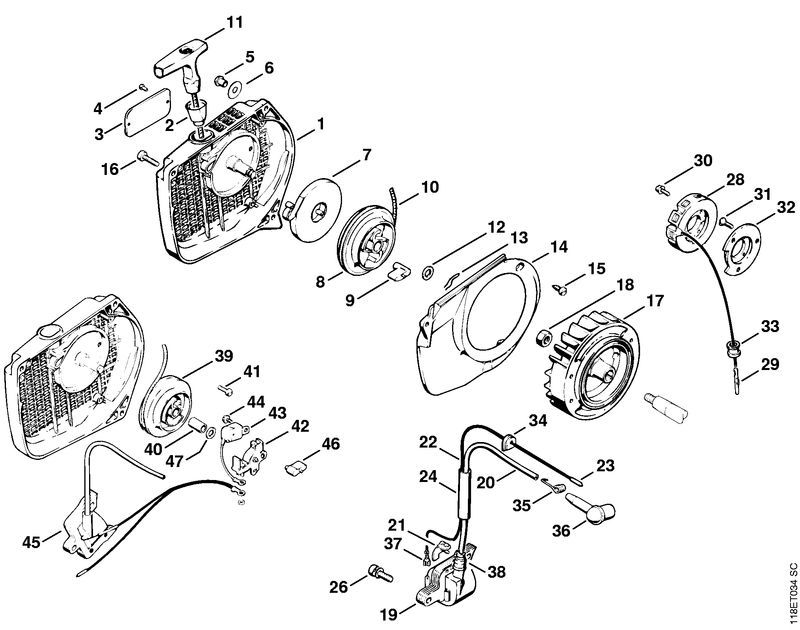

Starter/Ignition

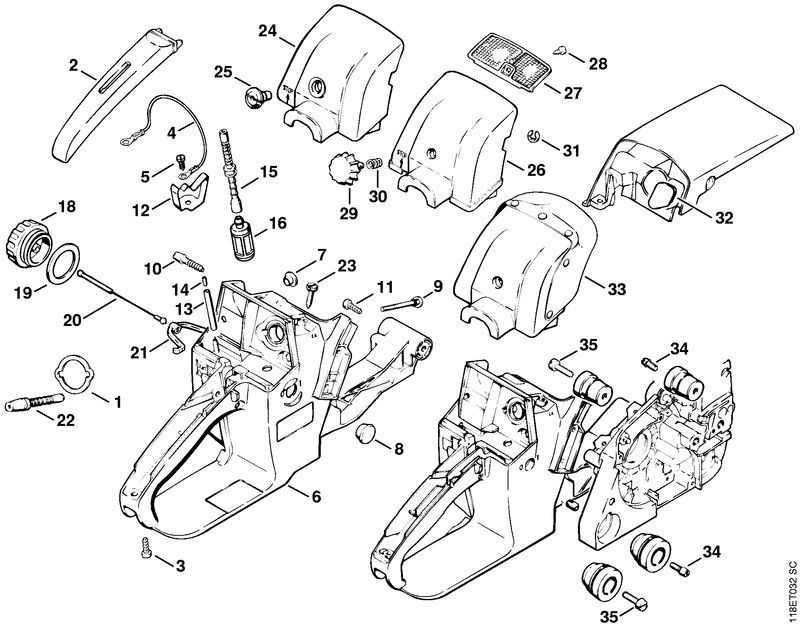

Tank Housing

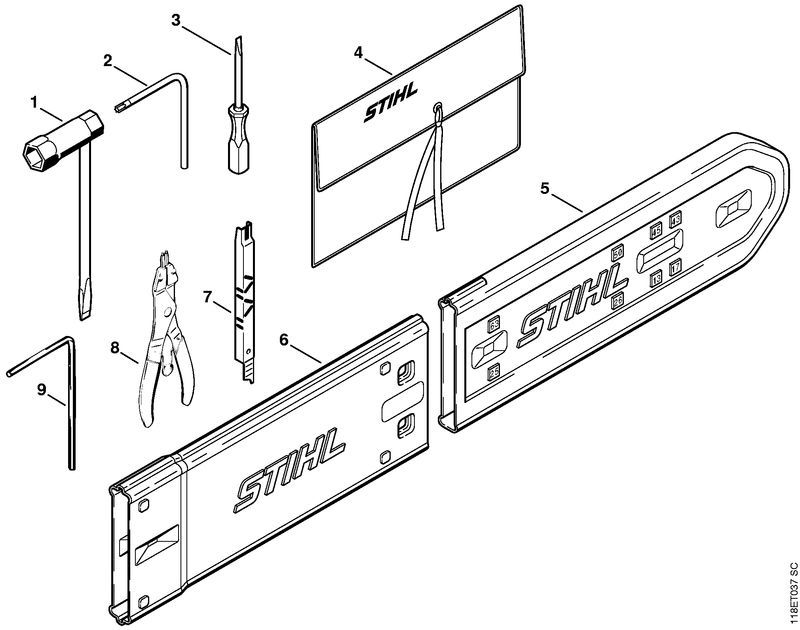

Tools
028Q
Air Filter
Carburetor HU-40D
Carburetor WT16B
Chain Cover
Crankcase
Cylinder/Muffler
Oil Pump/Chain Brake
Tank Housing
Tools
028W
Air Filter
Carburetor HU-40D
Carburetor WT16B
Covers
Crankcase
Cylinder/Muffler
Oil pump/Chain Brake
Starter/Ignition
Tank Housing
Tools
