Diagrams for the Stihl 017 Chainsaw
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl 017 Chainsaw.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl 017 Chainsaw
017

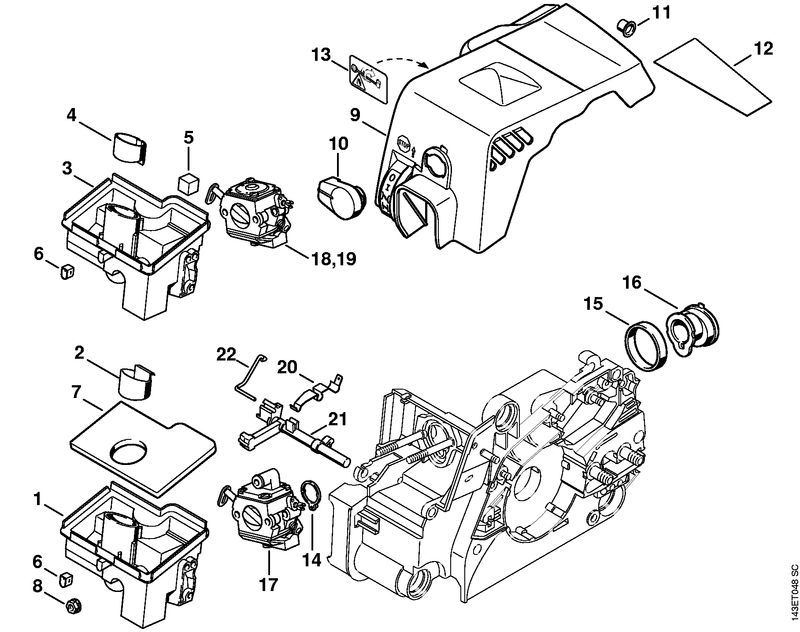

Air Filter/Shroud

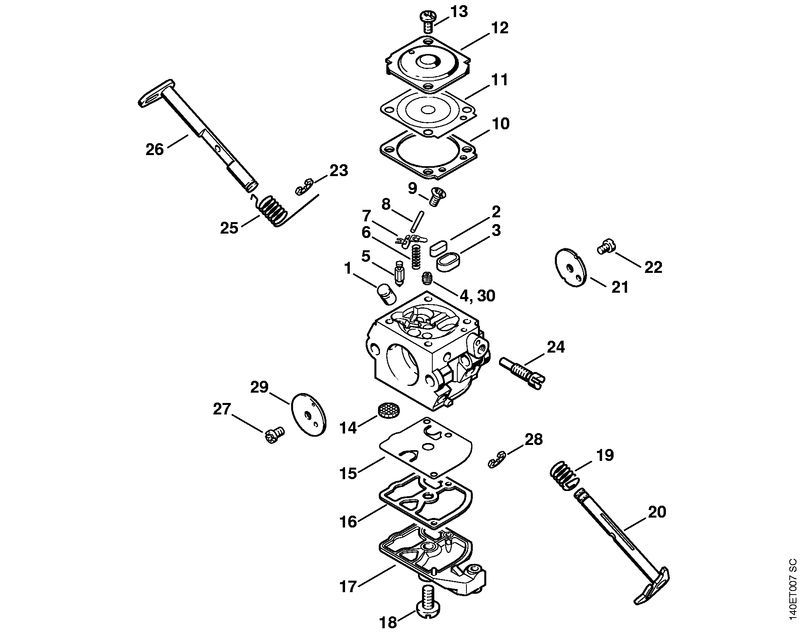

Carburetor C1Q-S43C

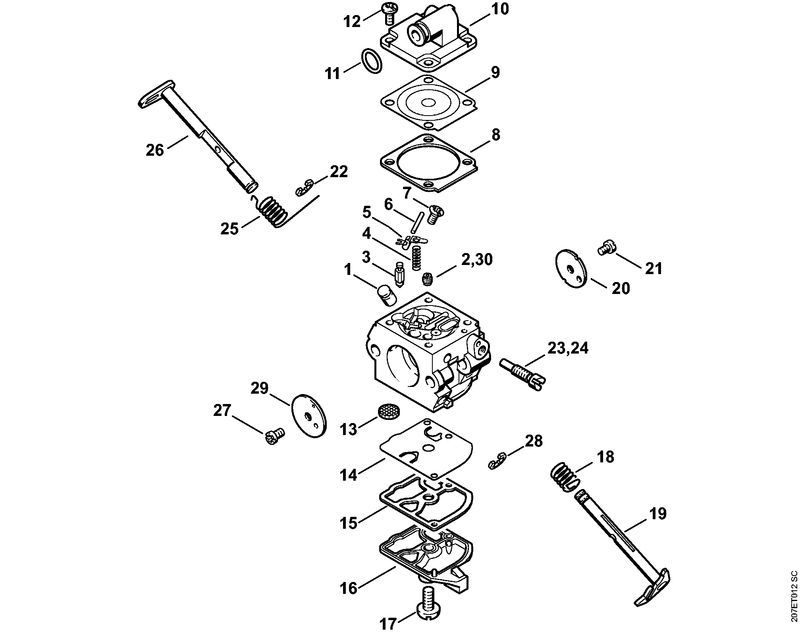

Carburetor C1Q-S57G

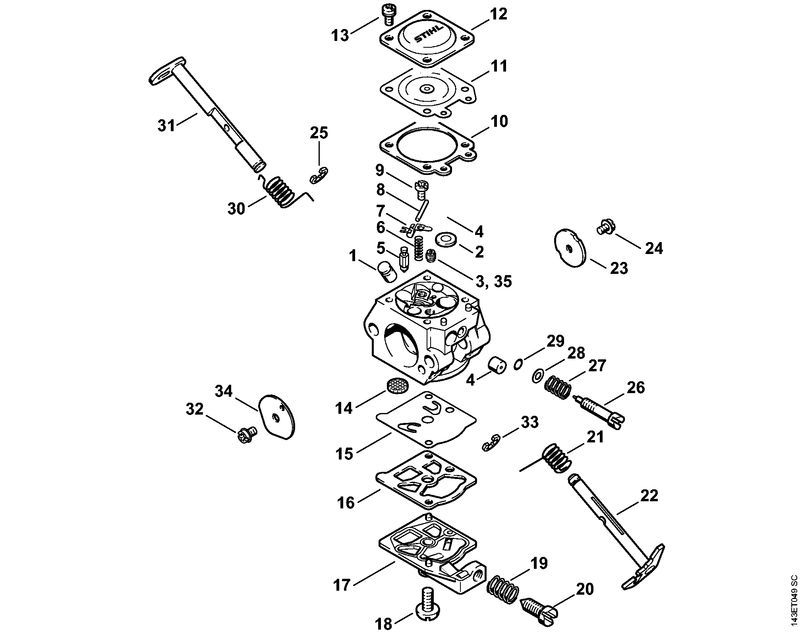

Carburetor C1Q-325A

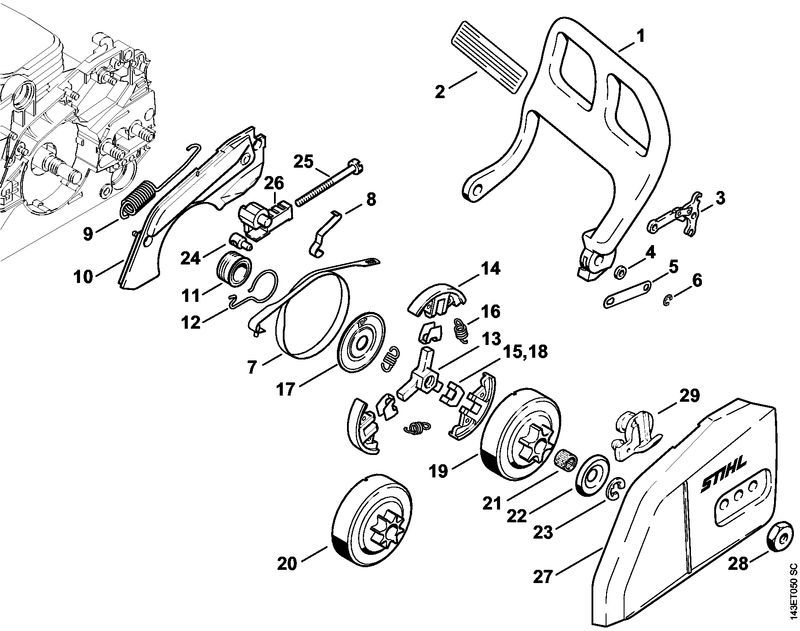

Chain Brake

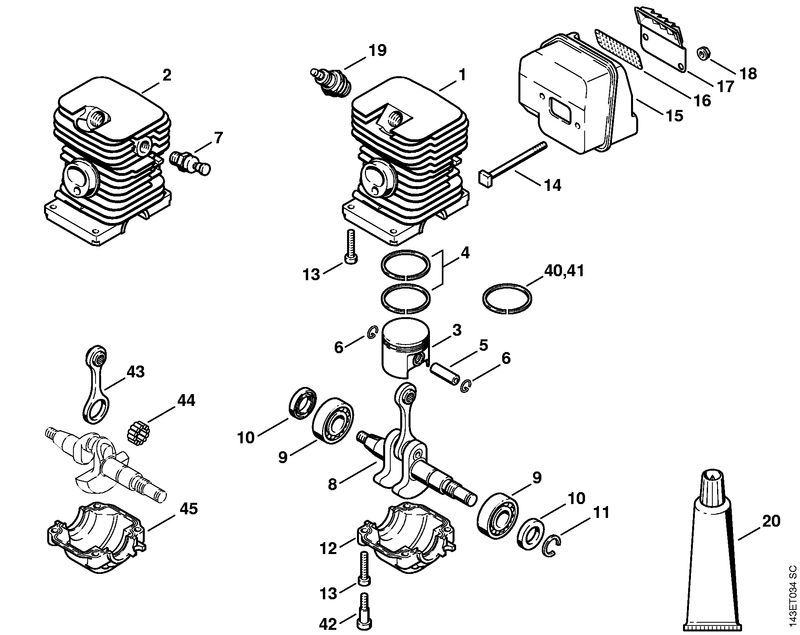

Cylinder

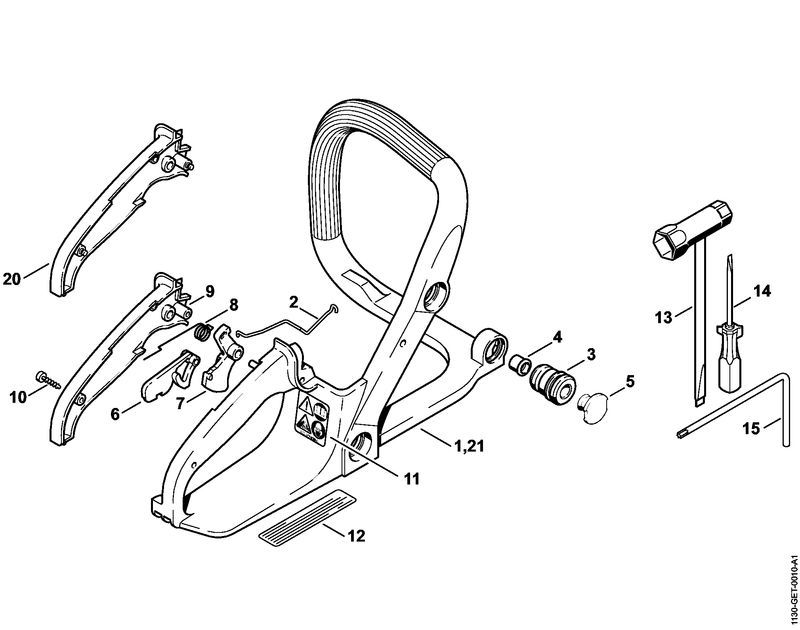

Handle Frame

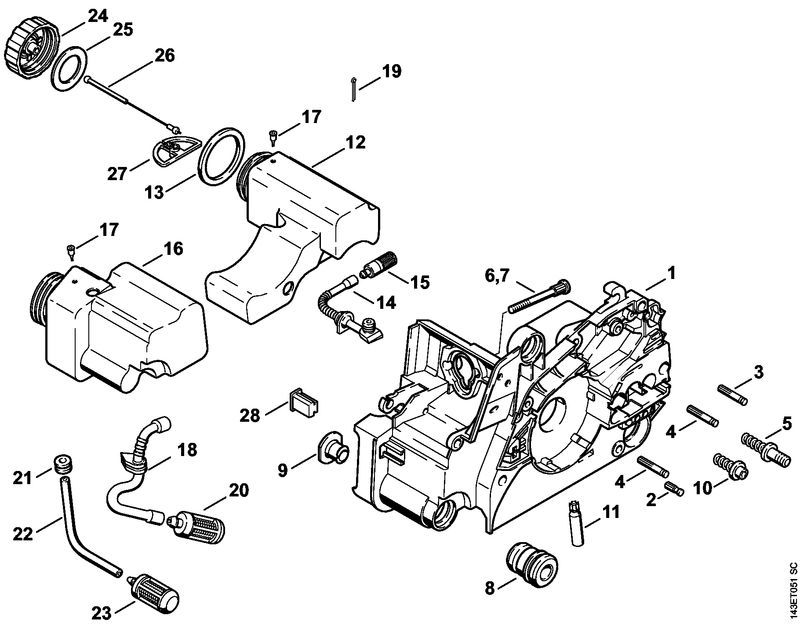

Motor Housing

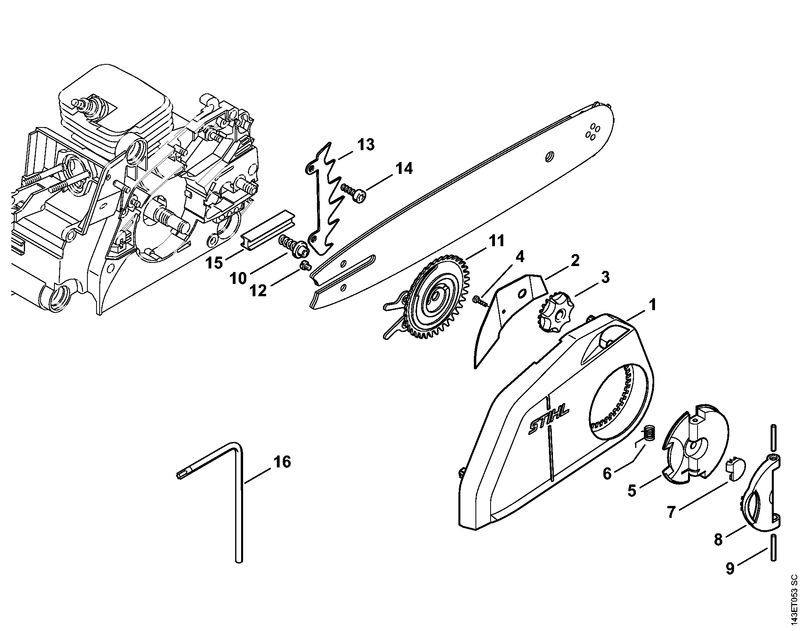

Quick Tensioner

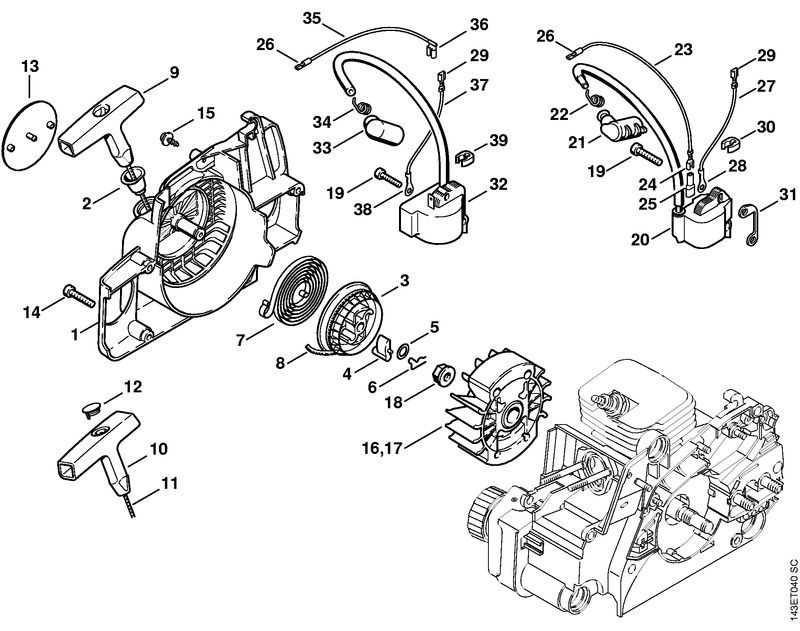

Rewind Housing/Ignition

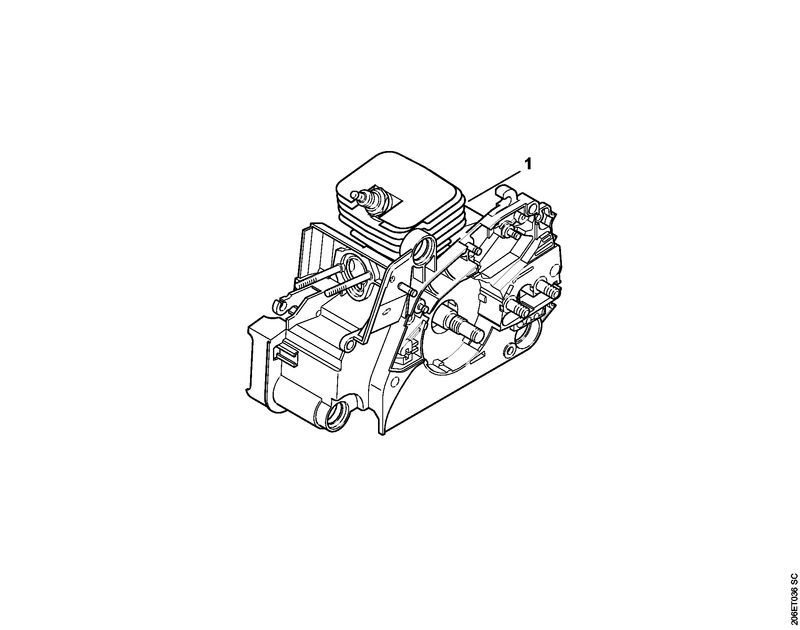

Serial Number Location
