Diagrams for the Stiga Estate 798 W
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stiga Estate 798 W.
Diagrams for this machine
Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stiga Estate 798 W
2T0830481-ST1 (2025)

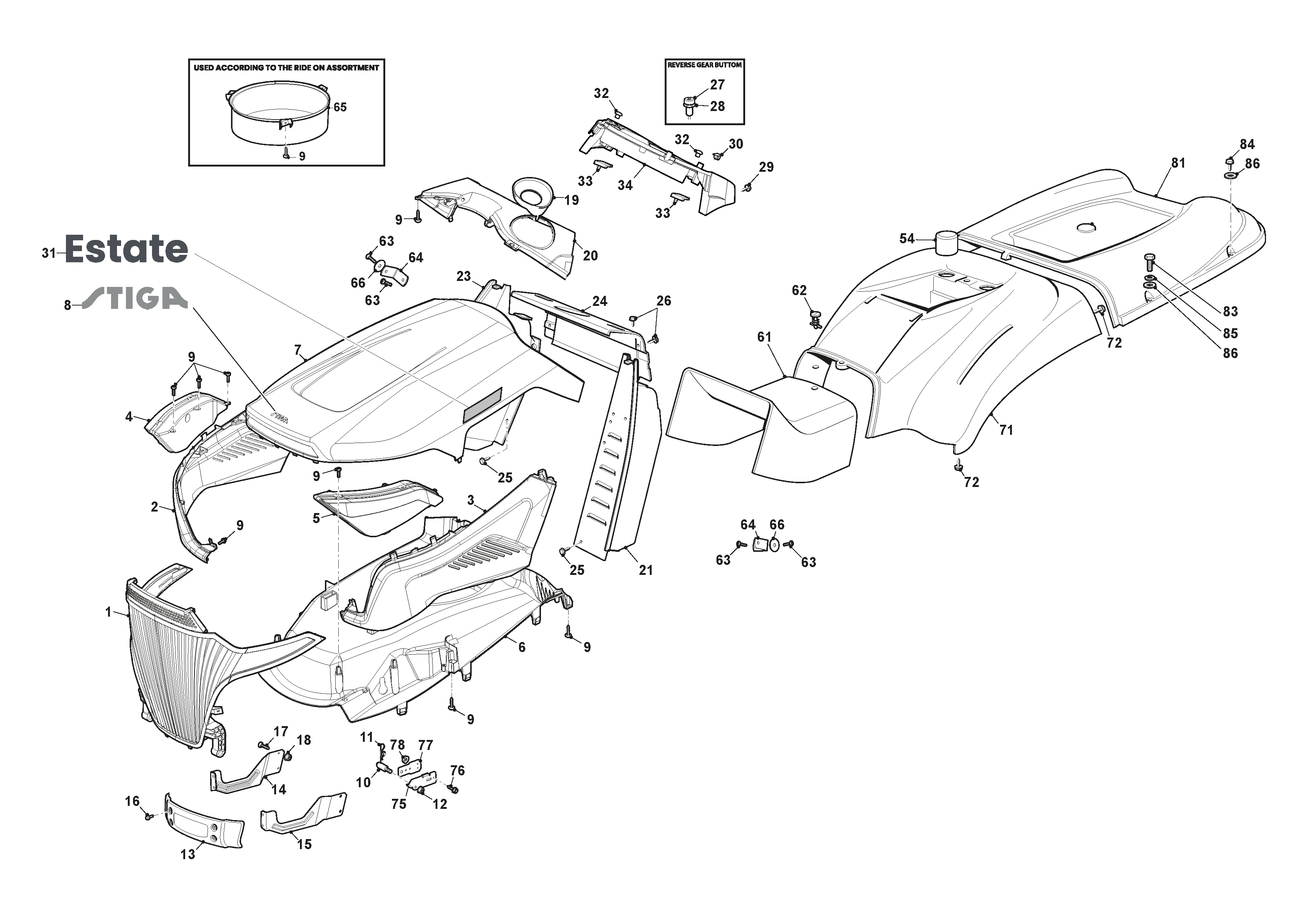

Bodywork

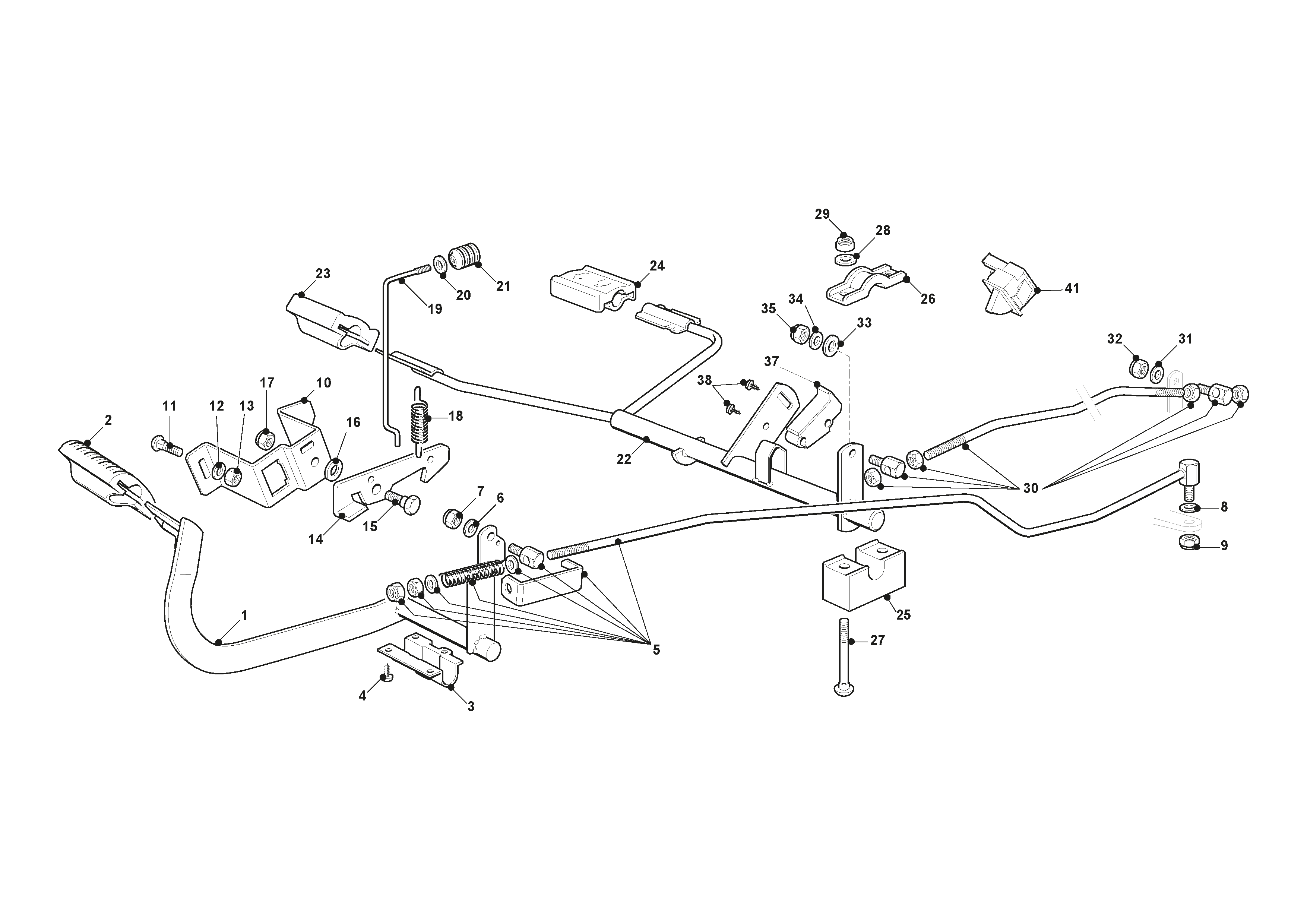

Brake And Gearbox Controls

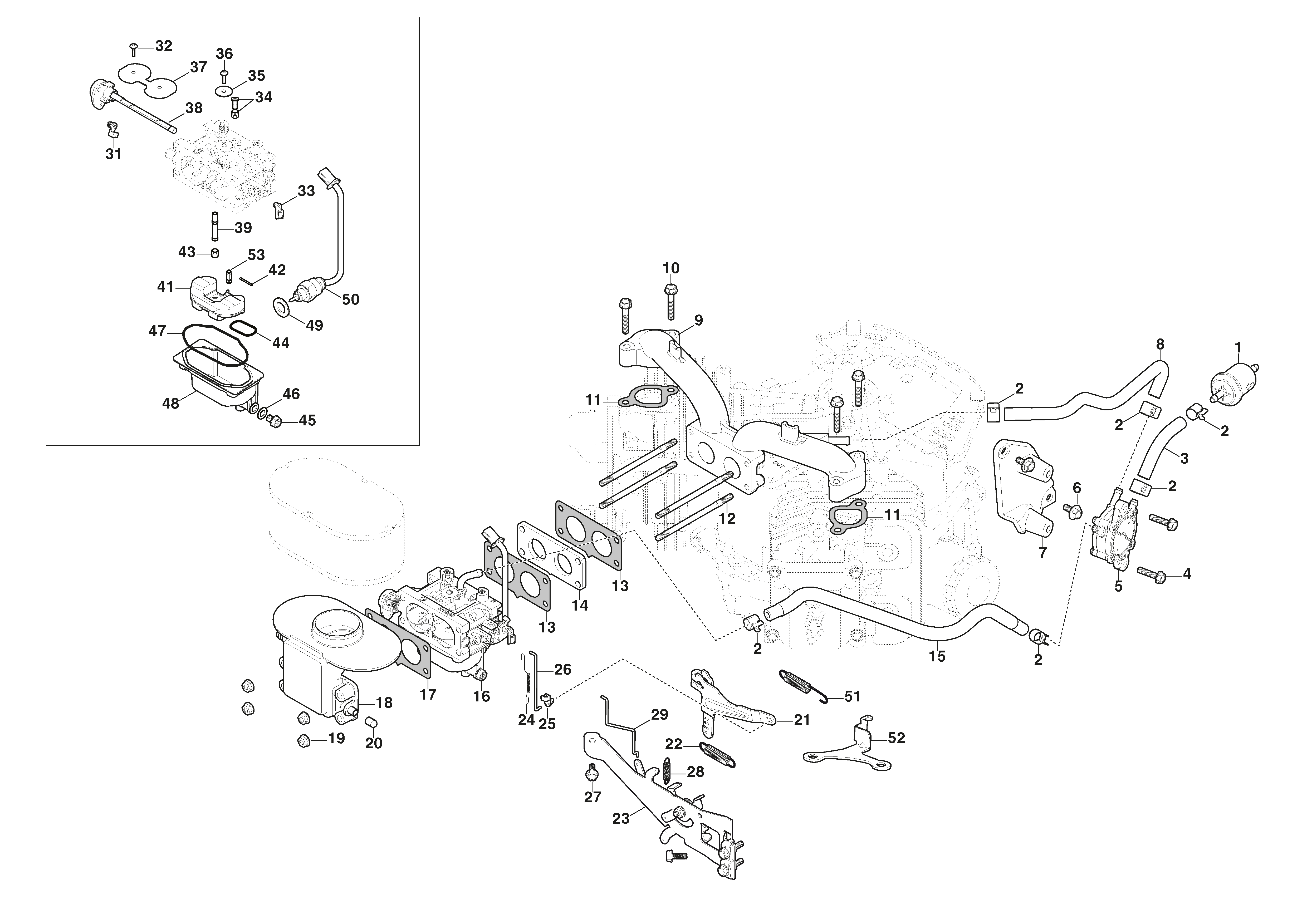

Carburetor, Fuel Pump

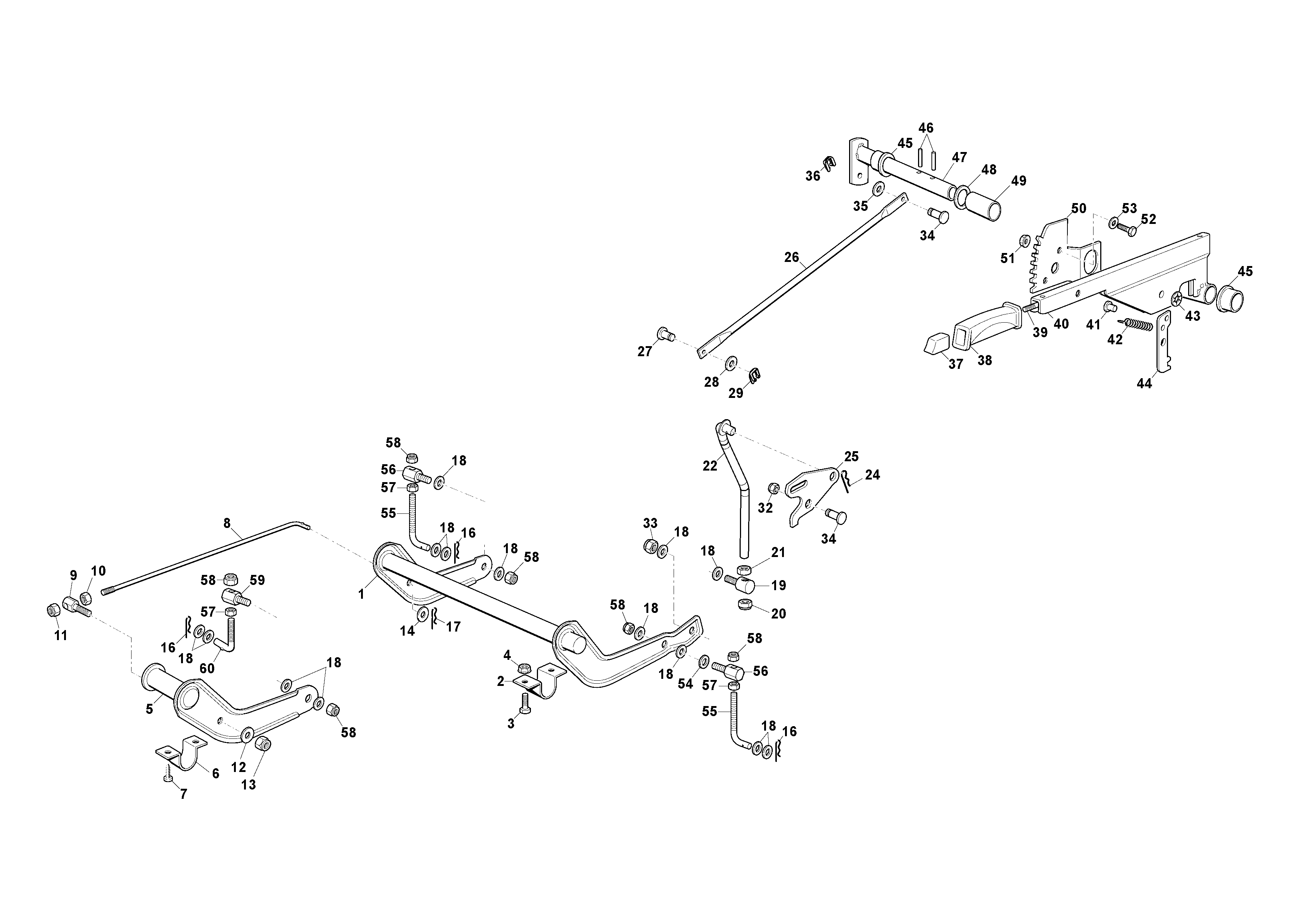

Cutting Plate Lifting

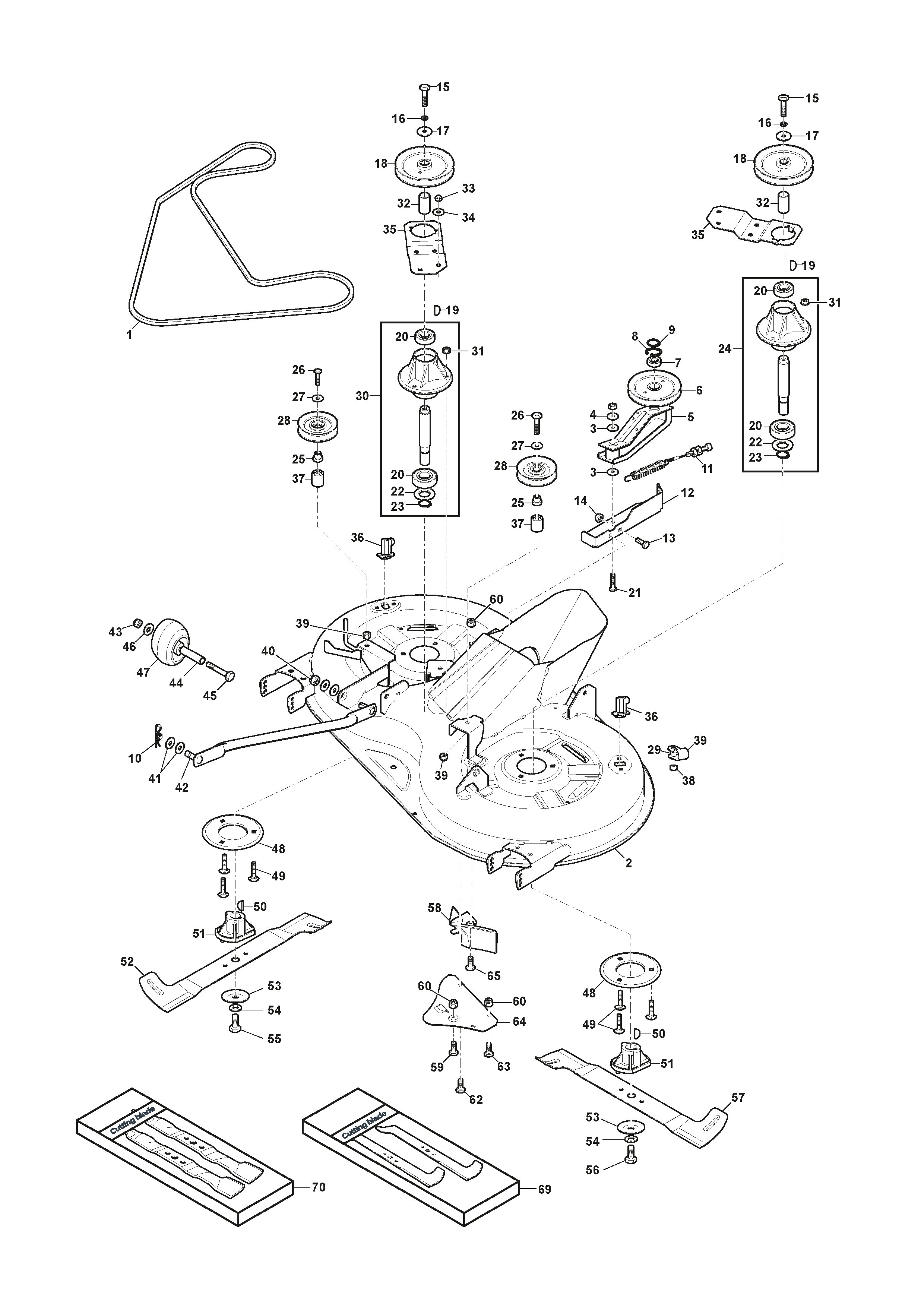

Cutting Plate

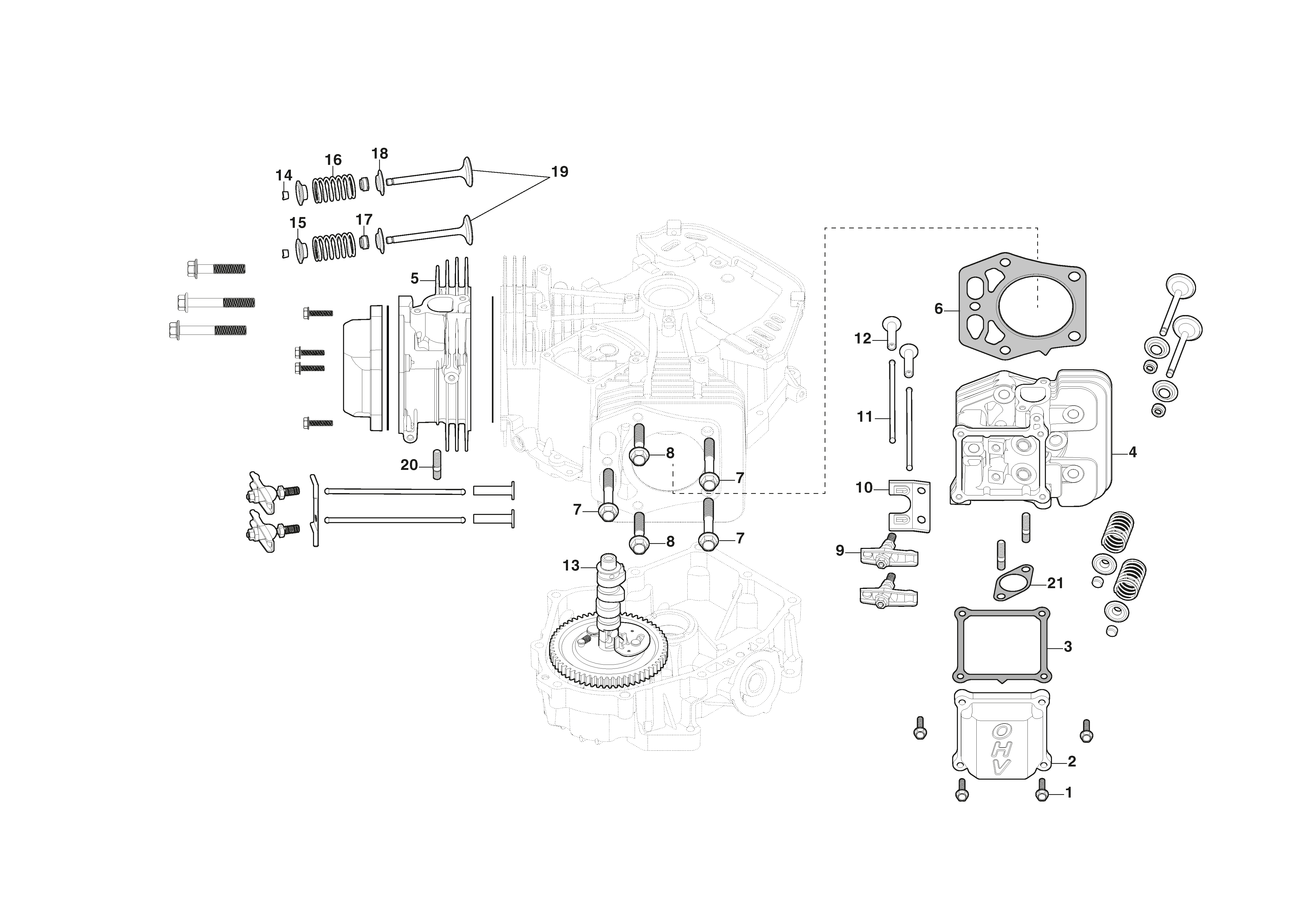

Cylinder Head

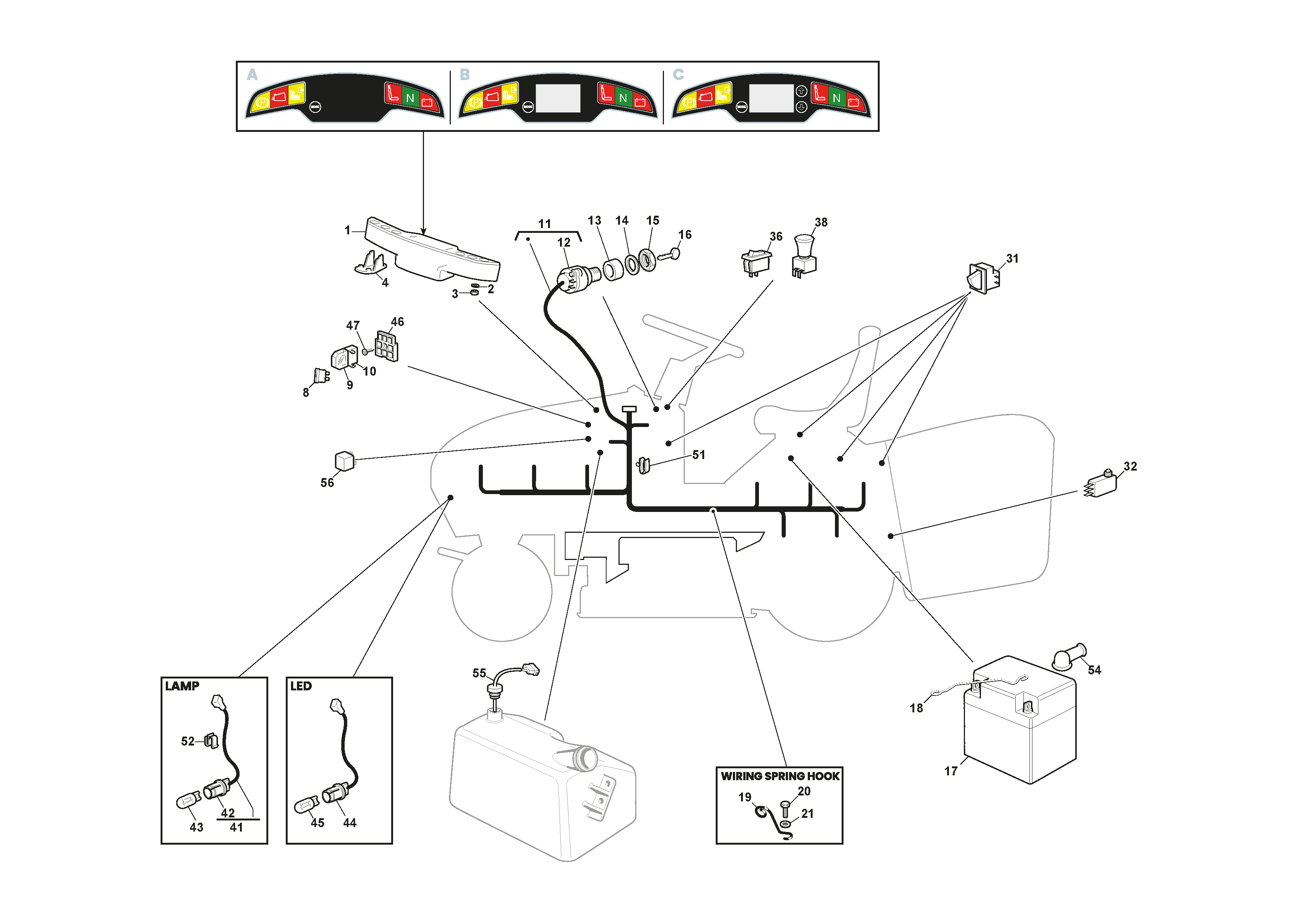

Electrical Parts

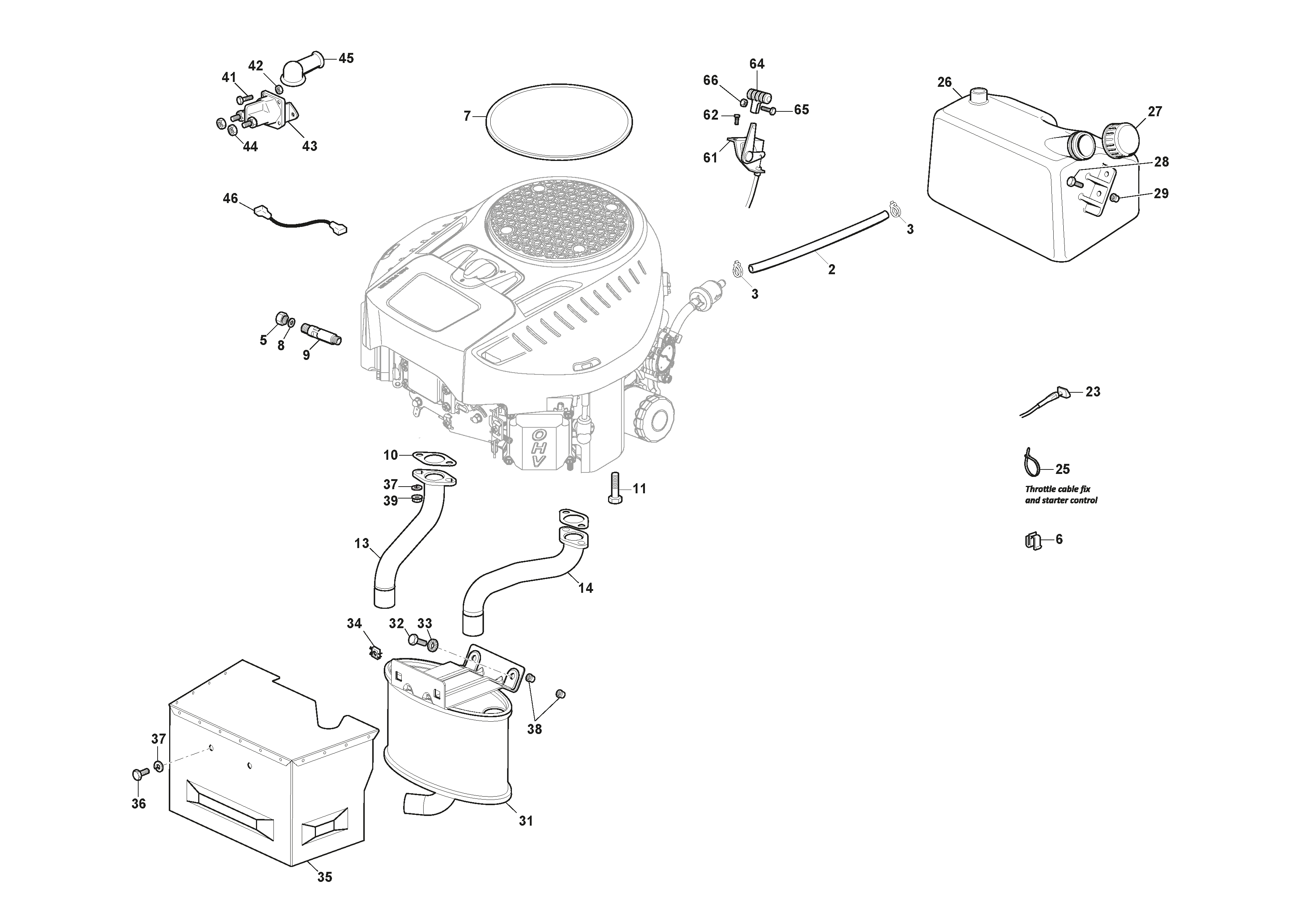

22 Hp

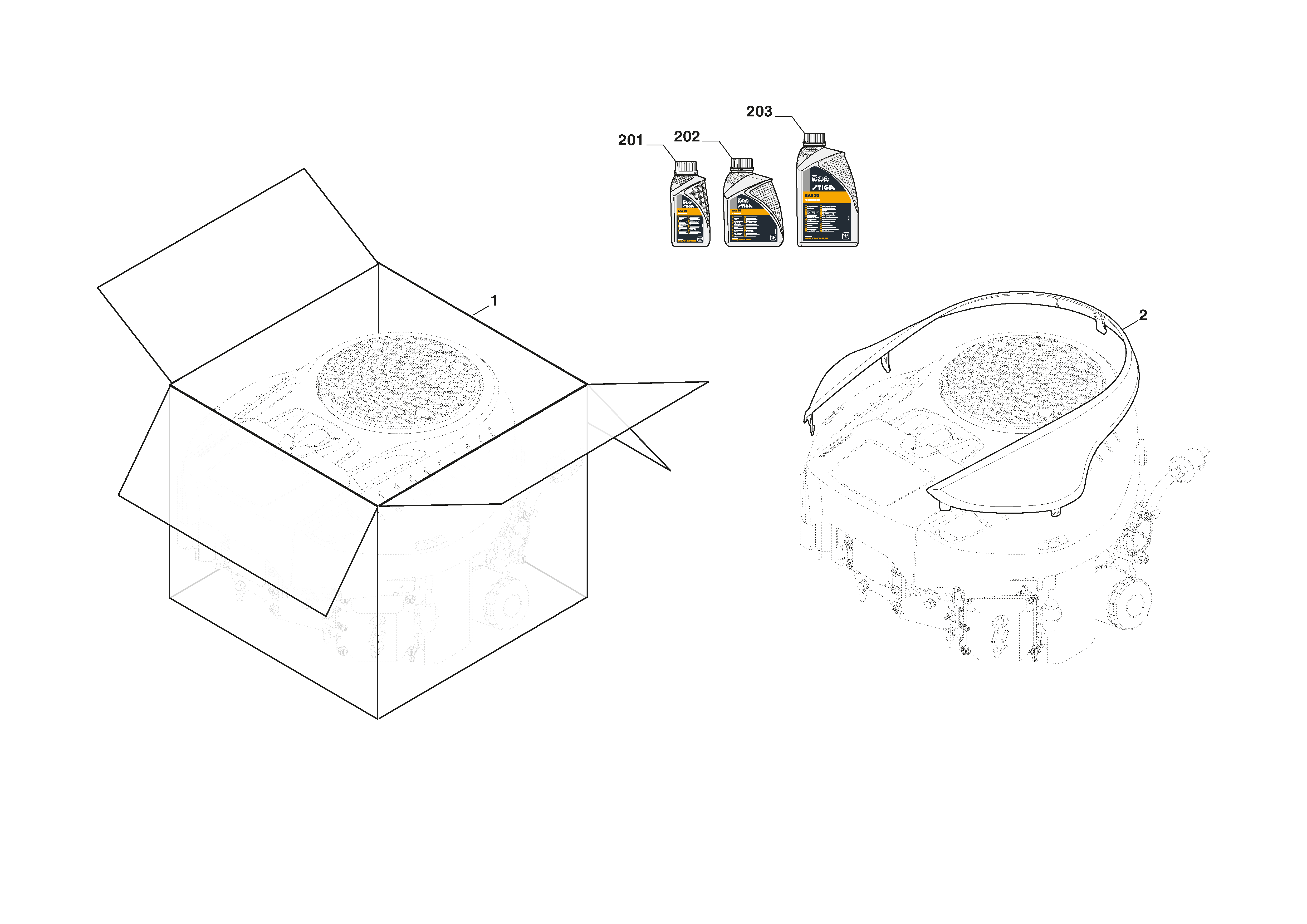

Engine, Engine Cover

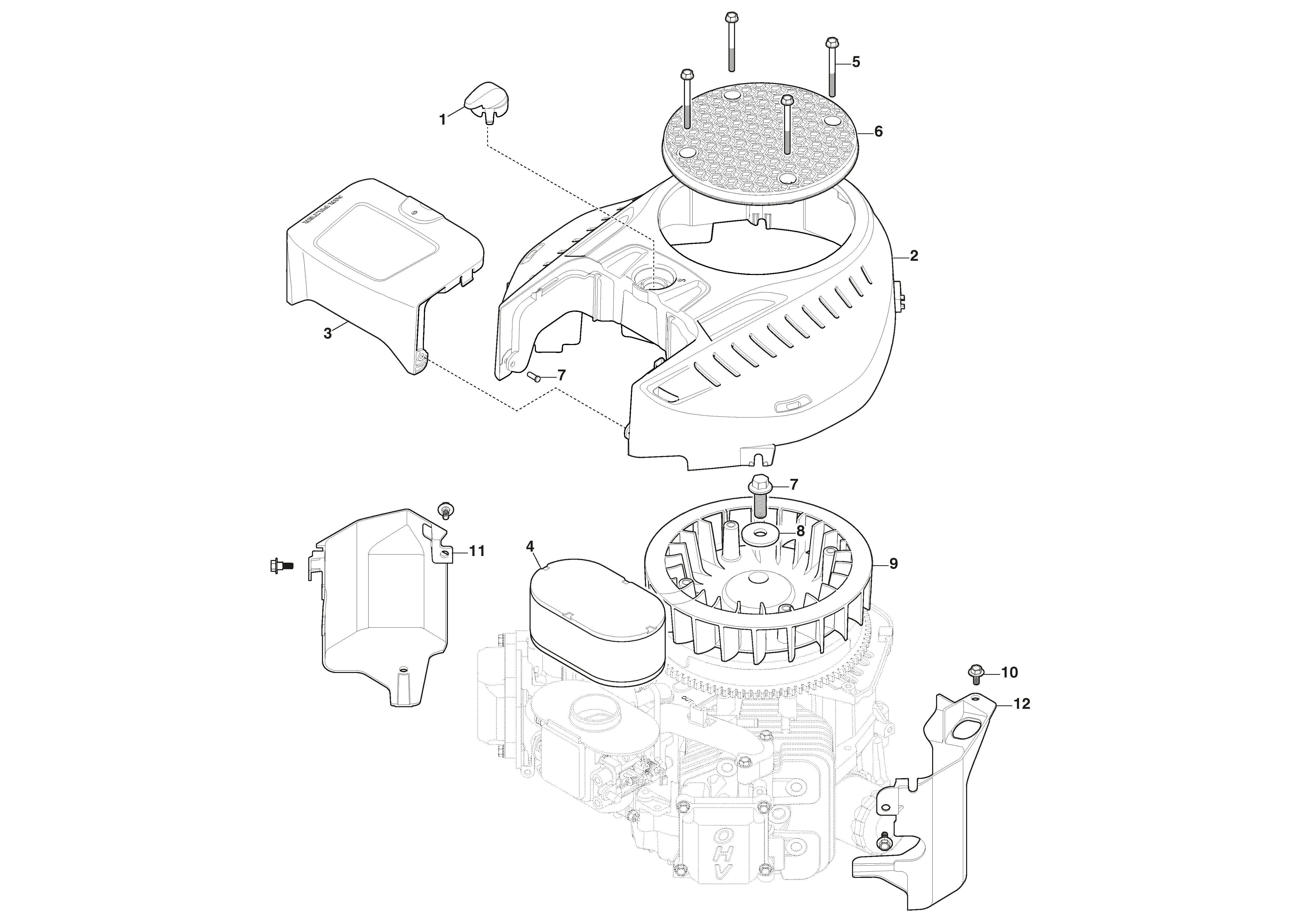

Fan Cover, Air Cleaner

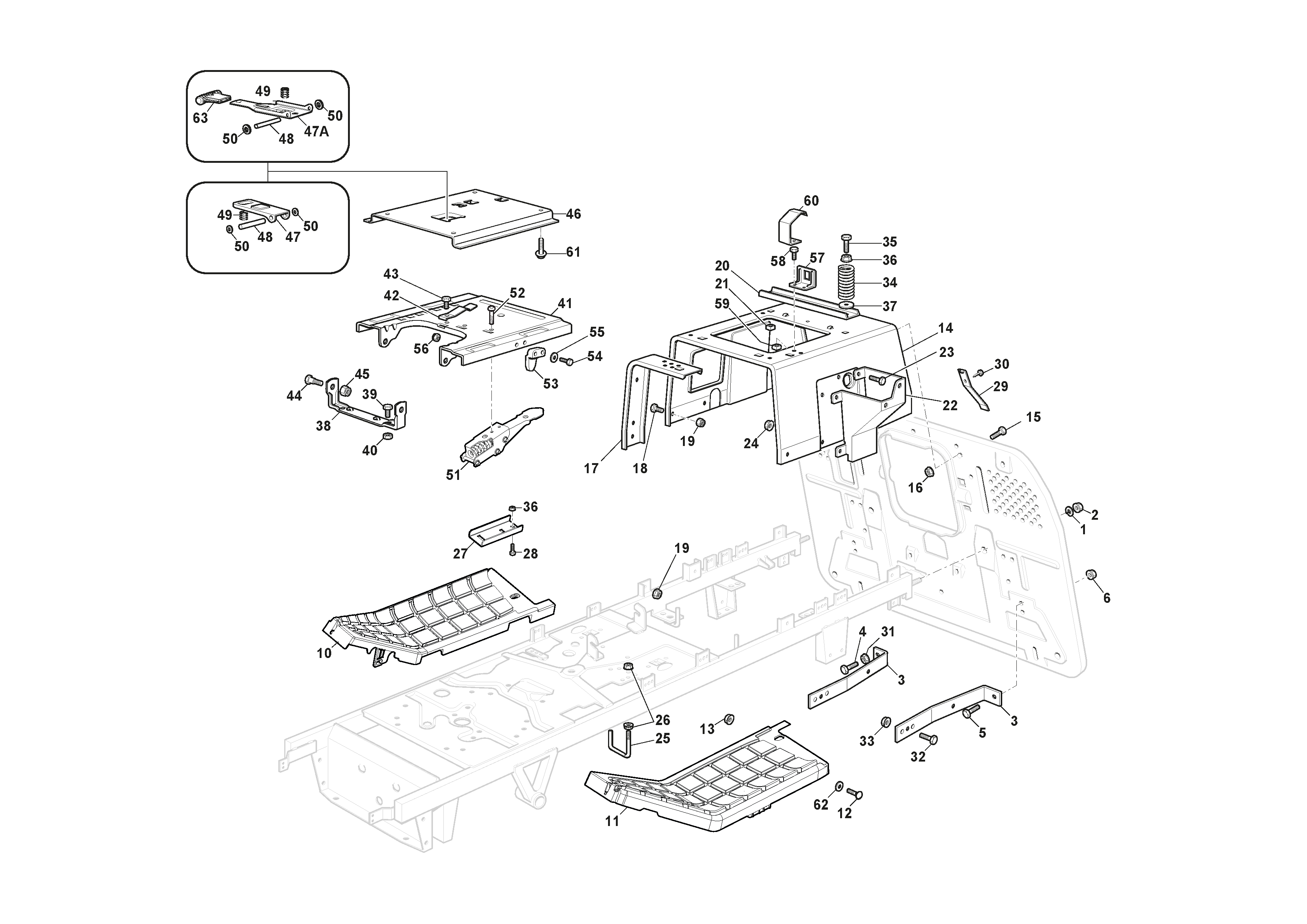

Frame

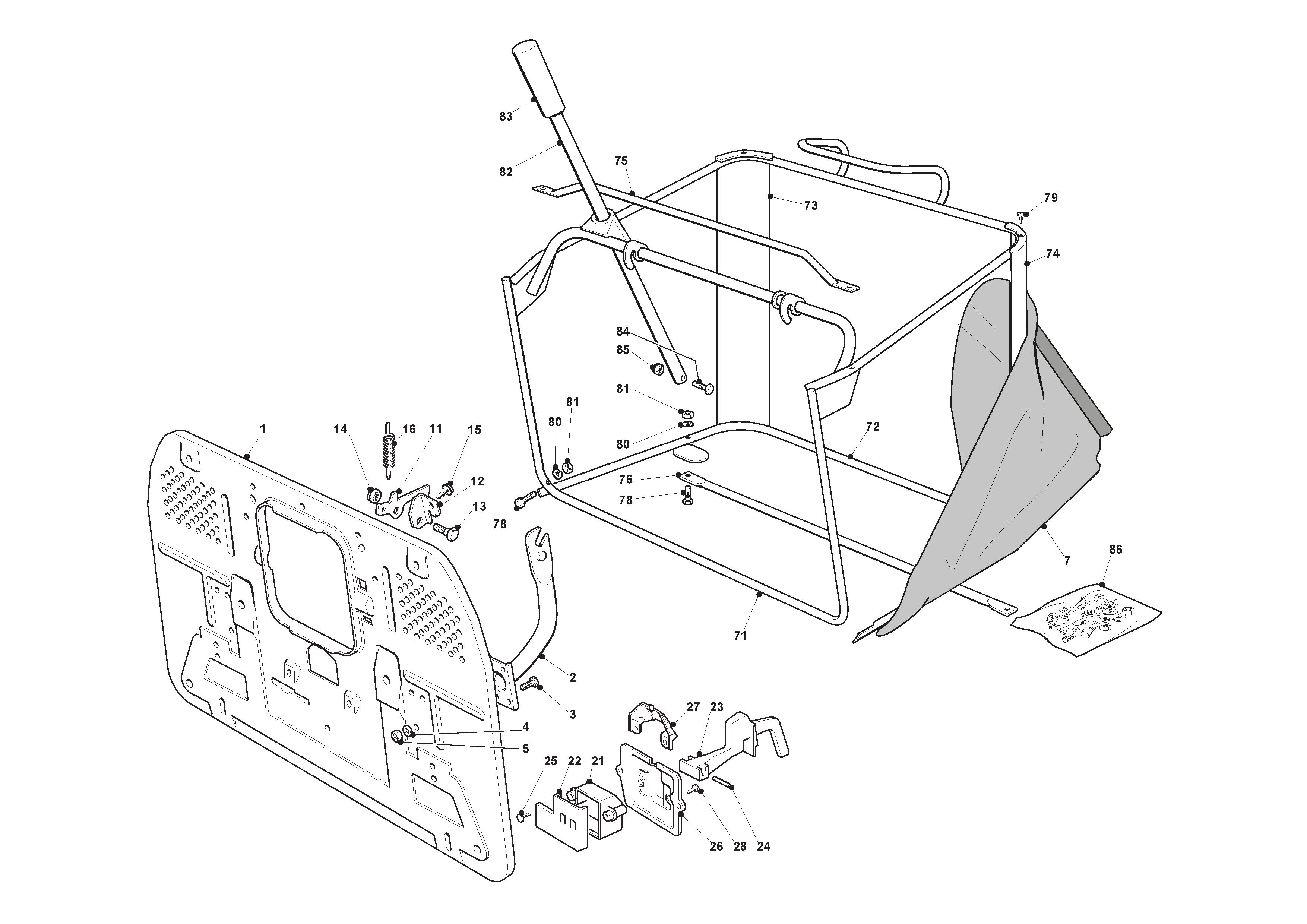

Grasscatcher, Manual Lifting

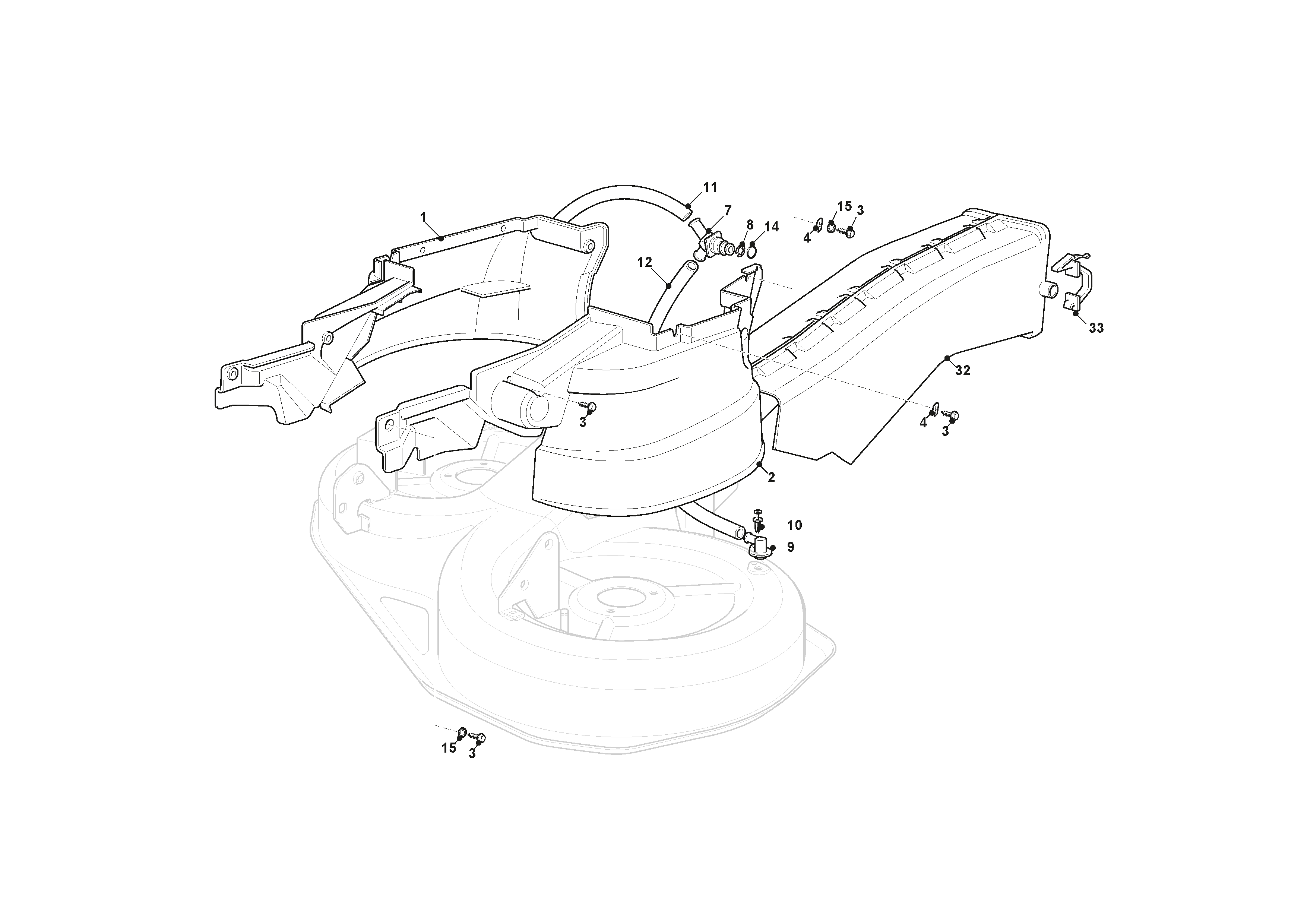

Guards And Conveyor

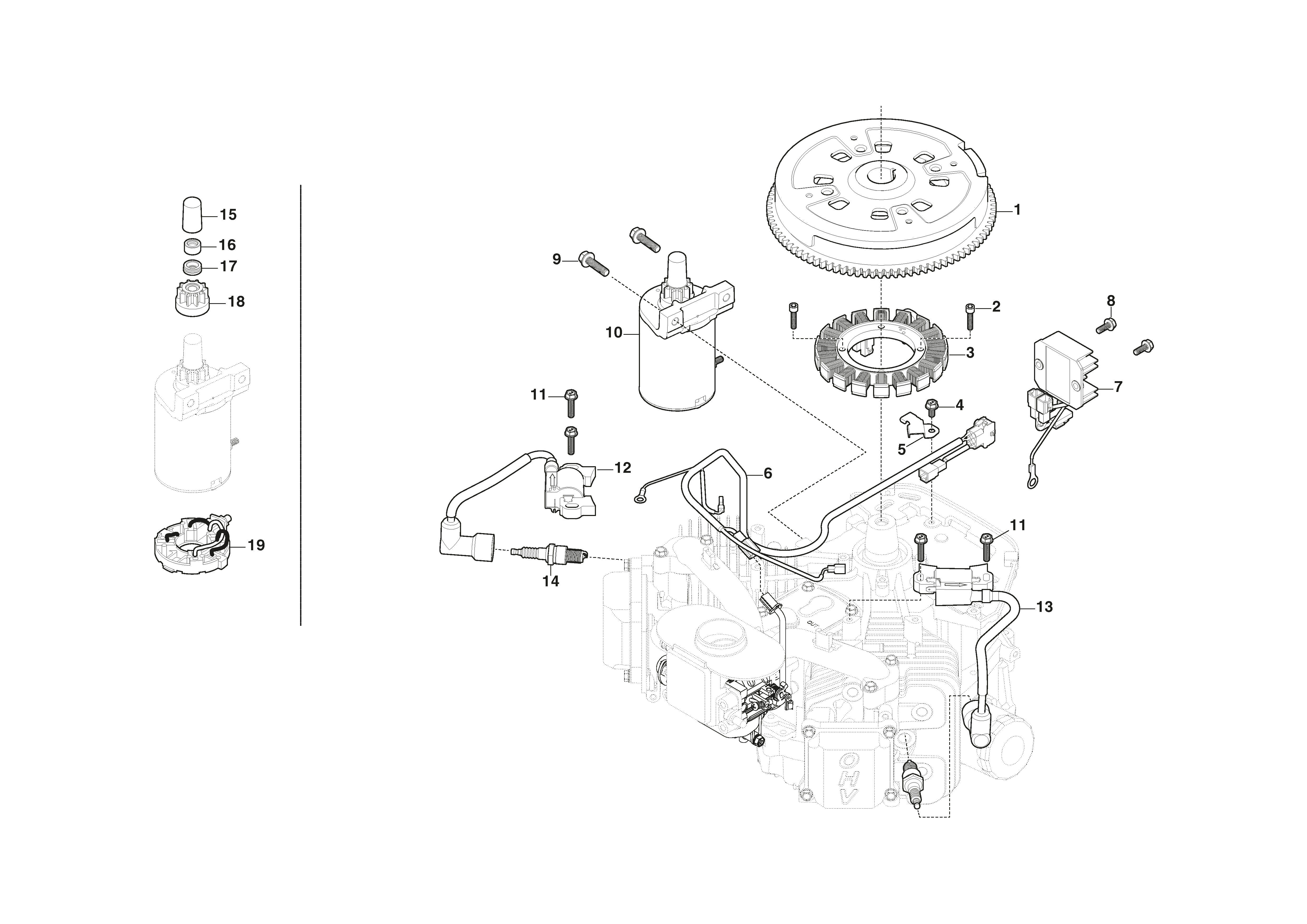

Ignition Coil, Starter Motor, Flywheel

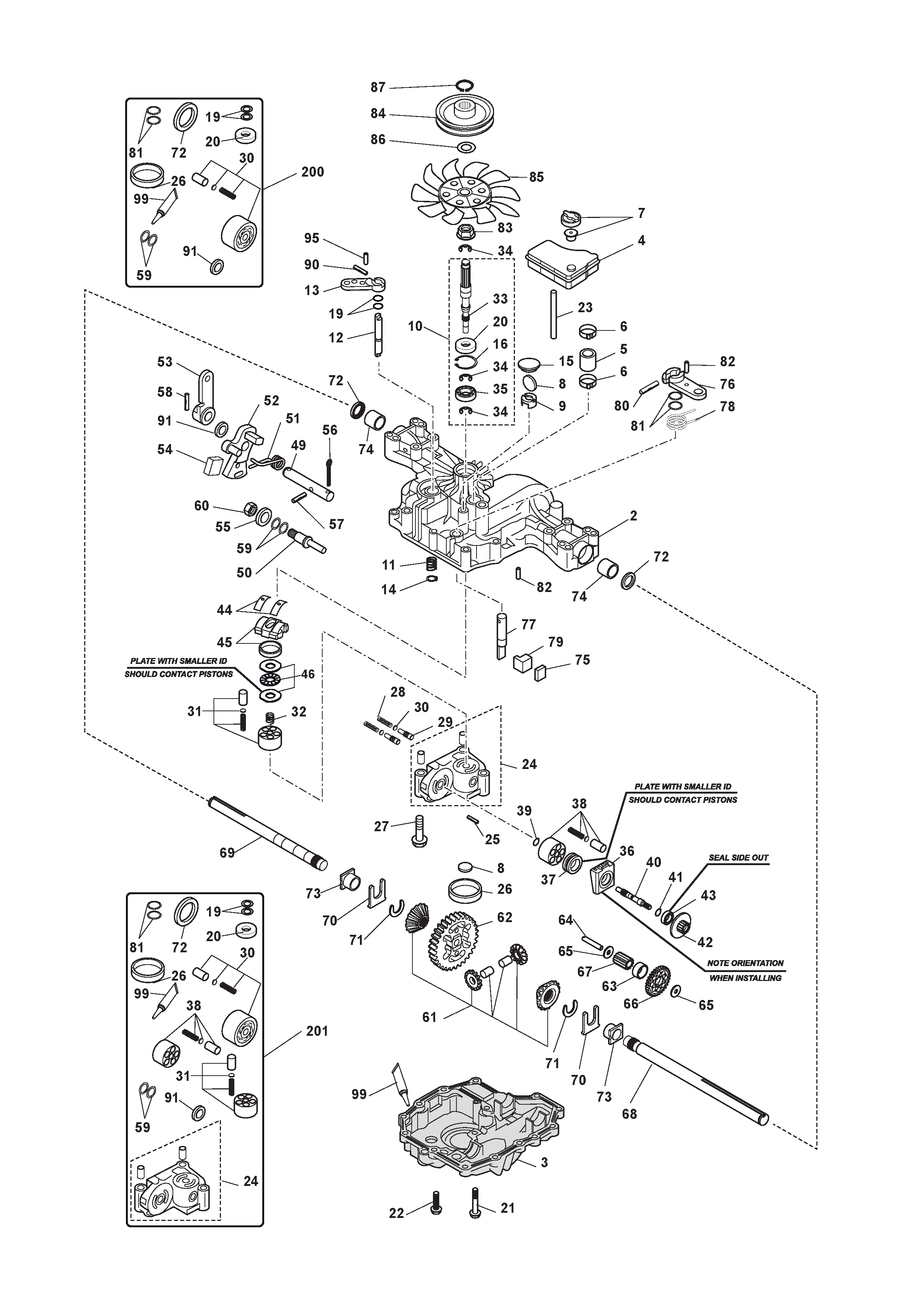

9999999)

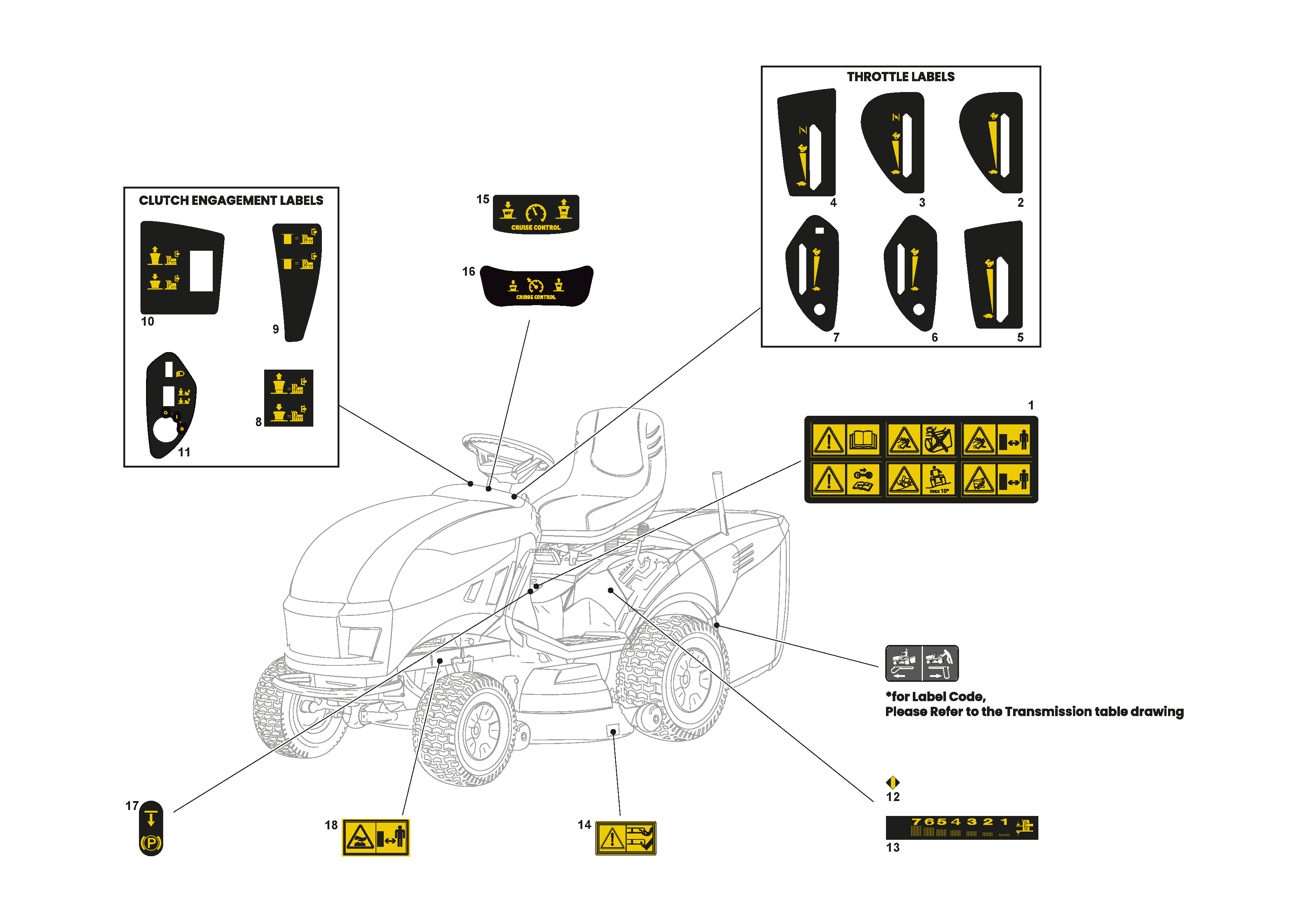

Labels

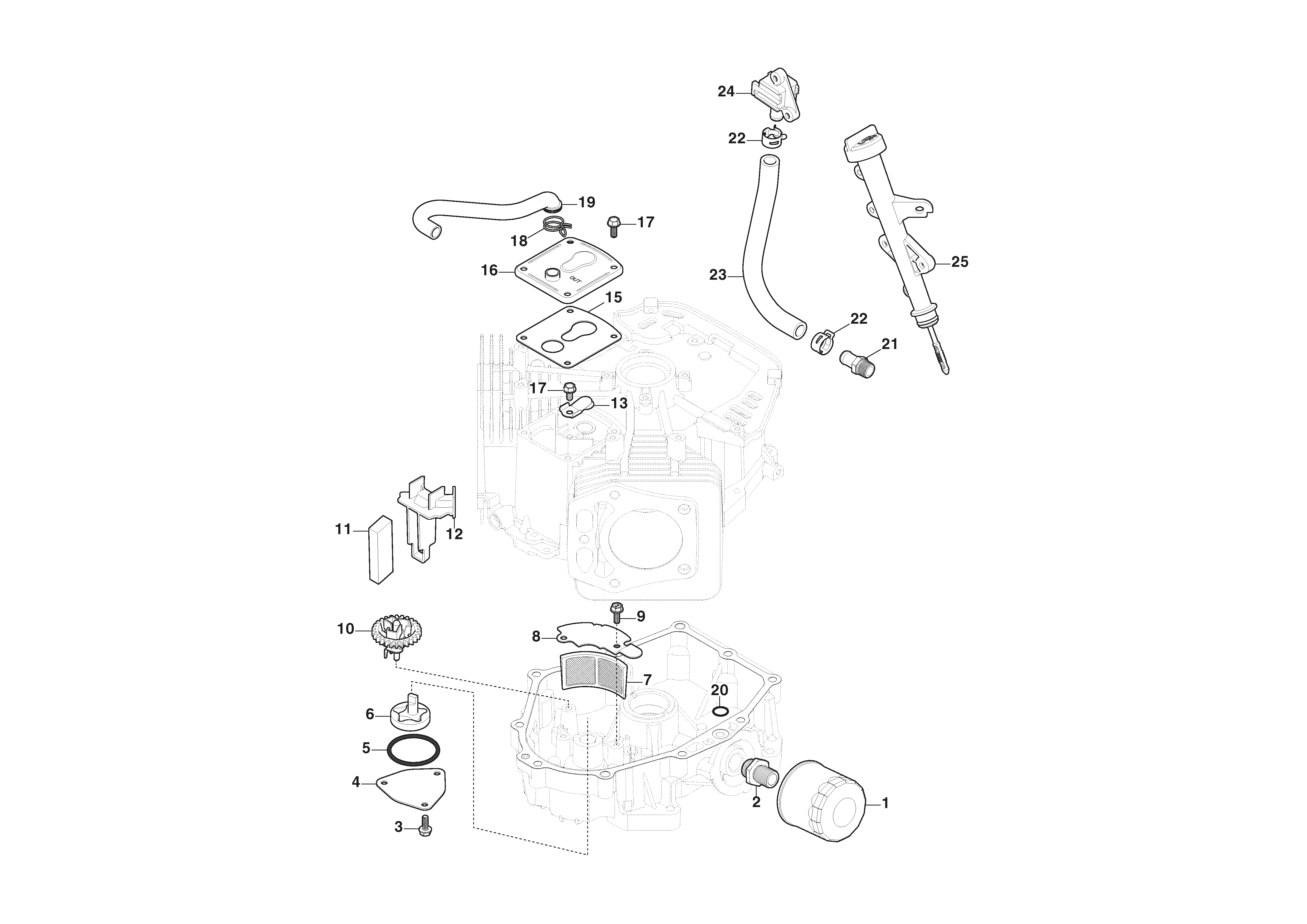

Oil Filter

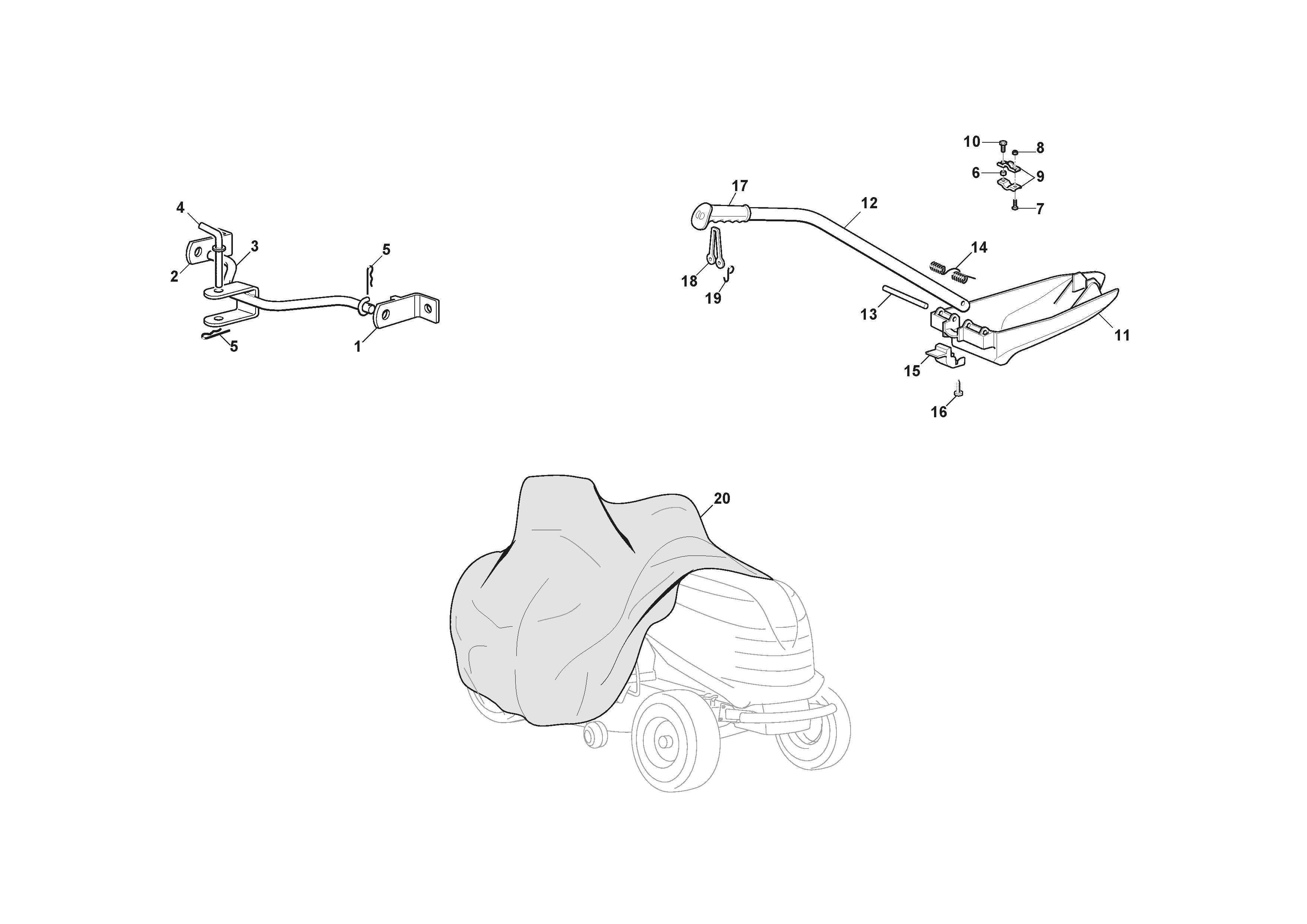

Optionals On Request

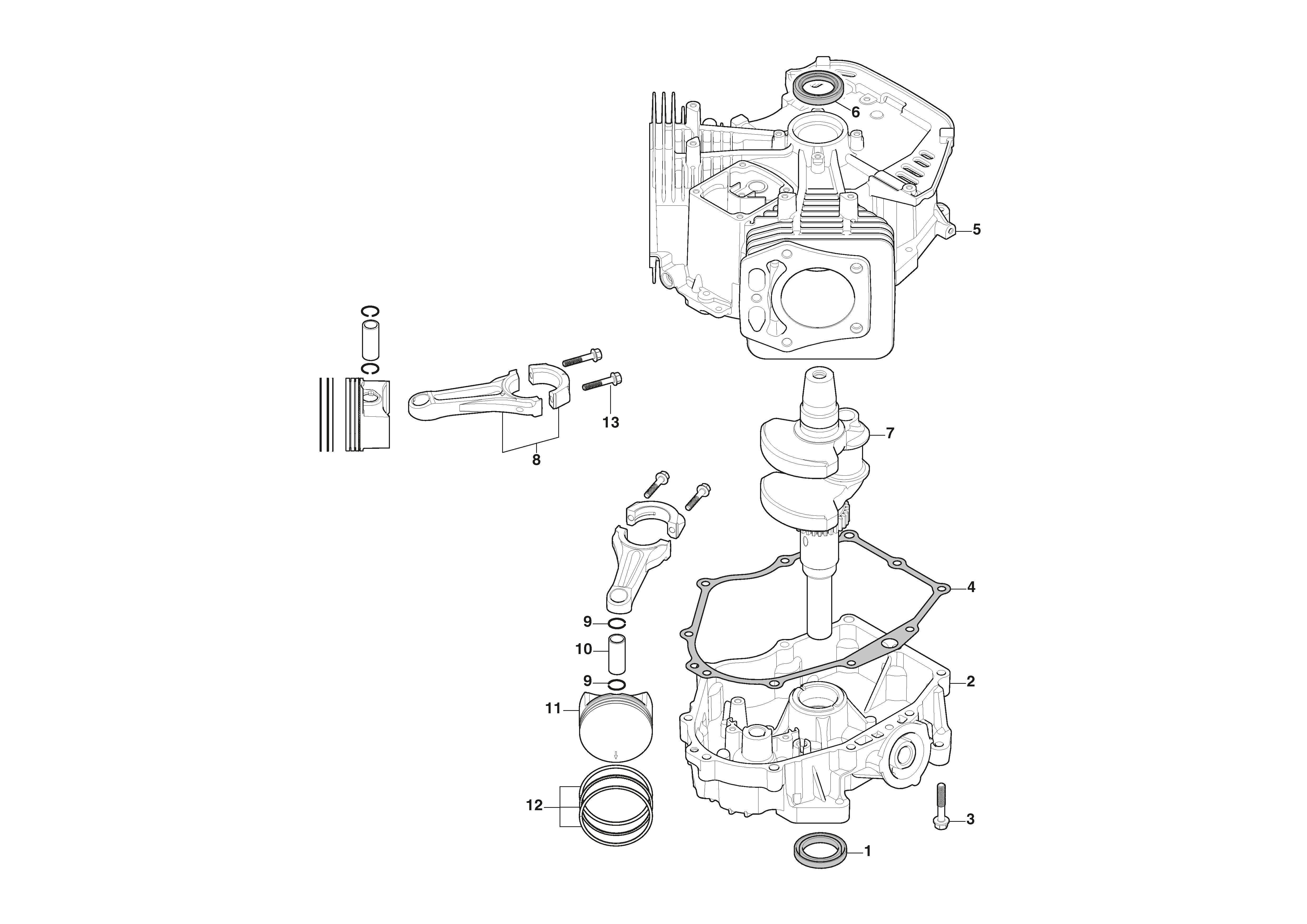

Piston, Crankshaft, Crankcase

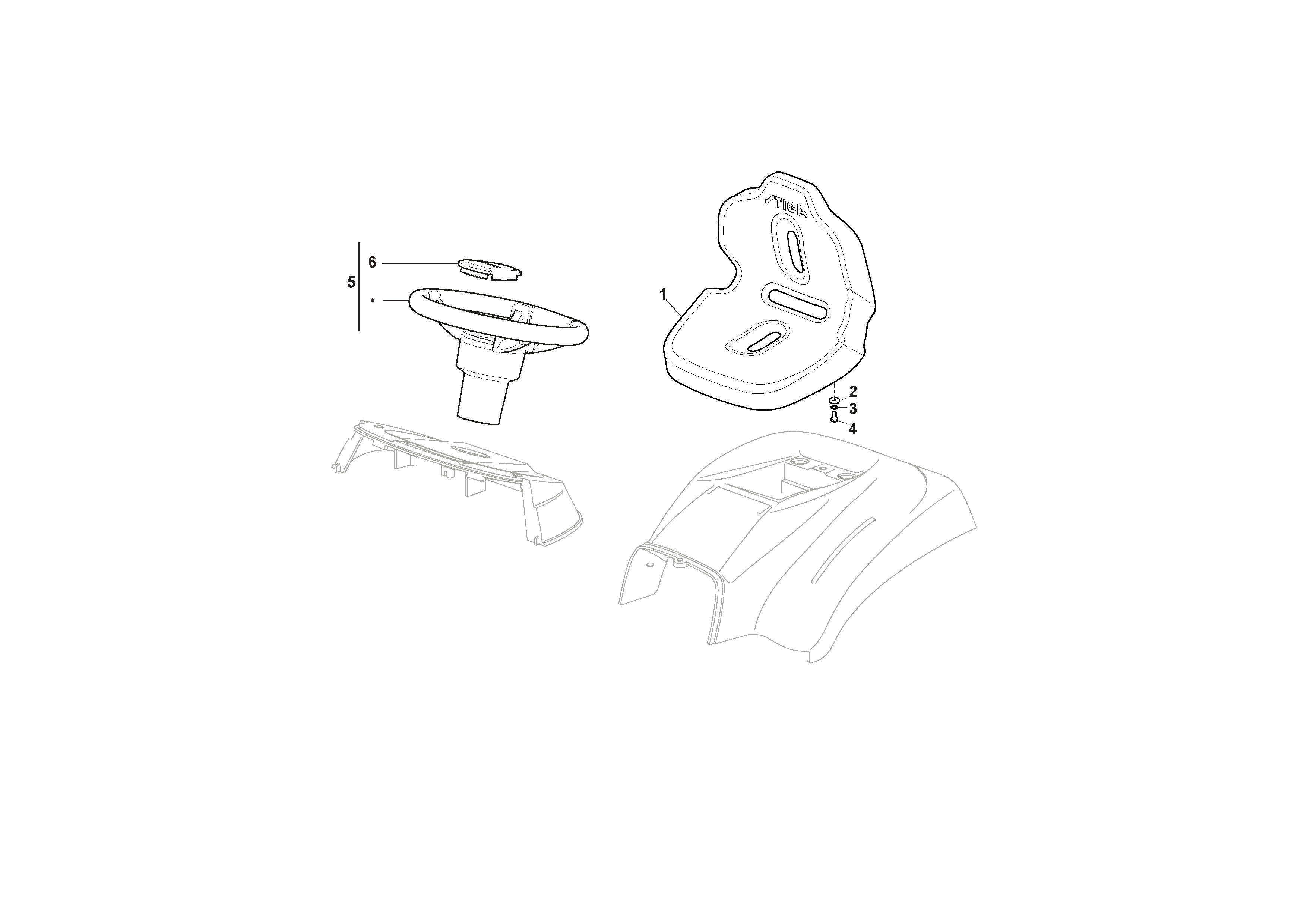

Seat & Steering Wheel

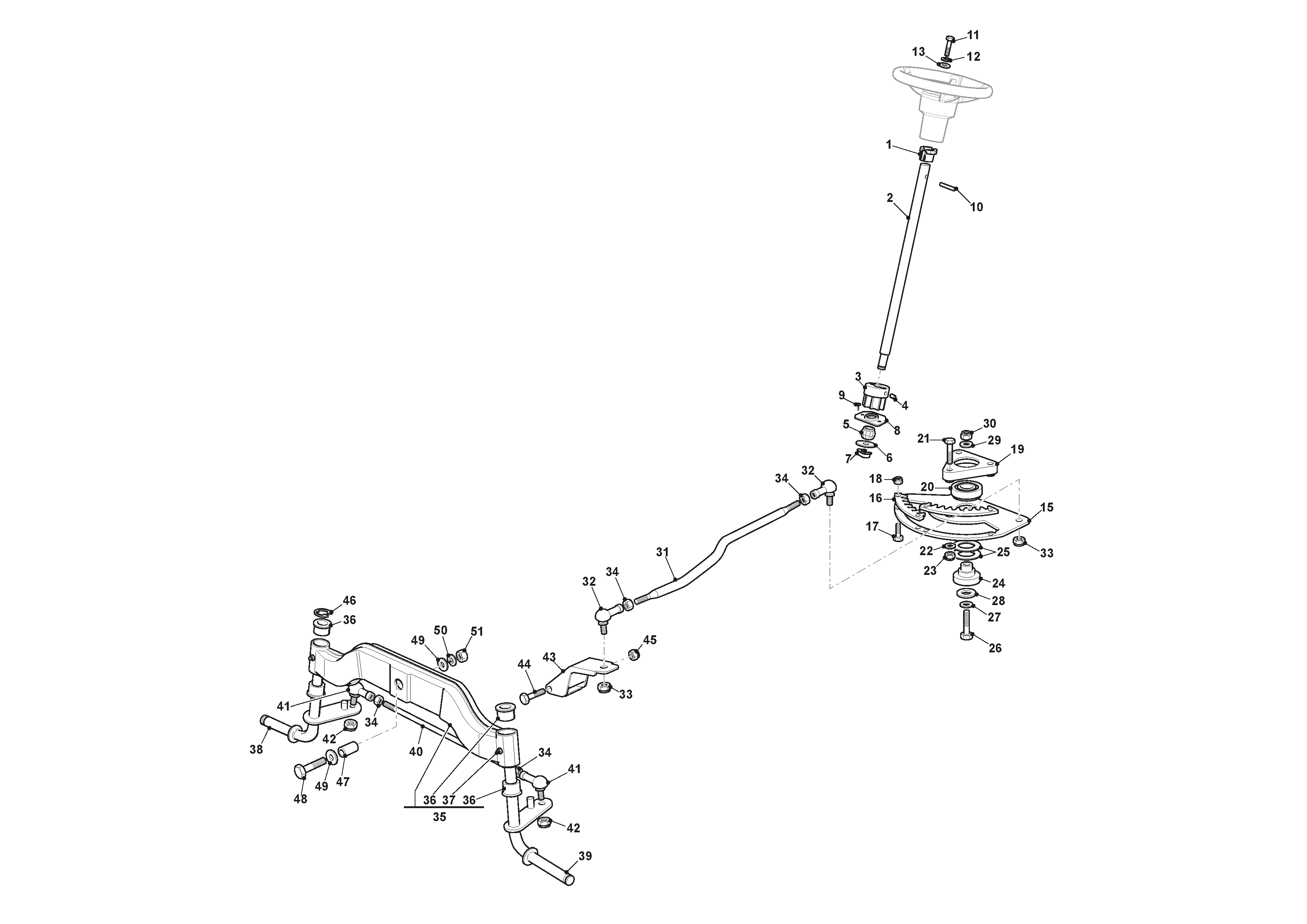

Steering

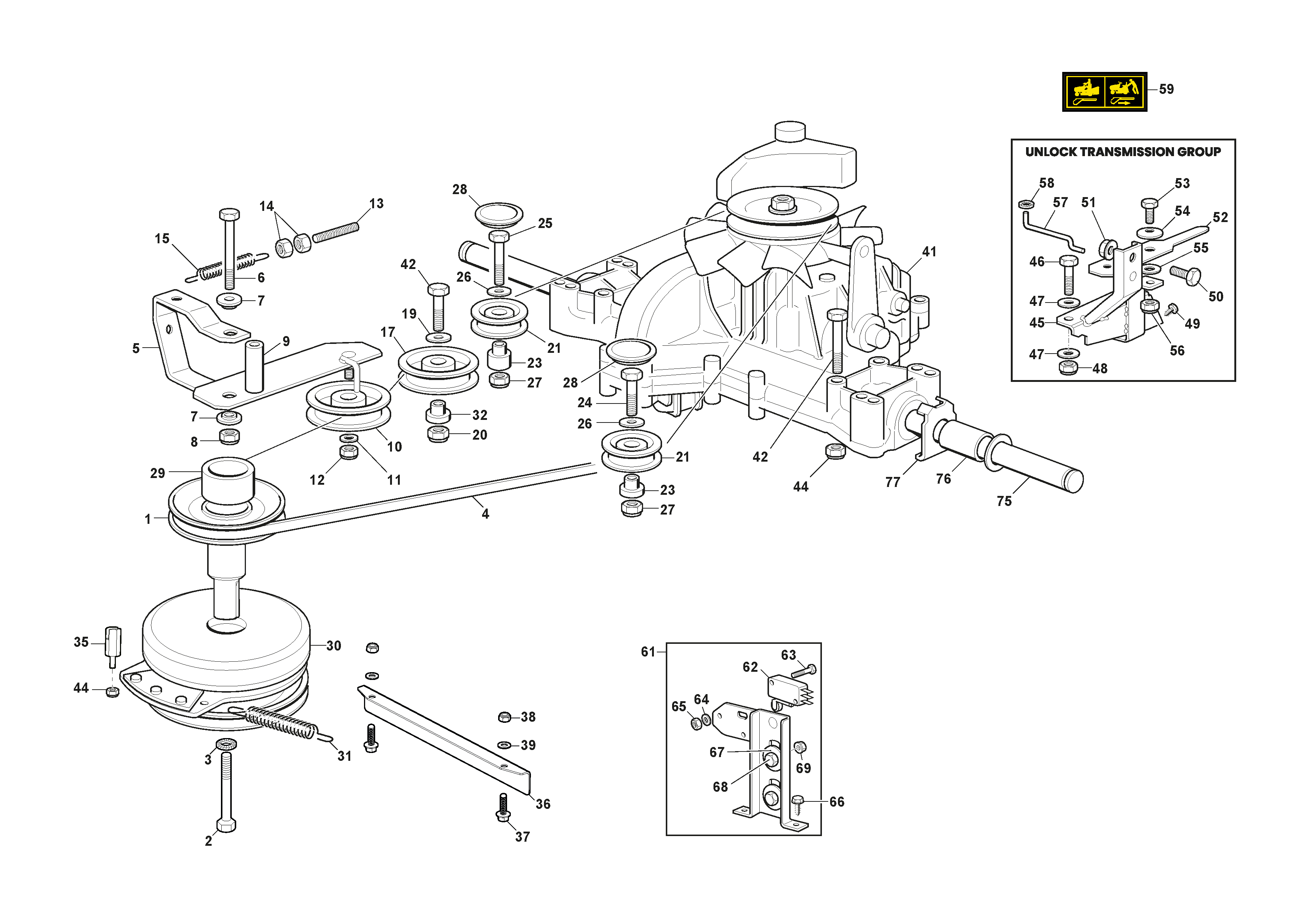

TT Transmission with Warner Electromagnetic Clutch
