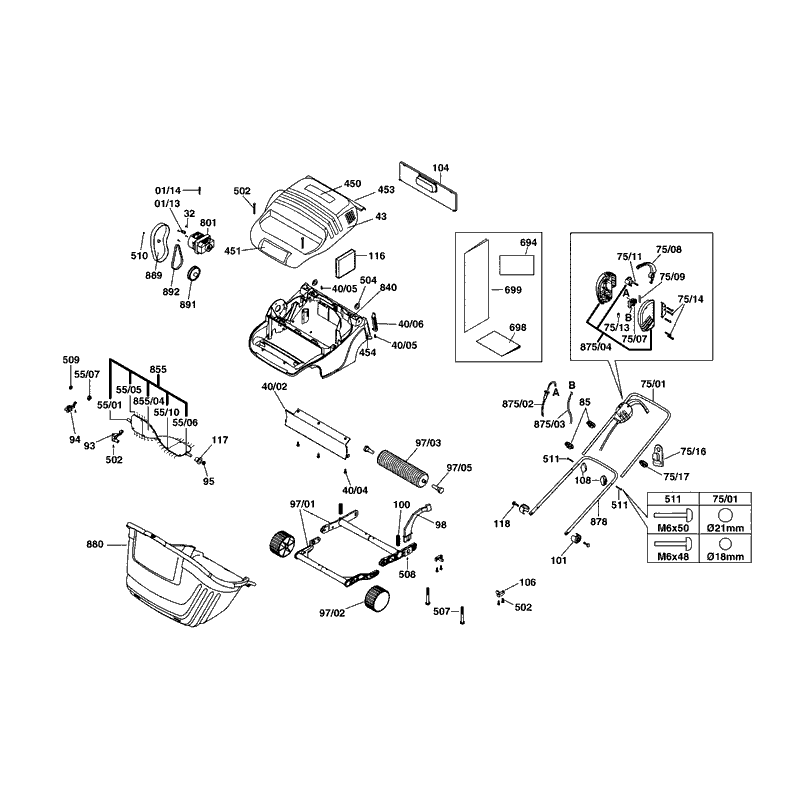

Qualcast Lawn Raker 32 (F016301042) Parts Diagram, Page 1
Look at the diagram and find parts that fit a Qualcast Lawn Raker 32, or refer to the list below.
All Parts for Qualcast Lawn Raker 32
| # | Part | Price | |
|---|---|---|---|
| 01/13 |
F016L62280 Qualcast Pinion |
 Qualcast Pinion£1.97
P/N: F016L62280, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 01/14 |
F016T44492 Qualcast Coiled Spring Pin |
£2.04 |
 Qualcast Coiled Spring Pin£2.04
P/N: F016T44492, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 32 |
F016L37433 Qualcast Self-cutting Screw |
£0.76 |
Qualcast Self-cutting Screw£0.76
P/N: F016L37433, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 40/02 |
F016L62866 Qualcast Deflector Plate |
£4.14 |
Qualcast Deflector Plate£4.14
P/N: F016L62866, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 40/04 |
F016T48535 Qualcast Screw |
Qualcast Screw£0.64
P/N: F016T48535, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 40/05 |
F016T49429 Qualcast Self-cutting Screw |
£0.76 |
Qualcast Self-cutting Screw£0.76
P/N: F016T49429, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 40/06 |
F016L63327 Qualcast Insert |
Qualcast Insert£1.88
P/N: F016L63327, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 55/01 |
F016L62329 Qualcast Spindle |
£8.82 |
Qualcast Spindle£8.82
P/N: F016L62329, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 55/05 |
F016L62327 Qualcast Spring |
Qualcast Spring
P/N: F016L62327, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 55/06 |
F016L59709 Qualcast Retaining clip |
Qualcast Retaining clip£1.46
P/N: F016L59709, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 55/07 |
1900905232 Qualcast Groove Ball Bearing |
£20.84 |
Qualcast Groove Ball Bearing£20.84
P/N: 1900905232, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 55/10 |
F016T48535 Qualcast Screw |
Qualcast Screw£0.64
P/N: F016T48535, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 75/01 |
F016L62301 Qualcast Handle |
£6.78 |
Qualcast Handle£6.78
P/N: F016L62301, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 75/08 |
F016L65676 Qualcast Positioning Lever |
£10.14 |
 Qualcast Positioning Lever£10.14
P/N: F016L65676, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 75/09 |
F016T49845 Qualcast Spring Lever |
Qualcast Spring Lever£2.52
P/N: F016T49845, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 75/11 |
F016T49226 Qualcast Compression Spring (FGA) |
Qualcast Compression Spring (FGA)£2.52
P/N: F016T49226, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 75/13 |
F016L36952 Qualcast Condenser |
£0.76 |
Qualcast Condenser£0.76
P/N: F016L36952, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 75/14 |
F016T49429 Qualcast Self-cutting Screw |
£0.76 |
Qualcast Self-cutting Screw£0.76
P/N: F016T49429, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 75/16 |
F016L65387 Qualcast Strain-relief Clamp |
£7.68 |
Qualcast Strain-relief Clamp£7.68
P/N: F016L65387, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 75/17 |
F016T56363 Qualcast Screw |
£0.76 |
Qualcast Screw£0.76
P/N: F016T56363, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 85 |
F016L11580 Qualcast Cable Cleat |
£0.76 |
Qualcast Cable Cleat£0.76
P/N: F016L11580, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 93 |
F016L62278 Qualcast Connecting Terminal |
£0.76 |
Qualcast Connecting Terminal£0.76
P/N: F016L62278, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 94 |
F016L62279 Qualcast Connecting Terminal |
£0.76 |
Qualcast Connecting Terminal£0.76
P/N: F016L62279, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 95 |
F016T40513 Qualcast Bushing |
£5.10 |
 Qualcast Bushing£5.10
P/N: F016T40513, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 97/01 |
F016102751 Qualcast Linkage |
Qualcast Linkage£32.22
P/N: F016102751, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 97/02 |
F016L62319 Qualcast Wheel |
Qualcast Wheel£8.70
P/N: F016L62319, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 97/03 |
F016L62320 Qualcast Roller |
£2.92 |
Qualcast Roller£2.92
P/N: F016L62320, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 97/05 |
F016L63341 Qualcast Stub Shaft |
£2.18 |
Qualcast Stub Shaft£2.18
P/N: F016L63341, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 98 |
F016L62292 Qualcast Handle |
Qualcast Handle£2.92
P/N: F016L62292, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 100 |
F016L62298 Qualcast Compression Spring |
Qualcast Compression Spring
P/N: F016L62298, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 101 |
F016L62285 Qualcast Pivot |
Qualcast Pivot
P/N: F016L62285, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 104 |
F016L62318 Qualcast Sealing Cap |
Qualcast Sealing Cap£1.69
P/N: F016L62318, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 106 |
F016L62325 Qualcast Pivot |
£3.32 |
Qualcast Pivot£3.32
P/N: F016L62325, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 108 |
F016L66136 Qualcast Wing Nut |
£3.77 |
Qualcast Wing Nut£3.77
P/N: F016L66136, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 116 |
F016L62487 Qualcast Air Filter |
Qualcast Air Filter£2.87
P/N: F016L62487, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 117 |
F016L62488 Qualcast Bearing Ring |
£0.76 |
Qualcast Bearing Ring£0.76
P/N: F016L62488, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 118 |
F016L64240 Qualcast Pivot Pin |
Qualcast Pivot Pin
P/N: F016L64240, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 450 |
F016L64922 Qualcast Sticker |
Qualcast Sticker£1.75
P/N: F016L64922, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 451 |
F016L62863 Qualcast Transfer |
Qualcast Transfer£0.97
P/N: F016L62863, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 453 |
F016L61033 Qualcast Reference Plate |
Qualcast Reference Plate£0.76
P/N: F016L61033, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 454 |
F016L62864 Qualcast Sticker |
Qualcast Sticker£1.14
P/N: F016L62864, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 502 |
F016T49429 Qualcast Self-cutting Screw |
£0.76 |
Qualcast Self-cutting Screw£0.76
P/N: F016T49429, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 504 |
F016T49100 Qualcast Set ring |
Qualcast Set ring£2.60
P/N: F016T49100, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 508 |
F016L37433 Qualcast Self-cutting Screw |
£0.76 |
Qualcast Self-cutting Screw£0.76
P/N: F016L37433, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 509 |
F016L62388 Qualcast Nut |
£1.14 |
Qualcast Nut£1.14
P/N: F016L62388, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 510 |
F016L62597 Qualcast Screw |
Qualcast Screw
P/N: F016L62597, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 511 |
F016L59277 Qualcast Bolt |
 Qualcast Bolt£2.18
P/N: F016L59277, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 801 |
F016L80980 Qualcast Motor |
Qualcast Motor£146.83
P/N: F016L80980, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 840 |
F016102380 Qualcast Chassis |
£30.42 |
 Qualcast Chassis£30.42
P/N: F016102380, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 855 |
F016102759 Qualcast Rake |
Qualcast Rake
P/N: F016102759, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 855/04 |
F016102760 Qualcast #N/A |
Qualcast #N/A
P/N: F016102760, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 875/02 |
F016102094 Qualcast #N/A |
Qualcast #N/A
P/N: F016102094, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 875/03 |
F016102761 Qualcast Lead Wire |
Qualcast Lead Wire£3.58
P/N: F016102761, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 875/04 |
F016103136 Qualcast Assembly Kit |
Qualcast Assembly Kit
P/N: F016103136, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 878 |
F016102330 Qualcast Handle |
£10.03 |
Qualcast Handle£10.03
P/N: F016102330, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 880 |
F016L62865 Qualcast #N/A |
Qualcast #N/A
P/N: F016L62865, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 889 |
F016102356 Qualcast Belt Cover |
£2.92 |
Qualcast Belt Cover£2.92
P/N: F016102356, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 891 |
F016102357 Qualcast Pulley |
Qualcast Pulley£2.18
P/N: F016102357, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 892 |
F016102358 Qualcast Drive Belt |
 Qualcast Drive Belt£5.84
P/N: F016102358, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
