Diagrams for the Oleo-Mac KROSSER 92-16 H Cat. 2012
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Oleo-Mac KROSSER 92-16 H Cat. 2012.
Diagrams for this machine
Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Oleo-Mac KROSSER 92-16 H Cat. 2012
KROSSER 92-16 H Cat. 2012

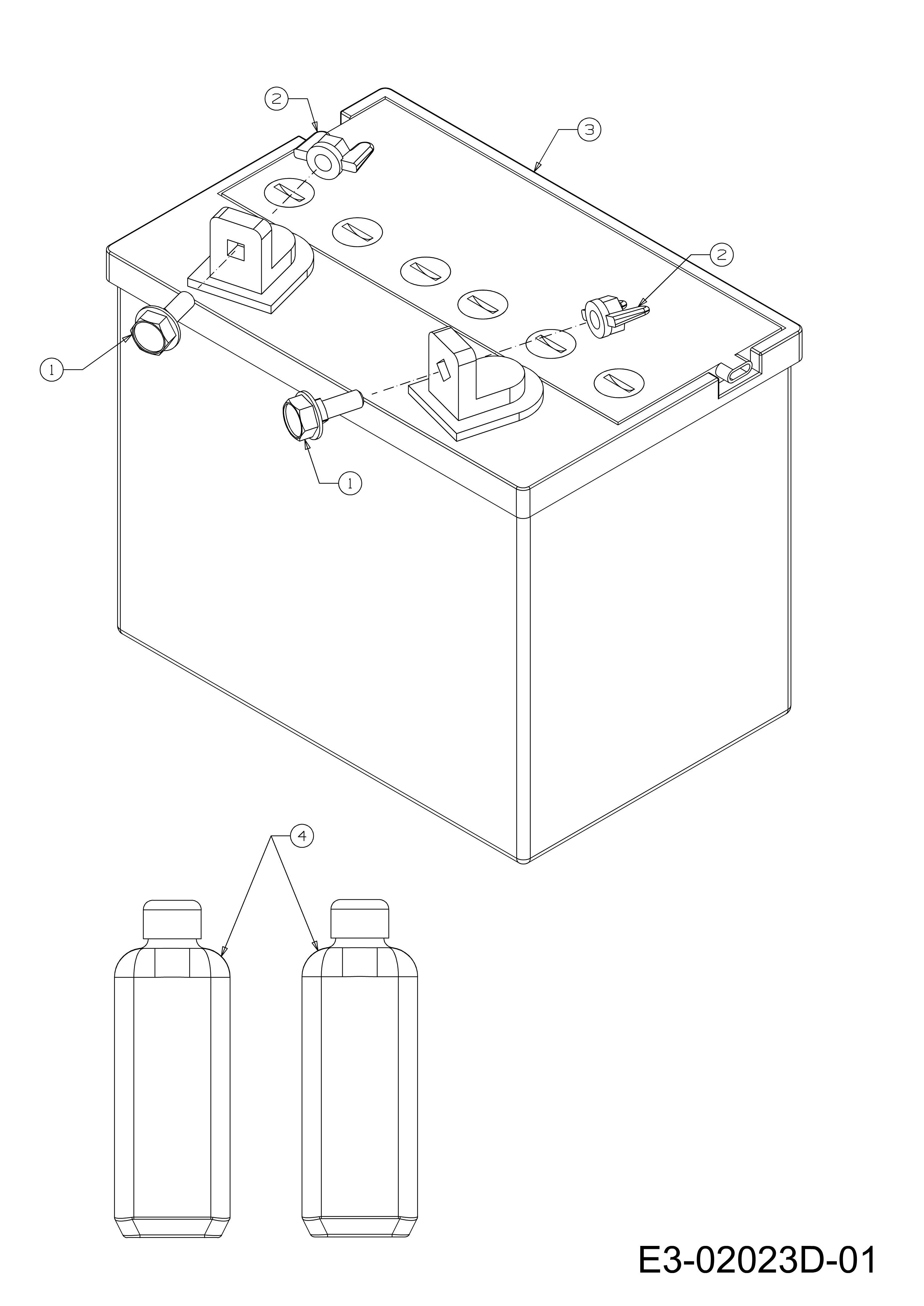

Battery

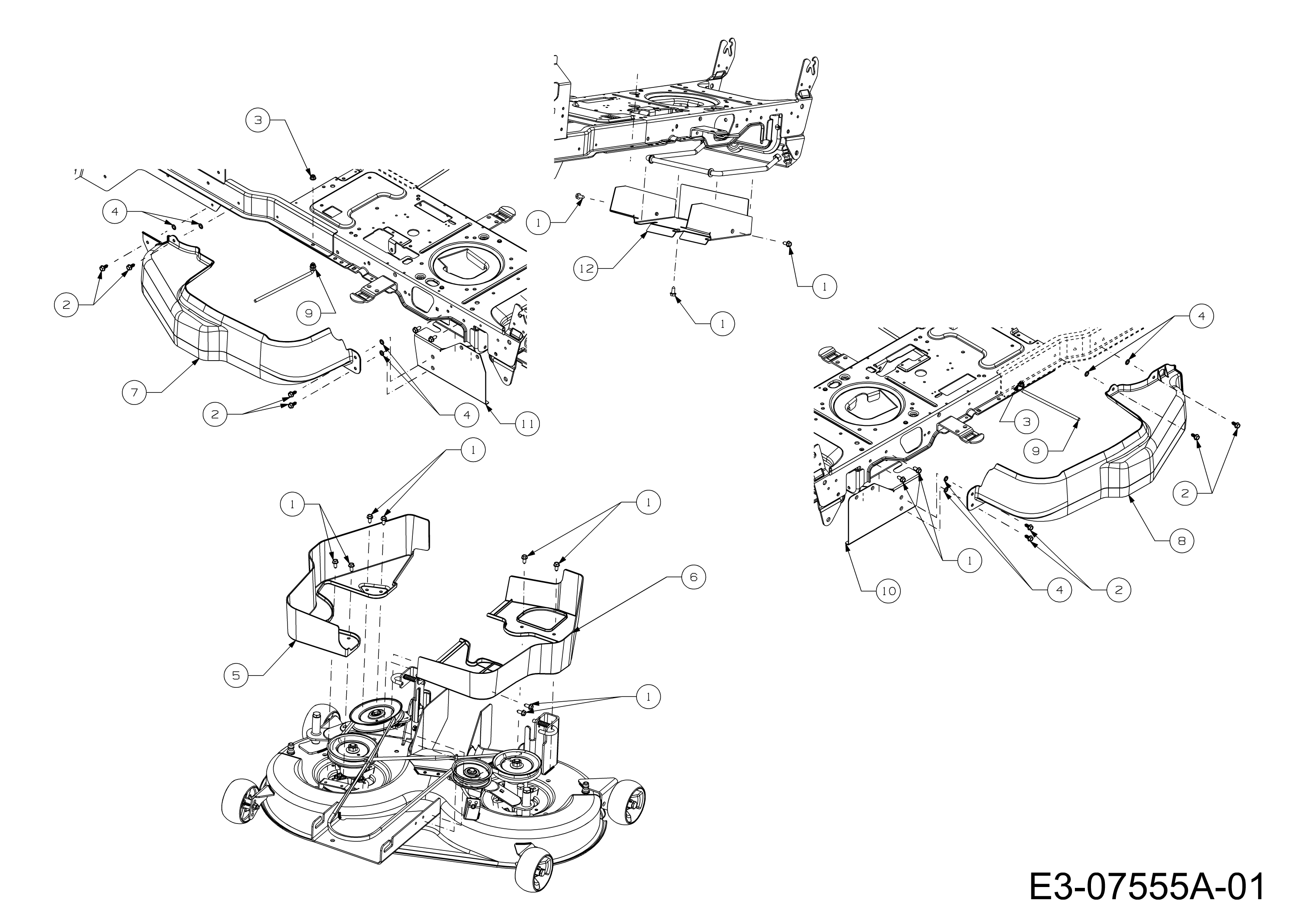

Belts guard

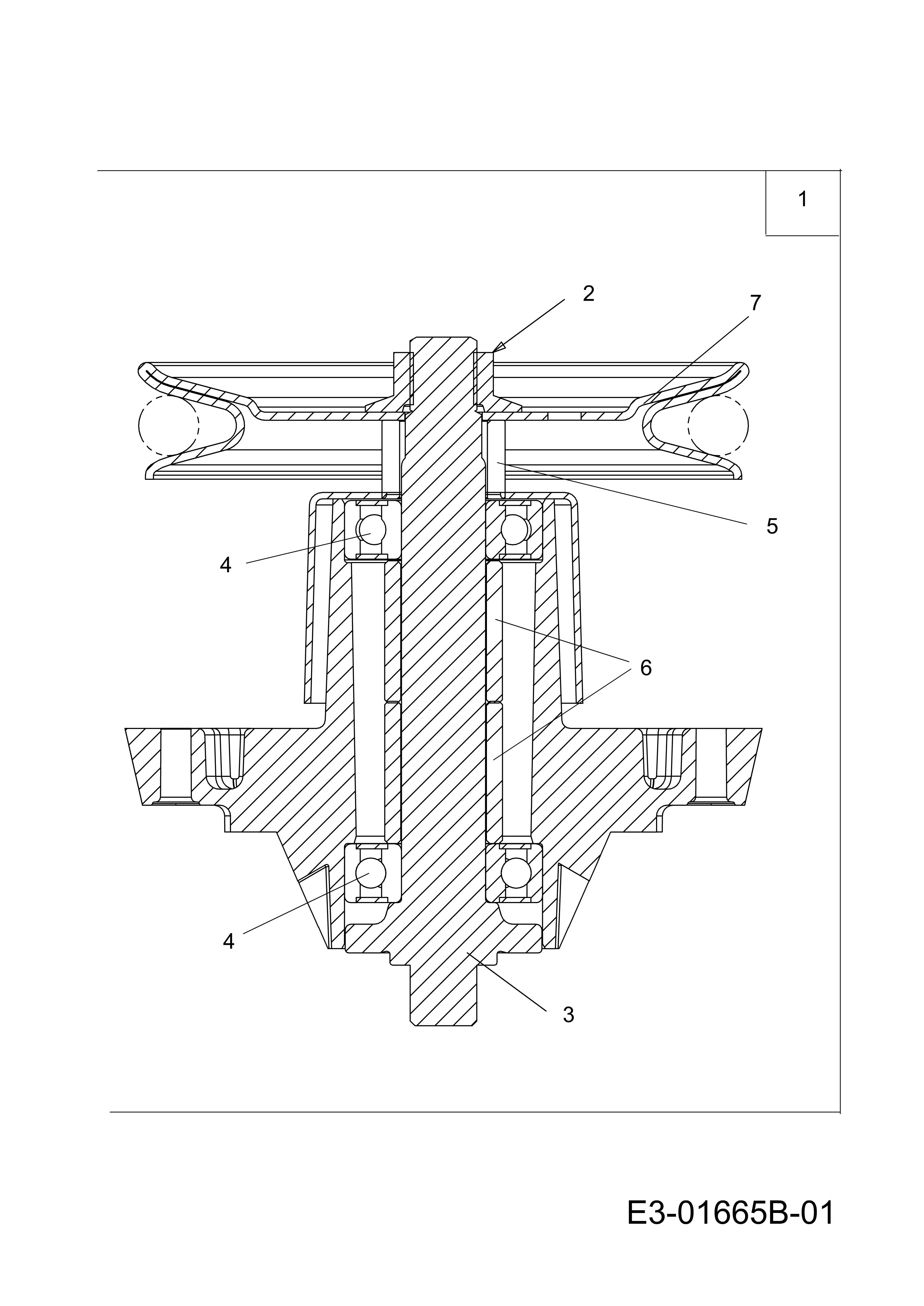

Blade hub

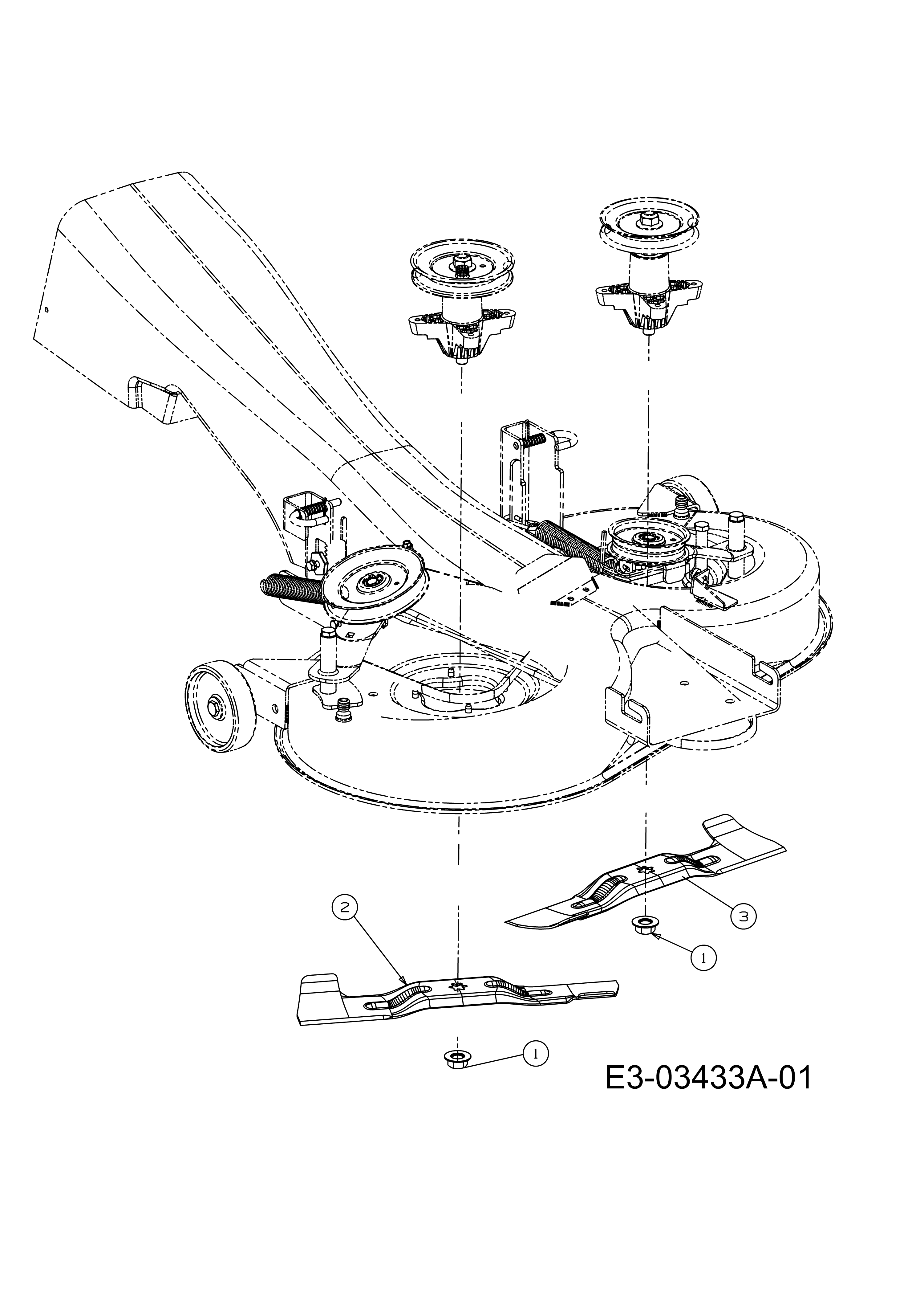

Blades assy

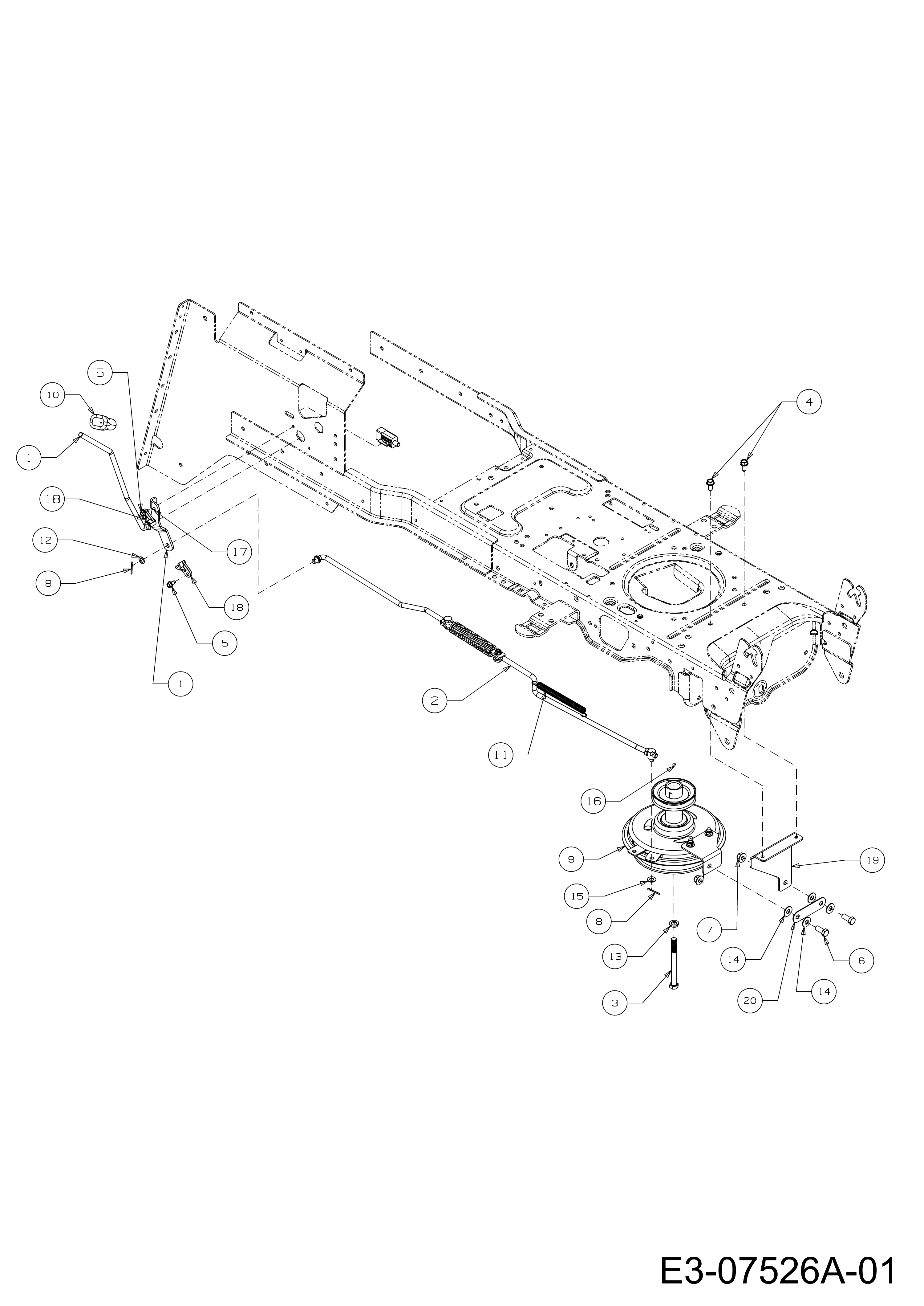

Clutch

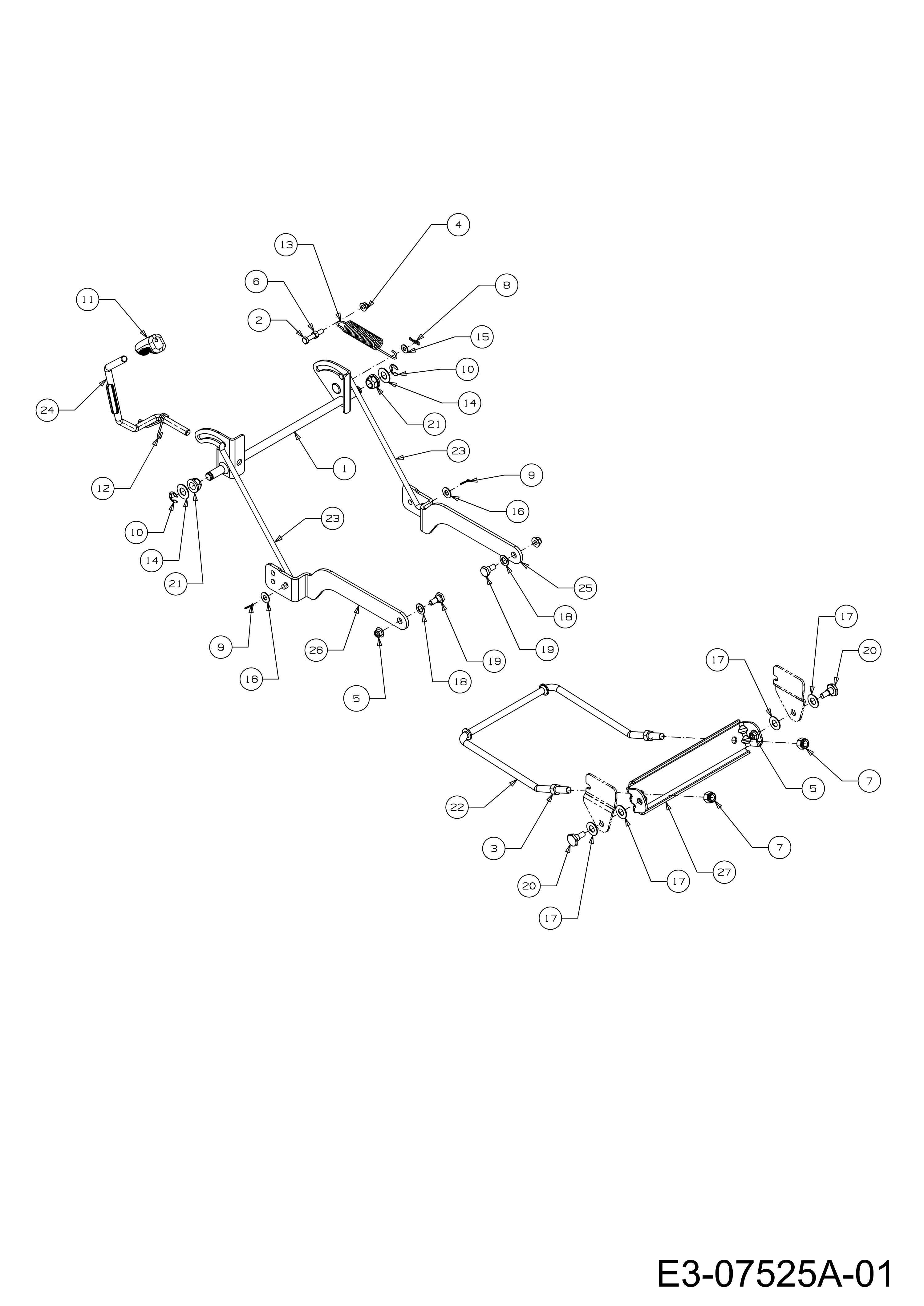

Cutting plate lifting

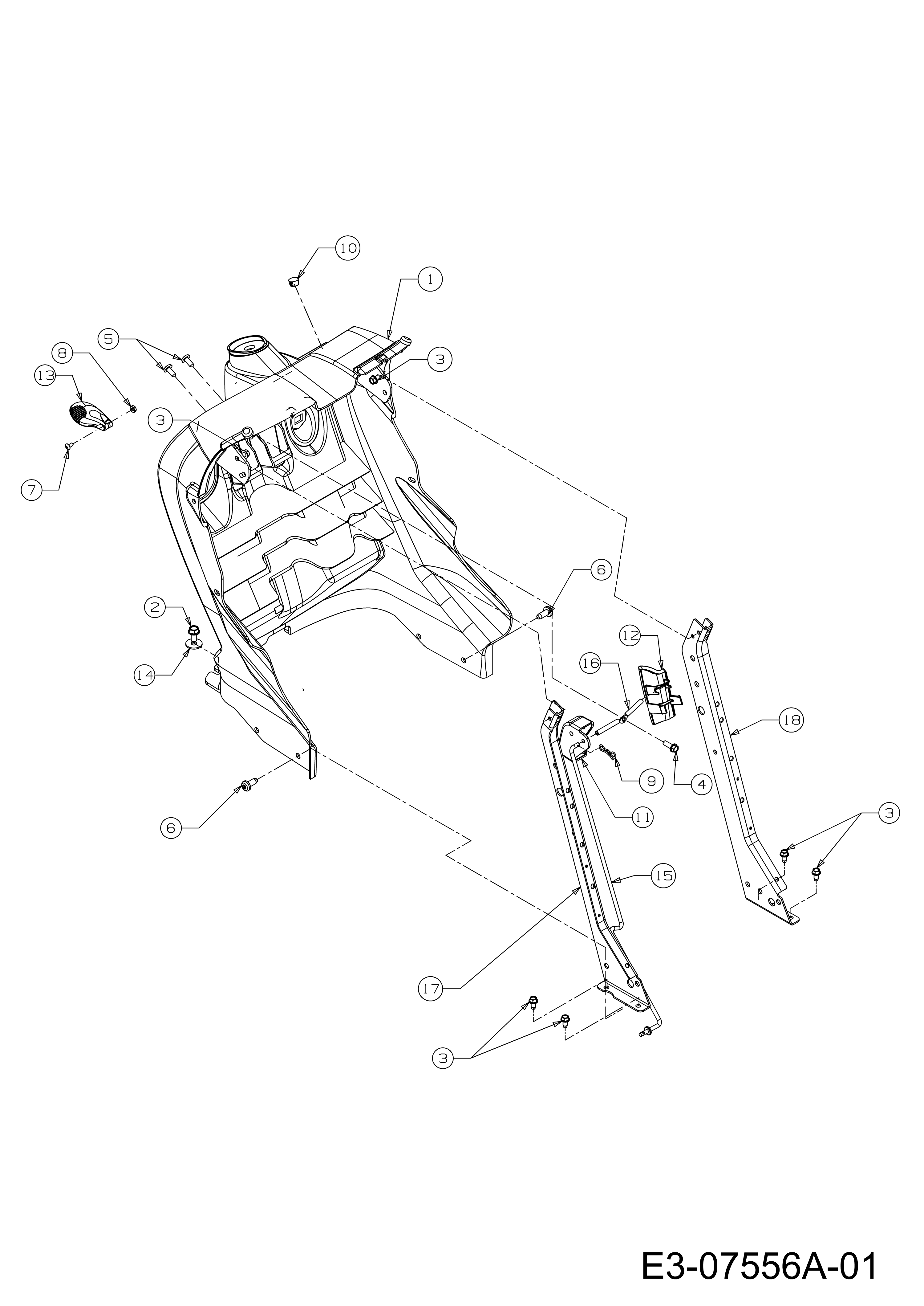

Dashboard

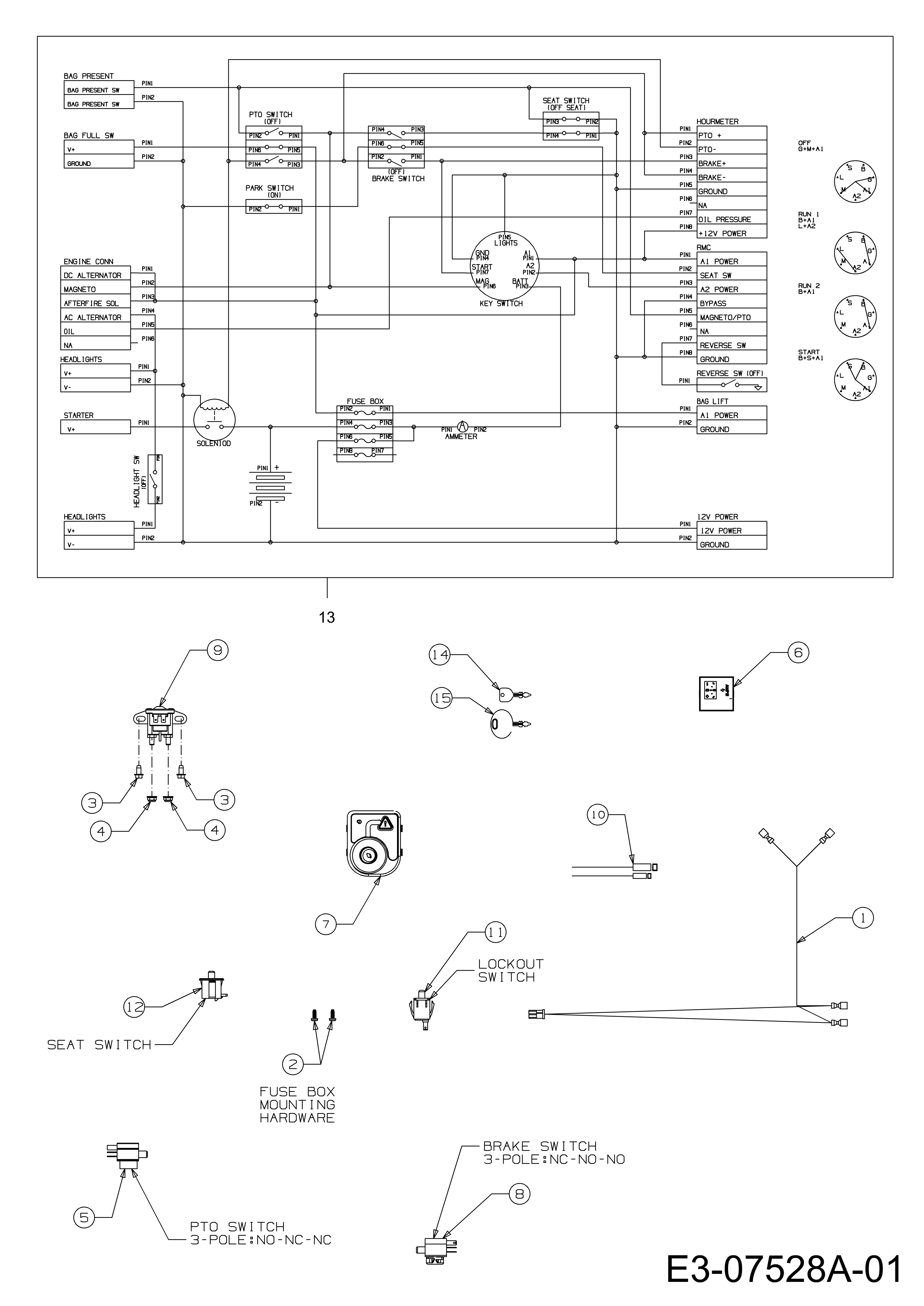

Electric diagram

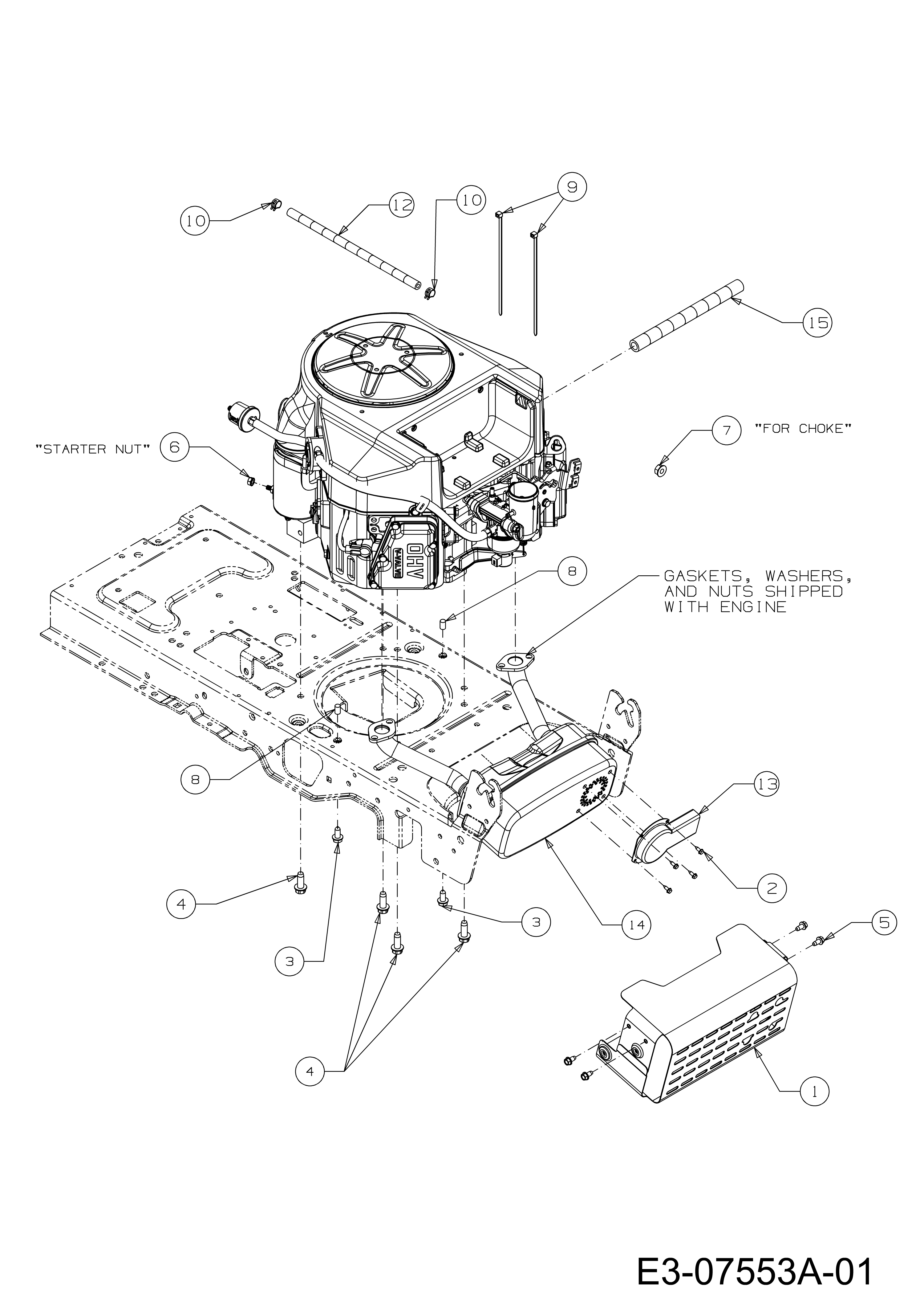

Engine

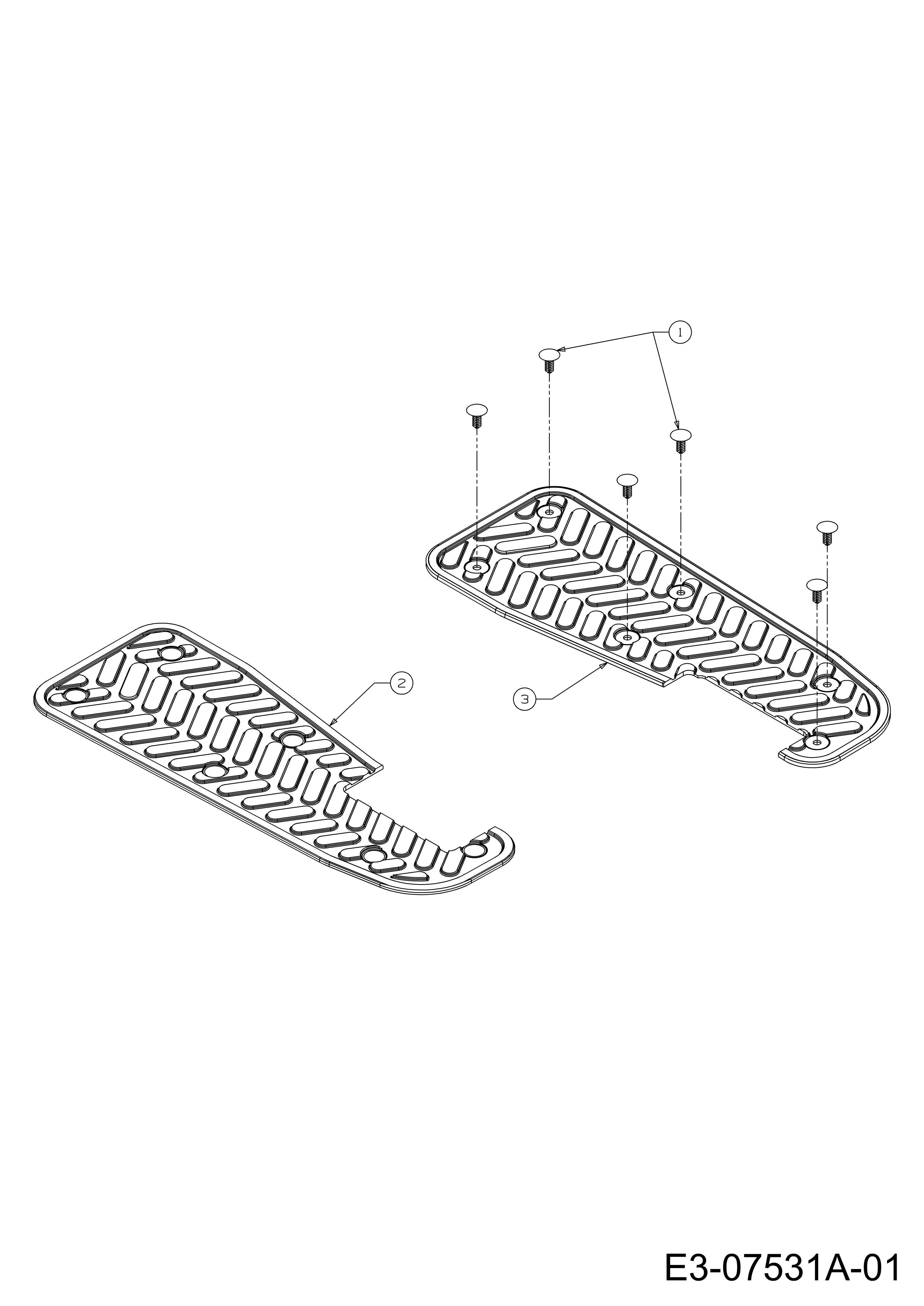

Foot pads

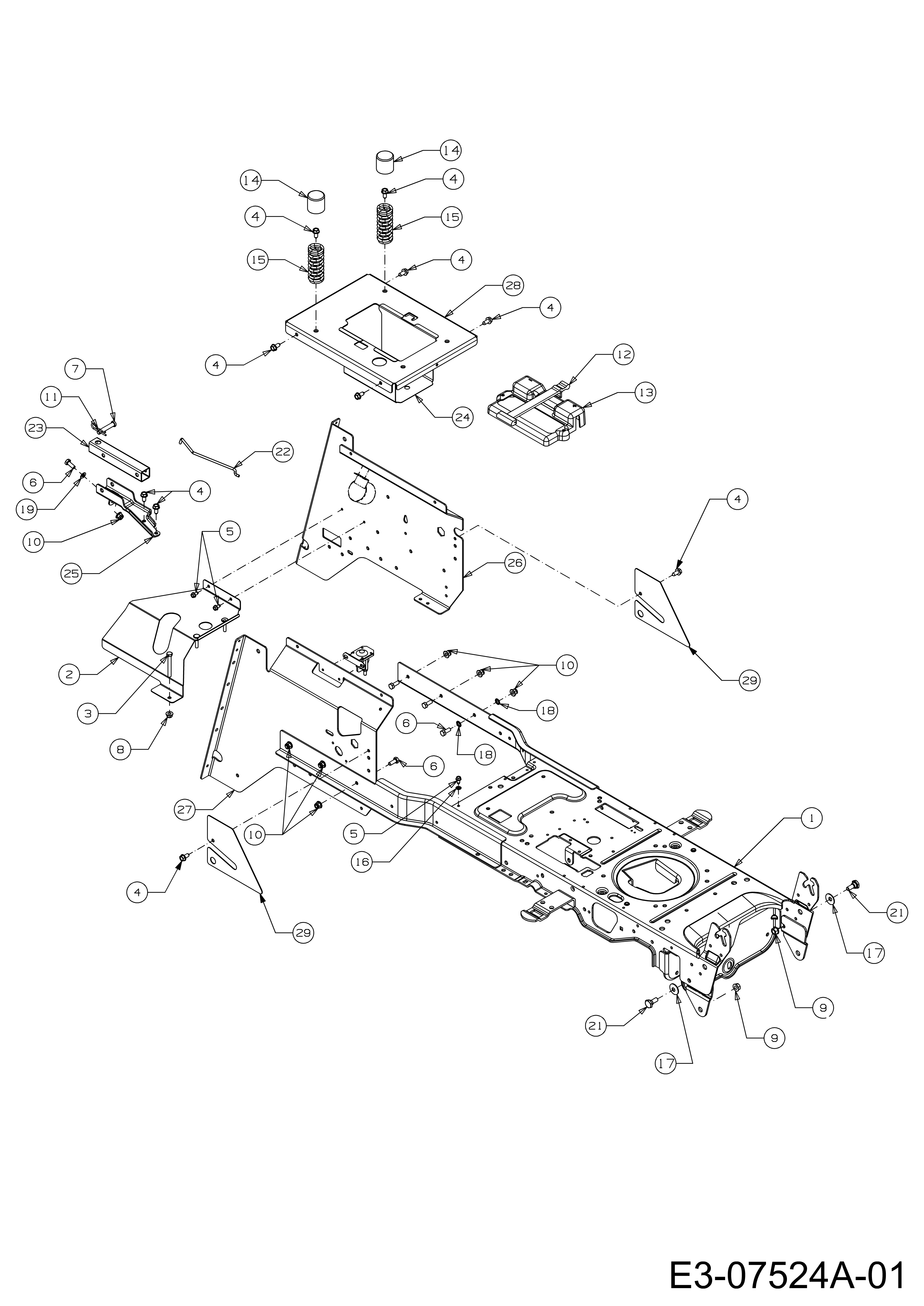

Frame

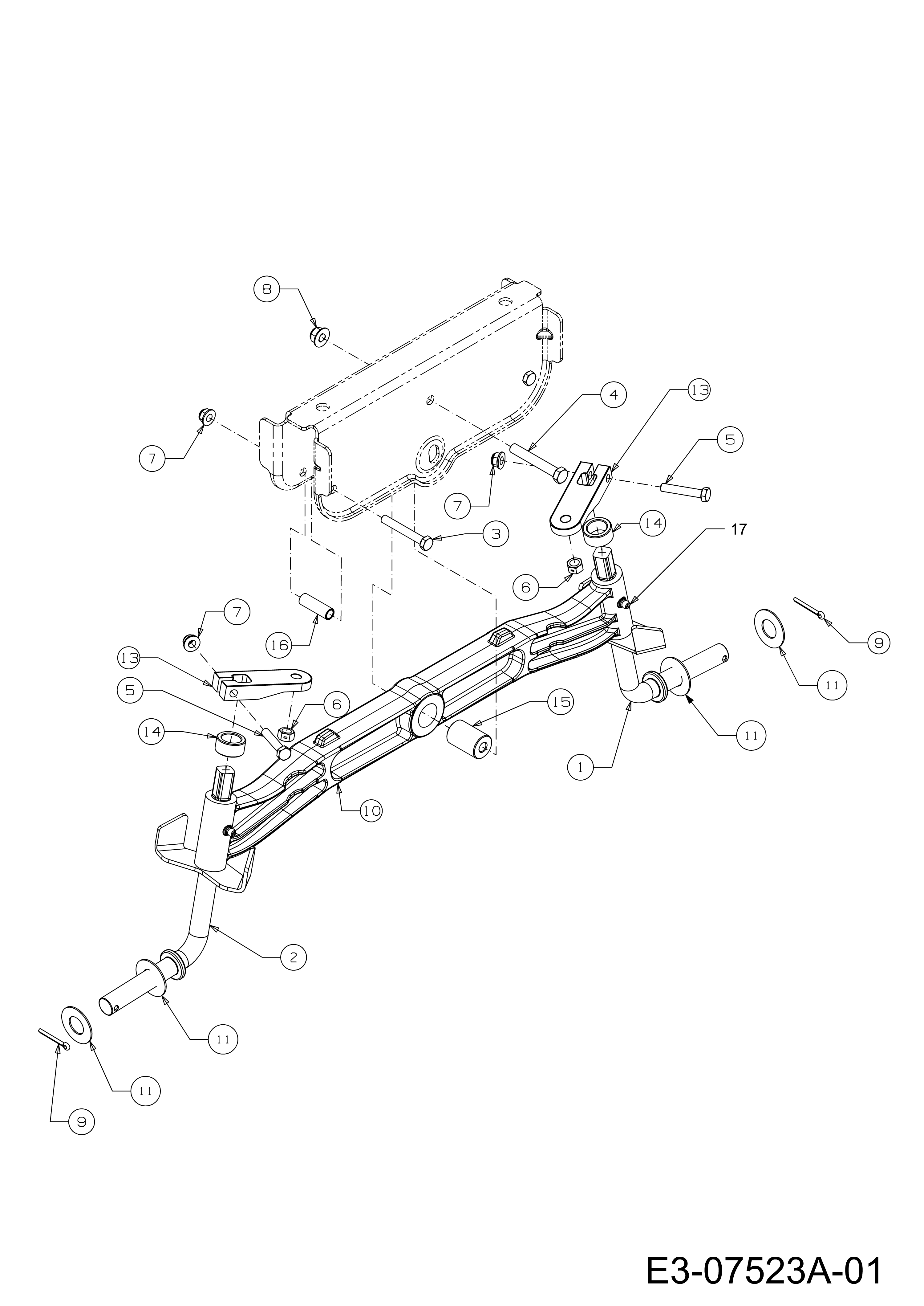

Front axle

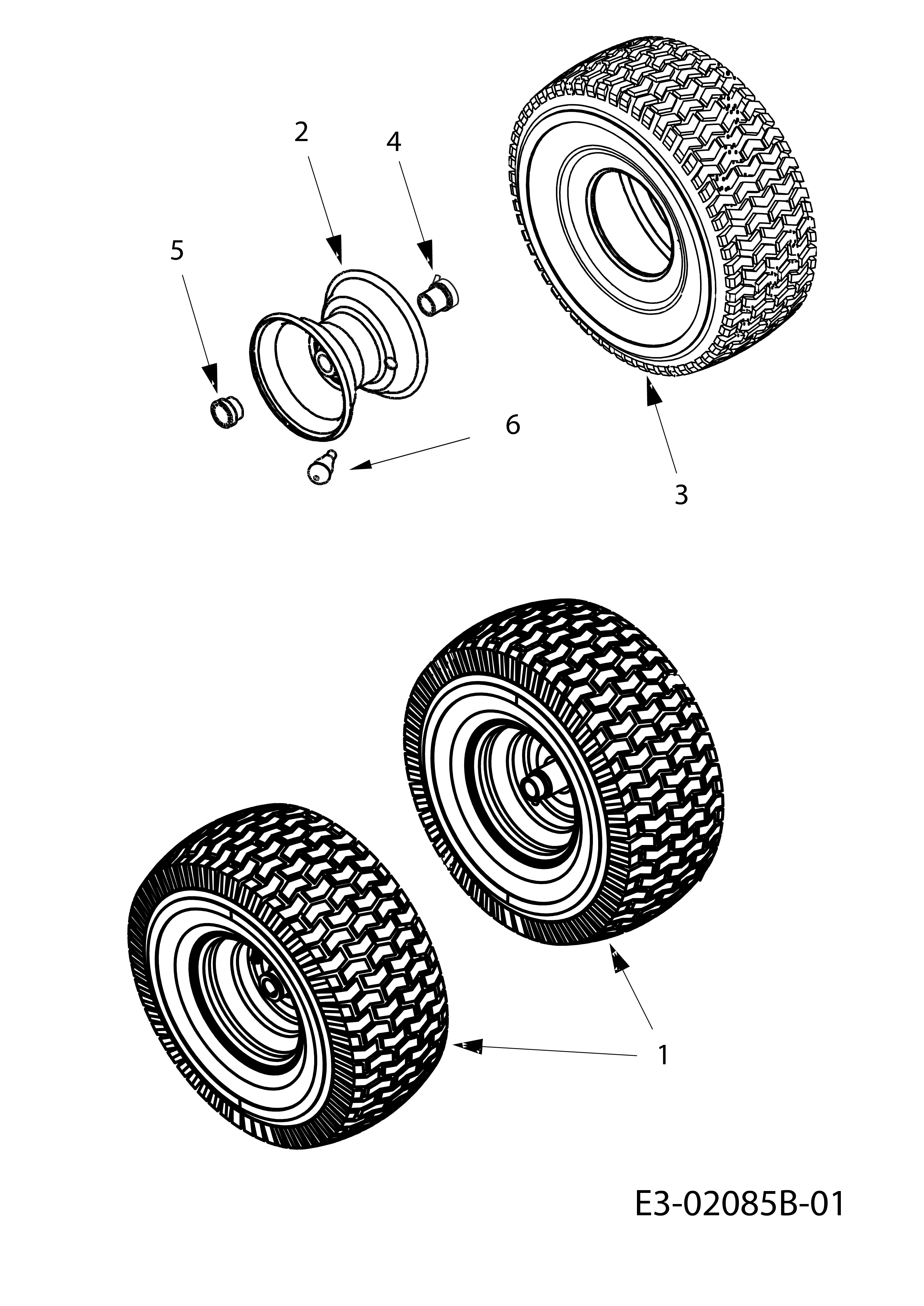

Front wheels

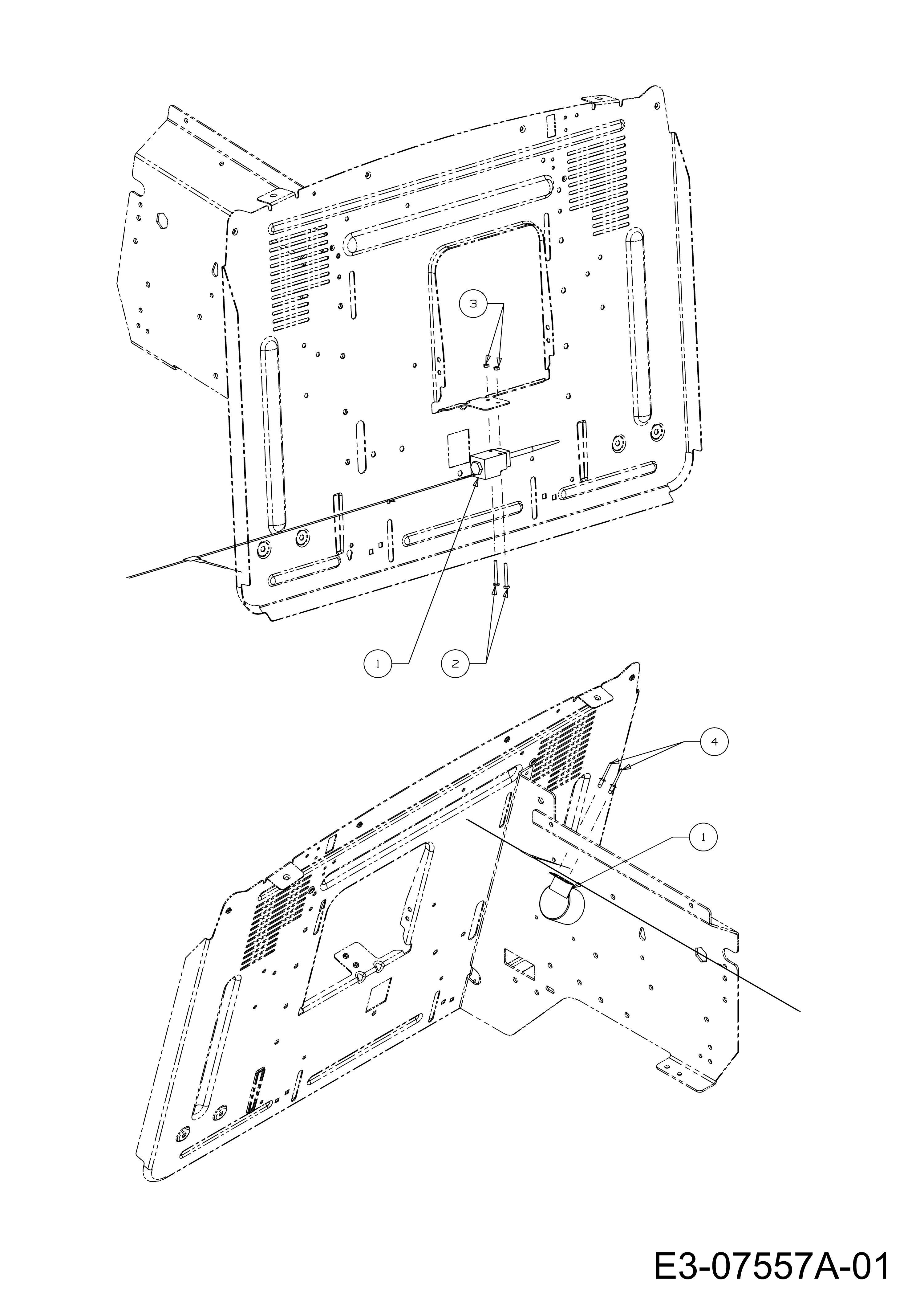

Full bag switch

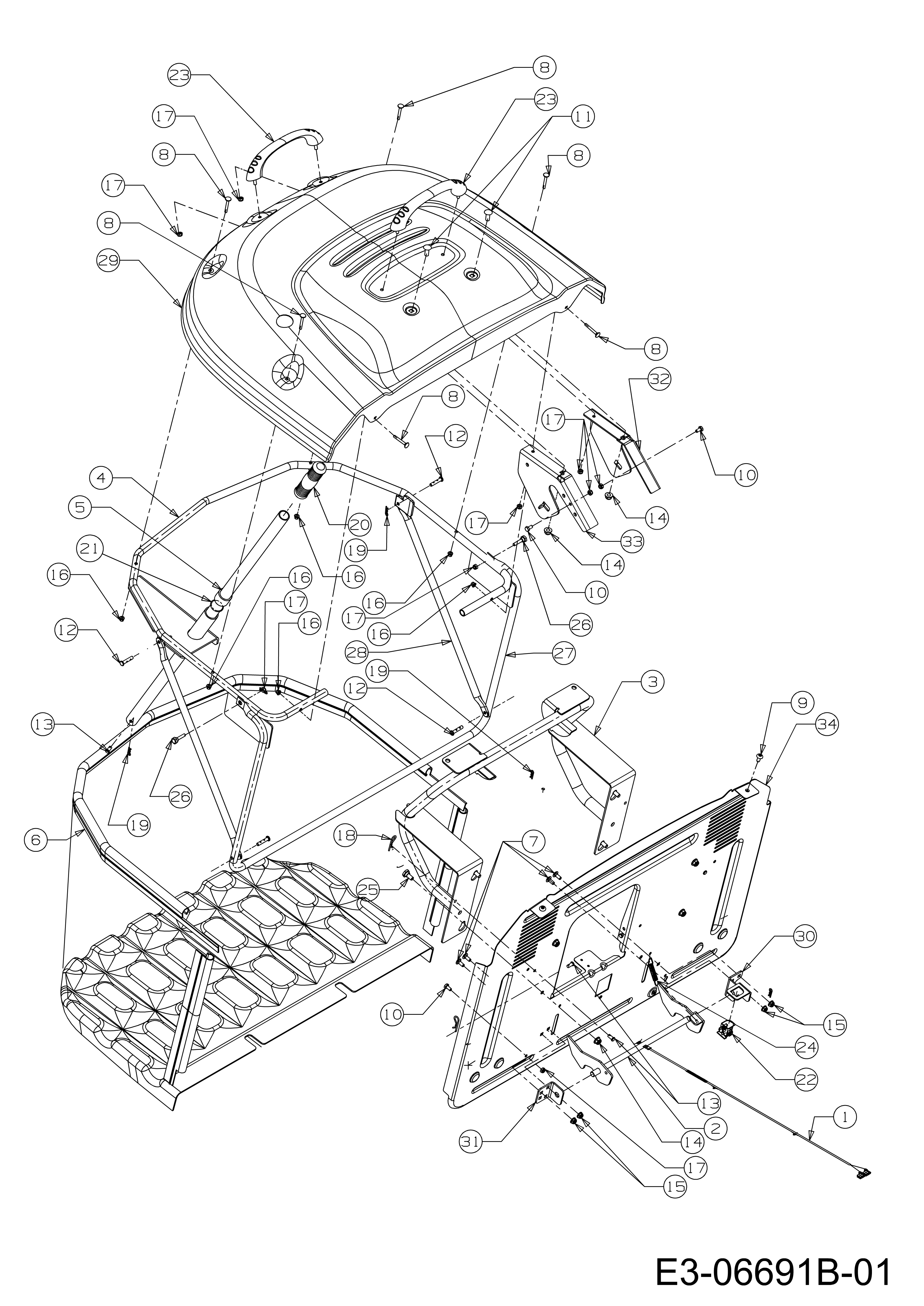

Grass collector

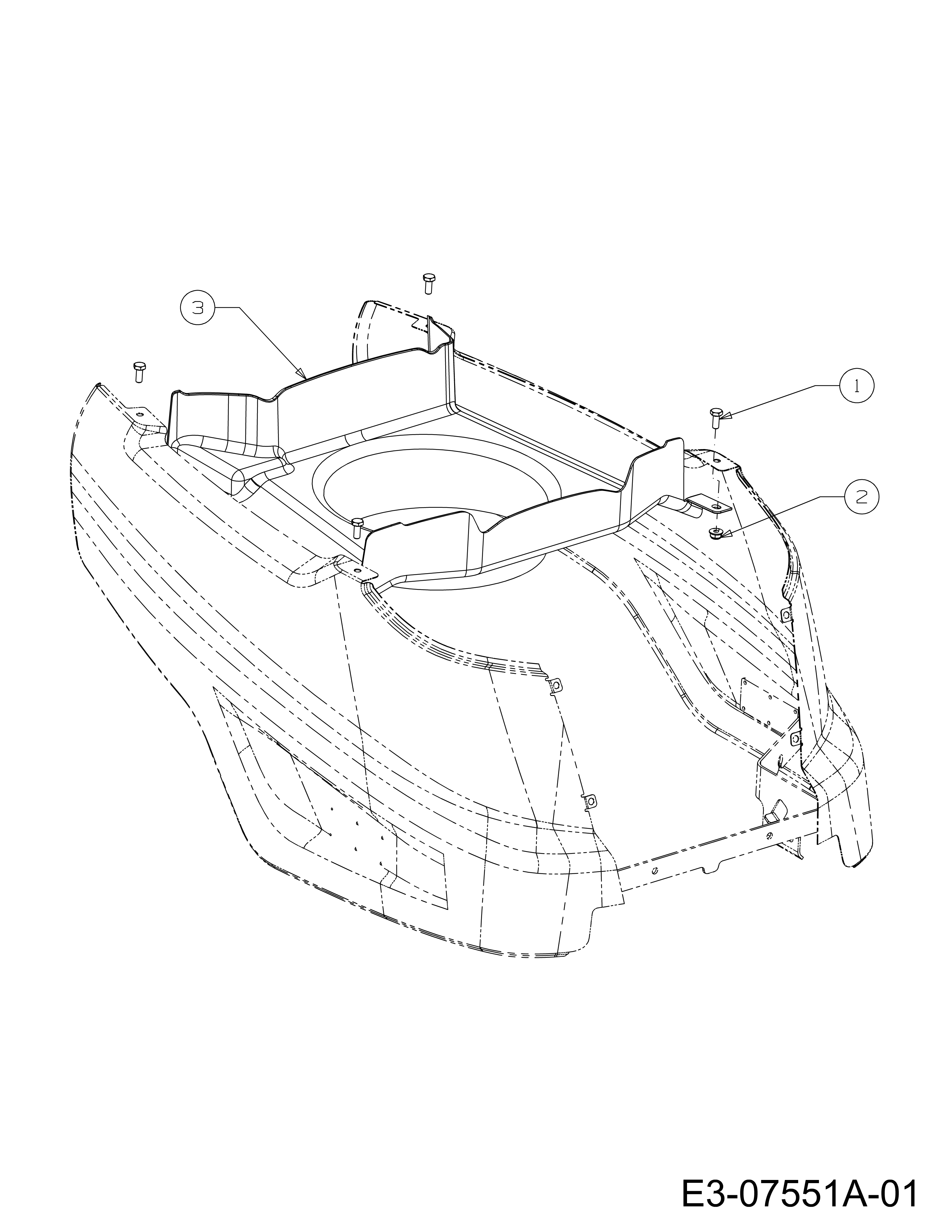

Hood plen

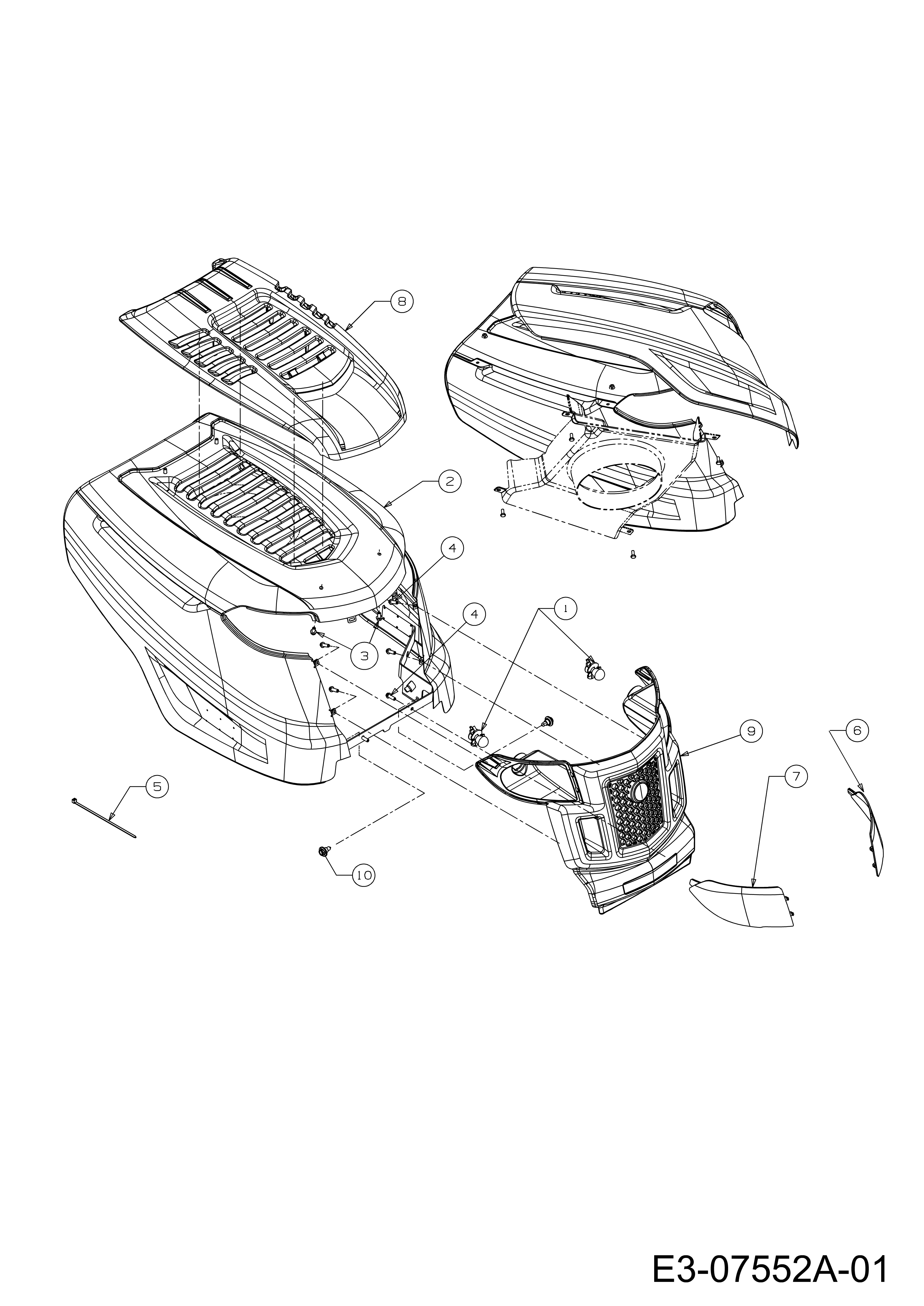

Hood

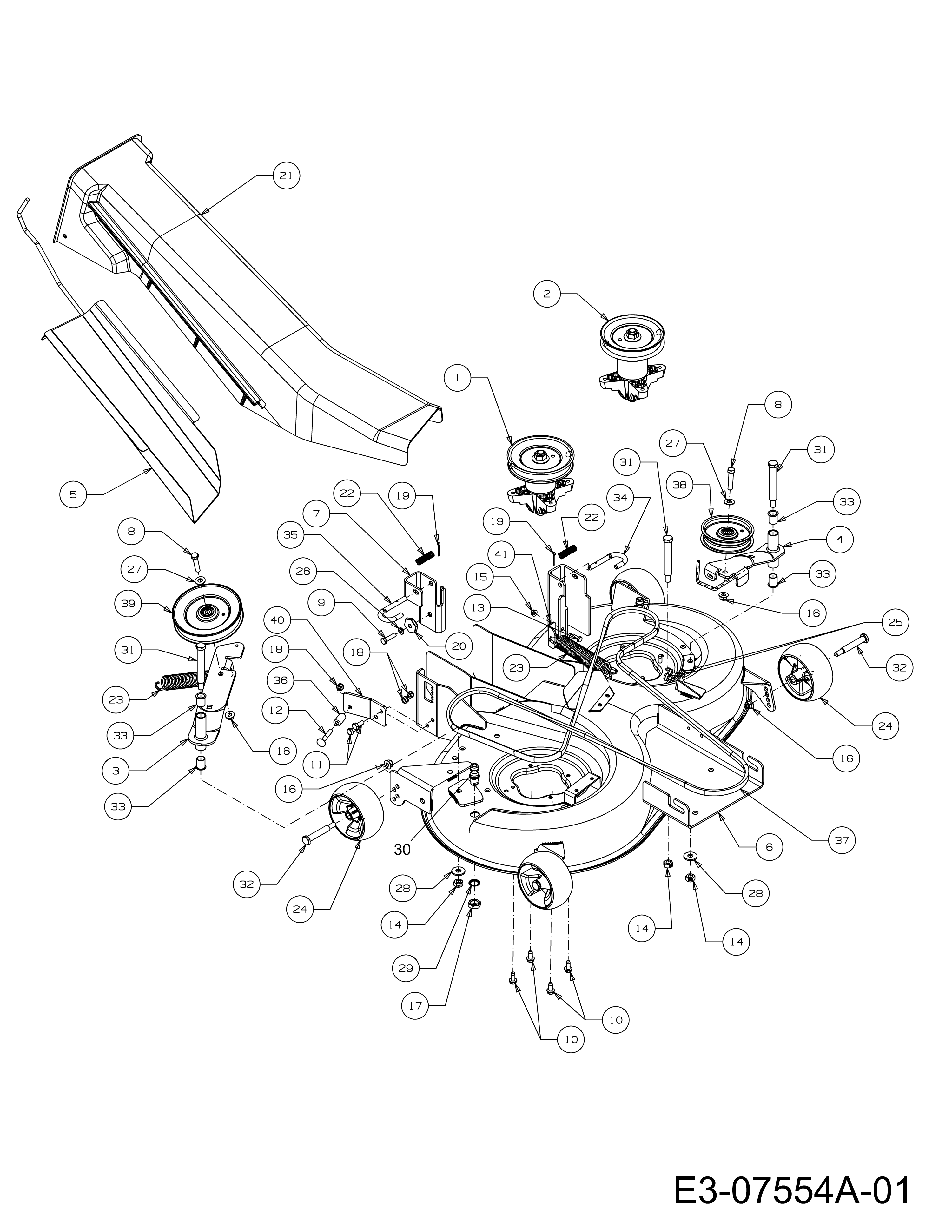

Mowing deck

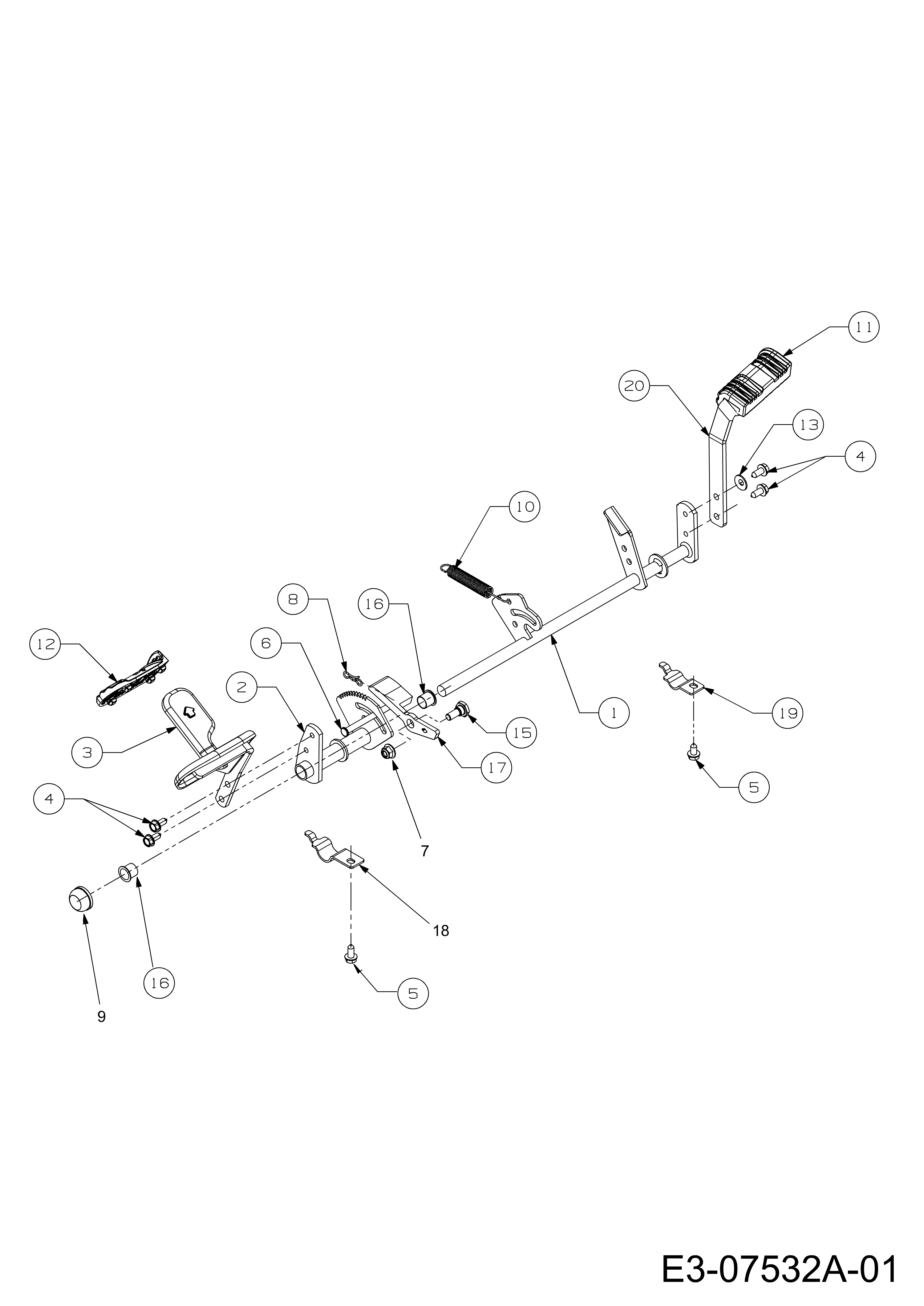

Pedals

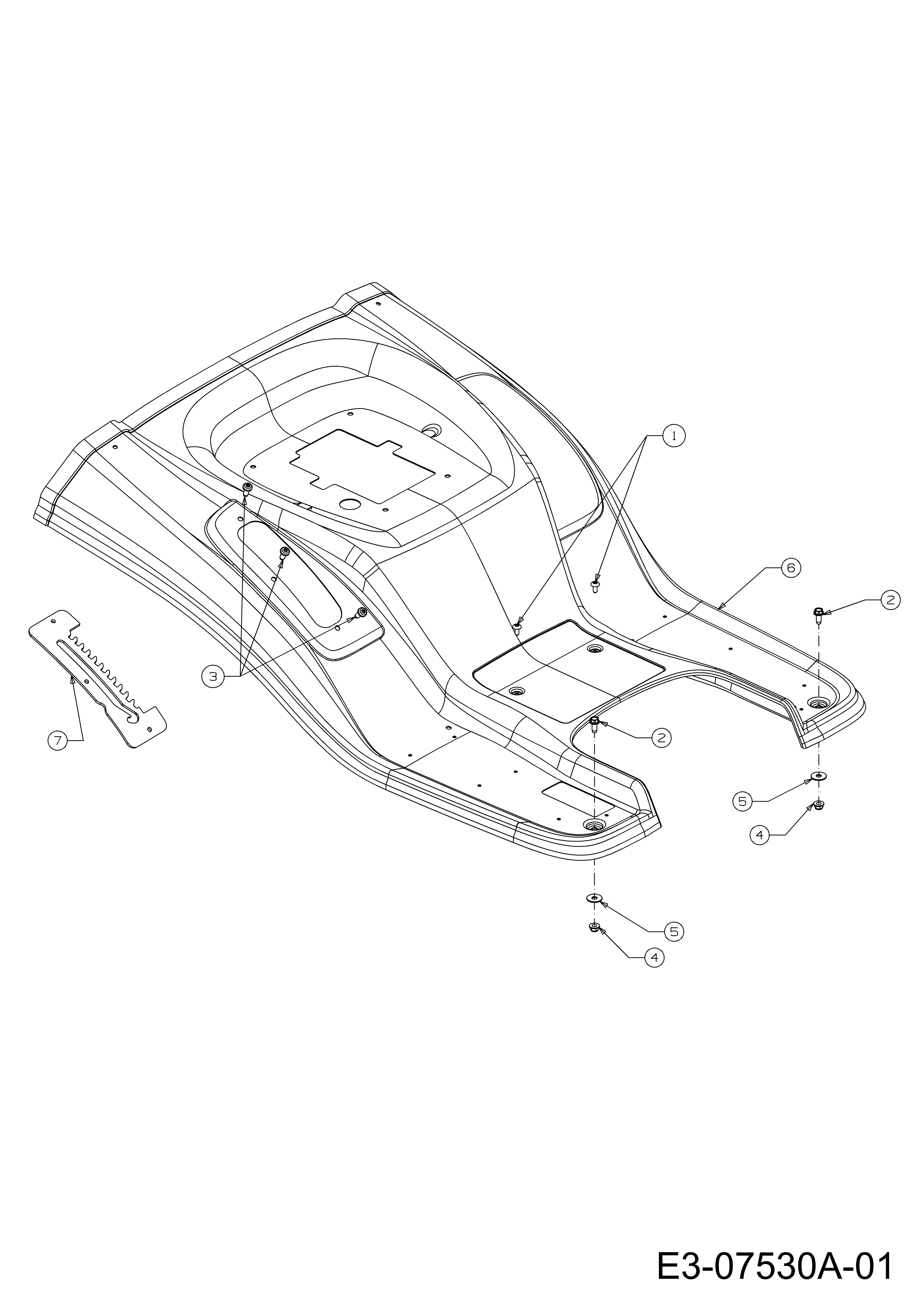

Rear body

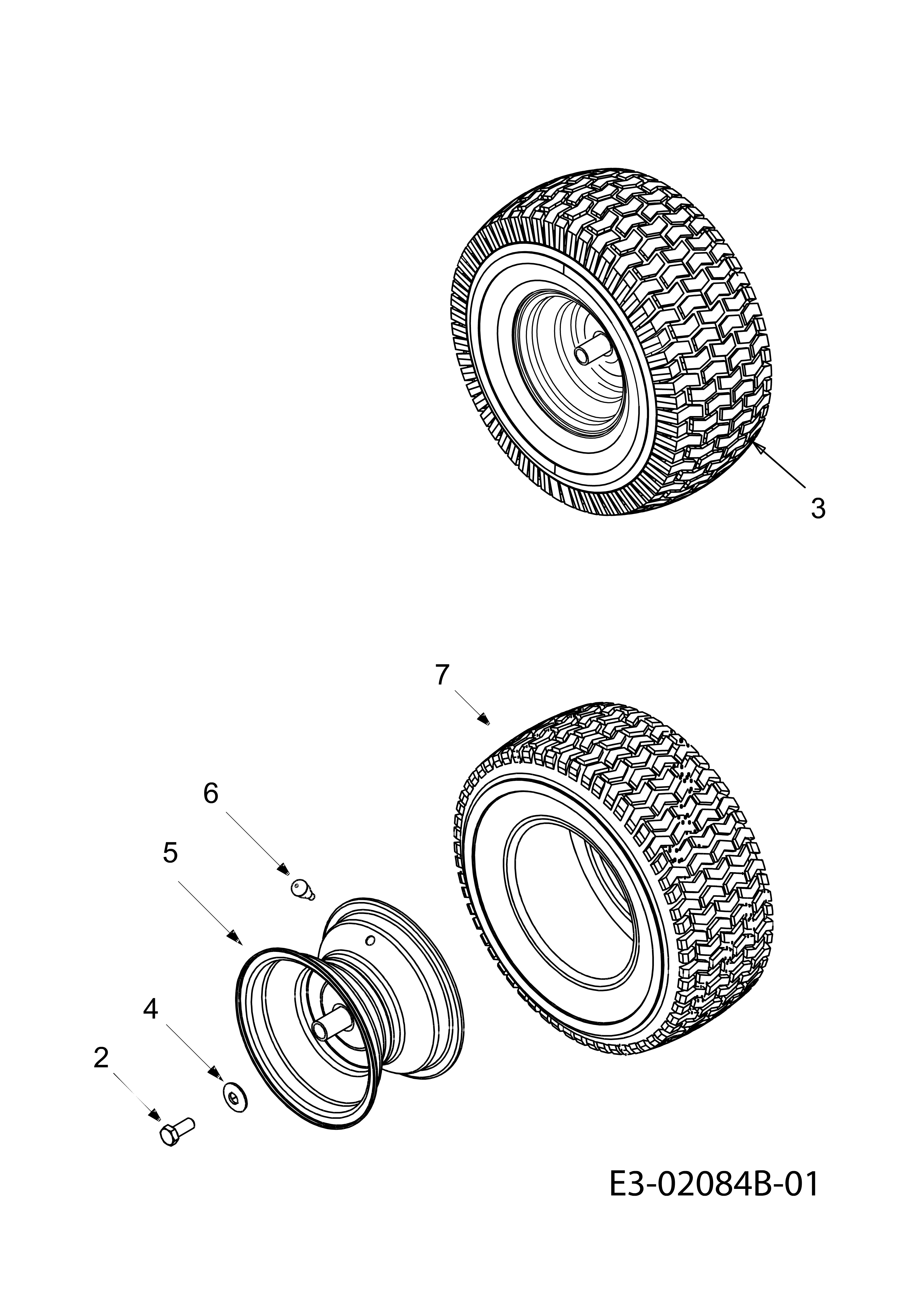

Rear wheels

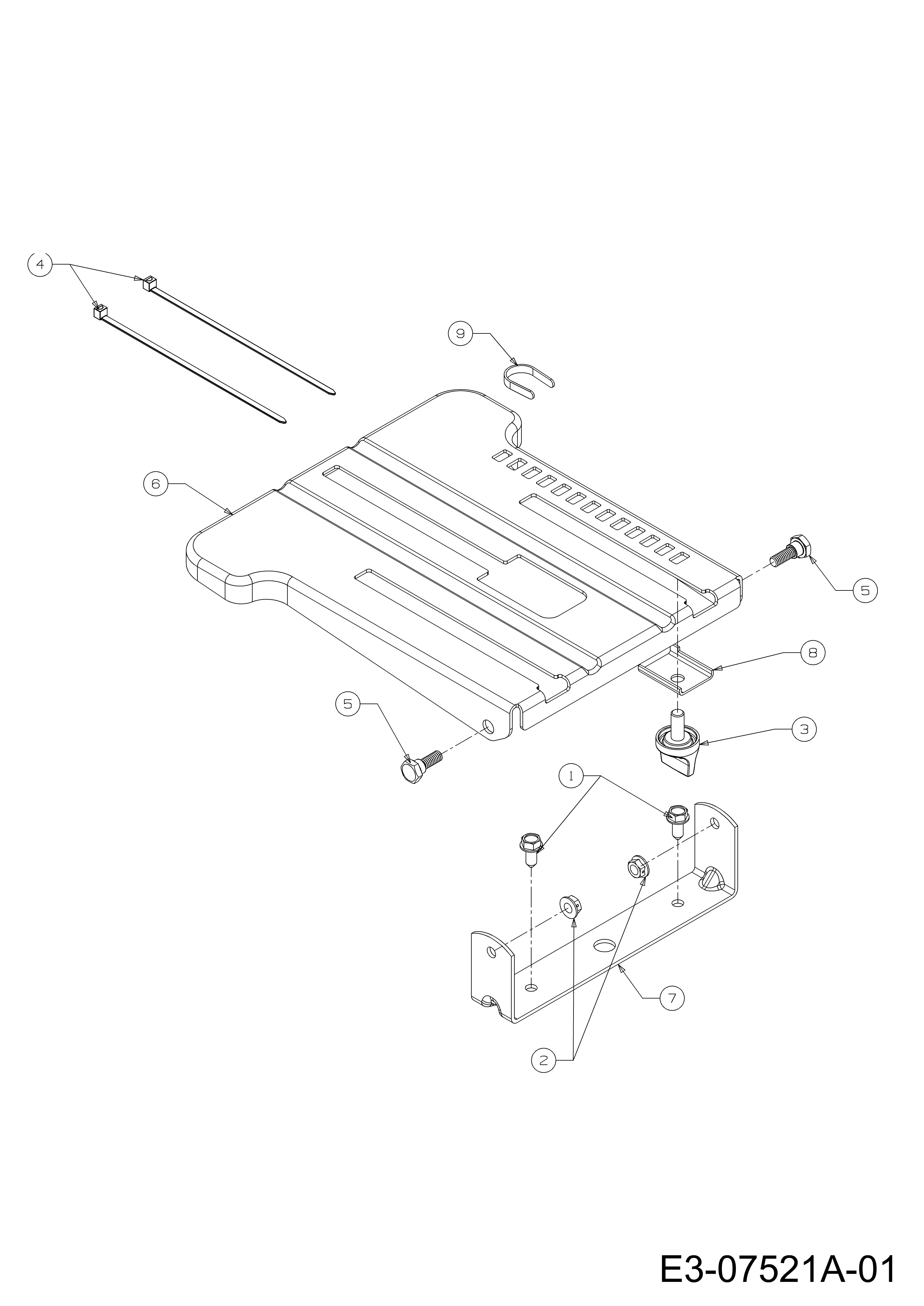

Seat support

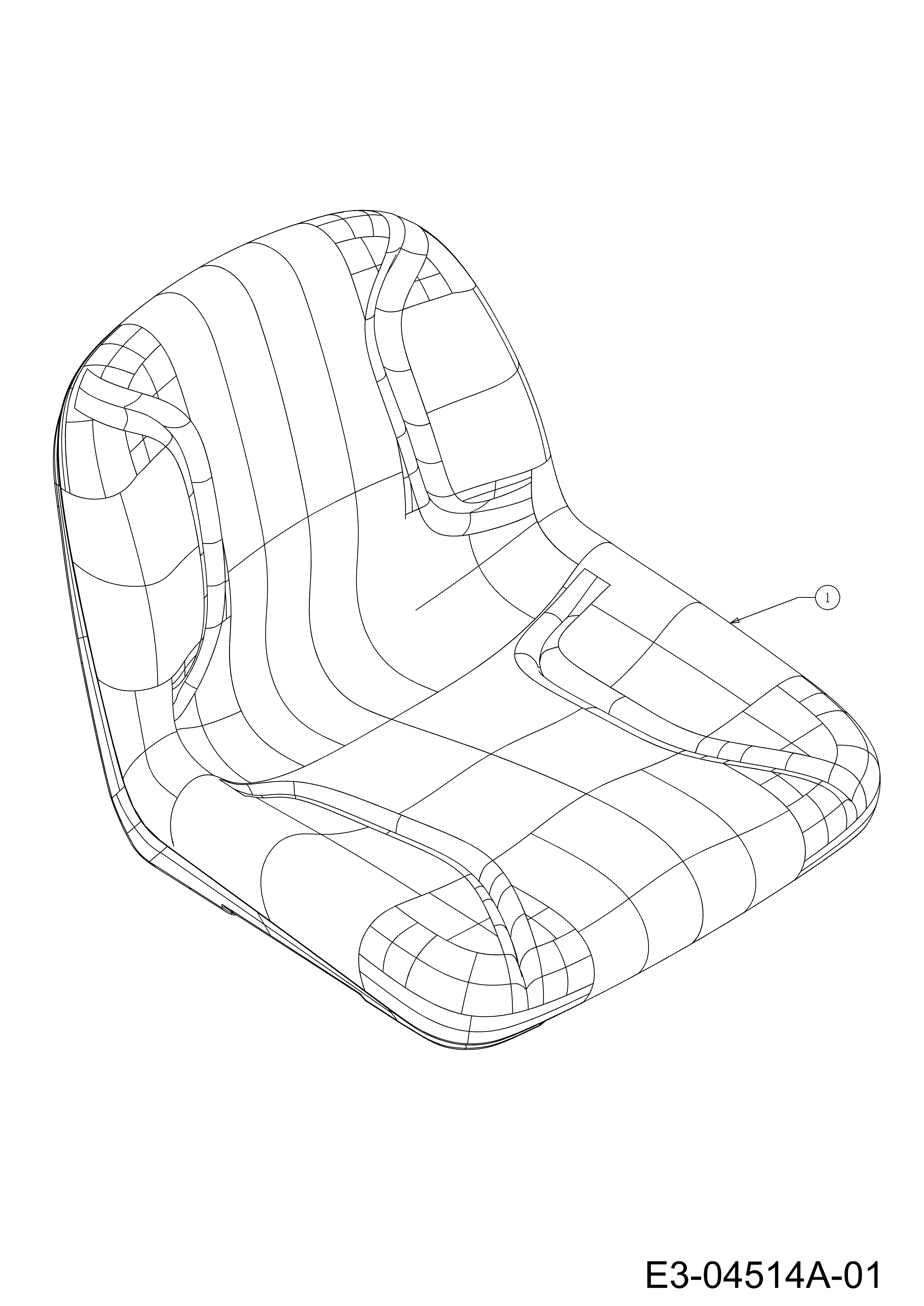

Seat

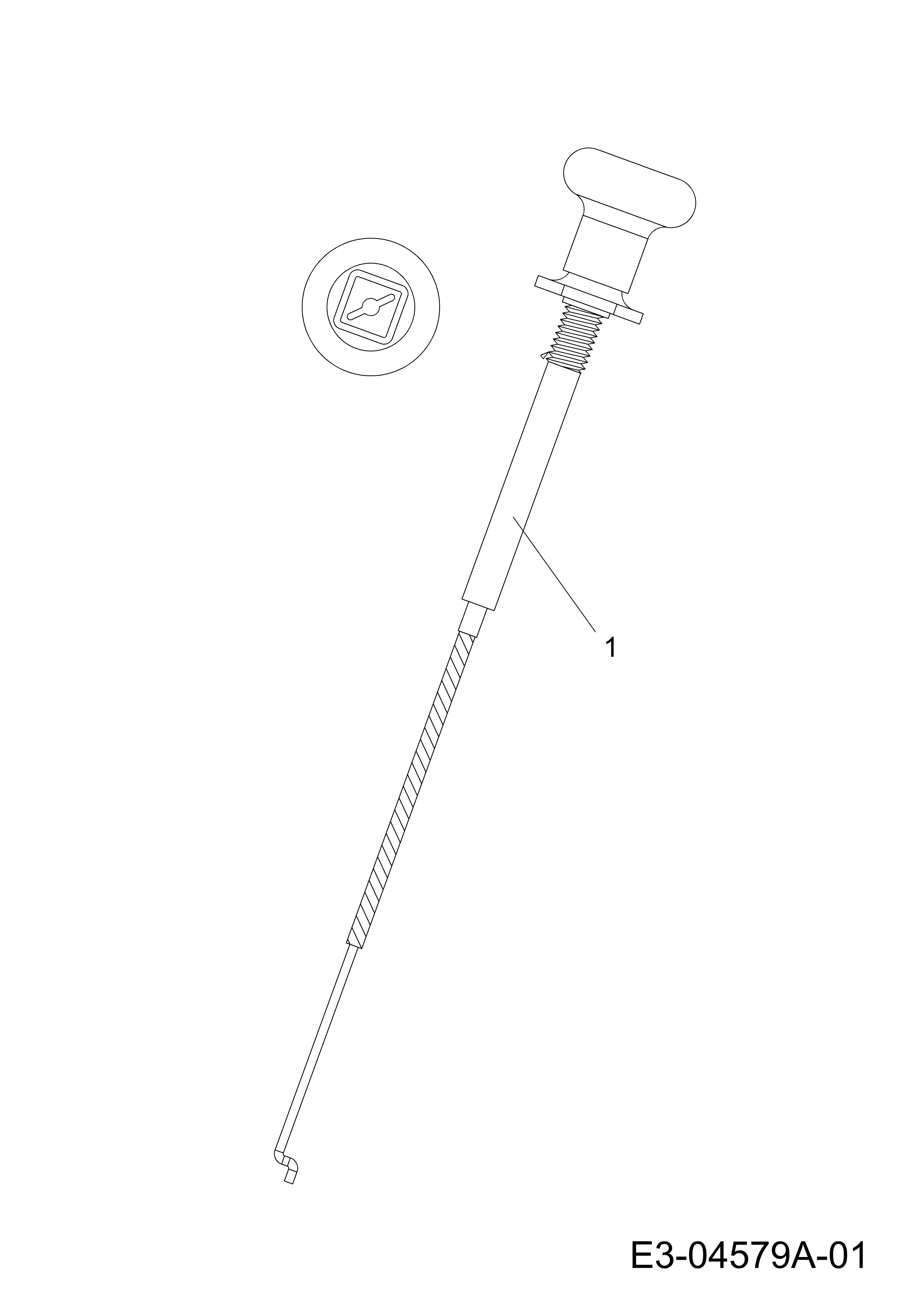

Starter cable

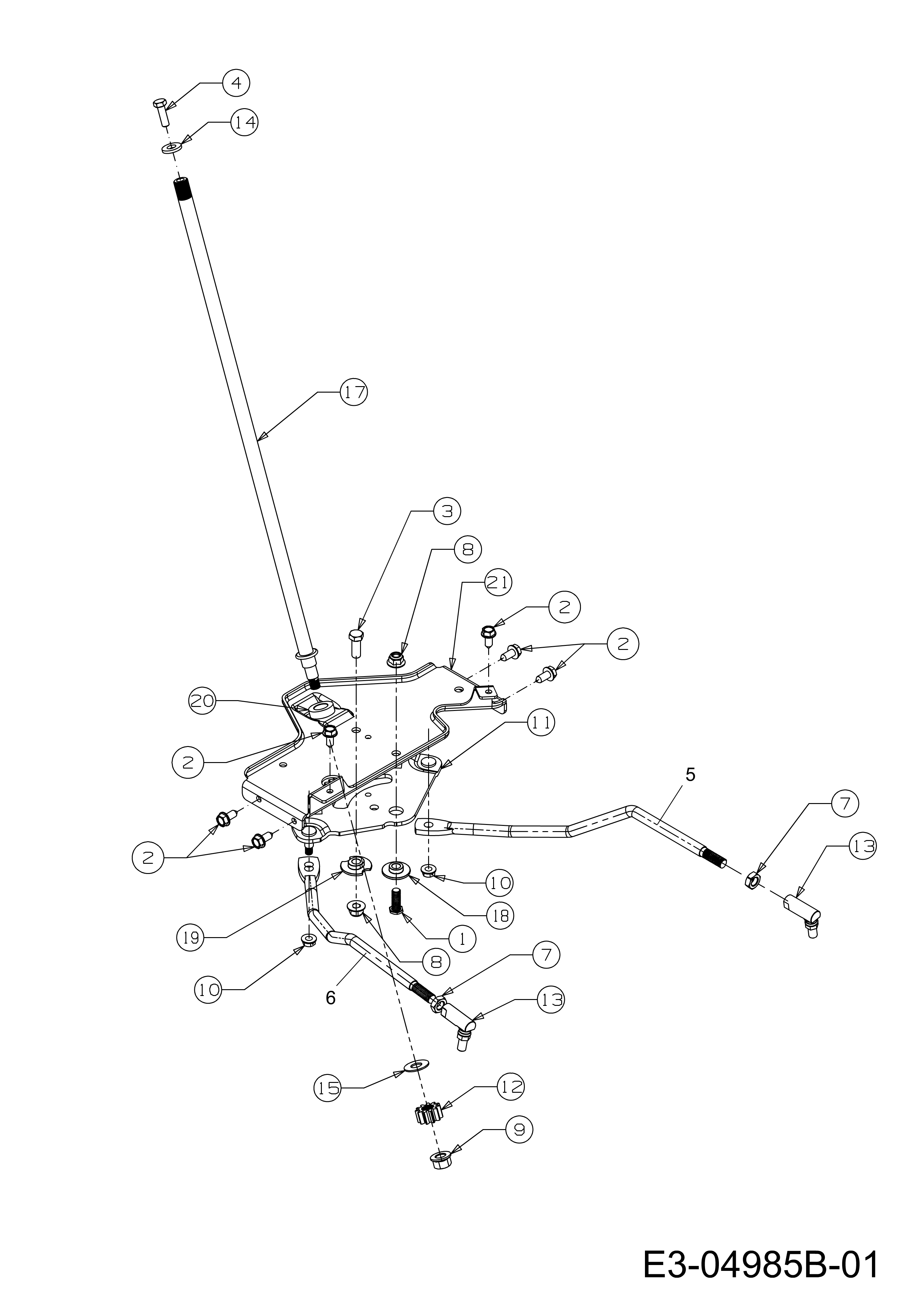

Steering assembly

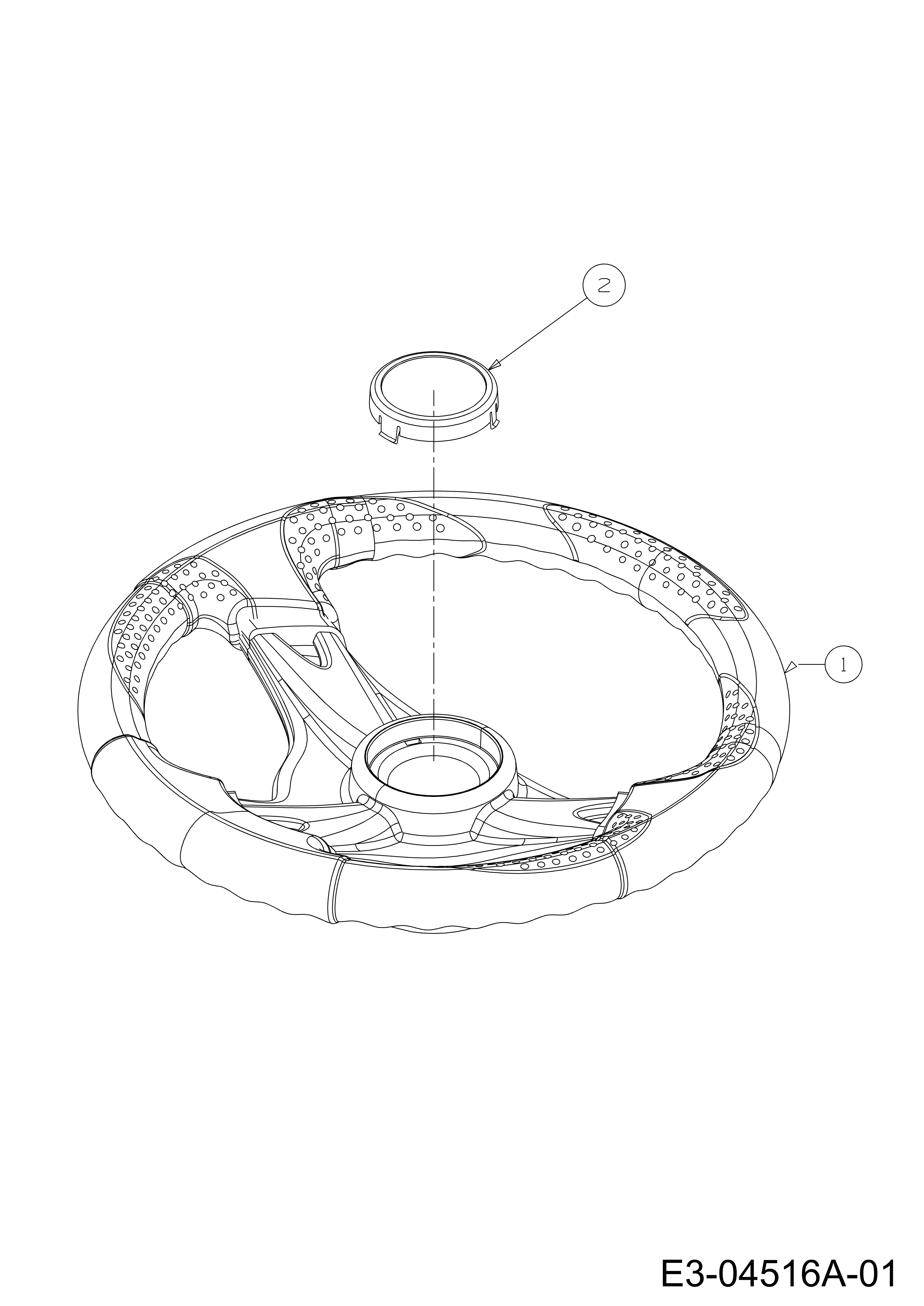

Steering wheel

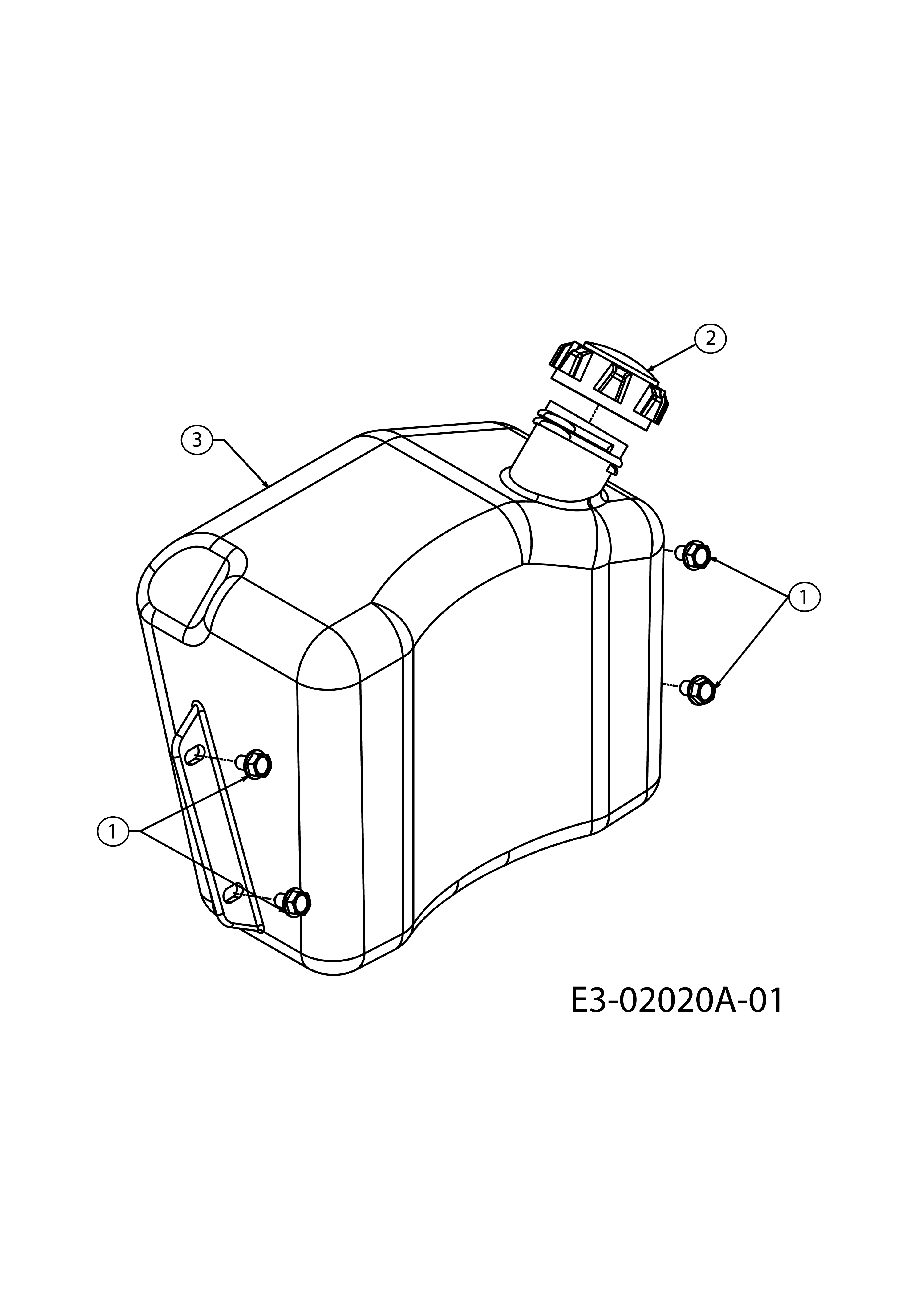

Tank

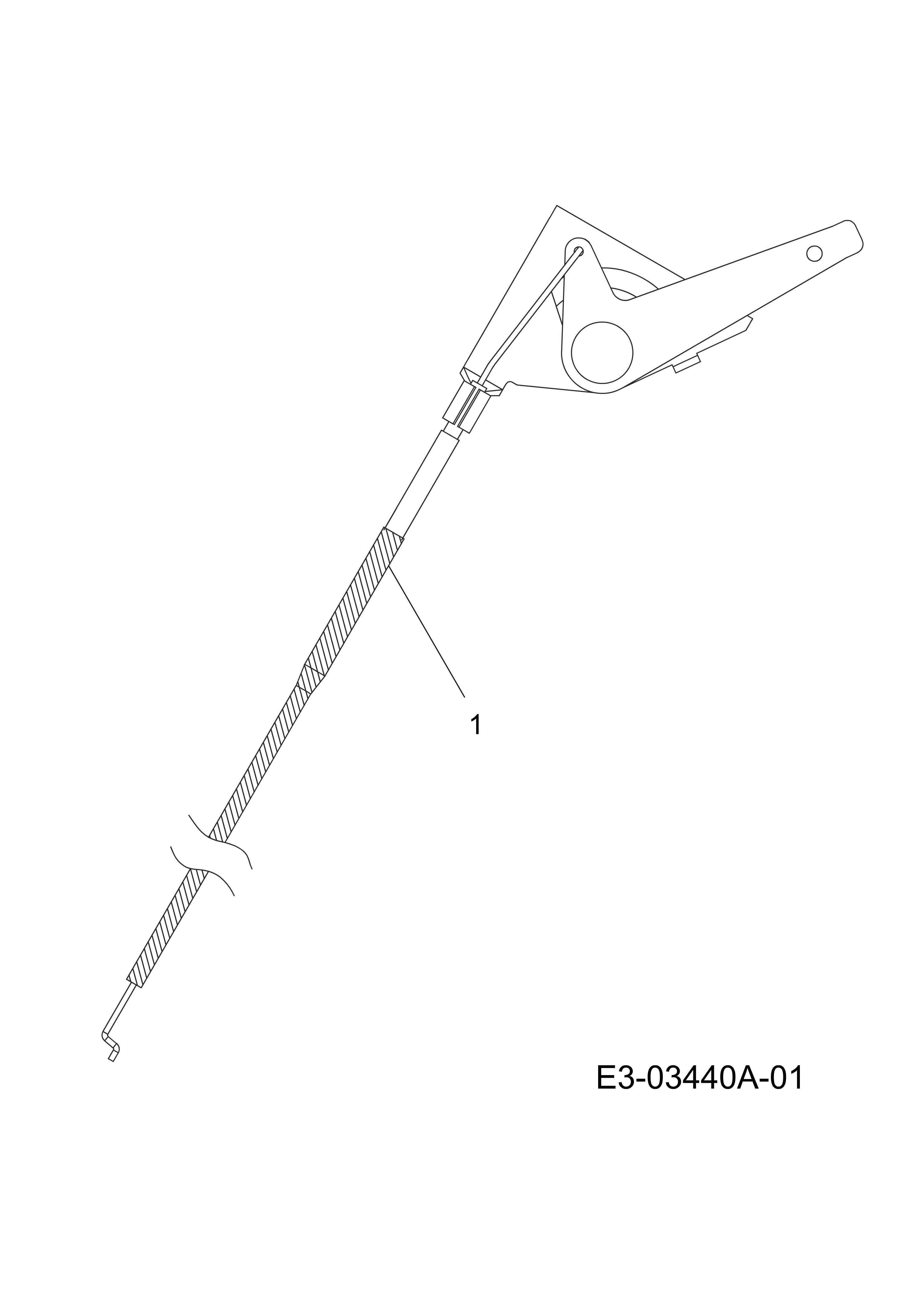

Throttle cable

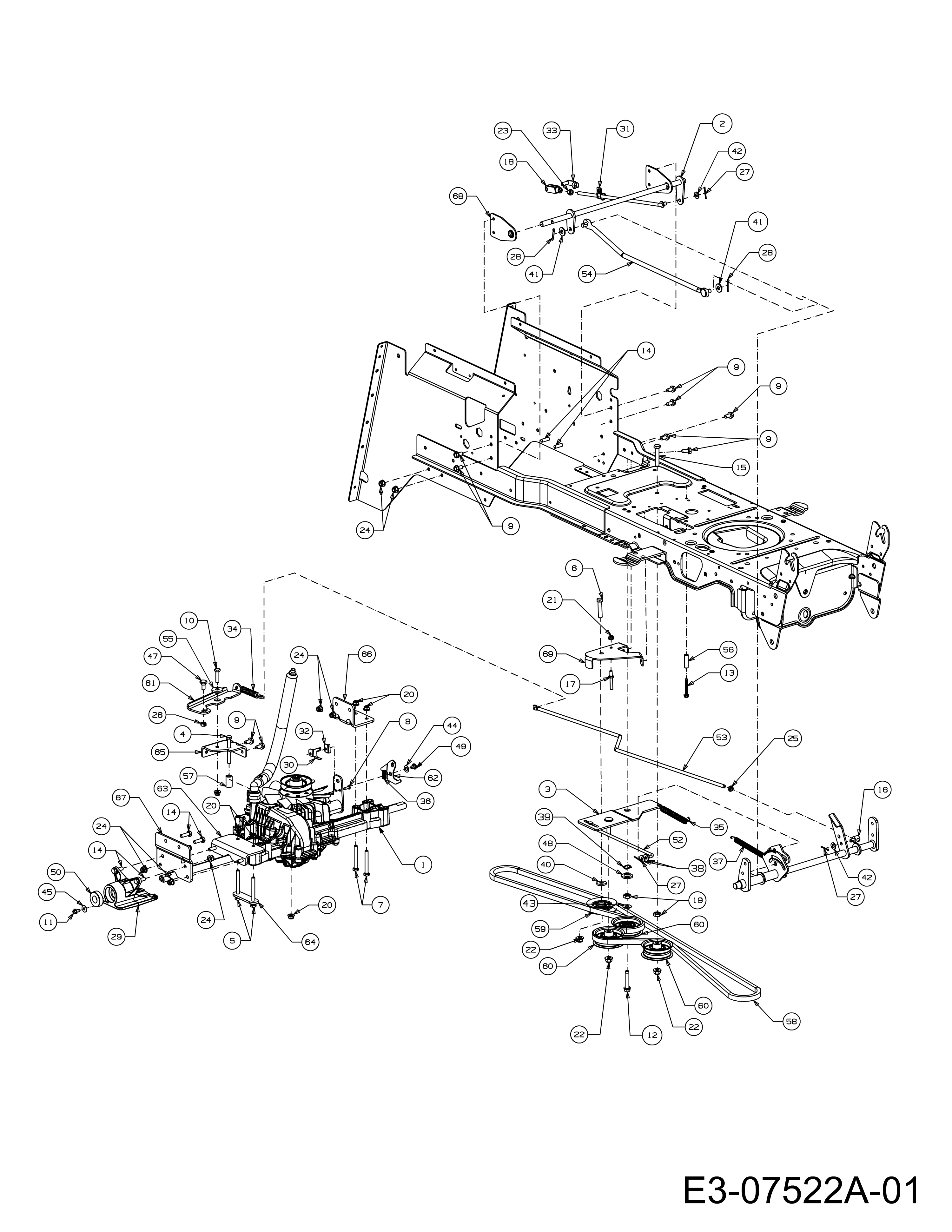

Transmission and frame

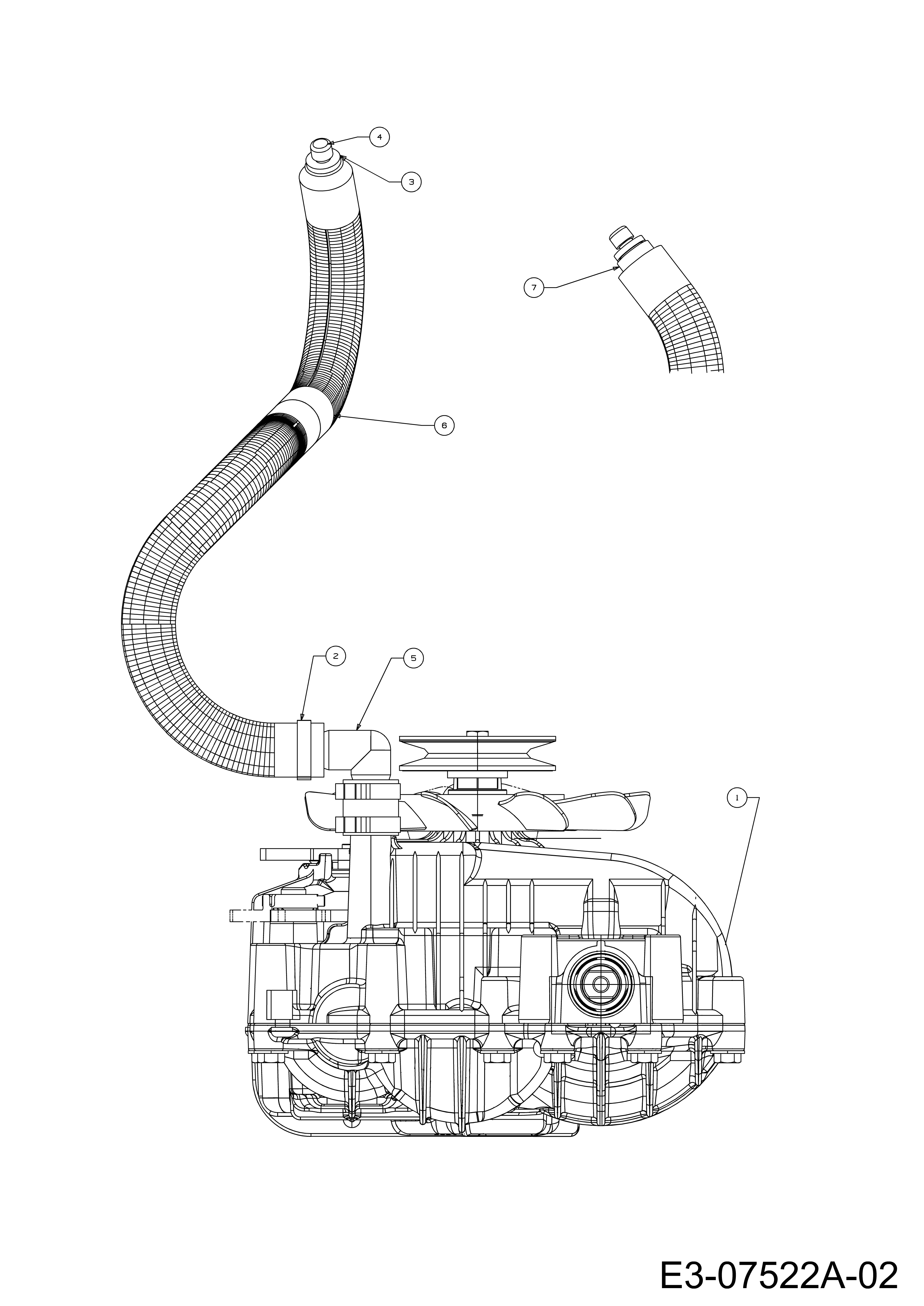

Transmission shafts

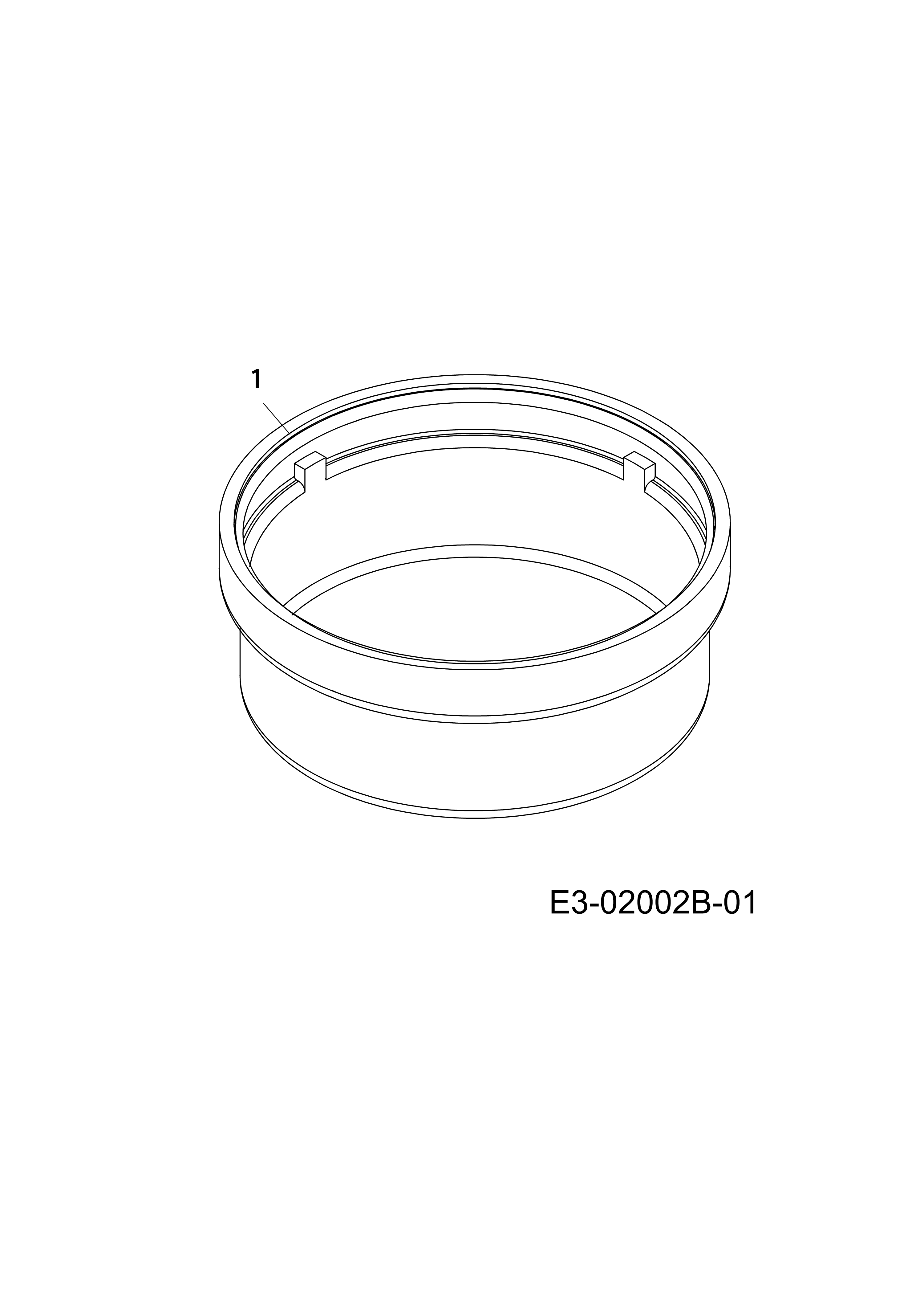

Wheel cover
