Diagrams for the Mountfield 827H Ride-on
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Mountfield 827H Ride-on.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Mountfield 827H Ride-on
2T0065483-M13 [2015]

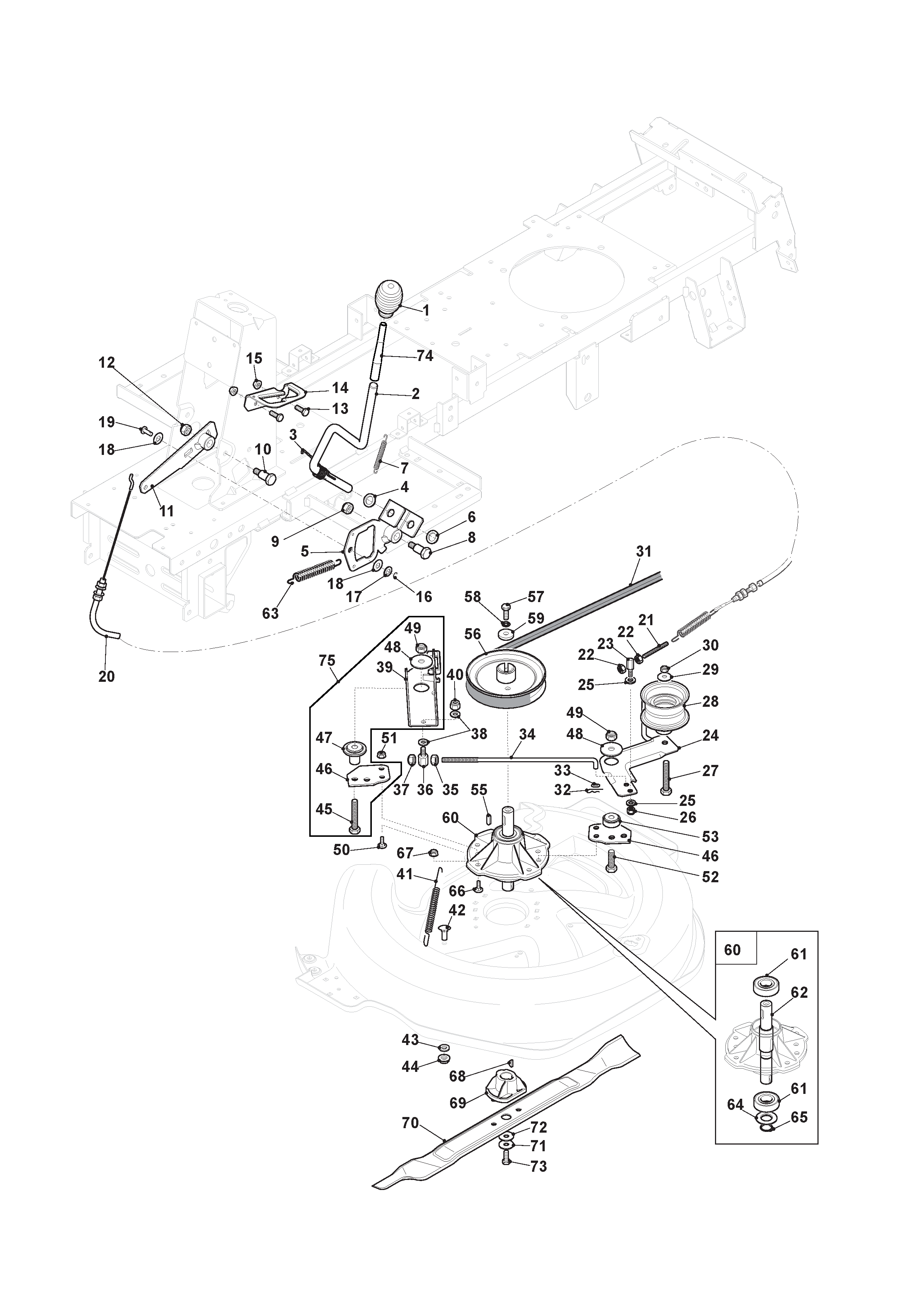

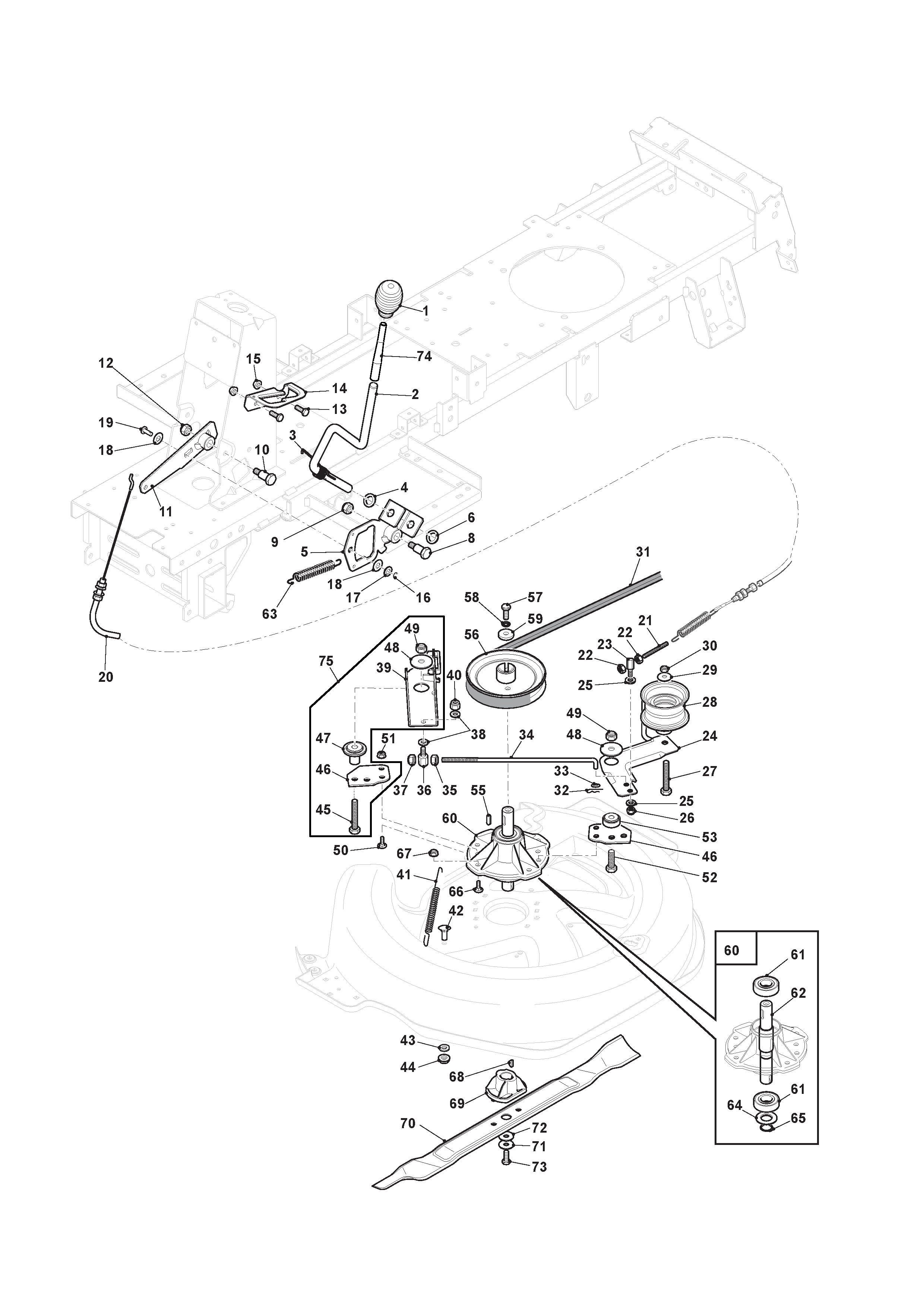

Blades Engagement

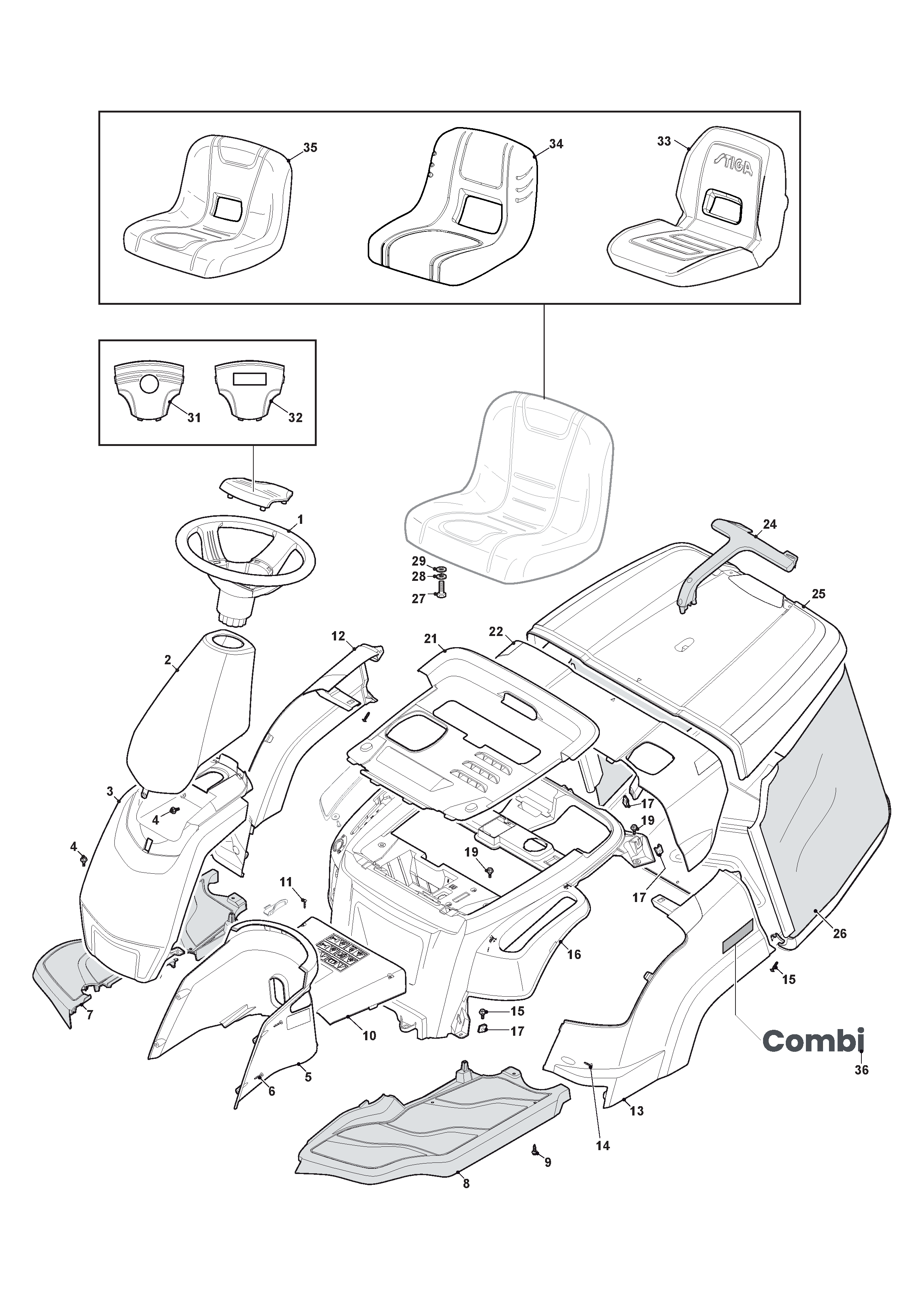

Body
Cutting Plate

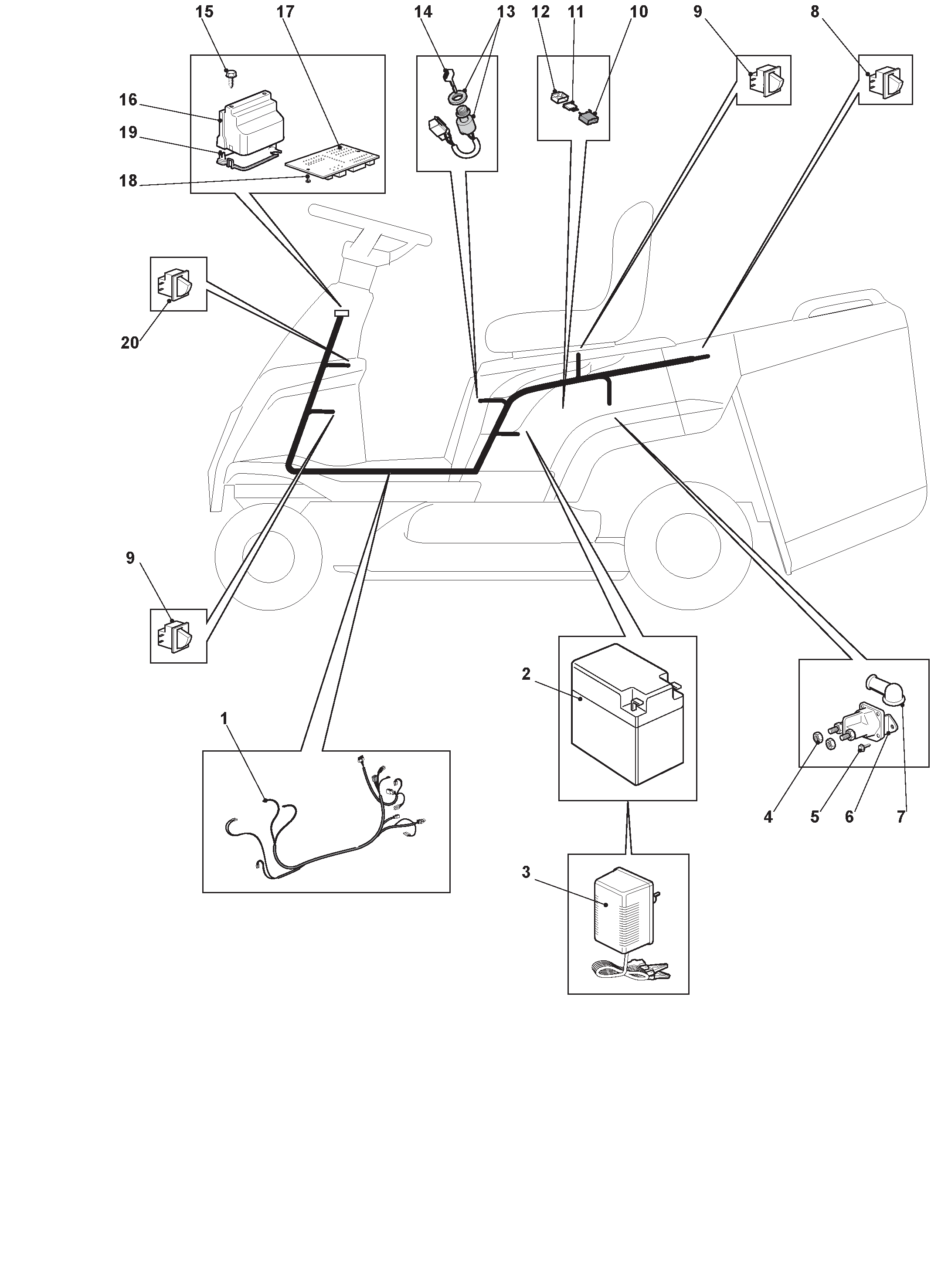

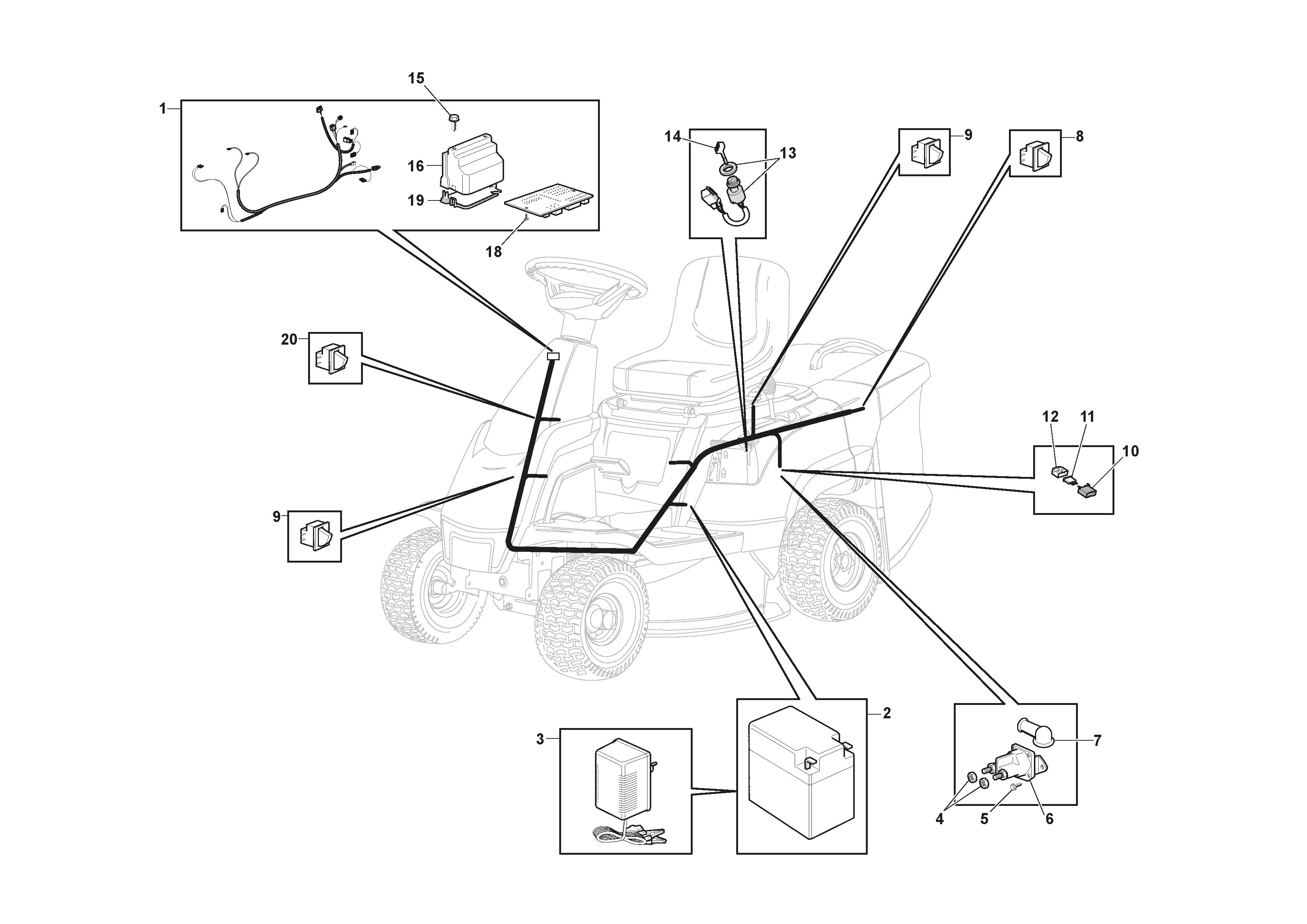

Electrical Parts

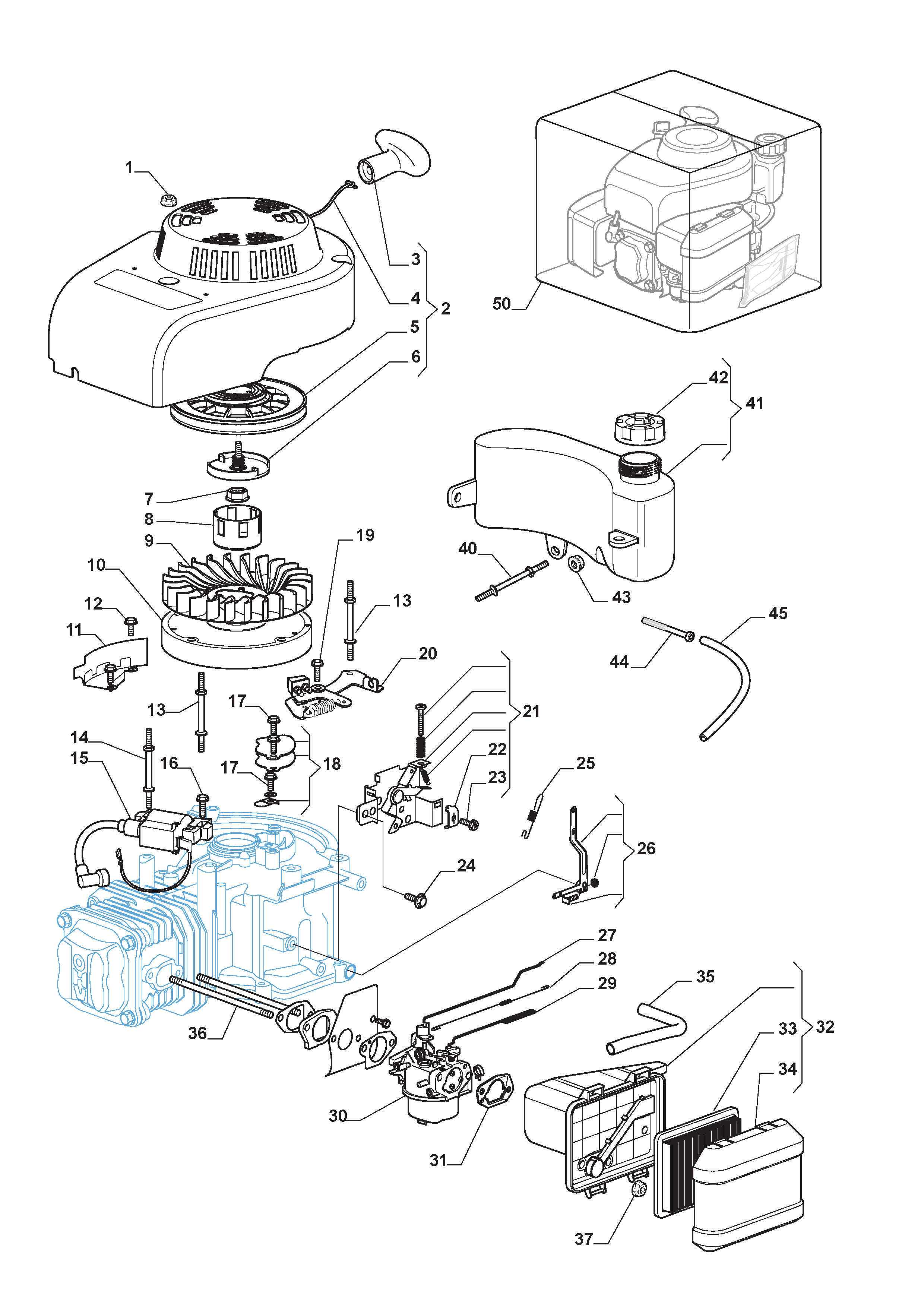

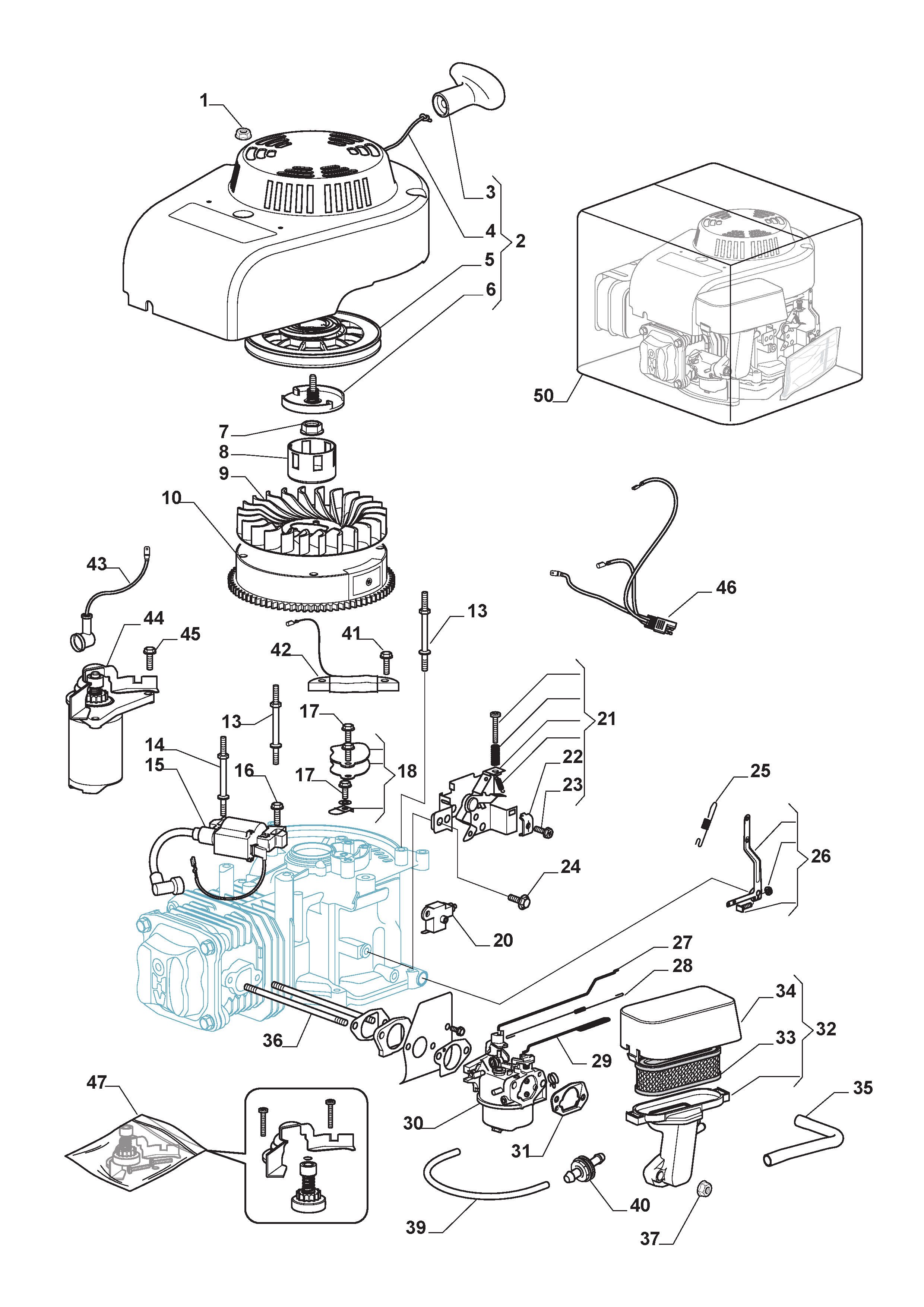

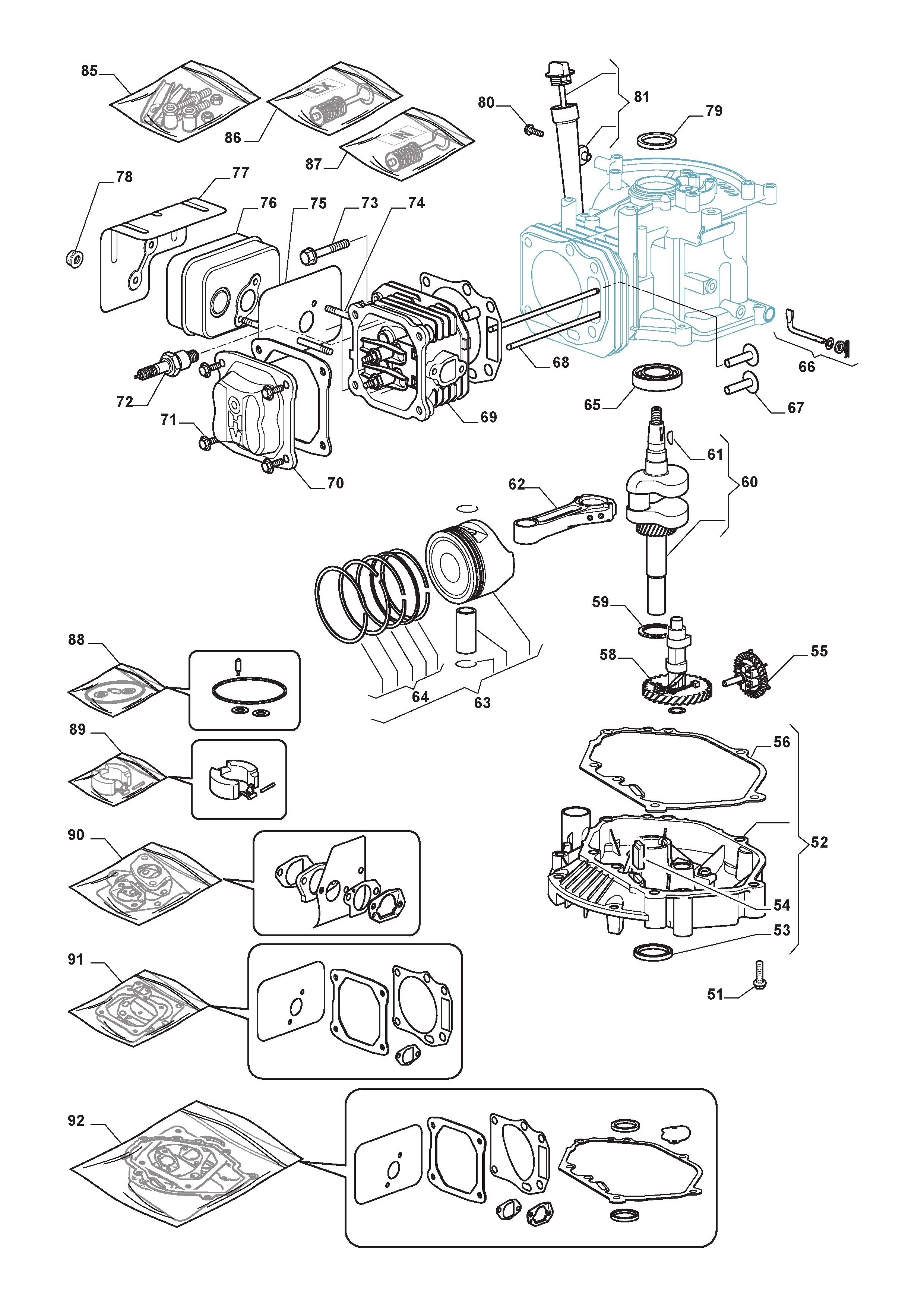

ST. WBE0704

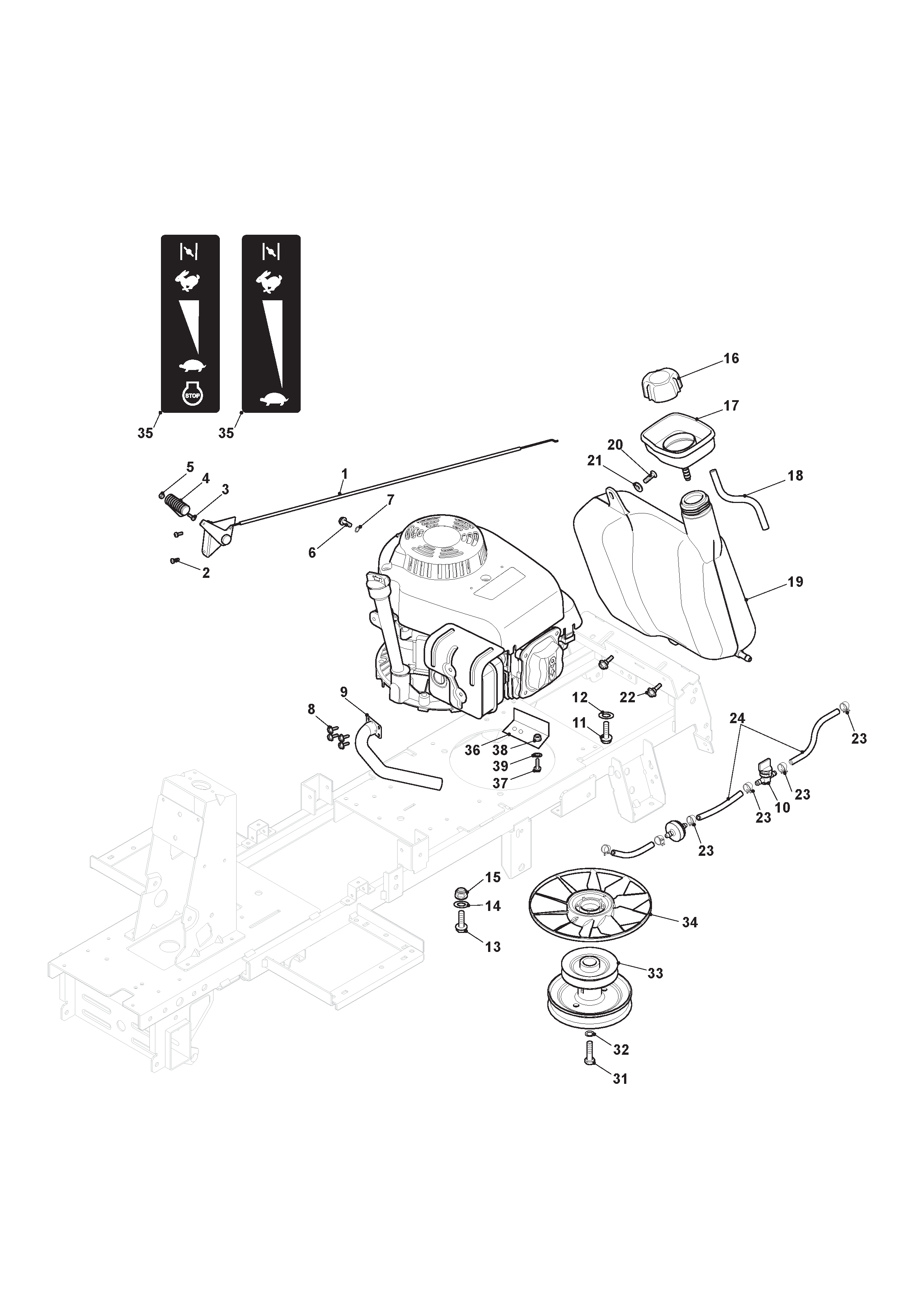

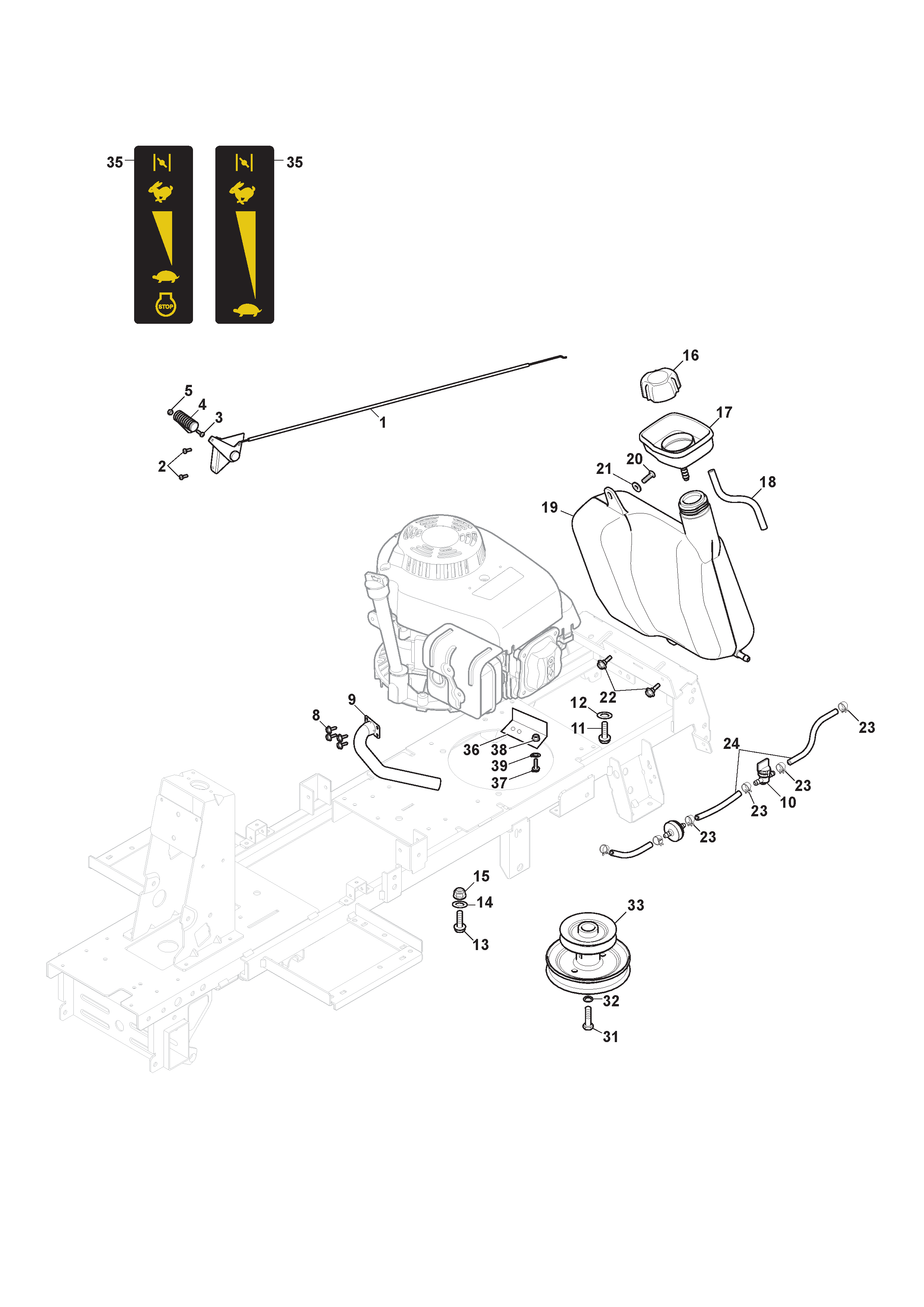

ST.

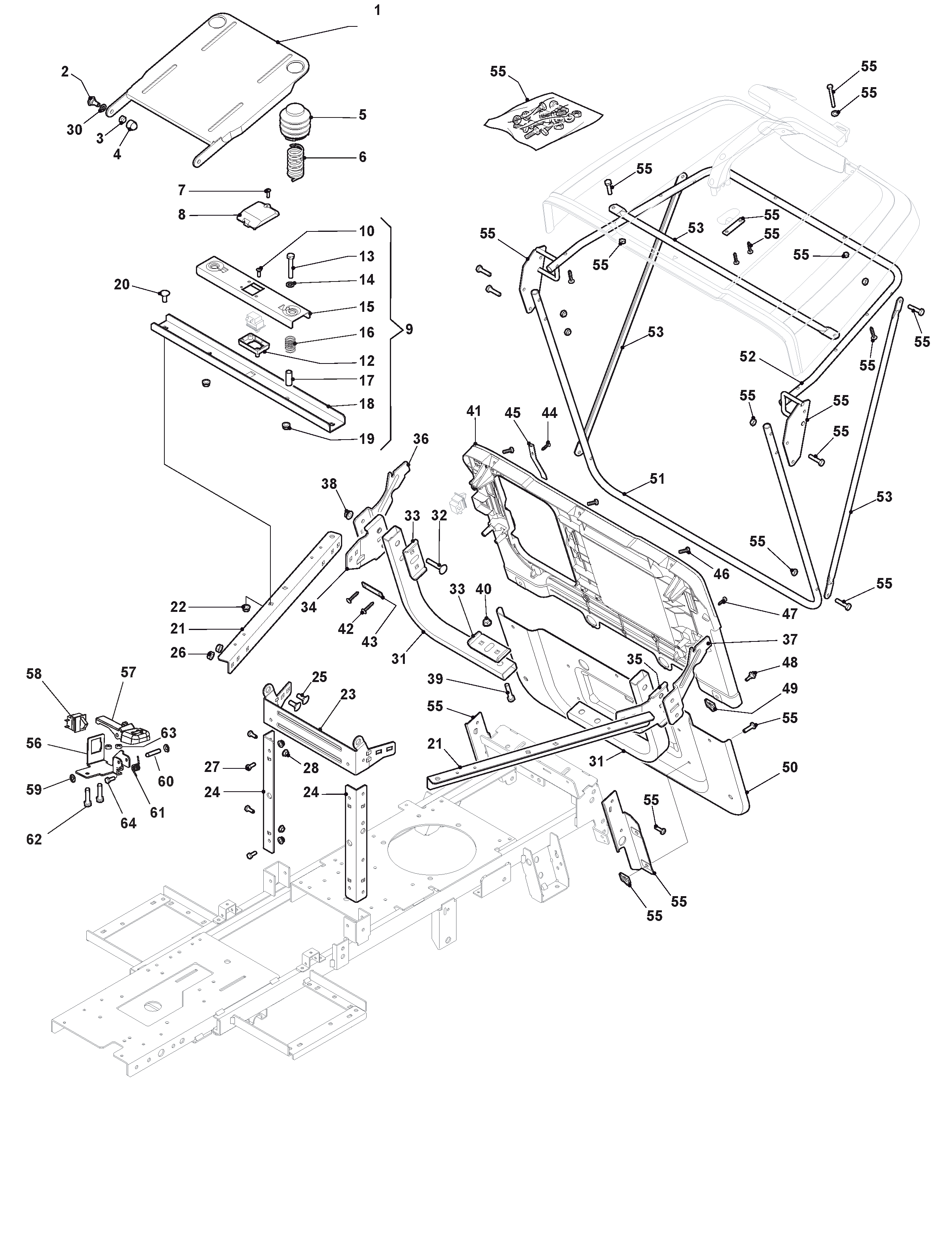

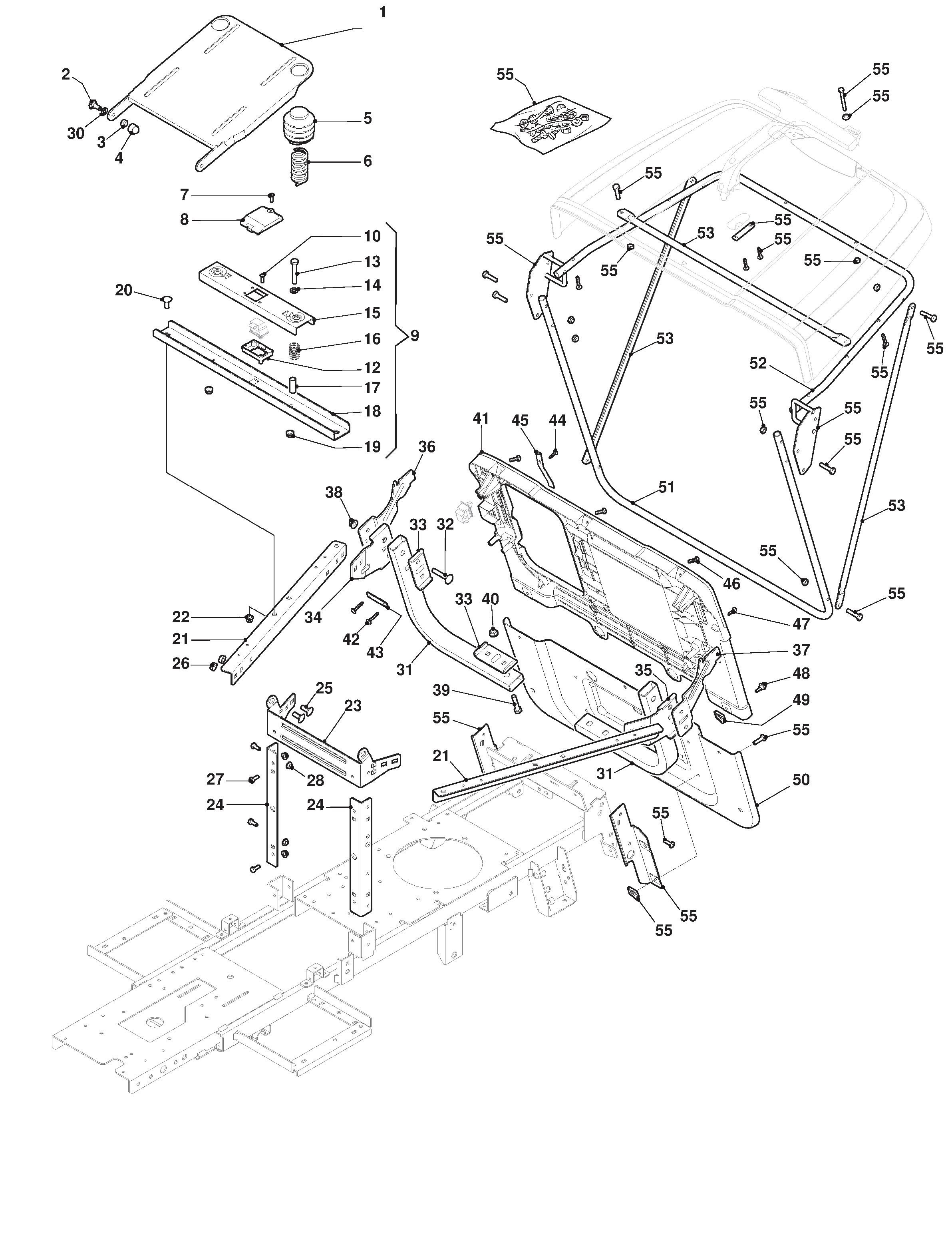

Frame

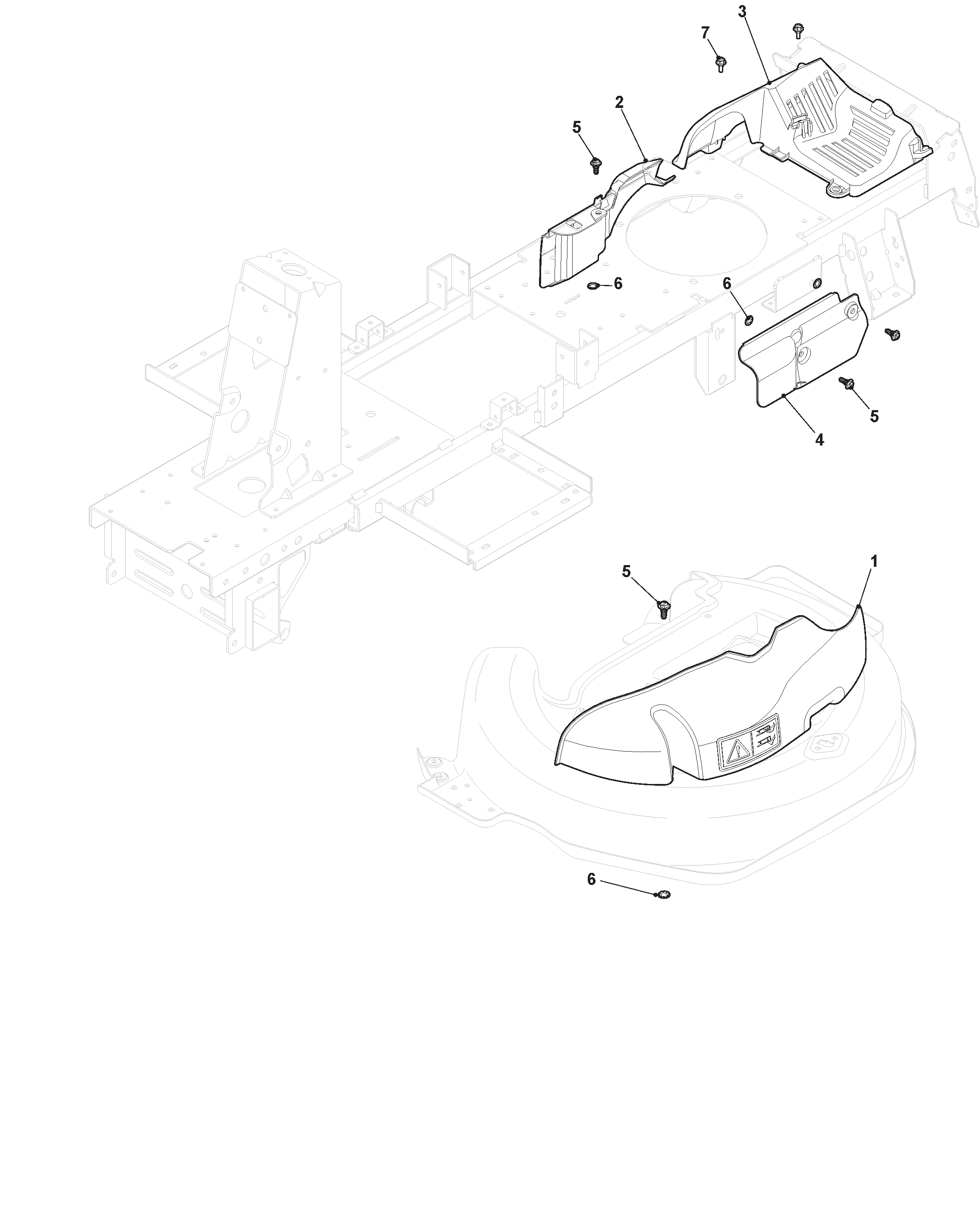

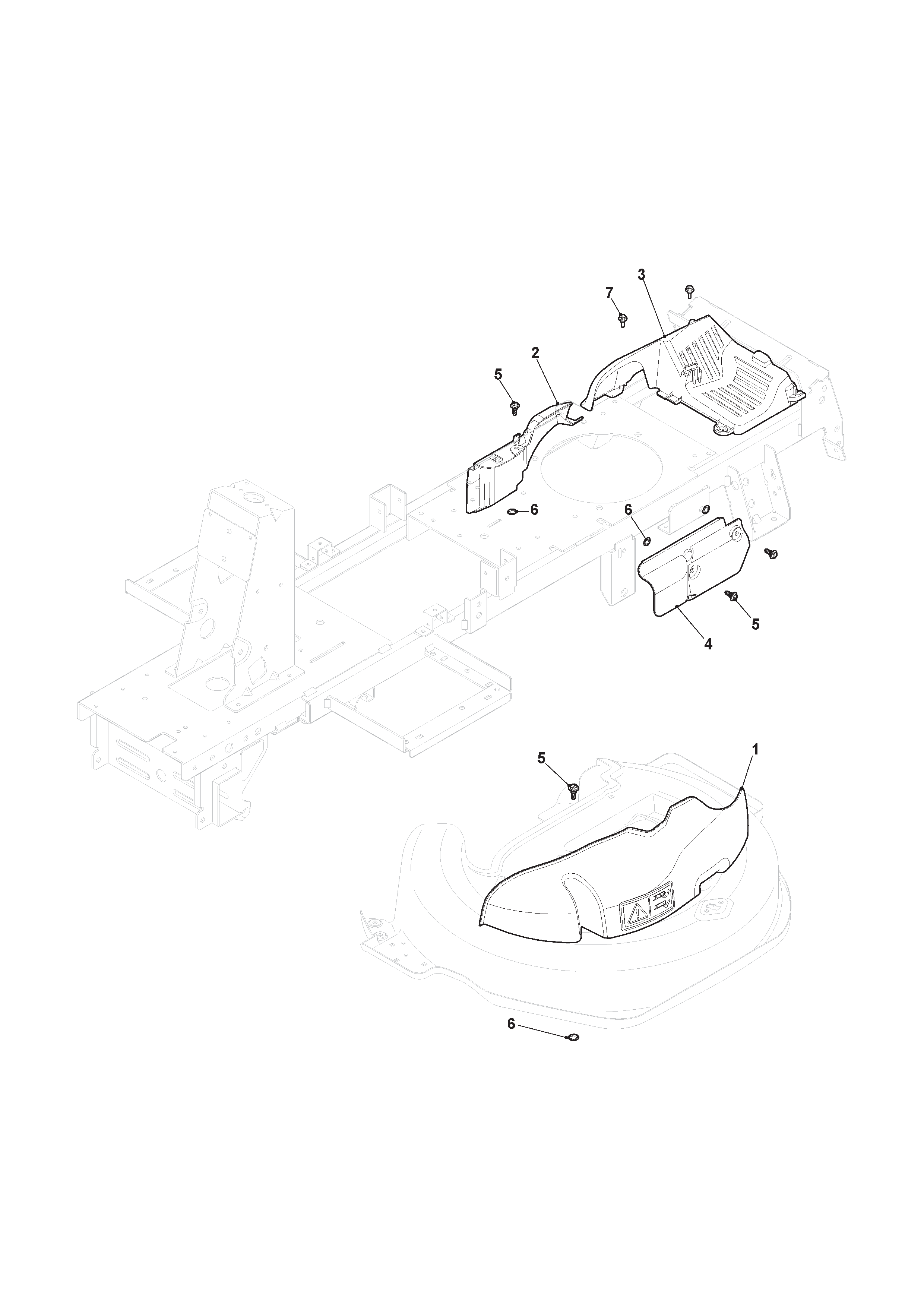

Guards

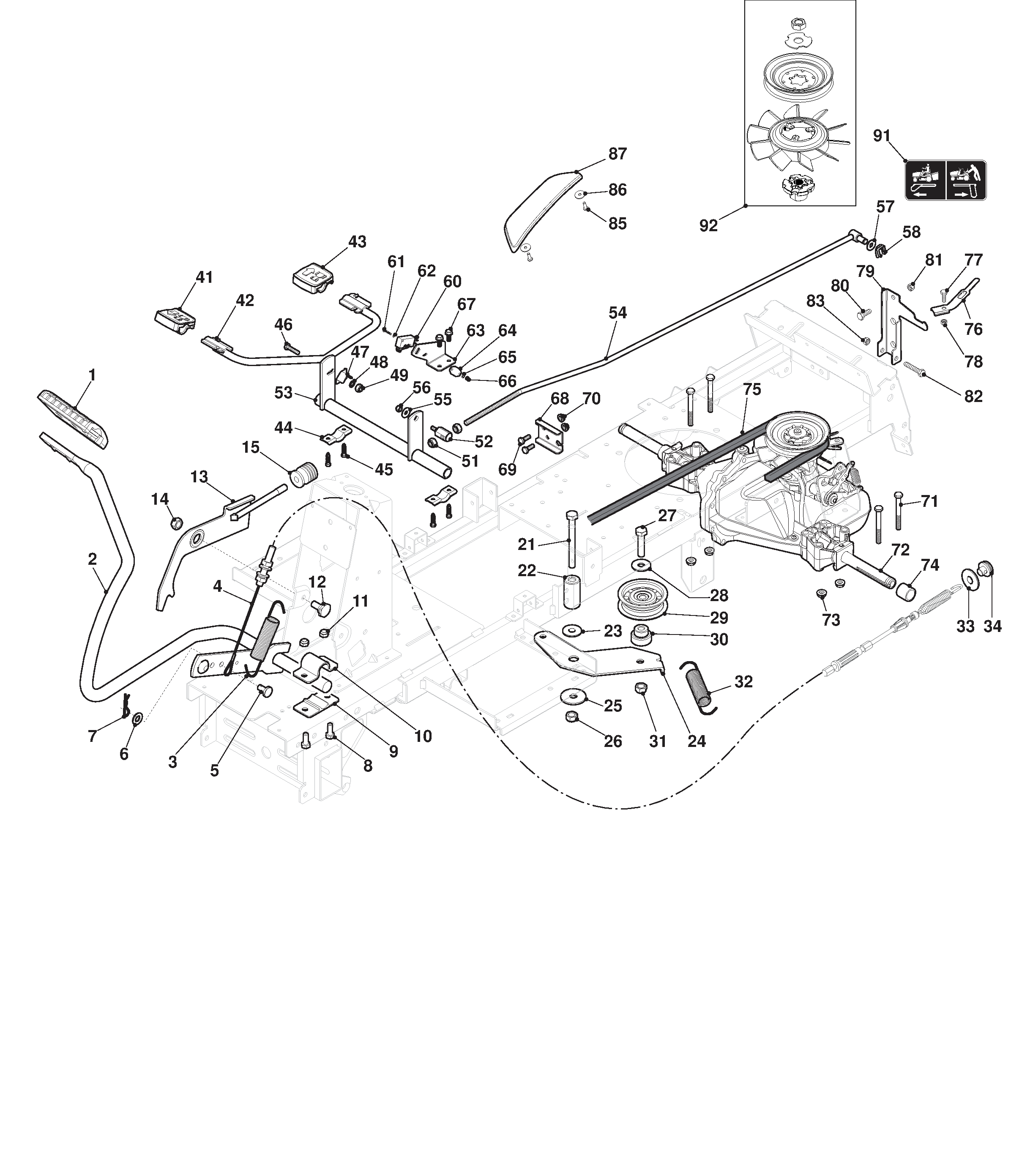

Hydrostatic Transmission

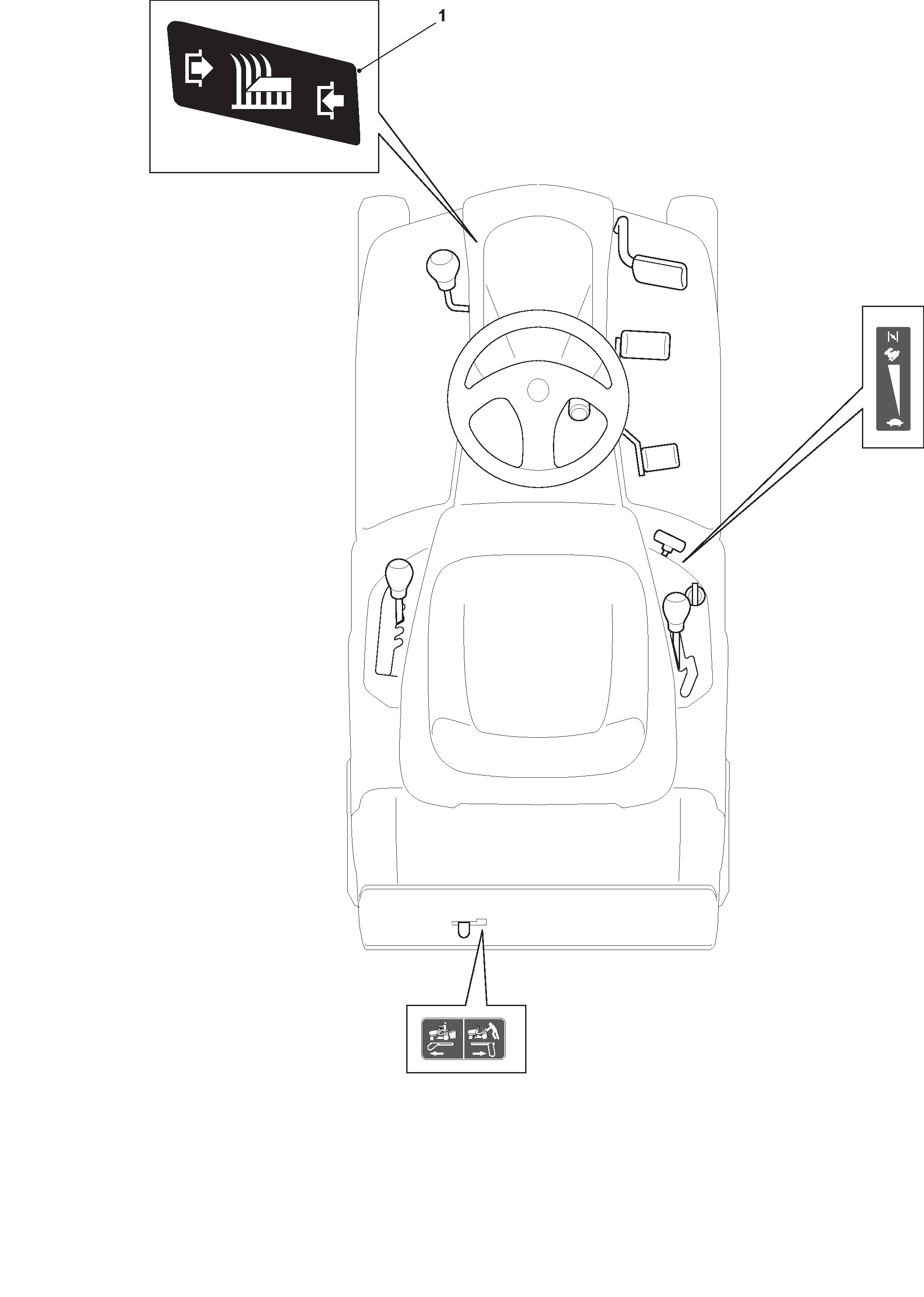

Labels
Optionals On Request

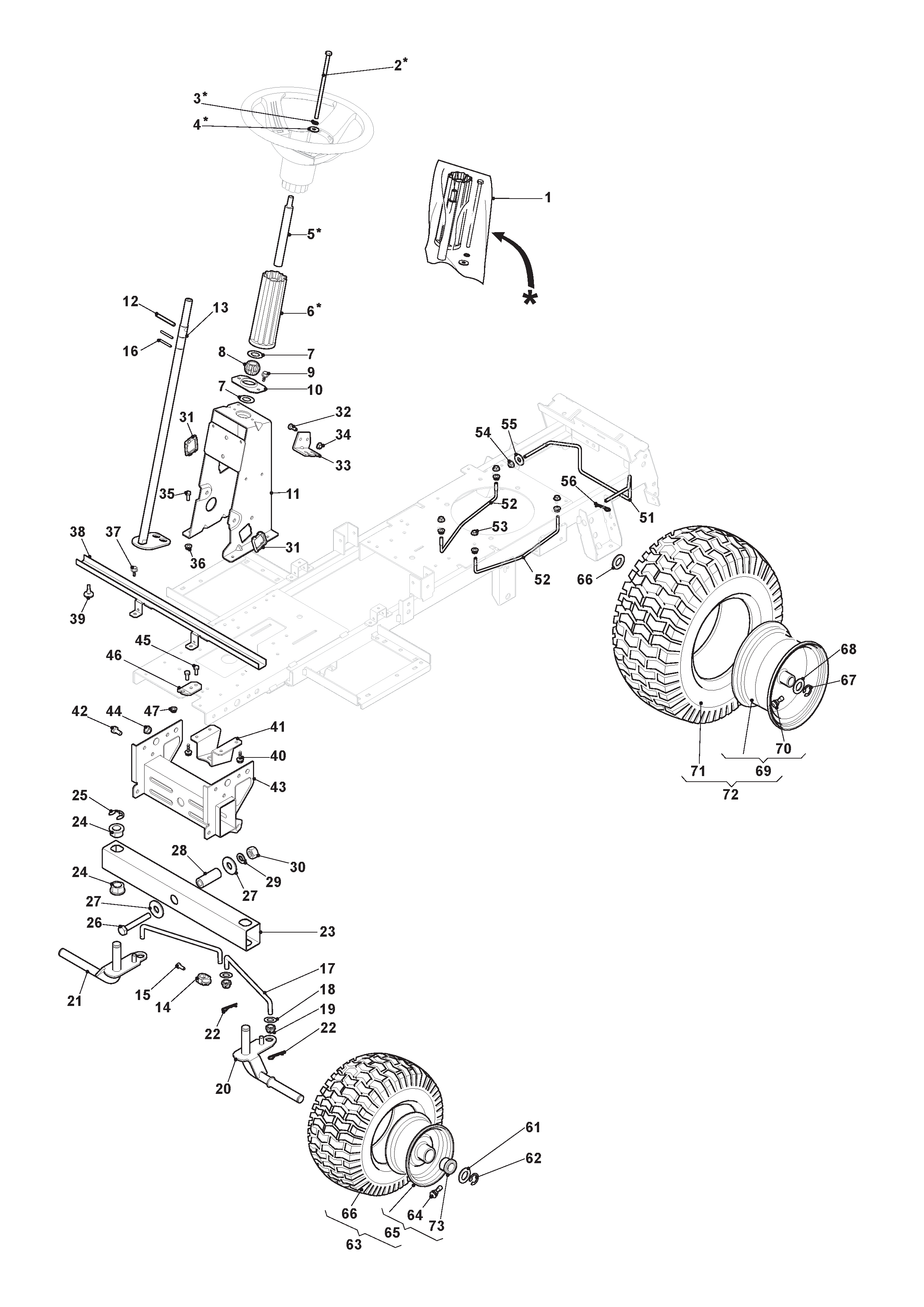

Steering
2T0070483-M16 [2016-2023]
Blades Engagement

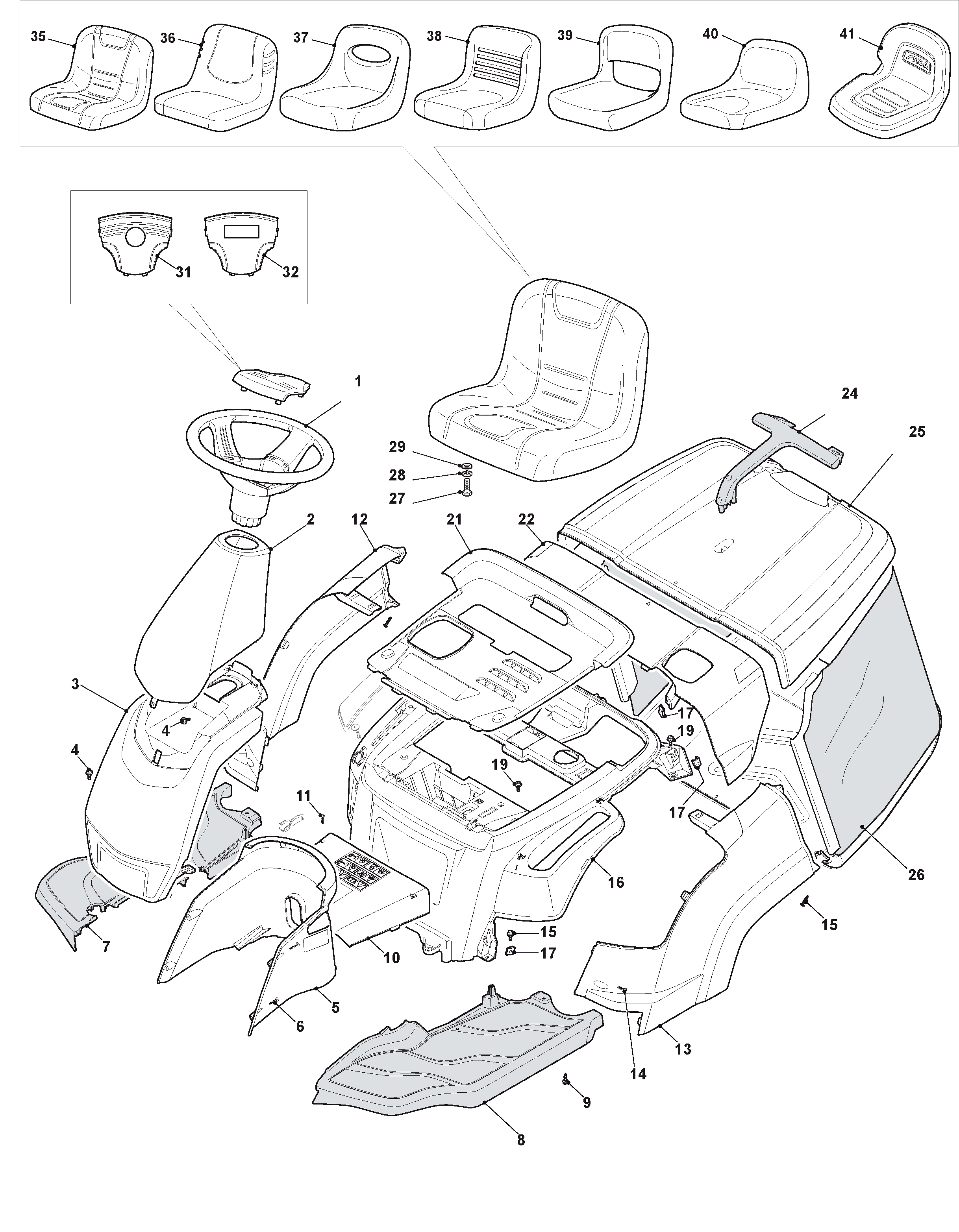

Body

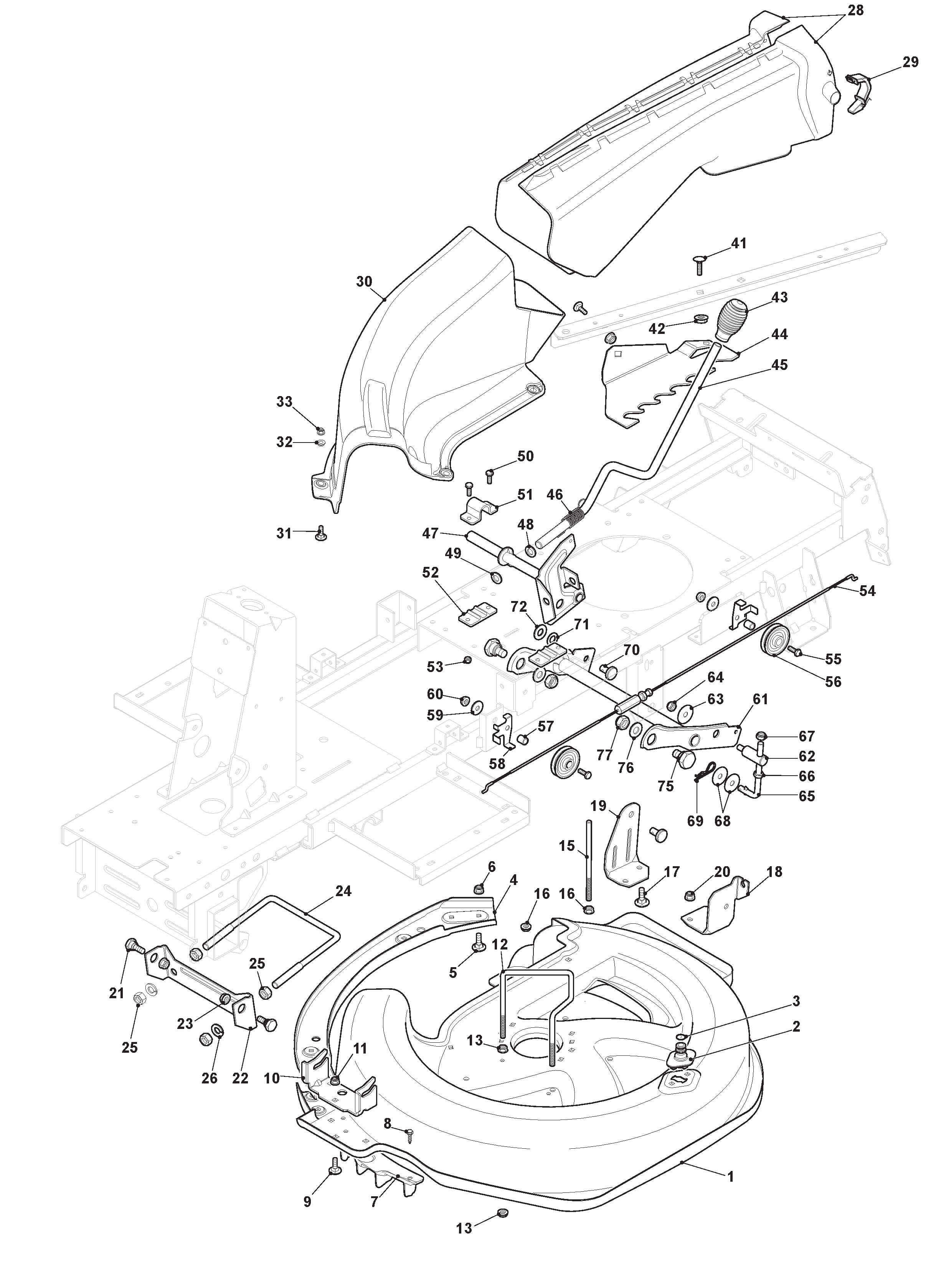

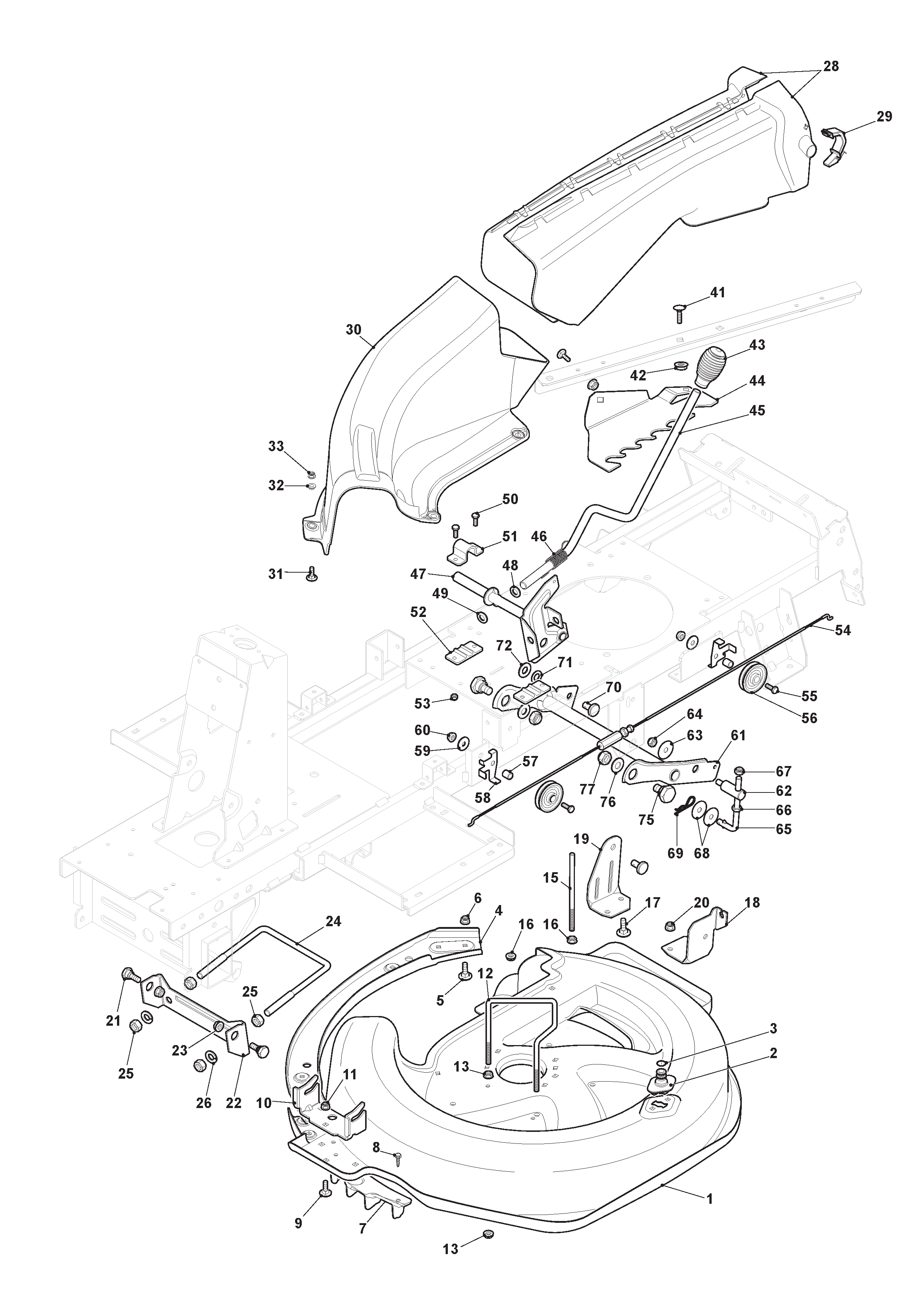

Cutting Plate
Electrical Parts

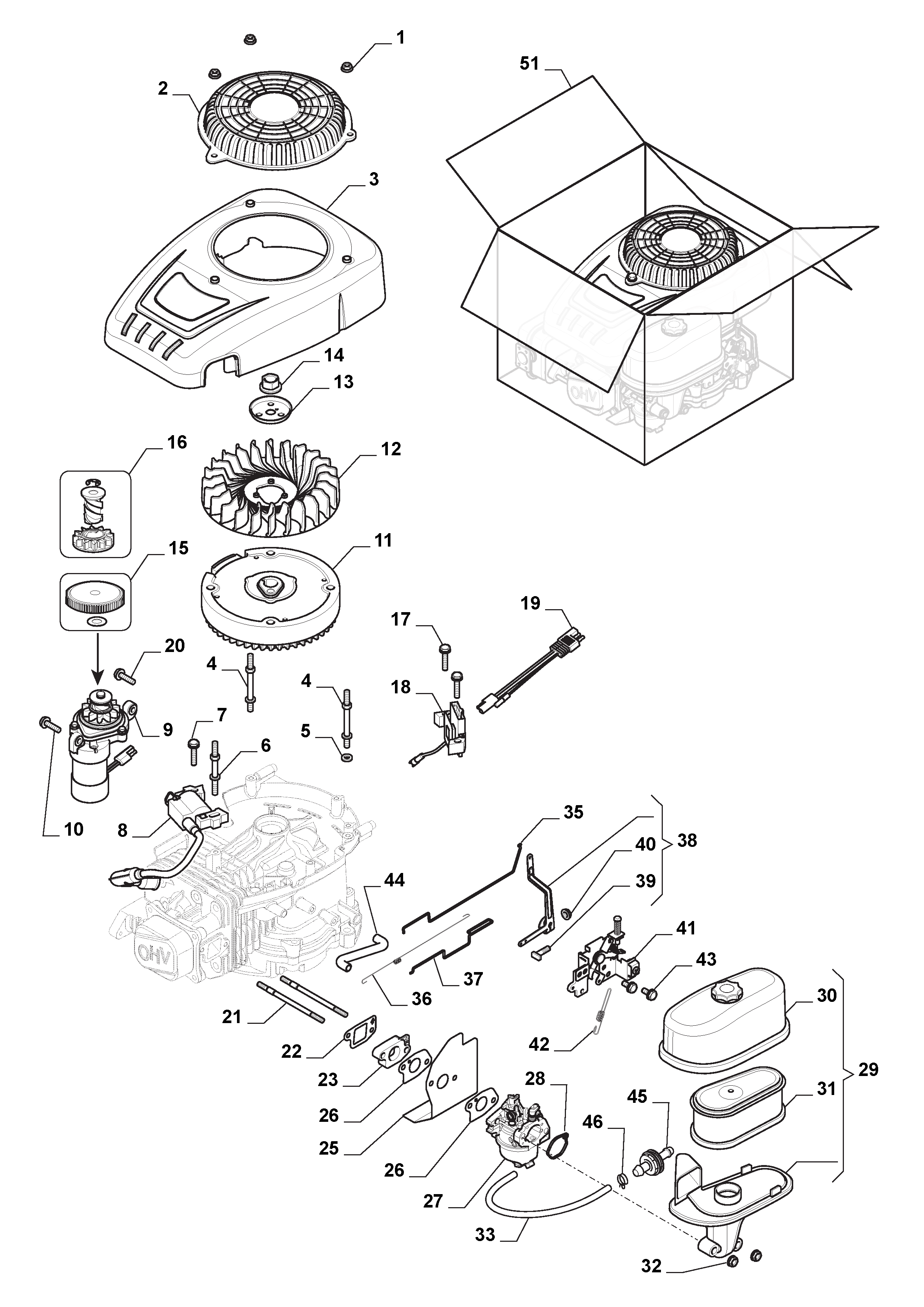

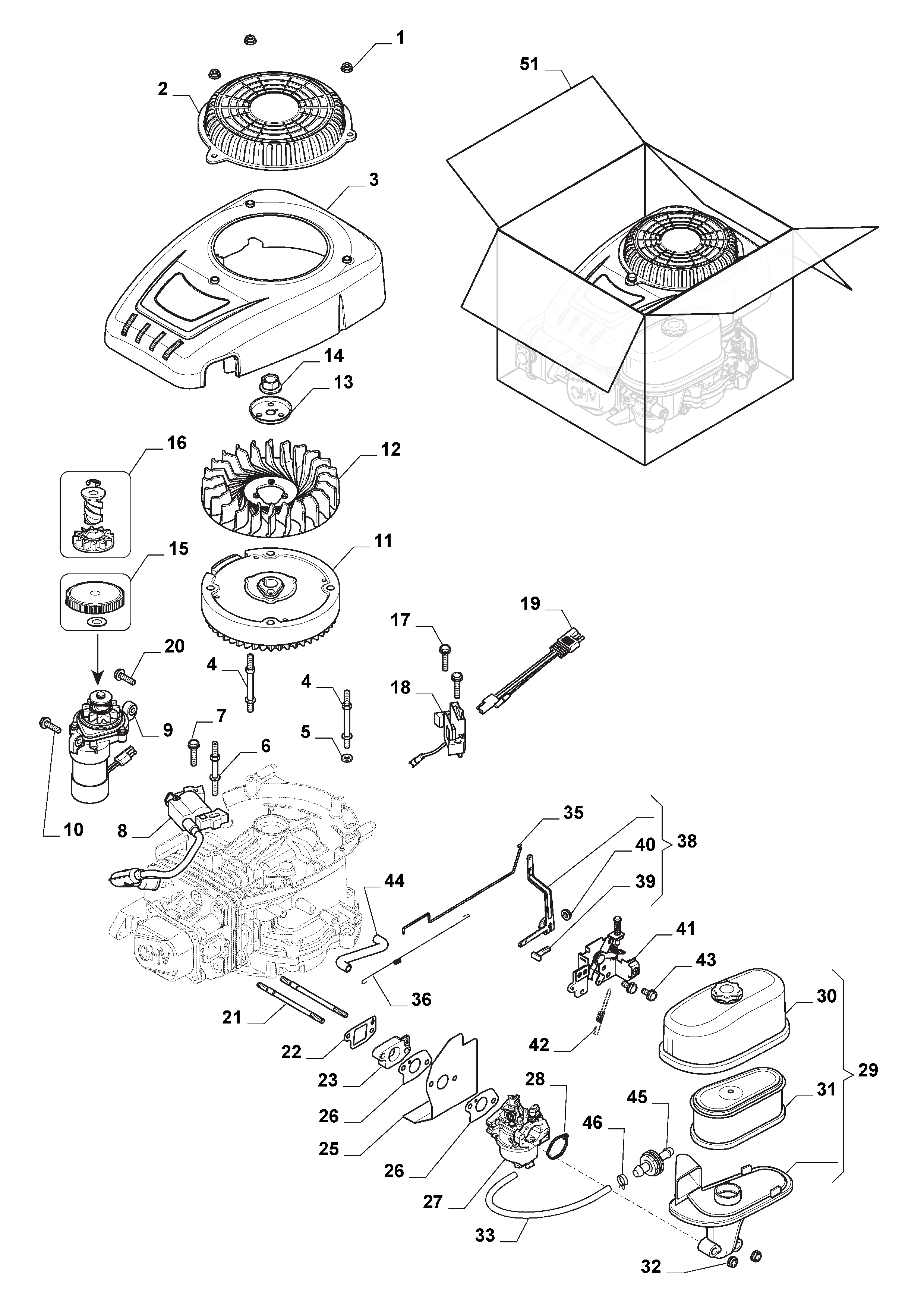

Carburettor, Air Cleaner Assy

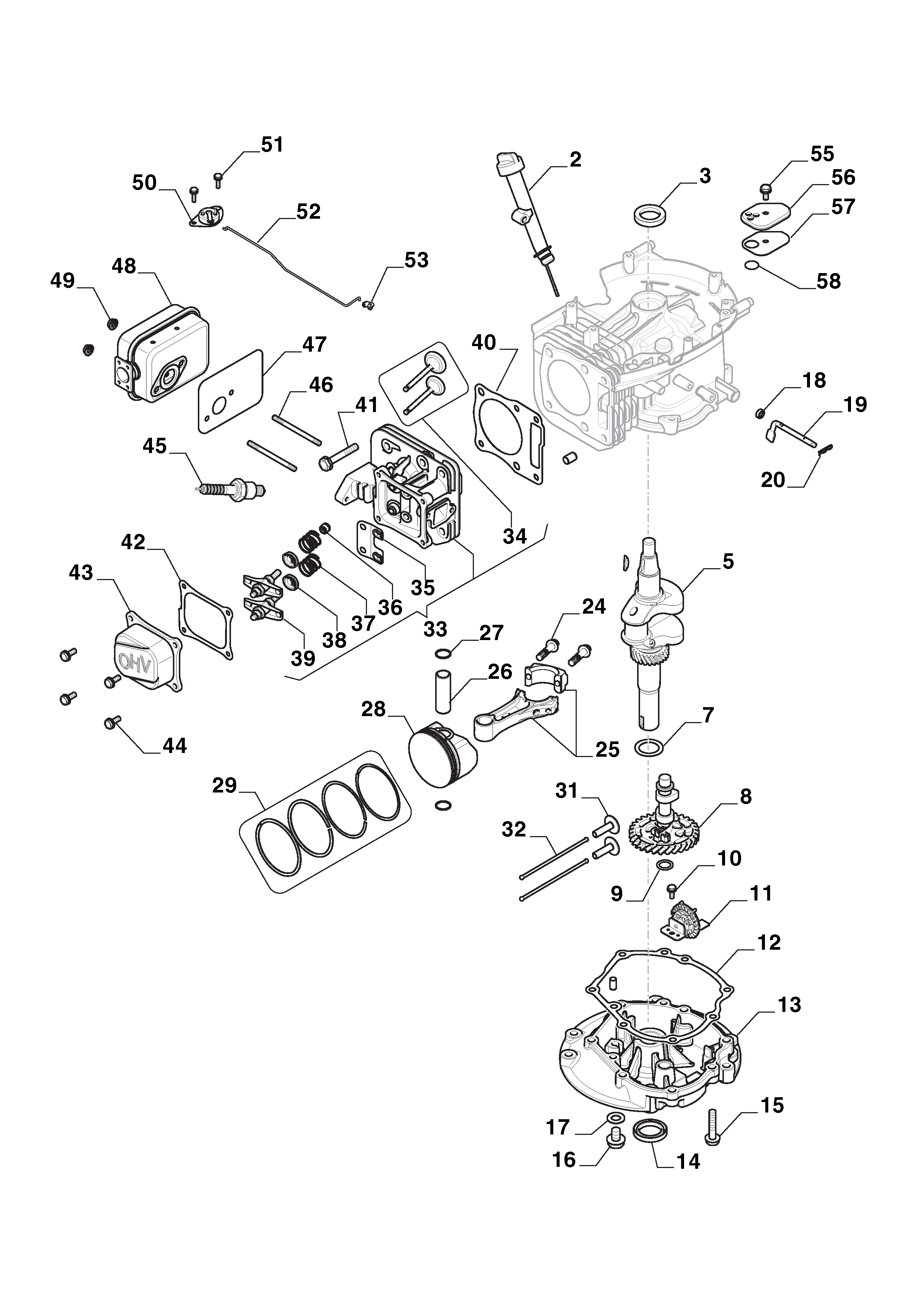

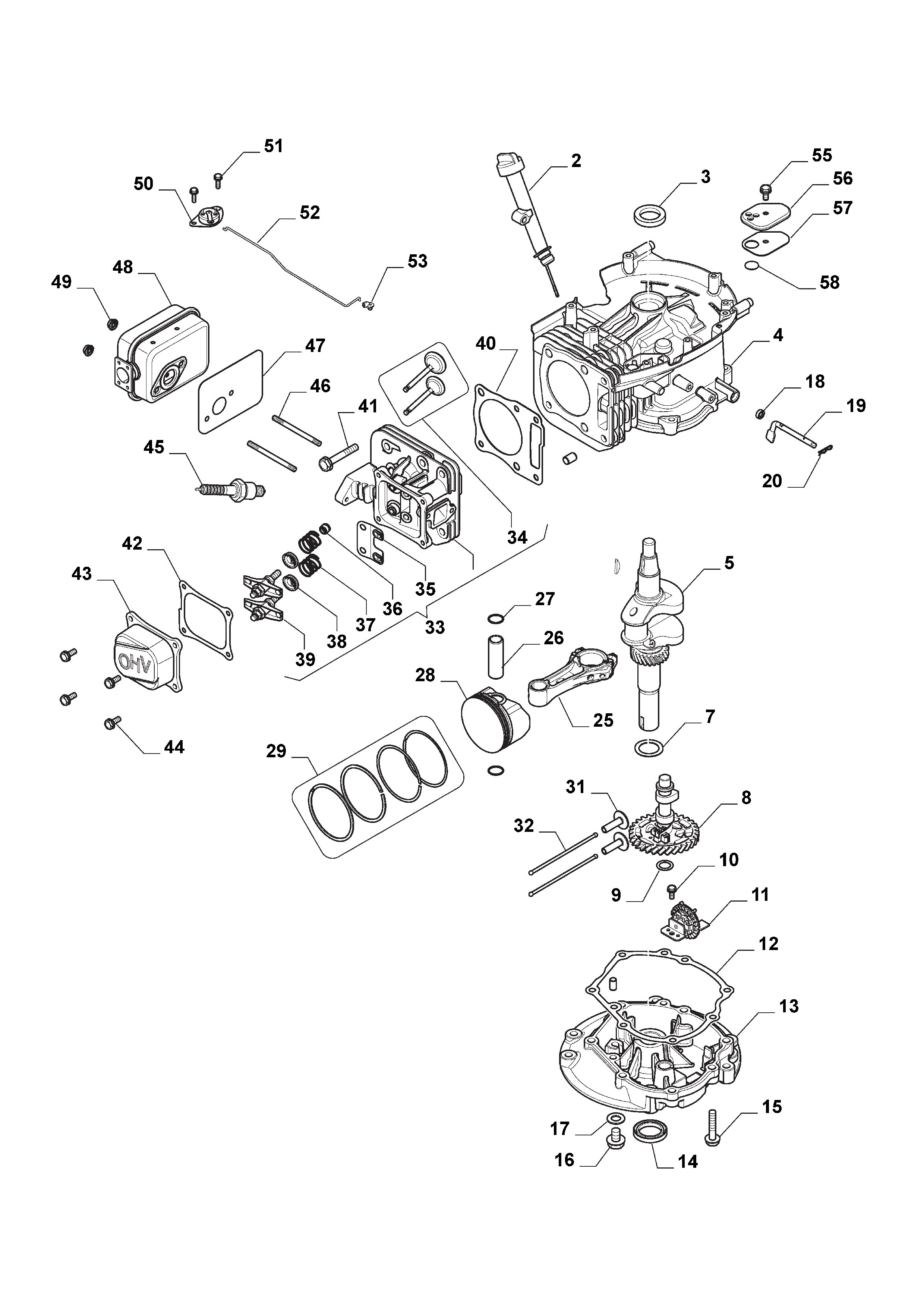

Piston, Crankshaft
ST.
Frame
Guards

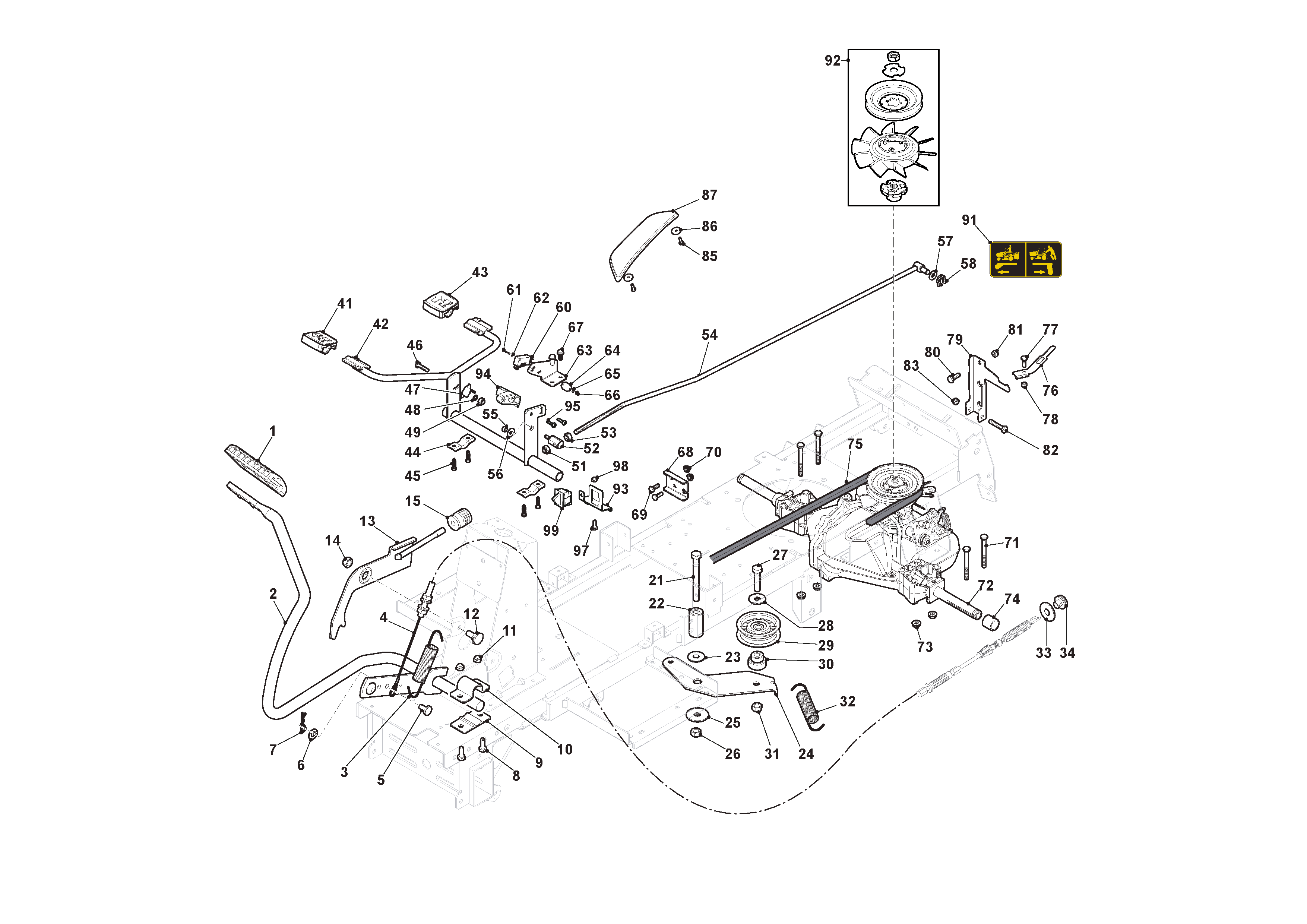

Hydrostatic Transmission
Labels

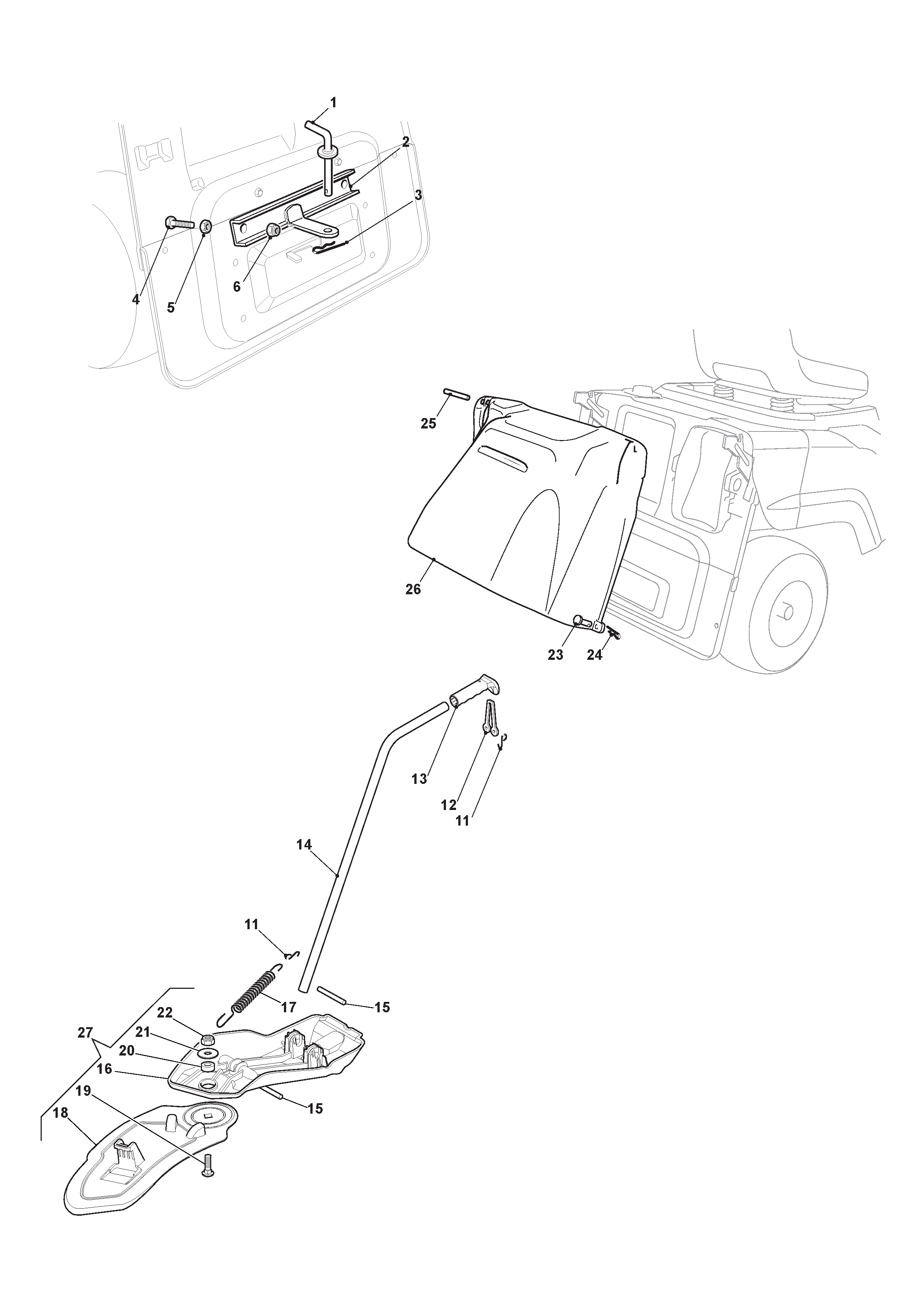

Optionals On Request

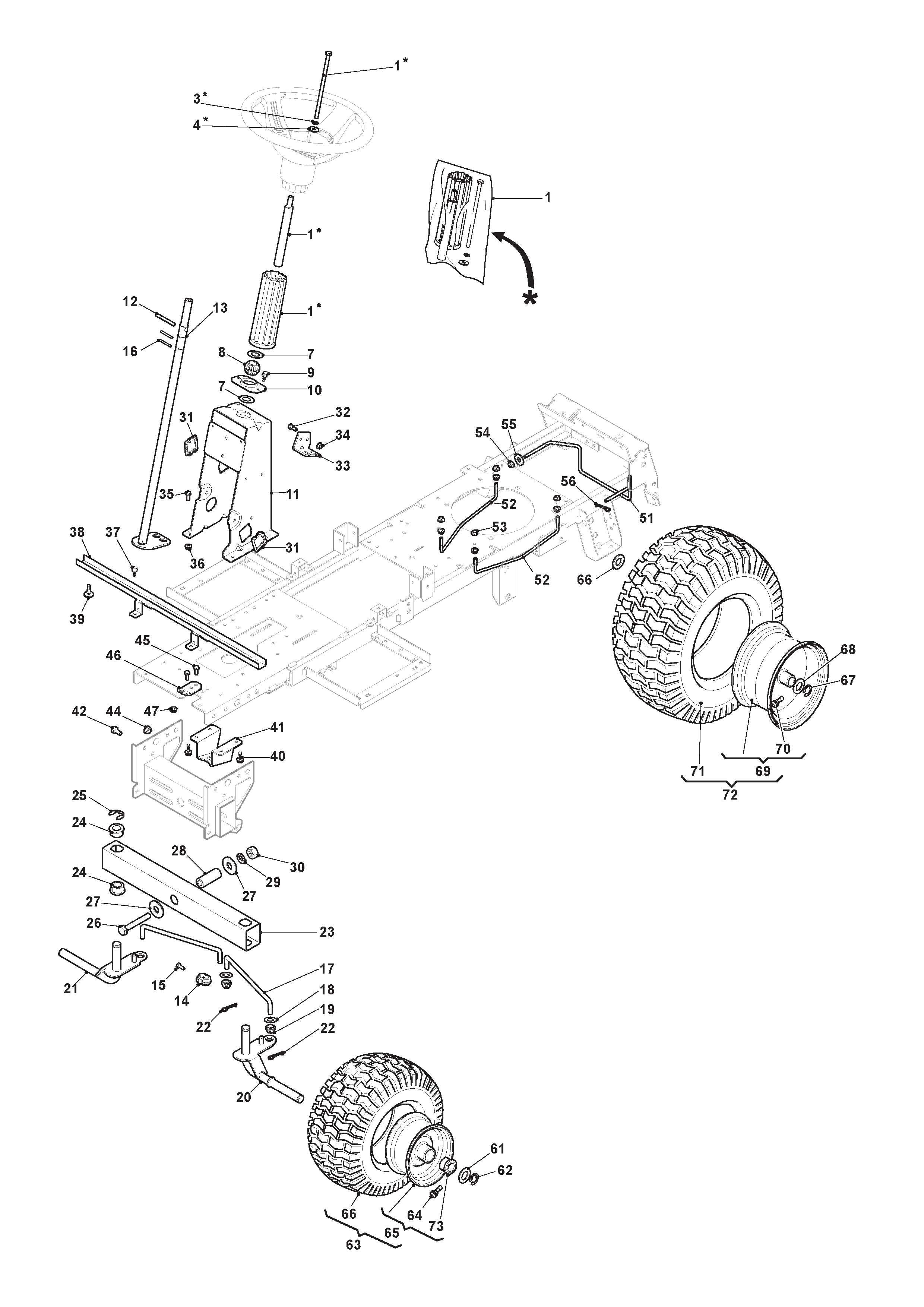

Steering

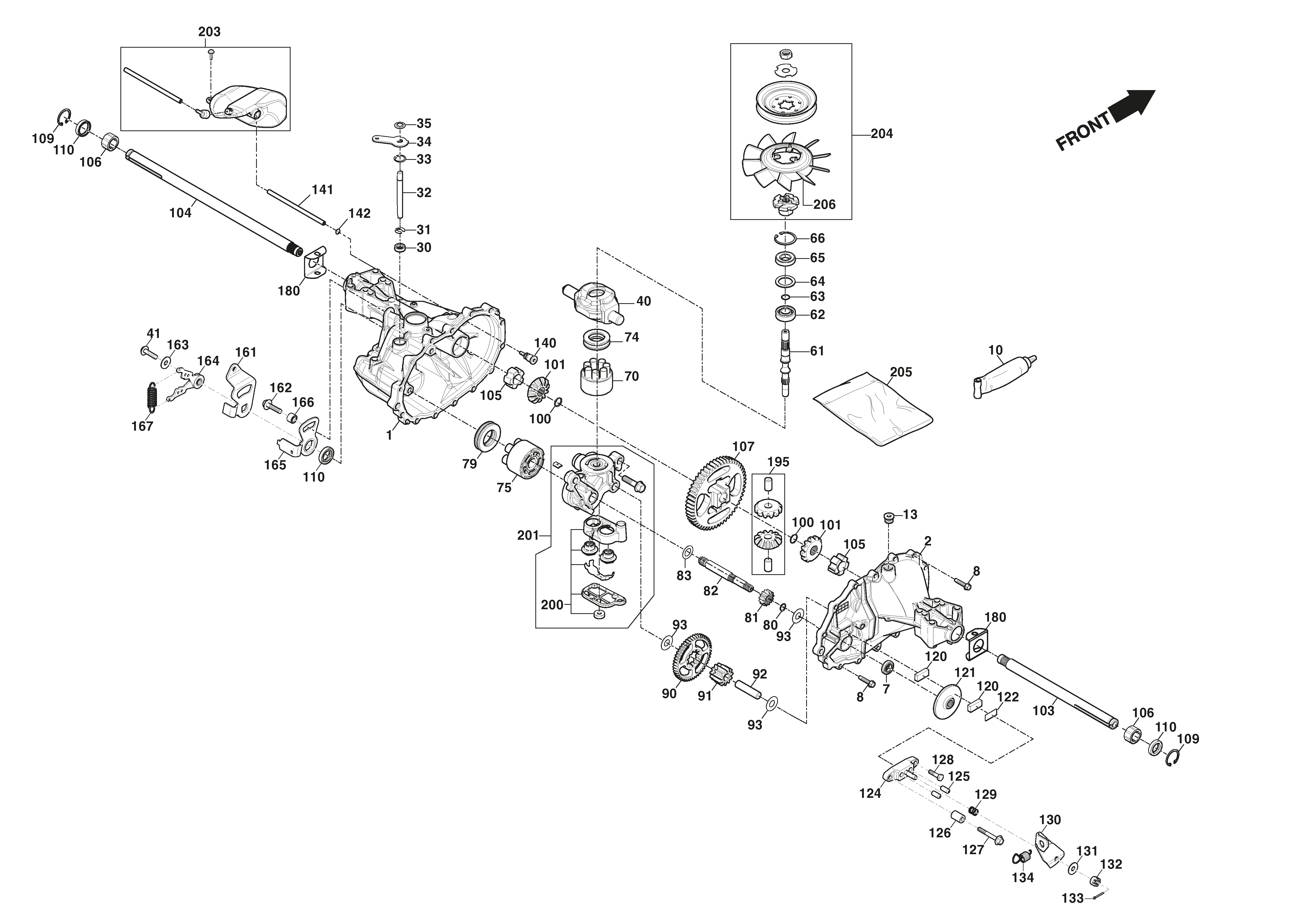

16X1
2T0070483-M16 [2016]
Blades Engagement
Body
Cutting Plate
Electrical Parts
Carburettor, Air Cleaner Assy
Piston, Crankshaft
ST.
Frame
Guards
Hydrostatic Transmission
Labels
Optionals On Request
Steering
16X1
