Diagrams for the Mountfield 1330M Lawn Tractor
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Mountfield 1330M Lawn Tractor.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Mountfield 1330M Lawn Tractor
2T2000483-M19 [2019]

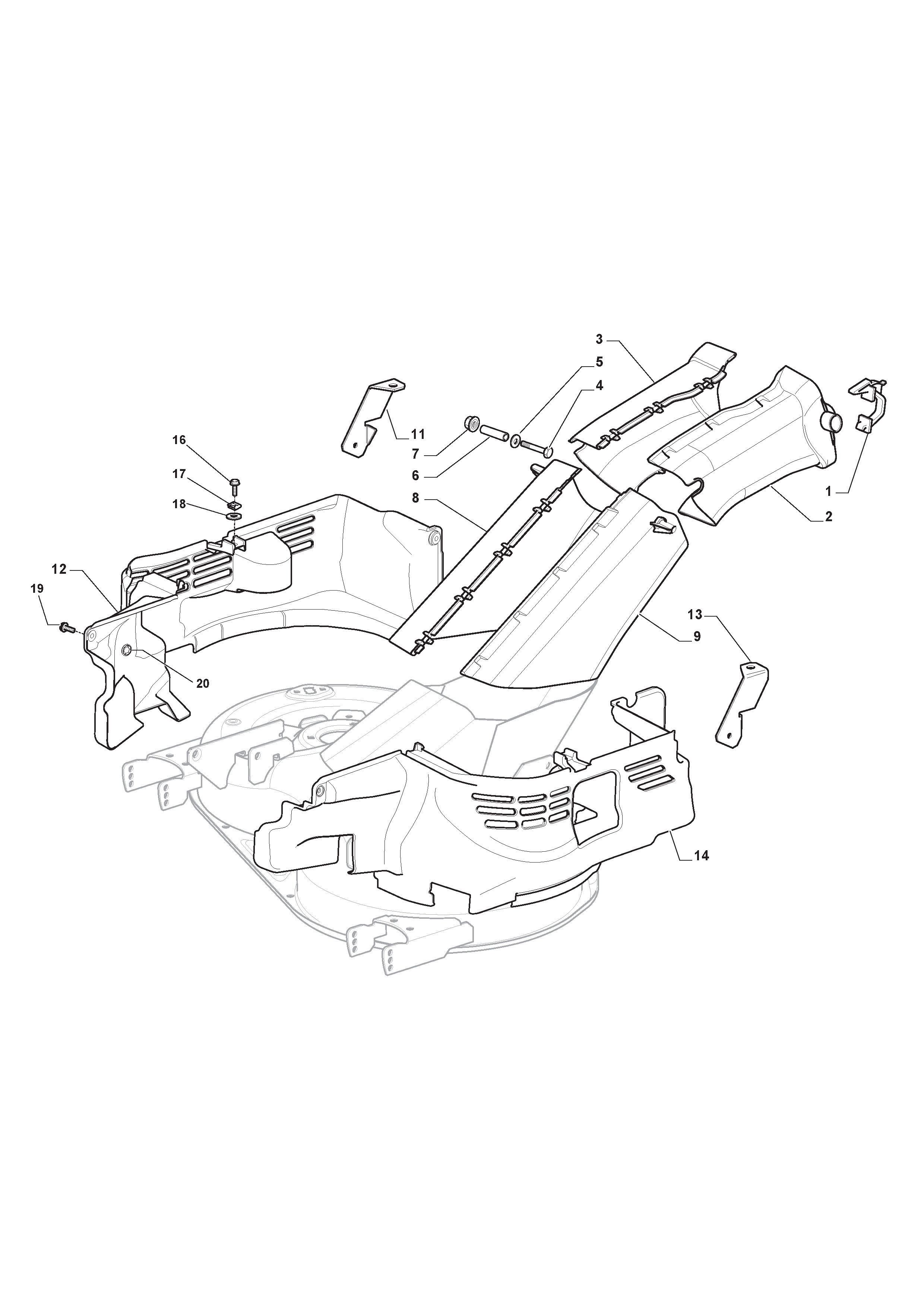

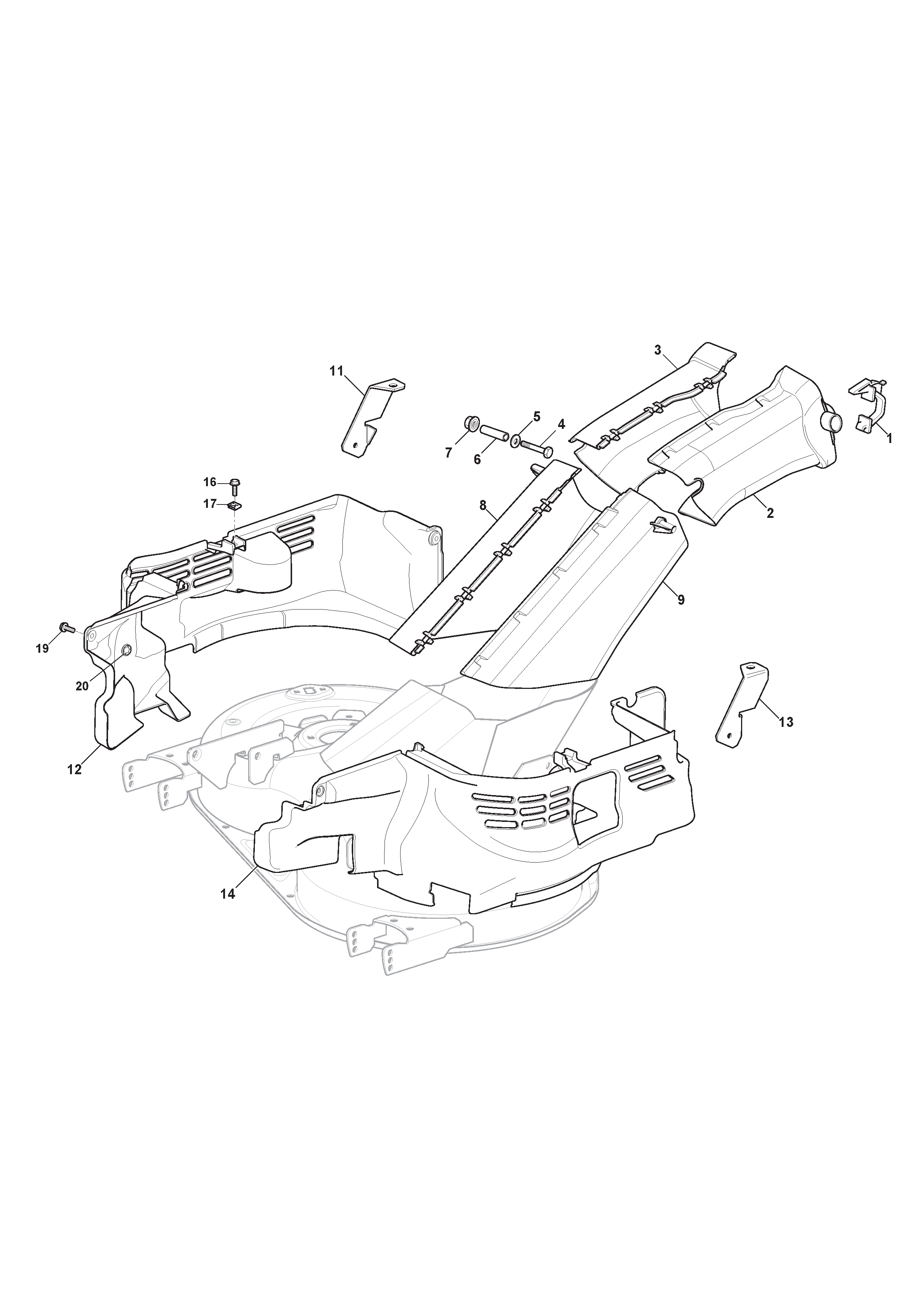

Belt Protections

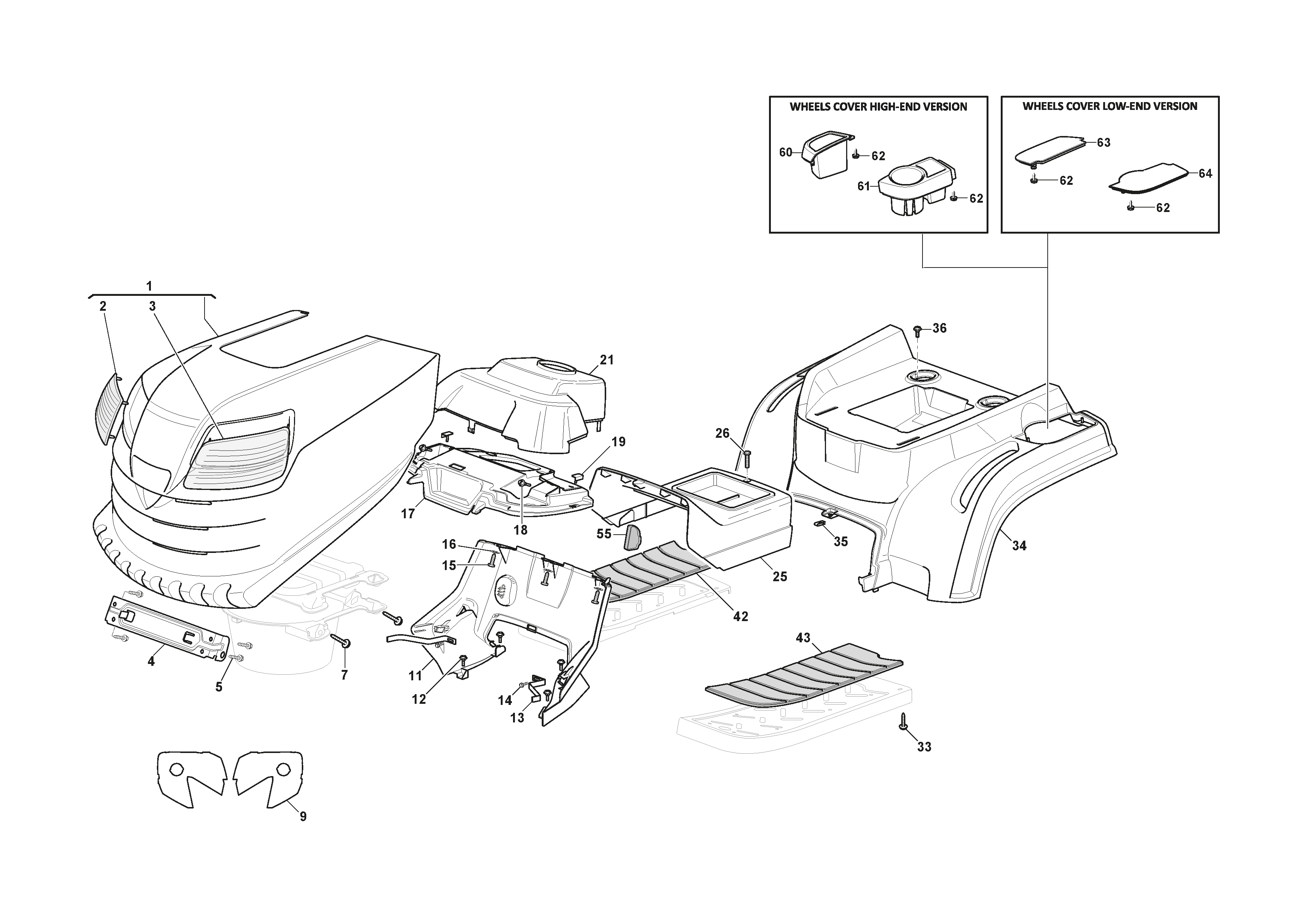

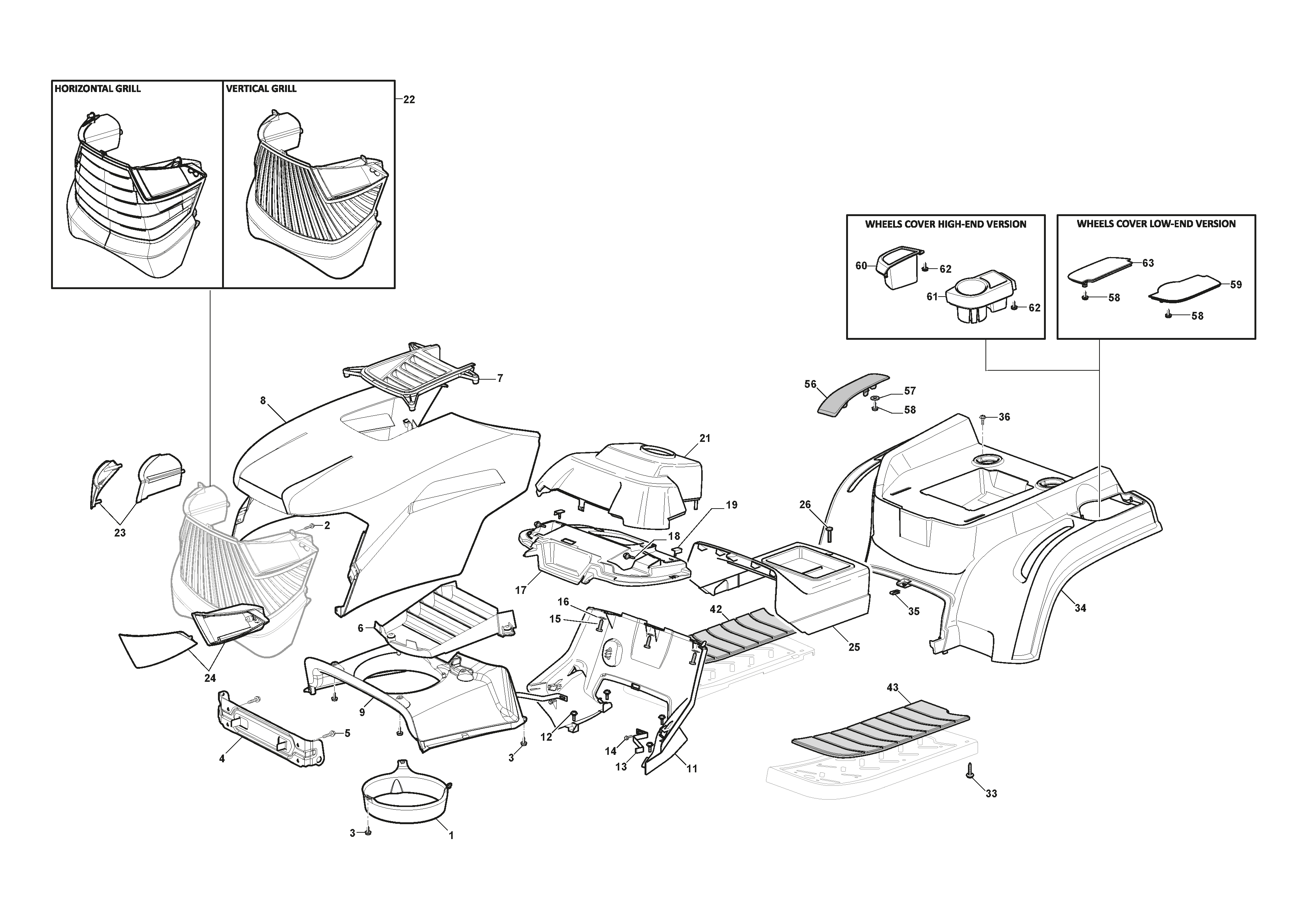

Body Work

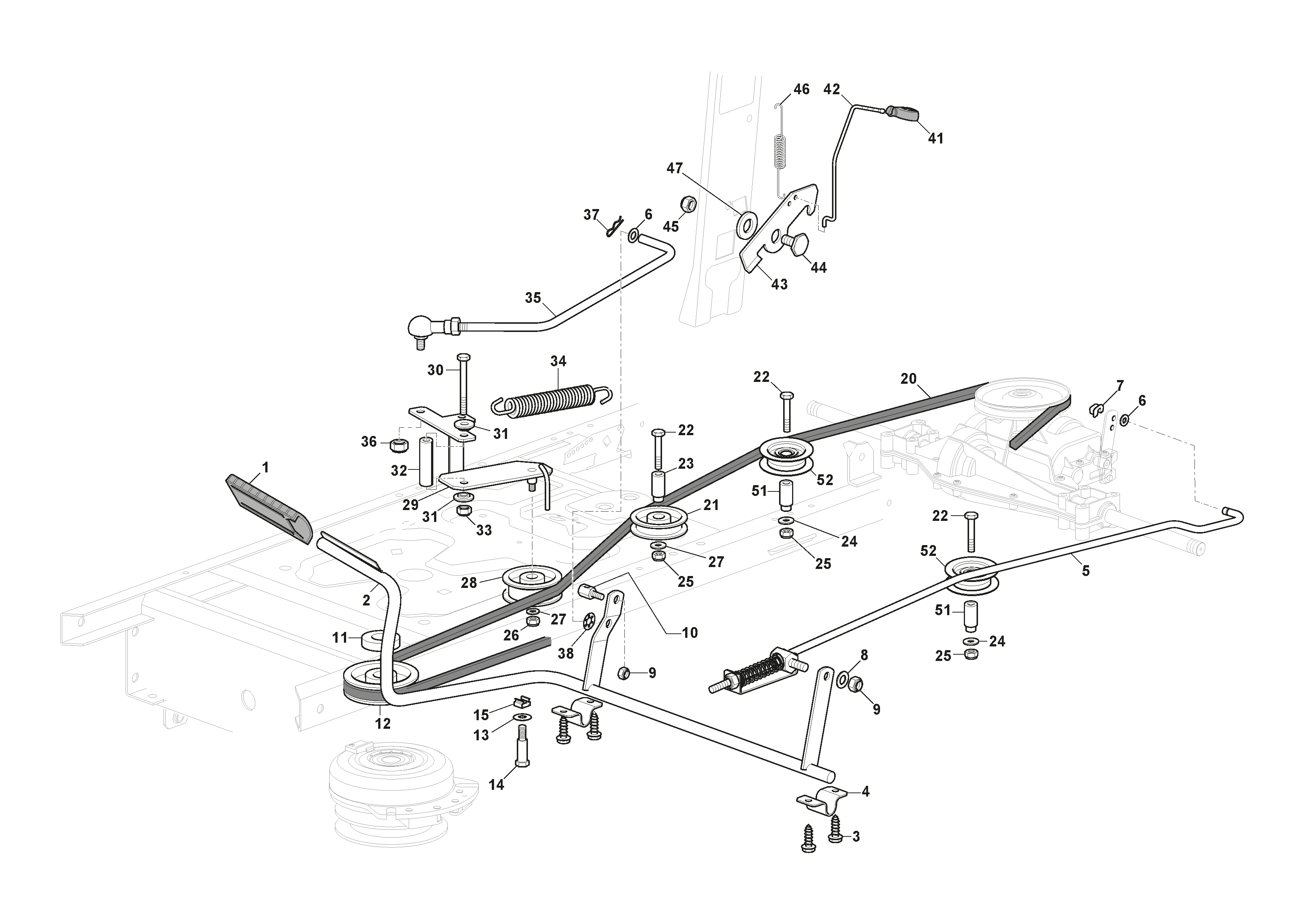

Brake And Gearbox Controls

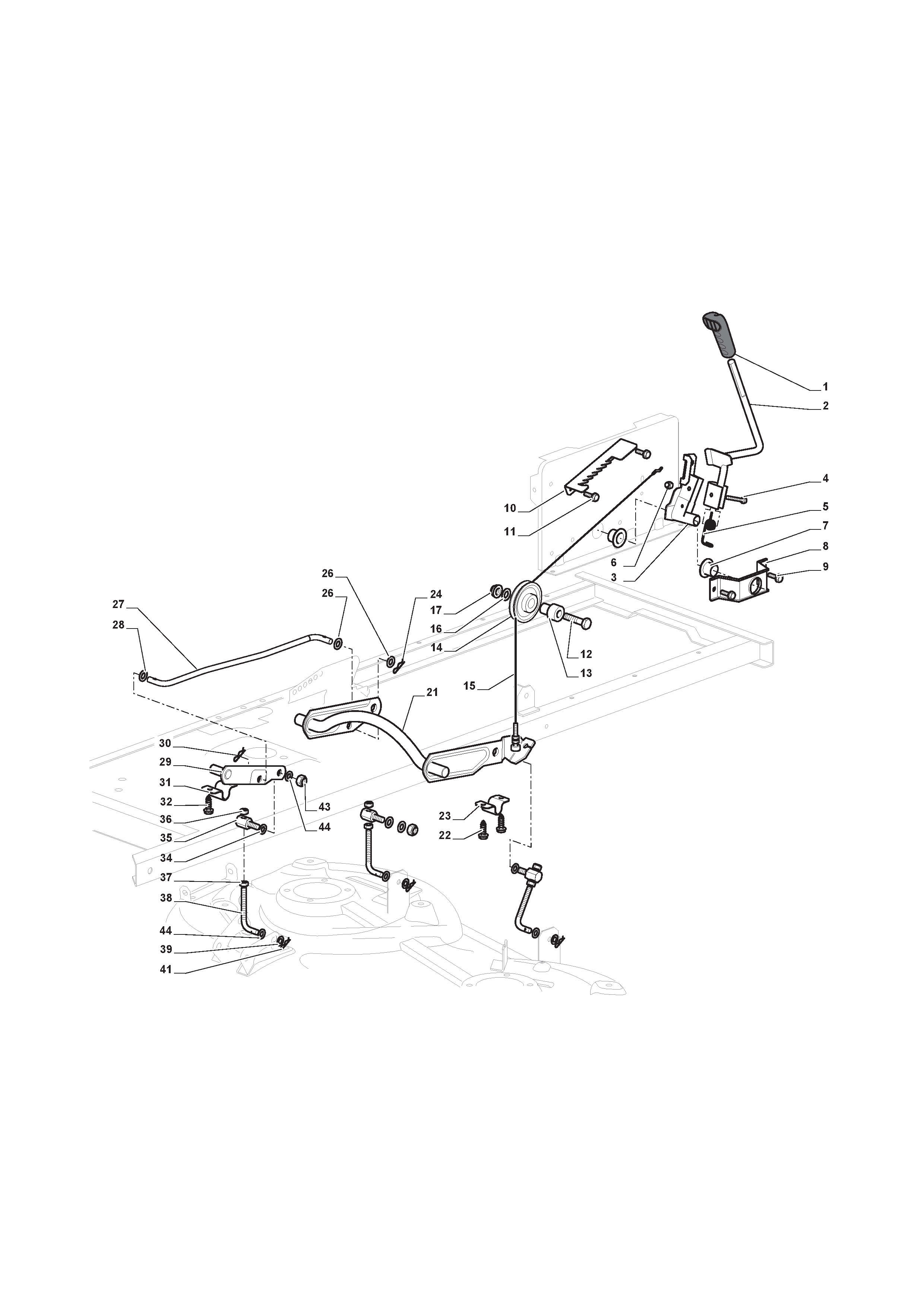

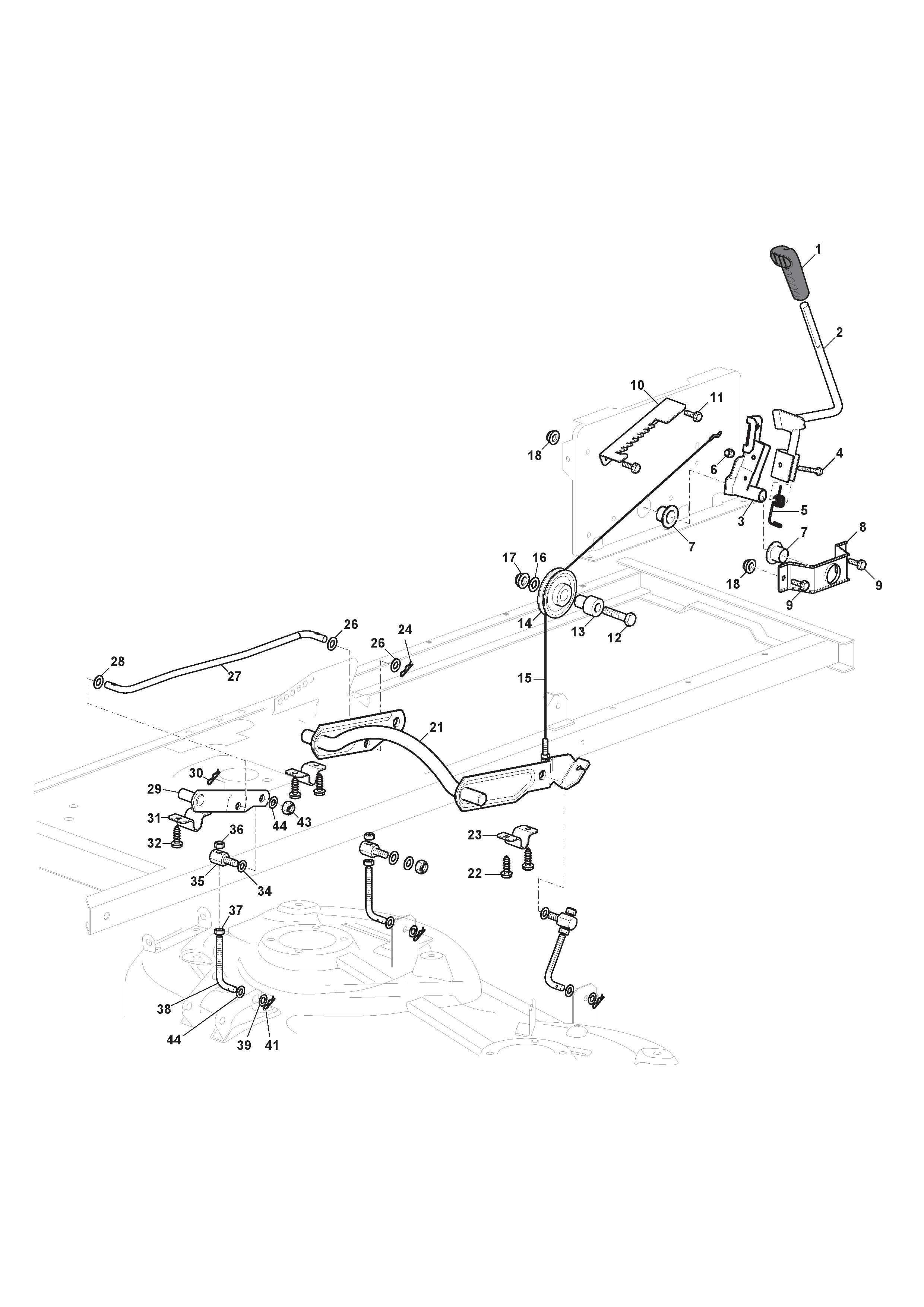

Cutting Plate Lifting

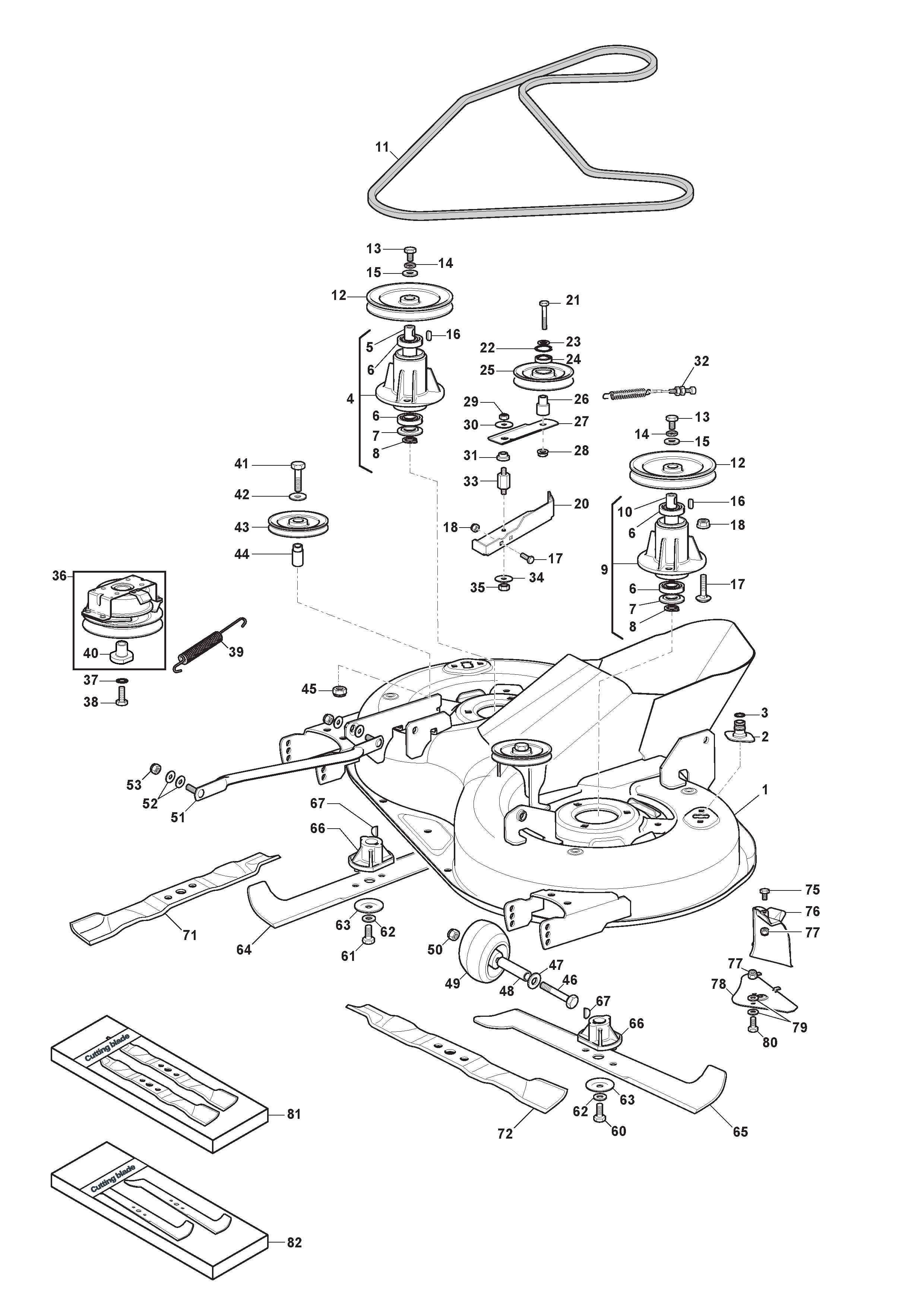

Cutting Plate

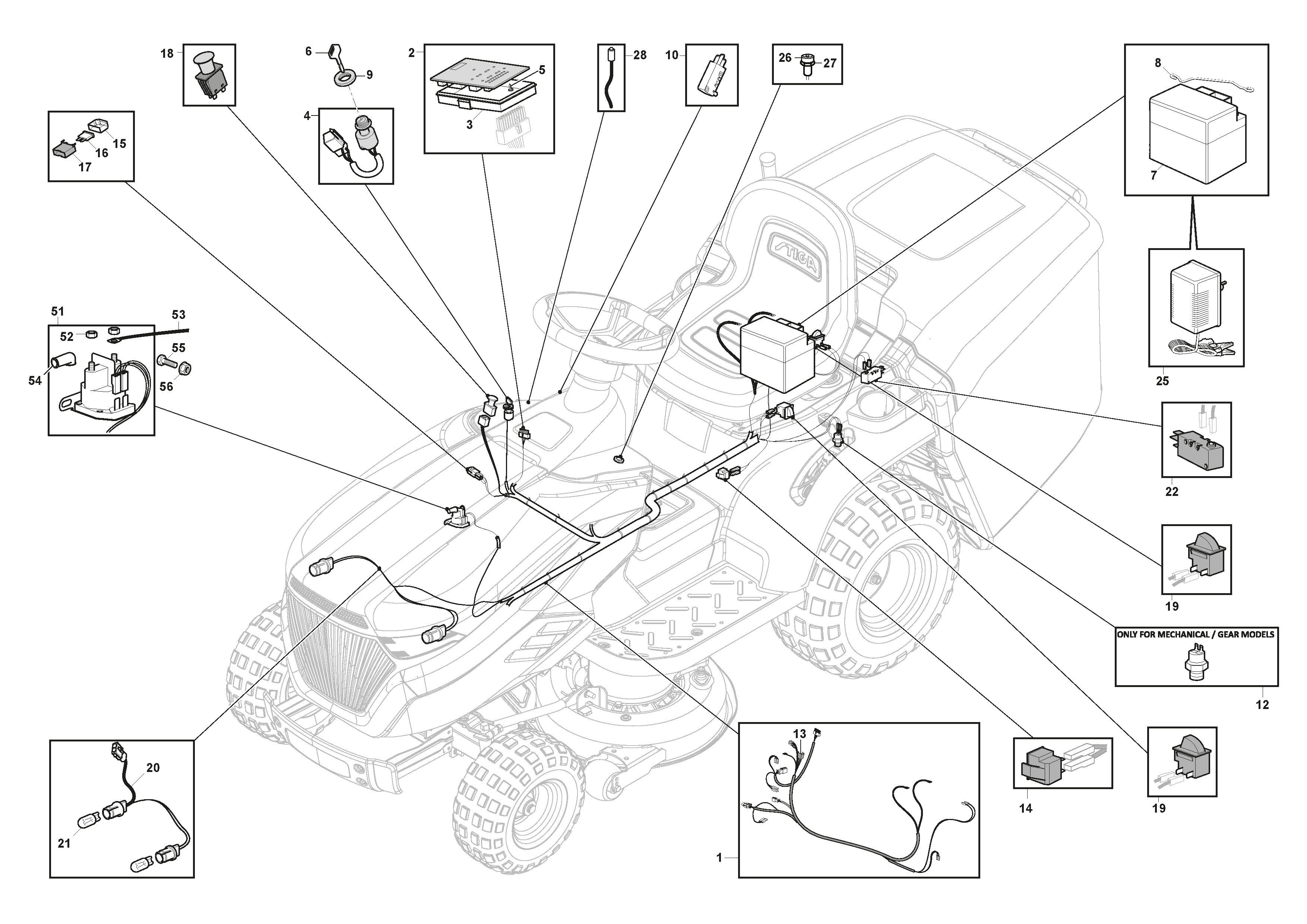

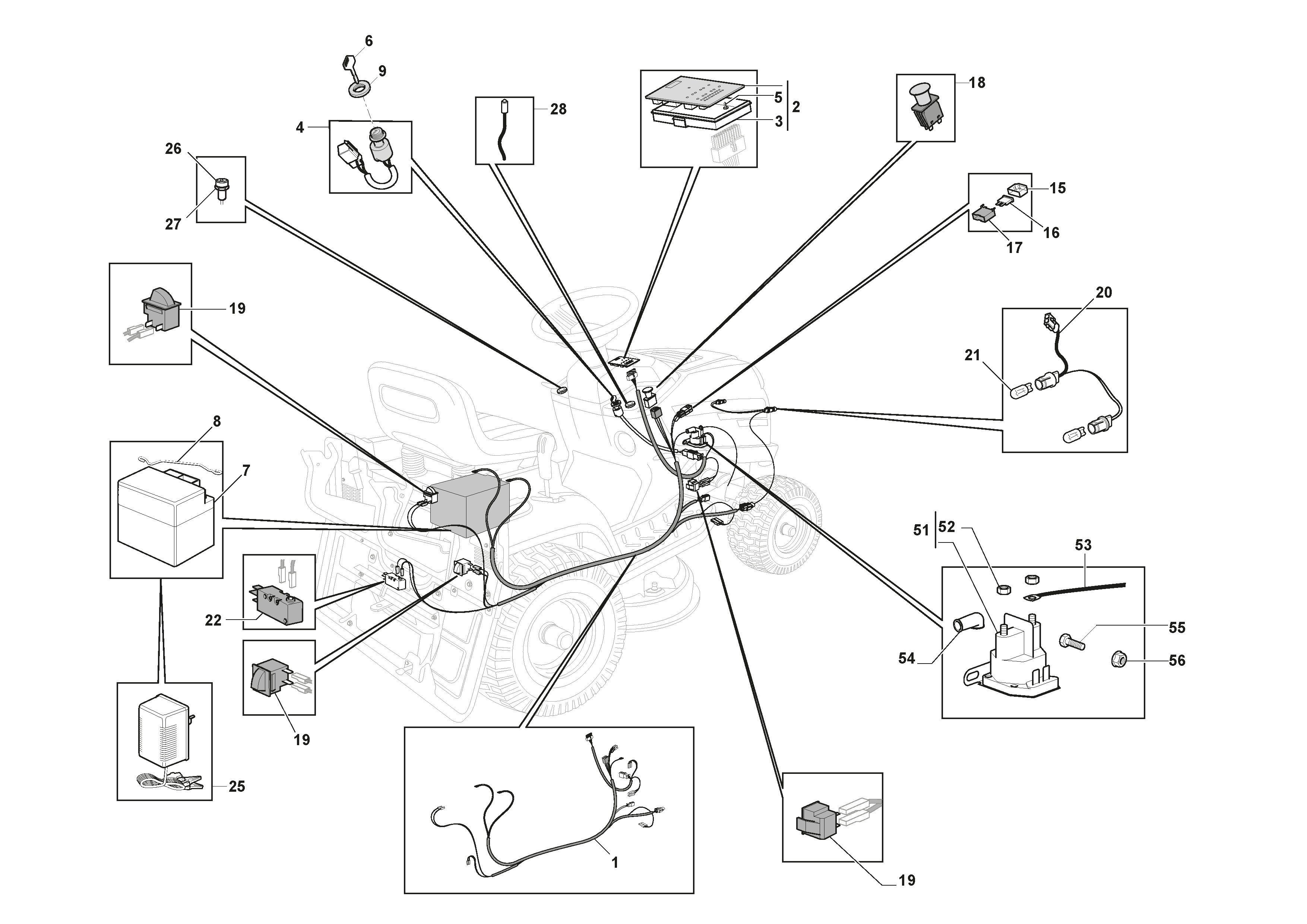

Electrical Parts

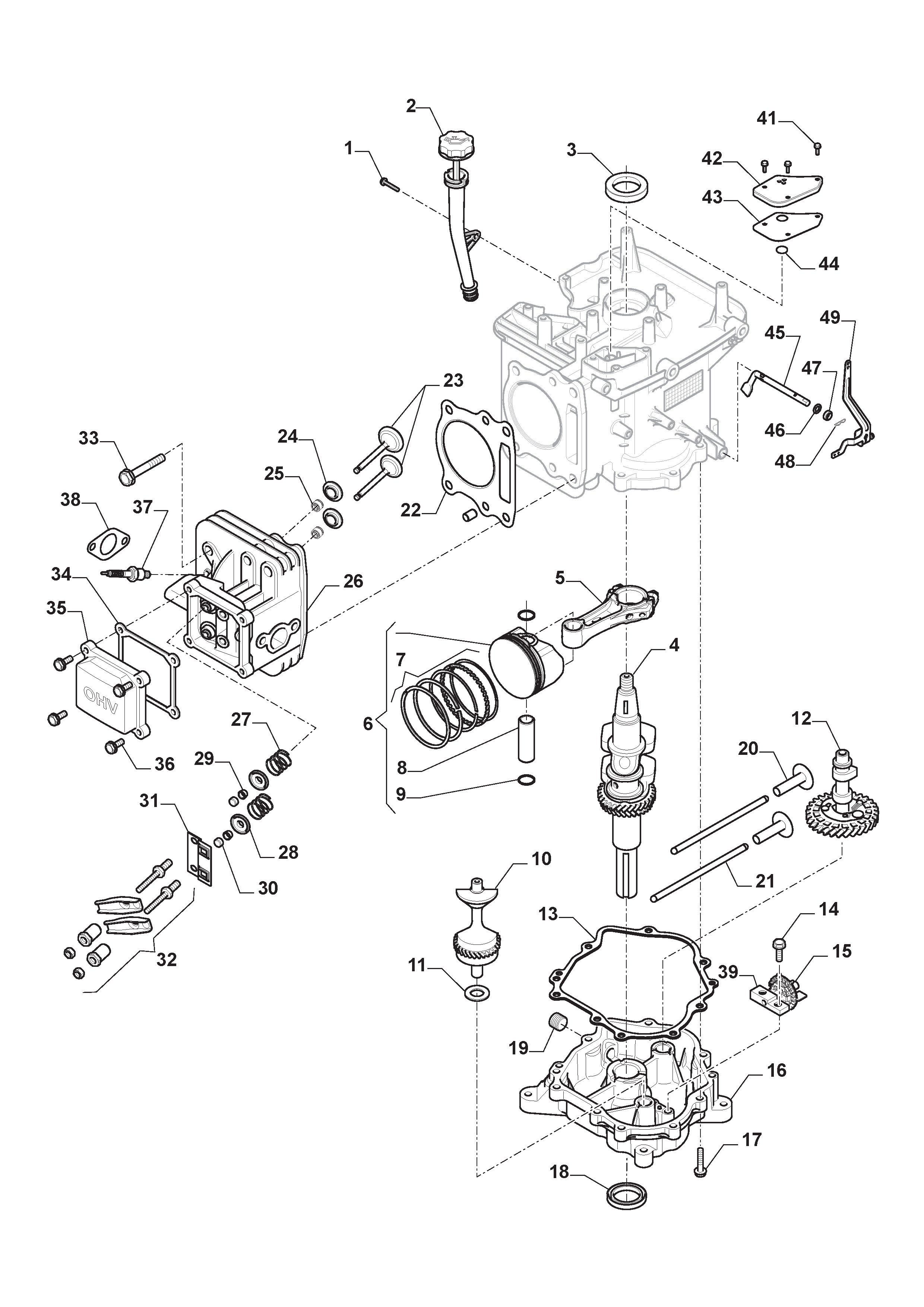

Piston, Crankshaft

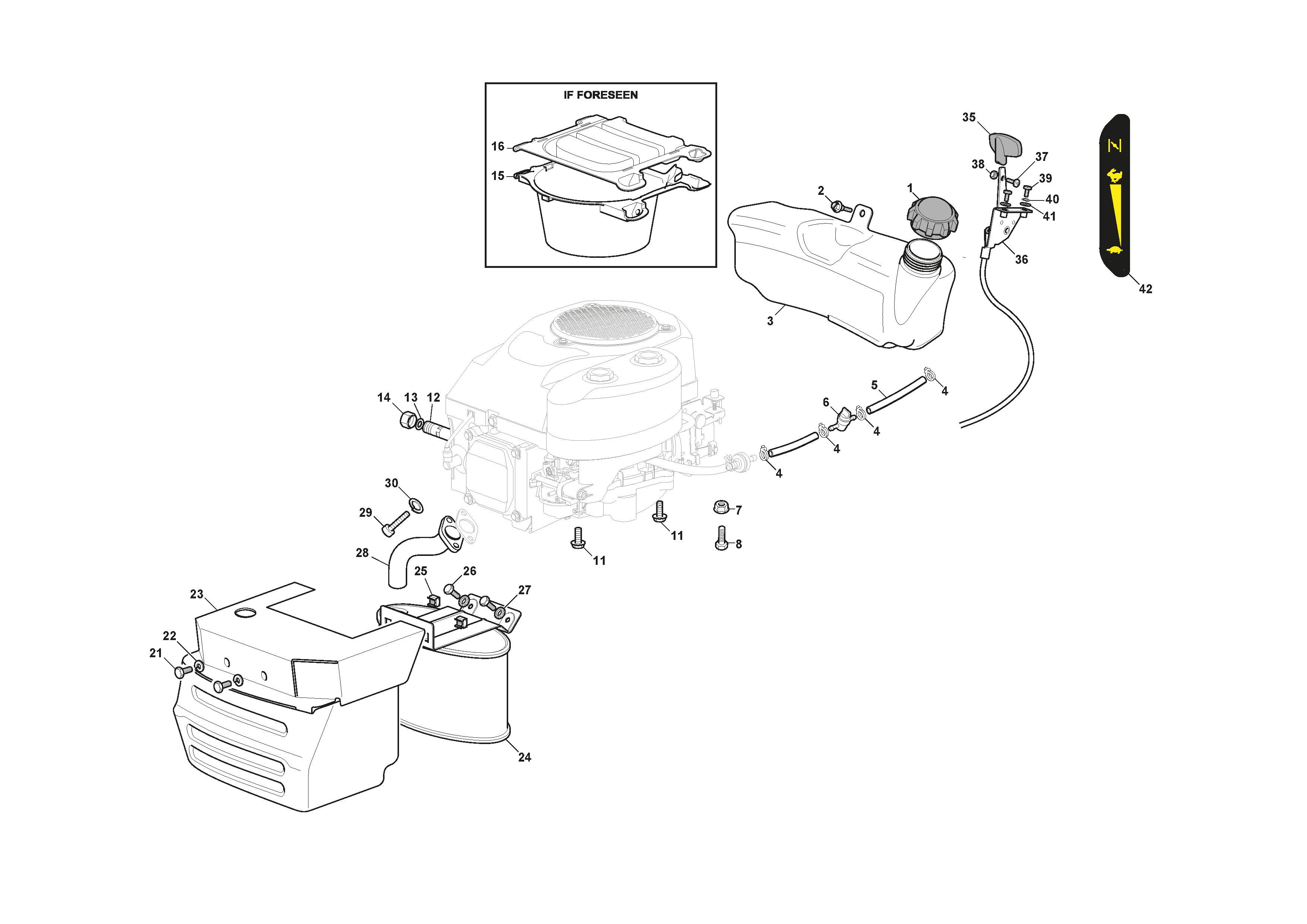

ST.

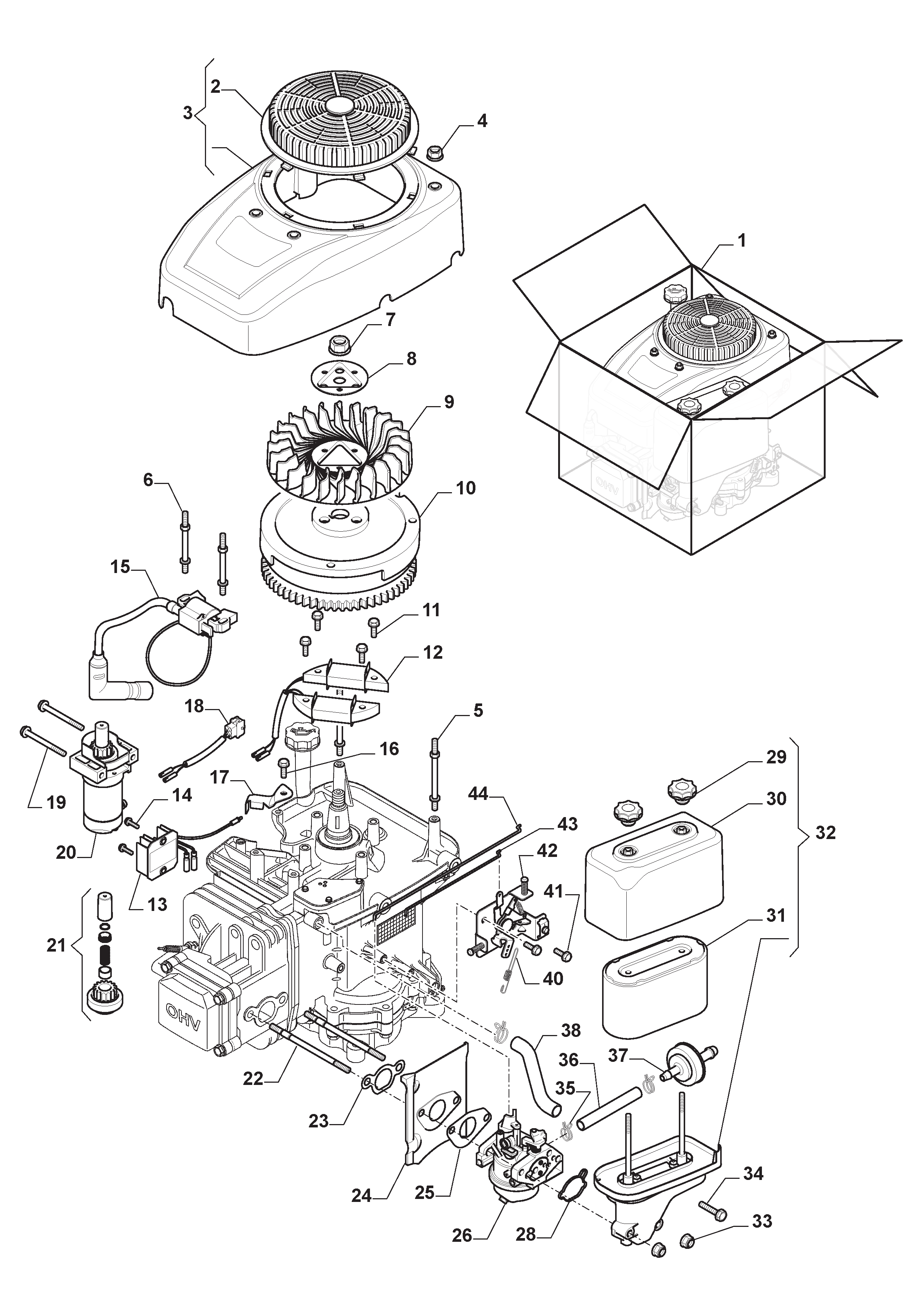

Starter Assy, Tank

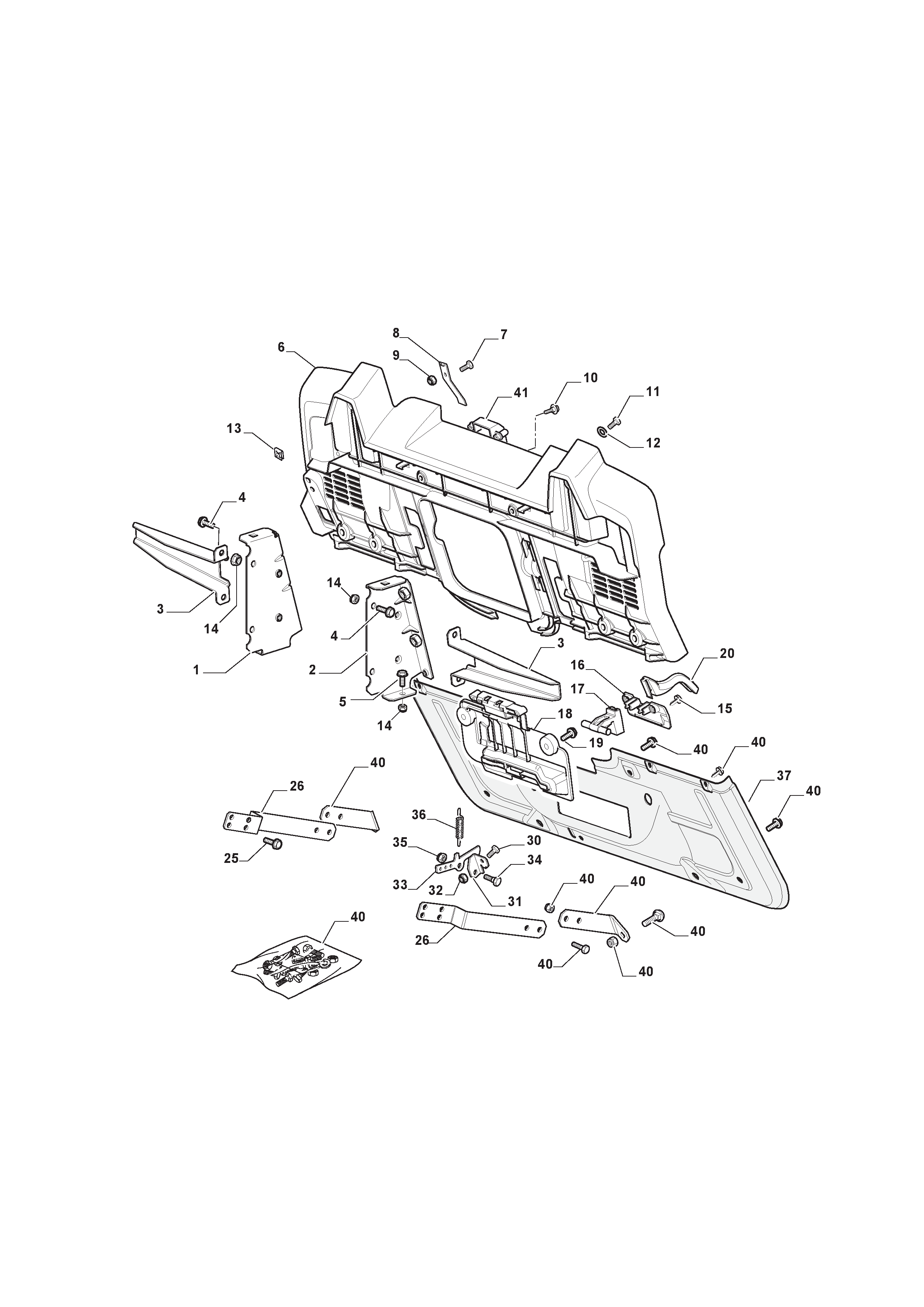

Rear Plate

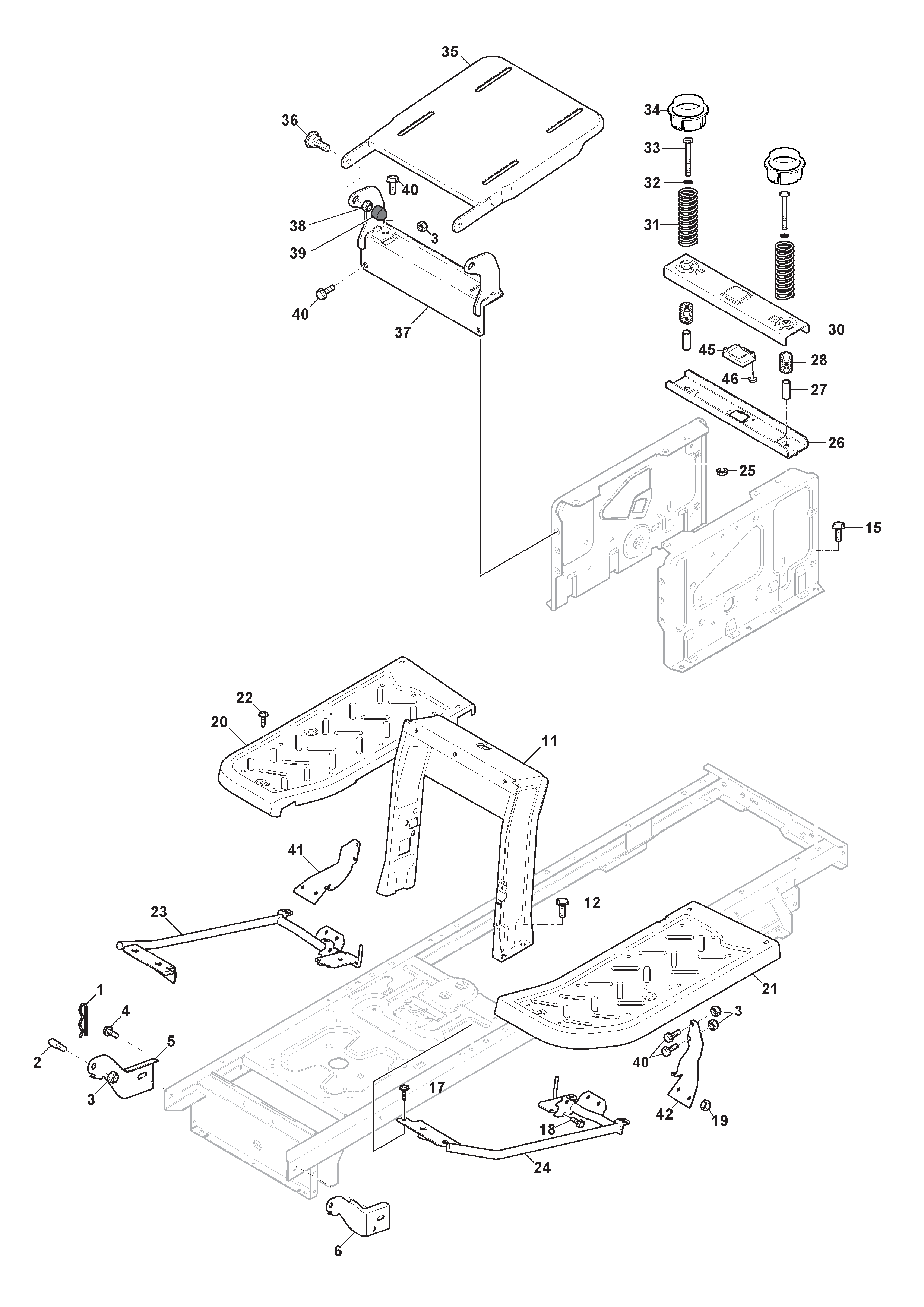

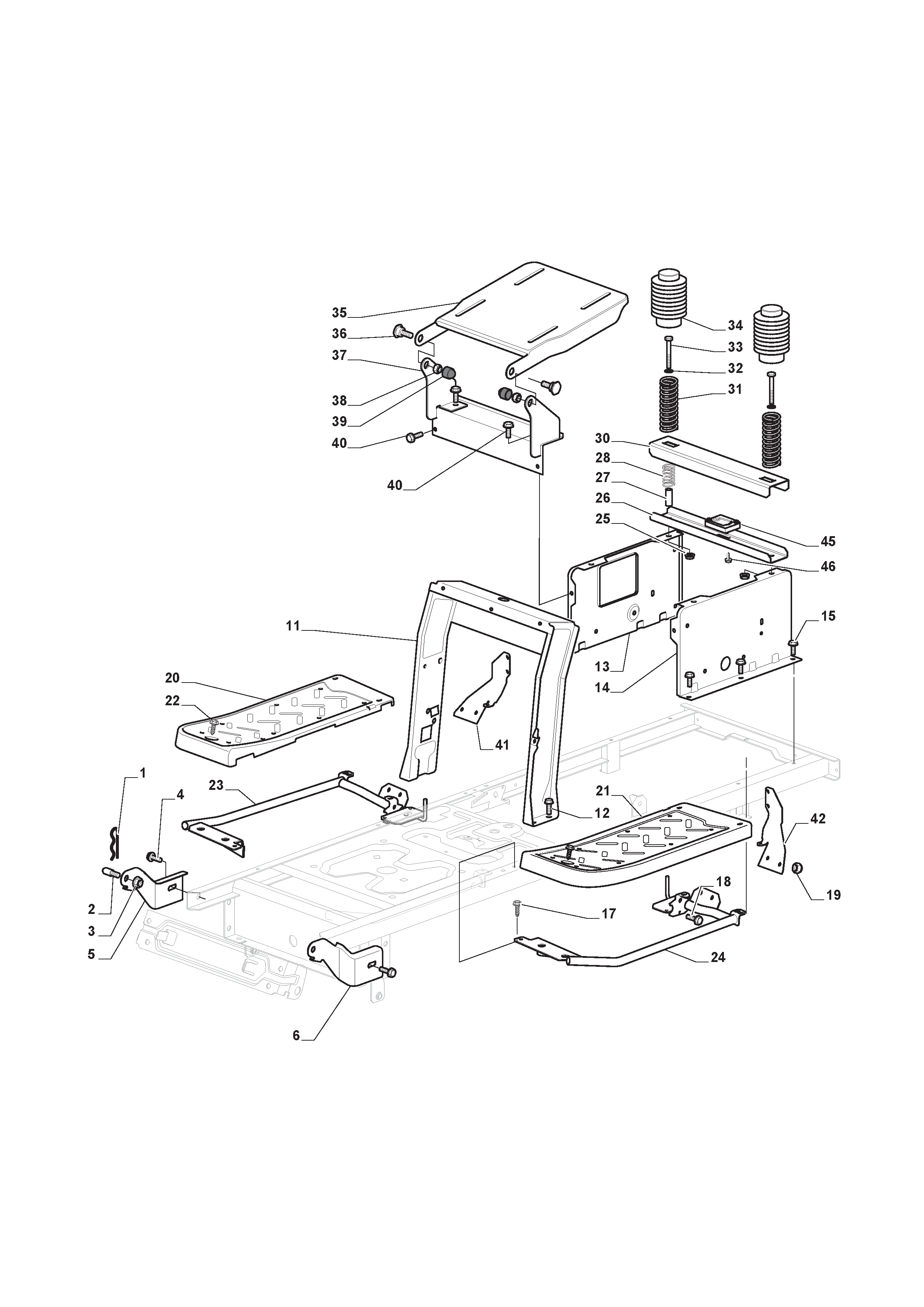

Frame

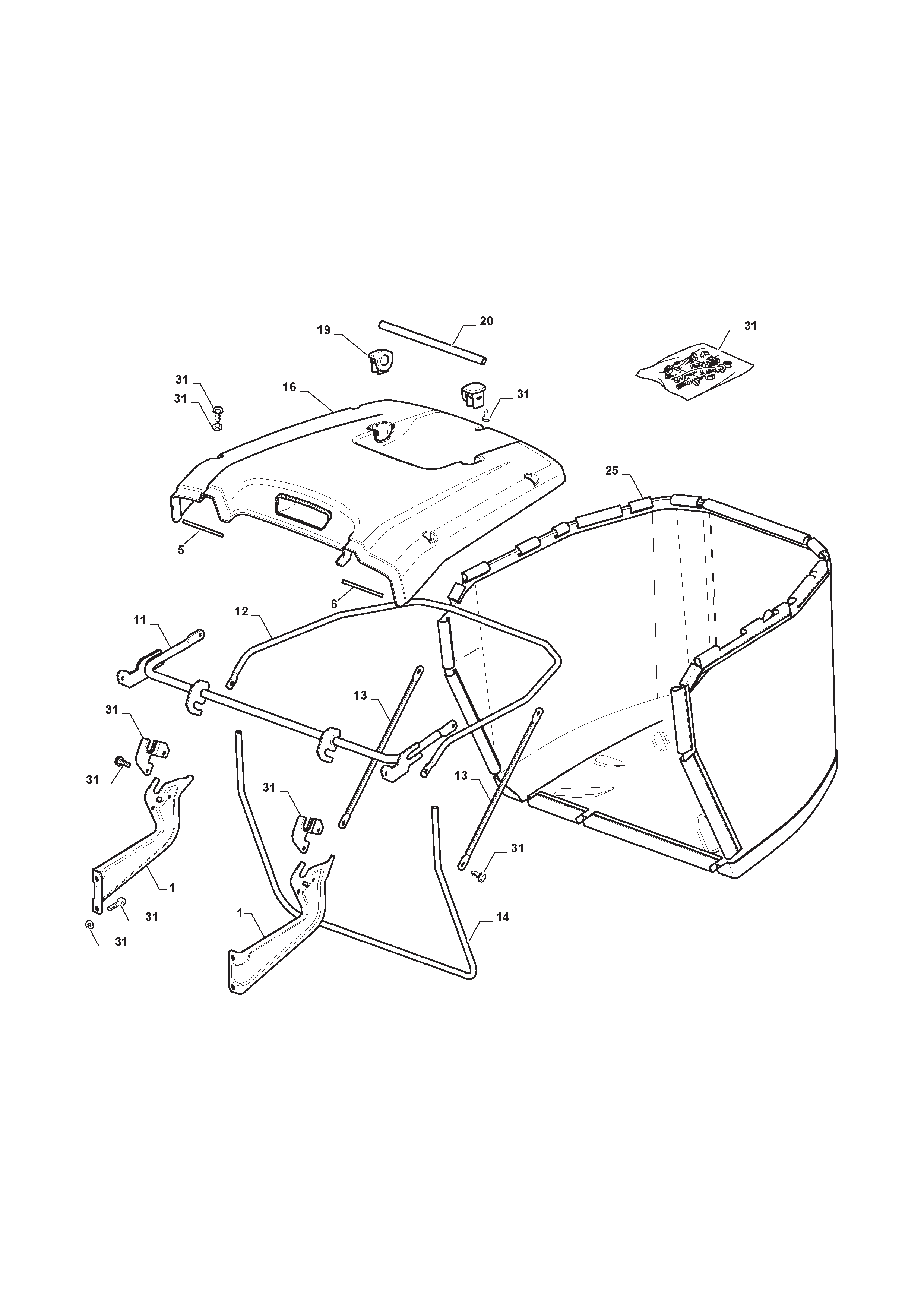

Grasscatcher

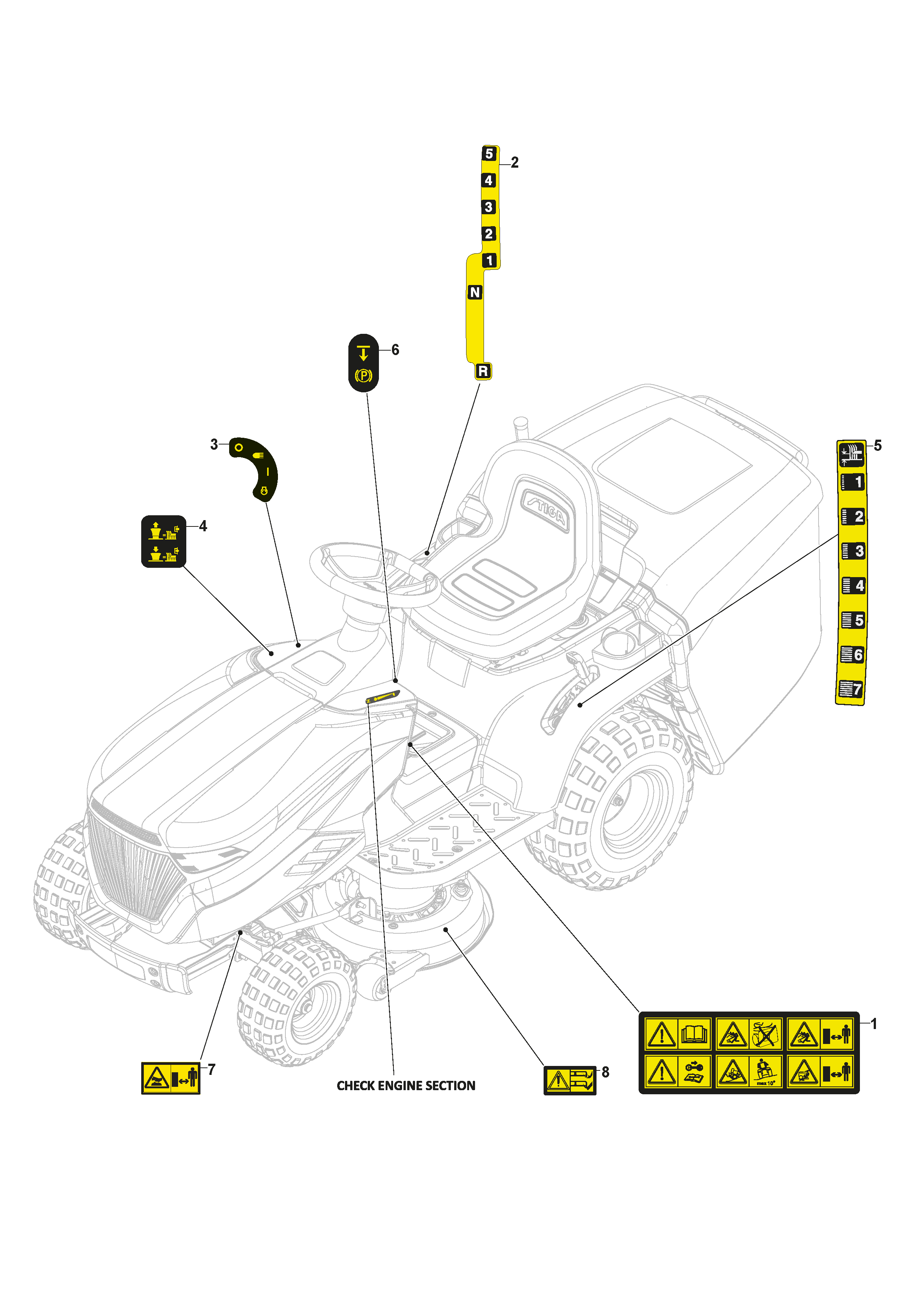

Labels

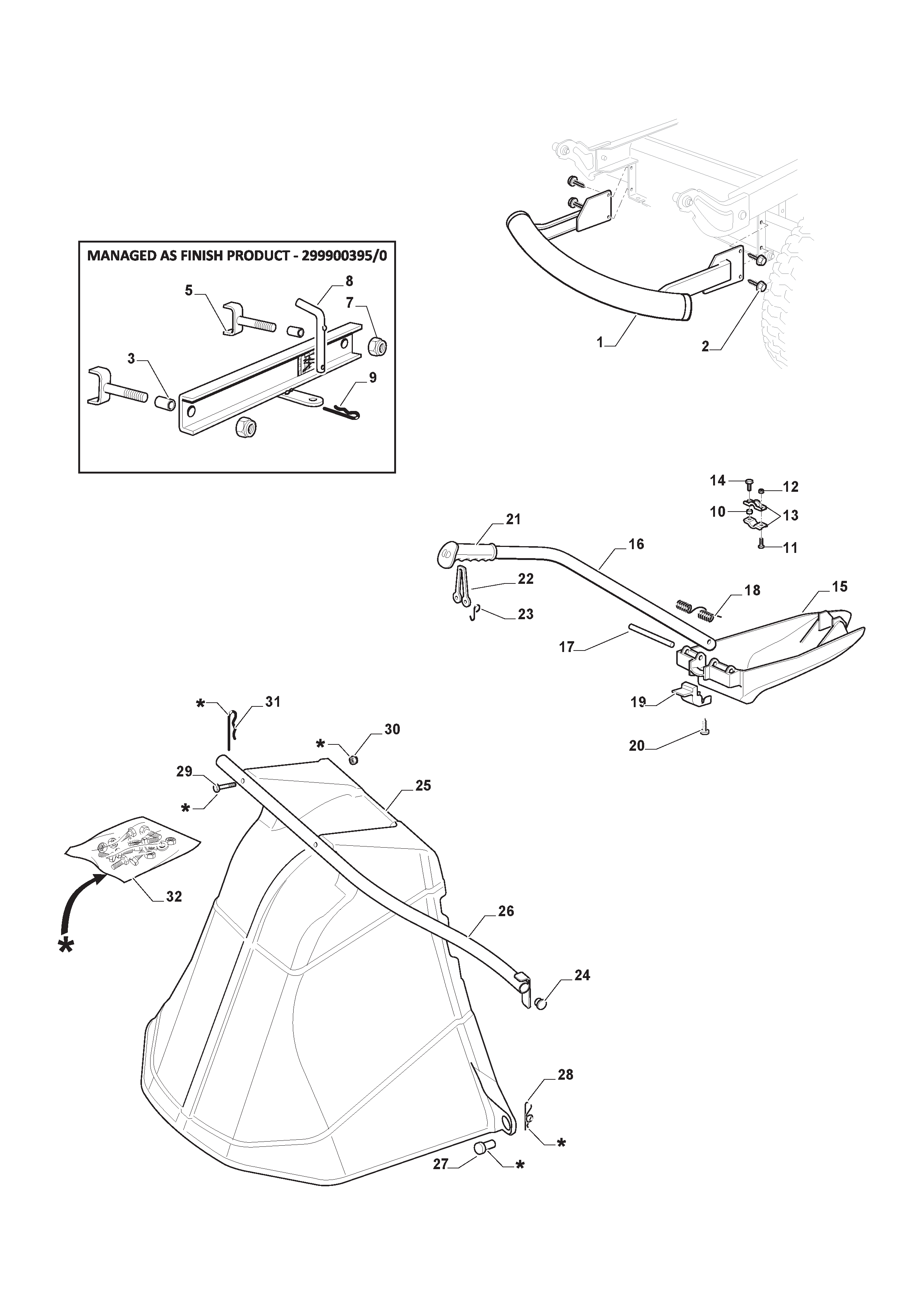

Optionals On Request

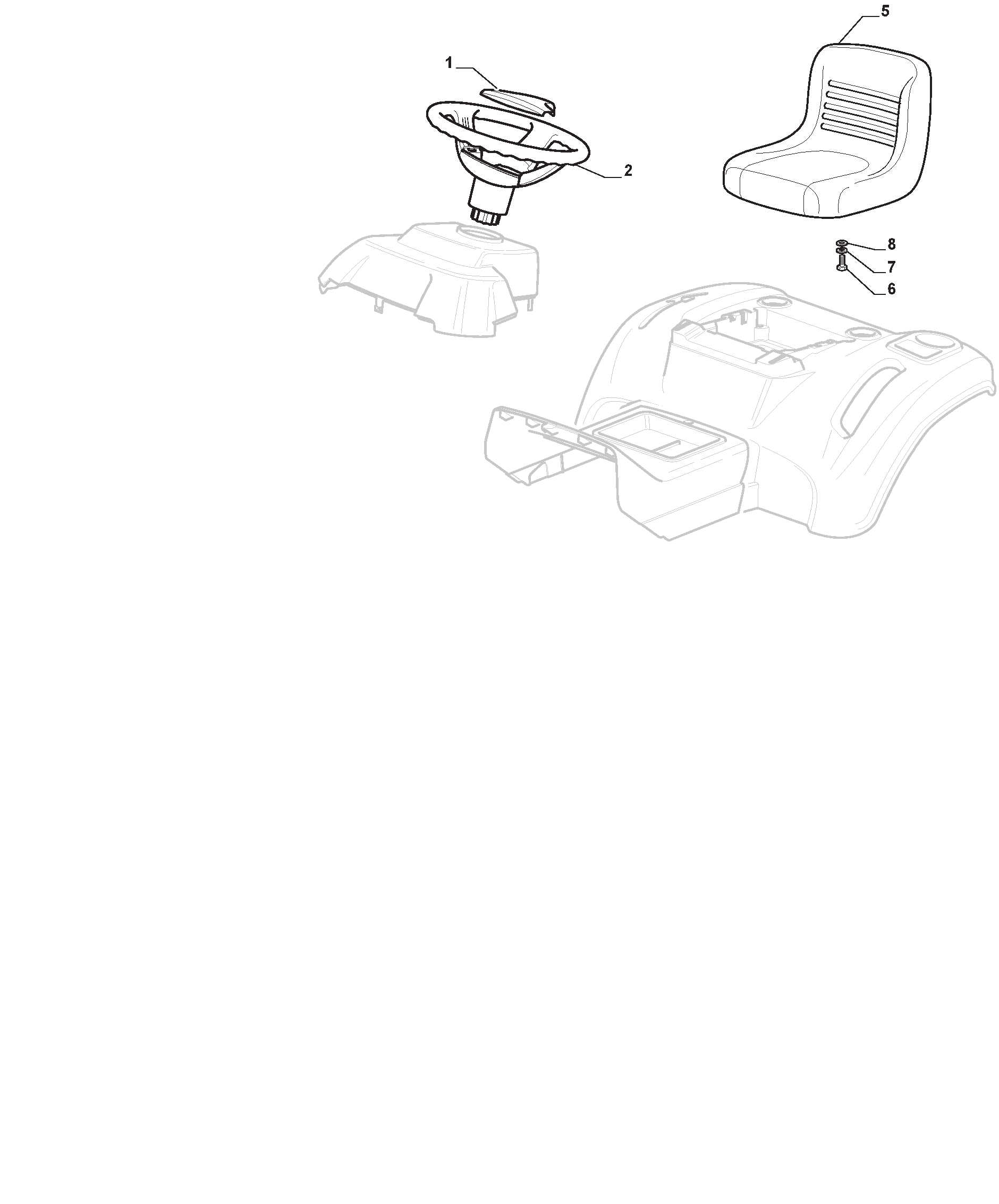

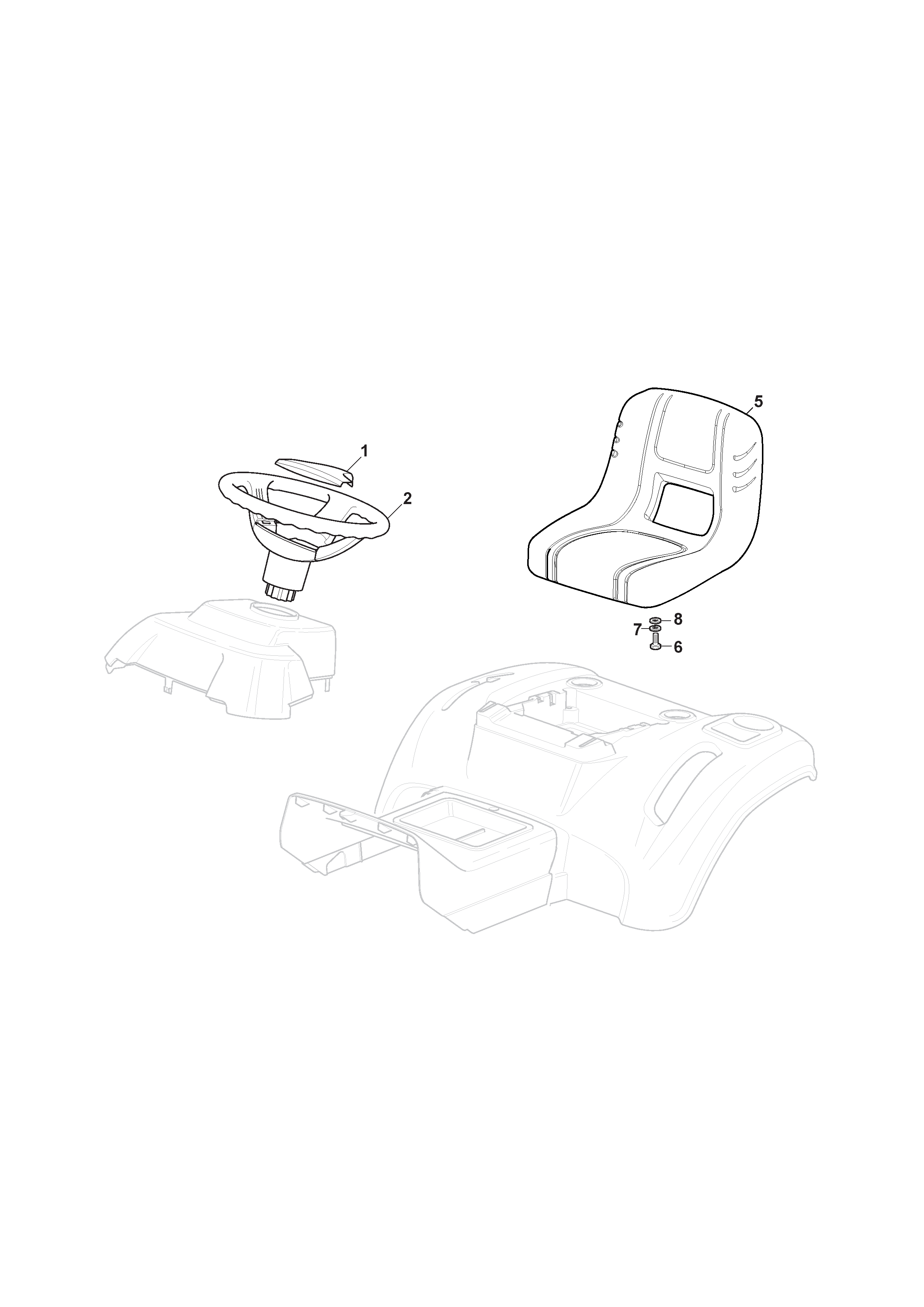

Seat & Steering Wheel

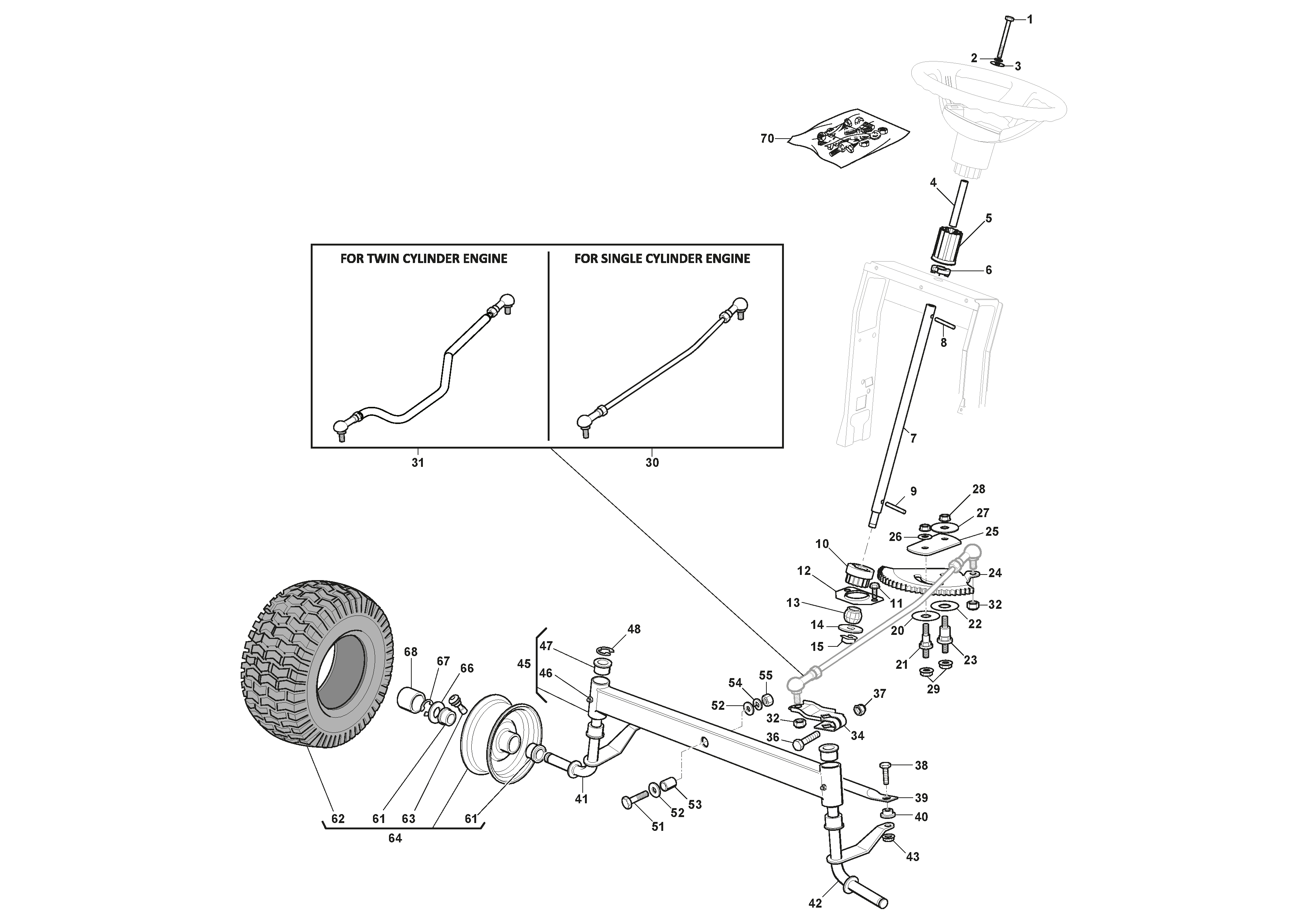

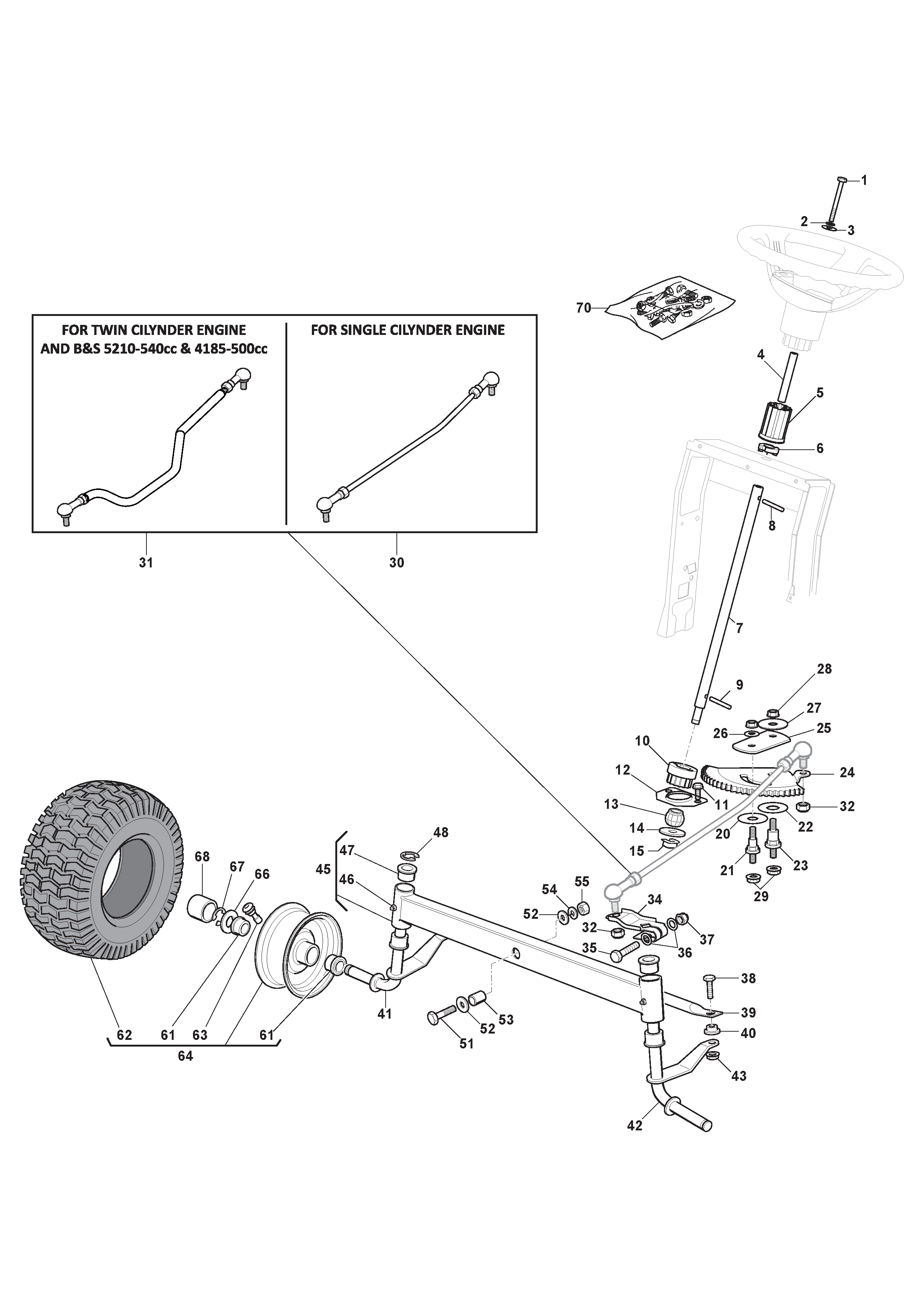

Steering

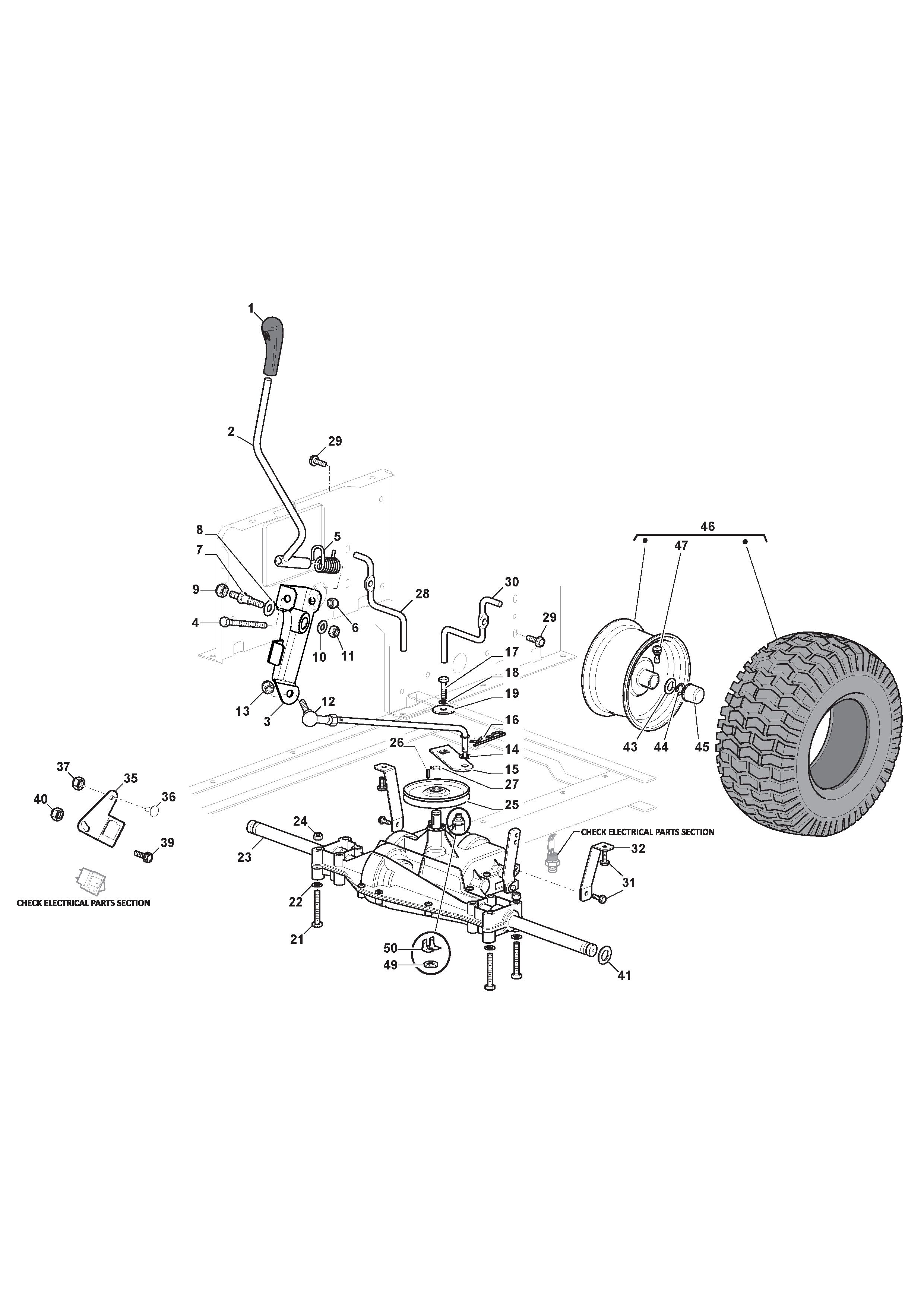

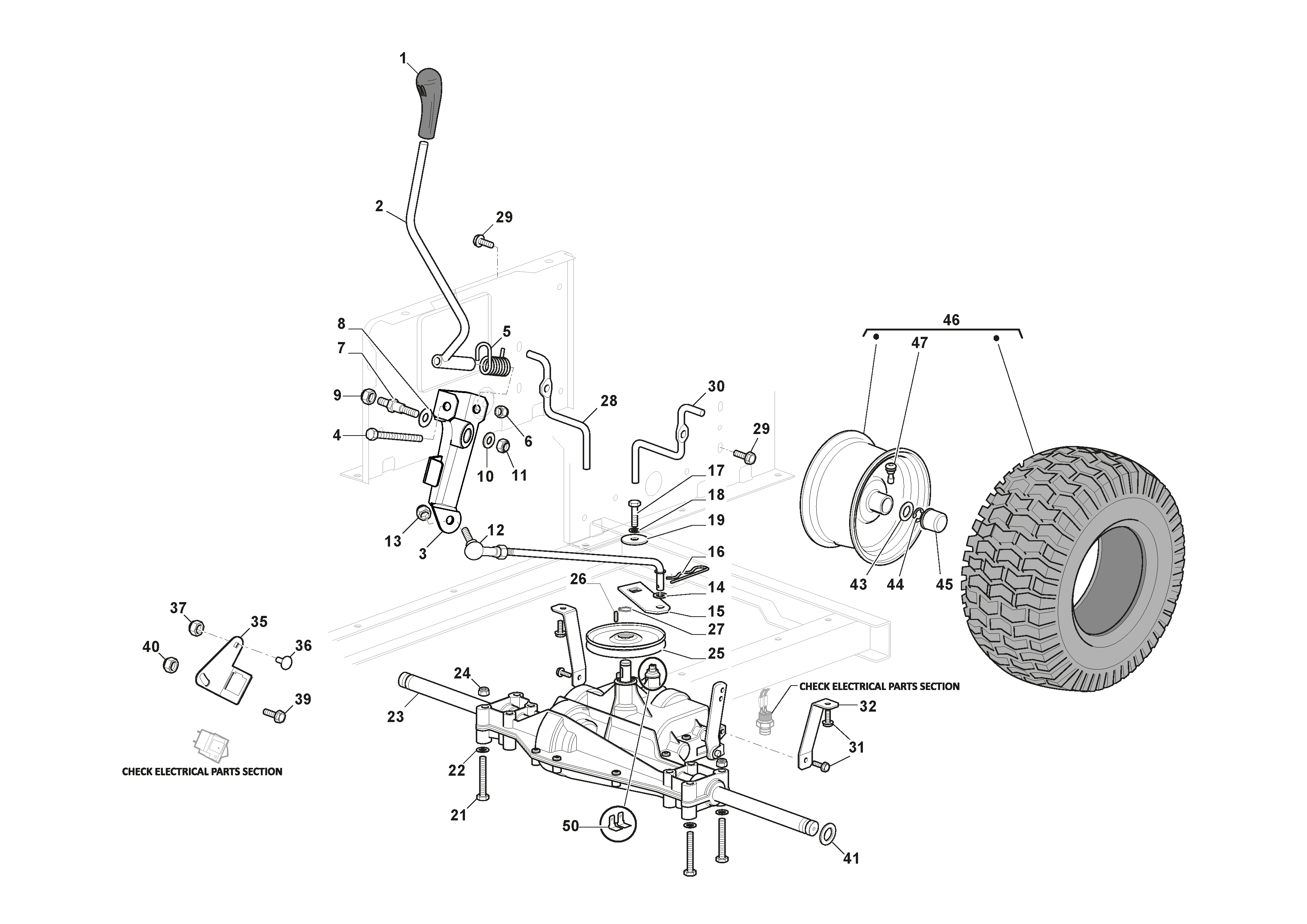

Transmission
2T2000483-M20 [2020-2021]
Belt Protections

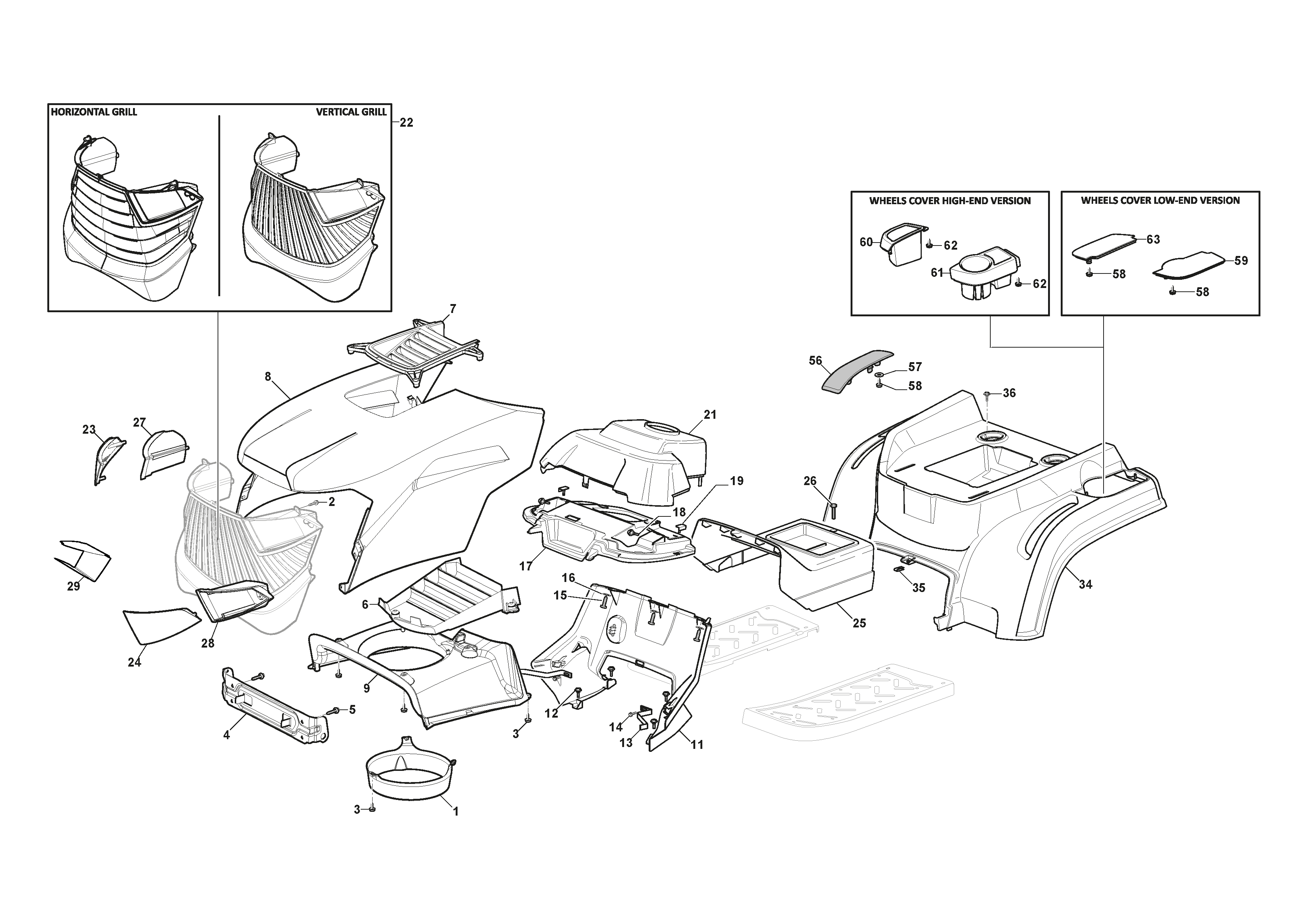

Body Work
Brake And Gearbox Controls

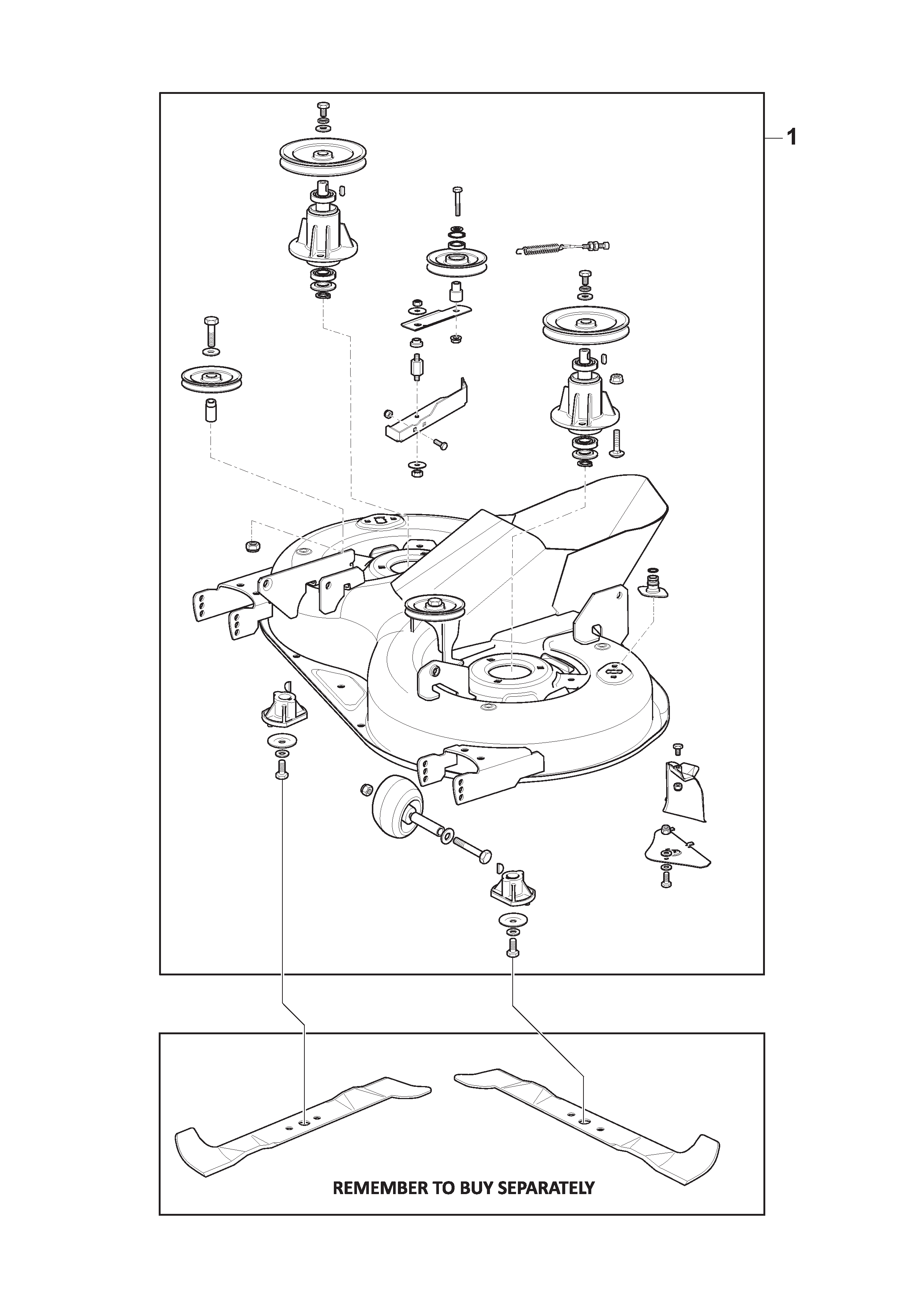

MP84
Cutting Plate Lifting
Cutting Plate
Electrical Parts
Piston, Crankshaft
ST.
Starter Assy, Tank
Rear Plate
Frame
Grasscatcher
Labels
Optionals On Request
Seat & Steering Wheel

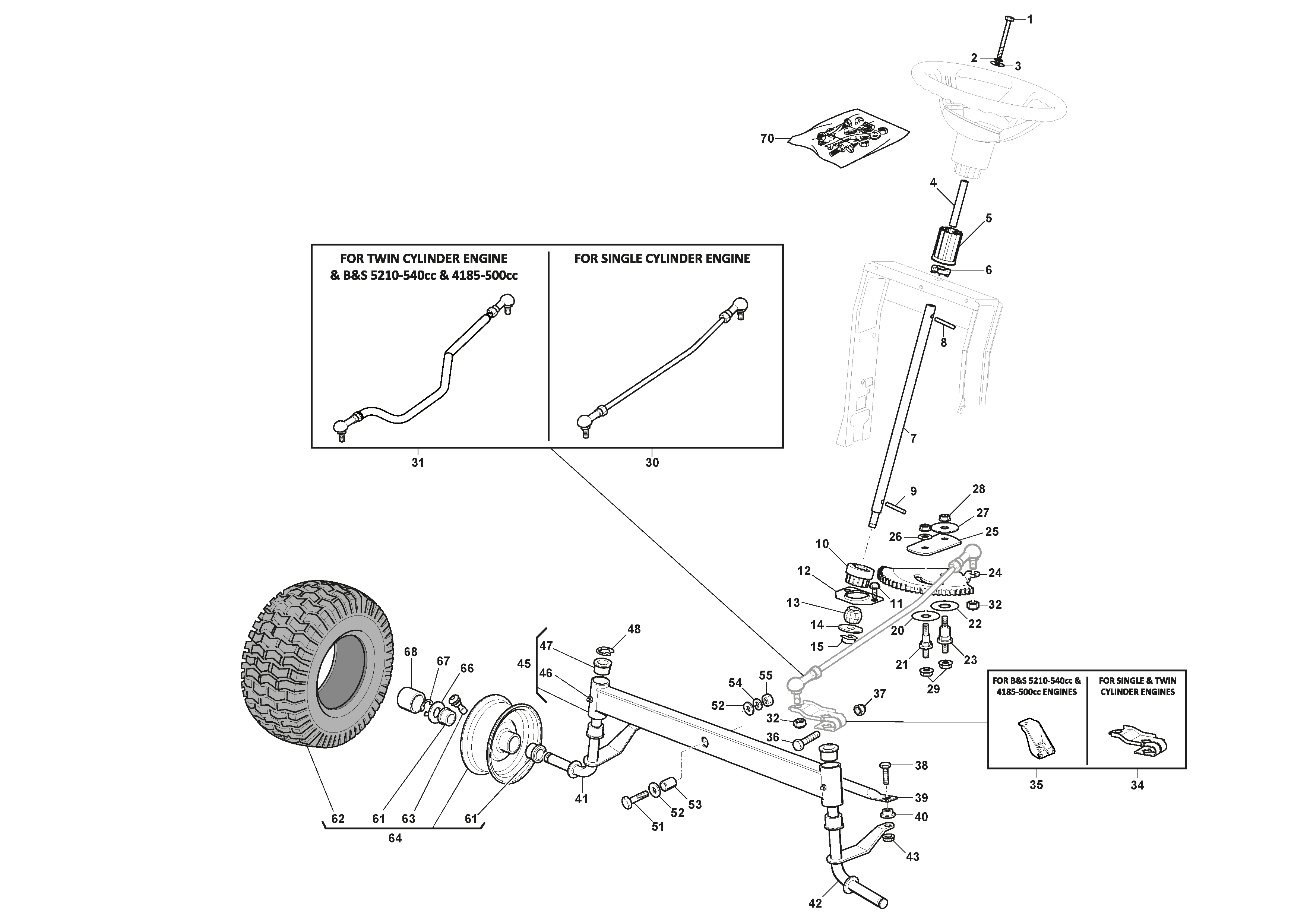

Steering
Transmission
