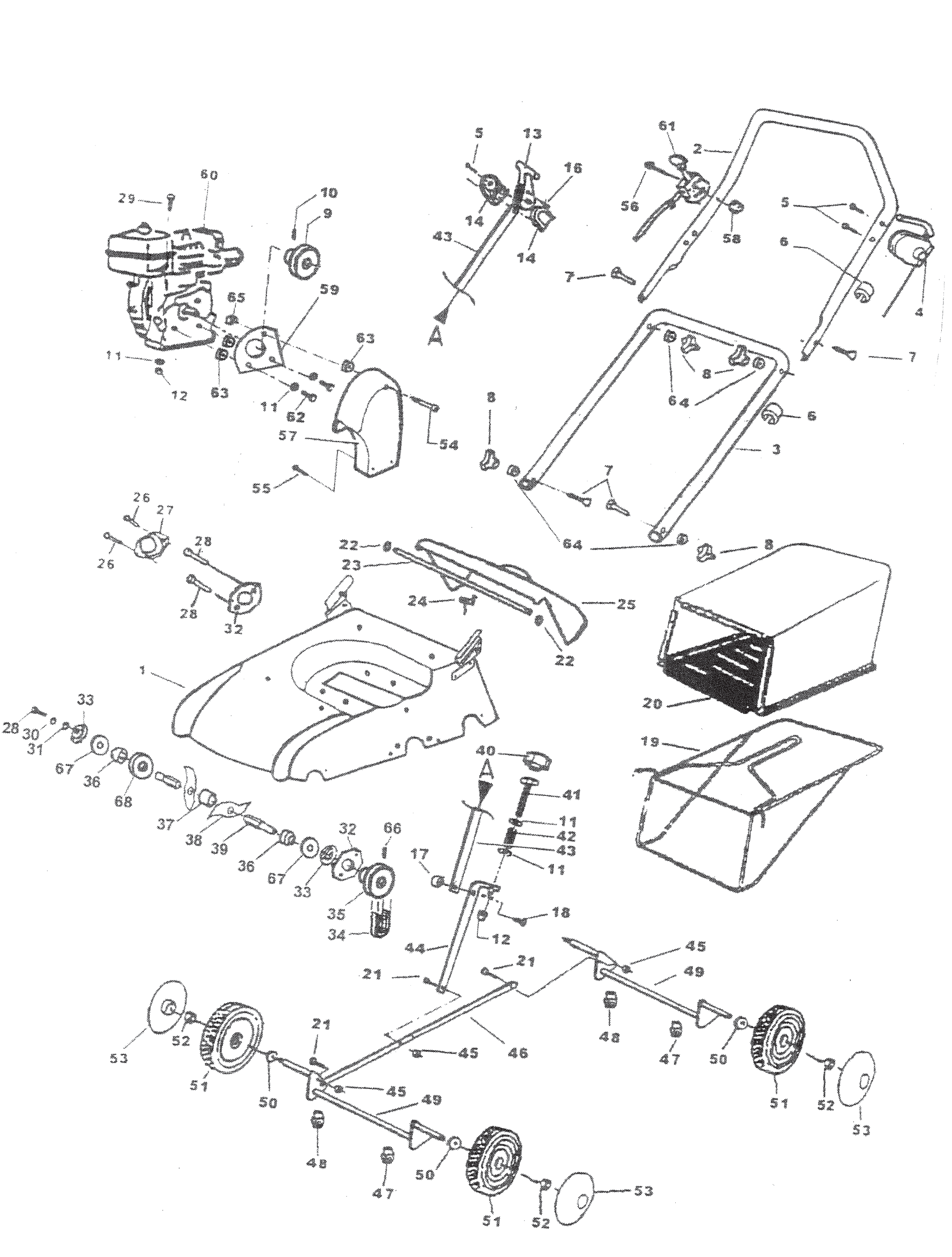

Mountfield S38 (2007) Parts Diagram, Page 1
Look at the diagram and find parts that fit a Mountfield S38, or refer to the list below.
All Parts for S38
| # | Part | Price | |
|---|---|---|---|
| 1 |
73830 Mountfield CHASSIS |
Mountfield CHASSIS£210.11
P/N: 73830, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 2 |
73846 Mountfield UPPER HANDLE |
Mountfield UPPER HANDLE£33.62
P/N: 73846, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 3 |
73847 Mountfield LOWER HANDLE |
Mountfield LOWER HANDLE£54.02
P/N: 73847, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 4 |
73806 Mountfield CUT-OUT SWITCH |
Mountfield CUT-OUT SWITCH£44.86
P/N: 73806, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 5 |
Z29 4-25 Mountfield SCREW 4.2 x 25 |
Mountfield SCREW 4.2 x 25£2.67
P/N: Z29 4-25, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 6 |
42032 Mountfield CABLE CLIP |
Mountfield CABLE CLIP£3.41
P/N: 42032, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 7 |
M074-0850 Mountfield Carriage Bolt M8 X 50 |
Mountfield Carriage Bolt M8 X 50£2.76
P/N: M074-0850, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 8 |
46032 Mountfield HANDWHEEL |
Mountfield HANDWHEEL£4.86
P/N: 46032, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 9 |
73864 Mountfield PULLEY |
Mountfield PULLEY£33.08
P/N: 73864, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 11 |
Z08 L8N Mountfield Washer D.9 |
Mountfield Washer D.9£2.67
P/N: Z08 L8N, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 12 |
RCL089-0810 Mountfield Nyloc Nut M8 |
Mountfield Nyloc Nut M8£2.76
P/N: RCL089-0810, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 13 |
75108 Mountfield LEVER |
Mountfield LEVER£6.31
P/N: 75108, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 14 |
75109 Mountfield SUPPORT |
Mountfield SUPPORT£4.43
P/N: 75109, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 17 |
73843 Mountfield KNOB |
Mountfield KNOB£4.43
P/N: 73843, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 19 |
73825 Mountfield GRASSBAG FRAME |
Mountfield GRASSBAG FRAME£46.96
P/N: 73825, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 20 |
73826 Mountfield GRASSBAG-S38 Scarifier |
Mountfield GRASSBAG-S38 Scarifier£81.42
P/N: 73826, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 22 |
45004 Mountfield PUSH ON FIXING |
Mountfield PUSH ON FIXING£3.40
P/N: 45004, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 23 |
73822 Mountfield DEFLECTOR ROD |
Mountfield DEFLECTOR ROD£4.62
P/N: 73822, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 24 |
73823 Mountfield DEFLECTOR SPRING |
Mountfield DEFLECTOR SPRING£4.43
P/N: 73823, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 25 |
73824 Mountfield DEFLECTOR-BLACK |
Mountfield DEFLECTOR-BLACK£18.18
P/N: 73824, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 26 |
42010 Mountfield SCREW D.4 x 12 |
Mountfield SCREW D.4 x 12£2.67
P/N: 42010, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 27 |
72483 Mountfield COVER |
Mountfield COVER£8.40
P/N: 72483, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 30 |
Z12 8AZ Mountfield Washer D.8 |
Mountfield Washer D.8£2.67
P/N: Z12 8AZ, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 31 |
73842 Mountfield WASHER D.8 |
Mountfield WASHER D.8£3.40
P/N: 73842, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 32 |
72316 Mountfield PLATE |
Mountfield PLATE£6.50
P/N: 72316, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 33 |
73841 Mountfield BEARING |
Mountfield BEARING£19.65
P/N: 73841, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 34 |
PL73872 Mountfield Belt Xpz 625 |
Mountfield Belt Xpz 625
P/N: PL73872, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
|
| 35 |
73876 Mountfield PULLEY |
Mountfield PULLEY£33.62
P/N: 73876, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 36 |
73836 Mountfield SPACER |
Mountfield SPACER£3.40
P/N: 73836, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 37 |
73837 Mountfield BLADE SPACER |
Mountfield BLADE SPACER£4.01
P/N: 73837, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 38 |
PL73837 Mountfield Spacer |
Mountfield Spacer
P/N: PL73837, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 39 |
PL73875 Mountfield Blade Shaft |
Mountfield Blade Shaft
P/N: PL73875, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 40 |
33868 Mountfield ADJUSTER KNOB |
Mountfield ADJUSTER KNOB£4.43
P/N: 33868, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 42 |
73170 Mountfield ADJUSTER SPRING |
Mountfield ADJUSTER SPRING£4.43
P/N: 73170, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 43 |
75062 Mountfield ADJUSTER BAR-TOP |
Mountfield ADJUSTER BAR-TOP£10.72
P/N: 75062, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 44 |
73811 Mountfield ADJUSTER BAR-BOTTOM |
Mountfield ADJUSTER BAR-BOTTOM£9.77
P/N: 73811, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 45 |
RCL090-0606 Mountfield Nut |
Mountfield Nut£2.76
P/N: RCL090-0606, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 46 |
75063 Mountfield TIE BAR |
Mountfield TIE BAR£6.73
P/N: 75063, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 47 |
43255 Mountfield AXLE BUSH L/H |
Mountfield AXLE BUSH L/H£4.43
P/N: 43255, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 48 |
43189 Mountfield AXLE BUSH R/H |
Mountfield AXLE BUSH R/H£4.43
P/N: 43189, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 49 |
75064 Mountfield WHEEL AXLE-S38 Scarifier |
Mountfield WHEEL AXLE-S38 Scarifier£62.02
P/N: 75064, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 51 |
46114 Mountfield WHEEL ASSEMBLY 200mm |
Mountfield WHEEL ASSEMBLY 200mm£24.47
P/N: 46114, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 52 |
Z53 08F125 Mountfield Nut |
Mountfield Nut£2.67
P/N: Z53 08F125, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 53 |
43131-R Mountfield HUB CAP-RED |
Mountfield HUB CAP-RED£4.43
P/N: 43131-R, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 57 |
73828 Mountfield BELT COVER |
Mountfield BELT COVER£17.25
P/N: 73828, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 58 |
73271 Mountfield NUT M6 |
Mountfield NUT M6£2.67
P/N: 73271, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 59 |
73865 Mountfield SUPPORT PLATE |
Mountfield SUPPORT PLATE£25.01
P/N: 73865, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 61 |
30525 Mountfield THROTTLE CABLE |
Mountfield THROTTLE CABLE£42.03
P/N: 30525, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 62 |
Z03 792416 Mountfield Screw |
Mountfield Screw£2.67
P/N: Z03 792416, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 63 |
33940 Mountfield SPACER |
Mountfield SPACER£3.40
P/N: 33940, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 64 |
PL46301 Mountfield Plastic Washer |
Mountfield Plastic Washer
P/N: PL46301, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 65 |
73853 Mountfield NUT |
Mountfield NUT£2.67
P/N: 73853, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 67 |
73856 Mountfield SPACER WASHER |
Mountfield SPACER WASHER£3.40
P/N: 73856, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 68 |
Z08 Z22N Mountfield Large Washer |
Mountfield Large Washer£2.67
P/N: Z08 Z22N, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
