Diagrams for the Husqvarna 45 Chainsaw
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Husqvarna 45 Chainsaw.
Select year or serial number...

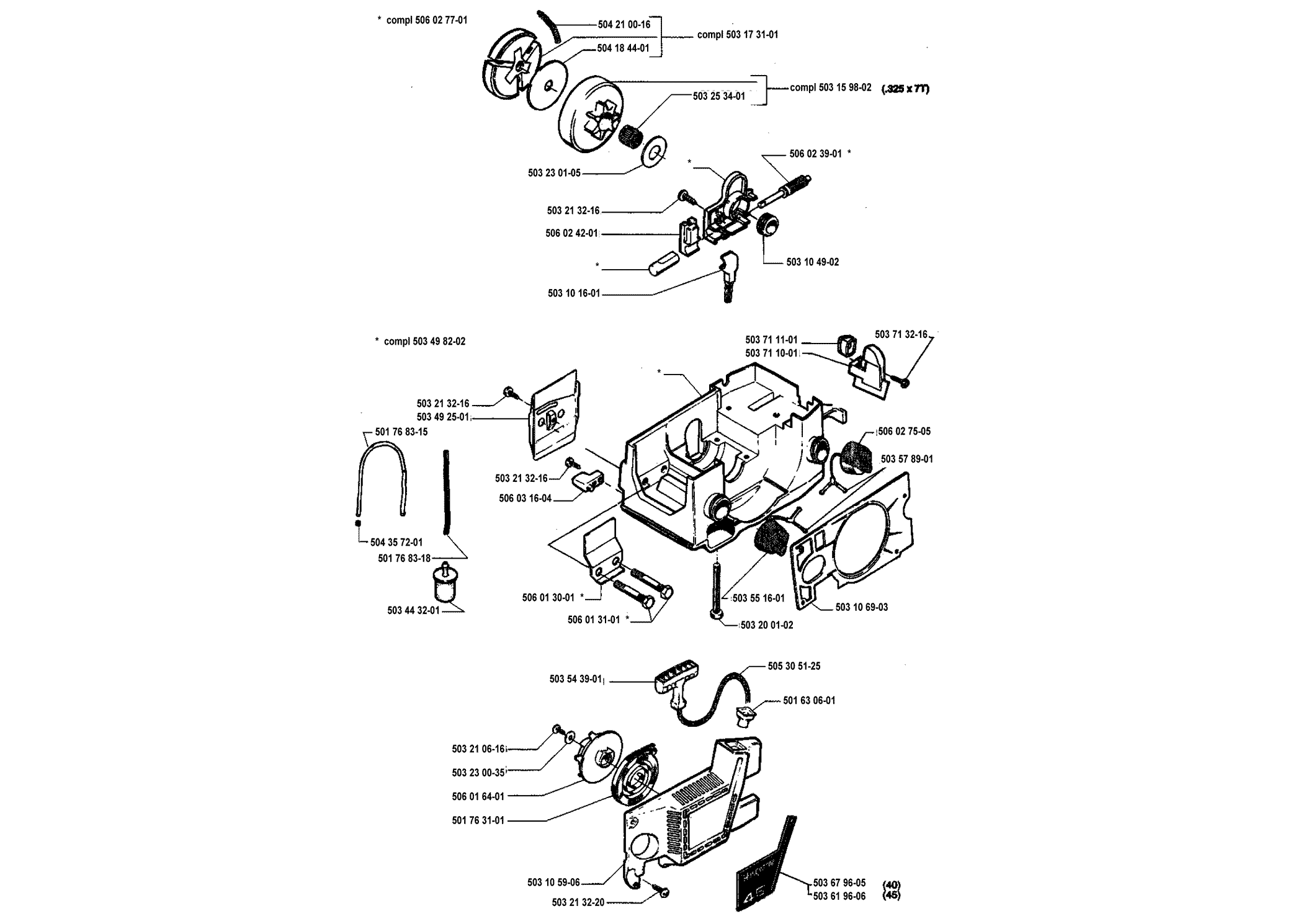

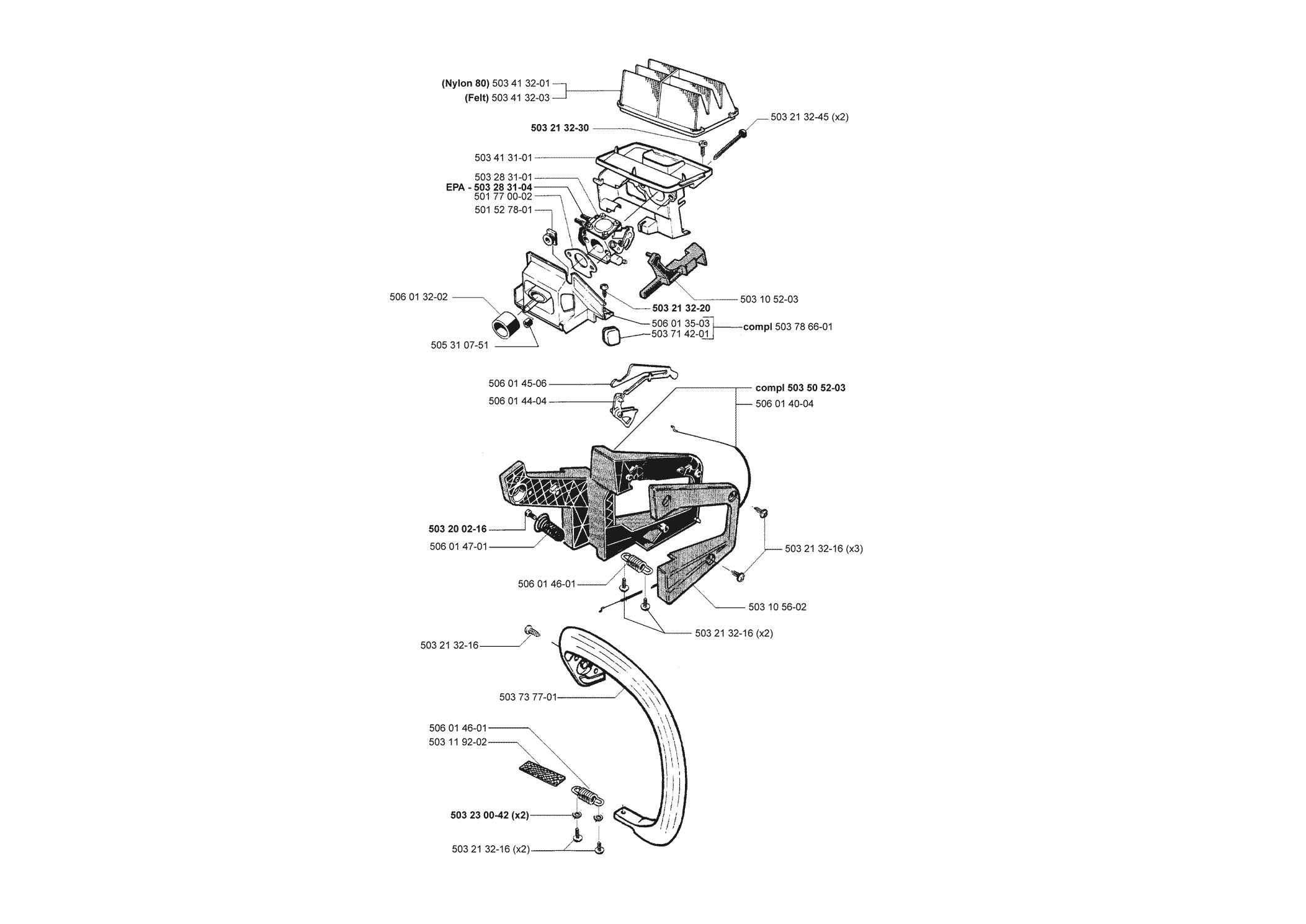

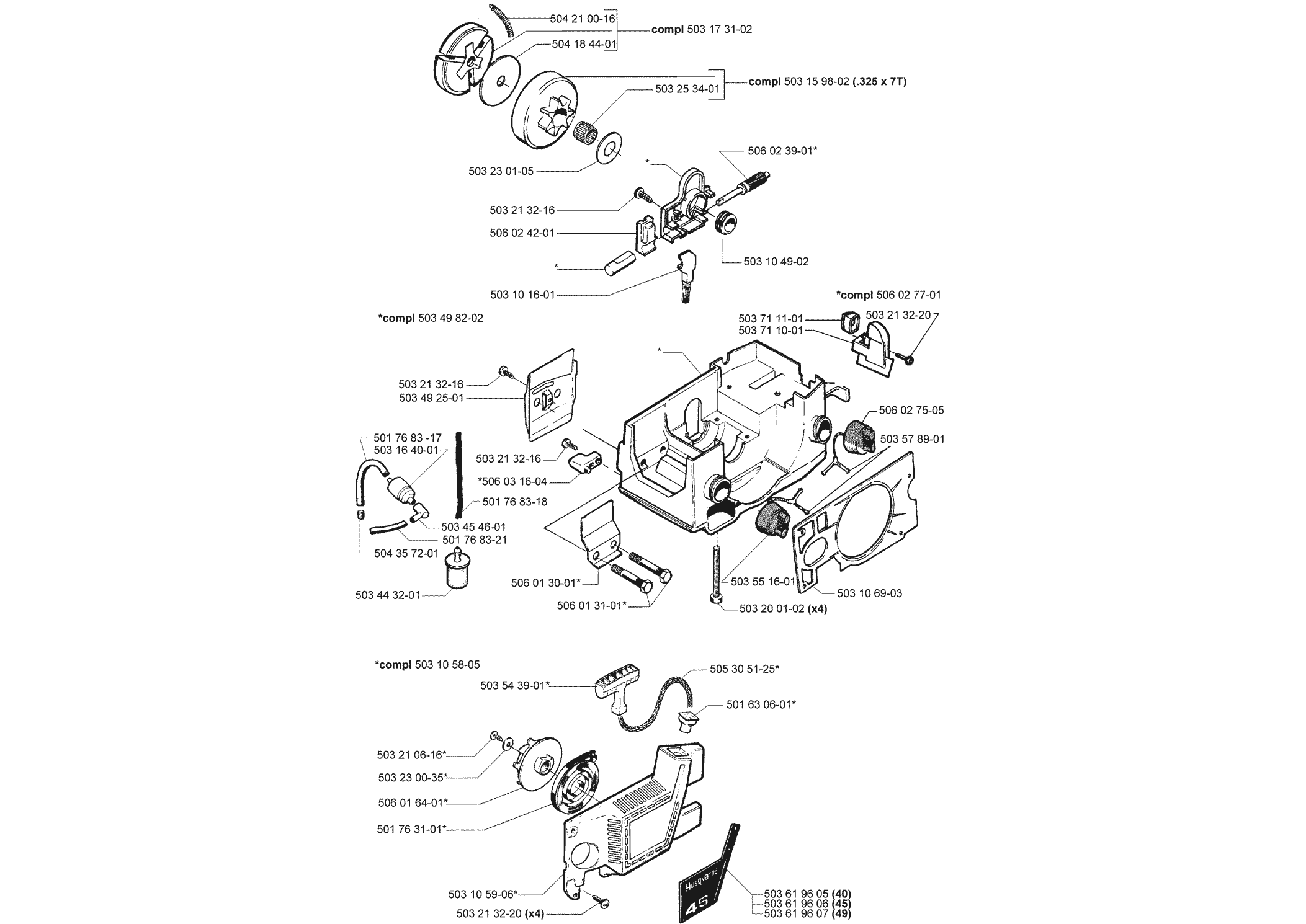

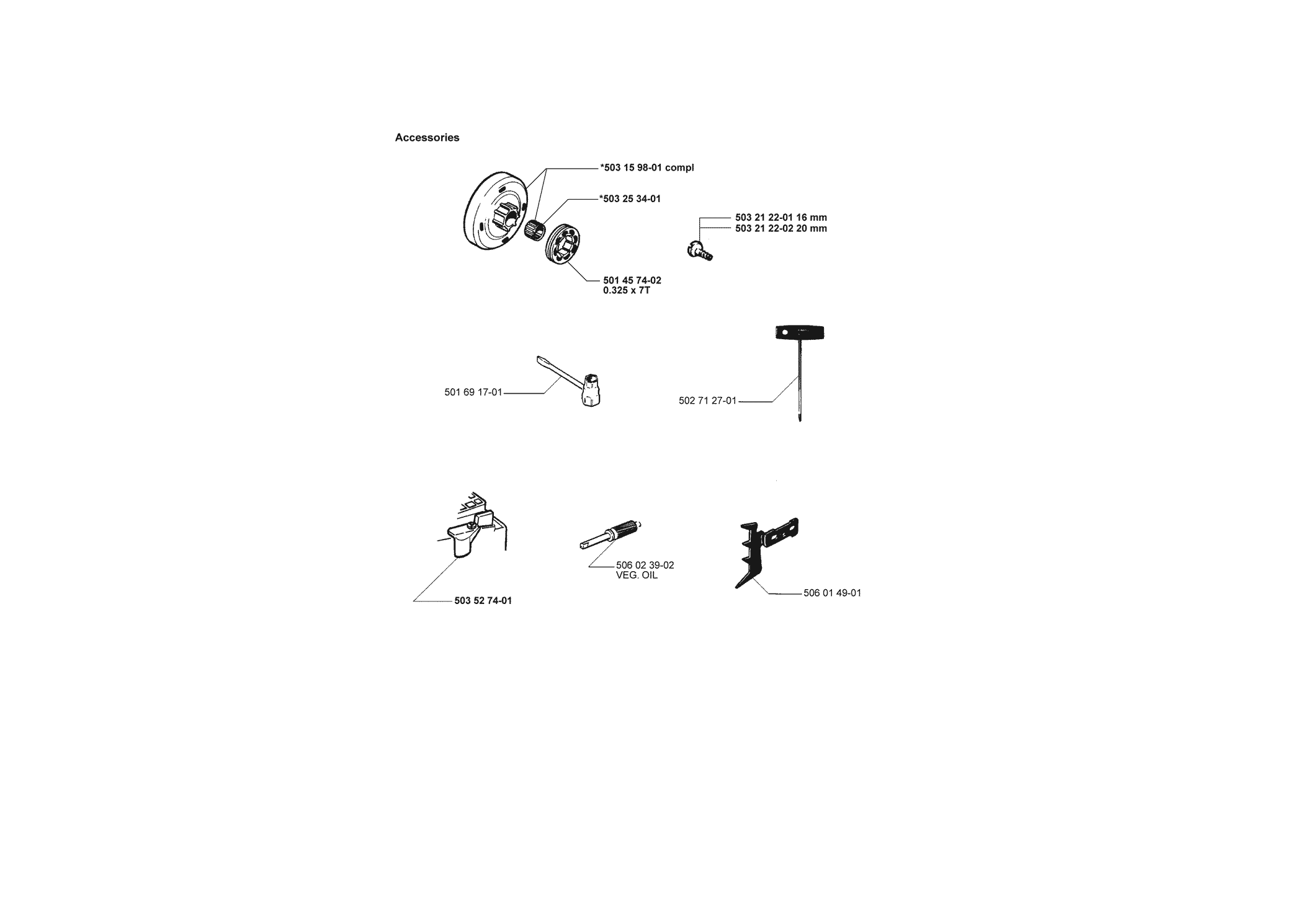

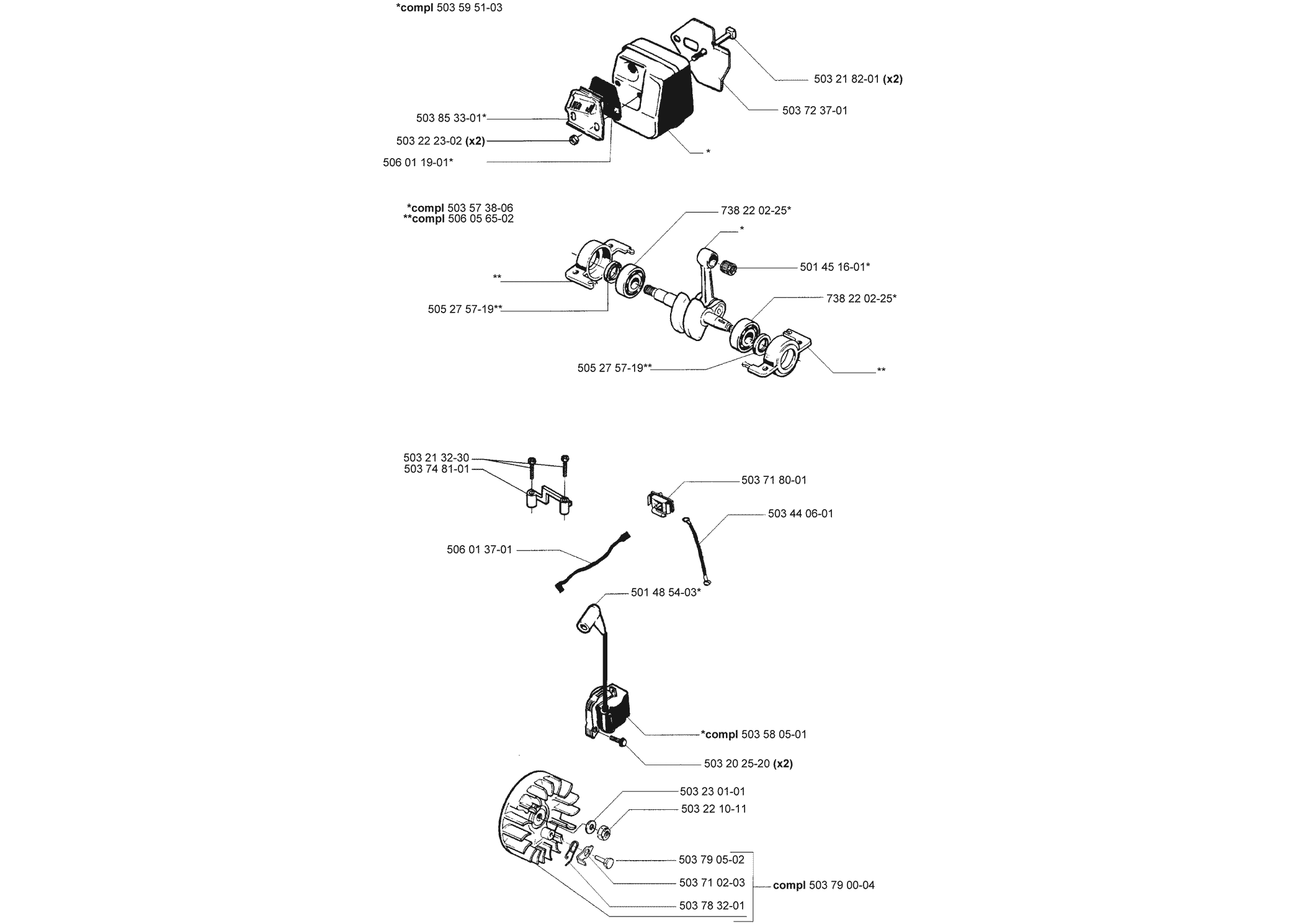

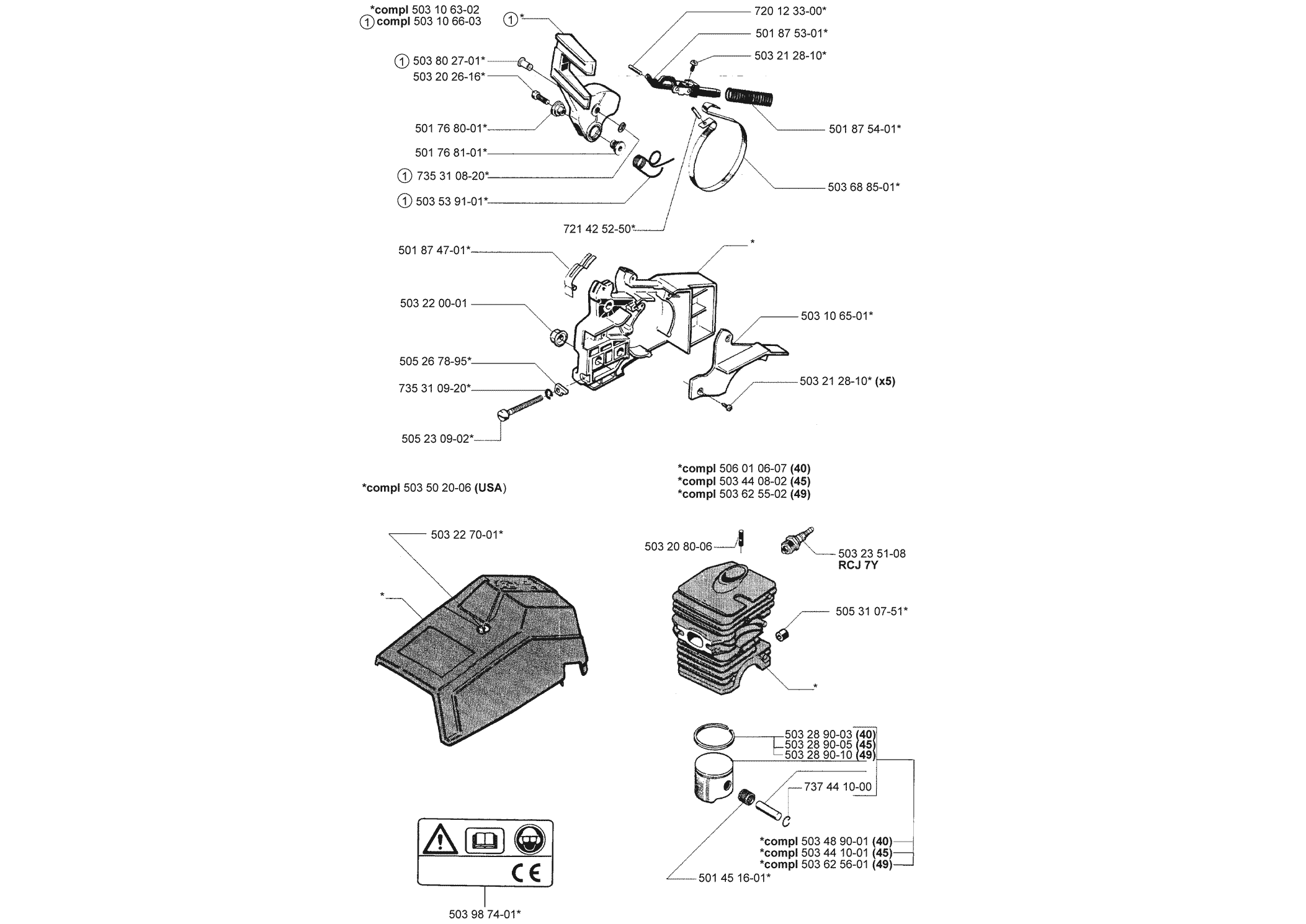

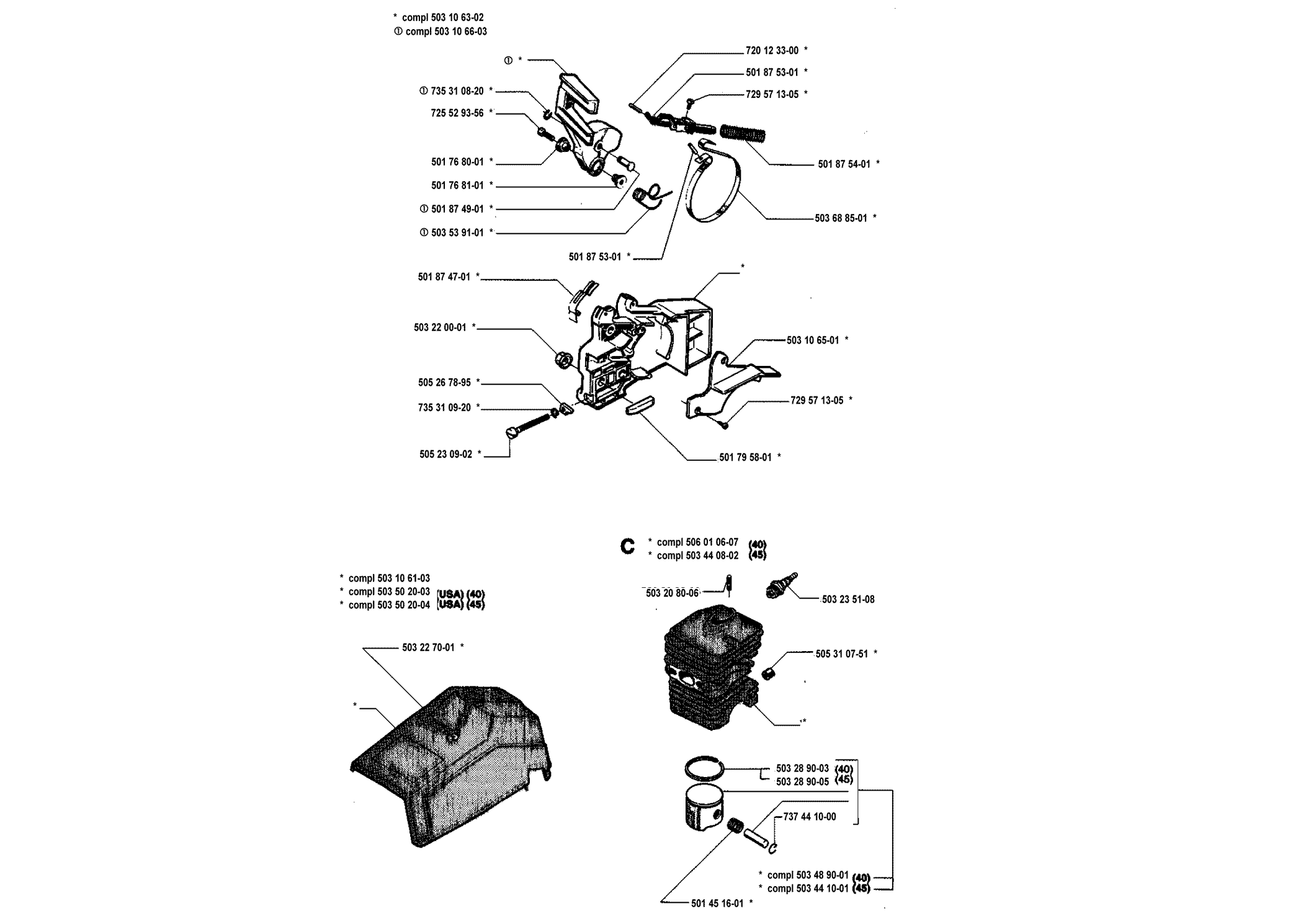

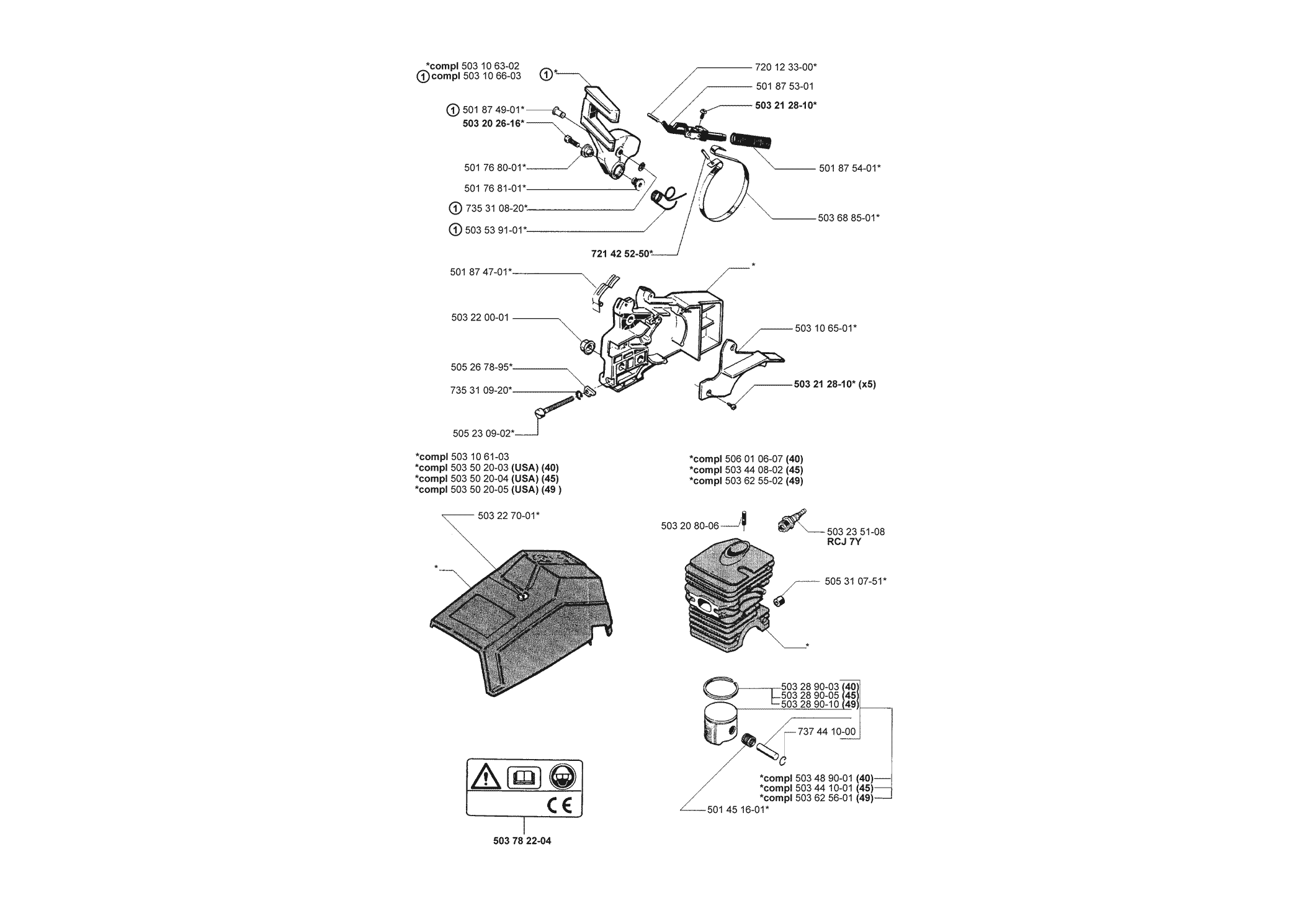

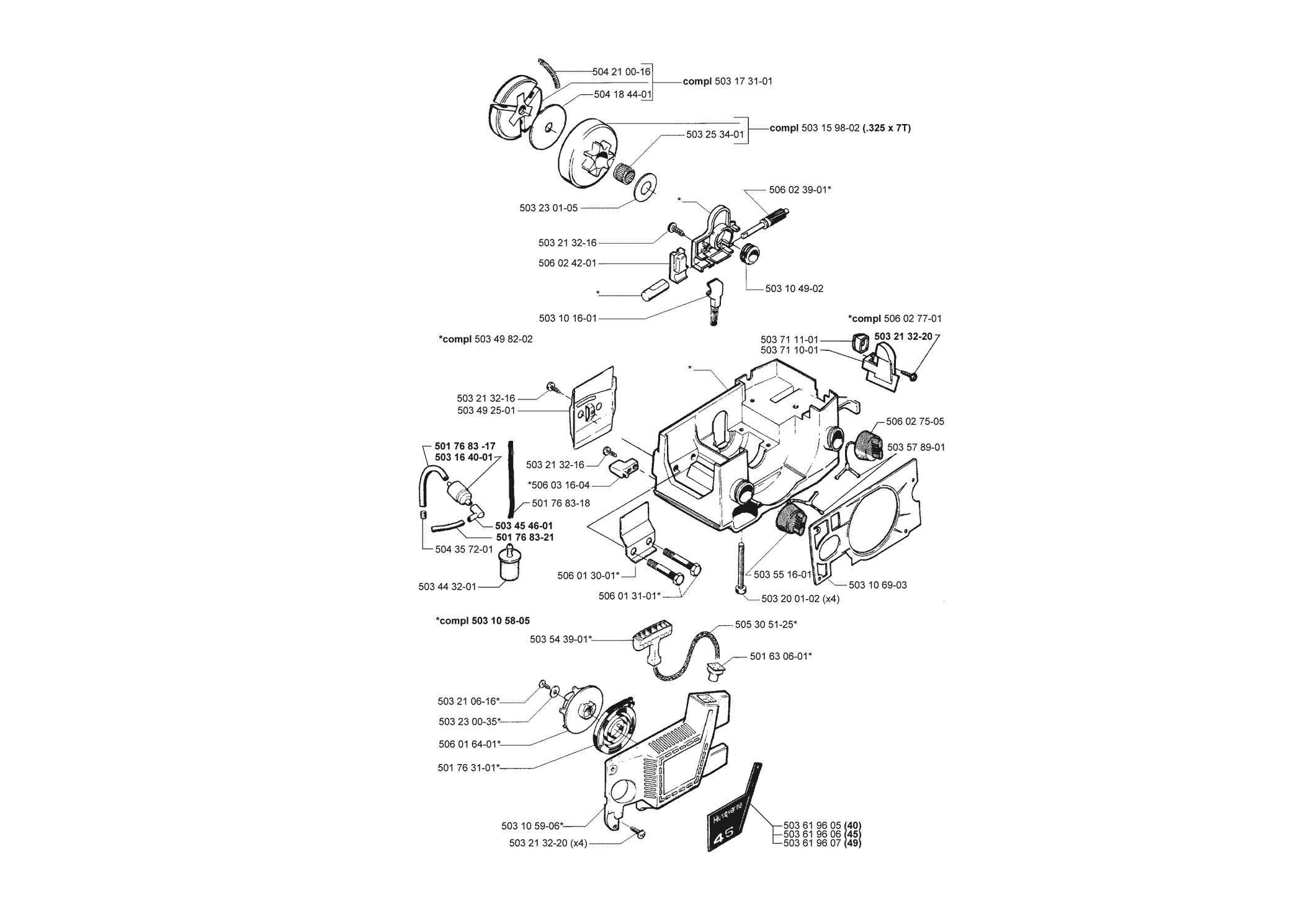

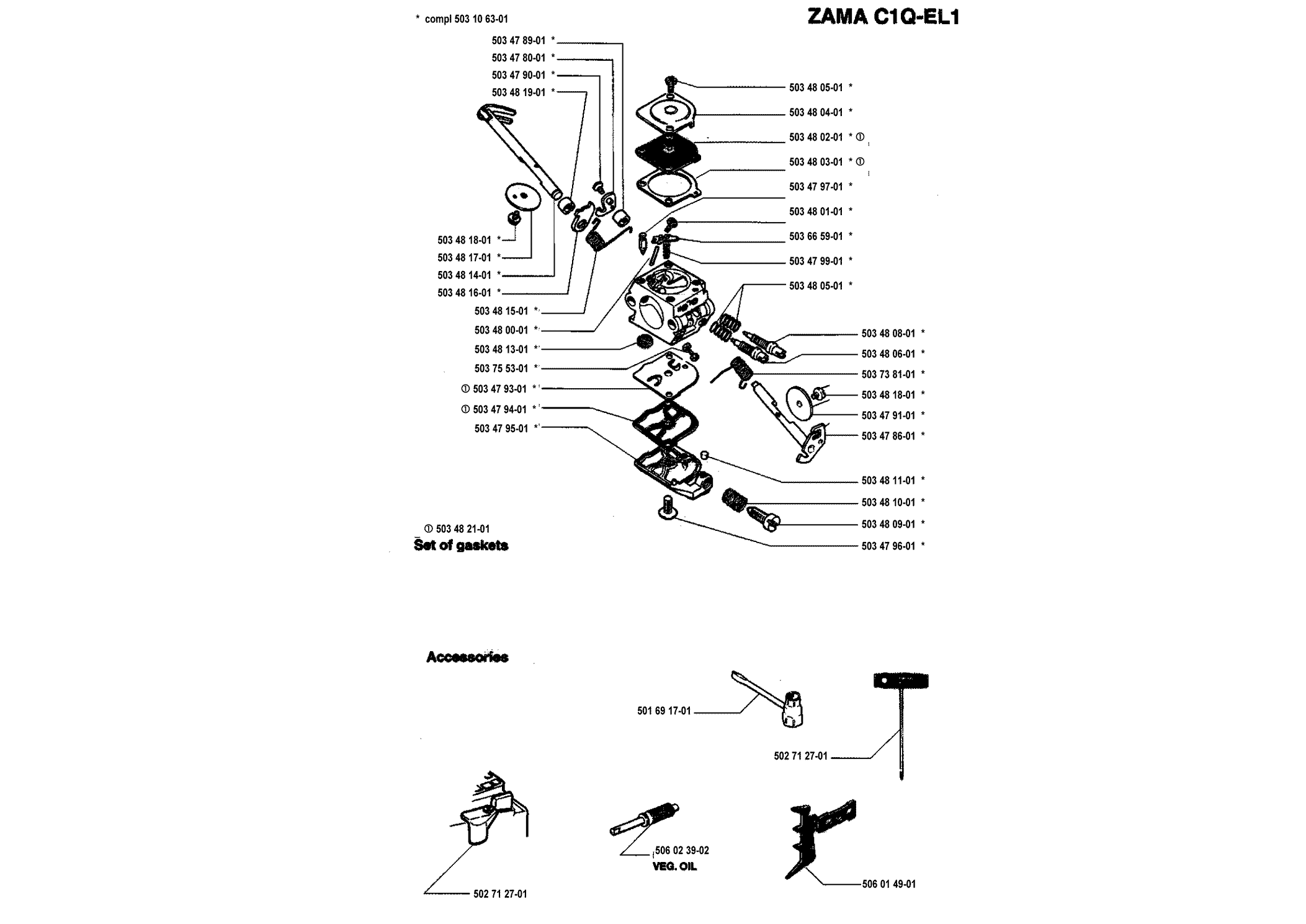

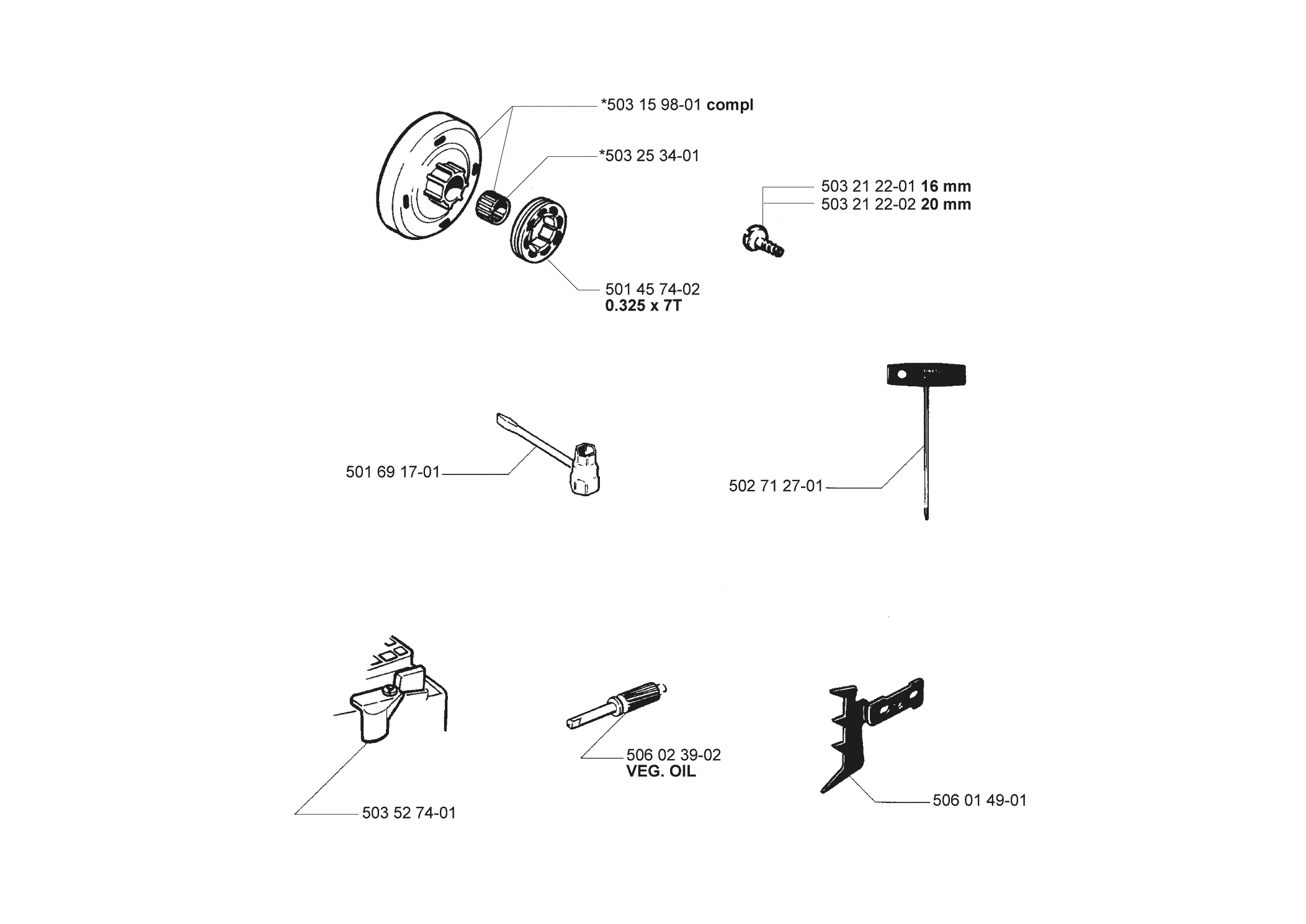

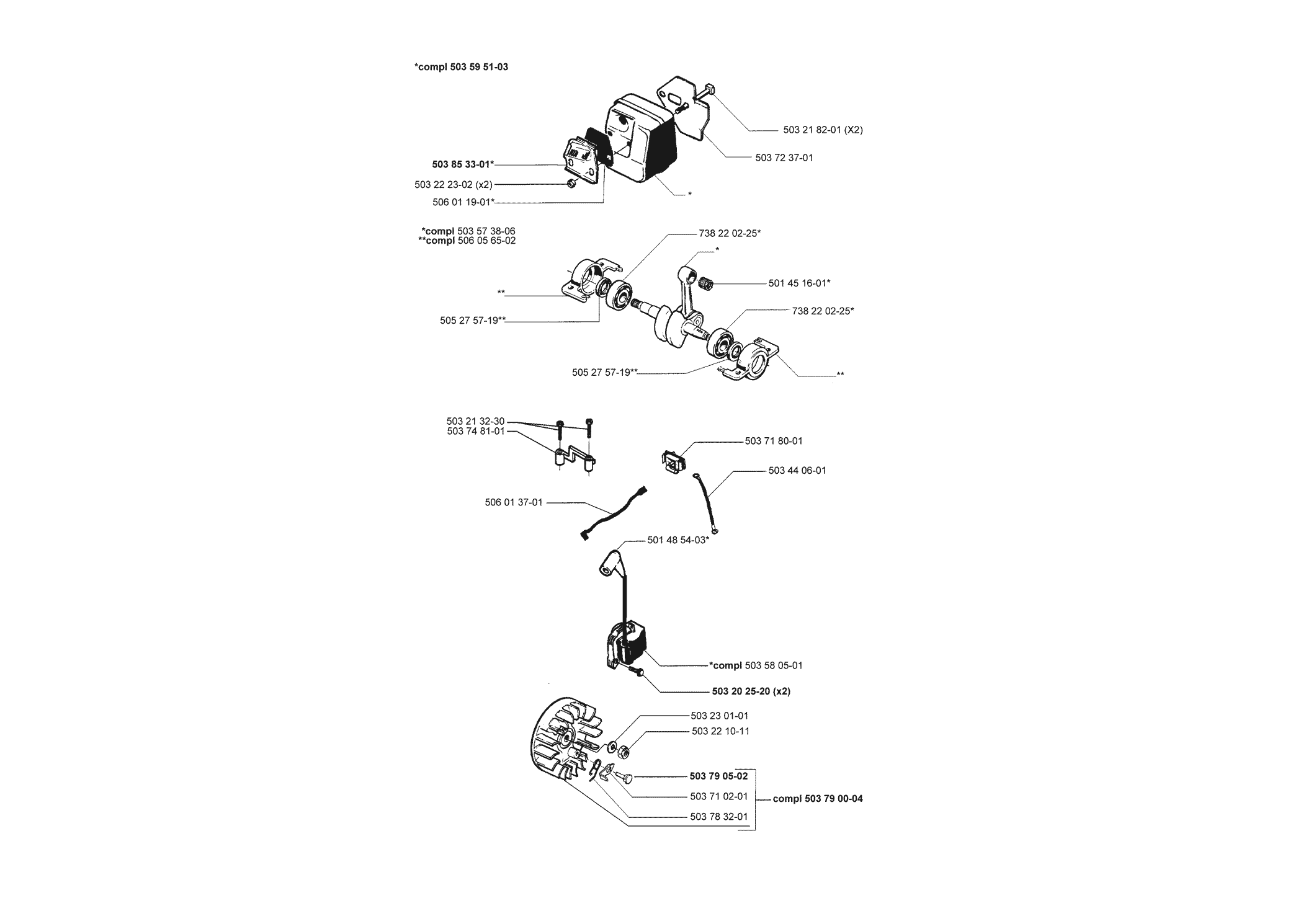

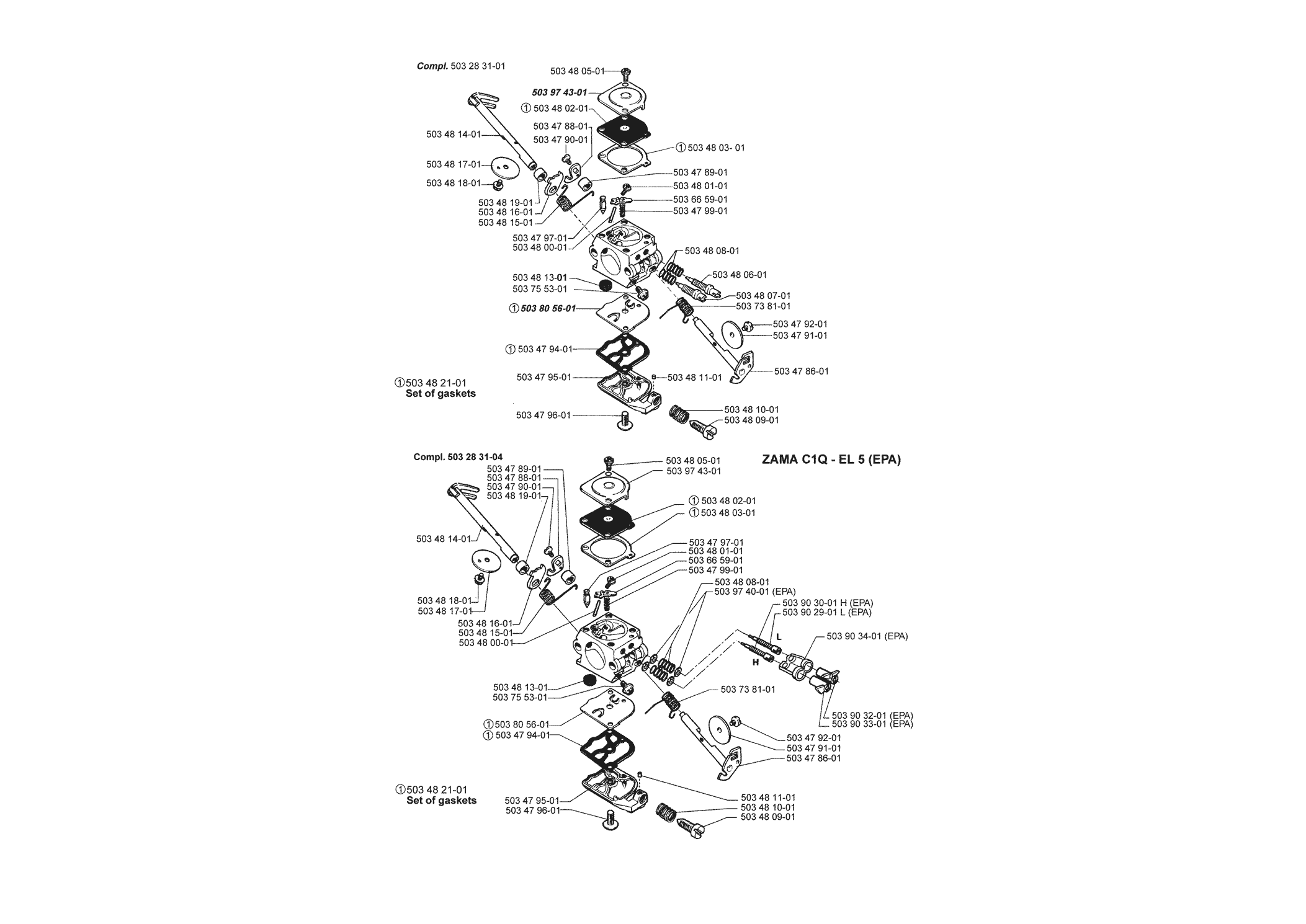

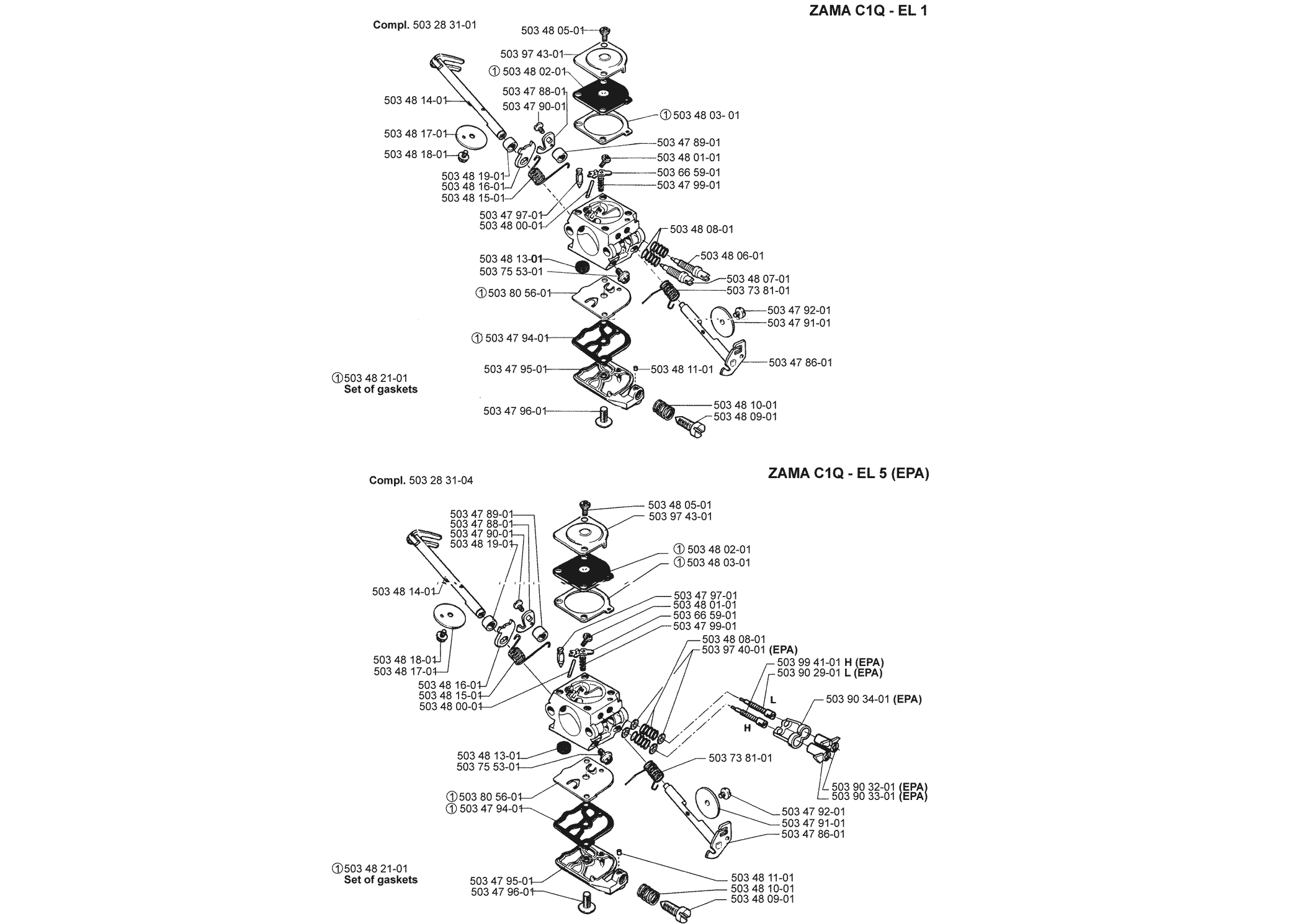

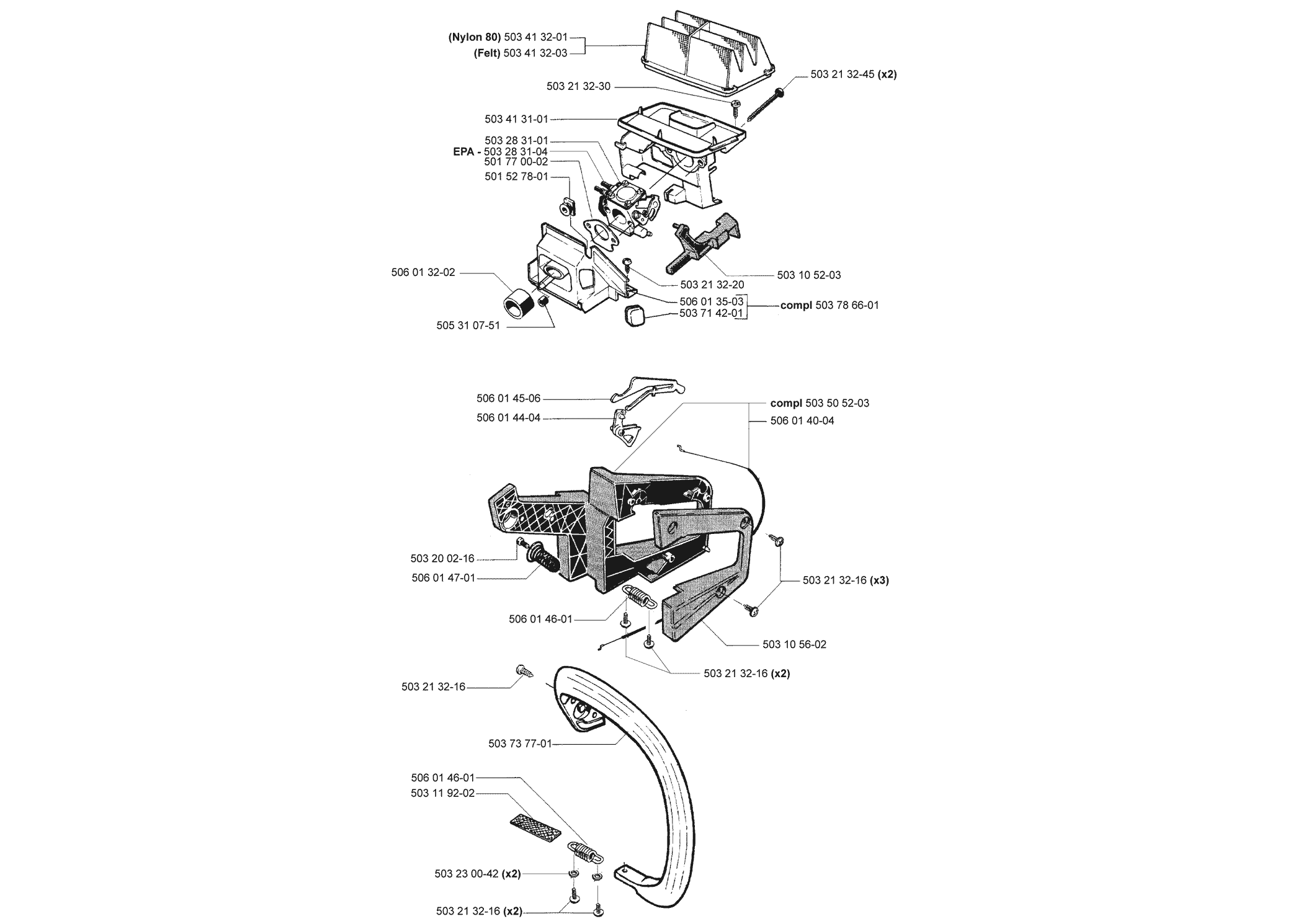

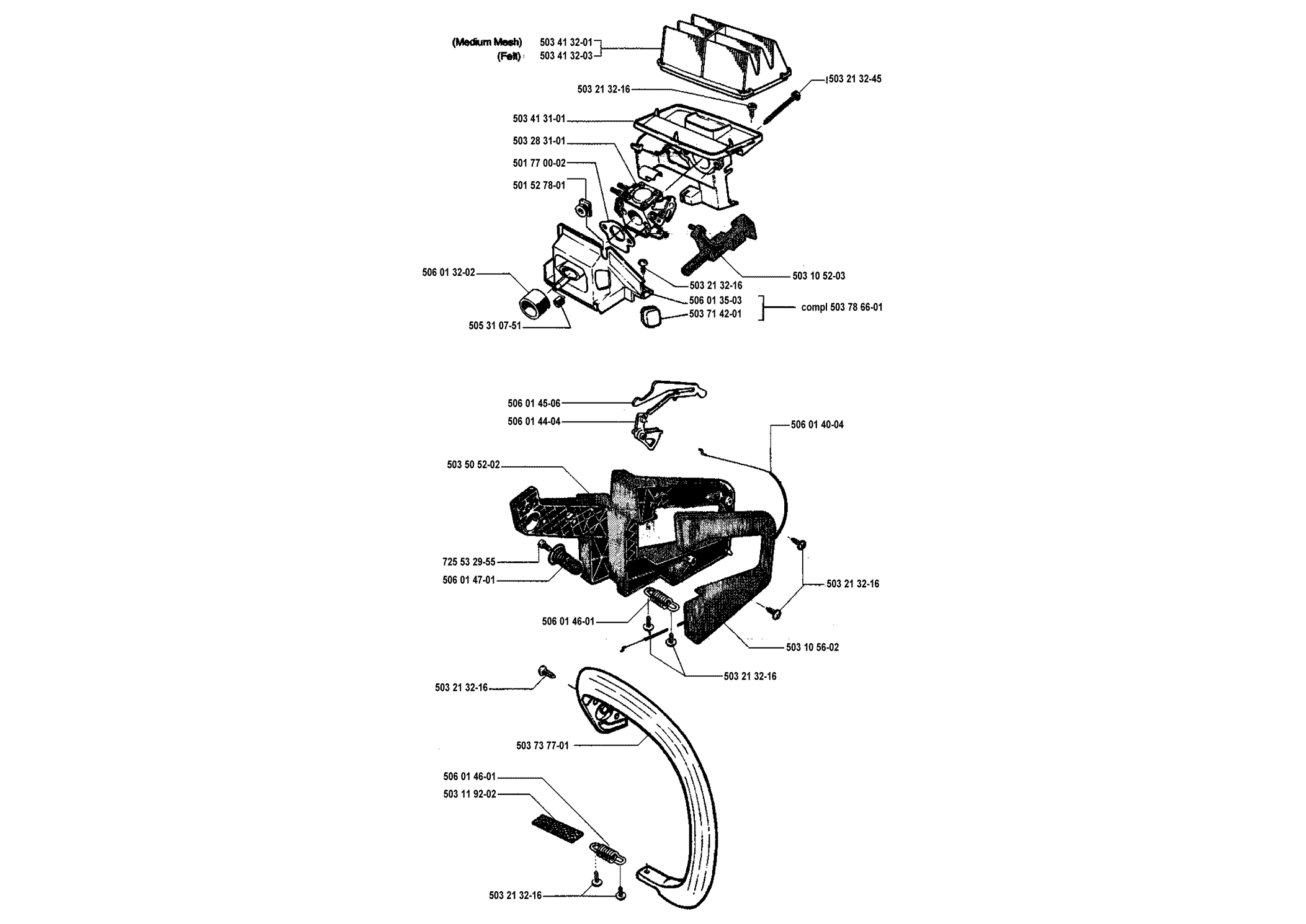

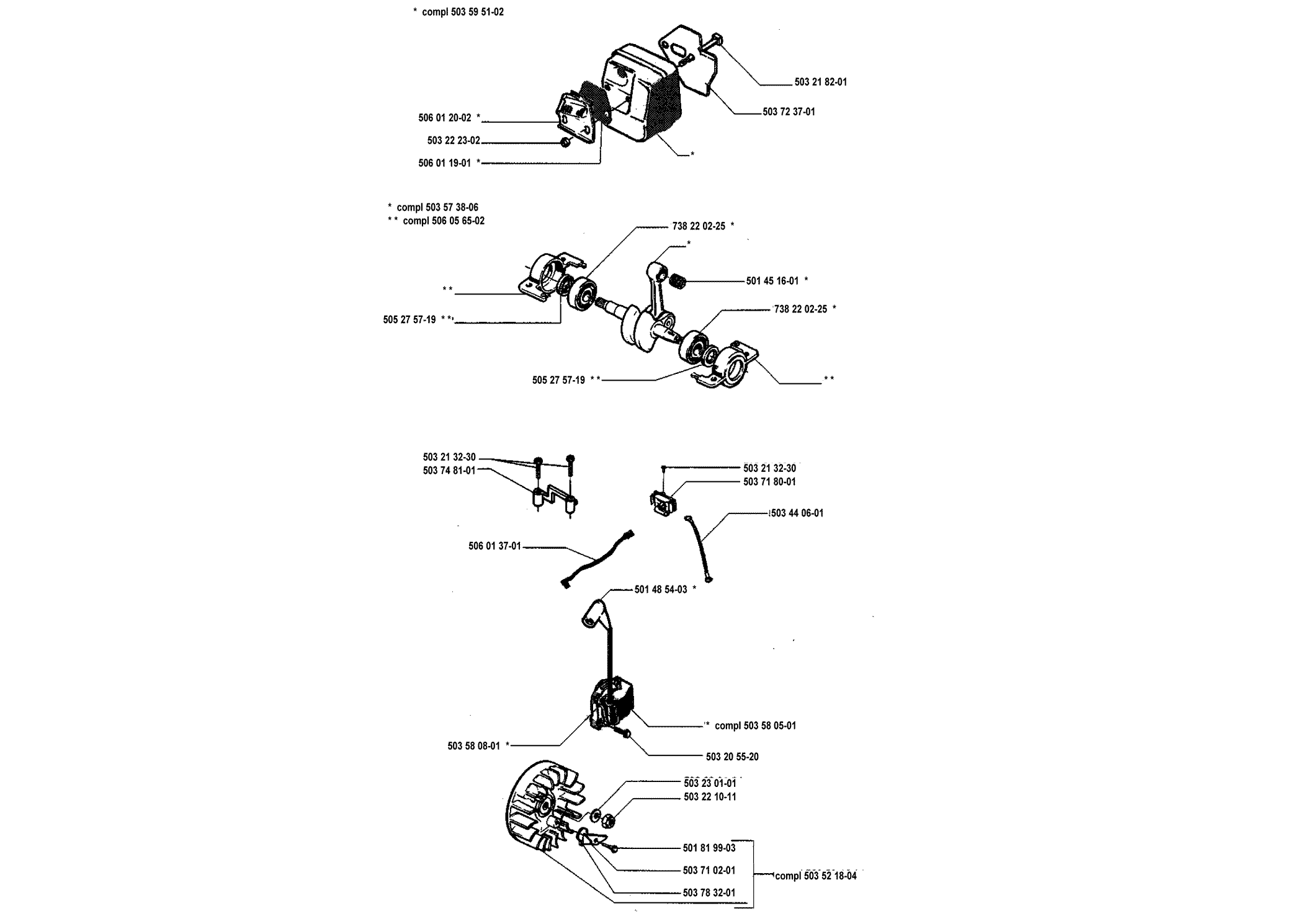

Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Husqvarna 45 Chainsaw
