Diagrams for the Honda F720 Large Tiller (with tines)
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Honda F720 Large Tiller (with tines) .
Diagrams for this machine
Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Honda F720 Large Tiller (with tines)
F720-DAE1

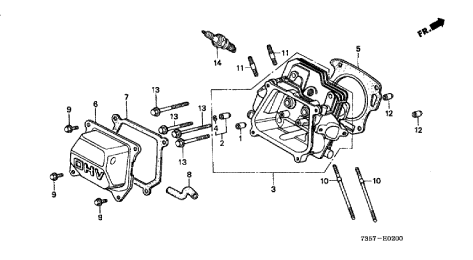

CYLINDER HEAD

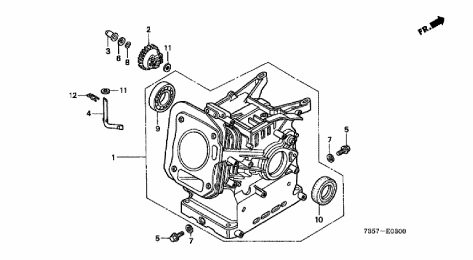

CYLINDER BLOCK

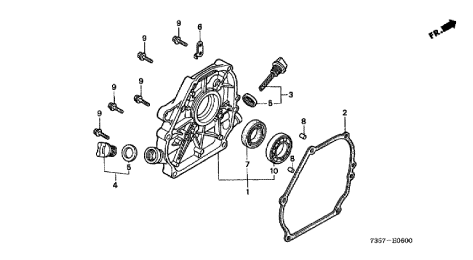

CRANK CASE SIDE

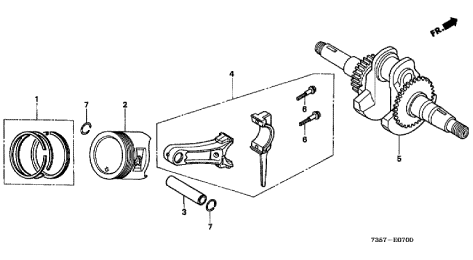

PISTON & CONNECTING ROD

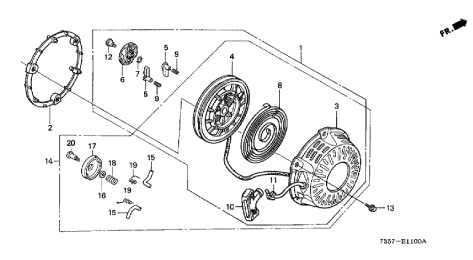

RECOIL STARTER

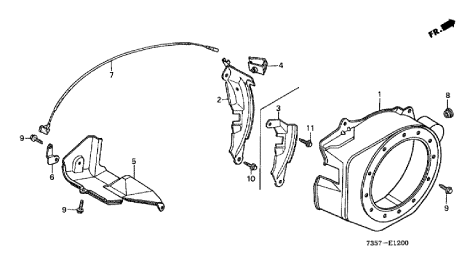

COWLING

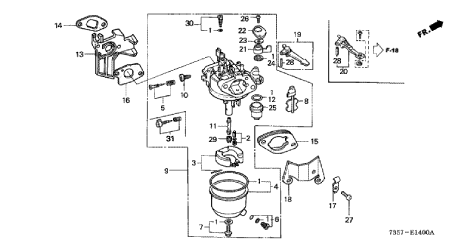

CARBURETTOR

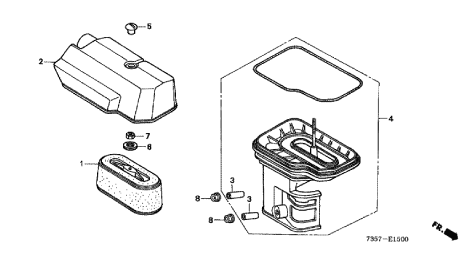

AIR CLEANER

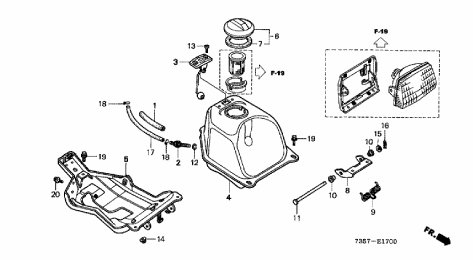

FUEL TANK

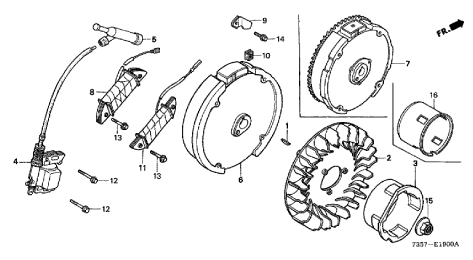

FLYWHEEL
SPEED CONTROL
GASKET SET

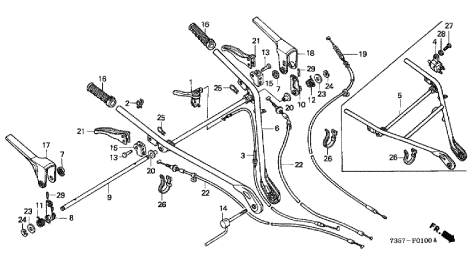

UPPER HANDLES

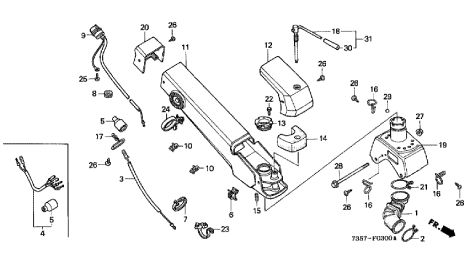

LOWER HANDLES
LEVERS

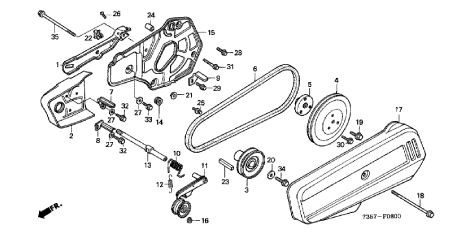

CASE & BELT DRIVE

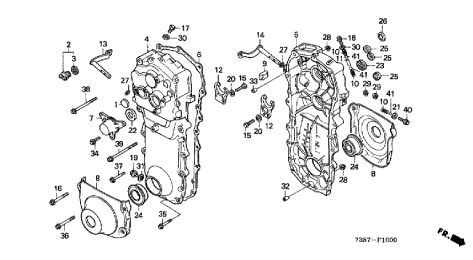

GEAR BOX

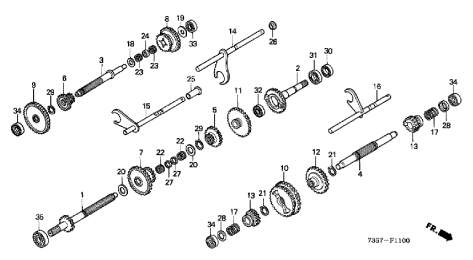

GEARS

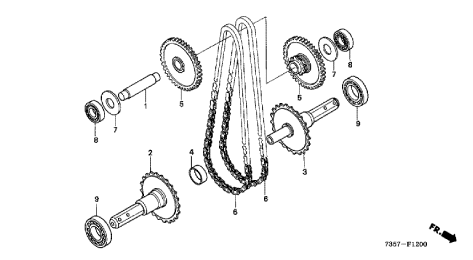

CHAIN & SPROCKETS

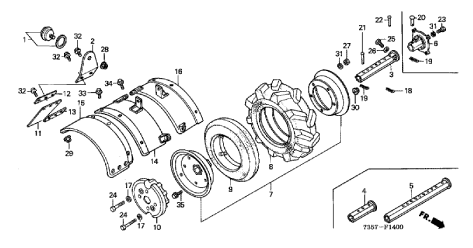

WHEELS & GUARDS

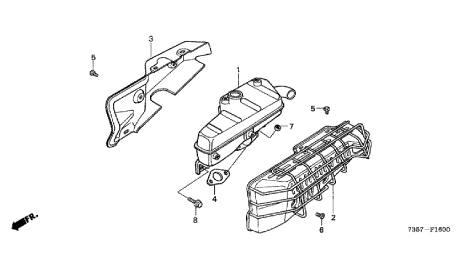

EXHAUST

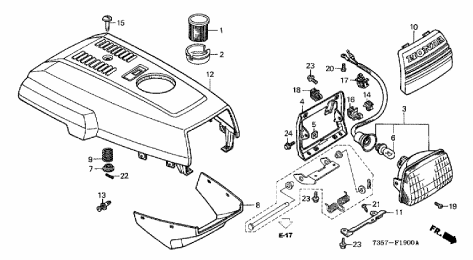

FRONT COVER

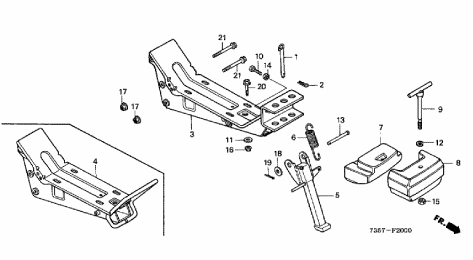

FRONT WEIGHT FRAME

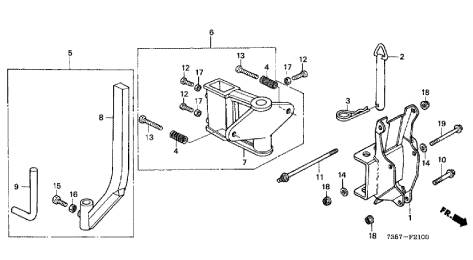

REAR HITCH

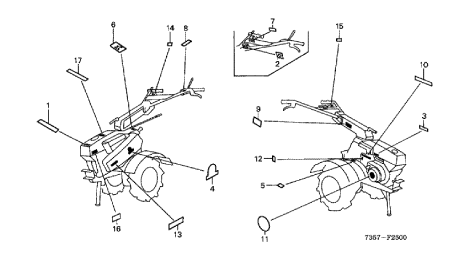

DECALS

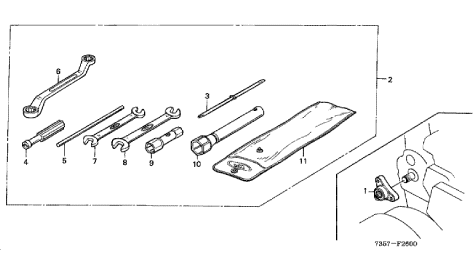

TOOL KIT
