Diagrams for the Hayter 470-HT230DS-R Hedgetrimmer

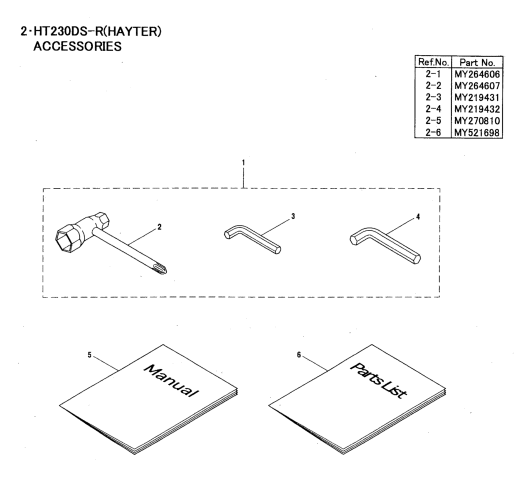

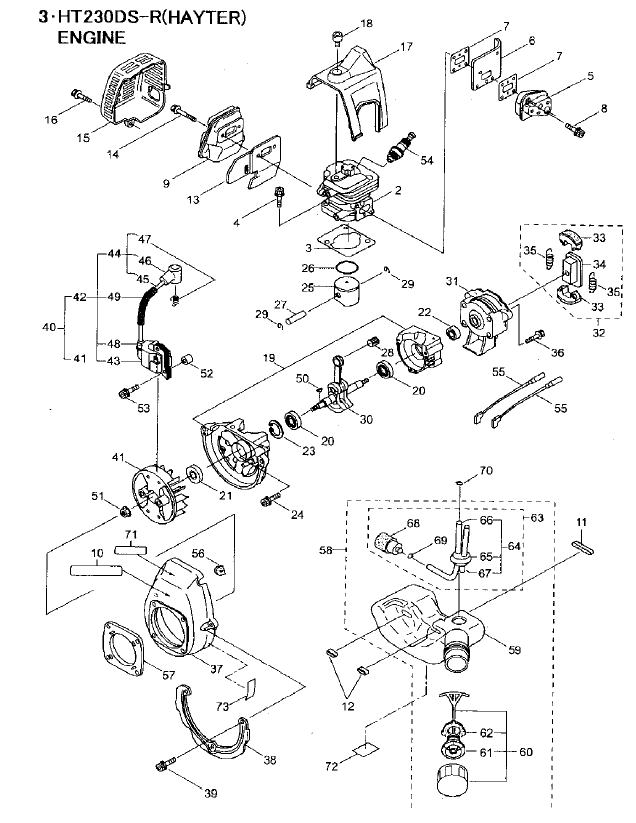

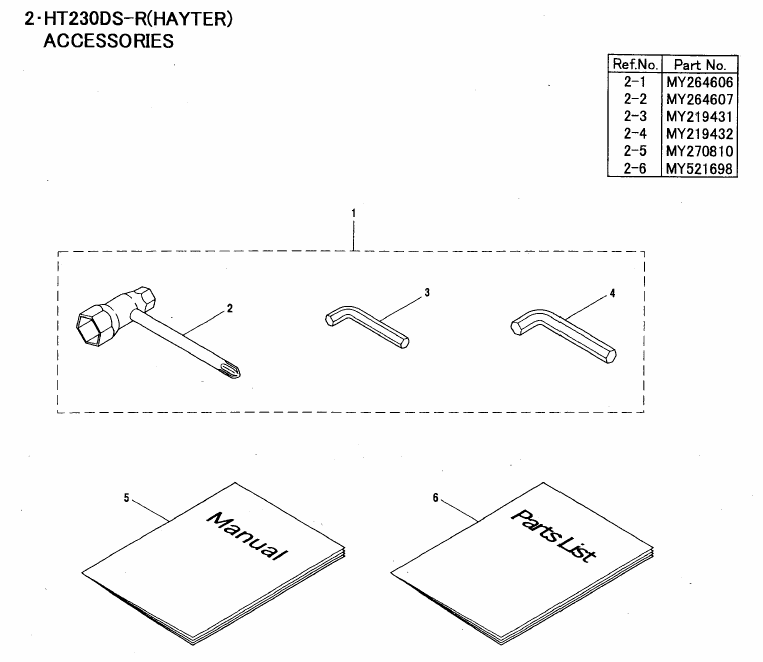

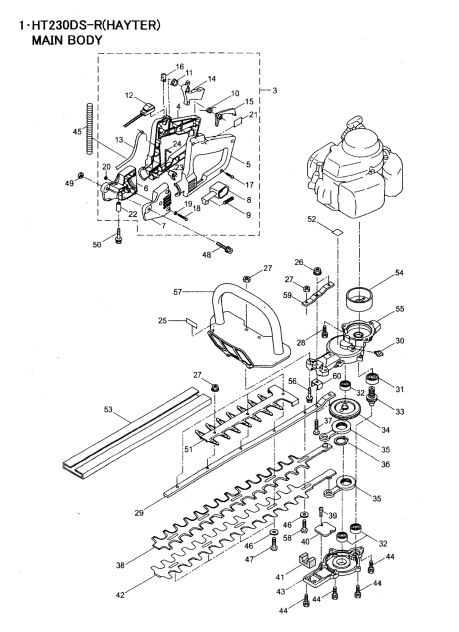

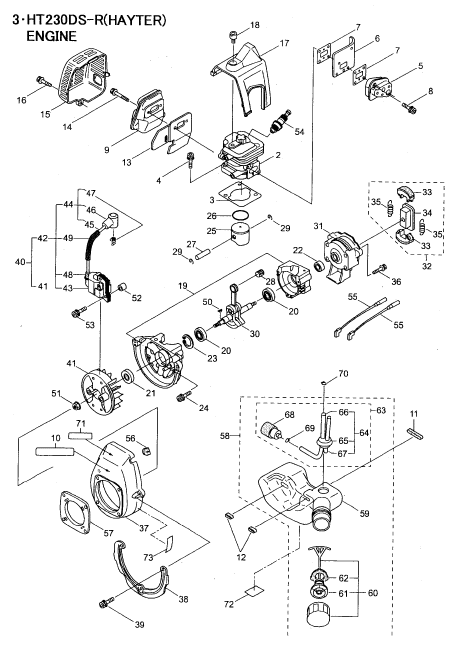

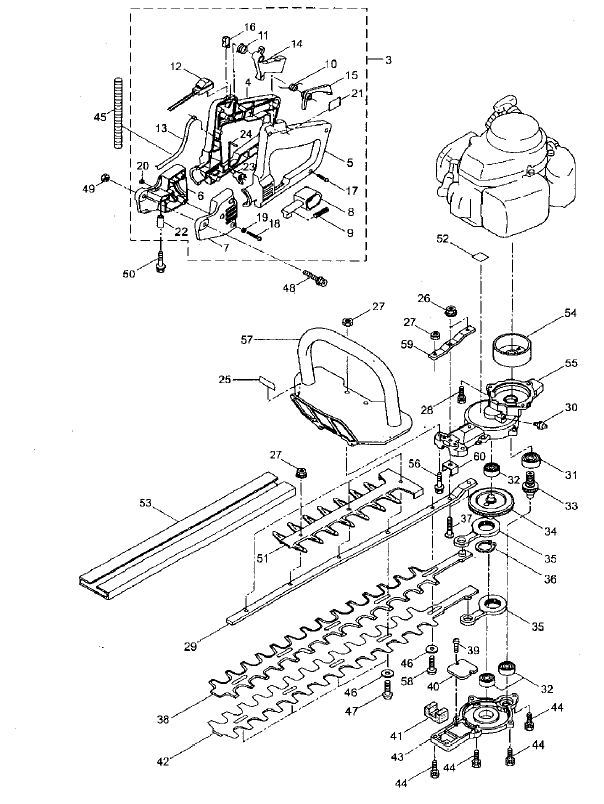

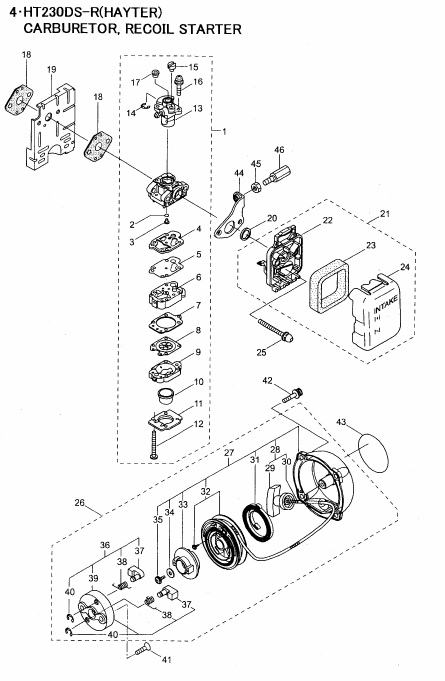

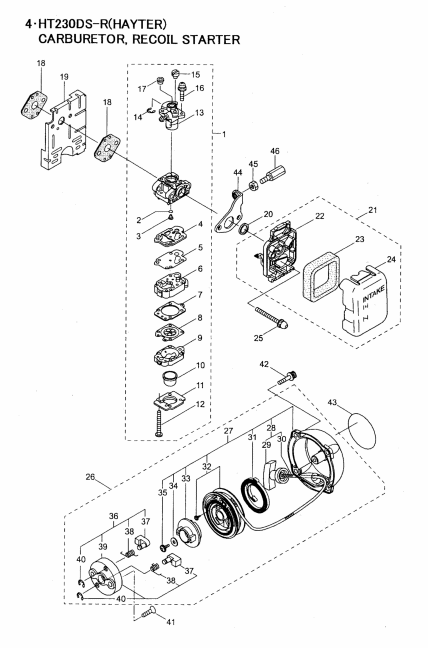

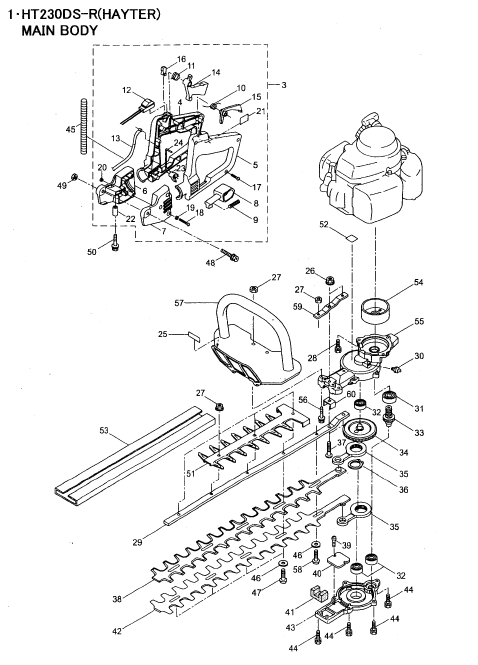

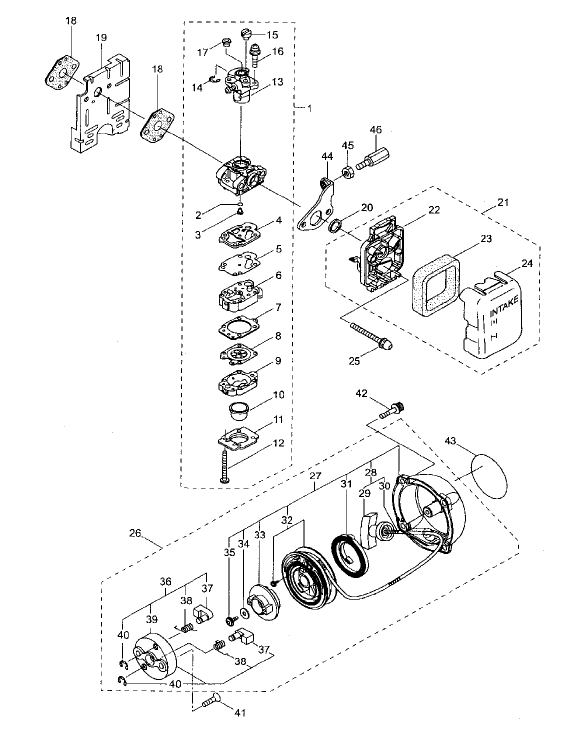

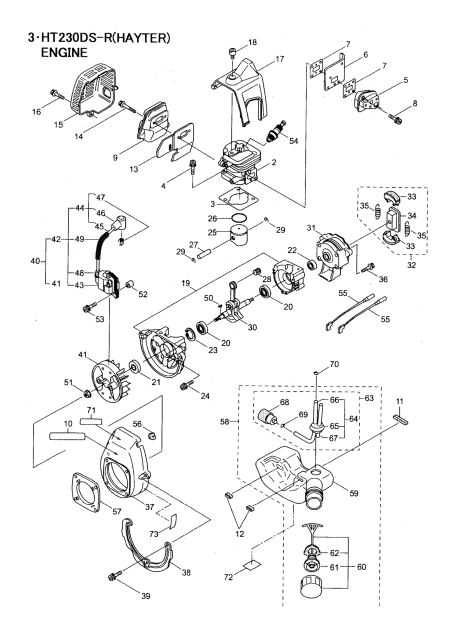

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Hayter 470-HT230DS-R Hedgetrimmer .
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Hayter 470-HT230DS-R Hedgetrimmer
