Diagrams for the Hayter 21" Heavy Duty BBC Products
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Hayter 21" Heavy Duty BBC Products.
Diagrams for this machine
Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Hayter 21" Heavy Duty BBC Products
455

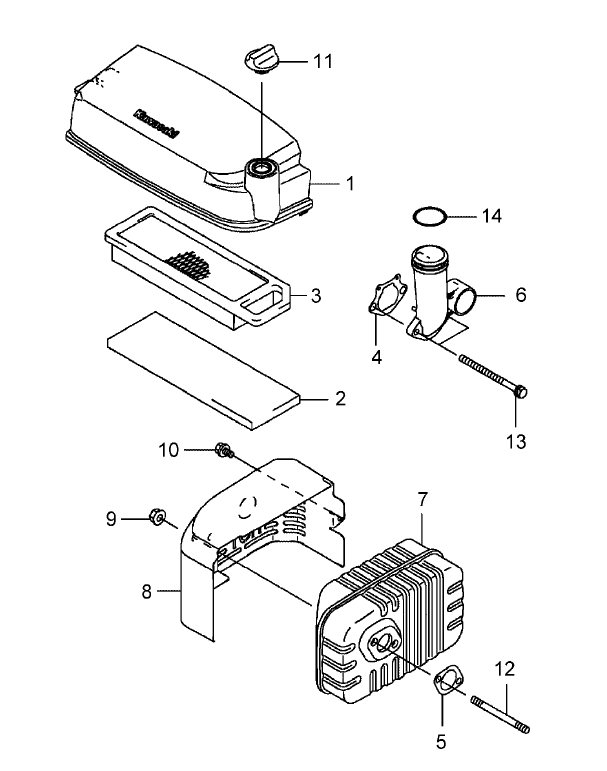

Air Filter & Muffler Assembly

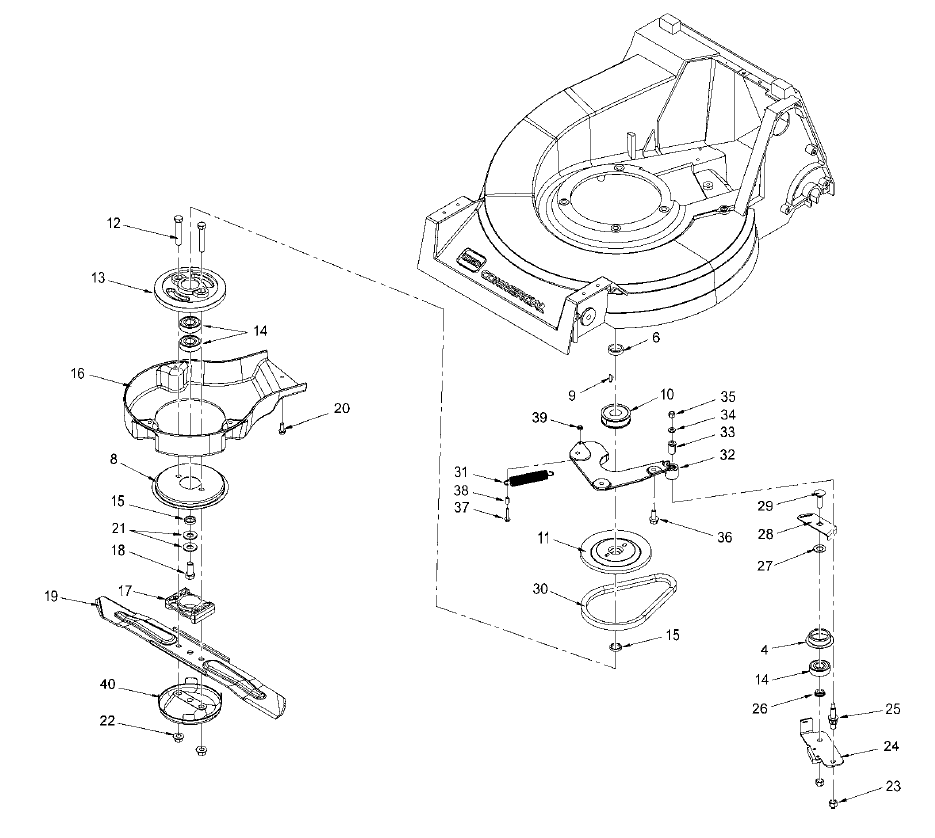

Blade

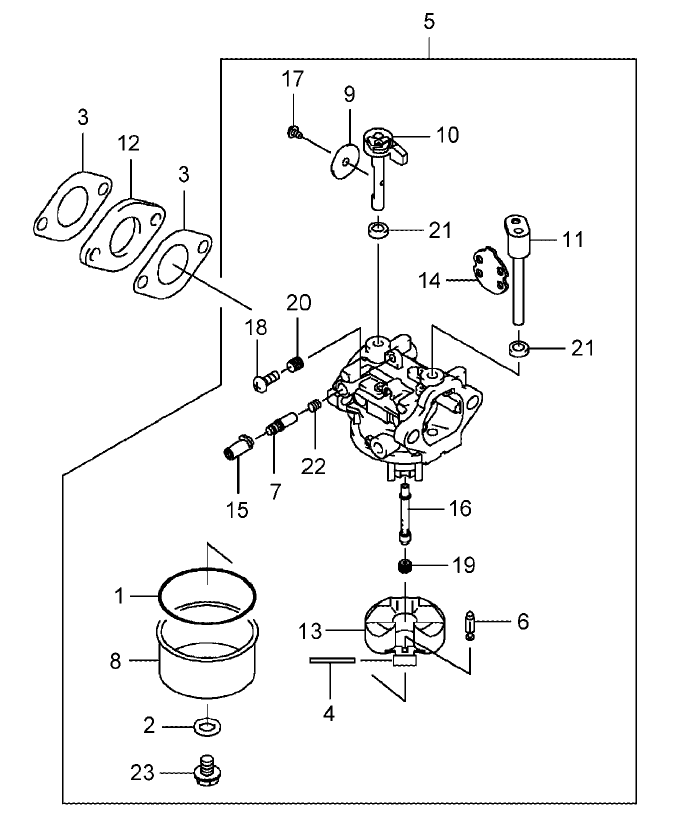

Carburetor Assembly

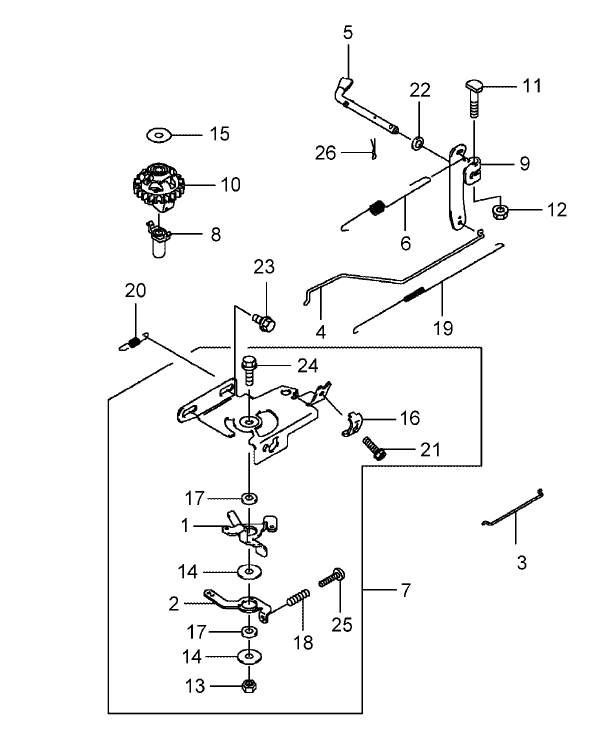

Control Equipment Assembly

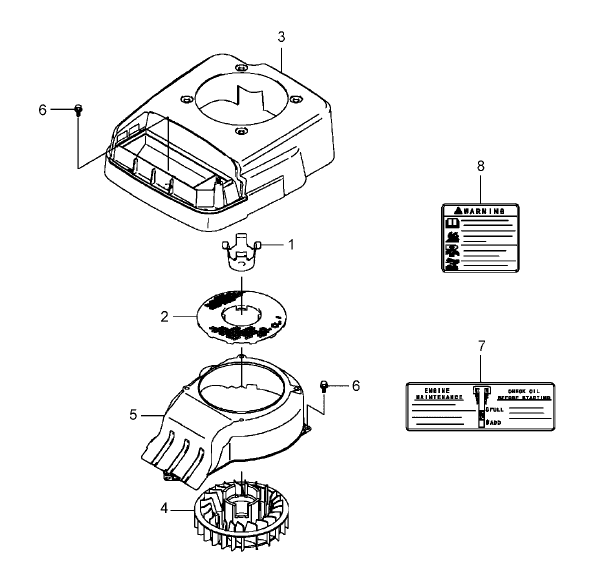

Cooling Equipment Assembly

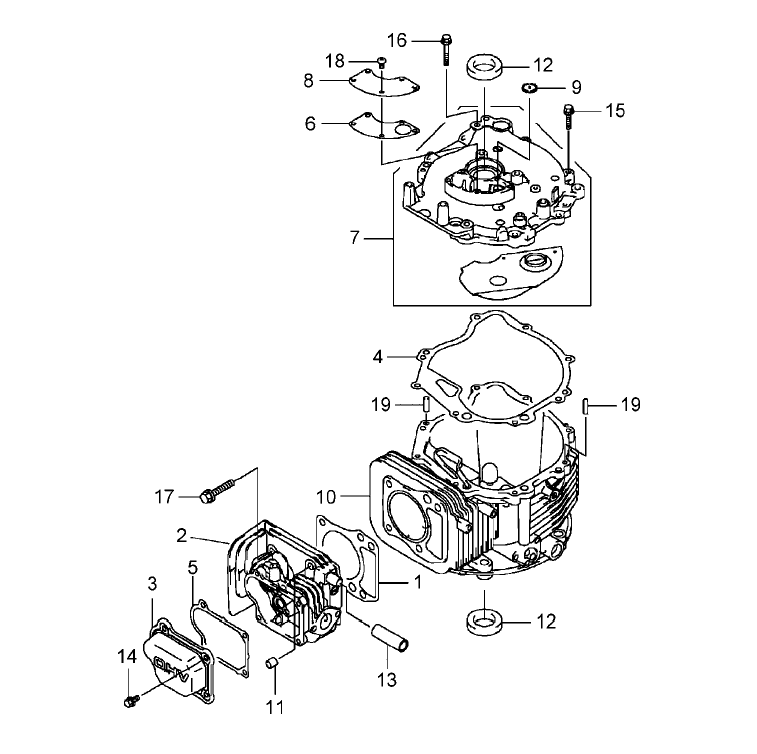

Cylinder & Crankcase Assembly

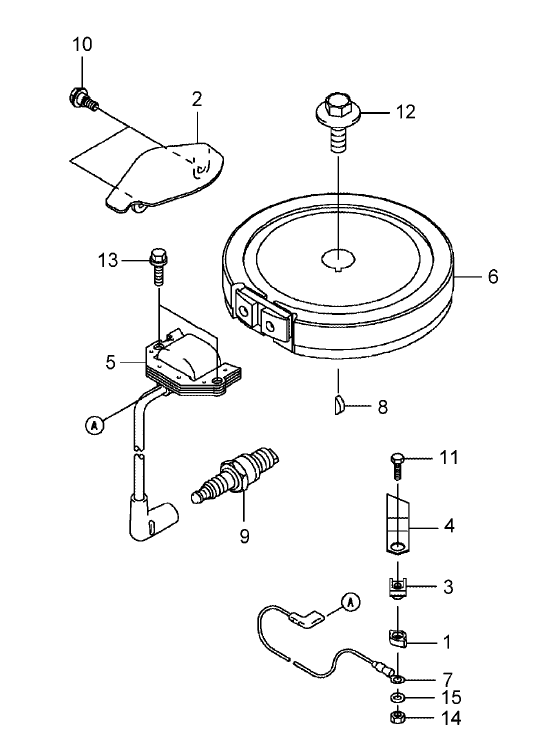

Electrical Equipment Assembly

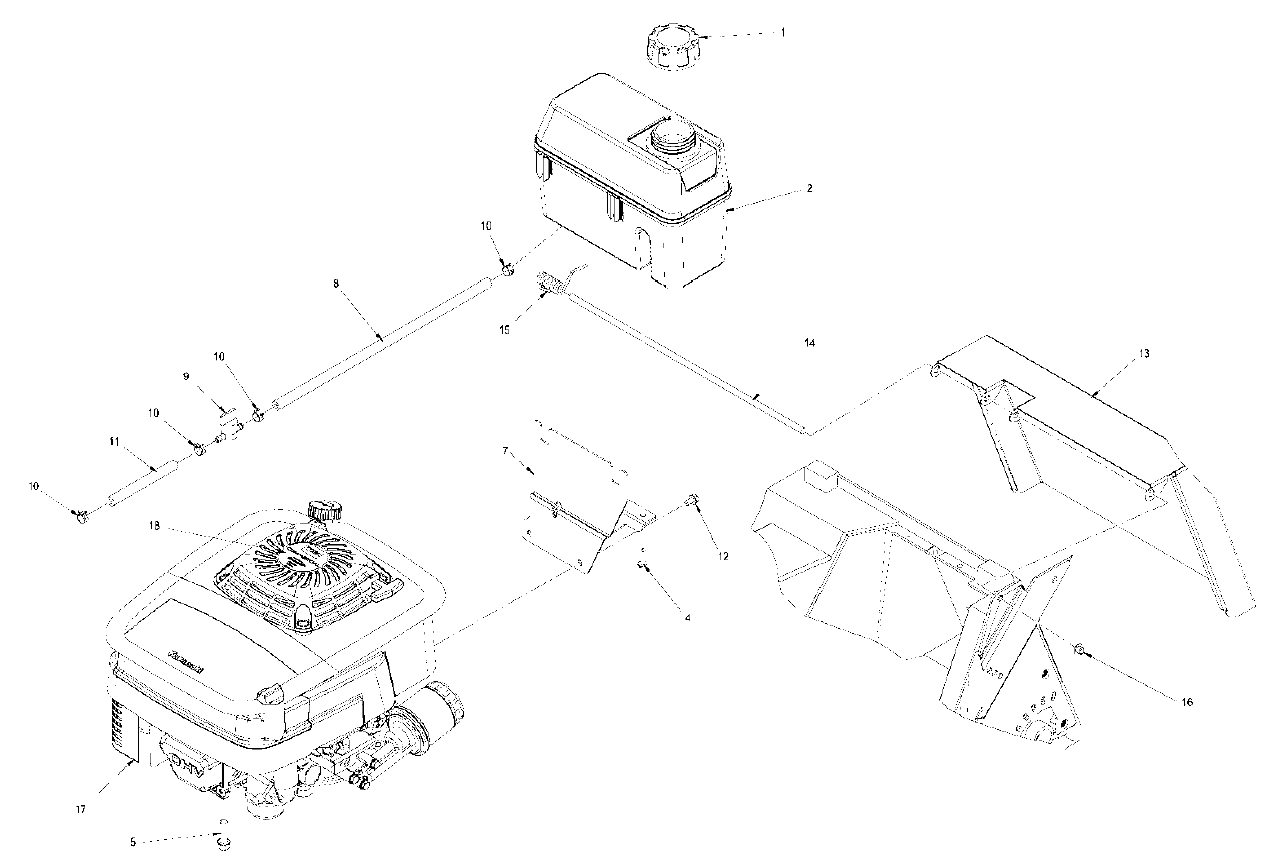

Engine & Tank Assembly

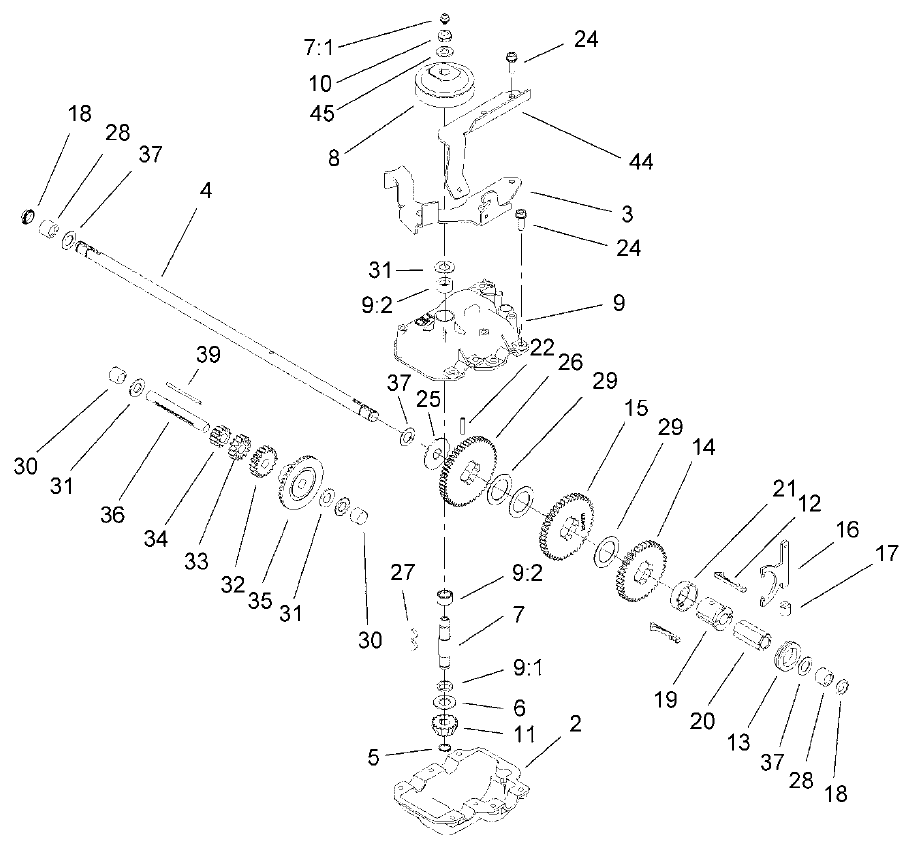

Gear Case Assembly No 110-2100
Grass bag

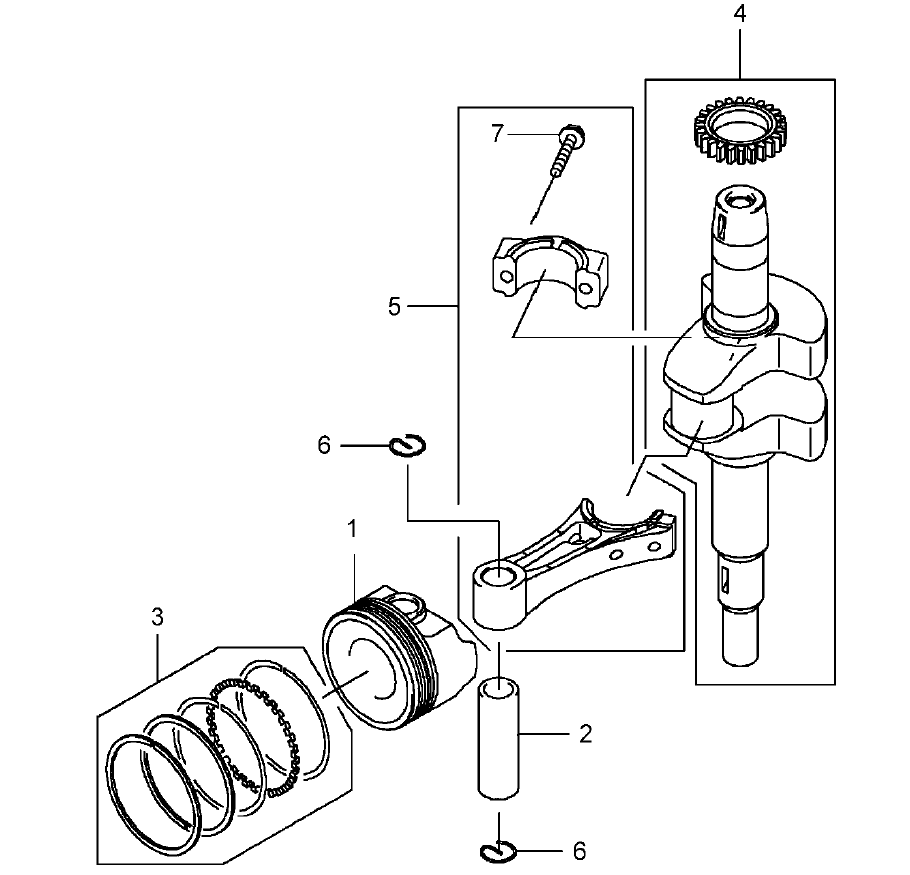

Piston & Crankshaft Assembly
Piston & Crankshaft Assembly B

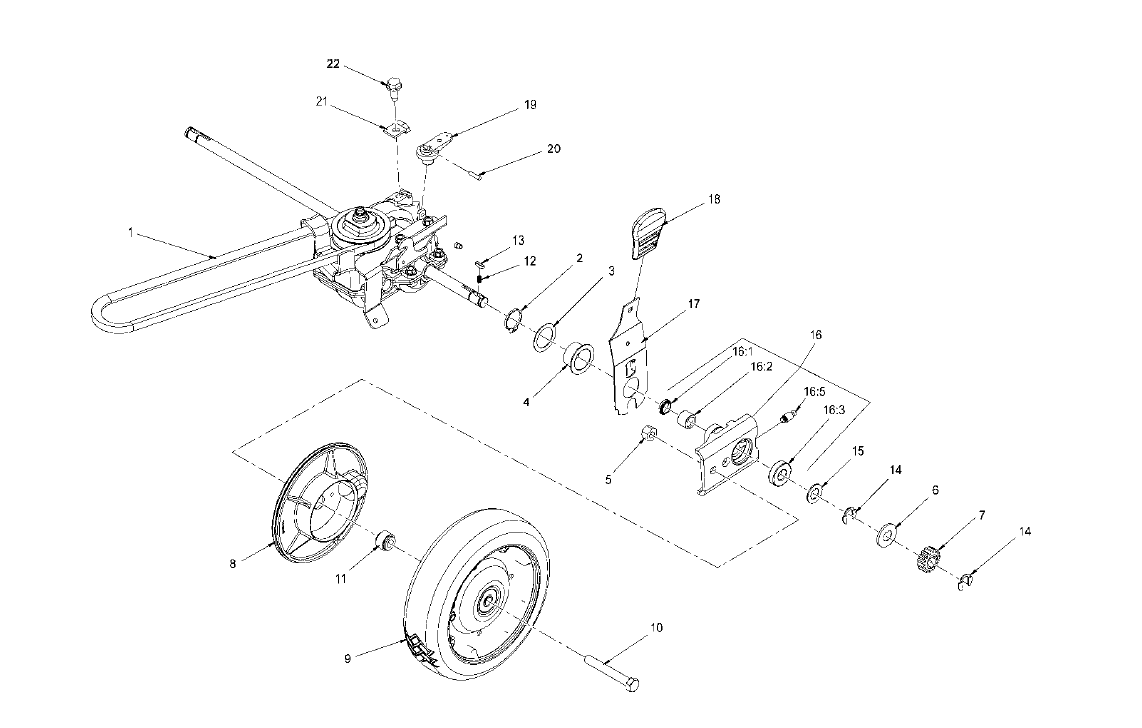

Rear Suspension Assembly

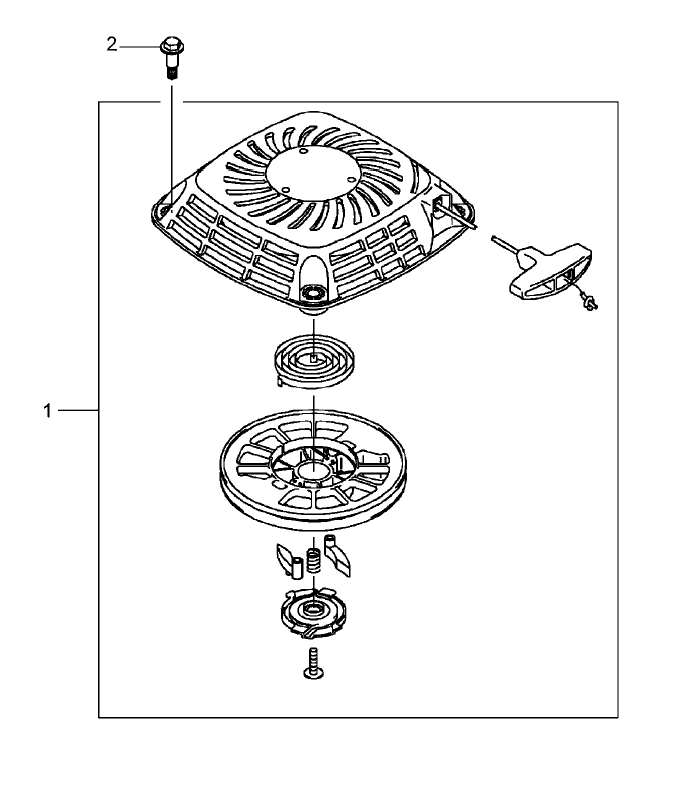

Starter Assembly

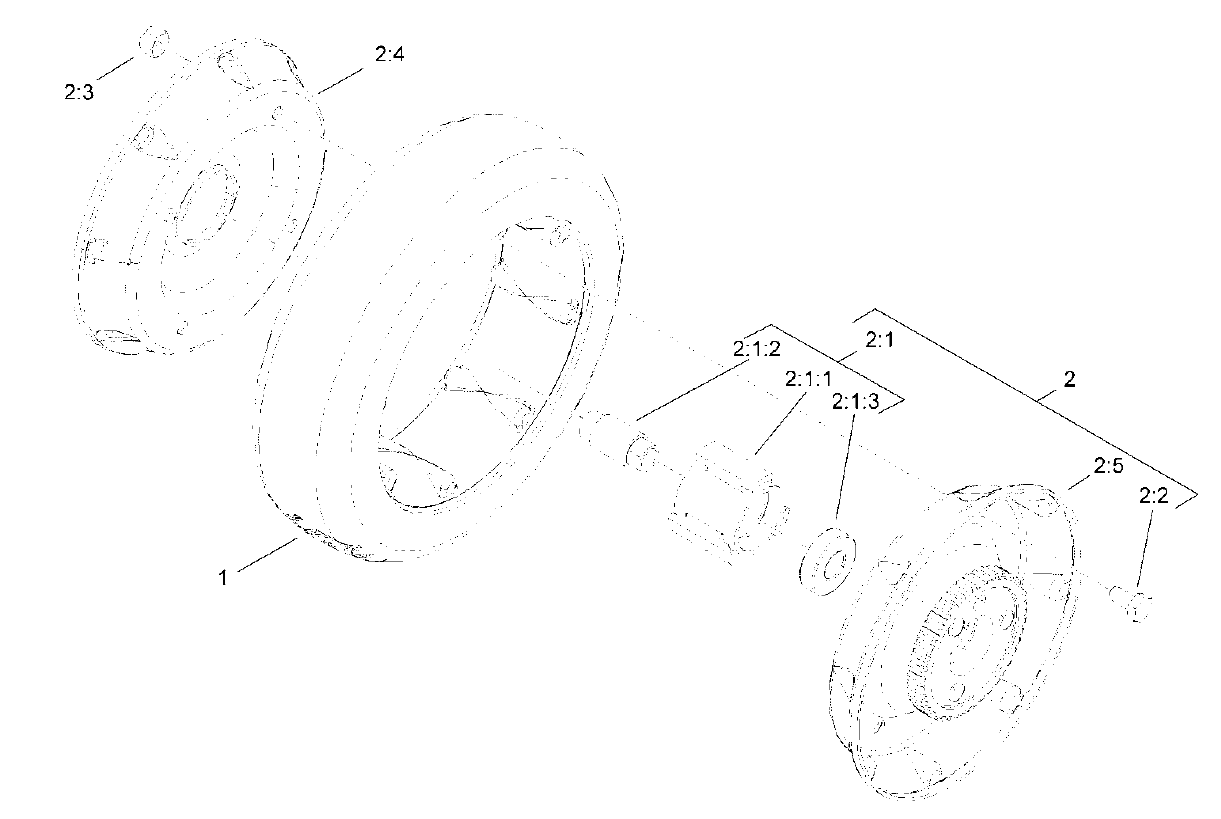

Wheel & Tyre Assembly No 115-3813

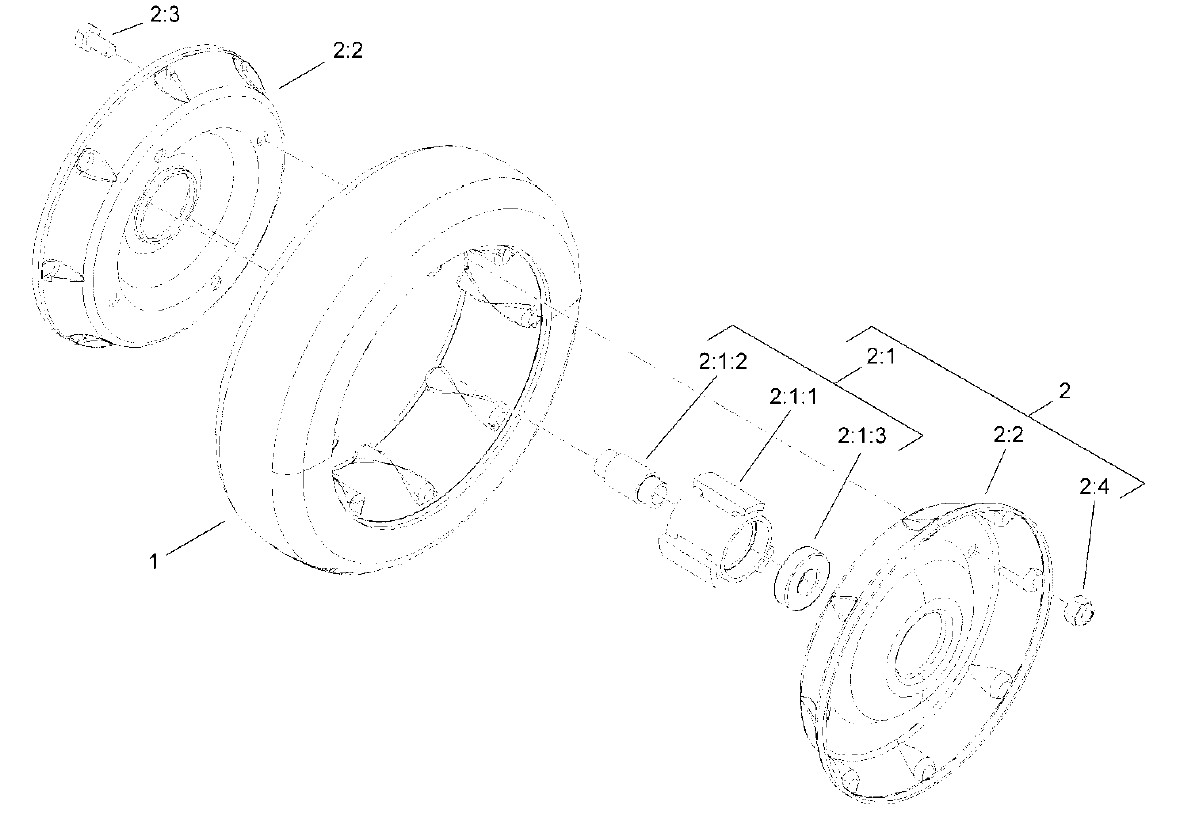

Wheel & Tyre Assembly No 115-3849
