Hayter Harrier 48 (486) Lawnmower (486T001001-486T099999) Parts Diagram, Mainframe Assembly

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

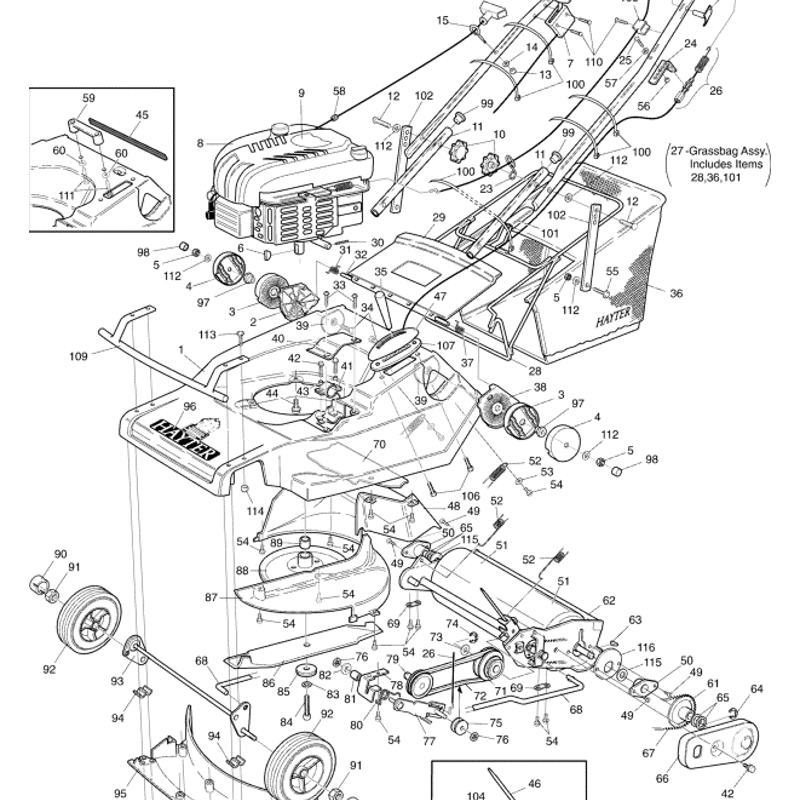

Look at the diagram and find parts that fit a Hayter Harrier 48 (486) Lawnmower, or refer to the list below.

All Parts for Harrier 48 (486) Lawnmower

Hayter Harrier 48 (486) Lawnmower (486T001001-486T099999) Parts Diagram, Mainframe Assembly

#	Part	Price
2	480083V Hayter Location Plate Rh		Hayter Location Plate Rh £6.84 P/N: 480083V, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
3	480084W Hayter Boss Clamp Inner	£12.12	Hayter Boss Clamp Inner £12.12 P/N: 480084W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
4	480085W Hayter Boss Clamp Outer	£9.62	Hayter Boss Clamp Outer £9.62 P/N: 480085W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
5	09441 Hayter Nut M8 Nyl Insert T Type	£1.97	Hayter Nut M8 Nyl Insert T Type £1.97 P/N: 09441, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
6	1662 Hayter Key Woodruff No 505	£1.78	Hayter Key Woodruff No 505 £1.78 P/N: 1662, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
7	486012 Hayter Throttle Control	£29.50	Hayter Throttle Control £29.50 P/N: 486012, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
8	486006 Hayter Engine B+S Intek Ohv		Hayter Engine B+S Intek Ohv £182.77 P/N: 486006, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
9	486005 Hayter DECAL ENGINE		Hayter DECAL ENGINE £8.59 P/N: 486005, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
10	480088 Hayter Knob Handlebar	£6.52	Hayter Knob Handlebar £6.52 P/N: 480088, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
11	480089W Hayter HANDLEBAR LOWER		Hayter HANDLEBAR LOWER £50.95 P/N: 480089W, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
12	09180 Hayter Bolt Coach M8 X 50 Zn & Pass	£1.99	Hayter Bolt Coach M8 X 50 Zn & Pass £1.99 P/N: 09180, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
13	3242-6 Hayter Screw-Set, SQH	£5.48	Hayter Screw-Set, SQH £5.48 P/N: 3242-6, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
14	09472 Hayter Washer-Plain	£1.78	Hayter Washer-Plain £1.78 P/N: 09472, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
15	305093 Hayter Guide Rope	£2.02	Hayter Guide Rope £2.02 P/N: 305093, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
16	480079 Hayter Pin Pivot		Hayter Pin Pivot £0.97 P/N: 480079, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
17	331046 Hayter Decal Engine Stop		Hayter Decal Engine Stop £1.07 P/N: 331046, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
18	111-9662 Hayter Opc Lever - Engine	£21.71	Hayter Opc Lever - Engine £21.71 P/N: 111-9662, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
19	09688 Hayter Washer Nylon 19111.6	£0.83	Hayter Washer Nylon 19111.6 £0.83 P/N: 09688, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
20	486032W Hayter HANDLEBAR MULTI USE		Hayter HANDLEBAR MULTI USE £90.60 P/N: 486032W, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
21	111-1921-03 Hayter Lever Clutch	£51.82	Hayter Lever Clutch £51.82 P/N: 111-1921-03, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
22	09687 Hayter Screw 06*20 Pt Pan Flange	£1.97	Hayter Screw 06*20 Pt Pan Flange £1.97 P/N: 09687, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
23	480123 Hayter Cable Guide Spring	£3.11	Hayter Cable Guide Spring £3.11 P/N: 480123, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
24	306108 Hayter Bracket Cable Clutch		Hayter Bracket Cable Clutch £11.20 P/N: 306108, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
25	09704 Hayter Setscrew M4 X 35	£1.99	Hayter Setscrew M4 X 35 £1.99 P/N: 09704, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
26	480094 Hayter Cable Clutch	£24.26	Hayter Cable Clutch £24.26 P/N: 480094, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
27	486021 Hayter Grassbag Assembly	£150.62	Hayter Grassbag Assembly £150.62 P/N: 486021, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
28	486018W Hayter Frame Grassbag W/A	£48.61	Hayter Frame Grassbag W/A £48.61 P/N: 486018W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
29	480140 Hayter Deflector Rear	£25.49	Hayter Deflector Rear £25.49 P/N: 480140, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
30	03997 Hayter Roll Pin 3/16 X 3/4 Lg	£1.97	Hayter Roll Pin 3/16 X 3/4 Lg £1.97 P/N: 03997, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
30	03997 Hayter ROLL PIN 3/16 X 3/4 LG		Hayter ROLL PIN 3/16 X 3/4 LG £1.38 P/N: 03997, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
31	480131 Hayter Deflector Spring RH	£4.94	Hayter Deflector Spring RH £4.94 P/N: 480131, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
32	480062 Hayter Rod Deflector		Hayter Rod Deflector P/N: 480062, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
33	09575 Hayter Screw Taptite M6*20 Washer	£1.97	Hayter Screw Taptite M6*20 Washer £1.97 P/N: 09575, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
33	09575 Hayter SCREW TAPTITE M6*20 WASHER		Hayter SCREW TAPTITE M6*20 WASHER £1.38 P/N: 09575, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
34	09549 Hayter Bolt Coach M8 X 60 Cup Sq	£1.99	Hayter Bolt Coach M8 X 60 Cup Sq £1.99 P/N: 09549, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
35	480134 Hayter Knob Hoc	£2.56	Hayter Knob Hoc £2.56 P/N: 480134, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
36	486019 Hayter Fabric Grassbag	£68.59	Hayter Fabric Grassbag £68.59 P/N: 486019, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
37	742712 Hayter CHAINCASE SER. KIT		Hayter CHAINCASE SER. KIT £2,328.68 P/N: 742712, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
39	480055 Hayter PLATE RETAINER HANDLEBAR		Hayter PLATE RETAINER HANDLEBAR £3.86 P/N: 480055, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
40	480014 Hayter Cover Apto		Hayter Cover Apto P/N: 480014, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
41	700816 Hayter WASHER-CUPPED		Hayter WASHER-CUPPED £11.39 P/N: 700816, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
42	09575 Hayter Screw Taptite M6*20 Washer	£1.97	Hayter Screw Taptite M6*20 Washer £1.97 P/N: 09575, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
42	09575 Hayter SCREW TAPTITE M6*20 WASHER		Hayter SCREW TAPTITE M6*20 WASHER £1.38 P/N: 09575, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
43	340154 Hayter Bush	£6.90	Hayter Bush £6.90 P/N: 340154, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
44	09349 Hayter Screw UNC 3/8"X 1.1/4"Taptite	£1.97	Hayter Screw UNC 3/8"X 1.1/4"Taptite £1.97 P/N: 09349, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
45	480119 Hayter Foam Sealing Strip		Hayter Foam Sealing Strip £1.39 P/N: 480119, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
46	480128 Hayter Lever Hoc	£9.95	Hayter Lever Hoc £9.95 P/N: 480128, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
47	480147 Hayter Ratchet HOC Moulding	£12.82	Hayter Ratchet HOC Moulding £12.82 P/N: 480147, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
48	480011 Hayter THROWPLATE MAIN BODY		Hayter THROWPLATE MAIN BODY P/N: 480011, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
49	09545 Hayter Screw M6 X 12 C/SK Pozi Tap	£1.97	Hayter Screw M6 X 12 C/SK Pozi Tap £1.97 P/N: 09545, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
50	219102 Hayter Housing Bearing Roller	£15.44	Hayter Housing Bearing Roller £15.44 P/N: 219102, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
51	486025W Hayter ROLLER W/A		Hayter ROLLER W/A £190.90 P/N: 486025W, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
52	480133 Hayter Spring Tension Rear Axle	£4.26	Hayter Spring Tension Rear Axle £4.26 P/N: 480133, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
53	09262 Hayter Washer 1/4 X 3/4 Galv Roofing	£1.99	Hayter Washer 1/4 X 3/4 Galv Roofing £1.99 P/N: 09262, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
54	09365 Hayter Screw M6 X 16 Taptite Hex HD	£1.99	Hayter Screw M6 X 16 Taptite Hex HD £1.99 P/N: 09365, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
55	09666 Hayter COACH BOLT		Hayter COACH BOLT £1.30 P/N: 09666, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
56	09657 Hayter Nut M8 Hx.Nyl/Insert T Type Zp	£1.99	Hayter Nut M8 Hx.Nyl/Insert T Type Zp £1.99 P/N: 09657, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
57	09658 Hayter Washer M4 X 9 X 0.8 Z/P	£1.99	Hayter Washer M4 X 9 X 0.8 Z/P £1.99 P/N: 09658, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
58	MU42189 Hayter Stop Rope (HB)		Hayter Stop Rope (HB) P/N: MU42189, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
59	486016 Hayter Handle Bridge	£21.22	Hayter Handle Bridge £21.22 P/N: 486016, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
60	03469 Hayter Washer M8 Sc Spring	£1.99	Hayter Washer M8 Sc Spring £1.99 P/N: 03469, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
61	480039 Hayter Sprocket 22T Assy		Hayter Sprocket 22T Assy P/N: 480039, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
62	480159W Hayter Frame Rear Roller W/A		Hayter Frame Rear Roller W/A P/N: 480159W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
63	5321 Hayter Key Woodruff No 305 5/8 X 3/32		Hayter Key Woodruff No 305 5/8 X 3/32 £1.80 P/N: 5321, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
64	1428 Hayter Circlip Ext 5/8" 1400 Series	£1.99	Hayter Circlip Ext 5/8" 1400 Series £1.99 P/N: 1428, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
65	480097 Hayter Washer	£2.00	Hayter Washer £2.00 P/N: 480097, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
66	480043 Hayter Cover Transmission	£28.44	Hayter Cover Transmission £28.44 P/N: 480043, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
67	486037 Hayter Chain No.81 40 Pitch	£14.39	Hayter Chain No.81 40 Pitch £14.39 P/N: 486037, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
68	480045 Hayter CONNECTING ROD (PLATED)		Hayter CONNECTING ROD (PLATED) £7.74 P/N: 480045, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
69	219037 Hayter Plate Securing	£2.02	Hayter Plate Securing £2.02 P/N: 219037, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
70	480017W Hayter Filler Throwplate	£25.30	Hayter Filler Throwplate £25.30 P/N: 480017W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
71	480171 Hayter Pulley Sprocket Assembly	£90.13	Hayter Pulley Sprocket Assembly £90.13 P/N: 480171, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
72	480063 Hayter Belt V	£22.34	Hayter Belt V £22.34 P/N: 480063, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
73	02575 Hayter Washer 1/2" X 7/8" X 22G	£1.87	Hayter Washer 1/2" X 7/8" X 22G £1.87 P/N: 02575, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
74	03096 Hayter Circlip Ext 1/2"	£1.87	Hayter Circlip Ext 1/2" £1.87 P/N: 03096, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
75	219156 Hayter Pulley Jockey (Moulded)	£2.05	Hayter Pulley Jockey (Moulded) £2.05 P/N: 219156, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
76	0201086 Hayter Washer Starlock 5/16	£1.97	Hayter Washer Starlock 5/16 £1.97 P/N: 0201086, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
77	480115 Hayter BRACKET IDLER ASSY		Hayter BRACKET IDLER ASSY £32.44 P/N: 480115, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
78	480116 Hayter Guide Belt		Hayter Guide Belt P/N: 480116, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
79	480038 Hayter Pulley Drive	£71.00	Hayter Pulley Drive £71.00 P/N: 480038, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
80	480066 Hayter Spring Torsion Idler	£10.68	Hayter Spring Torsion Idler £10.68 P/N: 480066, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
81	HY4452 Hayter Bush 1/2 X 5/8 X 3/4	£4.15	Hayter Bush 1/2 X 5/8 X 3/4 £4.15 P/N: HY4452, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
82	09280 Hayter Washer 1/2 X 1 X 18G Plain	£1.91	Hayter Washer 1/2 X 1 X 18G Plain £1.91 P/N: 09280, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
83	09273 Hayter Washer 3/8 sc Spring	£1.97	Hayter Washer 3/8 sc Spring £1.97 P/N: 09273, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
84	09121 Hayter Bolt UNF 3/8 X 2 S Qual	£1.99	Hayter Bolt UNF 3/8 X 2 S Qual £1.99 P/N: 09121, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
85	HY4014 Hayter Distance Piece Cutterbar	£14.06	Hayter Distance Piece Cutterbar £14.06 P/N: HY4014, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
86	480149 Hayter Cutterbar 19	£36.88	Hayter Cutterbar 19 £36.88 P/N: 480149, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
87	480012 Hayter THROWPLATE DRIVE COVER		Hayter THROWPLATE DRIVE COVER £42.77 P/N: 480012, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
88	480070W Hayter Friction Disc W/A		Hayter Friction Disc W/A P/N: 480070W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
89	480072 Hayter Spacer	£7.99	Hayter Spacer £7.99 P/N: 480072, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
90	219143 Hayter Cap Hub	£8.35	Hayter Cap Hub £8.35 P/N: 219143, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
91	HY4486 Hayter Nut UNF 1/2"Nyloc Ext Thin5/16	£1.93	Hayter Nut UNF 1/2"Nyloc Ext Thin5/16 £1.93 P/N: HY4486, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
92	111-1250 Hayter Wheel 180X45 Ribbed	£39.48	Hayter Wheel 180X45 Ribbed £39.48 P/N: 111-1250, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
93	219031 Hayter Axle Front Assy	£61.36	Hayter Axle Front Assy £61.36 P/N: 219031, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
94	219036 Hayter Moulding Bearing	£7.06	Hayter Moulding Bearing £7.06 P/N: 219036, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
95	480013 Hayter Front Fin Insert	£19.91	Hayter Front Fin Insert £19.91 P/N: 480013, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
96	410087 Hayter Logo (03)	£6.73	Hayter Logo (03) £6.73 P/N: 410087, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
97	480086 Hayter Nut Shouldered		Hayter Nut Shouldered P/N: 480086, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
98	HY234051 Hayter Cap For M8 Nut Black	£1.91	Hayter Cap For M8 Nut Black £1.91 P/N: HY234051, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
99	300160 Hayter Tube Plug	£1.97	Hayter Tube Plug £1.97 P/N: 300160, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
100	HY3966 Hayter Strap Cable	£1.91	Hayter Strap Cable £1.91 P/N: HY3966, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
101	480106 Hayter Obsolete January 2003		Hayter Obsolete January 2003 P/N: 480106, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
102	486003W Hayter Brace Handlebar		Hayter Brace Handlebar £13.30 P/N: 486003W, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
103	480157W Hayter Bracket Hoc	£44.80	Hayter Bracket Hoc £44.80 P/N: 480157W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
104	480132 Hayter Spring Torsion Hol	£1.36	Hayter Spring Torsion Hol £1.36 P/N: 480132, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
105	09336 Hayter Rivet 1/4 X 5/8 Flat HD	£1.80	Hayter Rivet 1/4 X 5/8 Flat HD £1.80 P/N: 09336, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
106	09634 Hayter Screw	£1.86	Hayter Screw £1.86 P/N: 09634, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
107	480156 Hayter Ratchet Plate	£24.58	Hayter Ratchet Plate £24.58 P/N: 480156, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
108	486007 Hayter Cable Engine Brake	£12.56	Hayter Cable Engine Brake £12.56 P/N: 486007, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
109	486008W Hayter FRONT RAIL W/A		Hayter FRONT RAIL W/A £76.27 P/N: 486008W, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
110	09358 Hayter Screw M5 X 35 Pozi Taptite		Hayter Screw M5 X 35 Pozi Taptite £1.45 P/N: 09358, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
111	09368 Hayter Screw	£1.99	Hayter Screw £1.99 P/N: 09368, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
112	09475 Hayter Washer M8 X 17 X 1.6 Zn & Pass	£1.99	Hayter Washer M8 X 17 X 1.6 Zn & Pass £1.99 P/N: 09475, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
113	09668 Hayter Bolt Coach M6*20 Cup Sq	£1.91	Hayter Bolt Coach M6*20 Cup Sq £1.91 P/N: 09668, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
114	09438 Hayter Nut M6 X 1.5 Plain	£1.97	Hayter Nut M6 X 1.5 Plain £1.97 P/N: 09438, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
115	HY4017 Hayter Washer Nylon	£4.33	Hayter Washer Nylon £4.33 P/N: HY4017, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
116	480018 Hayter Cover Plate		Hayter Cover Plate £10.38 P/N: 480018, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
