Hayter Ranger 3 in 1 Autodrive (436D) Parts Diagram, Page 1
Look at the diagram and find parts that fit a Hayter Ranger 3 in 1 Autodrive, or refer to the list below.
All Parts for Ranger 3 in 1 Autodrive
| # | Part | Price | |
|---|---|---|---|
| 1 |
SA3043460 Hayter DECK |
 Hayter DECK£316.38
P/N: SA3043460, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 2 |
SA3024200 Hayter Side Cover |
£49.74 |
Hayter Side Cover£49.74
P/N: SA3024200, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 4 |
SA1034390 Hayter SCREW |
Hayter SCREW£1.36
P/N: SA1034390, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 5 |
SA145670 Hayter ENGINE BOLT |
Hayter ENGINE BOLT£2.94
P/N: SA145670, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 6 |
436006 Hayter DECAL ENGINE |
Hayter DECAL ENGINE£8.36
P/N: 436006, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 7 |
1662 Hayter Key Woodruff No 505 |
£1.78 |
 Hayter Key Woodruff No 505£1.78
P/N: 1662, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 8 |
ZNH1H000U Hayter Hex.Nut M8 |
£1.99 |
Hayter Hex.Nut M8£1.99
P/N: ZNH1H000U, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 9 |
320006 Hayter Label Height Of Cut |
£1.97 |
Hayter Label Height Of Cut£1.97
P/N: 320006, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 10 |
111-4637 Hayter Knob |
£5.62 |
Hayter Knob£5.62
P/N: 111-4637, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 11 |
111-4638 Hayter Guard For Hand Hold |
£1.91 |
Hayter Guard For Hand Hold£1.91
P/N: 111-4638, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 12 |
SA3043450 Hayter Lower Handlebar |
£35.41 |
Hayter Lower Handlebar£35.41
P/N: SA3043450, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 13 |
HY226024 Hayter Bolt Handlebar |
£1.94 |
 Hayter Bolt Handlebar£1.94
P/N: HY226024, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 14 |
SA142480 Hayter Screw |
Hayter Screw
P/N: SA142480, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 15 |
111-4645 Hayter RETAINER BOLT |
Hayter RETAINER BOLT£1.44
P/N: 111-4645, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 16 |
111-4655 Hayter Starter Rope Holder |
Hayter Starter Rope Holder
P/N: 111-4655, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 17 |
09437 Hayter Nut M6 Plain |
£1.99 |
Hayter Nut M6 Plain£1.99
P/N: 09437, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 18 |
09438 Hayter Nut M6 X 1.5 Plain |
£1.97 |
Hayter Nut M6 X 1.5 Plain£1.97
P/N: 09438, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 19 |
09780 Hayter Setscrew M6 X 55 Posi Pan |
£2.28 |
Hayter Setscrew M6 X 55 Posi Pan£2.28
P/N: 09780, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 20 |

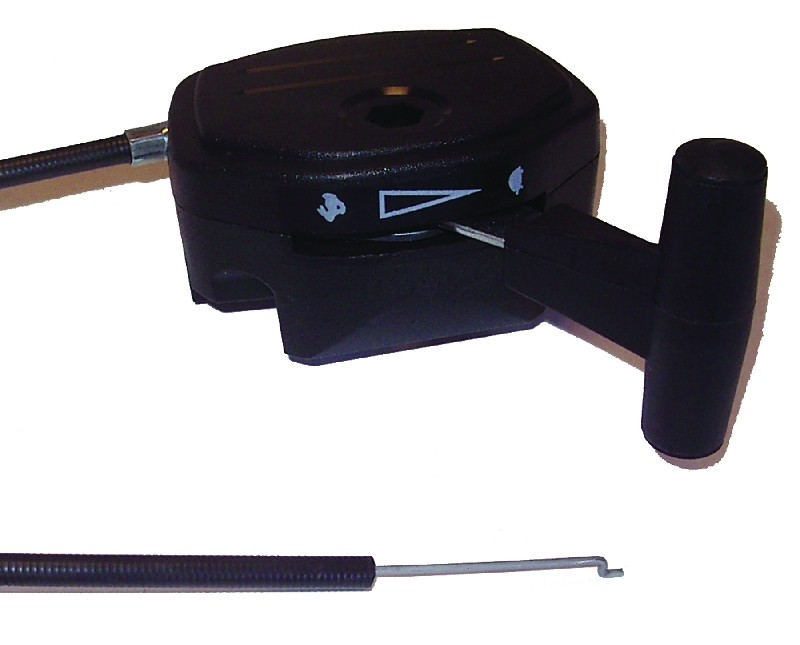

533012 Hayter Throttle |
 Hayter Throttle£25.14
P/N: 533012, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 22 |
111-9662 Hayter Opc Lever - Engine |
£21.71 |
 Hayter Opc Lever - Engine£21.71
P/N: 111-9662, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 23 |
340182 Hayter Pivot Pin |
£1.97 |
Hayter Pivot Pin£1.97
P/N: 340182, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 24 |
09688 Hayter Washer Nylon 19*11*1.6 |
£0.83 |
Hayter Washer Nylon 19*11*1.6£0.83
P/N: 09688, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 25 |
09687 Hayter Screw 06*20 Pt Pan Flange |
£1.97 |
Hayter Screw 06*20 Pt Pan Flange£1.97
P/N: 09687, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 26 |

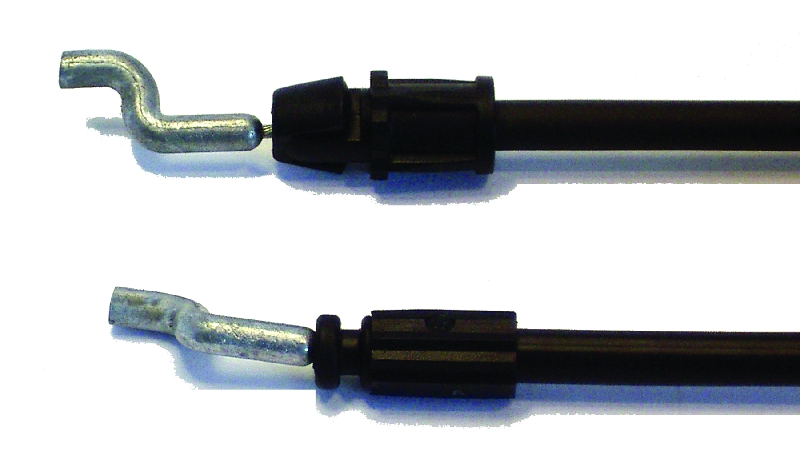

341031 Hayter Cable Engine Brake |
£11.38 |
 Hayter Cable Engine Brake£11.38
P/N: 341031, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 27 |
111-1921-03 Hayter Lever Clutch |
£51.82 |
 Hayter Lever Clutch£51.82
P/N: 111-1921-03, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 28 |

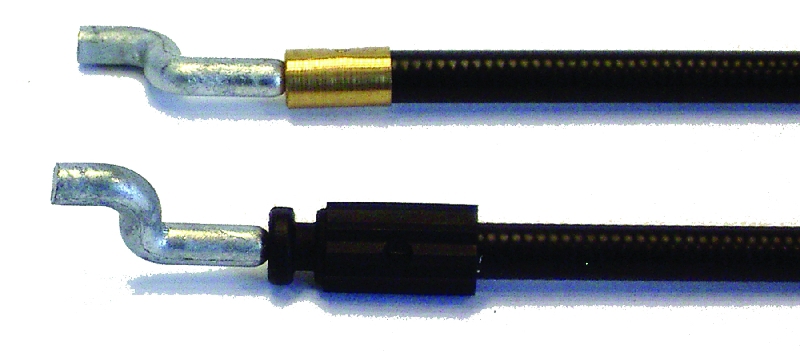

436012 Hayter Cable Clutch |
£27.35 |
 Hayter Cable Clutch£27.35
P/N: 436012, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 29 |
SA2007470 Hayter ROD, FLAP |
Hayter ROD, FLAP£4.10
P/N: SA2007470, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 30 |
SA4023600 Hayter GRASS FLAP |
Hayter GRASS FLAP£38.34
P/N: SA4023600, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 31 |
SA2023620 Hayter SPRING, FLAP |
Hayter SPRING, FLAP£7.30
P/N: SA2023620, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 32 |
SA184960 Hayter SCREW SELF TAPPING |
Hayter SCREW SELF TAPPING£1.21
P/N: SA184960, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 33 |
SA181690 Hayter WASHER, PLAIN |
Hayter WASHER, PLAIN£1.44
P/N: SA181690, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 34 |
SA4008500 Hayter BUSHING |
Hayter BUSHING£3.04
P/N: SA4008500, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 35 |
SA4023610 Hayter Cover Grassbag |
Hayter Cover Grassbag
P/N: SA4023610, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 36 |
SA273660 Hayter Grassbag Fabric |
Hayter Grassbag Fabric
P/N: SA273660, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 37 |
SA373610 Hayter Grassbag Frame |
Hayter Grassbag Frame
P/N: SA373610, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 38 |
SA2024180 Hayter MULCHING PLUG |
Hayter MULCHING PLUG£80.83
P/N: SA2024180, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 39 |
SA280820 Hayter Crankshaft Support |
£20.24 |
Hayter Crankshaft Support£20.24
P/N: SA280820, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 40 |
SA3036920 Hayter CRANKSHAFT SUPPORT |
Hayter CRANKSHAFT SUPPORT£55.67
P/N: SA3036920, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 41 |
SA2038060 Hayter Pulley Boss |
Hayter Pulley Boss
P/N: SA2038060, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 42 |
SA2006400 Hayter Washer Belleville |
£5.23 |
 Hayter Washer Belleville£5.23
P/N: SA2006400, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 43 |
SA3006420 Hayter Friction Disc (Large Washer) |
£10.60 |
Hayter Friction Disc (Large Washer)£10.60
P/N: SA3006420, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 44 |
SA3006410 Hayter Plate |
Hayter Plate
P/N: SA3006410, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 45 |
SA281100 Hayter Spring Washer |
Hayter Spring Washer
P/N: SA281100, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 46 |
SA281080 Hayter Screw, Blade |
Hayter Screw, Blade
P/N: SA281080, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 47 |

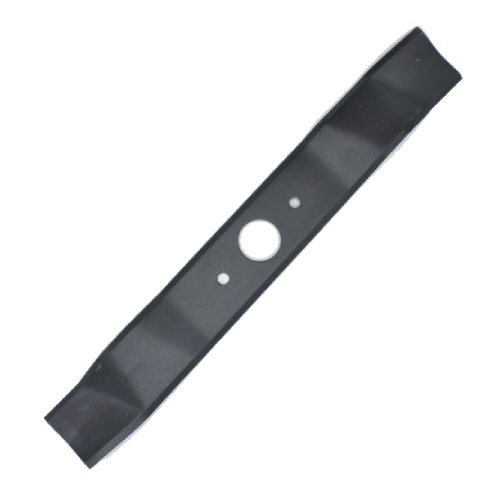

SA2043700 Hayter Cutterbar |
£46.18 |
 Hayter Cutterbar£46.18
P/N: SA2043700, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 48 |

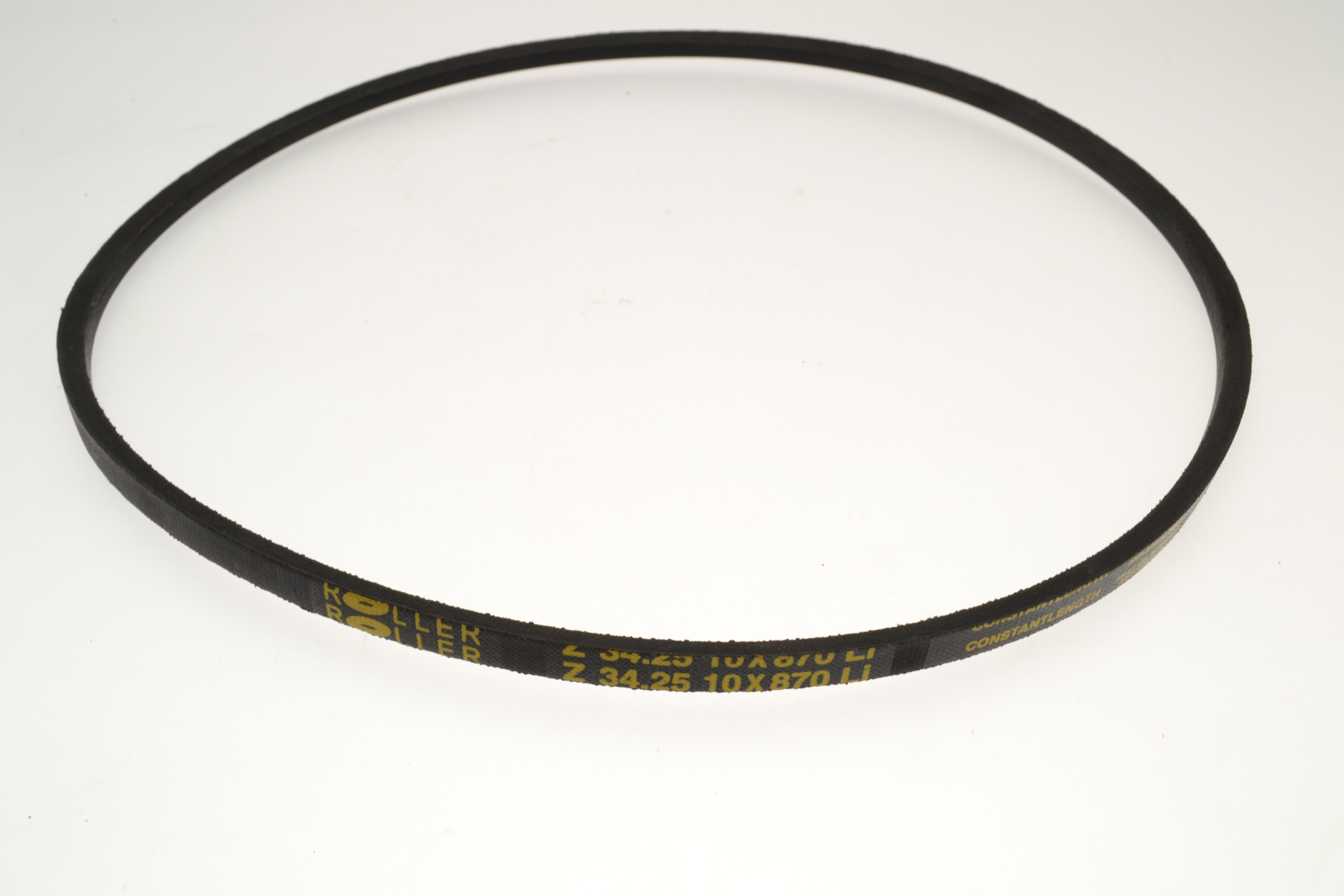

SA2013380 Hayter V Belt |
 Hayter V Belt£28.74
P/N: SA2013380, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 49 |
SA244970 Hayter Pulley |
Hayter Pulley
P/N: SA244970, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 50 |
SA280890 Hayter Roll Pin |
Hayter Roll Pin
P/N: SA280890, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 51 |
SA2029390 Hayter Tension Spring |
Hayter Tension Spring
P/N: SA2029390, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 52 |
SA296360 Hayter Gearbox Assy |
£222.71 |
Hayter Gearbox Assy£222.71
P/N: SA296360, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 53 |
SA3057180 Hayter AXLE |
Hayter AXLE£198.41
P/N: SA3057180, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 54 |
SA496390 Hayter HANDLE HOC |
Hayter HANDLE HOC£22.27
P/N: SA496390, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 55 |
SA280450 Hayter SPRING, TORSION |
Hayter SPRING, TORSION£16.46
P/N: SA280450, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 56 |
SA180460 Hayter ROLL PIN |
Hayter ROLL PIN£1.44
P/N: SA180460, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 57 |
SA203560 Hayter BEARING |
Hayter BEARING£17.64
P/N: SA203560, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 58 |
SA144590 Hayter Circlip |
Hayter Circlip
P/N: SA144590, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 59 |
SA150770 Hayter Washer. Plain |
£1.63 |
Hayter Washer. Plain£1.63
P/N: SA150770, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 60 |
SA380570 Hayter Cover, Wheel |
Hayter Cover, Wheel£3.28
P/N: SA380570, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 61 |
SA245240 Hayter WASHER PLAIN |
Hayter WASHER PLAIN£1.44
P/N: SA245240, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 62 |
SA145250 Hayter Shim |
£1.63 |
Hayter Shim£1.63
P/N: SA145250, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 63 |
SA385250 Hayter SPACER |
Hayter SPACER£2.88
P/N: SA385250, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 64 |
SA396350 Hayter Wheel |
Hayter Wheel
P/N: SA396350, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 65 |
09270 Hayter Washer Plain 5/16 X 1 X 16G |
£1.97 |
Hayter Washer Plain 5/16 X 1 X 16G£1.97
P/N: 09270, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 66 |
SA479100 Hayter Cover Wheel |
£5.06 |
Hayter Cover Wheel£5.06
P/N: SA479100, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 67 |
SA344110 Hayter PLATE, CLAMP |
Hayter PLATE, CLAMP£1.62
P/N: SA344110, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 68 |
09596 Hayter Screw M6X16 Pozidriv T/Tite(P) |
£1.80 |
Hayter Screw M6X16 Pozidriv T/Tite(P)£1.80
P/N: 09596, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 69 |
SA186210 Hayter Cap Screw |
Hayter Cap Screw
P/N: SA186210, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 70 |
SA3023630 Hayter CONNECTING ROD |
Hayter CONNECTING ROD£22.10
P/N: SA3023630, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 71 |
SA2023580 Hayter SPRING |
Hayter SPRING£15.97
P/N: SA2023580, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 72 |
SA3023590 Hayter Front Axle |
Hayter Front Axle£34.32
P/N: SA3023590, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 73 |
SA480180 Hayter Bush |
Hayter Bush
P/N: SA480180, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 74 |
SA242220 Hayter Gear |
£19.90 |
Hayter Gear£19.90
P/N: SA242220, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 75 |
SA203510 Hayter Key Drive |
£7.18 |
Hayter Key Drive£7.18
P/N: SA203510, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 76 |
SA242210 Hayter Gear |
Hayter Gear
P/N: SA242210, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 77 |
SA250780 Hayter Washer Plastic |
£1.63 |
Hayter Washer Plastic£1.63
P/N: SA250780, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 78 |
SA403520 Hayter Spacer Plastic |
Hayter Spacer Plastic
P/N: SA403520, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 79 |
SA403540 Hayter WASHER PLASTIC |
Hayter WASHER PLASTIC£1.62
P/N: SA403540, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 80 |
SA403510 Hayter Collar |
Hayter Collar
P/N: SA403510, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
|
| 81 |
SA203680 Hayter Bearing |
£7.24 |
Hayter Bearing£7.24
P/N: SA203680, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 82 |
SA356110 Hayter WHEEL |
Hayter WHEEL£41.47
P/N: SA356110, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 83 |
SA380740 Hayter Cover. Wheel |
£11.87 |
Hayter Cover. Wheel£11.87
P/N: SA380740, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 84 |
410087 Hayter Logo (03) |
£6.73 |
Hayter Logo (03)£6.73
P/N: 410087, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 85 |
111-0083 Hayter Decal - Safety |
£2.80 |
 Hayter Decal - Safety£2.80
P/N: 111-0083, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 86 |
SA244500 Hayter BELLVILLE WASHER |
Hayter BELLVILLE WASHER£2.29
P/N: SA244500, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 87 |
SA147510 Hayter BOLT |
Hayter BOLT£2.08
P/N: SA147510, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
No longer available
|
|
| 88 |
09442 Hayter Nut M8 Nyl Ins P Type |
£1.99 |
Hayter Nut M8 Nyl Ins P Type£1.99
P/N: 09442, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 89 |
09546 Hayter Screw M6 X 12 Hex W/Hd Pozi Tp |
£2.00 |
Hayter Screw M6 X 12 Hex W/Hd Pozi Tp£2.00
P/N: 09546, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 90 |
09472 Hayter Washer-Plain |
£1.78 |
Hayter Washer-Plain£1.78
P/N: 09472, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
| 91 |
09438 Hayter Nut M6 X 1.5 Plain |
£1.97 |
Hayter Nut M6 X 1.5 Plain£1.97
P/N: 09438, Genuine OEM spare part. Find other Hayter spares, parts and accessories. |
