Hayterette Lawnmower (284N) Parts Diagram, Page 1

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Hayterette Lawnmower, or refer to the list below.

All Parts for Hayterette Lawnmower

Hayterette Lawnmower (284N) Parts Diagram, Page 1

#	Part	Price
1	340182 Hayter Pivot Pin	£1.97	Hayter Pivot Pin £1.97 P/N: 340182, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
2	09688 Hayter Washer Nylon 19111.6	£0.83	Hayter Washer Nylon 19111.6 £0.83 P/N: 09688, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
3	111-9662 Hayter Opc Lever - Engine	£21.71	Hayter Opc Lever - Engine £21.71 P/N: 111-9662, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
4	09687 Hayter Screw 06*20 Pt Pan Flange	£1.97	Hayter Screw 06*20 Pt Pan Flange £1.97 P/N: 09687, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
5	331046 Hayter Decal Engine Stop		Hayter Decal Engine Stop £1.07 P/N: 331046, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
6	305145W Hayter Upper Handlebar	£78.91	Hayter Upper Handlebar £78.91 P/N: 305145W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
7	305093 Hayter Guide Rope	£2.02	Hayter Guide Rope £2.02 P/N: 305093, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
8	284026 Hayter Throttle Control		Hayter Throttle Control £18.54 P/N: 284026, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
9	09358 Hayter Screw M5 X 35 Pozi Taptite		Hayter Screw M5 X 35 Pozi Taptite £1.45 P/N: 09358, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
10	284025 Hayter Cable Engine Brake		Hayter Cable Engine Brake £7.52 P/N: 284025, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
11	HY3966 Hayter Strap Cable	£1.91	Hayter Strap Cable £1.91 P/N: HY3966, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
12	226013 Hayter Handwheel Triangular	£8.29	Hayter Handwheel Triangular £8.29 P/N: 226013, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
13	HY226024 Hayter Bolt Handlebar	£1.94	Hayter Bolt Handlebar £1.94 P/N: HY226024, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
14	005121W Hayter Handlebar Lower	£100.58	Hayter Handlebar Lower £100.58 P/N: 005121W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
15	005139W Hayter Foot Guard	£140.04	Hayter Foot Guard £140.04 P/N: 005139W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
16	09442 Hayter Nut M8 Nyl Ins P Type	£1.99	Hayter Nut M8 Nyl Ins P Type £1.99 P/N: 09442, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
17	09475 Hayter Washer M8 X 17 X 1.6 Zn & Pass	£1.99	Hayter Washer M8 X 17 X 1.6 Zn & Pass £1.99 P/N: 09475, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
18	09654 Hayter Bolt M8 X 45 Hx.Hd Gr.8.8 Z/P	£1.99	Hayter Bolt M8 X 45 Hx.Hd Gr.8.8 Z/P £1.99 P/N: 09654, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
19	09472 Hayter Washer-Plain	£1.78	Hayter Washer-Plain £1.78 P/N: 09472, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
20	09438 Hayter Nut M6 X 1.5 Plain	£1.97	Hayter Nut M6 X 1.5 Plain £1.97 P/N: 09438, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
21	09266 Hayter Washer 5/16 X 5/8 X 19G Plain	£1.75	Hayter Washer 5/16 X 5/8 X 19G Plain £1.75 P/N: 09266, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
23	005146 Hayter Block Bearing Upper	£26.51	Hayter Block Bearing Upper £26.51 P/N: 005146, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
24	005145 Hayter Block Bearing Lower	£24.98	Hayter Block Bearing Lower £24.98 P/N: 005145, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
25	005130 Hayter Axle Rear W/A		Hayter Axle Rear W/A £88.16 P/N: 005130, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
26	254013 Hayter Spring Pin	£1.91	Hayter Spring Pin £1.91 P/N: 254013, Genuine OEM spare part. Find other Hayter spares, parts and accessories.

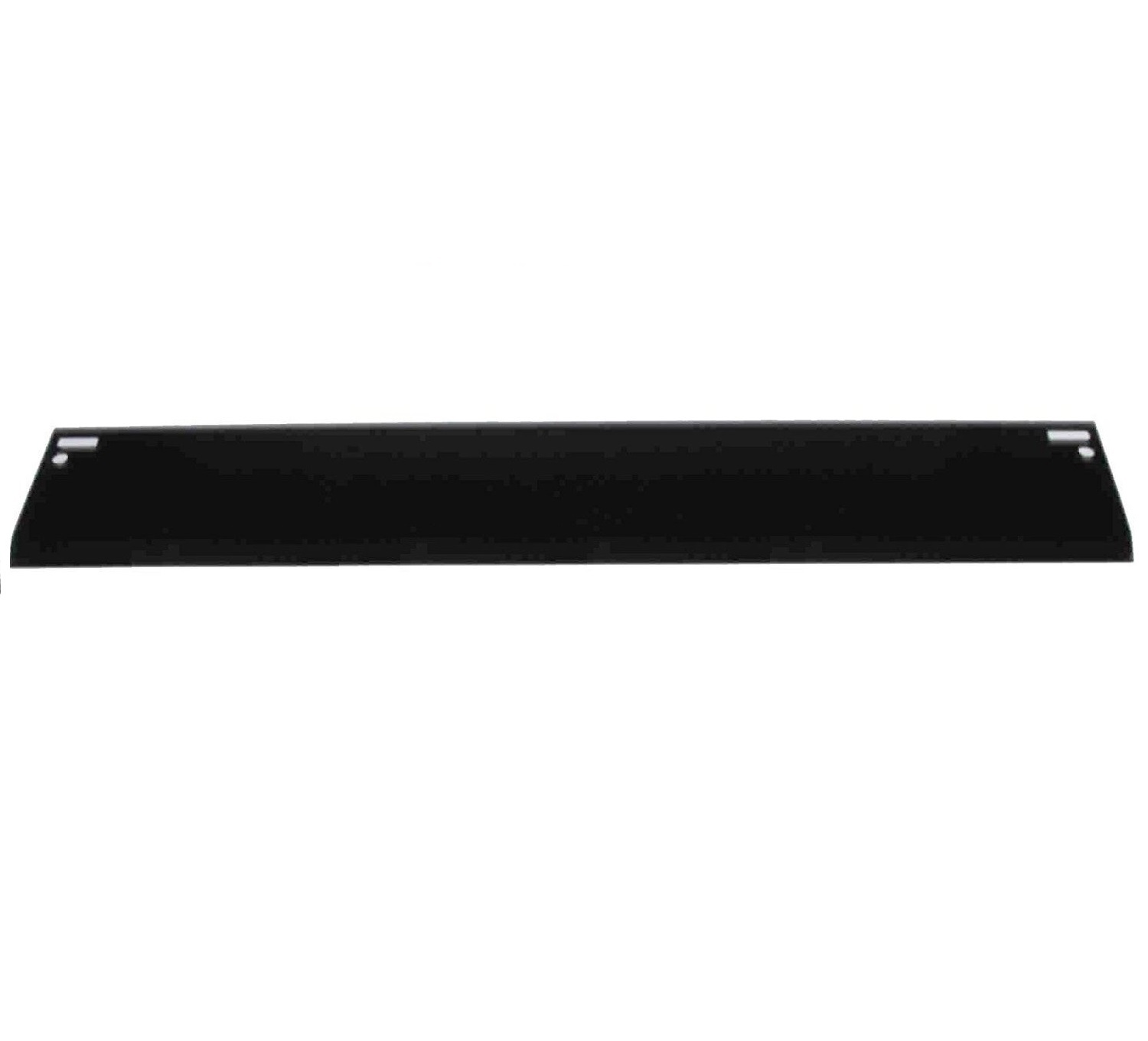

27	005097 Hayter Rear Flap	£26.26	Hayter Rear Flap £26.26 P/N: 005097, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
28	HY6289 Hayter Grommet Rubber	£1.93	Hayter Grommet Rubber £1.93 P/N: HY6289, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
29	284031 Hayter Bearing		Hayter Bearing £12.70 P/N: 284031, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
31	HY4486 Hayter Nut UNF 1/2"Nyloc Ext Thin5/16	£1.93	Hayter Nut UNF 1/2"Nyloc Ext Thin5/16 £1.93 P/N: HY4486, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
32	09303 Hayter Split Pin 1/2 X 3/32	£1.99	Hayter Split Pin 1/2 X 3/32 £1.99 P/N: 09303, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
33	005135 Hayter Connecting Rod	£26.38	Hayter Connecting Rod £26.38 P/N: 005135, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
34	005126 Hayter Axle Front W/A L.H.		Hayter Axle Front W/A L.H. £84.90 P/N: 005126, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
35	005129 Hayter Bolt Axle Pivot	£14.88	Hayter Bolt Axle Pivot £14.88 P/N: 005129, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
36	HY4912 Hayter Spring Disc 31.8 X 16 X 1.02Mm	£1.94	Hayter Spring Disc 31.8 X 16 X 1.02Mm £1.94 P/N: HY4912, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
37	397042W Hayter Friction Disc W/A	£67.42	Hayter Friction Disc W/A £67.42 P/N: 397042W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
38	005125 Hayter Axle Front W/A R.H.		Hayter Axle Front W/A R.H. £84.90 P/N: 005125, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
39	ZBH1H075U Hayter Hex HD Bolt M8*75	£1.96	Hayter Hex HD Bolt M8*75 £1.96 P/N: ZBH1H075U, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
40	HY4884 Hayter Clip Spring Handle Retaining	£9.76	Hayter Clip Spring Handle Retaining £9.76 P/N: HY4884, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
41	HY4097 Hayter Handlegrip Black	£15.71	Hayter Handlegrip Black £15.71 P/N: HY4097, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
42	09320 Hayter Rivet 3/16 X 5/8	£1.99	Hayter Rivet 3/16 X 5/8 £1.99 P/N: 09320, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
43	HY5637 Hayter Cutterbar	£43.06	Hayter Cutterbar £43.06 P/N: HY5637, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
44	HY4014 Hayter Distance Piece Cutterbar	£14.06	Hayter Distance Piece Cutterbar £14.06 P/N: HY4014, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
45	09273 Hayter Washer 3/8 sc Spring	£1.97	Hayter Washer 3/8 sc Spring £1.97 P/N: 09273, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
46	09116 Hayter Screw Hex HD 3/8" UNF X 1 1/4"	£1.87	Hayter Screw Hex HD 3/8" UNF X 1 1/4" £1.87 P/N: 09116, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
47	09216 Hayter Nut-Hex, Ni	£1.99	Hayter Nut-Hex, Ni £1.99 P/N: 09216, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
48	1662 Hayter Key Woodruff No 505	£1.78	Hayter Key Woodruff No 505 £1.78 P/N: 1662, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
49	410087 Hayter Logo (03)	£6.73	Hayter Logo (03) £6.73 P/N: 410087, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
50	320006 Hayter Label Height Of Cut	£1.97	Hayter Label Height Of Cut £1.97 P/N: 320006, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
51	111-0083 Hayter Decal - Safety	£2.80	Hayter Decal - Safety £2.80 P/N: 111-0083, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
53	284038 Hayter TAP FUEL		Hayter TAP FUEL £6.73 P/N: 284038, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
55	284034 Hayter Sleeve		Hayter Sleeve P/N: 284034, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
57	320068 Hayter Obsolete November 2002		Hayter Obsolete November 2002 P/N: 320068, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
58	320026 Hayter Obsolete August 2010		Hayter Obsolete August 2010 P/N: 320026, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
60	322015 Hayter Obsolete August 2005		Hayter Obsolete August 2005 P/N: 322015, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
61	322018 Hayter Obsolete June 2004		Hayter Obsolete June 2004 P/N: 322018, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
62	284035 Hayter Fuel Filter - Vector Vlv55		Hayter Fuel Filter - Vector Vlv55 P/N: 284035, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
63	300160 Hayter Tube Plug	£1.97	Hayter Tube Plug £1.97 P/N: 300160, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
64	02394 Hayter Washer 3/8 X 1.1/4 X 18G	£1.99	Hayter Washer 3/8 X 1.1/4 X 18G £1.99 P/N: 02394, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
65	09349 Hayter Screw UNC 3/8"X 1.1/4"Taptite	£1.97	Hayter Screw UNC 3/8"X 1.1/4"Taptite £1.97 P/N: 09349, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
