Hayter Harrier 48 (219) Lawnmower (219R-220R) Parts Diagram, Mainframe Assembly

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Hayter Harrier 48 (219) Lawnmower, or refer to the list below.

All Parts for Harrier 48 (219) Lawnmower

Hayter Harrier 48 (219) Lawnmower (219R-220R) Parts Diagram, Mainframe Assembly

#	Part	Price
1	219110 Hayter Belt V	£23.15	Hayter Belt V £23.15 P/N: 219110, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
2	1428 Hayter Circlip Ext 5/8" 1400 Series	£1.99	Hayter Circlip Ext 5/8" 1400 Series £1.99 P/N: 1428, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
3	1662 Hayter Key Woodruff No 505	£1.78	Hayter Key Woodruff No 505 £1.78 P/N: 1662, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
4	09257 Hayter Washer 3/16 X 1/2 X 17G Plated	£1.99	Hayter Washer 3/16 X 1/2 X 17G Plated £1.99 P/N: 09257, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
5	HY5421 Hayter SPRING REAR AXLE TENSION		Hayter SPRING REAR AXLE TENSION P/N: HY5421, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
6	480149 Hayter Cutterbar 19	£36.88	Hayter Cutterbar 19 £36.88 P/N: 480149, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
7	09286 Hayter WASHER 5/8 X 1.1/4 X 16G PLAIN		Hayter WASHER 5/8 X 1.1/4 X 16G PLAIN £1.49 P/N: 09286, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
8	04020 Hayter Spring Grip Fix Ext 5/16"	£1.91	Hayter Spring Grip Fix Ext 5/16" £1.91 P/N: 04020, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
9	HY4452 Hayter Bush 1/2 X 5/8 X 3/4	£4.15	Hayter Bush 1/2 X 5/8 X 3/4 £4.15 P/N: HY4452, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
10	09545 Hayter Screw M6 X 12 C/SK Pozi Tap	£1.97	Hayter Screw M6 X 12 C/SK Pozi Tap £1.97 P/N: 09545, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
11	111-1250 Hayter Wheel 180X45 Ribbed	£39.48	Hayter Wheel 180X45 Ribbed £39.48 P/N: 111-1250, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
12	219143 Hayter Cap Hub	£8.35	Hayter Cap Hub £8.35 P/N: 219143, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
13	09544 Hayter Nut M6 Nyl Ins Gd 8	£1.91	Hayter Nut M6 Nyl Ins Gd 8 £1.91 P/N: 09544, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
14	340182 Hayter Pivot Pin	£1.97	Hayter Pivot Pin £1.97 P/N: 340182, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
15	02575 Hayter Washer 1/2" X 7/8" X 22G	£1.87	Hayter Washer 1/2" X 7/8" X 22G £1.87 P/N: 02575, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
16	397042W Hayter Friction Disc W/A	£67.42	Hayter Friction Disc W/A £67.42 P/N: 397042W, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
17	09266 Hayter Washer 5/16 X 5/8 X 19G Plain	£1.75	Hayter Washer 5/16 X 5/8 X 19G Plain £1.75 P/N: 09266, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
18	09280 Hayter Washer 1/2 X 1 X 18G Plain	£1.91	Hayter Washer 1/2 X 1 X 18G Plain £1.91 P/N: 09280, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
19	09472 Hayter Washer-Plain	£1.78	Hayter Washer-Plain £1.78 P/N: 09472, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
20	5323 Hayter STOP DEFLECTOR		Hayter STOP DEFLECTOR £32.14 P/N: 5323, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
21	02708 Hayter Circlip Ext 3/4"		Hayter Circlip Ext 3/4" P/N: 02708, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
22	03096 Hayter Circlip Ext 1/2"	£1.87	Hayter Circlip Ext 1/2" £1.87 P/N: 03096, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
23	03997 Hayter Roll Pin 3/16 X 3/4 Lg	£1.97	Hayter Roll Pin 3/16 X 3/4 Lg £1.97 P/N: 03997, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
23	03997 Hayter ROLL PIN 3/16 X 3/4 LG		Hayter ROLL PIN 3/16 X 3/4 LG £1.38 P/N: 03997, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
24	09349 Hayter Screw UNC 3/8"X 1.1/4"Taptite	£1.97	Hayter Screw UNC 3/8"X 1.1/4"Taptite £1.97 P/N: 09349, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
25	09116 Hayter Screw Hex HD 3/8" UNF X 1 1/4"	£1.87	Hayter Screw Hex HD 3/8" UNF X 1 1/4" £1.87 P/N: 09116, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
26	HY4486 Hayter Nut UNF 1/2"Nyloc Ext Thin5/16	£1.93	Hayter Nut UNF 1/2"Nyloc Ext Thin5/16 £1.93 P/N: HY4486, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
27	0201086 Hayter Washer Starlock 5/16	£1.97	Hayter Washer Starlock 5/16 £1.97 P/N: 0201086, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
28	330053 Hayter Cover Lever	£6.44	Hayter Cover Lever £6.44 P/N: 330053, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
29	09273 Hayter Washer 3/8 sc Spring	£1.97	Hayter Washer 3/8 sc Spring £1.97 P/N: 09273, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
30	219111 Hayter Pulley W/a		Hayter Pulley W/a £41.58 P/N: 219111, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
31	1246 Hayter Spring Clutch Shoe Return	£3.73	Hayter Spring Clutch Shoe Return £3.73 P/N: 1246, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
32	HY09600 Hayter Screw No8X1.5 Posi Pan		Hayter Screw No8X1.5 Posi Pan P/N: HY09600, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
33	09575 Hayter Screw Taptite M6*20 Washer	£1.97	Hayter Screw Taptite M6*20 Washer £1.97 P/N: 09575, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
33	09575 Hayter SCREW TAPTITE M6*20 WASHER		Hayter SCREW TAPTITE M6*20 WASHER £1.38 P/N: 09575, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
34	340102 Hayter Plate Ratchet 9 Tooth	£37.72	Hayter Plate Ratchet 9 Tooth £37.72 P/N: 340102, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
35	09548 Hayter Bolt Coach M8X35Cupsq Atlas(P)	£1.99	Hayter Bolt Coach M8X35Cupsq Atlas(P) £1.99 P/N: 09548, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
36	09546 Hayter Screw M6 X 12 Hex W/Hd Pozi Tp	£2.00	Hayter Screw M6 X 12 Hex W/Hd Pozi Tp £2.00 P/N: 09546, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
37	09441 Hayter Nut M8 Nyl Insert T Type	£1.97	Hayter Nut M8 Nyl Insert T Type £1.97 P/N: 09441, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
38	09320 Hayter Rivet 3/16 X 5/8	£1.99	Hayter Rivet 3/16 X 5/8 £1.99 P/N: 09320, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
39	09668 Hayter Bolt Coach M6*20 Cup Sq	£1.91	Hayter Bolt Coach M6*20 Cup Sq £1.91 P/N: 09668, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
40	09547 Hayter Bolt M6 X 30 Hex Head		Hayter Bolt M6 X 30 Hex Head £1.99 P/N: 09547, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
41	09687 Hayter Screw 06*20 Pt Pan Flange	£1.97	Hayter Screw 06*20 Pt Pan Flange £1.97 P/N: 09687, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
42	09569 Hayter Bolt Coach M8 X 45 C/Sq Gd 4.6	£1.75	Hayter Bolt Coach M8 X 45 C/Sq Gd 4.6 £1.75 P/N: 09569, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
43	HY216008 Hayter Piece Cutterbar Distance		Hayter Piece Cutterbar Distance P/N: HY216008, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
44	09688 Hayter Washer Nylon 19111.6	£0.83	Hayter Washer Nylon 19111.6 £0.83 P/N: 09688, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
45	219185V Hayter Obsolete July 2006		Hayter Obsolete July 2006 P/N: 219185V, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
46	219011 Hayter Obsolete October 2012		Hayter Obsolete October 2012 P/N: 219011, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
47	219095 Hayter Discontinued		Hayter Discontinued P/N: 219095, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
48	HY219019 Hayter Handlebar Lower		Hayter Handlebar Lower £85.90 P/N: HY219019, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
49	219097 Hayter Clip Cable	£1.99	Hayter Clip Cable £1.99 P/N: 219097, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
50	219181W Hayter Frame Rear Roller W/Assy		Hayter Frame Rear Roller W/Assy £69.16 P/N: 219181W, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
51	219055 Hayter Cover Transmission		Hayter Cover Transmission £27.96 P/N: 219055, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
52	HY219023 Hayter Lever Jockey	£69.19	Hayter Lever Jockey £69.19 P/N: HY219023, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
53	219106 Hayter Sprocket 10T	£14.82	Hayter Sprocket 10T £14.82 P/N: 219106, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
54	219028 Hayter Plate Securing		Hayter Plate Securing £11.66 P/N: 219028, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
55	5321 Hayter Key Woodruff No 305 5/8 X 3/32		Hayter Key Woodruff No 305 5/8 X 3/32 £1.80 P/N: 5321, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
56	219030 Hayter Rod Connecting	£25.38	Hayter Rod Connecting £25.38 P/N: 219030, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
57	219031 Hayter Axle Front Assy	£61.36	Hayter Axle Front Assy £61.36 P/N: 219031, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
58	219036 Hayter Moulding Bearing	£7.06	Hayter Moulding Bearing £7.06 P/N: 219036, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
59	219037 Hayter Plate Securing	£2.02	Hayter Plate Securing £2.02 P/N: 219037, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
60	219156 Hayter Pulley Jockey (Moulded)	£2.05	Hayter Pulley Jockey (Moulded) £2.05 P/N: 219156, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
61	219051 Hayter 17T Sprocket Assy	£25.66	Hayter 17T Sprocket Assy £25.66 P/N: 219051, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
62	HY234051 Hayter Cap For M8 Nut Black	£1.91	Hayter Cap For M8 Nut Black £1.91 P/N: HY234051, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
63	111-9662 Hayter Opc Lever - Engine	£21.71	Hayter Opc Lever - Engine £21.71 P/N: 111-9662, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
64	219053 Hayter Sleeve Sprocket Tube		Hayter Sleeve Sprocket Tube £10.88 P/N: 219053, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
65	306108 Hayter Bracket Cable Clutch		Hayter Bracket Cable Clutch £11.20 P/N: 306108, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
66	219142 Hayter Coupling (2.5")	£37.68	Hayter Coupling (2.5") £37.68 P/N: 219142, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
67	219044 Hayter Obsolete August 2011		Hayter Obsolete August 2011 P/N: 219044, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
68	219060 Hayter Moulding Bearing Housing	£10.36	Hayter Moulding Bearing Housing £10.36 P/N: 219060, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
69	219140 Hayter Pulley Assembly	£64.86	Hayter Pulley Assembly £64.86 P/N: 219140, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
70	219064 Hayter Bracket Belt Guide	£9.50	Hayter Bracket Belt Guide £9.50 P/N: 219064, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
71	219054 Hayter Chain 30 Pitch 1/2" X 1/8"		Hayter Chain 30 Pitch 1/2" X 1/8" £16.62 P/N: 219054, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
72	219067 Hayter Cover PTO	£20.16	Hayter Cover PTO £20.16 P/N: 219067, Genuine OEM spare part. Find other Hayter spares, parts and accessories.

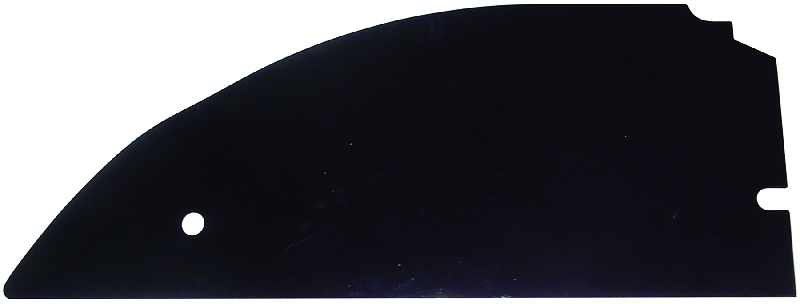

73	219069 Hayter Underguard	£34.40	Hayter Underguard £34.40 P/N: 219069, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
74	219072 Hayter Deflector Rear	£50.04	Hayter Deflector Rear £50.04 P/N: 219072, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
75	219074 Hayter Rod Pivot		Hayter Rod Pivot P/N: 219074, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
76	219096 Hayter Spring Deflector R/H	£3.71	Hayter Spring Deflector R/H £3.71 P/N: 219096, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
77	09437 Hayter Nut M6 Plain	£1.99	Hayter Nut M6 Plain £1.99 P/N: 09437, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
78	09575 Hayter Screw Taptite M6*20 Washer	£1.97	Hayter Screw Taptite M6*20 Washer £1.97 P/N: 09575, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
78	09575 Hayter SCREW TAPTITE M6*20 WASHER		Hayter SCREW TAPTITE M6*20 WASHER £1.38 P/N: 09575, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
79	305093 Hayter Guide Rope	£2.02	Hayter Guide Rope £2.02 P/N: 305093, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
80	111-1921-03 Hayter Lever Clutch	£51.82	Hayter Lever Clutch £51.82 P/N: 111-1921-03, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
81	320006 Hayter Label Height Of Cut	£1.97	Hayter Label Height Of Cut £1.97 P/N: 320006, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
82	09474 Hayter Washer M6 Sc Spring	£1.91	Hayter Washer M6 Sc Spring £1.91 P/N: 09474, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
83	111-0083 Hayter Decal - Safety	£2.80	Hayter Decal - Safety £2.80 P/N: 111-0083, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
84	226013 Hayter Handwheel Triangular	£8.29	Hayter Handwheel Triangular £8.29 P/N: 226013, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
85	219081 Hayter Grassbag Fabric	£51.52	Hayter Grassbag Fabric £51.52 P/N: 219081, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
86	219070 Hayter CLUTCH CABLE		Hayter CLUTCH CABLE P/N: 219070, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
87	219075 Hayter Spring Deflector L/H	£3.71	Hayter Spring Deflector L/H £3.71 P/N: 219075, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
88	219102 Hayter Housing Bearing Roller	£15.44	Hayter Housing Bearing Roller £15.44 P/N: 219102, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
89	219082 Hayter Cover Moulding		Hayter Cover Moulding P/N: 219082, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
91	HY3966 Hayter Strap Cable	£1.91	Hayter Strap Cable £1.91 P/N: HY3966, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
92	331046 Hayter Decal Engine Stop		Hayter Decal Engine Stop £1.07 P/N: 331046, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
93	219083 Hayter Handle Grassbag		Hayter Handle Grassbag P/N: 219083, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
94	219077 Hayter Frame Grassbag	£34.31	Hayter Frame Grassbag £34.31 P/N: 219077, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
95	219080 Hayter HANGER TUBE		Hayter HANGER TUBE £24.18 P/N: 219080, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
96	410087 Hayter Logo (03)	£6.73	Hayter Logo (03) £6.73 P/N: 410087, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
97	340082 Hayter BRUSH SEAL		Hayter BRUSH SEAL £1.76 P/N: 340082, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
98	219182 Hayter FRONT FIN INSERT		Hayter FRONT FIN INSERT £31.75 P/N: 219182, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
99	111-8160 Hayter Charger-Battery	£30.47	Hayter Charger-Battery £30.47 P/N: 111-8160, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
100	219165W Hayter HANDLEBAR UPPER		Hayter HANDLEBAR UPPER £106.90 P/N: 219165W, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
101	340154 Hayter Bush	£6.90	Hayter Bush £6.90 P/N: 340154, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
102	340013 Hayter Spring Handle		Hayter Spring Handle £15.74 P/N: 340013, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
103	MU42189 Hayter Stop Rope (HB)		Hayter Stop Rope (HB) P/N: MU42189, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
104	HY4017 Hayter Washer Nylon	£4.33	Hayter Washer Nylon £4.33 P/N: HY4017, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
105a	220042 Hayter Throttle Switch& Cable		Hayter Throttle Switch& Cable £83.80 P/N: 220042, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
105b	219208 Hayter Throttle Control		Hayter Throttle Control P/N: 219208, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
106	HY219209 Hayter Engine Compliance Apto		Hayter Engine Compliance Apto £197.09 P/N: HY219209, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
107a	220041 Hayter Obsolete November 2008		Hayter Obsolete November 2008 P/N: 220041, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
107b	480142 Hayter Obsolete May 2011		Hayter Obsolete May 2011 P/N: 480142, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
108	HY220015 Hayter Battery Replacement Kit	£97.49	Hayter Battery Replacement Kit £97.49 P/N: HY220015, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
109	220014 Hayter BATTERY CLIP		Hayter BATTERY CLIP £14.70 P/N: 220014, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
110	09318 Hayter RIVET 3/16 X 3/8		Hayter RIVET 3/16 X 3/8 £1.30 P/N: 09318, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
111	HY220013 Hayter Battery Bracket		Hayter Battery Bracket P/N: HY220013, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
112	HY6426 Hayter Key - Elec Start (One Pair)	£7.99	Hayter Key - Elec Start (One Pair) £7.99 P/N: HY6426, Genuine OEM spare part. Find other Hayter spares, parts and accessories.
113	219076 Hayter Grassbag Assy		Hayter Grassbag Assy £202.25 P/N: 219076, Genuine OEM spare part. Find other Hayter spares, parts and accessories. No longer available
