Selecting the correct sharpening tools is essential for maintaining the performance and safety of your Stihl chainsaw.

This guide helps you instantly identify the correct Standard File Kit or 2-in-1 EasyFile based on the gauge code stamped directly onto your chain's depth gauge. By matching your chain's physical markings to the specifications below, you can ensure a professional-grade edge every time you sharpen.

Choosing the correct File Kit...

STIHL saw chains have a code number on the depth gauge of each cutting tooth. Use this number to identify the correct file size in the chain file size chart below.

Gauge Code Chain Pitch File Size
1 1/4" 4.0mm
2 .325" 4.8mm
3 3/8" 5.2mm
4 .404" 5.5mm
6 3/8" Picco 4.0mm
7 1/4" Picco 3.2mm

FILE KIT

2-IN-1 EASYFILE

Gauge Code Standard File Kit 2-In-1 EasyFile
1 5605 007 1027 5605 750 4303
(4.0mm)
2 5605 007 1028 5605 750 4304
(4.8mm)
3 5605 007 1029 5605 750 4305
(5.2mm)
4 5605 007 1030 0000 750 4300
(5.5mm)
6 5605 007 1027 5605 750 4303
(4.0mm)
7 5605 007 1000 5605 750 4306
(3.2mm)

2-in-1 EasyFile 'How to Use' Video

Frequently Asked Questions (FAQ)

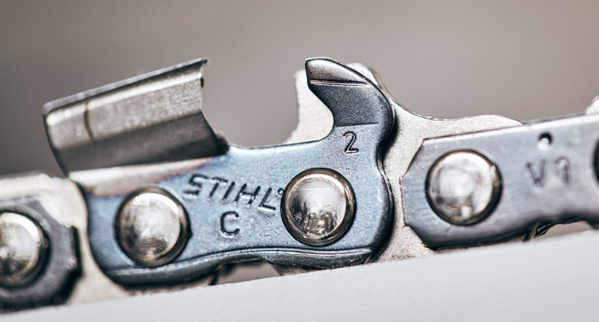

How do I find the "Gauge Code" on my Stihl chain? Look at the side of the depth gauge (the shark-fin shaped tooth in front of the cutter). There is a small number stamped into the metal (e.g., 1, 2, or 3). This number corresponds to the chain pitch and the required file size.

What is the difference between a Standard File Kit and a 2-in-1 EasyFile?

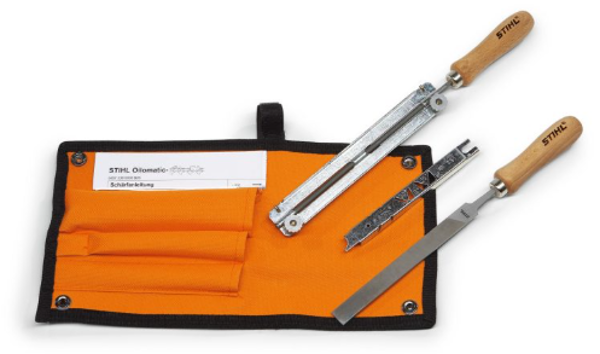

  • Standard File Kit: Includes a round file with a guide for sharpening the cutter and a flat file with a depth gauge tool for lowering the gauge.

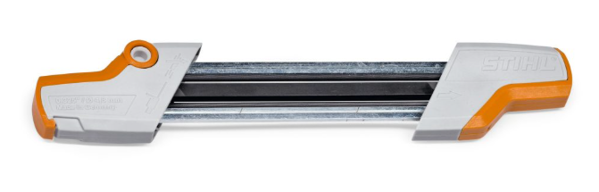

  • 2-in-1 EasyFile: A specialized tool that sharpens the saw tooth and lowers the depth gauge simultaneously in a single stroke, saving time and ensuring accuracy.

Example: What size file do I need for a 3/8" Picco chain? For a 3/8" Picco chain (Gauge Code 6), you should use a 4.0mm round file.

Need more help? Use the Contact Us button at the bottom of the page to tell us your saw model, bar cutting length and a photo of the chain, off the bar and in focus please!
