Stiga Spools and Trimmer Heads
Stiga Trimmer Spools & Heads Compatibility Guide | Genuine Parts Search
Search your part number or model
| Part Number | Description & Specification | Fits Models |
|---|---|---|
| 1911-9292-01 | Spool with line | GT 100e Kit, SGT 100 AE Kit |
| 1911-9125-01 | 1 Spool with line | SGT 350 |
| 1911-9126-01 | 2 Spool with line | SGT 600 |
| 1911-9251-01 | 3 Spool with line (2 pack) | SGT 500 AE |
| 118801750/0 |
4 Trimmer Head Spec: M8-male x 1.25 RH-thread |
SGT 1000J |
| 118801751/0 |
5 Trimmer Head Spec: M10-female x 1.25 LH-thread |
SB 1000J |
| 1911-9197-02 |
6 Trimmer Head Spec: M8-female x 1.25 RH-thread |
SGT 226 J |
| 1911-9220-01 |
7 Trimmer Head Spec: M10-female x 1.25 LH-thread |
SBC 80 AE, SBC 80D AE (>2017) |
| 1911-9251-01 |
8 Spool with line (2 pack) Spec: Pressed on motor shaft |
SGT 48 AE |
| 1911-9298-01 |
9 Trimmer Head Spec: M10 LH-thread & M8 RH thread x 1.25 female |
SBC 48 AE (2017-) SBC 80 AE/ D AE (2016/2017) |
| 1911-9292-01 |
10 Spool with line (2 pack) Spec: Pressed on motor shaft |
SGT 24 AE |
| 1911-9142-01 |
11 Trimmer Head Spec: M8-female RH-thread |
SBC 425 H, 435 H, 627 K, 635 K, 643 K, 645 K, 653 K (mono-duplex-flex) |
| 1911-9296-01 |
11 Trimmer Head Spec: M10 x 1.25 LH-thread |
SBC 226 J, SBC 226 JD, SMT 226, SBC 232, SBC 232 D, SBC 242, SBC 242 D, SBC 252, SBC 252D, SBC 252 F |
Bump&Work Heads:
Convenient and sturdy, High flexibility spring for better line consmption control, Extremely balanced at any RPM range, Anti line-entangling design
| Part Number | Description & Specification | Fits Models |
|---|---|---|
| 1911-9298-01 |

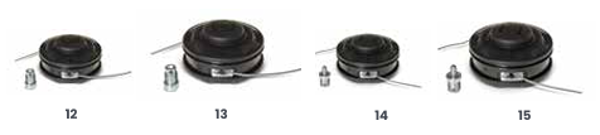

12 Trimmer Head (dia 109mm) Spec: 1.25 RH female with M8 & M10 adaptors |
GT 730 A, MT 330 |
| 1911-9227-01 |
13 Trimmer Head (dia 130mm) Spec: M10 x 1.25 LH female |
SBC 627, 635, 643, 645, 653 (mono-duplex-flex), 636, 636 D, 646 DX, 656 DX |
| 1911-9230-01 |
14 Trimmer Head (dia 109mm) Spec: M8 x 1.25 LH male |
— |
| 1911-9231-01 |
15 Trimmer Head (dia 130mm) Spec: M8 x 1.25 LH male |
— |
Bump&Work - Easy Load Heads:
Easy to refill and realible, double line head. The line can be loaded in 30 seconds, without disassembling any part of the trimmer head. Sturdy construction, confirmed by the heaviest and severe field tests.
| Part Number | Description | Specification | Fits Models |
|---|---|---|---|
| 1911-9228-01 |

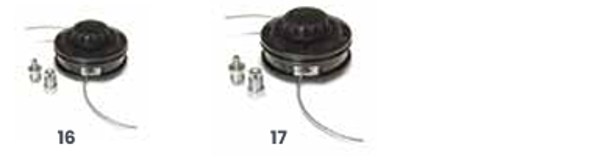

16 Trimmer Head dia 109mm (25-33cc) |
Adaptor M10 x 1.25 LH female | SB 28, SB 28J, SB 28JD, SB33, SB 33D, SBK 27, SBK 27D, SBK 35, SBK 35D, SBC 627K, SB 627KD, SBC 635K, SBC 635KD, SB 425H, SB 425HD, SBC 425H, SBC 425HD, SBC 435H, SBC 435HD |
| Adaptor M8 x 1.25 LH male | SB 29, SB 29S, SB 29D, SB 29DS, SB 35, SB 35S, SB 35D, SB 35DS, SB 435H, SB 435HD | ||
| 1911-9229-01 |
17 Trimmer Head dia 130mm (>33cc) |
Adaptor M10 x 1.25 LH female | SBC 900 D AE, SB 44, SB 44D, SBK 45, SBK 45D, SBK 45F, SBK 53, SBK 53D, SBK 53F, SBC 645KF |
| Adaptor M8 x 1.25 LH male | SB 43, SB 43S, SB 43D, SB 43DS, SB 43FS, SB 51S, SB 51DS, SB 51FS | ||
| 1911-9299-01 | Trimmer Head (dia 102mm) | M8 x 1.25 RH female | Series 500, 700 |
| 1911-9300-01 | Trimmer Head (dia 102mm) | M10 x 1.25 RH female | Series 900 |
Grease
High melting point, gear lubricant grease, for all angle transmissions and flexible shafts.

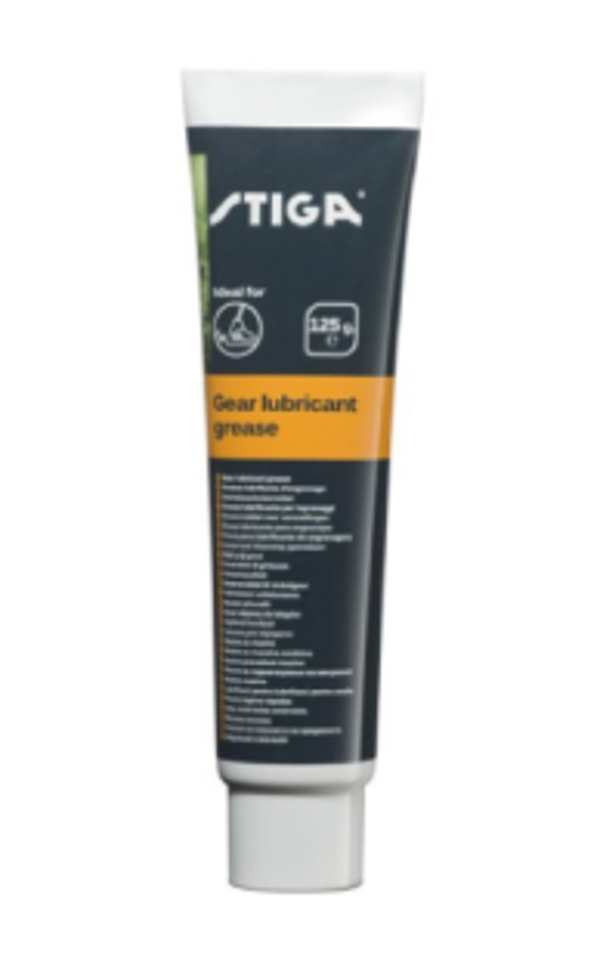

1111-9298-01 Gear lubricant grease 125g
Click on this link to go to the Trimmer Heads, Spools and Eyelets pages...
Click on this link to go to the Trimmer Line pages...
If you can't find what you are looking for, we can still help you, just send us the Year, Model and ArtN. from the id sticker using the Contact Us button at the bottom of the page.
You can attach photos to the message, just make sure they are in focus before sending them please!
How to Find Your Stiga Model
We can help you find the correct replacement head for your Stiga trimmer/brushcutter once we have the machine identification data. Every Stiga machine features a silver or white identification sticker, usually located in a protected area to prevent wear.
Where to Look:
- Trimmers/Bruschcutter: Check the shaft and the engine.motor housing.
What Information You Need:
On the sticker, you will see a Model Name (e.g., SP46) and an ArtN. (often an 11-digit number, e.g 2L0482048/M21)). The Model Year is also important, as manufacturers occasionally change specifications between seasons.
FAQ's Why Use Genuine STIGA OEM Parts?
Using genuine OEM Stiga trimmer heads on Stiga machines is recommended because they are engineered, tested, and approved specifically for those machines. Here are the key reasons supported by the sources:
⭐ 1. Perfect Fit & Compatibility
OEM Stiga parts are designed together with the machines, ensuring precise compatibility and trouble‑free installation. This prevents issues like vibration, poor cutting performance, or fitment problems that can occur with generic heads.
⭐ 2. High Performance & Efficiency
Stiga’s original trimmer heads are developed to deliver high performance and maintain the machine’s intended cutting efficiency. They are optimized for correct line feeding, balanced rotation, and consistent trimming results.
⭐ 3. Safety Assurance
Only genuine Stiga parts are tested and approved by the manufacturer to meet safety standards—especially important for rotating, high‑speed components like trimmer heads. Using non‑original parts may compromise operator safety.
⭐ 4. Durability & Reliability
OEM parts use high‑quality materials and undergo strict quality checks. This leads to longer lifespan, reduced wear, and better performance under demanding garden or professional use.
⭐ 5. Protection of Your Machine
Because OEM components match exact Stiga specifications, they help prevent damage caused by poorly fitting or lower‑quality aftermarket parts, reducing long‑term repair costs.
⭐ 6. Warranty Compliance
Manufacturers often require or recommend OEM parts to maintain warranty validity. Using non‑OEM components may risk voiding warranty coverage.
⭐ 7. Consistent, Tested Performance
Stiga spare parts undergo strict tests and careful checks throughout production, ensuring consistent performance and peace of mind.
