Husqvarna Tractor Spare Parts Guide for Belts and Blades
Use Genuine OEM Husqvarna belts and blades because they guarantee:
- Correct fit
- Best performance
- Longer lifespan
- Greater safety
- Warranty protection
- Superior cut quality
Aftermarket alternatives may be cheaper upfront but often cost more in repairs and replacements in the long run.
Side Discharge TS Models
| TS Model / PNC | Blades | Deck Belt | Drive Belt |
|---|---|---|---|
| TS 112 / 9706224-01 | 5376744-10 | 5311479-06 | 5311479-05 |
| TS 114 / 9706225-01 | 5376744-10 | 5311479-06 | 5311479-05 |
| TS 142T / 9604104-32 | 5321389-71 | 5985591-01 | 5928552-10 |
| TS 142T / 9604104-57 | 5321389-71 | 5985591-01 | 5928552-10 |
| TS 142L / 9604104-53 | 5321389-71 | 5984091-01 | 5928552-10 |
| TS 138L / 9604104-31 | 5811163-02 | 5324083-81 | 5928552-10 |
| TS 215T / 9707280-01 | 5376744-10 | 5474031-10 | 5474031-08 |
| TS 217T / 9707281-01 | 5311482-99 (contact us) | 5474031-09 | 5474031-08 |
| TS 220T / 9707283-01 | 5311482-99 (contact us) | 5474031-09 | 5474031-08 |
Rear Collect TC Models
| TC Model / PNC | Blades | Deck Belt | Drive Belt |
|---|---|---|---|
| TC 112 / 9706222-01 | LH: 5376740-10 RH: 5376741-10 |
5311479-04 | 5311481-86 |
| TC 114 / 9706223-01 | 5311479-04 | 5311481-86 | |
| TC 238T / 9605101-90 | LH: 5324279-84 RH: 5324279-85 |
5993653-01 | 5910653-01 |
| TC 238T / 9605102-01 | LH: 5324279-84 RH: 5324279-85 |
5993653-01 | 5910653-01 |
| TC 238TX / 9605101-92 | LH: 5324279-84 RH: 5324279-85 |
5992492-01 | 5910653-01 |
| TC 242T / 9605101-91 | LH: 5940247-02 RH: 5940248-02 |
5940249-01 | 5910653-01 |
| TC 242T / 9605102-02 | LH: 5940247-02 RH: 5940248-02 |
5940249-01 | 5910653-01 |
| TC 220T / 9707278-01 | LH: 5311483-01 RH: 5311483-04 |
LH: 5474031-87 RH: 5474031-88 |
5474031-08 |
How to find your part number:
To ensure you order the correct blades or belts, you will need your PNC (Product Number Code). This is a 9-digit number usually starting with a 9, followed by two digits for the version (e.g., 9604104-32).
- Step 1: Look for the silver or white ID sticker on the mower chassis.
- Step 2: Check under the seat or on the rear fender (near the back wheels).
- Step 3: Match the PNC number on your sticker to the "TS Model / PNC" column in our tables above.
Tip: Don't use the numbers on the engine—those only help with engine spares, not the mower deck or drive parts!

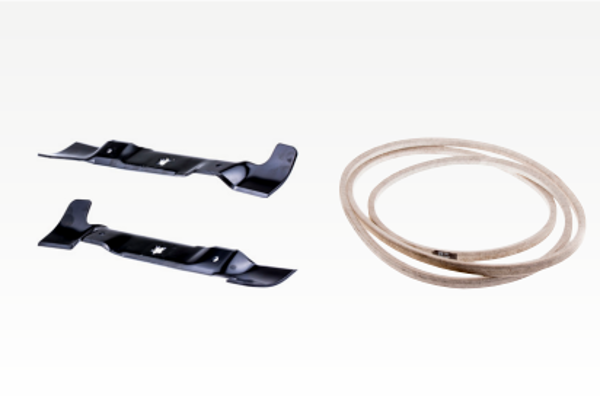

⭐ Why Use Genuine OEM Husqvarna Belts and Blades?
1. Perfect Fit & Compatibility
OEM parts are engineered specifically for Husqvarna tractors, ensuring:
- Exact length, width, and profile for belts
- Correct lift, angle, and balance for blades
- Seamless fit without modification
This prevents issues like belt slipping, premature wear, vibration, or poor cutting performance.
2. Designed for Optimal Performance
Husqvarna builds belts and blades to match the tractor’s power, deck design, and speed. OEM parts deliver:
- Maximum cutting efficiency
- Proper deck airflow and grass lift
- Smooth power transfer from engine to deck
Aftermarket parts often copy the shape—but not the precise engineering tolerances.
3. Longer Lifespan & Better Durability
OEM belts use Husqvarna-approved materials such as:
- Kevlar‑reinforced cords for added strength
- Heat‑resistant rubber compounds
- High‑grade steel in blades for sharper, longer-lasting edges
This means fewer replacements and lower long-term cost.
4. Safety You Can Trust
Blades spin at thousands of RPM—precision and balance are critical. OEM Husqvarna blades are:
- Factory-balanced
- Tested for break resistance
- Designed to minimize vibration
Aftermarket blades can be heavier, lighter, or unbalanced, risking spindle damage—or worse, blade failure.
5. Protects Your Warranty
Using non‑OEM parts may:
- Void parts of your warranty
- Shift liability if damage occurs
OEM ensures you stay compliant with Husqvarna’s maintenance requirements.
6. Better Mowing Results
With OEM parts you get:
- Cleaner, more even cuts
- Less scalping or streaking
- Improved bagging and mulching performance
The tractor performs exactly as Husqvarna intended.
7. Trusted Quality & Peace of Mind
OEM parts come from the same manufacturer that built your tractor.
You know exactly what you're getting—no guesswork.
Click on this link to go to the Husqvarna Tractors drawing pages...
