Echo Trimmer Heads Quick Reference Guide


Maximise your trimming and brushcutting performance with ECHO’s complete line of easy to use and reliable trimmer heads.

From TAP & GO nylon cutting heads to high performance steel brush blades, ECHO offers the right accessory for your task.

Just like Echo trimmers, all Echo trimmer and brush cutter accessories use commercial-quality components that are built to withstand daily, professional use.

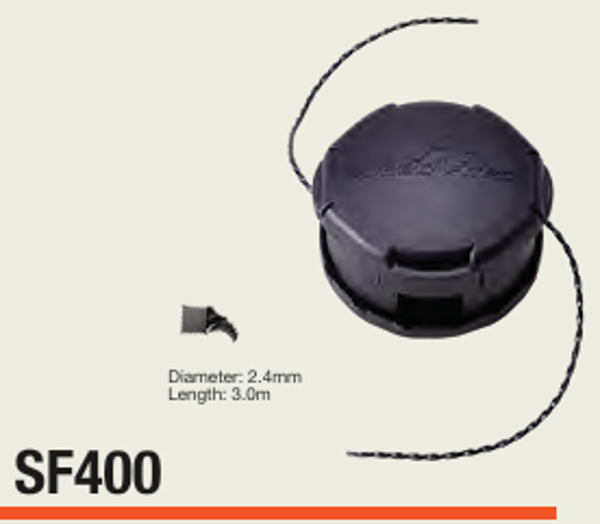

SPEED FEED TRIMMER HEAD

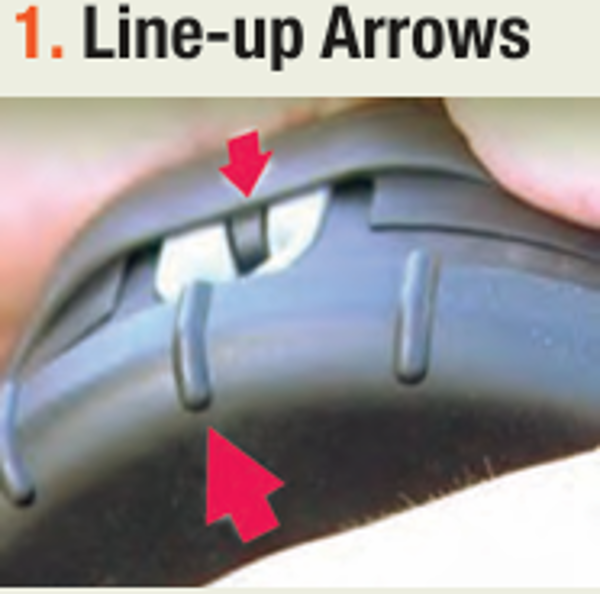

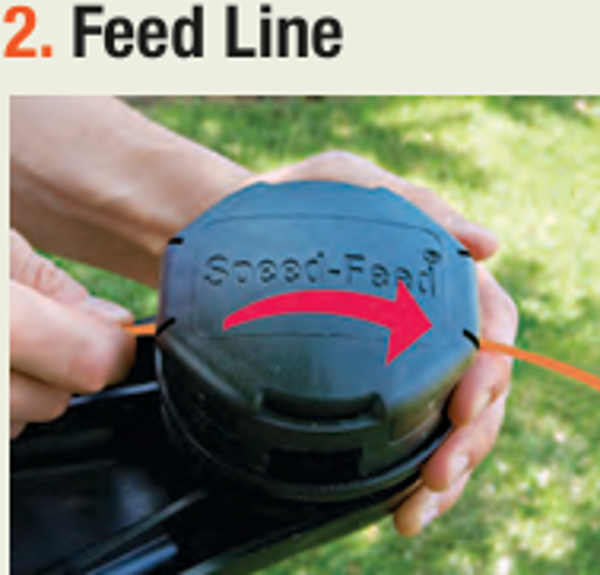

ECHO’s patented revolutionary Speed-Feed® trimmer head takes the hassle out of refilling your trimmer head and is the easiest loading tap-to advance head available. In fact the Speed-Feed reloads in under 30 seconds with just three easy steps, all without taking the head apart. SF400 is perfectly balanced for vibration-free operation and comes pre-loaded with 2.4mm Black diamondTM line

SF400 C6000109 SF400

Fits Models:

SRM-22GES (BASIC), SRM-222ESU/L, SRM-236, SRM-236ES, SRM-236TES, SRM-237U/L, SRM-237TESU/L, SRM-2621ESU/L, SRM-2621TESU/L, SRM-2620ES, SRM-2620TE, SRM-265, SRM-265TES, SRM-267U/L, SRM-3020TES, SRM-3021TESU/L, SRM-335TES

RM-3020TDSRM-2600U/L, DPAS-TRIMMER, ECDST-58V, MTA-TB, MTA-DTB


TAP & GO NYLON CUTTING HEADS

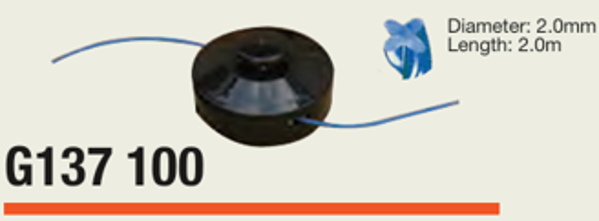

G137 100 X047000551

Fits Model: Echo Curved Shaft Grass Trimmers

GT-22GESL, GT-220ES, GT-222ESL, GT-2400

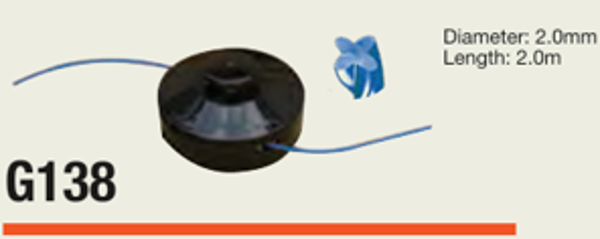

G138 500 X047000560 (w/o spacer)

Fits Model:

SRM-222ES and T226S

G138 507 X047001060 (2.0mm)

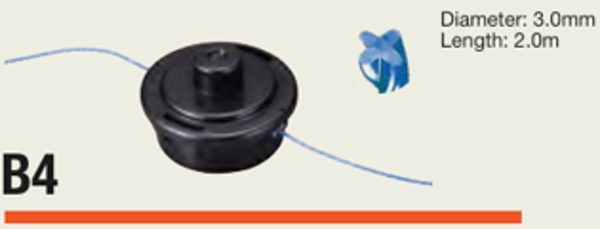

B4-R (RH) X047000381

Fits Model:

GT-22GES and GT-222ES

B4-L (LH) X047000370

Fits Model:

SRM-22GES (Basic) and SRM-22GES (RUS)

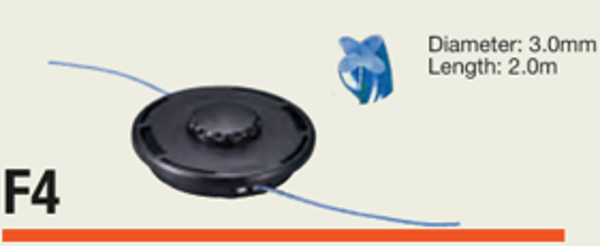

F4 X047000260

Fits Model:

SRM-2305SI, SRM-250/250SI, SRM-265ES/L, SRM-267U/L, SRM-301TESU, SRM-300TES, ECCS-58V

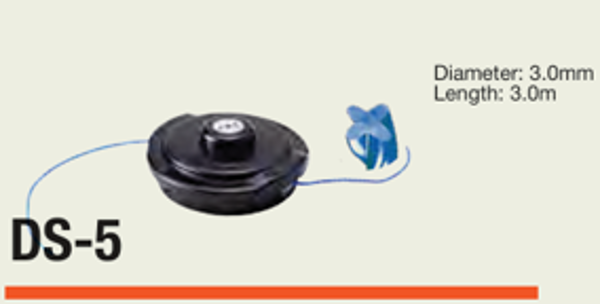

DS-5 X047000221

Fits Model:

SRM-420ES, SRM-420ES-LW, SRM420TES, SRM-510ES(TUR), SRM-520ES, RM-520ES

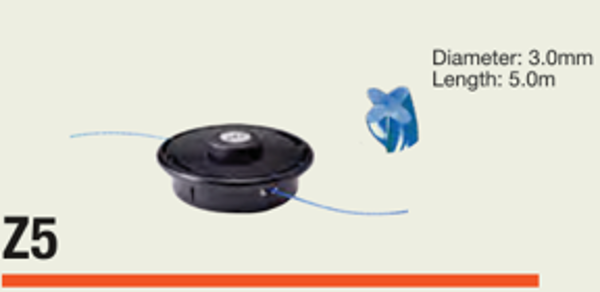

Z5 X047000332

Fits Model:

SRM-301TESU/L, SRM-3611TU/L, SRM-420ESU/L, SRM-420TESU/L, SRM-4605U (BASIC), RM-520ESL

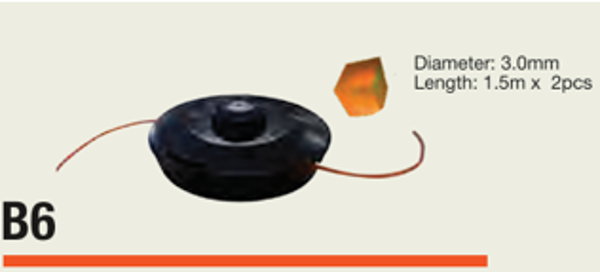

B6 M10 X047001121

Fits Model:

SRM-420TESU/L, SRM-4605 (BASIC)

B6 M12 X047000460

Fits Model:

BCLS-520ES, BCLS-580


RAPID-LOADER HEADS

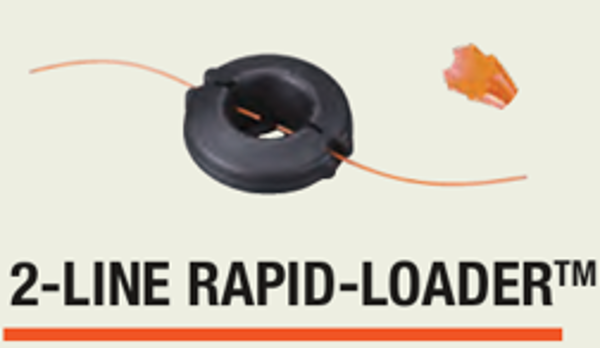

2-line C9500089

Fits Model:

SRM-222ES, SRM-2305SI, SRM-236, SRM-236ES, SRM-236TES, SRM-2620ES, SRM-2620TES, SRM-265TES(RUS), SRM-2655SI, SRM-300TES, SRM-330ES(RUS), SRM-335TESSRM-350ES(RUS), SRM-3610T, SRM-420ES, SRM-420TES, SRM-4605(BASIC), SRM-4605(RUS), SRM-510ES(TUR), SRM-520ES, BCLS-580, RM-315/RM-315SI, RM-510ES, RM-520ES, RM-4300(K, KS)

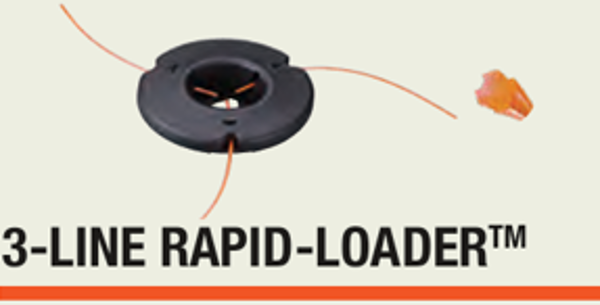

3-line C9500092

Fits Model:

SRM-2621TES, SRM-330ES,SRM-350ES(RUS),SRM-3610T,SRM-3611T, SRM-420ES,SRM-420TES,SRM-4605(BASIC),SRM-4605(RUS),SRM-510ES(TUR),SRM-520ES,BCLS-580,RM-315SI,RM-510ES,RM-520ES,RM-4300 (K,KS)
