Automower Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Automower.

All parts that fit a Automower

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

106309866

106309863

Top

106309866

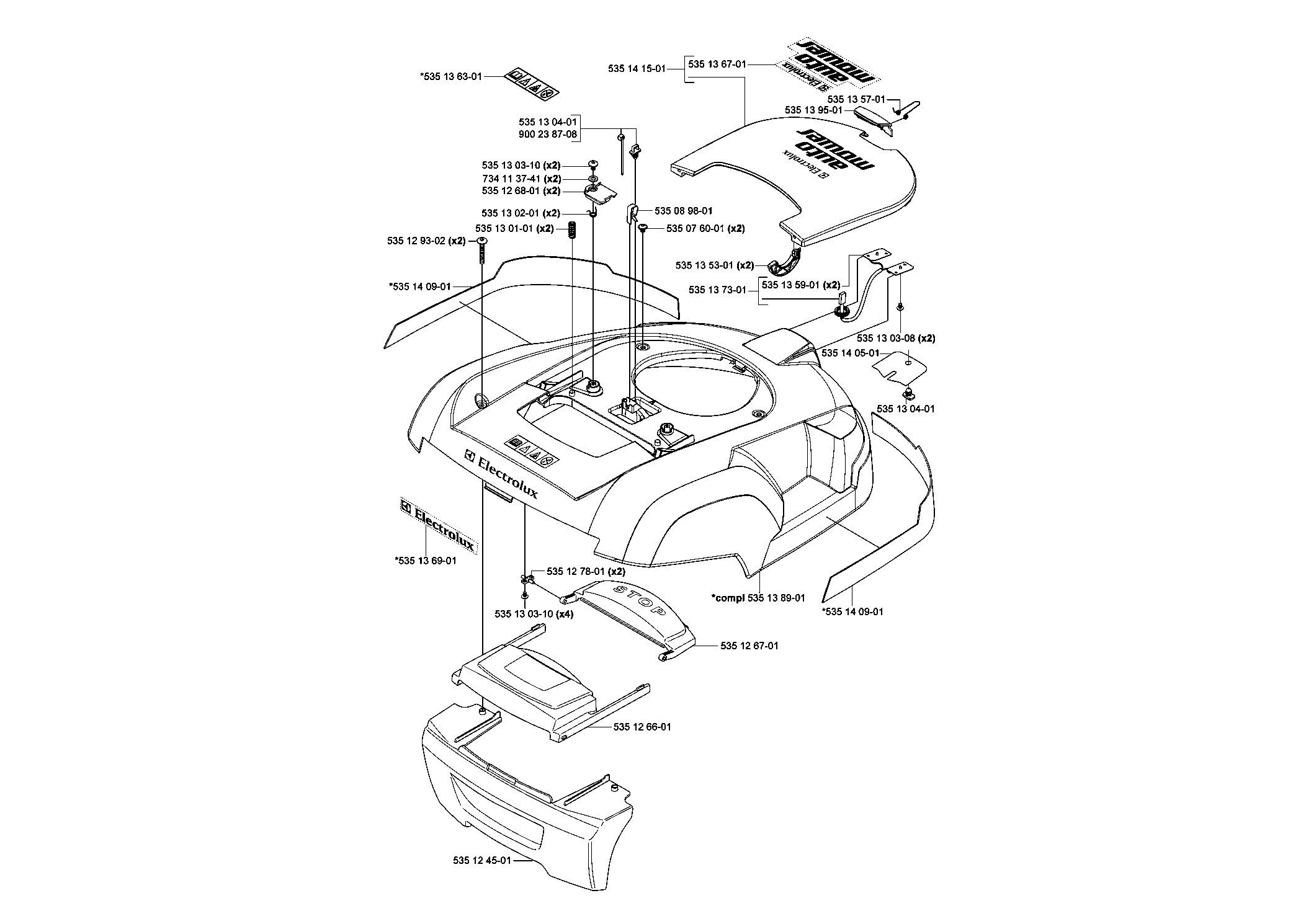

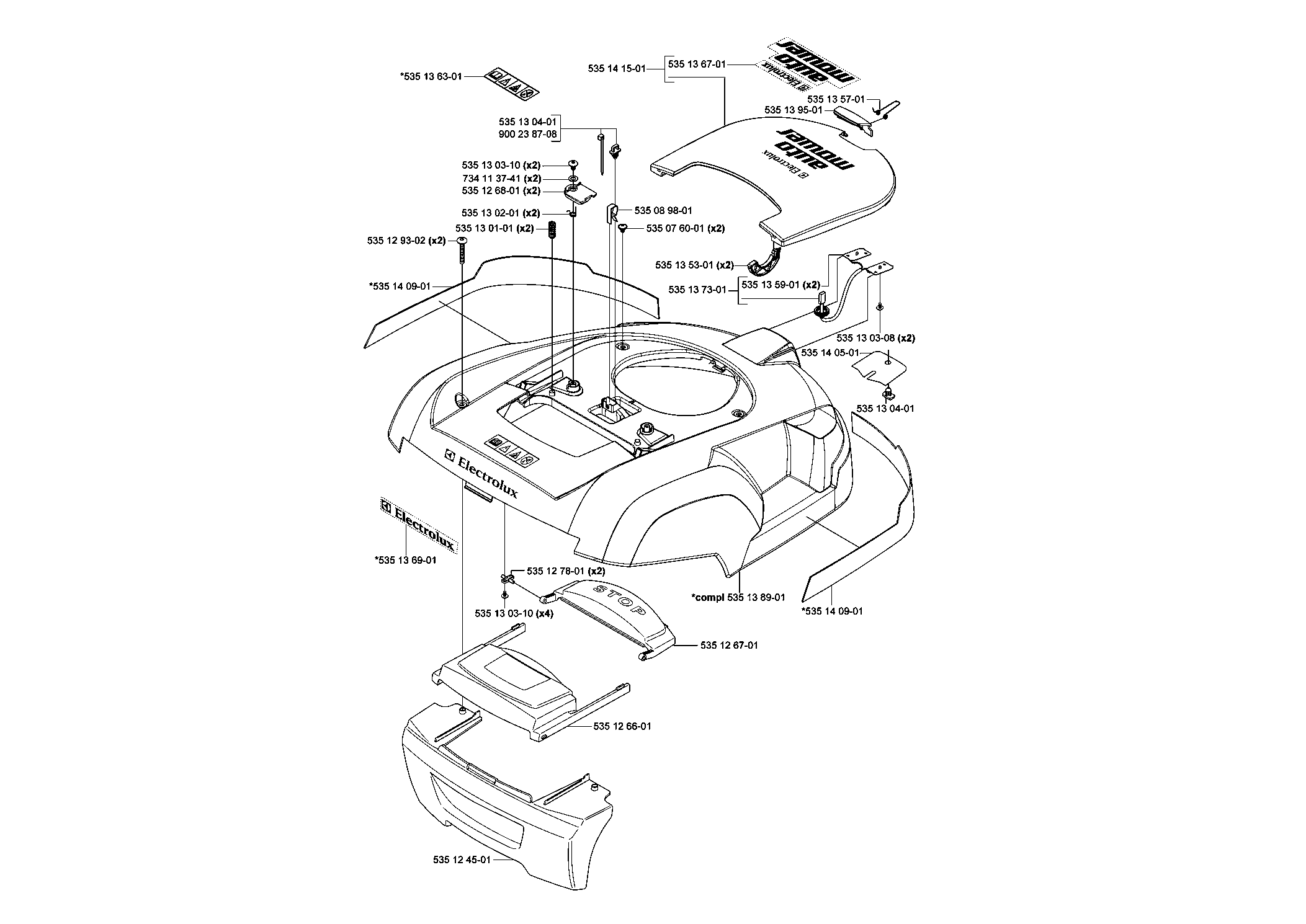

Page:1

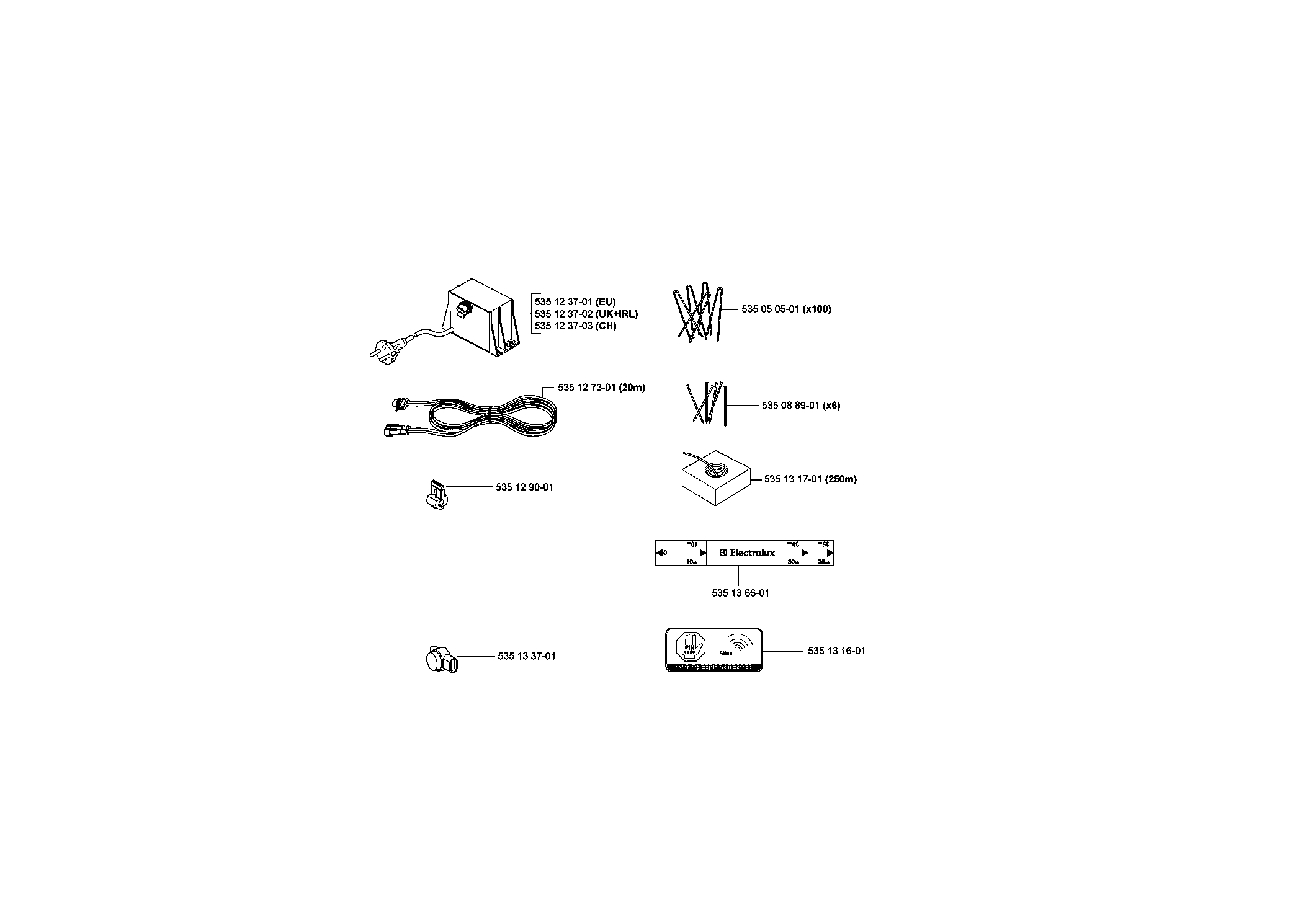

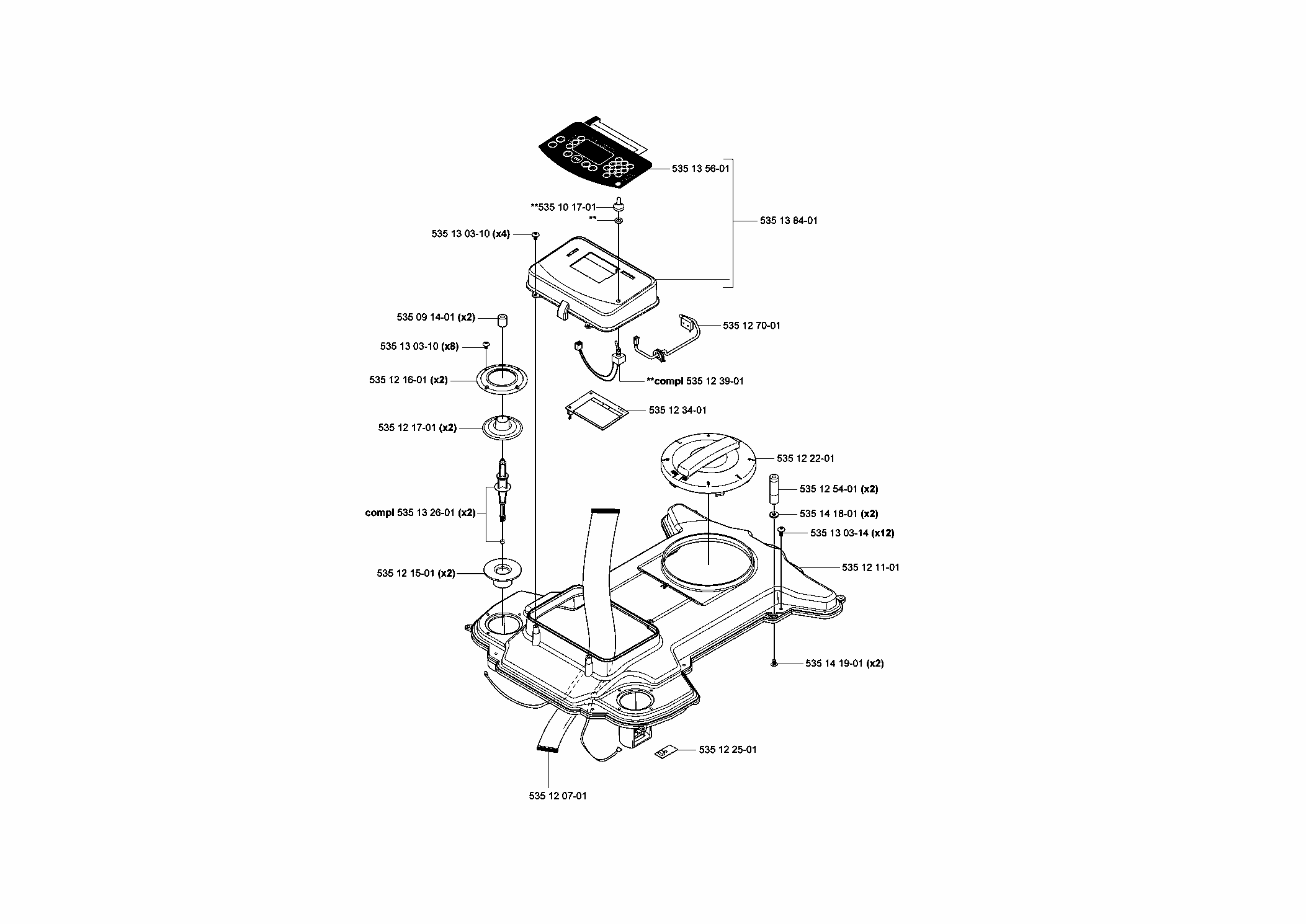

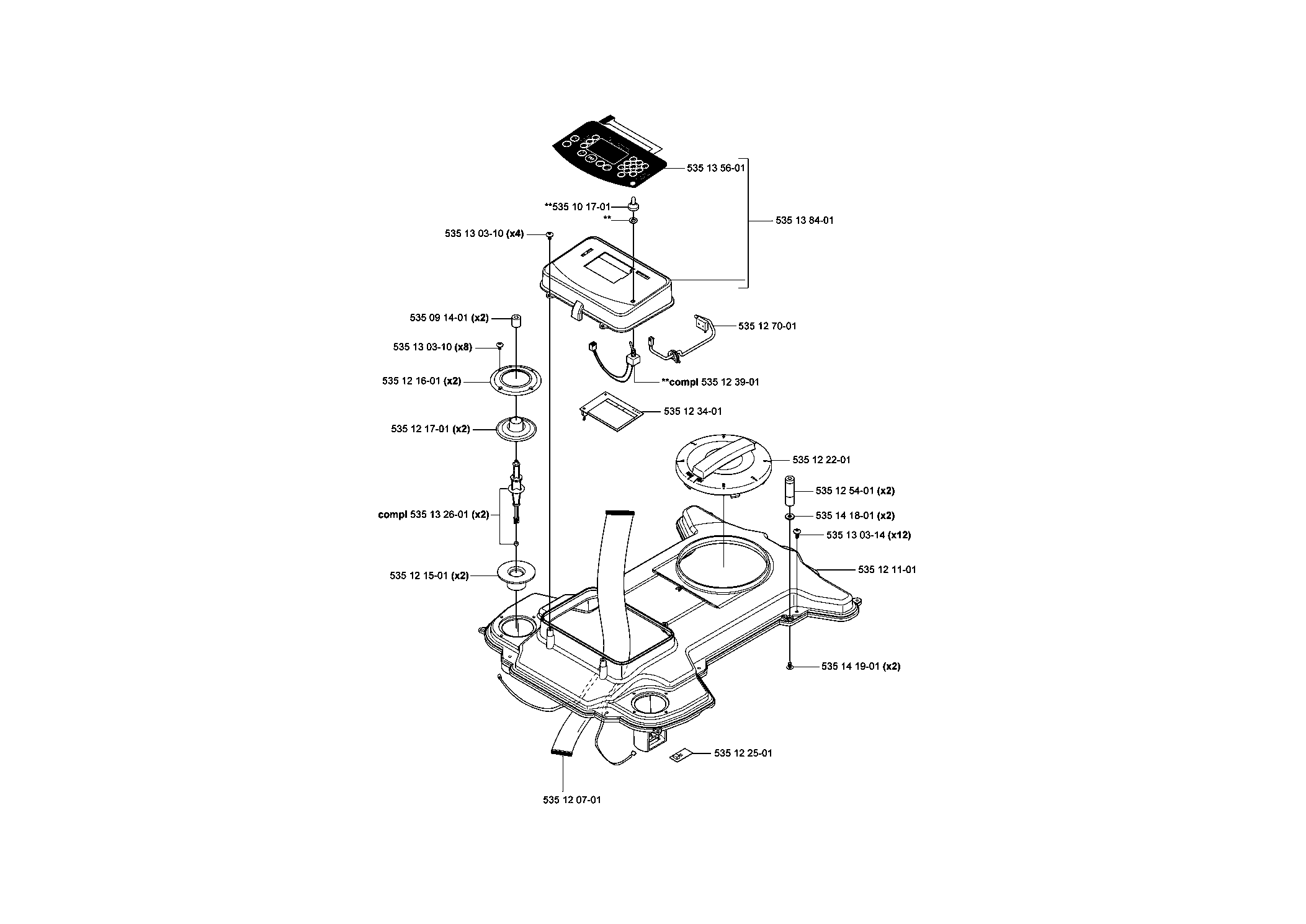

Page:2

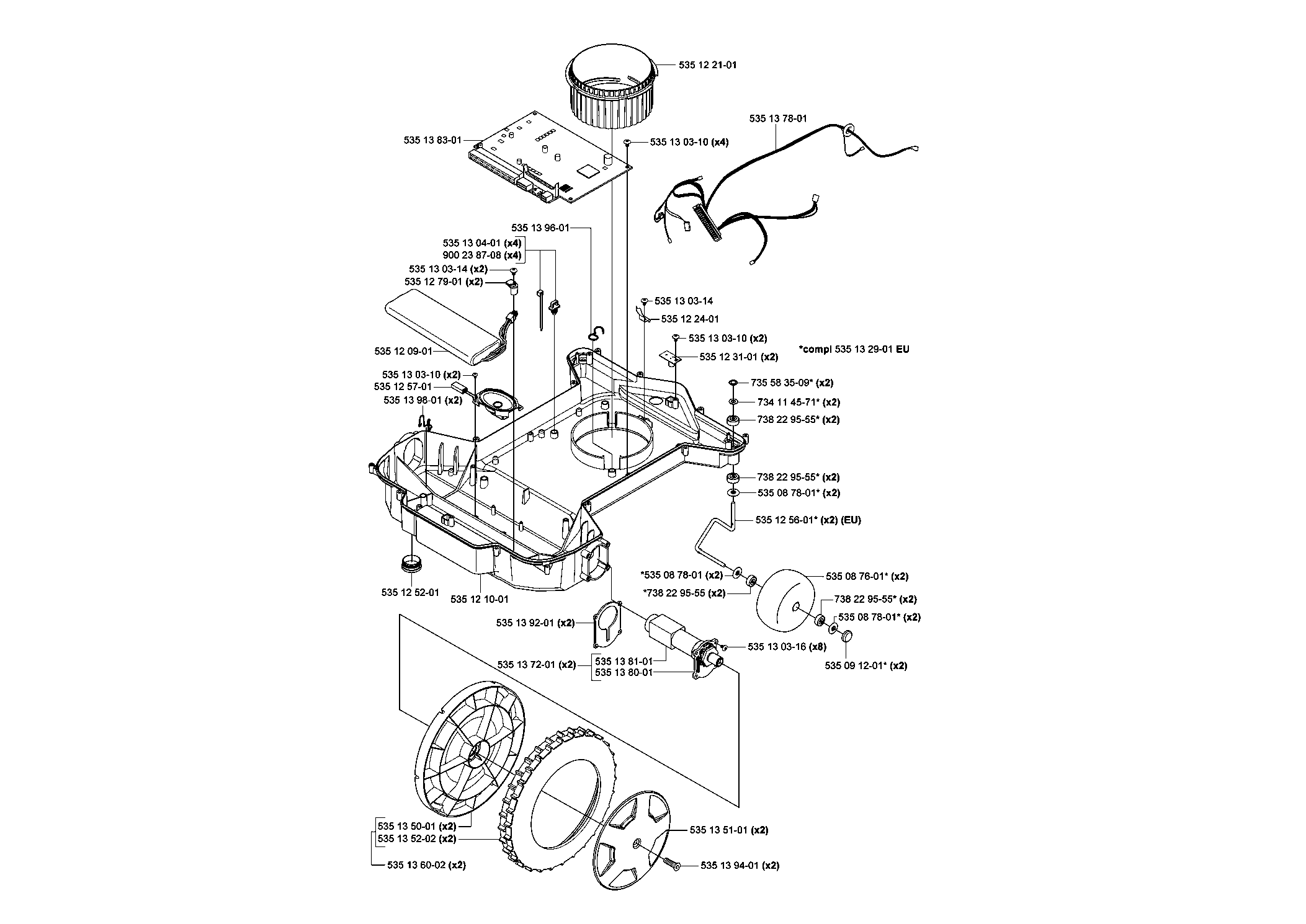

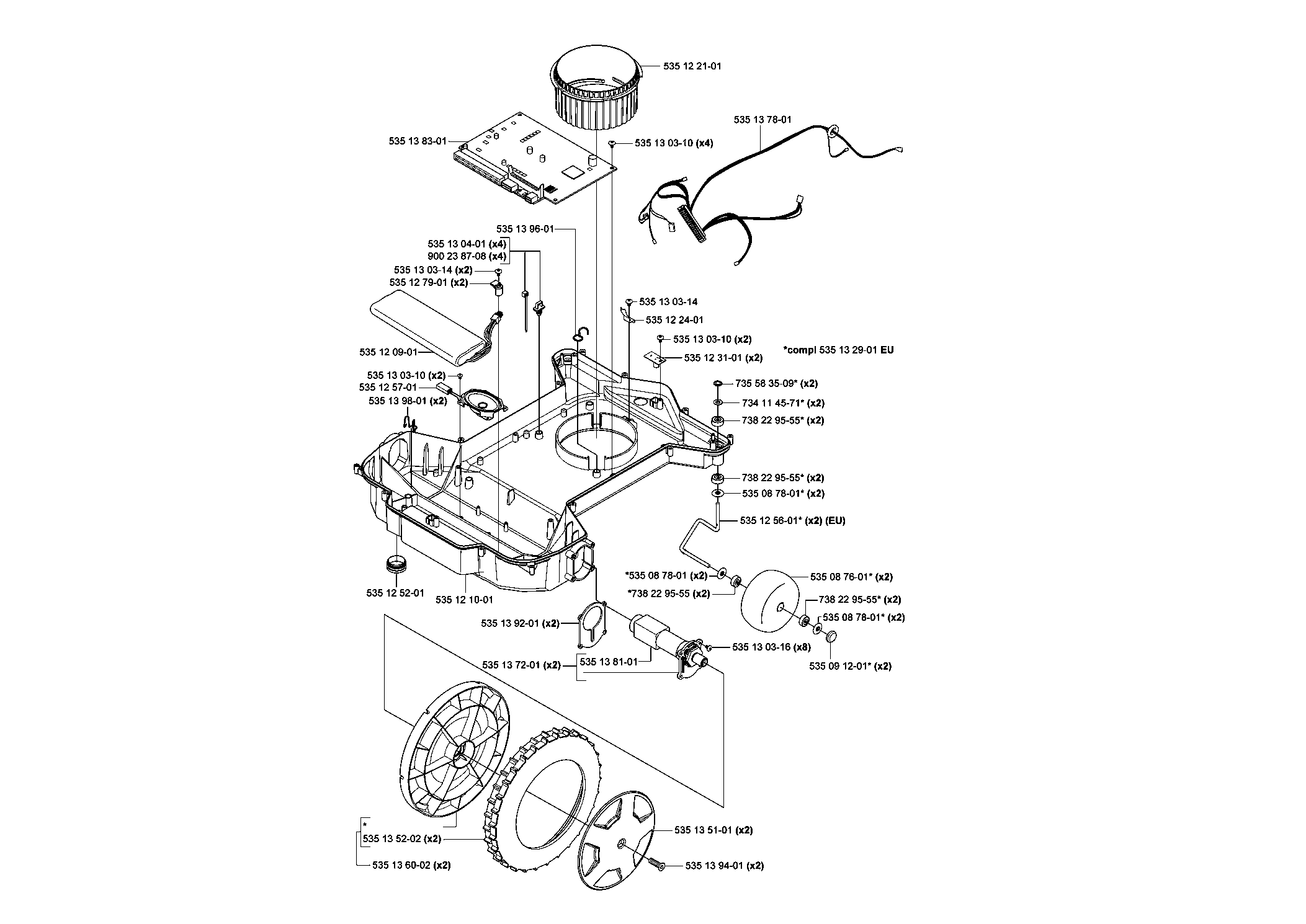

Page:3

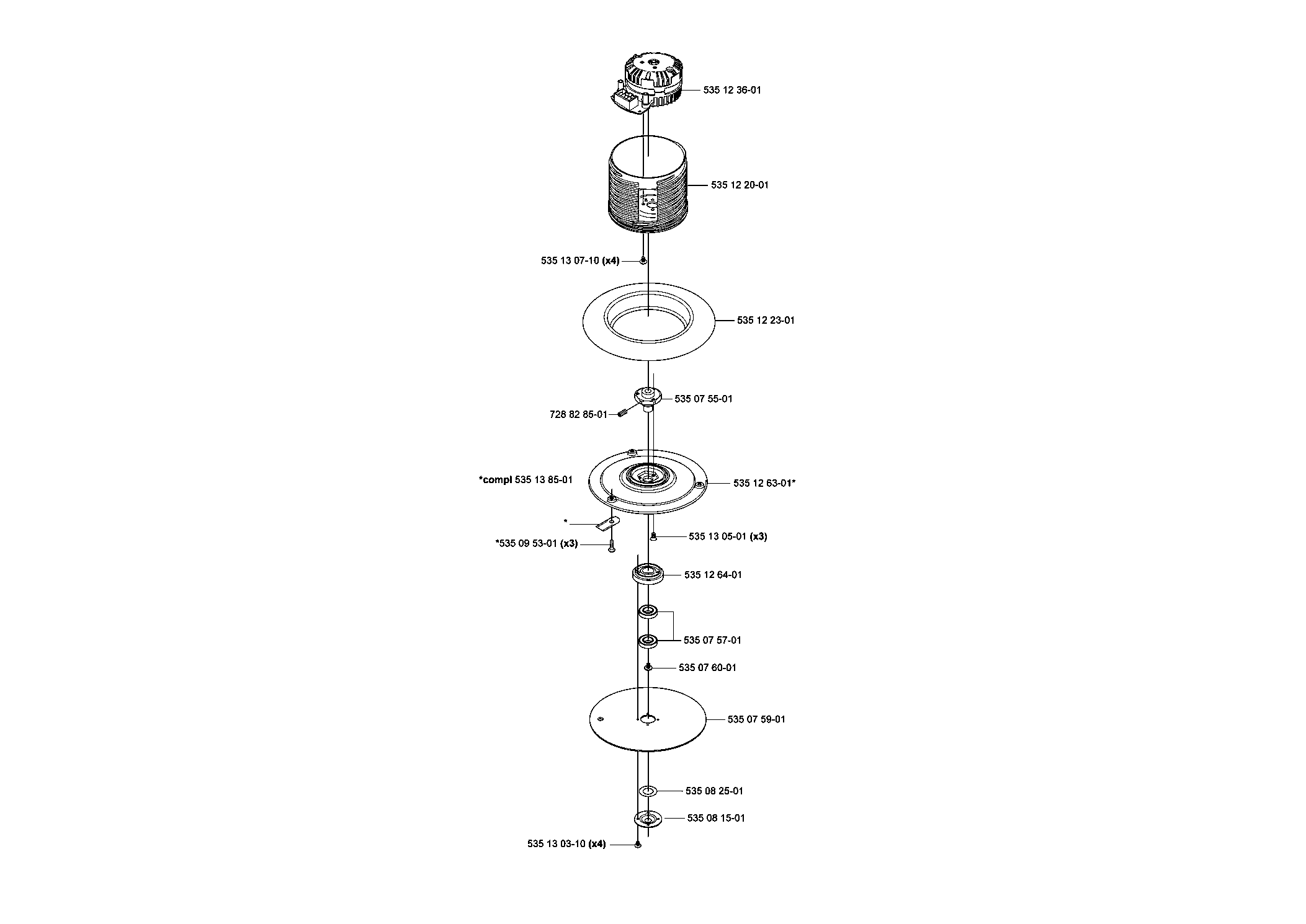

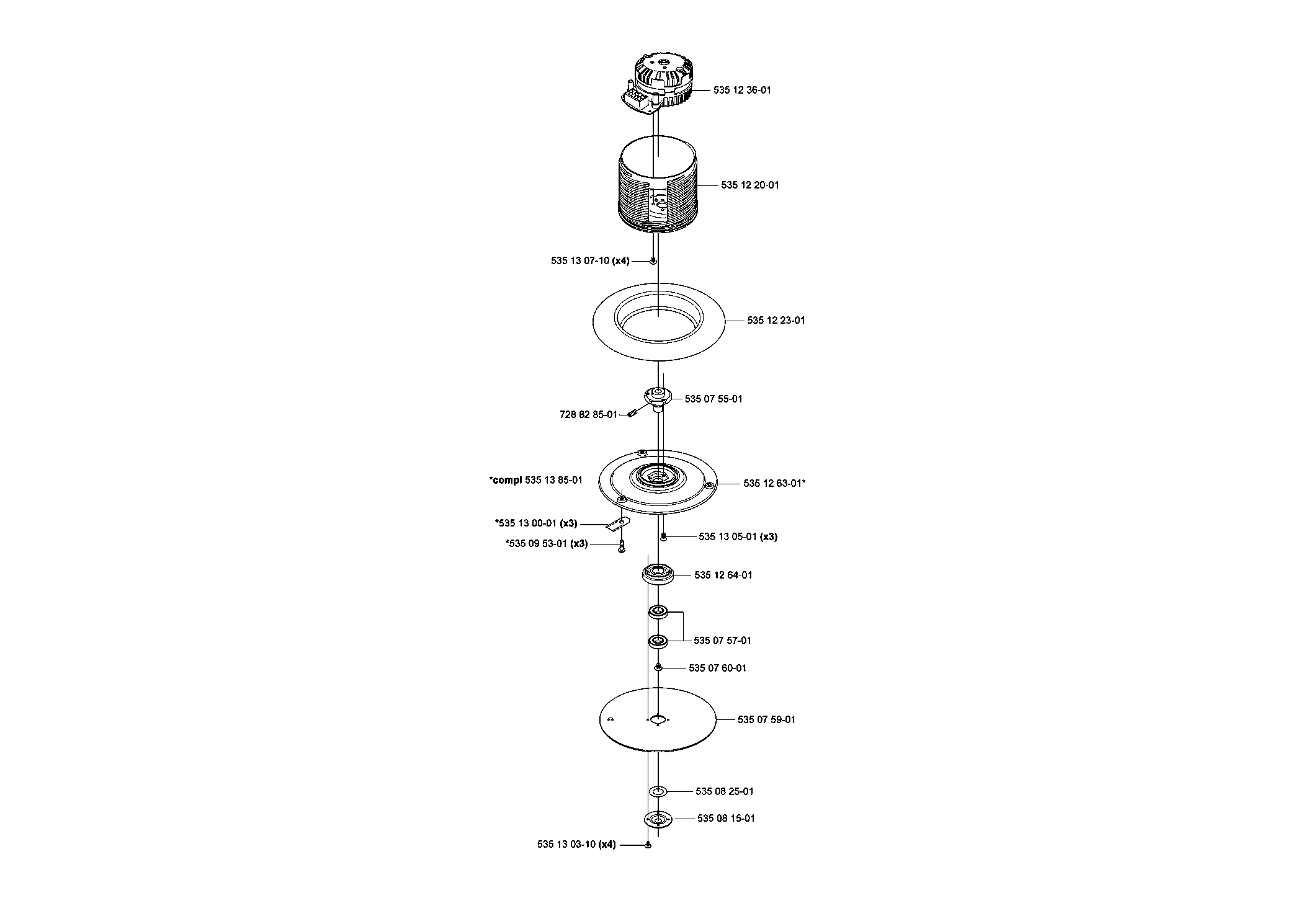

Page:4

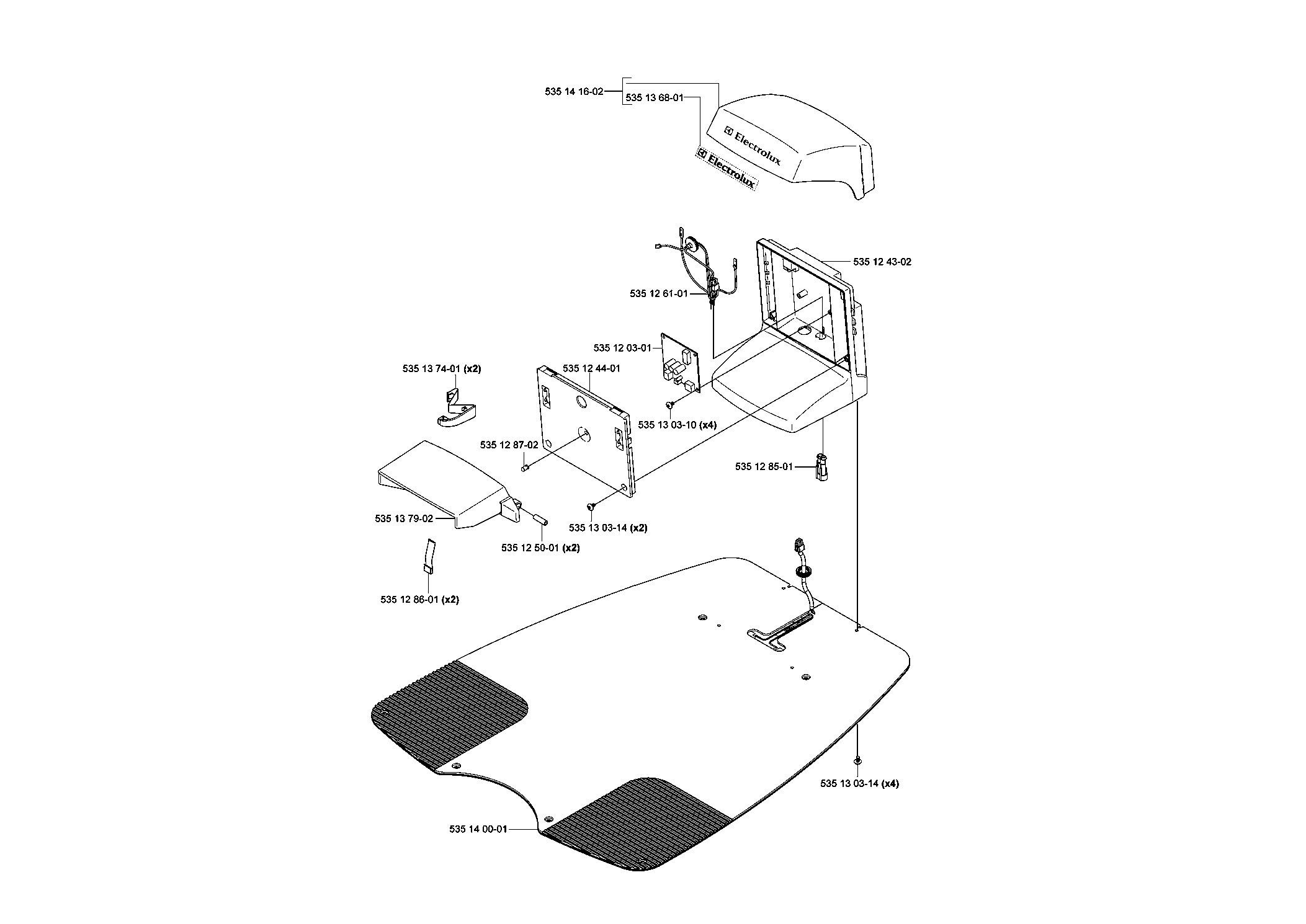

Page:5

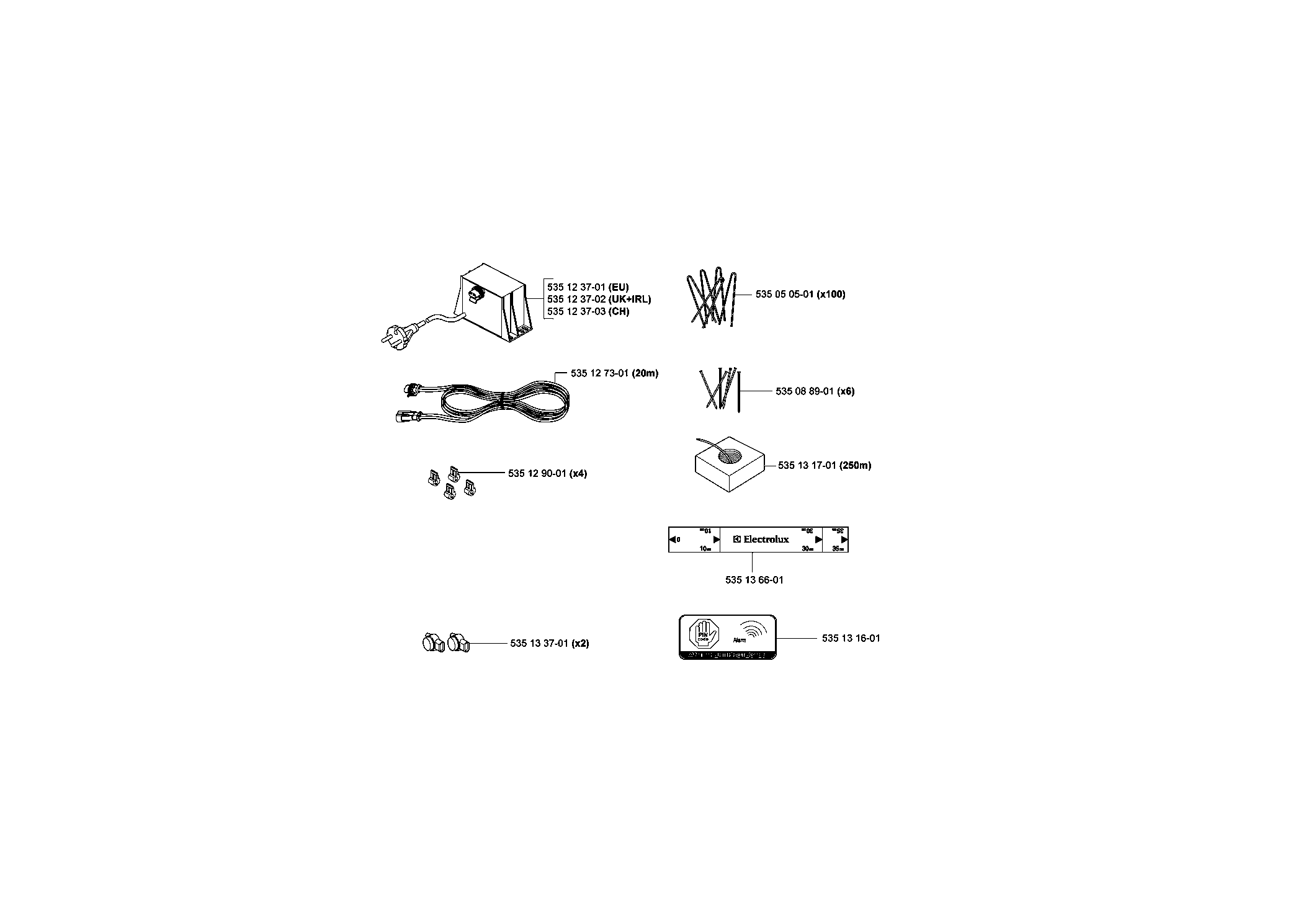

Page:6

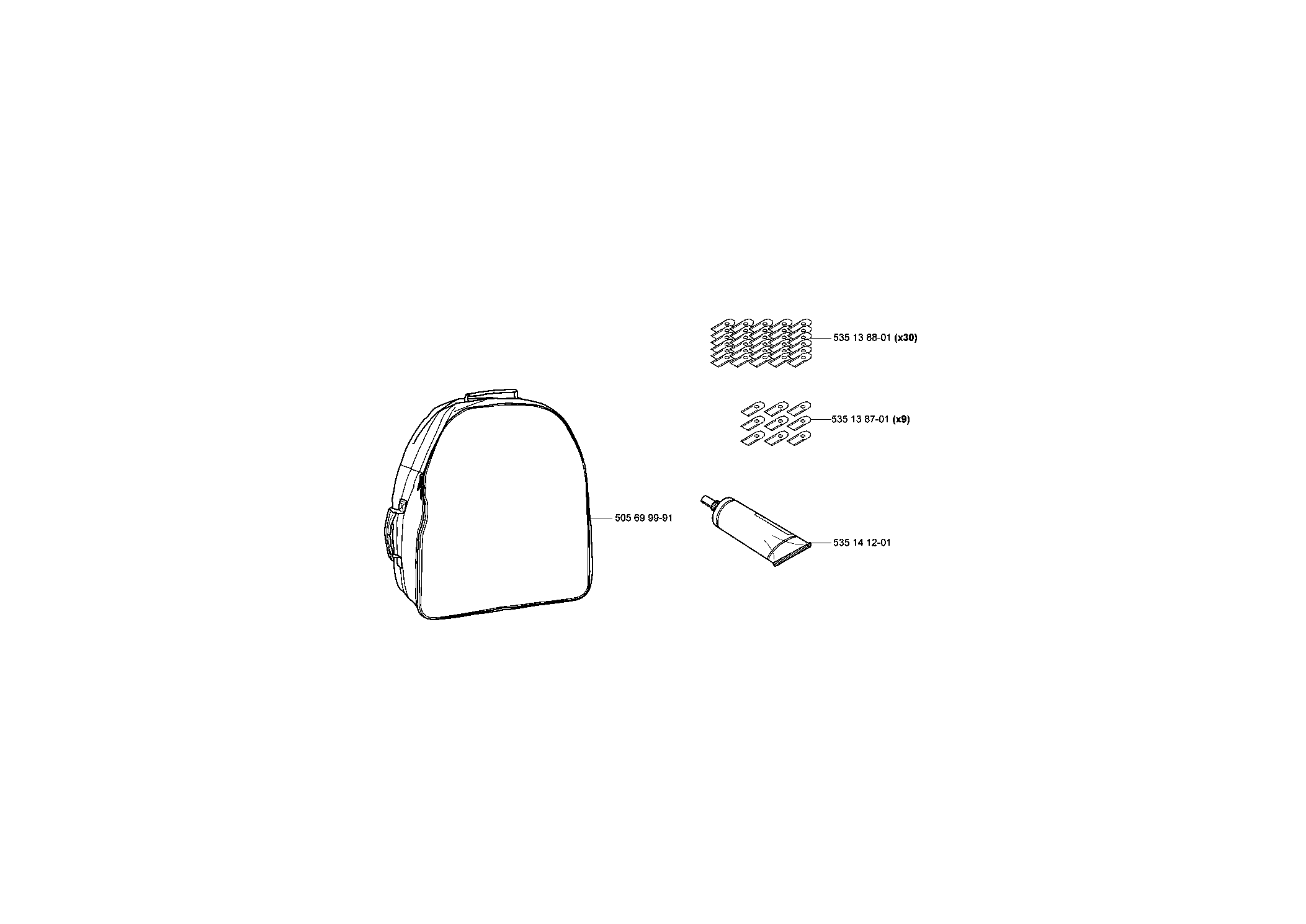

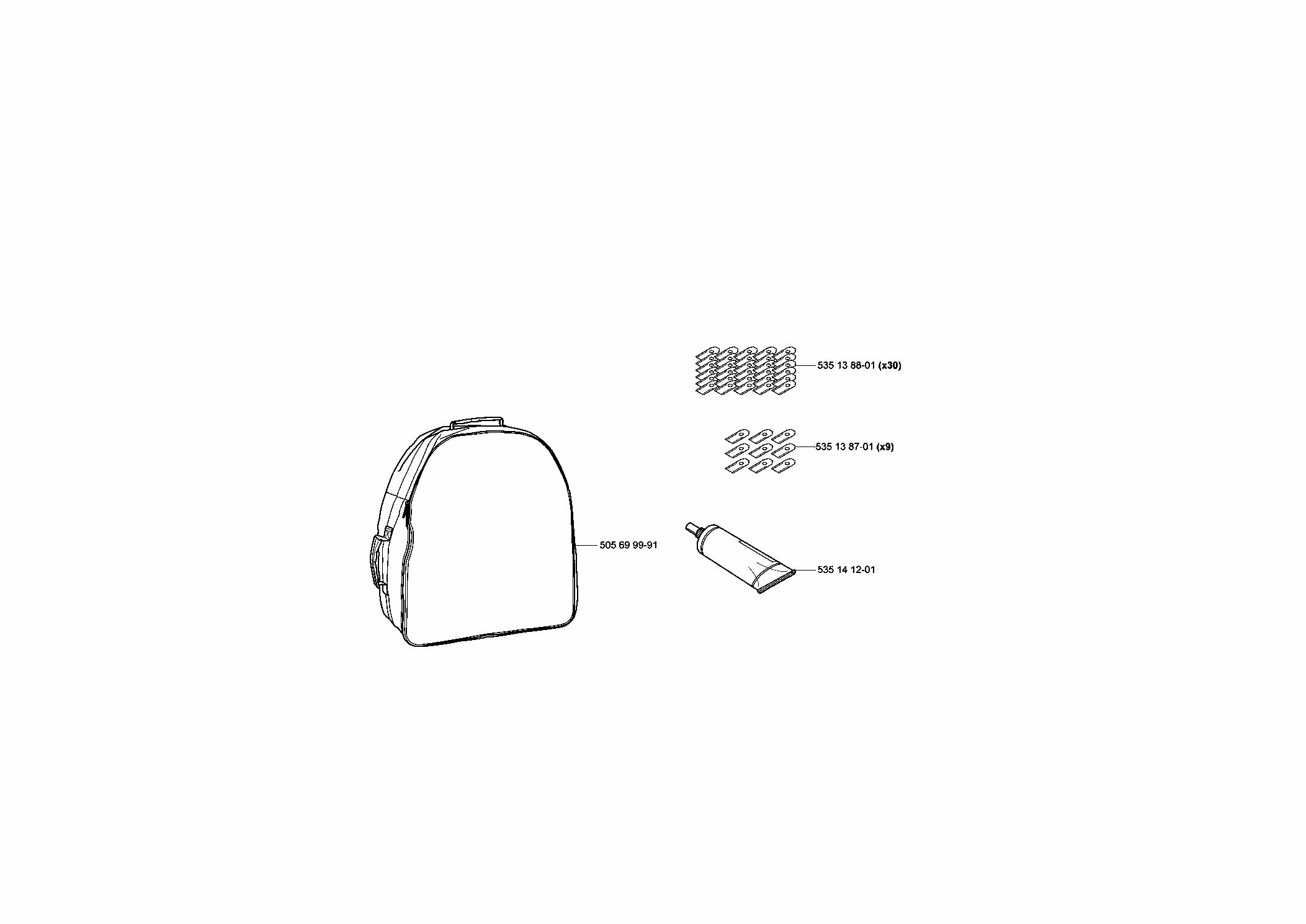

Page:7
